220-1101 Sample Questions Answers

Punchdown tools are used to connect wires to keystone jacks, patch panels and other communication hardware. When adding a new line at the demarcation point, a technician would use a punchdown tool to punch the wire into the keystone jack or patch panel, completing the connection.

A Storage Area Network (SAN) is a dedicated, high-speed network that connects servers to data storage devices. SANs are used in server rooms to provide high-speed storage access to virtual servers.

Verify that the OS supports hot swapping the RAM. Before replacing the RAM on an entry-level server with hot-swappable components, the technician should verify that the operating system supports hot swapping of RAM.

Primary Array:

• Drag and drop two 120 GB SSD hard drives to the primary array bay.
• Open the primary array and select RAID 1 as the RAID level. RAID 1 provides fault tolerance of one drive, ability to function with only one drive, easily recoverable data, high redundancy, and very fast on reads. It also does not need to be scalable and uses the minimum number of drives (two) for RAID 1.
• Confirm the configuration and close the primary array.

Secondary Array:

• Drag and drop two 300 GB SSD hard drives to the secondary array bay.
• Open the secondary array and select RAID 0 as the RAID level. RAID 0 provides the best write performance and uses the minimum number of drives (two) for RAID 0. It also provides a total space of 600 GB (300 GB x 2), which meets the requirement.
• Confirm the configuration and close the secondary array.

You have completed the configuration of the storage arrays.

A USB-C cable is the best option for installing an RS-232 serial signature pad to an ultralightweight laptop. USB-C is a universal connector that supports various protocols and devices, including serial devices. A port replicator is a device that expands the connectivity options of a laptop by providing additional ports. Wi-Fi Direct is a wireless technology that allows devices to connect directly without a router or access point. Hotspot is a feature that allows a device to share its internet connection with other devices via Wi-Fi, Bluetooth, or USB.

Virtual memory is a software-based memory management system that allows a computer to use hard disk storage space as RAM. This can be used to increase the total RAM in a system without upgrading the hardware. To set up virtual memory, the user should go to the System Properties window and select the Advanced tab. In the Performance section, click on the Settings button, which will open the Performance Options window. Then, click on the Advanced tab and click on the Change button in the Virtual memory section. Finally, select the option to Automatically manage paging file size for all drives, and then click OK to save the changes.

This is because the fuser is the part of the printer that heats and melts the toner onto the paper. If the fuser is defective or dirty, it can cause streaks or smudges on printed pages. The system board and the memory are not related to the quality of the print output. The paper tray may cause paper jams or misfeeds, but not streaks on the paper.

When installing a wireless point-to-point connection between two buildings, the technician should consider the allowable limits for transmit power, which vary depending on the country or region. Exceeding these limits could interfere with other wireless devices or violate regulations. NFC protocol data rate, RFID frequency range, and Bluetooth version compatibility are not relevant for a wireless point-to-point connection.

The BEST solution to mitigate spam that appears to come from an organization's own domain is to implement SPF (Sender Policy Framework). SPF is an email validation protocol designed to detect and prevent email spoofing, which is a common tactic used by spammers. By publishing SPF records in the organization's DNS (Domain Name System), the recipient's mail server can check if an incoming email originated from a valid source. If the email fails SPF authentication, it can be blocked or flagged as spam. Therefore, SPF helps to prevent email spoofing and mitigate the risk of spam coming from an organization's own domain

The Trusted Platform Module (TPM) is a hardware component that provides cryptographic functions and secure storage for encryption keys, passwords, and certificates. BitLocker requires a TPM to be enabled and activated in the BIOS or UEFI settings of the laptop in order to use SSD-level encryption. The technician should check that the TPM is enabled and activated before trying to turn on BitLocker. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-series-combined-content-guide (page 34)

A faulty battery could cause a tablet to restart on its own and have intermittent issues with charging. Water damage could also cause these symptoms, but it is not the most likely cause unless there is evidence of liquid exposure. Incorrect OS version could cause compatibility or performance issues, but not charging problems. Damaged charging port could prevent the tablet from charging, but not cause it to restart randomly.

The error message "Reboot and Select Proper Boot Device" indicates that the computer cannot find the boot device that contains the operating system12. This can happen if the hard drive that stores the operating system is damaged or failed, and the BIOS cannot detect it or read from it23. A failed hard drive can also cause other symptoms such as clicking noises, corrupted files, or slow performance4.

When installing RAM into a server that will be used as a VM host, it is recommended to install ECC (Error-Correcting Code) RAM to help prevent errors that can cause virtual machines to crash. References: https://www.servermonkey.com/blog/ecc-vs-non-ecc-ram-what-are-the-differences.html

When installing RAM into a rackmount server that will be used as a VM host, it would be best to install ECC (Error Correcting Code) RAM which can detect and correct common types of data corruption.

Host-only mode is a network option that isolates a client-side virtual machine from the rest of the network. It allows the virtual machine to communicate only with the host machine and other virtual machines on the same host. NAT mode allows the virtual machine to share the host’s IP address and access the network through it. Bridge mode allows the virtual machine to have its own IP address and connect directly to the network. Direct mode is not a valid network option for virtual machines.

According to the Official CompTIA A+ Core 1 Study Guide (220-1101) 1, the correct answer is A. Document the findings, actions, and solution in the company knowledge base.

The explanation is that after resolving an issue, a technician should always document what was done and how it was fixed. This helps to create a record of the problem and its solution for future reference and also to share knowledge with other technicians.

https://www.comptia.org/training/books/a-core-1-220-1101-study-guide

By documenting the findings, actions, and solution in the company knowledge base, it will help to ensure that if the Issue happens again, the technician or a different technician will be able to quickly and easily find the solution and resolve the Issue. Additionally, it is important to document the solution so that the same Issue does not need to be troubleshot multiple times in the future.

 M2PCIeNVMeSSD. M.2 PCIe NVMe SSDs are the fastest internal storage devices available for desktops. They are faster than SATA SSDs and PCIe SATA HDDs12.

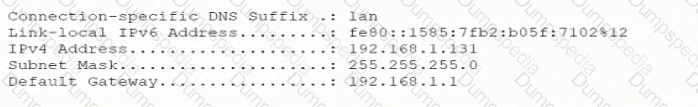

Based on the information recorded by the technician, the network connection appears to be functioning normally. The user's computer is properly configured with an IPv4 address, subnet mask, and default gateway, which should allow the user to access the internet and online videos. The high download and upload speeds and low ping time recorded from the test laptop also indicate that the network is working well. However, the user's inability to watch online videos suggests that there might be an issue with the network card (NIC) on the user's computer. The NIC might be faulty or malfunctioning, which is preventing the computer from receiving and processing the video data. The technician should try replacing the NIC to resolve the issue.

A significant increase in the number of reallocated sectors on a hard drive is a clear indication that the drive is experiencing physical damage or wear and tear that cannot be repaired through software means. Reallocated sectors are bad sectors that the drive's firmware has marked as unusable and moved data to spare sectors. This is often a precursor to drive failure. Therefore, the most prudent next step is to replace the hard drive to ensure data integrity and system reliability.

References:

• CompTIA A+ Core 1 Exam Objectives Section 5.3: Given a scenario, troubleshoot and diagnose problems with storage drives and RAID arrays.

The correct answer is D. UDP.

UDP (User Datagram Protocol) is a connectionless protocol that does not establish a connection before sending or receiving data. UDP simply sends datagrams to the destination without checking if the receiver is ready or not. UDP does not guarantee reliable delivery, error correction, or in-order arrival of the data. UDP is faster and more efficient than connection-oriented protocols for applications that do not require reliability, such as streaming audio or video1

A. SSH (Secure Shell) is not a correct answer. SSH is a connection-oriented protocol that uses TCP (Transmission Control Protocol) as its transport layer. SSH establishes a secure and encrypted connection between two network endpoints before exchanging data. SSH provides authentication, confidentiality, and integrity for remote login and command execution2

B. TCP (Transmission Control Protocol) is not a correct answer. TCP is a connection-oriented protocol that establishes a connection before sending or receiving data. TCP ensures reliable delivery, error correction, and in-order arrival of the data. TCP is slower and more complex than connectionless protocols, but it provides more reliability and quality of service for applications that require it, such as web browsing or email1

C. HTTPS (Hypertext Transfer Protocol Secure) is not a correct answer. HTTPS is a connection-oriented protocol that uses TCP as its transport layer and SSL/TLS as its security layer. HTTPS establishes a secure and encrypted connection between a web browser and a web server before exchanging data. HTTPS provides authentication, confidentiality, and integrity for web transactions, such as online banking or shopping1

 The message “The amount of system memory has changed” indicates that there is a problem with the random access memory (RAM) modules in the computer. The RAM may be loose, faulty, or incompatible with the motherboard or other components. The GPU, HDD, and CPU are not directly related to system memory and would not cause this message to appear.

To terminate an RJ45 port, a technician should use a punchdown tool. This tool is specifically designed to insert and cut (terminate) the wires into a patch panel, keystone jack, or a network surface mount box. The punchdown tool ensures that the wire is properly seated in the terminal block and that the connection is secure. It also trims the excess wire during the termination process, which is not a function that cable testers, toner probes, or cable strippers are designed to perform.

References:

• CompTIA A+ Certification Core 1 220-1101 study materials and learning resources1.
• Networking tools and best practices for hardware and device management as covered in the CompTIA A+ certification guidelines

If a color laser printer's image quality decreases after being serviced for dust removal, it's likely that the servicing process affected the printer's calibration. Calibration ensures that color reproduction is accurate, and if disturbed, can lead to a decrease in image quality. It's important to check and recalibrate the printer to restore its ability to accurately reproduce colors and maintain high image quality.

References:

• CompTIA A+ Core 1 (220-1101) Exam Objectives, particularly the sections dealing with printer maintenance, troubleshooting, and the importance of calibration in maintaining image quality in laser printers.
• Knowledge of printer maintenance procedures and their impact on printer performance, with a focus on how calibration affects color accuracy and overall image quality.

A network tap is a physical device that allows promiscuous monitoring of network traffic by creating a copy of the data packets for analysis. A toner probe is used to trace and identify cables. A Wi-Fi analyzer is used to measure wireless signal strength and interference. A loopback plug is used to test network ports or cables by sending and receiving signals from the same device.

correct answer is "Overclocking" and "Reduce CPU Clock speed" CPU is at 4.5 Ghz when normal is 3.2 Ghz. Overclocking too much can cause freezes, and this is a gaming computer so the user probably took it too far. http://blog.logicalincrements.com/2018/12/4-troubleshooting-tips-overclocking-pc/

When experiencing issues accessing a USB key for a firmware update, particularly in relation to system board UEFI updates, the Secure Boot feature should be considered. Secure Boot is a security standard designed to ensure that a computer boots using only software that is trusted by the PC manufacturer. If Secure Boot is enabled, it might prevent the system from recognizing or booting from the USB key if the firmware update or the USB drive is not recognized as a trusted source. Disabling Secure Boot temporarily can allow the firmware update to proceed.

References:

• CompTIA A+ Core 1 (220-1101) Exam Objectives, specifically the sections on UEFI/BIOS settings and configurations, including the role and configuration of Secure Boot in system security.
• Understanding of UEFI/BIOS security features and their impact on system boot processes, particularly the function of Secure Boot in validating firmware and software integrity during the boot process.

When print jobs remain stuck in the printer queue despite successful network communication (indicated by successful ping replies) and no issues with paper supply or toner levels, a common reason can be that the first job in the queue requires manual intervention, such as paper to be fed into a manual feed tray. Printers often pause the entire print queue if the first job requires a specific type of paper or manual insertion that hasn't been addressed, preventing subsequent jobs from processing.

References:

• CompTIA A+ Core 1 (220-1101) Exam Objectives, specifically the sections on troubleshooting printers, which include understanding various reasons why print jobs might get stuck in the print queue.
• Knowledge of printer operation and common print job issues, with an emphasis on how printers handle manual feed tray requirements and the impact on the print queue.

The technician failed to properly diagnose the issue by not establishing a theory of probable cause. Instead of investigating why the network drives were accessible wirelessly but not when docked, the technician assumed a faulty network card and ordered a new laptop. Proper troubleshooting involves developing a theory of what might be causing the problem, based on the symptoms and available information, and then testing that theory. In this case, the issue could have been related to docking station settings, network configurations, or hardware issues specific to the docking connection.

References: This answer is grounded in standard troubleshooting methodologies, which emphasize the importance of logically deducing the most likely cause of a problem before proceeding with more drastic measures such as replacing hardware.

If an application was previously running in a virtualized environment and is not launching after being installed directly on the base operating system, it's possible that the technician did not account for dependencies or configurations specific to the virtualized environment that are not present or are incompatible with the base operating system. This mismatch can prevent the application from launching properly.

References:

• CompTIA A+ Core 1 Exam Objectives Section 4.0: Virtualization and Cloud Computing
• CompTIA A+ Core 1 Exam Objectives Section 5.0: Hardware and Network Troubleshooting

After the implementation of SSL (Secure Sockets Layer) redirection, the inability of users to access certain web-based applications or content, like a random number generator, suggests a compatibility or compliance issue with HTTPS (HyperText Transfer Protocol Secure). The first troubleshooting step should be to verify if the website in question supports HTTPS, as SSL redirection forces connections to use HTTPS for security. If the website only operates over HTTP, it won't be accessible after SSL redirection is implemented, leading to the issues reported by users.

References:

• CompTIA A+ Core 1 (220-1101) Exam Objectives, especially sections pertaining to network security protocols and the configuration of client-side network and security settings.
• Understanding of web protocols and security measures, including the significance of HTTPS in ensuring secure communications over the internet and the impact of enforcing SSL redirection on accessing non-HTTPS compliant websites.

The connector that the IT technician should inspect further is Molex. The Molex connector is used to provide power to the motherboard and other components in the computer. If there is a suspected power issue with the motherboard, the IT technician should inspect the Molex connector to ensure that it is properly connected and providing power to the motherboard1

A storage area network (SAN) is the type of network that the technician will be working with when adding more space to resolve the issue of all VMs being down due to the network being out of space. A SAN is a network that provides access to consolidated and block-level data storage, which can be used for virtualization and backup purposes. SCSI is a type of interface that connects devices such as hard drives and optical drives to a computer. NAC is a type of security solution that controls access to a network based on policies and device compliance. WISP is a type of internet service provider that delivers wireless broadband access over long distances.

Upgrading a power supply to add a GPU typically requires more wattage to accommodate the additional power demands. Although the current power supply is 380W, adding a GPU with a six-pin power connector suggests a mid-range graphics card, which would likely need a total system power supply in the range of 450W to ensure adequate power for all components, providing a good balance between capacity and safety margins.

References:

• CompTIA A+ Core 1 Exam Objectives Section 3.5: Given a scenario, install or replace the appropriate power supply.

 If a technician is on site troubleshooting a customer’s laptop and needs to download a software update but the company’s proxy is blocking updates, the most appropriate action for the technician to take would be to request a traffic exemption from the company’s IT department.

The shared-tenant model for a cloud deployment, also known as a multi-tenant model, allows multiple customers to use the same resources and infrastructure of the cloud service provider, with each customer's data and applications isolated from one another. This model is often chosen for cost savings, as resources are shared and users only pay for what they use. Therefore, the MOST likely reason that an administrator chose this model is A. Cost savings.

Rapid elasticity would be used by an online retailer to quickly add more web servers during peak sales times. References: CompTIA A+ Certification Exam Guide, Exam 220-1001, Page 405

Rapid elasticity is only suitable for a domain whose resource requirements suddenly up and down for a specific time interval. Referring to the question the online retailer wants to migrate to public cloud services during peak season, then wants it to be removed "automatically" when the peak is over.

 Enabling high-accuracy mode is the most likely action to resolve the issue of unreliable GPS on a user’s phone. High-accuracy mode uses multiple sources of location data, such as Wi-Fi, cellular networks, and Bluetooth, to improve the accuracy and reliability of GPS. Replacing the battery, disabling Wi-Fi connections, or utilizing a third-party map application are unlikely to fix the GPS issue, as they are not directly related to the GPS function

RAID 10 array is often used for server virtualization as it provides both redundancy and performance benefits. It uses a combination of mirroring and striping to provide both fault tolerance and improved I/O performance. An optical disk drive or eMMC storage device would not provide enough storage or performance for a VM host server, while a 15,000rpm drive may provide good performance but would not provide redundancy for fault tolerance. Therefore, a RAID 10 array is the best option for cost-effective storage that will be used for all VMs that run from the server.

Metered utilization of cloud resources refers to payments made only for resources that are used. Cloud providers offer a pay-as-you-go model where customers are charged based on their usage of resources. Customers can easily scale up or down their usage of resources as per their needs and only pay for what they use. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition by Mike Meyers (Page 642)

If a laser printer is producing output with duplicate images (also known as ghost images), it could be due to an issue with the toner drums and rollers. The first step to eliminate the ghost images would be to clean the toner drums and rollers to remove any excess toner that may be causing the issue.

Ghost images are a common issue in laser printers where an image or text from a previous page appears faintly on subsequent pages. The cause of this issue is usually due to toner residue on the drum or rollers, which can be removed by cleaning the toner drums and rollers. References: Study Guide Section 4.6 - Printer technologies

If a workstation shuts down unexpectedly during a burn-in test, overheating is the most likely cause. This is because a burn-in test is designed to stress the components of the workstation, which can generate a lot of heat. Therefore, overheating is the correct answer. References: CompTIA A+ Certification Exam Guide, Ninth Edition, page 120

The most appropriate solution for the technician to consider in this situation is Application virtualization. Application virtualization is a technology that allows applications to run in a virtual environment, which isolates them from the underlying operating system and other applications. This ensures that the application deployment will not affect other legacy applications on the end users’ computers1.

The most likely reason for a computer showing an APIPA address after being plugged into a network port is that the PC is unable to contact a DHCP server1. Automatic Private IP Addressing (APIPA) is a DHCP fail-safe that protects a computer system from failure. It invokes a standby mechanism for local Internet Protocol version 4 (IPv4) networks supported by Microsoft Windows. With APIPA, DHCP clients can obtain IP addresses even when DHCP servers are not functional1. The other options are less likely to be the cause of the issue1.

CompTIA 6-Step Troubleshooting Process:

1. Identify the problem.

2. Establish a theory of probably cause. (Question the obvious)

3. Test the theory to determine cause.

4. Establish a plan of action to resolve the problem and implement the solution.

5. Verify full system functionality and if applicable implement preventative measures.

6. Document findings, actions, and outcomes.

Writing a knowledge base article in the ticketing software would help document the root cause of the application error and the steps taken to resolve it, which can help other technicians resolve similar issues in the future. This is an example of knowledge management best practices. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition, Chapter 6

Two-factor authentication (2FA) significantly enhances security by requiring two forms of verification before granting access to company resources, making it harder for unauthorized users to gain access even if they have one of the credentials. PIN code enforcement adds an additional layer of security by ensuring that devices are protected by a PIN, making physical access to the device more challenging for unauthorized users. While the other options provide various benefits, 2FA and PIN code enforcement directly enhance the security of remote users accessing company resources.

References:

• CompTIA A+ Core 1 Exam Objectives Section 2.7: Compare and contrast Internet connection types, network types, and their features.

The correct answer is B. Duplex.

Duplex printing is the process of printing on both sides of a sheet of paper automatically or manually. Duplex printing can save paper, reduce clutter, and create professional-looking documents. To print on both sides of the paper, the printer must support duplex printing or the user must manually reinsert the pages to print the second side.

Orientation is the direction in which the paper is printed, either portrait (vertical) or landscape (horizontal). Orientation does not affect the ability to print on both sides of the paper.

Quality is the resolution or sharpness of the printed image, measured in dots per inch (dpi). Quality does not affect the ability to print on both sides of the paper.

Print tray is the part of the printer that holds and feeds the paper into the printer. Print tray does not affect the ability to print on both sides of the paper.

To enable duplex printing on a Windows PC, follow these steps1:

• Open the document for printing, then select File > Print.
• In Settings, select Manually Print on Both Sides, then Print.
• Follow the instructions on the screen to flip and reinsert the pages.

To enable duplex printing on a Mac, follow these steps2:

• Open the document for printing, then select File > Print.
• In Layout, select Two-Sided, then Long-Edge binding or Short-Edge binding.
• Click Print.

References:

Print on both sides of the paper (duplex printing) in Word

How to Print Double-Sided on a Windows PC or Mac Computer

The digitizer is the component that converts the touch input into electrical signals that are processed by the tablet. If the digitizer is damaged or malfunctioning, it may not register the touch input correctly or at all. The technician can test the digitizer using a diagnostic tool or by replacing it with a known good one. Updating the device drivers, replacing the damaged screen protector, or performing a factory reset are unlikely to fix the issue, as they do not address the hardware problem.

For laptops, the most common type of RAM used is Small Outline Dual Inline Memory Module (SODIMM) due to its smaller size compared to DIMMs used in desktops. DDR5 is the latest generation of RAM, offering higher speed and efficiency. ECC (Error-Correcting Code) DIMM DDR5 and Registered DIMM DDR5 are typically used in servers and high-end workstations for error correction and stability, not in standard laptops. High latency DDR5 is not a desirable specification for RAM as lower latency is preferred for faster performance.

References:

• CompTIA A+ Core 1 Exam Objectives Section 3.2: Given a scenario, install the appropriate RAM.

Mobile Device Management (MDM) is a software solution that allows companies to manage and secure mobile devices used in the corporate environment. MDM provides features such as remote data wipe, application management, and device security policies to ensure data protection and compliance with company policies. References: CompTIA A+ Certification Exam Objectives 220-1001 - Mobile device hardware and operating systems - 2.8

Upon identifying a potential cause of an issue with a RAID 5 array, especially when the array is making clicking noises that suggest a failing drive, the next critical step is to perform a full data backup. This ensures that data is preserved before any further troubleshooting steps are taken, such as replacing the failing drive. RAID 5 provides fault tolerance, but ensuring data is backed up minimizes the risk of data loss during the repair process.

References:

• CompTIA A+ Core 1 (220-1101) Exam Objectives, especially the sections dealing with storage devices and data backup and recovery principles, which would include strategies for dealing with potential drive failures in RAID arrays.
• Best practices in data management and protection, emphasizing the importance of securing a backup before undertaking hardware replacements or repairs in storage arrays to prevent data loss.

When a computer frequently freezes and requires hard restarts, the first step a technician should take, especially when hardware components have not been recently changed, is to read the event logs. Event logs can provide critical insights into what is causing the system to freeze, including errors and warnings that precede the freeze. This information is essential for diagnosing software or operating system issues that might be causing instability. Checking the temperature or updating drivers might be subsequent steps based on findings from the event logs.

References:CompTIA A+ Core 1 (220-1101) troubleshooting section, which emphasizes the importance of using system logs to diagnose issues.

An MX (Mail Exchange) record in DNS specifies the mail server responsible for accepting email messages on behalf of a domain. It is a vital component of the email delivery process, directing email to the correct server based on the domain part of the email address. Without properly configured MX records, a domain's email system cannot function correctly.

One of the possible causes of a laptop randomly turning off is liquid damage, which can cause short circuits, corrosion, and overheating of the internal components1. Liquid damage can be hard to detect, especially if the laptop has been dried or cleaned after the spill2. However, one of the indicators of liquid damage is the presence of small sticker paper within the device that changes color from red to blue3.

These stickers are called liquid contact indicators (LCIs), and they are designed to show if a device has been exposed to water or other liquids3. LCIs are usually red when dry, but they turn blue or purple when wet3. LCIs are often placed near the ports, battery, keyboard, and motherboard of laptops and other electronic devices3. LCIs can help technicians diagnose liquid damage and determine if the device is covered by warranty or not3.

The user should configure the print job to use the Duplex option, which will print on both sides of the paper and reduce the amount of paper used.

The cloud concept that should be used for migrating all common business applications, including email and fileshares, to the cloud is Software as a Service (SaaS).

The cause of the issue is likely due to a DNS resolution issue. While the technician can ping the servers by IP address, they cannot ping the UNC path, indicating an issue with the name resolution. This can be resolved by configuring the correct DNS server settings.

The technician will need to connect the DVI port on the computer to the new display's HDMI port. To do this, a DVI to HDMI cable will be needed. This type of cable will allow the computer's DVI video signal to be transmitted to the new display's HDMI port.

A digital-to-analog converter (DAC) is used to convert a digital signal to an analog signal. An A/V switcher is used to switch between multiple audio and video sources and display them on a single monitor or display. A DisplayPort to HDMI adapter is used to convert a DisplayPort signal to an HDMI signal, but it is not necessary in this scenario as the computer has a DVI port and not a DisplayPort.

If a technician is implementing a SOHO wireless solution with three access points and wants to avoid high latency, the technician should configure all devices with different channels. By configuring all devices with different channels, the technician can ensure that the wireless signals from each access point do not interfere with each other, which can cause high latency.

Toner Probe Many cable testers also incorporate the function of a toner probe, which is used to identify a cable from within a bundle. This may be necessary when the cables have not been labeled properly. The tone generator is connected to the cable using an RJ45 jack and applies a continuous audio signal on the cable. The probe is used to detect the signal and follow the cable over ceilings and through ducts or identify it from within the rest of the bundle.

The technician should restart the modem and run an online internet connection and speed diagnostic tool1. High latency is a common issue with satellite internet connections, and it can cause slow internet speeds2. Restarting the modem can help to resolve the issue1. The technician should also run an online internet connection and speed diagnostic tool to check the connection and speed1. Guiding the customer on how to upgrade the internet plan with the provider in order to improve latency is not likely to be the correct option2.

High latency while pinging can indicate a problem with the modem or the connection between the modem and the satellite. Restarting the modem can often resolve connectivity issues. Running an online internet connection and speed diagnostic tool can help identify any other issues with the connection. Upgrading the internet plan may not resolve latency issues and may not be necessary if the download test is performing perfectly with very good download speeds. High latency is not normal for satellite internet connections, so replacing the modem based on this one test result is premature. References: CompTIA A+ Certification Exam: Core 1 - Page 102

The phone's GPS may fail due to a loss of service from the carrier, which provides the phone with GPS location data. The fact that the in-car GPS continued to function suggests that the issue was related to the phone, not the GPS satellites. References: CompTIA A+ Certification Study Guide, Tenth Edition, pg. 372

To fix a Cat 5 cable issue where the cable fails when it is moved around, the technician would need to use an RJ45 connector (option E) and a crimper (option F). The technician can use the crimper to attach a new RJ45 connector to the end of the cable, which should resolve the issue.

An RJ45 connector (option E) is a type of connector commonly used for Ethernet networking. It is an 8-position, 8-contact (8P8C) modular plug and jack that is used to terminate Cat 5 and other types of twisted pair cables. A crimper (option F) is a tool used to attach connectors to the ends of cables. In this case, the technician would use the crimper to attach a new RJ45 connector to the end of the Cat 5 cable.

When a cable fails when it is moved around, it often indicates that there is a problem with the connector at the end of the cable. By attaching a new RJ45 connector using a crimper, the technician can ensure that the cable has a secure and reliable connection.

By requiring a code or badge before releasing a print job, it ensures that only authorized personnel can collect the printouts. This method is effective in preventing waste and in keeping sensitive documents confidential. Sending reminders, enabling duplex printing, and billing departments are useful strategies for reducing paper utilization but may not necessarily prevent waste caused by uncollected printouts.

Requiring a code or badge before releasing a print job is the best solution to prevent the waste of printed materials, as it ensures that only the user who initiated the print job is able to pick up the printed materials. This can be achieved by implementing print release software or requiring users to enter a PIN code at the printer. References: CompTIA A+ Certification Exam Objectives 1001, 2.10

When a user connects a smartphone to a laptop, they create a Personal Area Network (PAN). A PAN is a type of network used for communication between devices in close proximity to each other, typically within a range of a few meters or less. This type of network is commonly used for wireless communication between personal devices, such as connecting a smartphone to a laptop for file sharing or internet access. References: CompTIA A+ Certification Exam Objectives - 220-1001: 1.1 Explain common connectors and their uses.

The technician should check the level of network utilization to determine if there is an excessive amount of traffic that may be causing the slow access to the network fileshare. This can be done using network monitoring tools to track the amount of data being transmitted on the network. References: CompTIA A+ Certification Exam Objectives 1001, 2.9

In the SaaS (Software as a Service) model, the service provider manages the infrastructure, platforms, and software applications, including maintenance tasks such as application patching. Users access the applications over the internet, and the provider is responsible for ensuring the software is up to date, secure, and performing optimally. This model contrasts with IaaS (Infrastructure as a Service) and PaaS (Platform as a Service), where the customer has more control and responsibility over the environment and may need to manage patching for applications they develop or install.

References: SaaS is designed to relieve users from the complexity of software maintenance, including patch management, as highlighted in cloud computing service model descriptions.

Mobile Device Management (MDM) policies are crucial for companies that allow employees to use personal devices for work duties. MDM enables the company to enforce security policies, manage and secure corporate data on personal devices, and ensure compliance with company standards. It allows for remote management of these devices, including the ability to remotely wipe company data if the device is lost or stolen, without impacting personal data, thereby protecting company information effectively.

When a laser printer produces humming and grinding noises along with ghost images on the printouts, the issue is most likely related to the printer's rollers. These symptoms suggest that the rollers, which are responsible for feeding paper through the printer, may be worn out or dirty. This can cause them to not grip the paper properly, leading to repeated imprints or "ghosting" of images on the printouts. Replacing or cleaning the rollers should resolve both the noise and the print quality issues.

References:

• CompTIA A+ Core 1 (220-1101) Exam Objectives, specifically the sections dealing with printer maintenance and troubleshooting, which would include addressing issues with internal components such as rollers.
• General knowledge of laser printer operation and common issues, highlighting the role of rollers in paper feed mechanisms and their impact on print quality.

The most likely cause of the issue is that the page orientation is incorrect. The printer may be set to print labels in a different orientation than the orientation of the label sheet1.

When a user hears one beep on rebooting a machine, and then an error message is displayed, it could indicate that there is a problem with the RAM module or the boot order. The beep sound indicates that the POST process was successful, and the error message indicates that the boot process was unsuccessful. The boot order determines the sequence in which the computer looks for bootable devices. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition by Mike Meyers (Page 693)

The unexpected reboots on a graphics workstation when rendering complex 3-D models may be caused by insufficient power supply. The workstation is configured with a 115V power supply that is rated at 200W, which may not be enough when the GPU is heavily tasked. The technician should begin troubleshooting by checking the power supply.

After the issue has been identified and the backup of the system has been made, the next step is to establish a theory of probable cause. This involves researching the issue to determine the root cause of the problem. This can involve researching internally (e.g. referring to the system logs) or externally (e.g. searching online). Once the probable cause has been identified, the technician can then move on to the next step of designing a plan of action to resolve the issue and implementing the solution.

M.2 is a form factor for solid-state drives (SSDs) that enables direct attachment to the motherboard without the need for cables. Thunderbolt is a high-speed interface that supports data transfer, video output, and charging. eSATA is an external interface for connecting SATA devices. SCSI is an older interface standard for connecting hard drives, printers, and other peripherals.

Installing a hard drive directly on the motherboard without using cables is usually done with an M.2 slot. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 5

Domain Name System (DNS) is an Internet service that translates domain names (e.g., its.umich.edu) into IP addresses. Dynamic Host Configuration Protocol (DHCP) is a protocol for automatically assigning IP addresses and other configurations to devices when they connect to a network.

Opening multiple large Excel files simultaneously requires a large amount of RAM. Upgrading the RAM in the workstation should improve performance. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 9

Private cloud environments are designed for use by a single organization and offer the greatest control over security and access to data. They are typically used for sensitive or confidential data, such as health and criminal justice records. Public cloud environments are shared by multiple organizations and offer less control over security and access to data. Hybrid cloud environments combine public and private clouds, while community clouds are shared by multiple organizations with similar needs. References: CompTIA A+ Certification Exam: Core 1 - Page 234

Thin, vertical lines on every printed page are usually caused by a dirty drum or toner cartridge. Performing the drum-cleaning procedure will likely resolve the issue. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 18

In this situation, the best course of action for the technician to take NEXT would be C. Verify the socket type and manufacturer. If the pins on the CPU do not line up with the socket on the motherboard, it is likely that there is a compatibility issue between the two components. The technician should verify that the socket type and manufacturer of the motherboard match those of the CPU to ensure that they are compatible.

The most likely cause of the cursor issue is that the screen needs to be recalibrated. This can happen when the tablet is used for a long time or when the tablet is dropped or bumped. Recalibrating the screen will help the tablet recognize the touch input more accurately12.

Three beeps indicate a "base memory read/write test error". Check out "beep codes" for more information.

https://en.wikipedia.org/wiki/Power-on_self-test#POST_beep_codes_on_CompTIA_A.2B_certification_exam

Reseating the RAM is the best course of action to remediate the issue of three consecutive beeps during boot, as it may indicate a RAM failure or loose connection. By reseating the RAM, the technician can ensure that the connection is secure and the computer should boot normally. References: CompTIA A+ Certification Exam Objectives 1001, 1.9

The most likely reason that the technician is unable to select the channel with almost no RF pollution is that it is reserved for licensed band use. Some channels are reserved for specific purposes and require a license to use. These licensed bands are typically used for critical infrastructure, public safety, or military operations, and unlicensed devices are not allowed to use them. References: CompTIA A+ Certification Exam Objectives - 220-1001: 3.3 Compare and contrast common networking hardware devices.

The digitizer is the component that enables input on a mobile device's touch screen. It is a transparent layer that sits over the screen and detects the location of touch inputs. OLED (Organic Light Emitting Diode) is a type of display technology. Inverter is a component used in older LCD displays to provide power to the backlight. CMOS (Complementary Metal-Oxide-Semiconductor) sensor is a type of image sensor used in digital cameras and smartphones to capture images. References: CompTIA A+ Certification Exam: Core 1 - Page 177

A smartphone that takes more than a day to fully charge may be due to a charger that is not powerful enough. The technician should verify that the charger is rated for the smartphone’s battery capacity and that it is providing the correct voltage and amperage123.

The symptoms suggest that the charging cable falls out of the phone, indicating that the charge port may contain foreign objects such as lint, which can interfere with the connection between the charging cable and the phone.

If the filesystem check shows that all files are accessible and the filesystem is clean, but a hard drive error message persists, it's possible that the hard drive is experiencing S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) failure. This is a warning system built into hard drives to alert users of potential issues before they become critical. References: CompTIA A+ Certification Exam Core 1 Exam Objectives - 3.3 Given a scenario, troubleshoot mobile device issues

http://www.221021.com/Hardware/input-output-devices/32310.html

1. Identify the problem.

Gather information from the user, identify user changes, and, if applicable, perform backups before making changes.

Inquire regarding environmental or infrastructure changes.

2. Establish a theory of probable cause (question the obvious).

If necessary, conduct external or internal research based on symptoms.

3. Test the theory to determine the cause.

Once the theory is confirmed, determine the next steps to resolve the problem.

If the theory is not confirmed, re-establish a new theory or escalate.

4. Establish a plan of action to resolve the problem and implement the solution.

Refer to the vendor's instructions for guidance.

5. Verify full system functionality and, if applicable, implement preventive measures.

6. Document the findings, actions, and outcomes.

The 2. band is subdivided into up to 14 channels, spaced at 5 MHz intervals from 2412 MHz up to 2484 MHz. Wi-Fi requires bandwidth of approximately 20 MHz, not 5 MHz. Consequently, a site designer needs to choose the channels that do not overlap. On a WLAN where only the first 11 channels are available, channels 1, 6, and 11 can be selected as non-overlapping. Note: In the Americas, regulations permit the use of channels 1-11 only, while in Europe, channels 1-13 are permitted. In Japan, all 14 channels are permitted.

PaaS (Platform as a Service) is a cloud computing model in which a provider offers a platform that allows developers to create, run, and manage applications without the complexity of building and maintaining the infrastructure. An application development environment is a valid use for PaaS. References: CompTIA A+ Certification Exam Objectives 1001, 1.7

A burning smell on a desktop computer is a serious issue that indicates a hardware malfunction or failure. It can be caused by overheating, a faulty power supply, a malfunctioning motherboard, or a short circuit12. If left unchecked, it can damage the components, cause a fire, or harm the user.

The first thing the technician should do when troubleshooting a burning smell on a desktop computer is to unplug the computer from the power source. This will stop the flow of electricity and prevent further damage or fire. The technician should also wear protective gloves and eye wear to avoid contact with any hot or hazardous parts.

The other options are less likely to be the first step in troubleshooting, because:

•Locating a fire extinguisher is a good precaution, but it should not be done before unplugging the computer. The fire extinguisher should only be used if there is visible smoke or flames coming from the computer, and only after unplugging it and ensuring that it is safe to do so.

•Calling the fire department is an extreme measure that should only be done if there is an actual fire that cannot be controlled by the fire extinguisher. It should not be done before unplugging the computer and trying to identify and fix the problem.

•Removing the desktop cover is a necessary step to inspect the internal components and find the source of the burning smell. However, it should not be done before unplugging the computer, as it can expose the technician to live wires and electric shocks.

For more information and tips on how to troubleshoot a burning smell on a desktop computer, you can visit these links:

•How to find the source of a burning smell in my computer?

•Burning Smell From PC? 10 Reasons Why It Could Happen

Calibrating the touch screen is the best action to resolve the issue of inaccurate touch input. Calibration adjusts the touch screen’s sensitivity and alignment to match the user’s touch. Resetting the mobile device could erase user data and settings and may not fix the touch screen issue. Replacing the LED screen or updating the mobile device are unnecessary and costly actions that may not solve the problem.

The message prompting to press "OK" indicates that the printer is waiting for a user input. This suggests that there is some issue with the printer settings, and the most probable cause is that the default paper type has been changed, and the printer needs the user to confirm the paper type before proceeding with the print job. This is a common issue that can occur when the default paper type is not set correctly or has been changed without the user's knowledge.

The correct answer is B. 22.

Port 22 is the default port for SSH (Secure Shell), a protocol that allows secure and encrypted remote login and command execution over a network. SSH uses public key cryptography to authenticate the client and the server, and to encrypt the data exchanged between them. SSH can be accessed through different ports, depending on the configuration of the server and the client. The default port for SSH is 22, but it can be changed to any other port for security reasons1.

Port 20 is the default port for FTP (File Transfer Protocol) data transfer, a protocol that allows file transfer between a client and a server over a network. FTP uses two ports: one for data transfer (port 20) and one for control commands (port 21). FTP does not provide encryption or authentication, and it is vulnerable to various attacks, such as packet sniffing, spoofing, or brute force. To secure FTP connections, protocols such as FTPS (FTP over SSL) or SFTP (SSH File Transfer Protocol) can be used2.

Port 23 is the default port for Telnet, a protocol that allows remote login and command execution over a network. Telnet does not provide encryption or authentication, and it sends data in plain text, which can be easily intercepted or modified by attackers. Telnet is considered obsolete and insecure, and it should be replaced by SSH or other secure protocols3.

Port 25 is the default port for SMTP (Simple Mail Transfer Protocol), a protocol that allows sending and receiving email messages over a network. SMTP does not provide encryption or authentication, and it can be exploited by spammers or hackers to send malicious or unwanted emails. To secure SMTP connections, protocols such as SMTPS (SMTP over SSL) or STARTTLS (Transport Layer Security) can be used.

Therefore, port 22 is the only port that allows for secure communications by default, as it uses SSH protocol. For more information about ports and their security, you can refer to the following web search results: How to secure your TCP/IP ports, What is an SSL port? A technical guide for HTTPS, HTTPS Port: What It Is, How to Use It, and More (2023).

The correct answer is D. SMB share.

SMB stands for Server Message Block, which is a network protocol that allows file and printer sharing among different devices on a local area network (LAN). An SMB share is a folder or drive that is shared using the SMB protocol and can be accessed by authorized users on the network. An MFP device is a multifunction printer that can perform multiple tasks, such as printing, scanning, copying, and faxing.

In a SOHO (small office/home office) environment, a user who wants to make sensitive, scanned documents available to other users on the domain can set up an SMB share on the MFP device. This way, the user can scan the documents to the SMB share and grant access permissions to the other users who need to view or edit them. The SMB share can also enable logging, which can record who accessed the documents and at what time they were accessed .

The other options are not the best settings for this scenario. Scan to email is a feature that allows the user to scan a document and send it as an email attachment to a recipient. This option may not be secure or convenient for sharing sensitive documents with multiple users on the domain. ADF tray stands for automatic document feeder tray, which is a component of an MFP device that can feed multiple pages of a document into the scanner or copier without manual intervention. This option is not related to sharing or logging scanned documents. PCL stands for Printer Command Language, which is a page description language that controls the layout and printing of documents. This option is not related to sharing or logging scanned documents either.

The most likely answer is C. Fuser.

A fuser is a component in a laser printer that uses heat and pressure to fuse the toner powder onto the paper. If the fuser is damaged or worn out, it can cause humming and grinding noises, as well as ghost images on the printouts. Ghost images are faint copies of previous images that appear on the same page. They are caused by the fuser not heating the toner properly, or by the toner sticking to the fuser roller and transferring to the next page12.

To fix this problem, you should replace the fuser unit with a new one. You can check your printer manual for instructions on how to remove and install the fuser unit. You can also use a diagnostic ruler to measure the distance between the ghost images and determine if the fuser is the source of the problem2. If the ghost images are far apart (between 4cm and 5cm), then the fuser is likely to be faulty.

References:

1: Solved: “Ghost Images” When Printing - HP Support Community

2: How to Fix Ghosting When Using a Laser Printer and Toner Cartridges – Inksaver

To pair a Bluetooth speaker with a smart device, the user needs to enter the PIN code that is provided by the speaker manufacturer or displayed on the speaker itself. This is a security measure to prevent unauthorized pairing and access. Enabling and configuring MFA, synchronizing data to the cloud, or enabling location services are not required for Bluetooth pairing.

The best way to protect the data of a virtual machine in the event of hardware failure is to use a cloud-based backup solution. A cloud-based backup solution is a service that copies and stores the data of a virtual machine to a remote server or storage device over the internet. A cloud-based backup solution can offer several benefits, such as:

• High availability and reliability: A cloud-based backup solution can ensure that the data of a virtual machine is always accessible and recoverable, even if the hardware that hosts the virtual machine fails or is damaged. A cloud-based backup solution can also provide redundancy and fault tolerance, by replicating the data across multiple locations or regions.
• Scalability and flexibility: A cloud-based backup solution can adapt to the changing needs and demands of the virtual machine, by allowing the user to adjust the backup frequency, retention period, and storage capacity. A cloud-based backup solution can also support different types of backup, such as full, incremental, or differential, depending on the user’s preferences and requirements.
• Cost-effectiveness and simplicity: A cloud-based backup solution can reduce the cost and complexity of maintaining a backup infrastructure, by eliminating the need to purchase, install, or manage hardware, software, or licenses. A cloud-based backup solution can also automate and streamline the backup process, by providing easy-to-use tools and interfaces, such as web portals, APIs, or scripts.

Other options, such as redundant hardware, UPS, or RAID, may improve the performance or resilience of the hardware that hosts the virtual machine, but they do not provide a complete protection for the data of the virtual machine in the event of hardware failure. Redundant hardware is a technique that uses multiple components or devices to perform the same function, so that if one fails, another can take over. UPS (uninterruptible power supply) is a device that provides backup power to a system in case of a power outage or surge. RAID (redundant array of independent disks) is a technology that combines multiple disks into a logical unit, to improve the speed, capacity, or reliability of the storage. However, these options may not prevent data loss or corruption due to other causes, such as human error, malware, or natural disasters. Therefore, a cloud-based backup solution is the best way to protect the data of a virtual machine in the event of hardware failure.

References:

• What is Cloud Backup? | Microsoft Azure1
• Cloud Backup - What is it and how does it work? | Veeam2
• Cloud Backup vs. Local Backup: Which Option is Right for You?3

an inverter is a device that converts DC power from the laptop’s battery or AC adapter to AC power for the backlight of the LCD panel. If the inverter is defective, the backlight will not work and the LCD panel will appear blank or very dim. The user can still see a faint image if they shine a flashlight into the LCD because the LCD itself is still working.

A hypervisor is a software layer that manages and allocates resources for virtual machines (VMs) on a physical host machine. A technician can use a hypervisor to adjust the resource allocation for a virtual workstation, such as increasing the amount of RAM assigned to it from the available pool of memory on the host machine. This can improve the performance and functionality of the virtual workstation without requiring any hardware changes or modifications. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 59)

A repetitive clicking noise coming from a laptop is usually a sign of a failing hard disk drive (HDD), which is a type of storage device that uses spinning platters and moving heads to read and write data. A failing HDD can also cause severe delays in input and output operations, as well as data loss or corruption. The technician should replace the HDD with a new one or upgrade it to a solid state drive (SSD), which is another type of storage device that uses flash memory and has no moving parts. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-series-combined-content-guide (page 24)

High latency is what best describes what is occurring on a VoIP call when one user is unable to understand the other because the audio is breaking up. Latency is the delay between sending and receiving data over a network, and high latency can cause poor quality or interruptions in VoIP calls. External interference, no connectivity, or port flapping are not likely to cause audio breaking up, but rather complete loss of signal or connection.

In the case of a thermal receipt printer that will not print, the first step in troubleshooting should be to ensure that the thermal head is heating up. Thermal printers operate by applying heat to a special thermally sensitive paper, creating marks on the paper to form text and images. If the thermal head is not heating up, it cannot create these marks, leading to no print output. Verifying that the thermal head is operational can help isolate the issue, whether it's a hardware malfunction of the thermal head itself or another problem in the printer.

References:

• CompTIA A+ Core 1 (220-1101) Exam Objectives, specifically sections dealing with printer technologies and troubleshooting methods, which would include understanding the operational basics of different types of printers, including thermal receipt printers.
• Fundamental knowledge of how thermal printers function, emphasizing the critical role of the thermal head in the printing process and the need to ensure it's operational when troubleshooting printing issues.

A type II hypervisor is a software application that runs on top of a host operating system and creates virtual machines that are isolated from the host. A type II hypervisor provides the highest level of isolation from the host operating system because it does not have direct access to the hardware resources and relies on the host operating system for drivers and services. A type II hypervisor also allows the guest operating systems to run different types of operating systems than the host.

References: The Official CompTIA A+ Core 1 Student Guide (Exam 220-1101) eBook, page 223

The technician should check the wattage and the form factor of the power supply to ensure it will support the upgraded workstation. These are the two most important criteria for choosing a compatible and adequate power supply.

• Wattage: The wattage of a power supply is the maximum amount of power it can deliver to the components of the workstation. The wattage of the power supply should match or exceed the total power consumption of the components, especially the new graphics card, which is usually the most power-hungry part. If the power supply does not have enough wattage, it may cause instability, crashes, or damage to the workstation. To estimate the power consumption of the components, the technician can use a power supply calculator tool, such as the ones found in the web search results123. The technician should also add some headroom to the wattage, such as 20% to 50%, to account for peak power consumption, future upgrades, or power supply degradation.
• Form factor: The form factor of a power supply is the physical size and shape of the unit. The form factor of the power supply should fit in the case of the workstation and match the mounting holes and screws. The most common form factor for desktop power supplies is ATX, which measures 150 x 86 x 140 mm. However, some older or smaller workstations may use different form factors, such as SFX, TFX, or FlexATX. The technician should check the specifications of the workstation case and the power supply to ensure they have the same form factor.

Other criteria, such as efficiency rating, heat dissipation, fan type, and modular cabling, are not essential for supporting the upgraded workstation, but they may affect the performance, noise, or aesthetics of the power supply. The efficiency rating is the percentage of input power that is converted to output power, and it indicates how much power is wasted as heat. The heat dissipation is the ability of the power supply to cool itself and prevent overheating. The fan type is the design and size of the fan that cools the power supply, and it affects the noise level and airflow of the unit. The modular cabling is the feature that allows the user to detach unused cables from the power supply, and it helps to reduce clutter and improve airflow inside the case.

References:

• How to Choose the Right Power Supply for Your PC - Lifewire4
• How to Choose a Power Supply: 7 Steps (with Pictures) - wikiHow5
• How to pick the best PC power supply - PCWorld6
• Power Supply Calculator – PSU Wattage Calculator | Newegg1
• Power Supply Calculator | Cooler Master2
• Power Supply Calculator - PSU Calculator | OuterVision3

The correct answer is B. Analyze the error logs.

Error logs are files that record the events and errors that occur on a server or a network device. They can provide valuable information about the cause and the time of the outage, as well as any warnings or alerts that preceded it. Analyzing the error logs can help the administrator narrow down the possible sources of the problem and identify the best course of action to resolve it.

The first step in troubleshooting a network is to identify the problem1. As a part of this step, the administrator should gather information about the current state of the network using the network troubleshooting tools that are available1. One of these tools is the error log viewer, which can be accessed through the server’s operating system or a network monitoring software. The administrator should look for any entries that indicate a failure, a crash, a timeout, or an exception in the error logs. The administrator should also note the date and time of the entries, as well as the severity and the frequency of the errors.

The other options are less likely to be the first step in troubleshooting, because:

•Documenting the results is an important step in troubleshooting, but it should be done after identifying and resolving the problem, not before. Documenting the results can help the administrator keep track of the actions taken, the changes made, and the outcomes achieved. It can also help prevent future problems by providing a reference for best practices and lessons learned1.

•Checking the physical connections is another important step in troubleshooting, but it should be done after analyzing the error logs, not before. Physical connections are the cables and ports that link the server to other devices on the network. They can affect the quality and stability of the network signal. If the error logs do not indicate any software or configuration issues, then checking the physical connections can help determine if there is any damage or interference in the hardware2.

•Upgrading the server firmware is a possible solution for some network problems, but it should not be done as a first step in troubleshooting, unless there is a clear indication that the firmware is outdated or corrupted. Firmware is a type of software that controls the basic functions of a hardware device. Upgrading the firmware can improve performance, security, and compatibility, but it can also introduce new bugs or conflicts with other software or hardware components. Therefore, upgrading the firmware should be done with caution and only after backing up data and settings3.

For more information and tips on how to troubleshoot network issues, you can visit these links:

•A Guide to Network Troubleshooting - CompTIA

•What is Network Troubleshooting? How to Fix Network Issues - SolarWinds

•Network Troubleshooting - Methodology, Steps & Techniques - DNSstuff

Given the network information for the server “InternalToolCentral” with an IP address of “192.130.230.5” and a subnet mask of “255.255.255.0”, the gateway address should be within the same network range. However, the gateway address is listed as “192.130.230.1”, which is correct and within the same subnet. Therefore, the issue is not with the gateway settings.

The DNS servers are listed as “8.8.8.8” and “4.2.2.1”, which are public DNS servers and should be able to resolve domain names correctly if they are reachable.

The open ports listed include 25 (SMTP), 80 (HTTP), 110 (POP3), 443 (HTTPS), and 3306 (MySQL), which are standard ports for their respective services.

Considering the provided options and the network settings, the most likely explanation for users being unable to access resources on the file server is: A. Applicable ports have been closed during routine hardening. This could prevent users from connecting to the necessary services on the file server.

References:

• Networking best practices and troubleshooting steps as covered in the CompTIA A+ certification materials.
• Understanding of network configurations and services related to file server accessibility.

In this scenario, running a network cable over a long distance (279ft or 85m) and sharing conduit with a large power cable requires careful consideration of electromagnetic interference (EMI) and the physical distance limitations of the cable type. Fiber optic cables are immune to electromagnetic interference and can support much longer distances than copper-based cables like Cat 5e or Cat 6 without signal degradation. This makes fiber optic the most appropriate choice for this project.

References:

• CompTIA A+ Core 1 Exam Objectives Section 3.1: Explain basic cable types and their connectors, features, and purposes.
• CompTIA A+ Core 1 Exam Objectives Section 2.2: Compare and contrast common networking hardware.

When a new GPU is installed and results in lower screen resolution and picture quality, it's often because the appropriate OEM (Original Equipment Manufacturer) drivers for the GPU have not been installed. Without these drivers, the operating system may revert to generic drivers that do not fully support the GPU's capabilities, leading to suboptimal performance. Installing the correct OEM drivers should resolve the issue and allow the GPU to function at its intended performance level.

References:

• CompTIA A+ Core 1 (220-1101) Exam Objectives, particularly those relating to the installation and configuration of hardware components like GPUs, and the importance of installing the correct device drivers for optimal hardware performance.
• General knowledge of hardware installation and the role of device drivers in ensuring hardware components such as GPUs operate correctly within a system.

A VPN (Virtual Private Network) is the technology that allows a home PC to connect securely to a company's network over the internet. It extends a private network across a public network, enabling users to send and receive data as if their computing devices were directly connected to the private network. This makes VPNs ideal for remote work and accessing company resources securely from a home PC.

References:

• CompTIA A+ Core 1 (220-1101) Exam Objectives, specifically sections that cover networking concepts and technologies, including remote access methods and network security protocols such as VPNs.
• Understanding of network security practices and remote access technologies, focusing on how VPNs create secure connections over the internet for remote users to access corporate networks.

To clean sticking keys on a laptop keyboard, using compressed air is the most effective and safest method. Compressed air can dislodge and remove crumbs, dust, and other debris from under the keys without risking damage to the keyboard's electronic components or the keys themselves. This approach is non-invasive and widely recommended for keyboard maintenance.

References:

• CompTIA A+ Core 1 (220-1101) Exam Objectives, particularly sections related to maintaining and cleaning computer components and peripherals, which would cover best practices for keyboard cleaning.
• General computer maintenance guidelines, highlighting the use of compressed air as a standard tool for cleaning keyboards and other computer parts where direct contact cleaning is not advisable.

The most likely issue is C. Tray settings.

Tray settings are the configuration options that tell the printer what type and size of paper is loaded in each tray. If the tray settings do not match the actual paper loaded, it can cause paper jams, misalignment, or incorrect printing. For example, if the printer expects letter-sized paper (8.5 x 11 inches) but the tray contains legal-sized paper (8.5 x 14 inches), the printer may try to pull more paper than it needs, resulting in a jam.

To fix this issue, the team should check and adjust the tray settings according to the paper they are using. They should also make sure that the paper is loaded correctly and not overfilled or mixed with different sizes or types of paper. Some printers have a manual feed option that allows users to select the paper size and type before printing, which can prevent paper jams from occurring.

References:

•Fix Paper Jam Errors | HP® Support, section “Paper jams”.

•Common Causes of Paper Jams and How to Fix Them - 1ink.com, section “Make Sure You’re Loading the Paper Correctly”.

•How to Fix a Paper Jam in a Printer - Computer Hope, section “Paper tray is overloaded or not loaded correctly”.

The correct answer is A. Access point.

An access point is a device that extends the wireless coverage of a network by creating a hotspot that allows wireless devices to connect to the network1. An access point can be connected to a router or a switch via an Ethernet cable or a wireless bridge1. By deploying one or more access points throughout a SOHO location, the technician can provide better wireless connectivity and eliminate dead zones or weak signals2.

A managed switch is a device that allows multiple devices to communicate on a network by forwarding data packets based on their destination addresses3. A managed switch can also provide advanced features such as VLANs, QoS, security, and remote management3. However, a managed switch does not improve wireless connectivity, as it only works with wired devices.

A POE hub is a device that provides power and data over a single Ethernet cable to devices that support Power over Ethernet (PoE) technology, such as IP cameras, VoIP phones, and wireless access points4. A POE hub can simplify the installation and placement of these devices by eliminating the need for separate power adapters or outlets4. However, a POE hub does not improve wireless connectivity by itself, as it still requires an access point or a router to create a wireless network.

A Wi-Fi router is a device that combines the functions of a router and an access point, providing both wired and wireless connectivity to a network and the internet. A Wi-Fi router can be used to create a SOHO network, but it may not be sufficient to cover the entire location with a strong and reliable wireless signal. To improve wireless connectivity, the technician may need to add additional access points or use a mesh Wi-Fi system that consists of multiple routers that work together to create a seamless wireless network.

Therefore, an access point is the best option among the choices to improve wireless connectivity throughout a SOHO location.

The correct answer is B. 802.11ax.

802.11ax, also known as Wi-Fi 6 or Wi-Fi 6E, is the latest wireless standard that can operate in the 6GHz frequency range. This standard was approved by the IEEE in February 2021 and offers higher throughput, lower latency, and improved efficiency compared to previous standards1

The 6GHz frequency range spans from 5.925 GHz to 7.125 GHz and provides 1200 MHz of additional spectrum for Wi-Fi devices. This means that Wi-Fi 6E can support more channels, wider bandwidths, and less interference than the existing 2.4 GHz and 5 GHz bands. Wi-Fi 6E can access up to 59 20-MHz channels, 29 40-MHz channels, 14 80-MHz channels, or 7 160-MHz channels in the 6GHz band1

802.11ac, also known as Wi-Fi 5, is the previous wireless standard that can only operate in the 5GHz frequency range. It was approved by the IEEE in December 2013 and offers faster speeds and better performance than older standards. However, it cannot use the new spectrum in the 6GHz band and has limited channel availability and capacity in the crowded 5GHz band2

802.11g and 802.11n are older wireless standards that can only operate in the 2.4GHz frequency range. They were approved by the IEEE in June 2003 and October 2009, respectively, and offer lower speeds and performance than newer standards. They also suffer from more interference and congestion in the saturated 2.4GHz band, which is shared by many other devices and technologies32

USB-C is the best connection method to use to connect the dock to the laptop because it supports multiple display outputs, data transfer, audio, and power delivery with a single cable. USB-C can also be compatible with Thunderbolt 3 or DisplayPort over USB-C docking stations, which offer even higher performance and versatility. USB-C is also a reversible connector, which makes it easy and convenient to use.

References:

The Official CompTIA A+ Core 1 Student Guide (Exam 220-1101), Chapter 2: Configure and Support PC Components, Section 2.5: Compare and contrast various connection interfaces and explain their purpose, Page 941

How to Connect and Set Up a Docking Station With a Dell Laptop2

How to Dock a Laptop (with Pictures) - wikiHow3

How To Connect Two Laptops To One Docking Station4

SAS stands for Serial Attached SCSI, which is a type of interface that connects storage devices to servers or workstations. SAS supports both mechanical hard disk drives (HDDs) and solid state drives (SSDs), but not other types of storage devices, such as NVMe M.2, mSATA, or optical drives12.

RAID stands for Redundant Array of Independent Disks, which is a method of combining multiple storage devices into a logical unit that provides improved performance, reliability, or both. RAID 10 is a combination of RAID 1 (mirroring) and RAID 0 (striping), which means that data is written across two or more striped sets of mirrored drives34.

Therefore, the only type of storage device that the technician can install in a server that only has SAS connectors and wants to use RAID 10 is mechanical HDDs. Mechanical HDDs use spinning platters and moving heads to store and access data, and they are usually cheaper and have larger capacities than SSDs, but they are also slower and more prone to failure .

References:

• CompTIA A+ Core 1 (220-1101) Certification Study Guide, Chapter 3: Hardware, Section 3.3: Storage Devices, Page 131
• CompTIA A+ Core 1 (220-1101) and Core 2 (220-1102) Exam Cram, Chapter 3: Storage, Section 3.2: Storage Interfaces, Page 97
• CompTIA A+ Core 1 (220-1101) Certification Study Guide, Chapter 3: Hardware, Section 3.4: RAID, Page 143
• CompTIA A+ Core 1 (220-1101) and Core 2 (220-1102) Exam Cram, Chapter 3: Storage, Section 3.4: RAID, Page 104
• CompTIA A+ Core 1 (220-1101) Certification Study Guide, Chapter 3: Hardware, Section 3.3: Storage Devices, Page 129
• CompTIA A+ Core 1 (220-1101) and Core 2 (220-1102) Exam Cram, Chapter 3: Storage, Section 3.3: Hard Disk Drives, Page 99

Before creating a virtual machine (VM) on a computer, it's crucial to ensure that the CPU supports virtualization and that this feature is enabled in the BIOS (or UEFI) settings. While sufficient RAM and hard drive space are also important for running VMs effectively, and compatibility with the graphics card might be a consideration for VMs with intensive graphical requirements, the foundational step is to verify that the CPU supports virtualization and that this feature is activated in the BIOS settings. This is because virtualization technology, often referred to as VT-x (on Intel CPUs) or AMD-V (on AMD CPUs), is a prerequisite for running most virtualization software efficiently.

References:

• CompTIA A+ Core 1 Exam Objectives Section 4.0: Virtualization and Cloud Computing

Automatic Private IP Addressing (APIPA) allows a Windows PC to automatically assign itself an IP address in the range of 169.254.0.1 to 169.254.255.254 when it's unable to obtain an IP address from a DHCP server. This feature is particularly useful in situations where the PC cannot connect to the network or when DHCP services are unavailable. While APIPA addresses are not routable and thus not suited for large networks, they enable basic networking functionality for small ad-hoc or local networks.

If a user consistently receives an error requesting A4 paper for print jobs, and this issue is isolated to a single user, it's likely that the user's printer settings are configured incorrectly for A4 paper size instead of the standard letter size used in the office. Adjusting the printer defaults in the Control Panel on the user's computer to use letter-sized paper should resolve the issue without needing to reinstall drivers, switch printers, or require the user to check page size for every job.

References:

• CompTIA A+ Core 1 Exam Objectives Section 3.6: Given a scenario, deploy and configure multifunction devices/printers and settings.

Configuring scanning to a Secure Message Block (SMB) share specifically designated for executive access ensures that the scanned confidential documents are stored securely on a network drive with restricted access. SMB is a network file sharing protocol that allows applications on a computer to read and write to files and request services from server programs in a computer network. By setting up an SMB share with executive access, the data is centralized, making it easier to manage permissions and security settings. This method also utilizes the existing network infrastructure, allowing for scalability and integration with other security measures like encryption and authentication protocols.

References:

• CompTIA A+ Certification Exam Core 1 and Core 2 Objectives Documents

The symptoms described, such as the operating system taking longer than usual to load and hearing clicking sounds from within the workstation, are indicative of a failing hard drive. Clicking sounds, often referred to as the "click of death," signal the read/write head of the hard drive struggling to function properly. This mechanical failure leads to longer load times as the system struggles to read data from the disk. It is crucial to back up data and consider replacing the hard drive to prevent data loss.

Liquid cooling is an effective solution for managing the high heat output that can result from overclocking a GPU. It's more efficient than air cooling methods (like larger heat sinks or fan upgrades) and can better maintain lower temperatures under load, reducing the risk of overheating.

References:

• CompTIA A+ Core 1 Exam Objectives Section 3.4: Given a scenario, install and configure motherboards, CPUs, and add-on cards.

These answers align with the CompTIA A+ certification objectives and are derived from the official CompTIA A+ Core 1 (220-1101) and Core 2 (220-1102) Exam Objectives documents.

Routers are designed to connect multiple networks and direct packets to their intended destinations across network segments. This makes them essential for directing packets to networks outside of the LAN, such as the internet or other remote networks.

References:

• CompTIA A+ Core 1 Exam Objectives Section 2.2: Compare and contrast common networking hardware.

If users are only able to save a small number of pictures on the microSD cards before running out of space, it suggests a formatting issue. Improper or incomplete formatting can lead to the card not utilizing its full storage capacity, resulting in significantly less available space for storing pictures. Formatting the microSD cards correctly would ensure the file system on the cards is set up properly, allowing the devices to use the full capacity of the cards for storage. Compatibility, UHD storage capability, and camera storage settings are less likely to be the issue in this scenario.

References: The necessity of proper formatting for storage devices is a fundamental aspect of managing digital storage, as outlined in the basic principles of digital storage and file systems.

RAID 10 (also known as RAID 1+0) combines the features of RAID 1 (mirroring) and RAID 0 (striping) to provide both redundancy and performance enhancements. This configuration requires a minimum of four drives and offers fast data access through striping while ensuring data redundancy through mirroring. RAID 10 is ideal for environments where both data integrity and performance are critical, such as financial databases.

A white printer with blue text boxes Description automatically generated

A Personal Area Network (PAN) is designed to connect devices in close proximity, typically within a few meters, often using wireless technologies like Bluetooth. This allows for the interconnection of smart devices such as smartphones, tablets, and wearables within an individual's personal space. Unlike a Local Area Network (LAN), which covers a larger geographical area such as a home or office building and can support wired and wireless connections, a PAN specifically facilitates wireless connections between personal devices.

References:

• CompTIA A+ Core 1 Exam Objectives Section 2.7: Compare and contrast Internet connection types, network types, and their features.

When upgrading a laptop's storage from an HDD to an SSD, especially in laptops with only a single bay for a hard drive, the most critical characteristic to consider is the form factor. The form factor must match the physical dimensions and interface of the original HDD to ensure that the SSD can fit into the bay and connect properly. Storage size (B) is important for capacity reasons, transfer speed (D) affects performance, and partition type (A) is a software configuration aspect, but the form factor (C) is crucial for the physical compatibility of the SSD with the laptop.

References:

• CompTIA A+ Core 1 Exam Objectives Section 3.3: Given a scenario, select and install storage devices.

A punchdown tool is essential for connecting telephone wires to patch panels, keystone modules, and punchdown blocks, making it a critical tool for installing plain old telephone service (POTS) lines. A toner probe, on the other hand, is used for tracing and identifying specific wires within a bundle, facilitating the correct attachment of telephone lines to their respective terminals. These tools are fundamental for ensuring proper and efficient installation of POTS lines in a client's environment.

The issue described in the scenario is most likely caused by the incorrect heat sink being used on the CPU. The heat sink plays a critical role in dissipating heat from the CPU to prevent overheating. If the incorrect heat sink is used, it may not fit properly, leading to insufficient contact with the CPU. This can cause inadequate heat transfer, resulting in the CPU overheating. Overheating can lead to thermal stress on the motherboard, potentially causing shorts near the CPU location as the excessive heat can damage the motherboard's circuits and components.

References:

• CompTIA A+ Core 1 (220-1101) Exam Objectives, Section 3.0 Hardware, specifically the subsection on cooling mechanisms and their importance in maintaining the optimal operating temperature for CPU and other components.
• General knowledge on the importance of proper heat dissipation in preventing hardware damage, particularly in scenarios involving CPU replacements and upgrades.

If a laptop does not charge when connected to a USB 3.1 docking station despite the AC adapter being plugged in, the most likely reason is that the dock is not designed to provide power passthrough. This means that the dock's primary function is connectivity for peripherals rather than power delivery to the laptop. The other options are possible but less likely if the sole issue is the absence of charging functionality when the dock and its power supply are properly connected.

References:CompTIA A+ Core 1 (220-1101) materials, which discuss the functionality and specifications of peripheral devices including docking stations.

The "Ease of Access" settings in Windows are designed to help make the computer more accessible to users with various needs. Among these settings, there are options to adjust mouse and cursor functionality, including the visibility and behavior of the cursor. Adjusting these settings can resolve issues related to cursor trails, making it a suitable first step in troubleshooting this specific problem.

Mobile Device Management (MDM) is the best solution for remotely managing security settings and configuring applications on tablets across branch offices. MDM allows administrators to control device security policies, push applications, track device locations, perform remote wipes, and manage many other aspects of mobile devices from a centralized console. While SSH, RDP, and VPN are useful for remote access and secure connections, they do not offer the comprehensive device management and configuration capabilities that MDM provides.

References:

• CompTIA A+ Core 1 Exam Objectives Section 2.7: Compare and contrast Internet connection types, network types, and their features.

One possible solution to address the issue of a webcam not working with a videoconferencing program is to close other video software and retry (option A). It’s possible that another video software program is currently using the webcam and preventing the videoconferencing program from accessing it. By closing any other video software that may be running on the computer, the user can ensure that the webcam is available for use by the videoconferencing program.

DSL (Digital Subscriber Line) uses POTS (Plain Old Telephone Service) lines to provide high-speed internet access. If the POTS lines are not working, it could cause an internet outage for DSL customers. Fiber and cable internet typically use different types of infrastructure, while satellite internet is not reliant on POTS lines. References: CompTIA A+ Certification Exam: Core 1 - Page 231

The correct answer is D. Identify the problem.

The first troubleshooting step that the technician should perform is to identify the problem. This means that the technician should gather information from the user and the system, and analyze the symptoms and the error messages to determine the nature and the scope of the issue. Identifying the problem can help to define the expected outcome, establish a theory of probable cause, and plan a course of action.

The other options are not the first troubleshooting steps, but they are part of the troubleshooting process that should be performed after identifying the problem. Establishing a plan of action (option A) means that the technician should devise a strategy to resolve the issue, based on the theory of probable cause and the available resources. Testing the theory (option C) means that the technician should verify if the theory of probable cause is correct, by performing tests or experiments on the system or its components. Documenting the findings (option B) means that the technician should record and report the results of each troubleshooting step, as well as the final solution and outcome.

For more information about troubleshooting steps and best practices, you can refer to the following web search results: [Troubleshooting Steps for Beginners], [Troubleshooting Methodology], [How to Troubleshoot Like an Expert].

A sandbox is a virtual environment that isolates the engineer’s research activities from the rest of the system. This allows the engineer to test, experiment, and modify the system without affecting the real data, applications, or settings. A sandbox is the best environment for research purposes because it provides a safe and controlled way to explore new ideas, simulate scenarios, and troubleshoot problems. A sandbox can also be easily reset or deleted after the research is done.

References

What is a Sandbox Environment?

Chapter 4: Virtualization and Cloud Computing

Secure Boot is a feature of UEFI (Unified Extensible Firmware Interface) that prevents unauthorized software from running during the boot process. Secure Boot verifies the digital signature of the boot loader and the operating system, and only allows them to run if they are signed by a trusted authority. However, Secure Boot can also prevent some legitimate software, such as firmware updates, from running if they are not signed or recognized by the system. Therefore, the technician may need to disable Secure Boot in order to install a firmware update for the system board UEFI from a USB key34. The other features are not likely to interfere with the firmware update, unless they are misconfigured or incompatible with the USB key.

References

3: bios - Can’t enable secure boot in Windows 11

4: Acer aspire e5-571 Legacy Secure Boot?

The answer is D. Perform a full backup.

Before replacing a failed drive in a RAID 5 array, the technician should perform a full backup of the data on the array to ensure that no data is lost during the hot swapping process. Hot swapping is the process of replacing a drive without shutting down the system or the array, which allows for faster recovery and minimal downtime. However, hot swapping also involves some risks, such as accidentally removing the wrong drive, damaging the new drive, or encountering another drive failure during the rebuild process. Therefore, performing a full backup is a precautionary measure that can prevent data loss in case of any unexpected errors or complications.

The other options are not the first steps that the technician should take before hot swapping the drive. Documenting the replacement date is a good practice, but it is not as important as backing up the data. Shutting down the array is not necessary for hot swapping, and it may cause more disruption to the system or the users. Safely disposing of the failed drive is a step that should be done after replacing it, not before.

References:

• Hot-swapping the hard drives when the RAID crashes | QNAP, section “Install a new drive to rebuild RAID 5 by hot swapping”: “Important: Do not install a new drive when the system is not in degraded mode, otherwise you may encounter unexpected system failures.”
• Hot Swapping hard drives on Raid 5 with data on them - Spiceworks Community, reply by Magnus369: “Part of that slowness would be the raid level you are using. Highly doubt you can change it without losing data either, but your writes are going to be atrociously slow due to having to figure out parity across 11 drives for each write you do. While you may have a ton of space, it’s unstable and subject to self destruction.”
• hard drive - How do I Change a damaged Disk in a Raid 5 array - Server Fault, answer by Chris S: “If you have another disk failure during rebuild you will lose all your data.”

The next thing that the technician should investigate is D. Radio frequency.

Radio frequency is the range of electromagnetic waves that are used to transmit wireless signals. Different devices and networks use different radio frequencies, such as 2.4 GHz or 5 GHz, to communicate with each other. If there are multiple devices or networks using the same or overlapping radio frequencies, they can interfere with each other and cause Wi-Fi connection issues, such as intermittent disconnections, slow speeds, or poor quality .

To fix this issue, the technician can try changing the radio frequency or channel of the router or the laptop, to avoid interference from other sources. The technician can also use a tool such as Wi-Fi Analyzer to scan the nearby wireless networks and find the best frequency or channel to use. Alternatively, the technician can move the router or the laptop to a different location, away from potential sources of interference, such as cordless phones, microwaves, Bluetooth devices, or other routers .

The other options are less likely to be the reason for the issue. Firewall settings are software configurations that control the network traffic and security of a device. They may block some websites or applications from accessing the internet, but they should not affect the Wi-Fi connection itself. MAC address filter is a feature that allows the router to restrict access to specific devices based on their MAC addresses, which are unique identifiers for network interfaces. If the MAC address filter is enabled and the laptop’s MAC address is not on the allowed list, it will not be able to connect to the Wi-Fi network at all, not intermittently. Number of connected devices is the amount of devices that are using the same Wi-Fi network at the same time. This may affect the network performance or bandwidth, but it should not cause intermittent disconnections, unless the network is overloaded or unstable.

References:

How To Fix WiFi Connection Problems - Help Desk Geek

How to Fix Your WiFi Connection Problems - Lifewire

Wi-Fi Analyzer - Apps on Google Play

Dropping a smartphone can damage the digitizer, which is the component responsible for sensing touch input. This can cause issues with tapping and swiping on the screen, as well as other touchscreen-related issues. References: CompTIA A+ Certification Exam Core 1 Exam Objectives - 3.3 Given a scenario, troubleshoot mobile device issues

Based on the information provided in the scenario, the most likely cause of the issue is that the user’s internet connection is down (option A). This would explain why the user is unable to access any of the organization’s servers or network items and why web pages are not functioning. However, since the user can still access local file folders and other local machines, it suggests that their local network is still functioning.

The user can access local file folders and other local machines but none of the organization's servers or network items, indicating that the issue is with the user's internet connection, not with the user's domain account, switch, or IP address.

When a user receives a notification indicating that there is limited or no connectivity, it means that their device is unable to establish a connection to the network. In this scenario, the user can access local file folders and other local machines but is unable to access any of the organization’s servers or network items and web pages are not functioning. This suggests that the issue is with the user’s internet connection.

An internet connection allows a device to communicate with other devices and servers outside of its local network. If the internet connection is down or not functioning properly, the device will be unable to access any resources outside of its local network. This would explain why the user in this scenario can still access local resources but is unable to access any of the organization’s servers or network items.

eSATA is the best choice for adding external storage as it offers a fast transfer rate and is specifically designed for external storage devices. SCSI is an older interface that is rarely used today, PCIe is typically used to add expansion cards to a computer, and NVMe is a newer interface for high-speed solid-state storage, but it is typically used for internal storage devices.

https://techlibrary.hpe.com/docs/iss/proliant-gen10-uefi/s_enabling_VT-d.html

Enabling VT-d (Virtualization Technology for Directed I/O) in the server's BIOS settings is required for the hypervisor to run properly. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 11

The most likely action that would resolve the issue is to clean the keyboard. Sometimes dust, hair, and other debris can affect keyboard functionality. The technician can try to clean the keyboard as much as possible, which may be enough to get the keyboard back in working order

The most likely cause of the issue is that the laptop has a swollen battery, which is a condition where the battery expands due to gas buildup inside the cells. A swollen battery can cause physical damage to the laptop, such as pushing against the track pad or keyboard and preventing them from functioning properly. The technician should inspect the battery and replace it if it is swollen. A damaged digitizer is not the cause of the issue, as the digitizer is a component that converts touch input into digital signals, and it does not affect the track pad or keyboard. Distended capacitors are not the cause either, as capacitors are electronic components that store electric charge, and they do not affect the track pad or keyboard. A failed accelerometer is not the cause as well, as an accelerometer is a sensor that measures acceleration, and it does not affect the track pad or keyboard. References: https://www.comptia.org/blog/what-is-a-laptop-battery

OLED (Organic Light Emitting Diode) displays have lower power consumption than LCD (Liquid Crystal Display) displays because they do not require a backlight to produce light. Each pixel in an OLED display can emit its own light, which also allows for higher contrast and finer grayscale levels. However, OLED displays are more prone to color degradation over time than LCD displays, which use filters to create colors. Verified References: OLED vs LCD: How to choose the right display for your phone.

The first step that a technician should do is A. Reseat the webcam.

Reseating the webcam means unplugging and plugging back the webcam into the laptop’s USB port. This can help to ensure that the webcam is properly connected and recognized by the laptop. Reseating the webcam is a simple and quick troubleshooting technique that can solve many common issues, such as loose or faulty connections, power or bandwidth problems, or driver or software conflicts.

Reseating the webcam is the first step that a technician should do, because it follows the principle of starting with the easiest and most obvious solution before moving on to more complex and time-consuming ones. Reseating the webcam can also help to isolate the problem and eliminate other possible causes.

The other options are not the first steps that a technician should do, because they are more disruptive or less effective. Restarting the computer and running system diagnostics (option B) may be helpful if the problem is caused by a software or hardware error, but it may also cause data loss or interruption of other tasks. Reinstalling the webcam software and drivers (option C) may be necessary if the problem is caused by a corrupted or outdated software or driver, but it may also introduce compatibility or configuration issues. Researching new webcam firmware (option D) may be useful if the problem is caused by a firmware bug or vulnerability, but it may also pose security or stability risks.

For more information about troubleshooting external webcams, you can refer to the following web search results: [How to Fix Webcam Problems on Your Laptop], [How to Troubleshoot Webcam Issues on Windows 10], [How to Fix Common Webcam Problems].

A paper path is the route that paper takes through a printer from the input tray to the output tray. A blocked sensor is a sensor that detects paper jams or other errors in the paper path but fails to clear after the problem is resolved. A blocked sensor can cause a printer to display an error message even after a paper jam is cleared. The technician should check the paper path for any debris or obstructions that may trigger the sensor.

ECC (Error Correcting Code) memory is a type of memory that can detect and correct errors that may occur during data transmission or storage. ECC memory is essential for high-availability computing, as it prevents data corruption and system crashes2. References: ECC Memory

One of the possible causes of slow OS performance, random shutdowns, and loud fan noise is the CPU overheating. This can happen due to dust accumulation, faulty cooling system, or high CPU usage. Overheating can damage the CPU and other components, so it is important to monitor the CPU temperature and take preventive measures.

References:

The Official CompTIA A+ Core 1 Student Guide (Exam 220-1101) eBook1, page 2-9, section “CPU Cooling Methods”.

The Official CompTIA A+ Core 1 (220-1101) Certification Study Guide2, page 2-11, section “Troubleshooting CPUs”.

Vertical lines on a laser printer printout are most commonly associated with issues in the drum unit. The drum is a crucial component in the laser printing process, where it receives an electrostatic image of the document to be printed and transfers toner to the paper. If there are defects or damage to the drum's surface, it can result in vertical lines appearing on the printed output as the drum fails to evenly distribute toner across the page.

References:

• CompTIA A+ Core 1 (220-1101) Exam Objectives, Section 3.6 Hardware, particularly the part about laser printers and the significance of each component in the printing process, emphasizing the drum's role in image transfer.
• Understanding of laser printer operation, specifically the function of the drum unit and common issues that can affect print quality.

DMARC (Domain-based Message Authentication, Reporting and Conformance) is an email authentication protocol. It is designed to give email domain owners the ability to protect their domain from unauthorized use, commonly known as email spoofing.

802.11 ax is a wireless networking protocol that utilizes the 5.0GHz frequency and has the best speed and reception among the options given. 802.11 ax offers higher data rates, lower latency, increased capacity, and improved power efficiency than previous protocols. It is also known as Wi-Fi 6 or High Efficiency Wireless (HEW). 802.11a also uses the 5.0GHz frequency, but it is an older protocol that has lower speed and reception than 802.11 ax. 802.11b/g/n use the 2.4GHz frequency, which is more crowded and prone to interference than the 5.0GHz frequency. 802.11n can use both frequencies, but it is also slower and less efficient than 802.11 ax. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 82)

AAA stands for Authentication, Authorization, and Accounting, and it is a framework that provides security services for network access control. Authentication verifies the identity of a user or device that requests access to a network resource. Authorization determines what level of access or privileges are granted to a user or device based on their identity or role. Accounting tracks and records the usage of network resources by users or devices for billing or auditing purposes. RADIUS (Remote Authentication Dial-In User Service) is a protocol that implements AAA functions by communicating with a central server that stores user credentials and policies.

An overheating processor is the most likely cause of a computer that has a loud system fan and randomly freezes and reboots. A processor generates heat when it performs calculations, and if the heat is not dissipated properly, it can damage the processor or cause it to malfunction. A loud system fan indicates that the fan is working harder to cool down the processor, but it may not be enough to prevent overheating. A computer that freezes and reboots randomly is a common symptom of an overheating processor, as the system tries to protect itself from further damage by shutting down or restarting.

The other options are not as likely to cause these issues. A failing hard drive may cause data loss, corruption, or slow performance, but it does not affect the system fan or the processor temperature. A defective power supply may cause the computer to shut down unexpectedly, but it does not cause the system fan to be loud or the processor to overheat. Incompatible hardware may cause the computer to fail to boot, display errors, or crash, but it does not cause the system fan to be loud or the processor to overheat.

To troubleshoot and resolve an overheating processor issue, the technician should check and clean the air vents, provide proper ventilation, apply thermal paste, replace the fan or the heat sink, or upgrade the processor if necessary. The technician should also update the BIOS and the device drivers, adjust the power settings, and monitor the system temperature using diagnostic tools.

References:

• CompTIA A+ Certification Exam Core 1 Objectives1
• The Official CompTIA A+ Core 1 Student Guide (Exam 220-1101) eBook2
• How to Troubleshoot Fan Issues | Dell US3
• Why your laptop fan is loud and how to fix it | Asurion4
• HP Notebook PCs - Fan is noisy and spins constantly (Windows)5

Hyperthreading is a feature of some CPUs that allows them to execute two threads (sequences of instructions) simultaneously on each core. Hyperthreading can improve the performance of CPU-intensive tasks, such as data analytics, by increasing the utilization of CPU resources and reducing idle time. The technician should verify that hyperthreading is enabled in the BIOS settings of the workstation.

According to the CompTIA A+ Core 1 (220-1101) Certification Study Guide1, a network crimper and a cable stripper are the tools that a technician should use to resolve this issue. A network crimper is used to attach a new RJ-45 connector to the end of the cable, and a cable stripper is used to remove the outer insulation of the cable and expose the twisted pairs of wires. A toner probe, a punchdown tool, a multimeter, and a loopback plug are not needed for this task.

Here are some web resources that explain how to repair an Ethernet cable:

• Ethernet Cable Repair - iFixit: This guide provides step-by-step instructions and pictures on how to fix a broken Ethernet cable.
• How to Repair a Cut Cat5e Ethernet Cable - wikiHow: This article shows how to solder the wires of a cut Ethernet cable and use shrink tube to cover the joints.
• Amazon.com: Ethernet Cable Repair Kit: This page lists some products that can be used to repair an Ethernet cable, such as crimping tools, connectors, testers, and strippers.

A digitizer is a device that converts analog signals, such as touch or pressure, into digital signals that can be processed by a computer. A digitizer is usually embedded in the screen of a smartphone or tablet, and it works with a compatible stylus to enable drawing and writing on the screen1.

There are different types of digitizers and styluses, such as capacitive, resistive, active, and passive. Capacitive digitizers and styluses work by detecting changes in the electric field on the screen when the stylus touches it. Resistive digitizers and styluses work by detecting changes in the resistance on the screen when the stylus presses it. Active digitizers and styluses work by using an electromagnetic field to communicate between the stylus and the screen. Passive digitizers and styluses work by using a special material on the tip of the stylus that mimics the human finger2.

Not all digitizers and styluses are compatible with each other. For example, an active stylus will not work with a capacitive or resistive digitizer, and vice versa. A passive stylus will work with any digitizer, but it will not have any advanced features, such as pressure sensitivity or tilt control2.

Virtualization is a technology that allows creating multiple virtual machines (VMs) on a single physical server. Each VM can run its own operating system and applications, and share the resources of the physical server, such as CPU, memory, disk, and network1. Virtualization can help improve server utilization and management in several ways, such as:

•Reducing the number of physical servers needed to run the same workload, which can lower the costs of hardware, power, cooling, and maintenance1.

•Increasing the flexibility and scalability of the server infrastructure, as VMs can be created, deleted, moved, or resized on demand without affecting the other VMs or the physical server1.

•Enhancing the availability and reliability of the server applications, as VMs can be backed up, restored, or migrated to another physical server in case of failure or maintenance1.

•Improving the security and isolation of the server data, as VMs can be configured with different levels of access and protection, and separated from each other and the physical server1.

The correct answer is C. Cat 6.

An RJ45 connector is a standard type of physical connector for network cables. RJ45 connectors are used almost exclusively with Ethernet cables and networking1. Ethernet cables are twisted pair cables that carry data signals between devices on a network, such as computers, routers, switches, and servers2.

There are different categories of Ethernet cables, such as Cat 5, Cat 5e, Cat 6, and Cat 7, that have different specifications and performance levels. Cat 6 is one of the most common types of Ethernet cables, which supports data transfer speeds up to 10 Gbps and bandwidth up to 250 MHz3. Cat 6 cables have four pairs of copper wires, each with a plastic insulation and a foil or braided shield. The wires are twisted together to reduce crosstalk and interference4.

To terminate a Cat 6 cable, an administrator needs to use an RJ45 connector that matches the wiring scheme of the cable. There are two common wiring schemes for Ethernet cables: T568A and T568B. The administrator needs to strip the cable jacket, untwist the wires, arrange them in the correct order according to the chosen scheme, trim the excess wire, and insert them into the RJ45 connector. Then, the administrator needs to use a crimping tool to secure the wires and the connector4.

Optical cables are not terminated with RJ45 connectors, but with different types of connectors that can transmit light signals, such as SC, ST, LC, or MTRJ connectors. Optical cables are used for fiber-optic networks that can carry data over long distances at high speeds.

Serial cables are not terminated with RJ45 connectors, but with different types of connectors that can transmit serial data signals, such as DB9, DB25, or DE9 connectors. Serial cables are used for connecting devices that use serial communication protocols, such as modems, printers, scanners, or keyboards.

USB cables are not terminated with RJ45 connectors, but with different types of connectors that can transmit universal serial bus data signals, such as USB-A, USB-B, USB-C, or Micro-USB connectors. USB cables are used for connecting devices that use USB communication protocols, such as flash drives, cameras, mice, or chargers.

it appears that option A, restoring function to the air conditioner, would most likely solve the thermal printer issue in the described scenario. The failure of the air conditioner during the summer could likely have caused high humidity or heat in the factory, which can affect the printing quality of thermal printers by causing blank spots or missing text. By restoring function to the air conditioner, the temperature and humidity in the factory can be controlled, which can help eliminate these printing issues. However, it is still possible that any of the other options listed could also potentially solve the issue, so it is best to assess the situation further and try different solutions if necessary.

The most secure way to implement fingerprint readers would be to restrict device access to only the user to whom the laptop is assigned. This ensures that only authorized personnel have access to the device, reducing the risk of unauthorized access and data breaches.

NFC (Near Field Communication) is a wireless communication technology that is commonly used for contactless payments, mobile payments, and other mobile transactions. It allows two devices to communicate with each other when they are placed in close proximity.

Contactless payments commonly use NFC (Near Field Communication). NFC is a wireless communication technology that allows two devices to communicate with each other when they are in close proximity. Contactless payments use NFC to enable customers to make payments by simply tapping their contactless card or mobile device on a payment terminal.

If a technician made several upgrades to a computer and then determined the power supplied by the PSU is insufficient, the upgraded graphics card and adding more RAM would most likely cause the insufficiency. Upgrading the graphics card and adding more RAM can increase the power consumption of a computer, which can cause the power supplied by the PSU to be insufficient.

Adding more RAM and upgrading the graphics card are the most likely causes of the insufficiency of power supplied by the PSU. These upgrades require more power to operate efficiently and can cause the PSU to become insufficient.

If the touch-screen features on a Windows device have stopped working, a technician should check the Tablet/PC settings. The Tablet/PC settings contain options for configuring the touch-screen features on a Windows device. By checking the Tablet/PC settings, the technician can ensure that the touch-screen features are enabled and configured correctly.

If the touch-screen features on a Windows device have stopped working, a technician should check the Tablet/PC settings. The touch-screen settings may have been disabled or there may be a driver issue that needs to be resolved. References: CompTIA A+ Certification Exam Guide, pg. 536

The technician should install the appropriate printer drivers for the OS to enable the computer to communicate with the printer. The generic printer name suggests that the drivers are missing or not installed correctly.

The correct answers are A. Identify the location of devices that utilize 2.4GHz and D. Map all of the wireless signals in the restaurant. In order to troubleshoot the issue, the technician should first identify the location of devices that utilize the 2.4GHz frequency, as this can cause interference with the wireless signal. Additionally, the technician should map all of the wireless signals in the restaurant in order to identify any potential sources of interference. Checking to see if the phones are IJTP or STP lines, testing to see if the copper electrical wires are causing interference, verifying T568B is being used in the wiring closet patch panel, and scheduling timed router reboots throughout the day are not necessary steps for troubleshooting this issue.

Utilizing a grounding strap is the safest way to replace RAM on a server that has a redundant power supply. This ensures that no static electricity is transferred to any of the server components, which could cause permanent damage. The other options are not the correct methods for replacing RAM. Unplugging one power cable is not recommended, as it could cause the server to go offline and disrupt any services that are running. Verifying the RAM temperature is not necessary and does not provide any additional safety measures, and replacing the RAM while the server is running is not recommended, as it could cause system instability.

To enable devices to connect to the internet after installing a new router at a small office, the technician should configure DHCP (Dynamic Host Configuration Protocol) on the router. DHCP is a network protocol that automatically assigns IP addresses and other network configuration parameters to devices on a network. By configuring DHCP on the router, the technician can ensure that all devices on the network are assigned a valid IP address that allows them to connect to the internet.

If all devices have a 169.254.x.x IP address, this suggests that the router is not assigning IP addresses to the devices using DHCP (Dynamic Host Configuration Protocol). Configuring the DHCP settings on the router can enable the devices to receive IP addresses automatically and access the internet. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition, Chapter 14

The technician should boot into the BIOS and enable the TPM on the new motherboard to enable the system to boot again and get access to the stored data1.

Boot into the BIOS and enable the TPM on the new motherboard. Explanation: After upgrading the motherboard, the TPM may need to be enabled in the BIOS in order to access the encrypted key and boot the system. Enabling the TPM on the new motherboard should allow the system to boot and provide access to the encrypted data. References: CompTIA A+ Certification Exam Guide, 220-1001, Chapter 13

A USB to 9-pin serial adapter can be used to connect the new computer to the point-of-sale system using a USB port. USB is a common and versatile port type found on most computers.

If a technician is replacing a computer with a connected point-of-sale system using a 9-pin serial adapter and the new computer does not have a 9-pin serial port, an adapter can be installed on the USB port in order to connect to the point-of-sale system. A USB-to-serial adapter can be used to connect a serial device to a USB port on a computer.

When installing a printer on a network, the technician needs to configure the network settings, which include the IP address, subnet mask, and gateway. These settings are used to ensure that the printer can communicate with other devices on the network.

When installing a printer on a network, the technician must configure the network settings of the printer to ensure that it can communicate with other devices on the network. This includes configuring the gateway, subnet mask and IP address of the printer.

The gateway is the device that connects the local network to other networks or the Internet. The subnet mask is used to determine which part of an IP address represents the network and which part represents individual hosts on that network. The IP address is a unique identifier for each device on a network.

Vertical or horizontal lines—Marks that appear in the same place (referred to as repetitive defects) are often due to dirty feed rollers (note that there are rollers in the toner cartridge and fuser unit too) or a damaged or dirty photosensitive drum.

Vertical streaks on a laser printer output are usually caused by a damaged or worn-out drum, which is responsible for transferring toner to the paper. If the drum is damaged, toner may accumulate on certain parts of the drum, leading to streaks on the printed output. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition, Chapter 15

A Wi-Fi analyzer is a tool that can be used to scan the local area for available wireless networks and can provide information such as signal strength, interference, and available channels. It can also be used to locate the best channel to use for a given access point, which can help to reduce latency and improve performance.

Upgrading all workstations and providing a virtual environment for the legacy software is the best option, as it allows the engineering department to continue using the vital software while also upgrading to the latest version of Windows. This also ensures that the rest of the organization can take advantage of the latest software and security features.

Once the technician has determined that the power supply is likely to be defective, they should establish a plan of action to resolve the problem. This may include replacing the power supply or further testing to confirm that it is indeed defective. After establishing a plan of action, the technician should implement the solution and verify that it has resolved the issue.

https://intellinetnetwork.eu/pages/what-is-a-poe-injector

The quickest way to resolve the issue is to install a Power over Ethernet (PoE) injector to provide power to the IP phone. An unmanaged switch does not provide PoE, so an injector is needed to power the phone.

If a technician is tasked with upgrading a laptop’s RAM, the technician should verify the memory requirements of the motherboard first. The motherboard of the laptop will have specific requirements for the type and amount of RAM that can be installed. By verifying the memory requirements of the motherboard, the technician can ensure that the new RAM is compatible with the laptop.

Before upgrading a laptop's RAM, a technician should verify the memory requirements of the motherboard to ensure the new RAM is compatible. The type, speed, and maximum capacity of the RAM should be checked to ensure it meets the requirements of the motherboard. References: CompTIA A+ Certification Exam Guide, pg. 347-348

Before attempting to resolve the issue, it is important to first determine the cause or probable cause of the issue, so that a plan of action can be developed. In this case, the fact that the retention policy was updated shortly before users first noticed the issue suggests that this could be the cause of the issue. The systems administrator should investigate this further to determine if this is indeed the cause of the email server issue.

IaaS is a cloud computing model where a third-party provider hosts infrastructure components such as servers, storage, and networking on behalf of customers. This allows the startup to immediately expand its data center without the need for additional personnel or space to manage everything internally. Additionally, IaaS allows remote users to easily access the required computational and storage resources from multiple small offices.

Infrastructure as a Service (laaS) can provide the startup with the necessary computational and storage solutions without the need for internal management. laaS allows organizations to rent computing resources from a third-party provider instead of owning and maintaining them in-house.

NVMe (Non-Volatile Memory Express) drives are high-speed solid-state drives that utilize the PCIe (Peripheral Component Interconnect Express) interface to connect to the motherboard. Before purchasing an NVMe drive, the user should confirm that the PC has an available M.2 slot for the drive and that the PC has a PCIe interface for the M.2 slot.

SATA (Serial ATA) is an older interface for hard drives and is not compatible with NVMe drives. SAS (Serial Attached SCSI) is a newer interface for hard drives and is typically used for enterprise-level storage systems. SCSI (Small Computer System Interface) is a parallel interface for hard drives that is primarily used in high-end workstations and servers. DRAM (Dynamic Random Access Memory) is a type of memory commonly used in computers, but it is not relevant to the storage of data on a hard drive.

To configure the laptop to show both screens, the technician should adjust the monitor display settings. On Windows 10 or 11, the technician can select the Start menu, then open Settings, then select Display. The PC should automatically detect the monitors and show the desktop. If the monitors are not detected, the technician can select Multiple displays, then Detect. The technician can then use the dropdown list next to the image of the desktop to choose how the screen will project across the displays12345.

A Virtual Private Network (VPN) is a secure method for connecting a remote user's laptop to a corporate server. VPNs use encryption to protect data transmitted over the internet.

Thunderbolt cables are commonly used to connect Apple laptops to external displays or other devices. While Thunderbolt is available on some Windows and Chromebook devices, it is most commonly associated with Apple products. References: https://www.intel.com/content/www/us/en/products/docs/io/thunderbolt/thunderbolt-technology-general.html

NFC (Near Field Communication) is the technology used for contactless payment features on mobile payment devices. If a mobile payment device is having issues with its contactless payment feature and is not detecting payment options, it is most likely due to an issue with the NFC functionality of the device.

The contactless payment feature on a mobile payment device uses NFC (Near Field Communication) to detect payment options. If the device is not detecting payment options, the issue may be related to a problem with the NFC feature. References: https://www.techopedia.com/definition/31790/near-field-communication-nfc

Cleaning the air filter is the best action to resolve the issue of a projector that shuts down after fifteen minutes of use. A dirty air filter can cause overheating and trigger the projector’s thermal protection mechanism. Replacing the video input cable, changing the bulb, or swapping the power cord are unlikely to solve the overheating issue

Platform as a service (PaaS) is a cloud-computing concept that describes an application that is hosted on the internet but can be used and configured as needed internally per organization. PaaS provides a platform for developing, testing, deploying, and managing applications without having to maintain the underlying infrastructure or software. Hybrid cloud is a combination of public and private cloud services that share data and resources. Public cloud is a cloud computing model that provides services and resources to anyone over the internet. Infrastructure as a service (IaaS) is a cloud computing model that provides servers, storage, networking, and software over the internet

To increase the volume on a laptop using only a keyboard, a user can press and hold down the Fn key while pressing one of the function keys (usually F1-F12) that has an icon representing volume up.

Updating the preferred roaming list (PRL) is what a user should do to resolve the issue of being unable to get personal cell phone service after traveling to another country. The PRL is a database that contains information about cell towers and frequencies that a phone can use in different areas. Updating the PRL can improve the phone’s ability to connect to local networks and avoid roaming charges. CDMA is a type of cellular technology that uses code division multiple access to transmit data over radio frequencies. MDM is an acronym for mobile device management, which is a type of software solution that allows remote management and security of mobile devices. GPS is an acronym for global positioning system, which is a satellite-based navigation system that provides location and time information

A sandbox is a virtualization solution that allows a legacy application to run in an isolated environment without affecting other applications or systems. A sandbox can emulate an older operating system or hardware configuration that is compatible with the legacy software. A hybrid cloud is a combination of public and private cloud services that share data and resources. Infrastructure as a service is a cloud computing model that provides servers, storage, networking, and software over the internet. Public cloud is a cloud computing model that provides services and resources to anyone over the internet. Private cloud is a cloud computing model that provides services and resources to a specific organization or group over a private network.

To resolve the issue of new memory modules not being recognized, the systems administrator should configure appropriate settings within the BIOS. This can include enabling memory mapping or setting memory speed and timings. References: CompTIA A+ Certification Exam Objectives, 220-1001 Section 1.8

Configure appropriate settings within the BIOS. If new memory modules were installed in several Windows desktops but some users are still reporting performance issues and the desktop has not recognized the new memory modules, the systems administrator should configure appropriate settings within the BIOS to help resolve this issue.

A DHCP reservation is a feature that allows a DHCP server to assign a specific IP address to a specific device on a network, based on its MAC address. This ensures that the device always receives the same IP address, even if it is disconnected or rebooted. A DHCP reservation is most likely applied to a printer, as it can make it easier for users to find and connect to the printer on the network, without having to change the printer settings or deal with IP address conflicts. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 84)

A patch panel is a mounted hardware unit containing ports used to manage cable connections. The individual pairs of a Cat 6 cable are terminated on the patch panel, which then provides a central location for cable management and organization. The patch panel is then connected to the switch using a patch cable.
