1Y0-204 Sample Questions Answers

Workspace Control allows users to reconnect to their disconnected sessions automatically when they roam between devices or reconnect after a network disruption. It is designed to provide a seamless user experience by maintaining the user’s session state, allowing them to pick up where they left off without starting a new session. This feature can be managed within the Citrix Virtual Apps and Desktops management consoles and is essential for scenarios where users need to maintain continuity in their work, such as in the given scenario where users leave work and expect to reconnect to their sessions later.

The Group Policy Object administrative template, which includes the ADMX and ADML files, is recommended for configuring Citrix Workspace app settings at the domain level. This allows the settings to be applied across various user devices within the enterprise

The Citrix Universal Generic Printer is a special type of auto-created printer that uses the Citrix Universal Print Driver and does not require any printer drivers to be installed on the server. It can reduce the number of native drivers being used within the Site infrastructure. To use this feature, the administrator must enable the Auto-create generic universal printer policy setting

The ns_allow expression always evaluates to true, which means it allows all users access through the vServer. The ns_disallow and ns_false expressions always evaluate to false, which means they deny all users access. The ns_true expression is not a valid policy expression1

1: Citrix ADC 13.0 - Policy Expressions

According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration guide1, the HDX Printer properties retention policy has four possible settings:

• Held in profile only if NOT saved on client: This is the default setting. The printer properties are held in the user profile only if they have not been saved on the user device.
• Do NOT retain printer properties: The printer properties are not retained at all. The user must configure them for each session.
• Saved on the client device only: The printer properties are saved on the user device only. The user profile does not store them.
• Retained in user profile only: The printer properties are retained in the user profile only. The user device does not store them.

In this scenario, the administrator wants the users to maintain the different printer property settings for their HDX sessions. Since the users are using mandatory profiles, which are read-only and do not save any changes, the administrator should use the Retained in user profile only setting. This way, the printer properties are stored in the user profile and applied to the HDX sessions. The user device does not need to save them. This setting is suitable for environments where mandatory profiles are being used.

 Process Explorer is a tool that can be used to get further details on orphaned processes in the session. According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration course, Process Explorer can be used to “identify processes that are preventing a session from logging off” (Module 6:Troubleshooting User Connection Issues, Lesson: Troubleshooting Session Logon and Logoff Issues, Slide 8). Additionally, according to the Citrix Virtual Apps and Desktops 7 Administration Exam Guide, one of the objectives is to “use Process Explorer to identify orphaned processes” (Objective 6.3: Troubleshoot Session Logon and Logoff Issues). Therefore, Process Explorer is the correct answer.

The Help Desk Administrator role is suitable for managing user sessions and power-managing machines within the Delivery Group without the ability to create new objects23.

 According to the Citrix documentation1, the correct syntax for adding a simple ACL rule is:

add simpleacl -srcIP [-destIP ] [-TTL ]

The correct syntax for adding an extended ACL rule is:

add ns acl -srcIP [-destIP ] [-TTL ]

Therefore, the correct answer is B, because it uses the extended ACL rule format and specifies the destination IP address of the load balancing virtual server (192.168.100.25) and the TTL value of 10 minutes (600 seconds).

1: https://docs.citrix.com/en-us/citrix-adc/13/networking/acl.html

According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration guide, the Operator permission level allows administrators to view and modify the configuration of the site, enable and disable services and servers, and perform power management operations. The Read-Only permission level does not allow modifying the configuration or enabling and disabling services and servers. The Network and Sysadmin permission levels have more privileges than required1

 To allocate the Citrix Virtual Desktops license file from the Citrix.com account, a Citrix Administrator needs the hostname of the Citrix License Server. The hostname is case sensitive and must match the name entered in the Citrix Licensing Manager or the License Server Console

 According to the Citrix documentation, automatic HA synchronization will fail if the primary and secondary Citrix ADCs have different build versions. The build versions must be the same for the configuration to be synchronized. A manual synchronization, a configuration change to the primary Citrix ADC, or a force failover will not affect the automatic HA synchronization1

1: Citrix Virtual Apps and Desktops 7 Deployment and Administration - High Availability

 Session Reliability allows connection brokering operations in a site to continue when the connection between a Delivery Controller and the site database fails. It also allows users to continue working on their applications or desktops, even if the network is interrupted1.

1: Manage | Citrix Virtual Apps and Desktops 7 2308

 According to the Citrix documentation2, the SDX platform is a multi-tenant appliance that supports multiple Citrix ADC instances. Each instance is fully isolated and has its own dedicated resources. The SDX platform allows administrators to create, manage, and monitor multiple instances from a single management interface.

 The Secure Ticket Authority (STA) server locations must be configured on the Citrix Gateway and StoreFront to facilitate secure external access. The Citrix Gateway uses STA to validate session requests and the StoreFront communicates with the STA to manage user sessions securely.

The identity disk is a small disk attached to each virtual machine that stores the unique information for that machine, such as computer name, IP address, and Active Directory account. This disk is created when using Machine Creation Services with the Desktop Experience set to ‘Random’.1

1: Identity disks

 The command set dns parameter -setAABit YES sets the authoritative answer (AA) bit in the DNS response header. This indicates that the Citrix ADC is the authoritative server for the domain name in the query. This can be useful when the Citrix ADC is configured as a DNS proxy server1

1: 2 - DNS Parameters

The PowerShell command Get-Service -DisplayName *citrix* is used to display all the Citrix services installed on the Delivery Controller. This command filters services by their display name to only show those related to Citrix, which typically include various components of the Citrix Virtual Apps and Desktops 7 Deployment and Administration.

 According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration course, one of the methods to configure the Citrix Workspace app is to use a Group Policy Template File. This file contains the settings that can be applied to the Citrix Workspace app through Active Directory Group Policy. This method allows the administrator to specify the server address and other settings for the users, so they do not have to remember or enter them manually1

1: 2 - Configuring Citrix Workspace app using Group Policy Template File.

 The Citrix documentation states that if a machine catalog is not available when adding machines to a Delivery Group, a possible cause is that the machines in the unavailable machine catalog are of different OS types2.

Option B is the correct answer because it uses the DROP action to block access to the URLs that match the BAD_URL pattern set. The other options use the RESET action, which only resets the connection but does not prevent access. Also, option C has a typo in the bind responder global command, which would cause an error. Option D has an invalid type argument for the bind responder global command, which should be DNS_REQ_OVERRIDE instead of DNS_REQ. For more information, see the following resources:

• Manage | Citrix Virtual Apps and Desktops 7 2308
• Applications | Citrix Virtual Apps and Desktops 7 2308
• Citrix Virtual Apps and Desktops 7 Deployment and Administration (CWS …
• CWS-215: Citrix Virtual Apps and Desktops 7 Deployment and …
• EDUCATION CWS-215: Citrix Virtual Apps and Desktops 7 Administration On …

Citrix Virtual Apps and Desktops support several high availability solutions for on-premises deployments, including Always On Availability Groups, SQL Server database mirroring, and SQL clustering. These features ensure automatic failover and continuous operation1

Citrix Profile Streaming is a feature that, when enabled, allows profile files and folders to be fetched from the user store to the local computer only when users access them after logon. Registry entries and files in the pending area are fetched immediately. By default, profile streaming is disabled23.

According to Citrix documentation, to make a configuration change for a StoreFront server group, the change should be made on one StoreFront server in the group, and then the Propagate Changes feature should be used to synchronize the change across the group1

 According to the Citrix documentation1, persistence time-out is the parameter that determines how long the service continues to serve requests from the client after it is disabled manually. The service accepts new requests or connections only to honor persistence. After the persistence time-out expires, no new requests or connections are directed to the service and all of the existing connections are closed. This parameter is available only when the service is disabled gracefully. The default value is 2 minutes. The other options are not related to the scenario described in the question.

Typically, the migration of existing profiles to a new profile management system occurs during the user’s first logon after the policy has been applied, as this is when the user’s profile is first accessed and can be migrated.

https://docs.citrix.com/en-us/workspace-environment-management/current-release/user-interface-description/policies-and-profiles/citrix-upm-settings.html

The expression B matches the required traffic because it uses the IN_SUBNET function to check if the source IP address belongs to the subnet 10.107.149.0/24, and it uses parentheses to group the logical OR condition for the destination port being either UDP or TCP 53. The other expressions are either syntactically incorrect or do not match the subnet correctly. See Policy Expressions and Classic Expressions for more information.

According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration (CWS-215) course, the LeastConnection method is used to redirect user requests to the data center with the fewest active connections. This can help balance the load across different data centers and improve the user experience. The other methods are not suitable for this scenario because they do not consider the number of active connections or the location of the user

According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration course, the Citrix ADC maintains a revision history of the configuration files, which can be used to restore a previous configuration in case of accidental changes or deletions. Restarting the Citrix ADC, running HA file synchronization, or running Save v/s Running configuration will not undo the changes made by the administrator. Therefore, the correct answer is A. Restore from revision history1

1: Manage | Citrix Virtual Apps and Desktops 7 2308

 The New-BrokerRebootScheduleV2 cmdlet creates a new reboot schedule for a machine catalog or a delivery group. The -StartTime parameter specifies the start time of the reboot schedule in 24-hour format. The -RebootDuration parameter specifies the time interval in minutes between each machine reboot. The -Frequency parameter specifies how often the reboot schedule occurs. The -DesktopGroupName parameter specifies the name of the delivery group to apply the reboot schedule to. The -Enabled parameter specifies whether the reboot schedule is enabled or not12

The NSIP address is the NetScaler-owned IP address that uniquely identifies the NetScaler on your network, and it provides access to the appliance. By default, the NSIP is the source IP address for packets originating from the NetScaler appliance, such as packets destined for NTP servers1.

1: Configuring NetScaler-owned IP addresses | Networking

Creating application groups requires the delegated administration permission of the Delivery Group Administration built-in role. This is stated in the following web pages from Citrix:

• Create application groups | Citrix DaaS: “Creating application groups requires the delegated administration permission of the Delivery Group Administrator built-in role. See Delegated administration for details.”
• Create application groups | Citrix Virtual Apps and Desktops 7 2212: “To create application groups, you need permissions on the Application Groups object. The permissions for most administrative operations are the same as on applications.” The Application Groups object is under the Delivery Groups node in the Studio navigation pane.

Citrix Cloud is the hosting platform that minimizes management and maintenance for administrators while maintaining control of the VDA machines1.

 When creating a custom scope, the Full Administrator role is not available because custom scopes are designed to limit administrators’ permissions to specific objects or tasks within the Citrix environment.

 The Dashboard view in Citrix Director provides a real-time graphical representation of the health and usage of the site, including the database services, the license server, and any hypervisor-hosting connections12

1: Director - Citrix Product Documentation 2: Director Dashboard Explained - Citrix Blogs

 According to the Plan your StoreFront deployment document, for single server deployments you can install StoreFront on a non-domain-joined server but certain functionality will be unavailable; otherwise, StoreFront servers must reside either within the Active Directory domain containing your users’ accounts or within a domain that has a trust relationship with the user accounts domain unless you enable delegation of authentication to the Citrix Virtual Apps and Desktops sites or farms. All the StoreFront servers in a group must reside within the same domain. Therefore, server groups are not supported for non-domain-joined StoreFront servers (option D). Also, according to the User authentication document, when you configure a store, you specify the type of authentication service to use. By default, users are authenticated on StoreFront. Alternatively, you can delegate authentication to Citrix ADC or to the Delivery Controllers (option E). Authentication does not occur at the Domain Controller (option A) or at the Citrix ADC (option C) by default. Two-factor authentication is supported for non-domain-joined StoreFront servers (option B) as long as the authentication is delegated to Citrix ADC or Delivery Controllers.

According to the Citrix documentation, when you bind an interface to a VLAN, the native VLAN of the interface changes to the VLAN to which it is bound. In this scenario, the native VLAN of interface 1/1 was 40 before the command was executed, so it remains 40 after the command is executed. The command does not change the native VLAN of the interface, only the VLAN to which it is bound. Therefore, the correct answer is B.

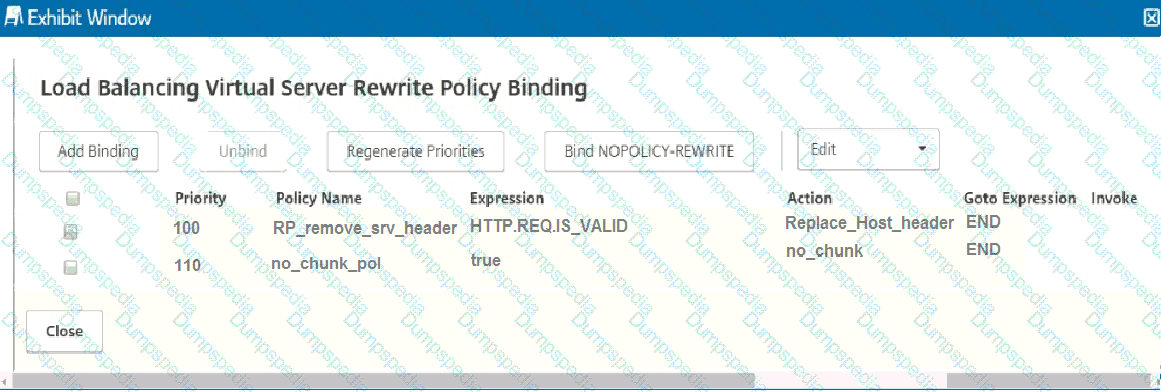

The issue is caused by the policy expression of the no_chunk_pol being ‘true’ and ‘NOT HTTP.REQ.IS_VALID’. This means that the policy will always be true and thus, always be invoked, preventing the other policy from being used. This is explained in the Citrix Virtual Apps and Desktops 7 Deployment and Administration (CWS-215) course, under the section “Load Balancing Virtual Server Rewrite Policy Binding”.

The Control layer contains the Site database in a Citrix Virtual Apps and Desktops Architecture model. The Site database stores the running site configuration, plus the current session state and connection information. The Access layer contains the components that users need to connect to their apps and desktops, such as StoreFront and Citrix Gateway. The User layer contains the user profiles, policies, and data. The Resource layer contains the machines that host the apps and desktops, such as VDAs and hypervisors

According to the Citrix documentation1, the No-Monitor option allows the administrator to remove health checks from specific bound services. This option is useful when the administrator wants to reduce the number of health checks sent to the backend resources, or when the administrator knows that a particular service is always up and does not need to be monitored.

According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration guide1, to connect to an SSL offload virtual server without any SSL errors, the client must trust the certificate that is bound to the virtual server. This means that the root certificate of the certificate authority (CA) that issued the server certificate must be installed on the client’s device. Additionally, the server certificate must be bound to the load-balancing virtual server that is configured for SSL offload, not to the back-end servers. This way, the Citrix ADC can terminate the SSL connection and communicate with the back-end servers using HTTP or TCP.

 According to the Access Control Lists documentation, the add ns acl command is used to create an extended ACL that can filter packets based on various parameters, such as source IP address, source port, action, and protocol. An extended ACL can define the conditions that a packet must satisfy for the Citrix ADC to process the packet, bridge the packet, or drop the packet. Therefore, to bridge traffic originating from 192.168.10.200, a Citrix Administrator can use the following command:

add ns acl bridge_192.168.10.200 BRIDGE -srcIP 192.168.10.200

This command creates an extended ACL named bridge_192.168.10.200 with the action BRIDGE and the source IP address 192.168.10.200. Any packet that matches these conditions will be bridged to the destination without processing by the Citrix ADC.

 According to the Reference Architecture: Image Management, Machine Creation Services (MCS) is a disk-based provisioning approach that works with major hypervisors and leading cloud platforms. The clones include a differencing disk and an identity disk linked from a base disk. MCS configures, starts, stops, and deletes virtual machines using the hypervisor APIs. When a Random/Non-Persistent desktop machine is restarted, the differencing disk will be updated from the base image, discarding any changes made by the user. This ensures that the desktop machine is always in a clean state and consistent with the master image.

According to the Prepare to install article, the First-Time wizard automatically pops up when the appliance is configured with the default IP address (192.168.100.1) or when licenses are not present on the appliance. Therefore, options C and D are correct. Options A and B are not related to the First-Time wizard.

 According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration (CWS-215) course, the Citrix ADC can optimize the responses by using HTTP protocol for the services and SSL protocol for the virtual server. This configuration allows the Citrix ADC to terminate the SSL connection from the client and then communicate with the server using HTTP. This way, the data is encrypted between the client and the Citrix ADC, and the Citrix ADC can perform optimization tasks such as compression and caching1: Page 95, Module 5: Citrix Gateway and Citrix StoreFront Integration.

According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration documentation1, the collation sequence for the site database should be _100_CI_AS_KS. This collation sequence is case-insensitive, accent-sensitive, kana-sensitive, and width-insensitive. It is also compatible with the SQL Server mirroring feature. Other collation sequences might cause errors or unexpected behavior when using SQL Server mirroring2.

According to the Citrix documentation, the command bind cs vserver MYVPN_http -lbvserver Vserver-CS-1 binds a load balancing virtual server to a content switching virtual server. This means that the content switching virtual server will forward the requests that match its policies to the load balancing virtual server. In this case, the content switching virtual server MYVPN_http has a policy that matches requests for http://server.citrix.lab, so it will forward those requests to the load balancing virtual server Vserver-CS-1. Therefore, the users trying to access http://server.citrix.lab will be connected to the Vserver MYVPN_http, which will then connect them to Vserver-CS-1.

 Installing the Cloud Connector on a machine template (before cloning) is not supported. If you clone a machine with the Cloud Connector installed, the Cloud Connector services won’t run and the machine can’t connect to Citrix Cloud1. Therefore, the administrator should provision each machine from a cloned machine template and install the Cloud Connector software on them. This way, the Cloud Connectors can communicate with Citrix Cloud and register with the same resource location2.

1: Cloud Connector Installation | Citrix Cloud 2: Install Cloud Connectors from the command line | Citrix Cloud Government

 If client drives are not mapped in a HDX session despite the ‘Auto connect client drives’ setting being configured, it could be due to the absence of loopback processing. Enabling loopback processing in the Group Policy Object (GPO) allows user-specific settings to be applied regardless of where the user object is located in Active Directory, ensuring that the policy is effectively applied to the published desktops.

 In general, to improve HDX session performance for high-latency, low bandwidth connections, administrators can configure settings that reduce the amount of data transferred and the resources required. This includes optimizing the visual experience (B, D, E) by adjusting the frame rate, color depth, and video quality.

 Application Prelaunch is a feature that can be enabled to reduce the perceived start time of applications. It prelaunches an application session when the user logs on, so the application is ready when the user needs it, thus reducing the wait time during the initial access
