300-640 Sample Questions Answers

Cisco UCS X-Series Direct is specifically designed for edge, retail, remote-office, and branch-office environments that require the operational characteristics of UCS without deploying separate top-of-rack Fabric Interconnect appliances. It combines the UCS X9508 chassis with integrated UCS 9108 100G Fabric Interconnect modules and supports centralized management through Cisco Intersight.

The decisive requirement is 200 Gbps of unified fabric connectivity per compute node . Cisco documents that two UCS 9108 100G Fabric Interconnect modules provide a total of 200 Gbps per compute node. The solution can support up to eight compute nodes per chassis and is explicitly positioned for remote and branch-office deployments.

The S3260 is primarily a storage-intensive UCS platform and does not represent the required branch-oriented modular compute architecture. Unified Edge is purpose-built for edge locations, but the specific 200-Gbps-per-compute-node requirement aligns directly with X-Series Direct. The C885A M8 is a high-density rack server for GPU-intensive AI workloads rather than a chassis solution optimized for these branch deployment requirements.

Study Guide Reference: 2.0 AI Infrastructure Components and Architecture — 2.2 compute scalability and redundancy; 2.5 hybrid AI deployment.

===============

Extended Power Capacity is specifically designed to increase usable power in a Cisco UCS X-Series chassis while the chassis remains configured in a redundant power mode. Cisco states that enabling Extended Power Capacity permits the chassis to borrow power capacity from the supplies reserved for redundancy, thereby increasing the total power that can be allocated to workloads.

Cisco provides a six-PSU example in Grid redundancy mode. Without Extended Power Capacity, the workload is capped at 8,400 W. Enabling the feature increases the available workload capacity to approximately 9,660 W—an increase of 15 percent—while retaining the configured redundant power mode.

Power capping in option A would restrict consumption rather than make additional power available. Adding more PSUs is impossible when the chassis already contains its supported complement of six supplies. Disabling Extended Power Capacity would reduce rather than increase the available power envelope.

This feature is particularly useful after installing additional accelerator, PCIe, memory, or compute resources that raise chassis power demand. It should nevertheless be applied within the data center's electrical and thermal design limits.

Study Guide Reference: AI Infrastructure Operations and Troubleshooting — UCS X-Series chassis power policy, redundancy, Extended Power Capacity, and capacity management.

===============

Cisco Nexus 9000 integration with NVIDIA adaptive-routing capabilities requires the Nexus switch to enable the Spectrum-X hardware profile . Cisco's current NX-OS configuration guide explicitly specifies the global configuration command hardware profile spectrum-x to enable NVIDIA Spectrum-X adaptive routing. When a Nexus switch peers with a supported NVIDIA NIC, this capability allows the NIC to handle packet reordering created by granular techniques such as per-packet Dynamic Load Balancing.

This is particularly important for AI training because large synchronized RDMA flows can create uneven utilization under conventional hash-based ECMP. Cisco explains that per-packet DLB can spray packets over multiple paths and that NVIDIA adaptive routing/direct data placement enables the receiver to correctly handle packets that arrive out of order, improving utilization and collective-operation performance.

Option A is not the documented NX-OS configuration syntax. Option B is not the Cisco-prescribed Nexus integration command. Option D may be relevant to traffic classification in other designs but does not activate Spectrum-X adaptive-routing interoperability.

Therefore, the Cisco-documented configuration is C. This differs from the supplied file's marked answer B.

Study Guide Reference: 3.0 AI Infrastructure Deployment and Data Management — 3.1.d Load distribution.

===============

Traffic Analytics and Flow Telemetry are mutually exclusive flow-collection modes within Cisco Nexus Dashboard. Cisco's current Nexus Dashboard documentation identifies both under Flow Collection settings and states that Flow Telemetry must be disabled at the fabric level before Traffic Analytics can be enabled.

Traffic Analytics automatically discovers services and visualizes conversations based primarily on Layer 4 information. It provides visibility into network characteristics such as congestion, latency, and drops, which directly matches the monitoring requirements in the scenario. Cisco's Nexus Dashboard Insights guidance likewise states that if Flow Telemetry is already active, it must first be disabled for the relevant sites before Traffic Analytics is selected.

Delta Analysis is an assurance/comparison capability and is not the mutually exclusive collection mode described here. Connectivity Analysis performs reachability and path-oriented diagnostics. SNMP traps remain a separate event-notification mechanism and are not displaced by Traffic Analytics.

The operational distinction matters because Traffic Analytics and Flow Telemetry use different approaches to flow collection and analysis. An administrator cannot simply enable both collection modes simultaneously and expect them to operate in parallel on the same fabric configuration.

Study Guide Reference: AI Infrastructure Operations and Troubleshooting — Nexus Dashboard monitoring, telemetry, congestion analysis, latency, and packet-drop visibility.

===============

Two settings determine the required behavior. First, Power Restore must be configured as Always On . Cisco defines this setting as instructing the server to power on after power is restored following a loss event. Immediate is not one of the documented Power Restore states; supported states include Last State, Always On, and Always Off.

Second, Power Priority should be High . Cisco explains that Power Priority determines initial power allocation among servers. A server assigned a higher priority receives preference when power is being allocated, which directly supports the requirement that these systems restart as soon as possible. Cisco validated designs explicitly show Power Profiling enabled with Power Priority set to High for performance-oriented deployments.

Power Profiling permits the platform to determine server power requirements. The Processor Package Power Limit should remain at Default for the X-Series scenario. Cisco documentation also notes that the selectable PPL setting is specifically applicable to particular C225/C245 M8 systems rather than being the mechanism for prioritizing X-Series restart behavior.

Option C provides Always On but fails to assign High power priority. Options A and D contain the invalid Immediate restore setting.

Study Guide Reference: AI Infrastructure Operations and Troubleshooting — UCS power management, recovery after power loss, power prioritization, and infrastructure availability.

The Cisco UCS C885A M8 contains six 3000-W 54-V AC power supplies and normally supports an N+2 power configuration . In the scenario, three PSUs are connected to each independent power grid. Losing one complete grid therefore leaves only three operational 54-V PSUs.

Cisco's installation and service documentation specifies the resulting behavior precisely: when only three 54-V AC PSUs remain available, the server continues operating but enters a reduced-performance condition in which power to each GPU is capped at 60 percent . Cisco further states that four or more 54-V power supplies allow operation at full performance.

Consequently, the system does not immediately shut down, eliminating option A. A graceful operating-system shutdown is also not automatically initiated, eliminating D. Option C is incorrect because three active supplies are insufficient for full-performance operation on this platform.

This behavior allows the server to remain available during a significant power-domain failure while keeping its consumption within the capacity of the remaining PSUs. The operational tradeoff is reduced accelerator performance until adequate power redundancy is restored.

Study Guide Reference: AI Infrastructure Operations and Troubleshooting — UCS C885A M8 power redundancy, degraded operation, GPU power management, and availability.

===============

When an AI environment contains both local and external resources, workload distribution enables computational jobs to be placed or divided across multiple locations according to performance, capacity, latency, data residency, security, and cost requirements. This is a defining capability of hybrid AI infrastructure rather than an isolation mechanism.

Cisco defines hybrid AI infrastructure as combining on-premises and cloud resources within a common operating model. Workloads can use cloud capacity for burst training or experimentation while sensitive data or steady inference operations remain on premises. Cisco further identifies workload mobility, secure connectivity, and data synchronization as explicit requirements for hybrid AI deployment in DCAI objective 2.5. Cisco material on AI workload orchestration likewise describes workload execution across on-premises, cloud, and hybrid environments.

Option A unnecessarily isolates functions rather than distributing them. Option C contradicts hybrid automation by restricting operations locally. Option D describes security-policy enforcement, which is important but does not define workload distribution.

Accordingly, B is the technically correct response. It also corrects the answer indicated in the supplied source document, which lists C despite Cisco's current hybrid-infrastructure guidance.

Study Guide Reference: 1.0 AI Fundamentals and Applications — 1.4.b Hybrid; 2.5 Hybrid AI deployment and workload mobility.

===============

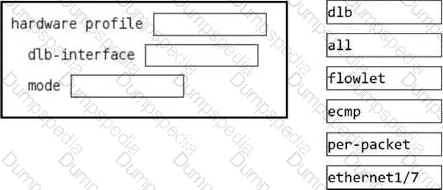

hardware profile dlb

dlb-interface all

mode flowlet

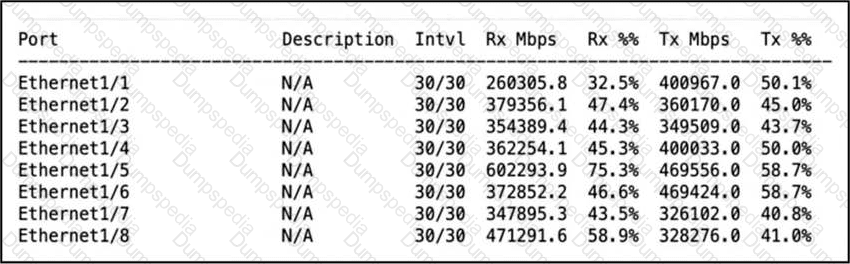

The exhibit shows materially uneven utilization across the eight interfaces, with receive utilization ranging from approximately 32.5% to 75.3%. Cisco Dynamic Load Balancing addresses this problem by considering current path utilization rather than relying exclusively on static ECMP hashing.

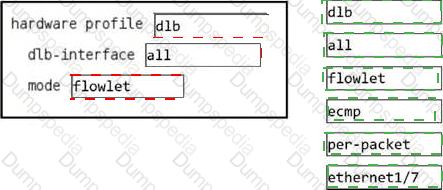

The configuration begins with hardware profile dlb, which enters the DLB hardware-profile context. dlb-interface all enables DLB on all eligible Layer 3 physical interfaces. Cisco documents both an explicit interface list and the all keyword for this purpose. The document's supplied drag-and-drop answer then selects mode flowlet. Cisco defines flowlet load balancing as the default DLB mode, in which forwarding decisions use Dynamic Resilient Ethernet metrics to select less-loaded paths while maintaining packet ordering within a flowlet.

Cisco also supports per-packet DLB, which can produce even greater path utilization but can reorder packets. When NVIDIA adaptive-routing capabilities are explicitly enabled and endpoints can handle reordering, Cisco documents per-packet DLB as an optimized alternative. That additional prerequisite is not stated in this question.

Therefore, the source-derived configuration is DLB / all interfaces / flowlet .

Study Guide Reference: AI Infrastructure Deployment and Data Management — Dynamic Load Balancing, ECMP optimization, AI backend fabrics, and traffic distribution.

===============

The UCS X210c M8 combined with the UCS X580p PCIe Node satisfies the complete requirement set. The X210c M8 uses Intel Xeon 6 processors, while the X580p provides modular GPU expansion and supports up to four PCIe GPUs. Cisco specifically positions this combination for generative AI, inference, and other GPU-accelerated workloads. Management is policy-driven through Cisco Intersight, providing the required cloud-based operational model.

The X580p also supports NVIDIA H200 NVL GPUs and NVLink Bridge capabilities. This is significant where low-latency communication is required between specific GPU pairs because NVLink provides substantially higher-bandwidth GPU-to-GPU communication than standard PCIe-only communication. Cisco's UCS ordering guidance specifies that H200 NVL supports NVL Bridge configurations with a minimum of two GPUs.

Options C and D are high-density AI systems, but they use AMD EPYC-based architectures rather than satisfying the stated Intel CPU requirement. Option A likewise does not match the specified X-Series composability, cloud-managed GPU resource model, and Intel-based requirement as directly as the X210c M8 configuration.

Study Guide Reference: 2.0 AI Infrastructure Components and Architecture — 2.2 Compute deployment; 2.4 power and efficiency considerations.

===============

A rail-optimized topology is specifically engineered for large GPU clusters where collective communication performance and minimum inter-GPU latency are critical. In a rail-optimized design, corresponding GPU/NIC interfaces across compute nodes attach to the same rail switch. This allows communication between GPUs of the same rank to remain on a single leaf or rail switch whenever possible, eliminating unnecessary spine traversal and reducing network hops.

Cisco's AI/ML networking guidance gives a directly applicable design example: a rail-optimized, nonblocking architecture connecting 512 GPUs in 64 nodes, with eight GPUs per node . The design uses eight rail/leaf switches and four spine switches and maintains nonblocking bandwidth while optimizing GPU collective communication. Cisco explicitly states that rail-optimized design is recommended for NVIDIA GPU environments.

A conventional leaf-spine architecture can certainly provide high performance and nonblocking bandwidth, but option C is more specific to the requirement for the lowest possible GPU-to-GPU latency at this scale. Flat Layer 2 does not provide the required scalable fabric architecture, while a traditional three-tier model introduces additional hops and potential oversubscription.

Study Guide Reference: 2.0 AI Infrastructure Components and Architecture — 2.1 Evaluate network deployment based on bandwidth, latency, redundancy, scalability, and security.

In Cisco Nexus Dashboard, a correlated anomaly is a secondary condition that Nexus Dashboard has associated through cause-and-effect analysis with another anomaly identified as the probable root cause. Cisco's current documentation explicitly distinguishes root-cause anomalies from correlated anomalies: the root anomaly triggers additional symptoms, and those dependent symptoms are displayed as correlated events.

For example, a physical or routing event may cause a downstream BGP session to fail. Rather than presenting each symptom as an independent failure, Nexus Dashboard analyzes relationships involving interfaces, devices, protocols, and timestamps. The BGP peer-down condition can therefore appear as correlated when a higher-level underlying anomaly explains it.

Option A incorrectly associates correlation with user-account activity. Option B describes repetition across several devices, which is not what the correlation indicator means. Option D refers generally to impact analysis rather than the specific root-cause relationship communicated by the label.

This feature reduces troubleshooting time because engineers can focus first on the root anomaly. Cisco specifically notes that resolving the underlying root cause should also resolve the anomalies correlated with that condition.

Study Guide Reference: AI Infrastructure Operations and Troubleshooting — Nexus Dashboard assurance, anomaly correlation, root-cause identification, and troubleshooting.

===============

Data Center Quantized Congestion Notification, or DCQCN, combines ECN-based end-to-end congestion signaling with Priority Flow Control to maintain efficient and effectively lossless RoCE transport. Cisco states that ECN reacts first , while PFC functions as a safety mechanism if congestion escalates faster than endpoint rate control can respond. With moderate queue buildup, WRED marks ECN-capable packets. If queue utilization continues toward critical levels, PFC pauses the affected priority before packet loss occurs.

The second statement in option C is also correct. When the receiving host receives a RoCEv2 packet carrying the ECN Congestion Experienced marking, the receiving endpoint generates a Congestion Notification Packet, or CNP, toward the transmitting source. The source then reduces its transmission rate according to the congestion-control algorithm.

The network switch performs the ECN marking but does not generate the RoCE CNP on behalf of the receiver. This eliminates options A, B, and D. Options A and D additionally reverse the normal operational sequence by claiming that PFC responds before ECN.

The distinction is important because efficient AI fabrics seek to manage congestion proactively through ECN while reserving PFC for severe congestion and microbursts.

Study Guide Reference: 3.1.a Congestion control mechanisms — PFC and ECN; 3.1.b RoCEv2.

===============

The surveillance workload creates a substantial persistent-capacity requirement across every location. Even at the stated minimum of ten cameras, each store generates approximately 240 GB per day and roughly 3.36 TB over fourteen days before considering filesystem overhead, redundancy, additional cameras, or growth. A scalable IP-based shared-storage architecture is therefore the appropriate option.

Cisco Unified Edge is designed around integrated high-speed Ethernet networking and supports network-accessible storage through standard IP mechanisms. Cisco's validated Unified Edge guidance describes network storage using protocols such as NFS and iSCSI , while explicitly noting that Fibre Channel is not validated in that design. Unified Edge also supports software-defined and distributed storage architectures carried over its Ethernet infrastructure.

Fibre Channel would introduce specialized SAN adapters, switches, cabling, and operational complexity that are generally inappropriate for a cost-sensitive, highly distributed retail edge. InfiniBand is optimized for specialized high-performance computing rather than economical video retention. Local storage could hold surveillance data at each store, but the question explicitly requires a centralized storage solution and long-term capacity that can be managed across locations.

IP-based shared storage therefore provides the best combination of scalability, standardization, cost efficiency, and Unified Edge compatibility.

Study Guide Reference: AI Infrastructure Components and Architecture — edge AI storage, IP storage, scalability, capacity, and deployment requirements.

===============

Rapid provisioning supports scalability by reducing the time required to make compute, GPU, networking, storage, and orchestration resources available for workloads. The most appropriate description is therefore the efficient launch of computational platforms . When new AI capacity can be provisioned consistently and quickly, organizations can expand training environments, increase inference capacity, respond to workload bursts, and introduce additional accelerator resources without lengthy manual configuration.

Cisco's DCAI objectives explicitly cover orchestration as a component of AI environments and require candidates to evaluate infrastructure scalability. Cisco also emphasizes that AI infrastructure must scale to accommodate changing workloads and that cloud-oriented infrastructure offers rapid access to computational resources when demand changes.

Option A introduces fragmented management, which generally increases operational complexity. Option B restricts connectivity and therefore conflicts with scalable distributed AI execution. Option C explicitly delays resource availability and is the opposite of rapid provisioning.

The architectural objective is to make infrastructure consumption repeatable and automated. Efficient provisioning allows the underlying platform to expand at the pace demanded by GPU-intensive training and production inference rather than becoming an operational bottleneck.

Study Guide Reference: 1.0 AI Fundamentals and Applications — 1.5.d Orchestration; AI infrastructure scalability concepts.

===============

Cisco Nexus Dashboard is the appropriate platform for operating and automating Cisco Nexus-based data center fabrics while retaining an NX-OS/CLI-oriented architecture. Nexus Dashboard Fabric Controller provides centralized provisioning, configuration management, automation, templates, monitoring, and lifecycle functions for Nexus fabrics. Cisco explicitly describes NDFC as the comprehensive automation and management platform for Cisco Nexus and MDS infrastructure.

The template requirement is also directly supported. Nexus Dashboard allows policies and configuration templates to be defined centrally and deployed consistently to one or multiple fabrics. For flow visibility, Nexus Dashboard can collect fabric telemetry and reconstruct traffic paths, including packets, drops, anomalies, and flow behavior across multiple switches.

Cisco Catalyst Center—formerly DNA Center—is primarily associated with enterprise campus and access networks rather than Nexus data center AI fabrics. Intersight specializes in compute and infrastructure lifecycle management, particularly UCS. Hyperfabric provides highly automated cloud-managed networking but deliberately abstracts much of the conventional CLI-centric operational model.

Nexus Dashboard therefore best satisfies both requirements: standardized network automation and detailed fabric-flow monitoring while remaining aligned with traditional Nexus operational practices.

Study Guide Reference: AI Infrastructure Deployment and Data Management — Cisco Nexus Dashboard, fabric automation, configuration templates, and telemetry.

===============
