3V0-22.25 Sample Questions Answers

The correct entry point is Infrastructure Operations > Configurations > Service Discovery > Configure Service Discovery . VCF Operations Service Discovery is not automatically enabled merely because VMware Tools is installed. VMware Tools is a dependency for discovery methods, but the vCenter adapter instance and Service Discovery configuration still must be enabled and associated with the relevant vCenter. The official workflow states that the administrator opens Infrastructure Operations > Configurations , selects the Service Discovery tile, and clicks Configure Service Discovery . From there, the administrator selects the vCenter instance, opens the Service Discovery tab, and activates the Service Discovery option. Application Discovery and credential or credential-less discovery settings can also be enabled from the same workflow . Option B is incorrect because the documented navigation is not through an Administration menu, and the configuration is performed from the Service Discovery tile into the vCenter integration. Option D is used later to manage discovered services and monitoring state, not to initially configure the service discovery adapter. Reference topic: Objective 4.7 – Monitor Applications with VCF Operations / Service Discovery / Configure Service and Application Discovery .

The minimum count is 12 collectors , because the requirement is stated at the domain level and each VCF instance contains three domains: one Management Domain and two Workload Domains. The calculation is: 2 Fleets × 2 VCF Instances per Fleet × 3 Domains per VCF Instance = 12 dedicated domain collectors . VCF 9.0 defines a VCF private cloud as containing one or more VCF fleets, a VCF fleet as containing one or more VCF instances, and a VCF instance as consisting of a management domain and optional workload domains . VCF Operations collector architecture also supports scaling collection by adding collector nodes and assigning them through collector groups; collector groups are used to increase resiliency when a collector becomes unavailable and redistribute collection work across remaining collectors . Because the question states that each domain requires dedicated collectors, the administrator cannot satisfy the design by sharing a single collector across multiple domains or counting only the VCF instances. Options 4, 6, and 10 undercount the total number of managed domains. Reference topic: Objective 4.1 – Day 2 Tasks / Unified Cloud Proxies / Collector Groups / Scaling VCF Operations Collection .

The VCF Download Tool requires a download token generated from the Broadcom portal to authenticate entitlement and download software binaries into an offline depot. In a dark-site deployment, the depot server is populated externally because the VCF environment cannot directly reach the online depot. The official VCF 9.0 documentation describes the VCF Download Tool as the CLI utility used to manage binaries and metadata for VMware Cloud Foundation lifecycle operations, including offline binary handling . The documented workflow for downloading binaries specifically instructs the administrator to obtain a download token from the Broadcom Support Portal, create a token file, and pass it to the tool using the depot download token file option . The SKU, bundle ID, and component parameters are selection or filtering inputs used to target what is downloaded; they do not authenticate the session. Authentication and entitlement validation are performed by the download token. Reference topic: Objective 4.14 – Fleet Management activities / offline depot / binary management / VCF Download Tool .

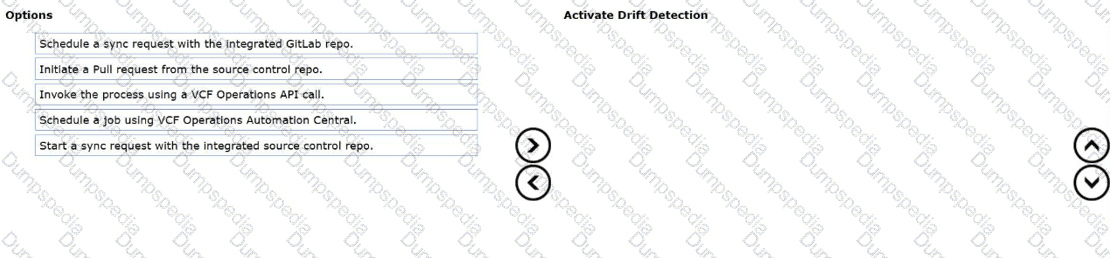

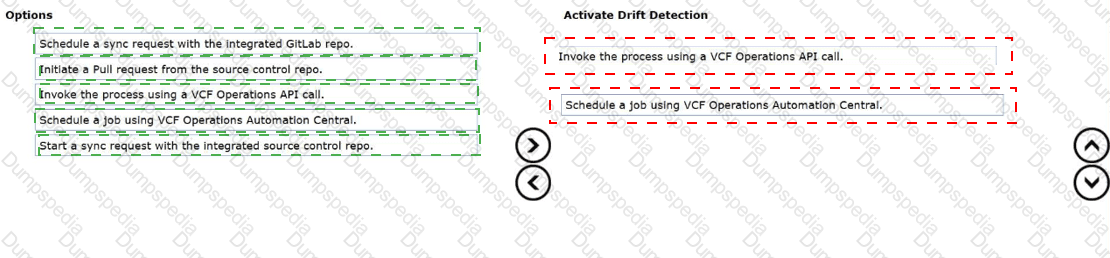

Invoke the process using a VCF Operations API call.

Schedule a job using VCF Operations Automation Central.

The two valid activation methods are to invoke Drift Detection through a VCF Operations API call and to schedule a job using VCF Operations Automation Central . VCF Operations Configuration Drift uses desired-state templates assigned through policy to compare vCenter and vSphere cluster configuration values against approved standards. The VCF 9.0 documentation states that unified configuration management supports scheduled drift detection for vCenter and cluster objects and allows administrators to schedule drift detection through VCF Automation or the VCF Operations orchestrator . The scheduling workflow is performed from Fleet Management > Configuration Drifts > Schedule Drift Detection , where the administrator defines the scope, criteria, and schedule; after creation, VCF Operations creates a new job in Automation Central . API invocation is also valid because VCF Operations exposes fleet and cloud proxy functionality through APIs for automation-driven operations . The GitLab or source-control sync options are not correct because source control synchronizes configuration templates, not the drift detection process itself. Pull requests govern template change review, not drift execution. Reference topic: Objective 4.16 – Monitor Security, Compliance and Configuration / Configuration Drift / Scheduled Drift Detection / Automation Central / API-driven operations

VCF Operations log analysis uses the search bar under Infrastructure Operations > Analyze > Logs to refine log-event results by keyword, phrase, glob, regular expression, or field operation. In the main search text box, multiple keywords entered together are treated as a logical AND , not an OR. The official guidance states that to find events containing specified keywords, the administrator enters complete keywords, globs, or phrases in the search text box, and that entering a space in the main search field is a logical AND operator . Therefore, entering esx.audit and firewall returns only log events that contain both terms: events matching esx.audit and also matching firewall. This is the correct behavior when the administrator is searching for ESX audit events specifically related to firewall changes. Option C would apply to OR-style behavior, but that applies to multiple values inside a single filter row when entered as separate filter values, not to the main search bar keyword syntax . Options A and B introduce unrelated terms and do not match the provided search criteria. Reference topic: Objective 4.12 – Log Event Monitoring and Analysis in VCF Operations / Searching and Filtering Log Events / Search bar keyword logic .

The required plug-in type is Webhook Notification Plugin . Workload Placement Action-based notifications are a specific notification type used for WLP virtual machine movement tasks , not standard alert notifications. The VCF Operations documentation states that administrators can create and manage Workload Placement action-based notifications and configure actions for which notifications are sent when a WLP action succeeds, fails, or times out. It further specifies that notifications are sent after the WLP VM movement task completes, regardless of final status . Before such notification rules can be created, the administrator must configure the Webhook Notification Plugin . In the WLP Action notification workflow, the outbound method supported by default is the Webhook Notification Plugin, and the administrator selects or creates a Webhook plug-in instance before selecting the payload template . This is reinforced in the payload-template workflow, where Action appears only when Webhook Notification Plugin is selected as the outbound method; WLP Action notification payloads are configurable only for Webhook . Network Share does not support notification rules, and SNMP or Standard Email are used for alert-style notifications, not WLP Action notifications. Reference topic: Objective 4.9 – Notifications / Outbound Plugins / WLP Action-Based Notifications .

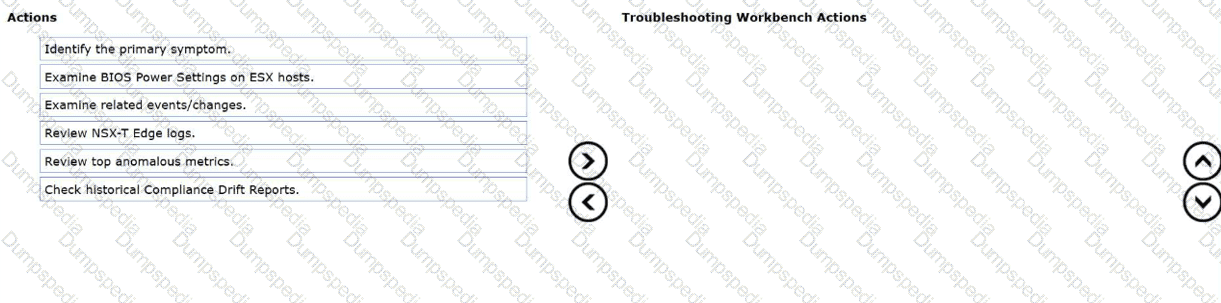

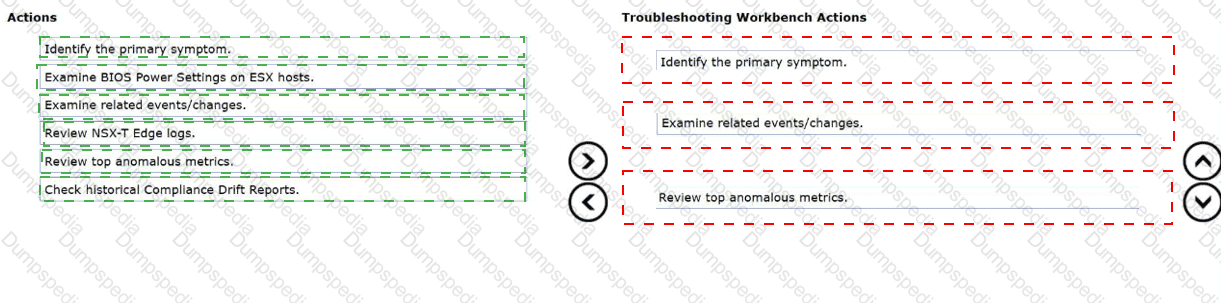

Identify the primary symptom

Examine related events/changes

Review top anomalous metrics

The correct Troubleshooting Workbench actions are to identify the primary symptom , examine related events or changes , and review top anomalous metrics . VCF Operations Observability/Troubleshooting Workbench is designed to investigate known or unknown issues by focusing on a selected object, alert, or metric within a defined scope and time range. The documentation states that the workbench searches for potential evidence around the problem and displays evidence as cards based on Events , Property Changes , and Anomalous Metrics . Events show metric-behavior changes and major events in the selected scope and time. Property Changes show important configuration changes that occurred in that same scope. Anomalous Metrics show metrics with drastic changes and rank them by the degree of change, giving the most relevant anomalies the highest weight . Therefore, reviewing anomalies and related changes is central to the workbench workflow. Identifying the primary symptom is the starting point for narrowing the investigation. BIOS power settings, NSX Edge logs, and historical Compliance Drift reports may support broader troubleshooting, but they are not core Troubleshooting Workbench actions. Reference topic: Objective 4.9 – Troubleshooting Workbench / Potential Evidence / Events, Property Changes, and Anomalous Metrics .

The administrator should assign the developer an appropriate VCF Operations content-management role, represented here by ContentAdmin . In VCF Operations 9.0, Management Pack Builder is already integrated into the product; it is not deployed as a separate appliance and does not require installation from Marketplace. The official documentation states that Management Pack Builder enables creation of custom management packs for VCF Operations and that there is no separate installation required , replacing the older standalone OVA-based model . It is accessed directly in the VCF Operations console under Developer Center > Management Pack Builder , where users can create, import, export, edit, and delete custom designs . Therefore, the environment preparation step is access enablement, not software deployment. The ContentAdmin role is the best listed fit because Broadcom documents it as a role for users who manage content such as views, reports, dashboards, and custom groups in VCF Operations . Feature flags, OVA deployment, and Marketplace installation are not required. Reference topic: Objective 4.8 – Management Pack Builder / custom management packs / access and content administration .

The OUT_OF_SYNC state indicates that the configuration template state in VCF Operations no longer matches the corresponding state expected from Source Control. VCF Operations supports GitHub-based source control so configuration templates can be synchronized to and from a repository, and the documented sync workflow explicitly changes template status back to IN_SYNC after the administrator uses the Sync option in VCF Operations . A template can become out of sync when it is modified outside the VCF Operations workflow, such as being edited directly in the GitHub repository. It can also become out of sync if the corresponding template file is deleted from the repository, because VCF Operations can no longer reconcile the local template object with its source-controlled copy. If the source-control configuration itself is deleted, VCF Operations loses the configured repository association required to validate and synchronize templates. Removing a template from a policy or removing a vCenter instance from a drift-detection job affects drift evaluation scope, not Git template synchronization. Reference topic: Objective 4.16 – Configuration Drift / Source Control Integration / Syncing Configuration Templates with GitHub .

The required prerequisite is that VMware Tools must be installed and running in the target virtual machine. In VCF Operations, a recommendation can be associated with a remediation action, and supported actions can be triggered from alert recommendations when automation is configured. However, guest-level operations depend on VMware Tools because VCF Operations must communicate cleanly with the guest operating system through vCenter. The official action documentation for Reboot Guest OS for VM states that the action checks whether VMware Tools is installed on the target virtual machine, because VMware Tools is required. If VMware Tools is not installed or is installed but not running, the reboot action does not run and the job is reported as failed in Recent Tasks . The Power Off Allowed flag applies to certain reconfiguration actions, such as changing CPU or memory when the VM may need to be powered off; it is not the control for guest OS reboot . Payload templates are for outbound notifications, and VM compatibility is unrelated. Reference topic: Objective 4.9 – VCF Operations Troubleshooting Tools and Methodologies / Alert Recommendations / Automated Actions / Reboot Guest OS for VM .

The administrator must deregister the second VCF Instance from the existing Single Sign-On configuration . In this scenario, the second VCF Instance is currently attached to an SSO configuration whose identity source is managed by the first VCF Instance. The requirement is not merely to change the LDAP provider on the existing shared configuration; it is to connect the second instance to a new SAML 2.0 Identity Provider and a new VCF Single Sign-On configuration . The VCF 9.0 documentation provides a specific workflow for this condition: when a VCF Instance must be removed from an existing SSO configuration, the administrator navigates to the VCF Instance, opens Component Configuration , filters configured components, selects all configured components, and clicks Deregister Component . After all registered components are deregistered, the page reloads and allows the administrator to either connect to an existing SSO configuration or create a new SSO configuration for that VCF Instance . Resetting the first instance would disrupt the controlling SSO configuration. Resetting the second instance is used for changing identity-source details within its own SSO lifecycle, not for detaching it from an SSO configuration managed by another instance. Reference topic: Objective 4.14 – Fleet Management / Identity and Access Management / VCF Single Sign-On / Deregister VCF Instance from SSO .

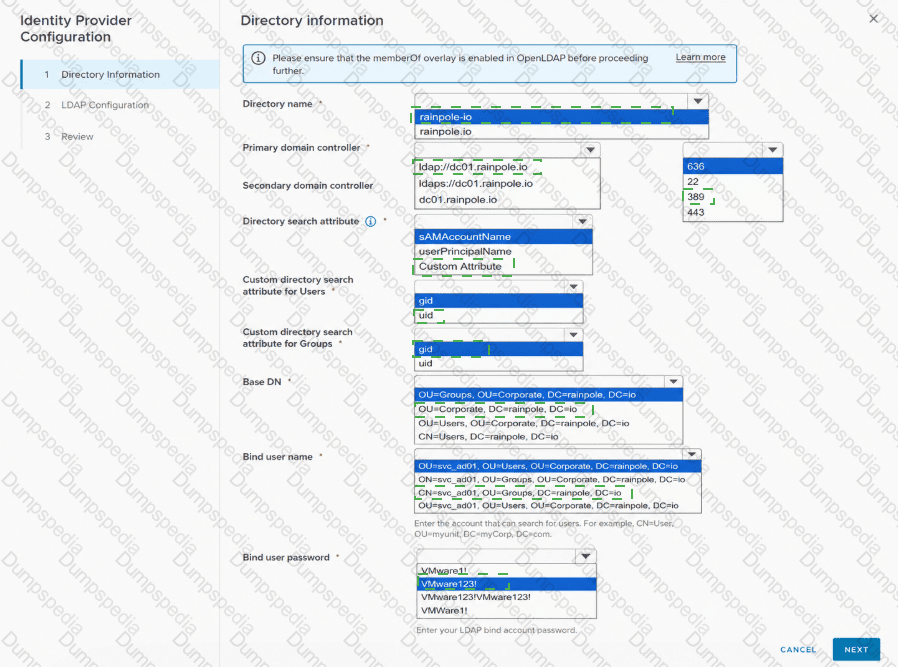

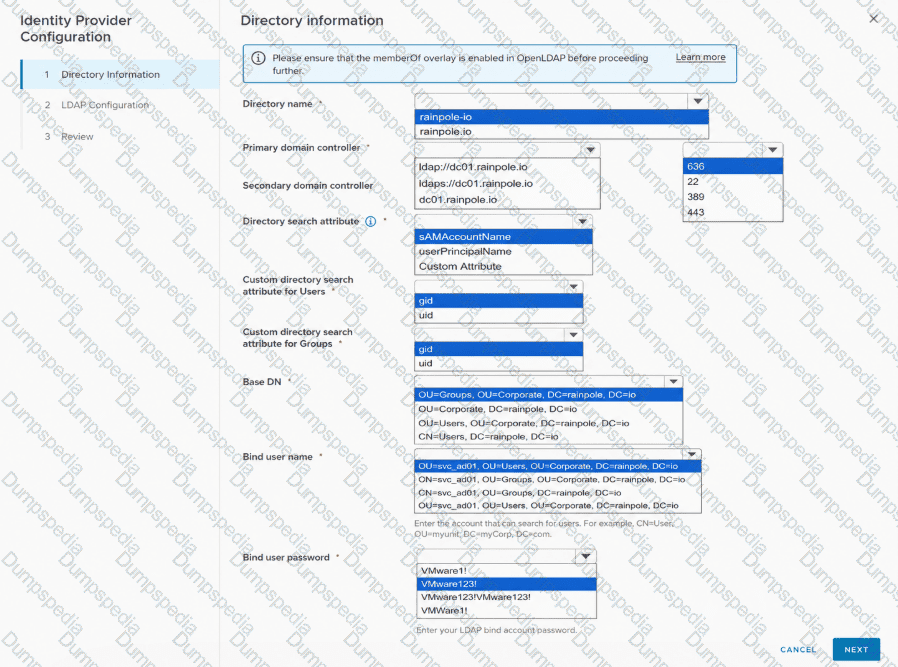

Directory name: rainpole-io

Primary domain controller: ldap://dc01.rainpole.io

Primary domain controller port: 389

Directory search attribute: Custom Attribute

Custom directory search attribute for Users: uid

Custom directory search attribute for Groups: gid

Base DN: OU=Corporate, DC=rainpole, DC=io

Bind user name: CN=svc_ad01, OU=Users, OU=Corporate, DC=rainpole, DC=io

Bind user password: VMware123!

The configuration must match the OpenLDAP hierarchy and transport requirements. Because the directory does not support SSL/TLS, the primary domain controller must use the non-secure LDAP scheme, ldap://dc01.rainpole.io , with standard LDAP port 389 , not LDAPS port 636. The directory name should use the VCF SSO directory identifier format, therefore rainpole-io is selected. Since the environment uses OpenLDAP-specific attributes rather than Active Directory defaults, the directory search attribute must be set to Custom Attribute . The user identifier is uid , so the custom user search attribute is uid; the group identifier is gid , so the custom group search attribute is gid. The Base DN must cover both the Users and Groups OUs. Because both are inside OU=Corporate , the correct base scope is OU=Corporate, DC=rainpole, DC=io , not only Users or only Groups. The bind user resides in the Users OU, so the bind DN is CN=svc_ad01, OU=Users, OU=Corporate, DC=rainpole, DC=io with password VMware123! . Reference topic: Objective 4.14 – Fleet Management / Identity and Access Management / VCF Single Sign-On / LDAP Identity Provider Configuration .

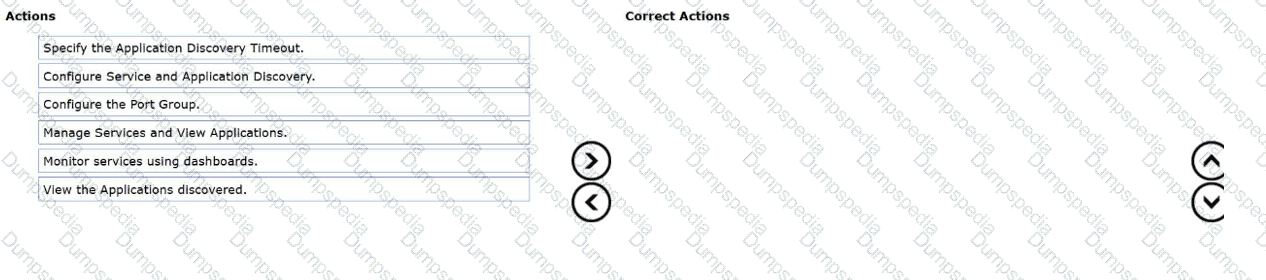

Configure Service and Application Discovery

Manage Services and View Applications

Monitor services using dashboards

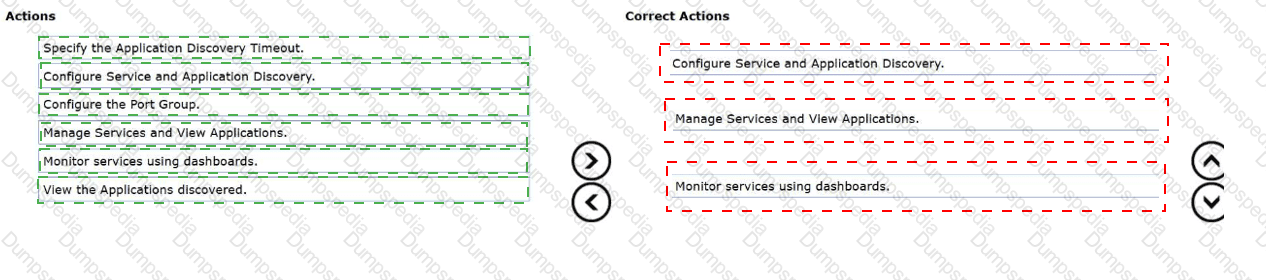

The three correct actions are Configure Service and Application Discovery , Manage Services and View Applications , and Monitor services using dashboards . VCF Operations uses the Service Discovery adapter to discover services running inside virtual machines and to build service relationships or dependencies between services running on different VMs. The official workflow states that, to discover and monitor services and add and view applications, administrators should configure Service and Application Discovery, manage services and view applications, monitor services using dashboards, and view discovered services . Configuration starts from Infrastructure Operations > Configurations > Service Discovery , where the administrator enables Service Discovery and Application Discovery on the vCenter integration . Service monitoring is then managed from Workload Operations > Applications > Manage SDMP Services , where administrators can provide credentials, activate service monitoring, and view service discovery status . Applications are viewed from Workload Operations > Applications , where VCF Operations shows application resources, connected VMs, service relationships, graphs, lists, and links . Application Discovery Timeout and Port Group configuration are not required actions in this workflow. Reference topic: Objective 4.7 – Monitor Applications with VCF Operations / Service Discovery / Manage Services / View Applications / Service Discovery Dashboards .

The correct selections are A, C, and E . For VCF Operations for Logs content-pack query design, Broadcom’s documented leading practice is to build portable and efficient message queries. Queries should not be tied to environment-specific attributes such as a particular hostname, source, or facility, because content-pack queries must work consistently across customer environments and not depend on local naming conventions ( TechDocs ). For performance, the query should use the least expensive matching method first: keywords , then globs , and only then regular expressions when the simpler forms cannot meet the requirement. Broadcom explicitly documents that query construction should follow this keyword-to-glob-to-regex progression ( TechDocs ). Regular expressions are the most expensive search type, so when regex or field operations are required, the query should include as many selective keywords as possible to reduce the event set before regex processing occurs ( TechDocs ). Splitting text filters into multiple lines or multiple regex expressions increases complexity and cost. Boolean restructuring alone does not replace proper keyword-first design. Reference topic: Objective 4.12 – VCF Operations for Logs / Content Packs / Message Query Best Practices .

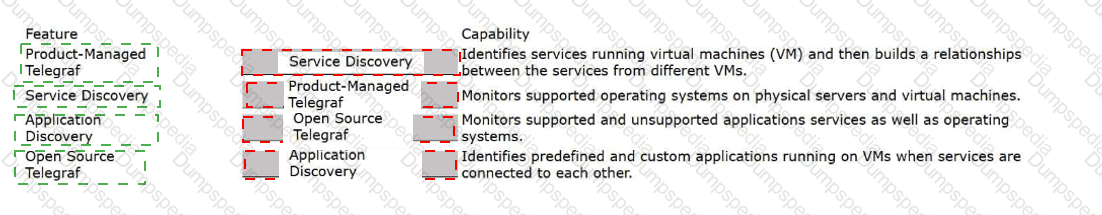

The correct mapping is based on the monitoring method and discovery scope. Service Discovery identifies services running in each VM and builds relationships or dependencies between services running on different VMs, allowing administrators to understand service impact, outage dependency, and escalation paths . Application Discovery builds on service relationships by identifying predefined and custom applications when services are connected to and communicating with one another; VCF Operations can show the VMs connected to those services and how those services interact . Product-Managed Telegraf is managed directly by VCF Operations and is used to monitor supported operating systems and application services on vCenter-managed VMs, unmanaged VMs, and physical servers categorized as endpoints . Open Source Telegraf is user-managed and can monitor operating systems plus both supported and unsupported application services, although lifecycle actions such as start, stop, upgrade, and plugin activation are not managed by VCF Operations . Reference topic: Objective 4.7 – Monitor Applications with VCF Operations / Service Discovery, Application Discovery, Product-Managed Telegraf, and Open Source Telegraf .
