3V0-23.25 Sample Questions Answers

vSAN File Share SMB services are required because the storage must be consumed by Windows workstations and the application requires native NTFS permissions. SMB is the Windows-native file sharing protocol and integrates with Active Directory authentication. vSAN File Service supports SMB file shares, and Windows clients joined to the Active Directory domain configured with vSAN File Service can access those shares by using the SMB path. vSAN File Service also supports Microsoft Management Console for SMB shares, including Access Control List management, open file viewing, active sessions, and client connection management. These capabilities align directly with NTFS-style permission expectations for Windows-based graphic design workstations. vSAN File Service also supports two-node vSAN configurations, which matches the remote-site rack-space constraint of two hosts with a witness deployed remotely or in a shared location. NFSv3 does not provide native NTFS permissions for Windows clients. vSAN Storage Cluster and vSAN HCI Mesh address remote datastore capacity sharing, not SMB file access for Windows users. Reference topics: vSAN File Service, SMB File Shares, Active Directory Integration, Two-Node vSAN Support.

Disabling the vSAN iSCSI Target Service stops the service that presents iSCSI targets and LUNs to initiators, but it does not automatically delete the targets or LUNs. The vSAN administration guidance states that if an administrator wants to remove vSAN iSCSI objects and reclaim capacity, the LUNs and targets must be deleted manually before or after disabling the service. Therefore, when the service is disabled, the existing targets and LUNs remain in the vSAN datastore but are no longer accessible to the clustered legacy application. This behavior prevents accidental deletion of application or quorum data simply because the service is turned off. The targets are not archived for a fixed retention period, and they are not automatically migrated to another namespace for retention. They are also not deleted automatically. Operationally, administrators should confirm that the legacy application no longer depends on the LUNs before disabling the service or should remove the iSCSI objects through the supported workflow when decommissioning is complete. Reference topics: vSAN iSCSI Target Service, Disable iSCSI Target Service, LUN and Target Lifecycle, vSAN Object Retention.

The requirement is to alternate the primary site every six months, which requires a disaster recovery design that can reverse protection direction after failover. Inventory mappings define how resources such as compute resources, folders, networks, and datastores map between the protected and recovery sites. Using “Prepare reverse mappings” during inventory mapping creation ensures that the same mapping structure can be used when the recovery site later becomes the protected site. After a failover or planned migration succeeds, VMware Live Site Recovery uses the re-protect operation to reverse the protection relationship. This makes the formerly recovered site the new protected source and prepares replication and recovery plans for failback or for the next scheduled site rotation. A test recovery plan validates recovery without changing the primary site. Extending the network can simplify workload mobility but is not required for reprotection. Reconfiguring vSAN Data Protection manually is not the Live Site Recovery workflow for reversing protected and recovery site roles. Reference topics: VMware Live Site Recovery, Inventory Mappings, Reverse Mappings, Recovery Plans, Reprotect.

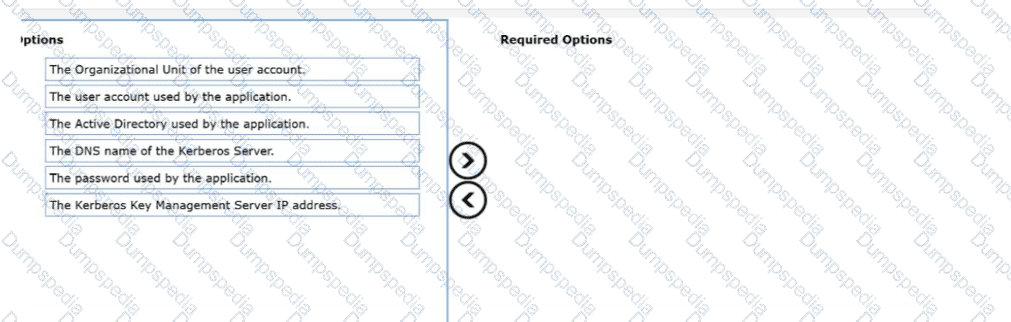

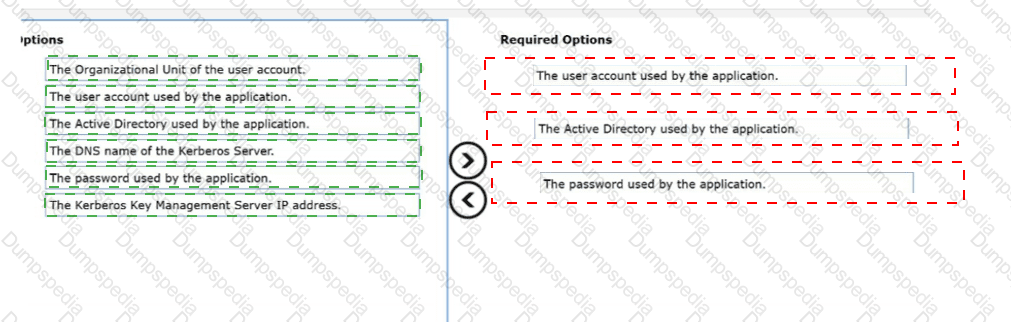

The user account used by the application.

The Active Directory used by the application.

The password used by the application.

NFSv4.1 with Kerberos requires identity integration through Active Directory and a valid Kerberos-capable user credential. In vSphere, Kerberos authentication for NFS 4.1 uses Active Directory credentials so ESX can authenticate securely when mounting Kerberos-protected NFS datastores. The required inputs are the Active Directory domain, the user account, and the password associated with that account. The storage guide also states that when several ESX hosts access the same NFS 4.1 datastore, all hosts must use the same Active Directory credentials to ensure consistent access. The Organizational Unit is not the required credential element for datastore mounting. The DNS name of a Kerberos server may be resolved through Active Directory and DNS infrastructure, but it is not one of the required configuration values selected here. A “Kerberos Key Management Server” is not part of the vSphere NFSv4.1 Kerberos datastore configuration model. Therefore, the required options are the application’s user account, its Active Directory, and the account password. Reference topics: NFSv4.1 Datastores, Kerberos Authentication, Active Directory Credentials, Kerberos Security for NFS.

The correct action is to verify the datastore, device paths, and multipathing state in vCenter. Fibre Channel VMFS storage depends on SAN fabric connectivity, HBAs, zoning, LUN masking, storage processors, path selection policies, and multipathing. vCenter provides the operational view needed to confirm whether the FC VMFS datastore is visible to every ESX host in the workload domain cluster. It also exposes storage device path status and multipath health so administrators can validate that redundant paths are active and alarms can trigger when a fabric link or path fails. esxcli vsan storage list is specific to vSAN devices and does not validate external FC VMFS paths. The proposed VCF SDK command is not the standard method for validating FC path and datastore visibility. vmkfstools --inspectpaths is not the normal vSphere workflow for FC LUN health validation. For FC-backed VMFS, vCenter storage views provide the correct centralized validation point. Reference topics: Fibre Channel Storage Model, VMFS Datastore Connectivity, Multipathing, Path Health, vCenter Storage Monitoring.

vSAN Stretched Clusters meet the availability-zone requirement by extending a single logical vSAN cluster across two availability zones and using a witness for quorum. This provides rapid recovery from a site or availability-zone failure because workloads remain protected by the stretched topology and vSAN site-failure tolerance. vSAN Storage Cluster addresses the need for scalable, high-performance storage that can grow independently as application capacity requirements increase. In VCF 9.0, a vSAN Storage Cluster is based on vSAN ESA and provides disaggregated storage to vSAN compute or HCI clusters. This design supports storage-dense NVMe-based nodes, high IOPS, low latency, independent capacity scaling, and centralized storage services. Encryption at rest and in transit are native vSAN capabilities that can be enabled on the vSAN-backed storage architecture. vSAN File Service is for file shares, and vSAN iSCSI Target Service is for presenting block LUNs to external initiators; neither is required by the stated application-storage design. vSAN Data Protection is valuable for snapshots and recovery points, but the core architecture requirements are best satisfied by stretched site resilience plus scalable vSAN storage clustering. Reference topics: vSAN Storage Cluster, vSAN Stretched Cluster, vSAN ESA, vSAN Encryption.

The architect should highlight that quotas and Access Based Enumeration are configured when creating the vSAN file share, with ABE available for SMB shares. In the vSAN File Service create-share workflow, the General page allows the administrator to choose the protocol and configure protocol-specific options. When SMB is selected, the share can be configured with Access Based Enumeration, which displays only files and folders that the user has permission to access and hides files or folders where the user lacks Read or equivalent permissions. The same create-share workflow also includes Storage space quotas, including a share warning threshold and a share hard quota. Therefore, the design implication is operational: quotas and ABE must be planned and applied at the file-share configuration level for SMB shares that require both controls. Quotas are not limited only to NFS shares, and ABE is not a cluster-level setting. Separate file service servers are also unnecessary because vSAN File Service supports SMB and NFS shares through the same file service architecture. Reference topics: vSAN File Service, Create vSAN File Share, SMB Access Based Enumeration, Storage Space Quotas.

With vSAN ESA and Failures to tolerate set to 1 using RAID-5/6 Erasure Coding, vSAN creates an optimized RAID-5 format based on the number of available fault domains. The documentation states that if five or fewer fault domains are available, ESA lists three components for RAID-5. This corresponds to a 2+1 erasure-coded layout, where two data components and one parity component are created. The stretched-cluster setting affects the site disaster tolerance rule, while the stated Failures to tolerate rule with erasure coding defines the local object protection method. The policy note also states that in a vSAN stretched cluster, the RAID-5/6 erasure coding failure tolerance method applies to the Site disaster tolerance setting. Given the answer choices, the ESA optimized RAID-5 component layout that matches FTT=1 erasure coding is three components. One or two components would not provide erasure-coded protection, and four components represents a generic RAID-5 fault-domain requirement rather than the ESA optimized component count shown in placement details. Reference topics: vSAN ESA RAID-5, Failures to Tolerate, Erasure Coding, Stretched Cluster Storage Policy.

A shallow rekey operation rotates only the Key Encryption Key (KEK). In vSAN Data-at-Rest Encryption, vCenter obtains or generates the KEK through the configured key provider, while ESX hosts use Data Encryption Keys (DEKs) to encrypt the actual disk or object data. The KEK is used to protect, or wrap, those DEKs. When a shallow rekey is performed, the underlying encrypted data does not need to be rewritten because the DEKs remain the same; only the KEK changes, and the existing DEKs are re-encrypted with the new KEK. This is why shallow rekey is faster and less disruptive than a deep rekey. A deep rekey generates both a new KEK and new DEKs, requiring re-encryption of data. The Host Key is used for encrypted core dumps, not datastore data encryption. Key Derivation Key is not the key rotated in this vSAN shallow rekey workflow. Reference topics: vSAN Data-at-Rest Encryption, Generate New Encryption Keys, Shallow Rekey, Deep Rekey, KEK and DEK lifecycle.

In vSAN ESA, each host uses a storage pool instead of the older OSA disk- group model. The question asks what percentage of that host’s local capacity is impacted by the failure of one storage device. Each host has 12 equal-capacity storage devices, and all 12 devices participate in one storage pool. Therefore, one failed device represents one-twelfth of that host’s local pool capacity. One divided by twelve equals approximately 8.3%. RAID-6 with FTT=2 determines object resilience across hosts and fault domains, but it does not change the simple local-capacity fraction represented by a single failed disk on one host. With sufficient cluster resources and policy compliance, vSAN ESA can continue serving data and begin repair or reprotection using remaining capacity. However, the impacted local host capacity is still the failed device’s share of the host storage pool. The correct percentage is therefore 8.3%, not 25%, 50%, or 0%. Reference topics: vSAN ESA Storage Pools, Storage Device Failure, RAID-6 FTT=2, Capacity Impact Calculation.

When vSAN Data-at-Rest Encryption uses an external KMS, vCenter requests a Key Encryption Key (KEK) from the KMS and stores only the key ID, not the key itself. ESX hosts use the KEK to decrypt the Data Encryption Keys that protect the encrypted vSAN disk data. If a host reboots, it must retrieve the KEK from the KMS before its encrypted vSAN disk groups can be mounted. The guide states that when a host reboots, it does not mount its disk groups until it receives the KEK. Key persistence can allow continued operation when the key server is unavailable, but the documented persistence mechanism relies on TPM-backed key persistence across reboots. In this scenario, the host does not have a Trusted Platform Module and the KMS is temporarily unavailable. Therefore, the ESX host can boot, but the encrypted storage remains unavailable and unmounted until communication with the KMS is restored. Reference topics: vSAN Data-at-Rest Encryption, External KMS, Key Encryption Key, Encryption Key Persistence.

With “Ensure Accessibility,” vSAN migrates only the minimum amount of data required to keep objects accessible while the host enters maintenance mode. This mode is faster than Full Data Migration, but it does not fully reprotect all objects. The documentation states that objects might no longer be fully compliant with their storage policy during this evacuation mode, meaning they might not have access to all replicas. Because the default policy is RAID-1 with FTT=1, each object can tolerate only one failure. While the first host is in maintenance mode, some VM objects are already running in a reduced-availability state. If a second host loses network connectivity during this window, affected objects can lose quorum or access to required components. vSAN does not immediately rebalance or fully rebuild objects simply because Ensure Accessibility was selected, and permanent data loss is not the expected result from a temporary network loss. The likely impact is that some VMs become inaccessible until either the maintenance host returns or the isolated host reconnects. Reference topics: vSAN Maintenance Mode, Ensure Accessibility, Default Storage Policy, RAID-1 FTT=1, Network Partition Handling.

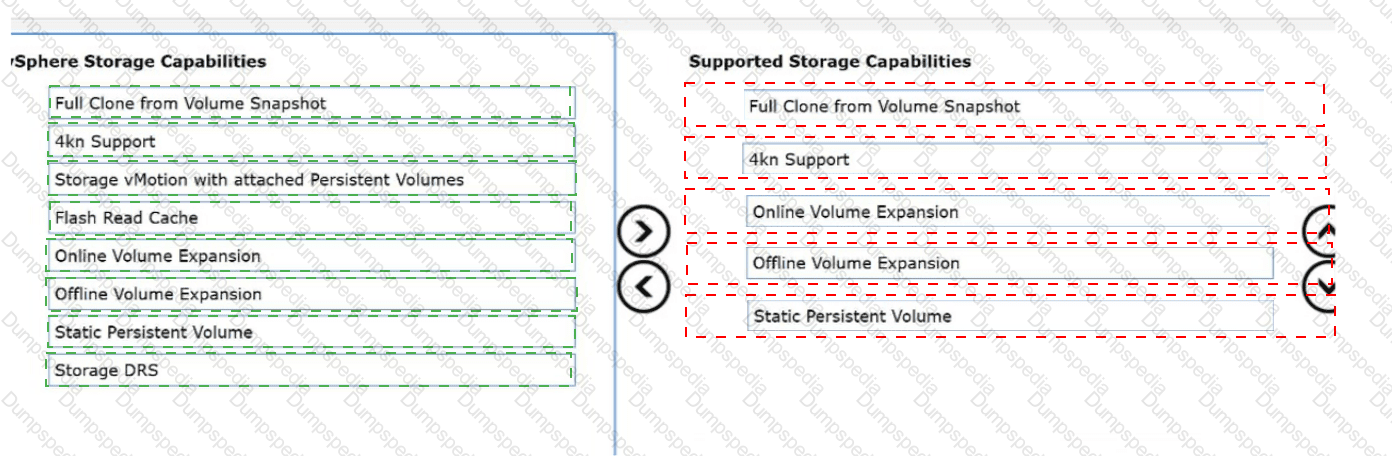

Full Clone from Volume Snapshot

4kn Support

Online Volume Expansion

Offline Volume Expansion

Static Persistent Volume

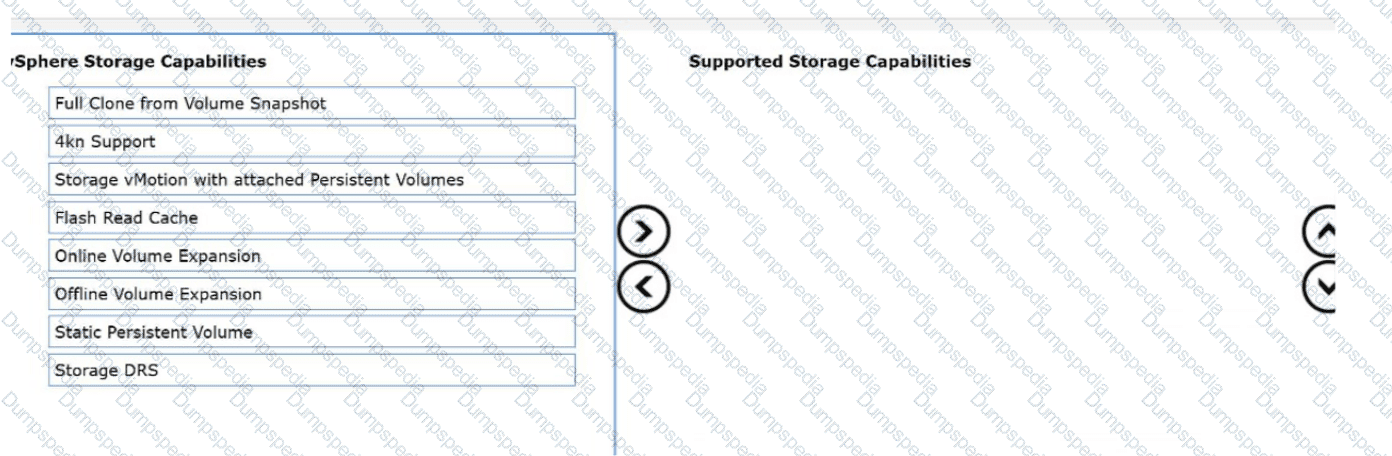

VMware Kubernetes Service persistent volumes use vSphere storage integrations such as CNS and pvCSI to provide Kubernetes storage services backed by vSphere datastores and storage policies. The supported persistent volume capabilities include Static Persistent Volume, which allows pre-existing storage to be consumed by Kubernetes workloads; Offline Volume Expansion and Online Volume Expansion, which allow persistent volumes to be resized depending on workload and filesystem state; Full Clone from Volume Snapshot, which enables a new volume to be created from an existing snapshot; and 4kn Support, which supports modern 4K native storage devices where the underlying stack supports them. Storage vMotion with attached Persistent Volumes is not supported because moving an attached Kubernetes persistent volume while it is in active use can break attachment and consistency assumptions. Storage DRS is also not a supported persistent volume capability in this VKS context. Flash Read Cache is not part of the supported VKS persistent-volume capability set. Reference topics: VMware Kubernetes Service Storage, CNS, pvCSI, Persistent Volume Capabilities, Volume Expansion, Volume Snapshot Clone.

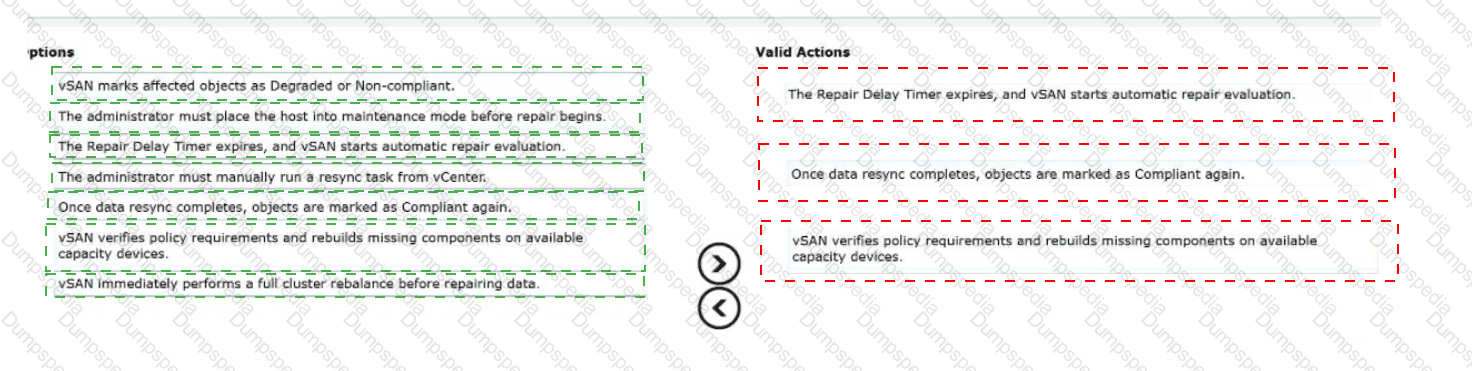

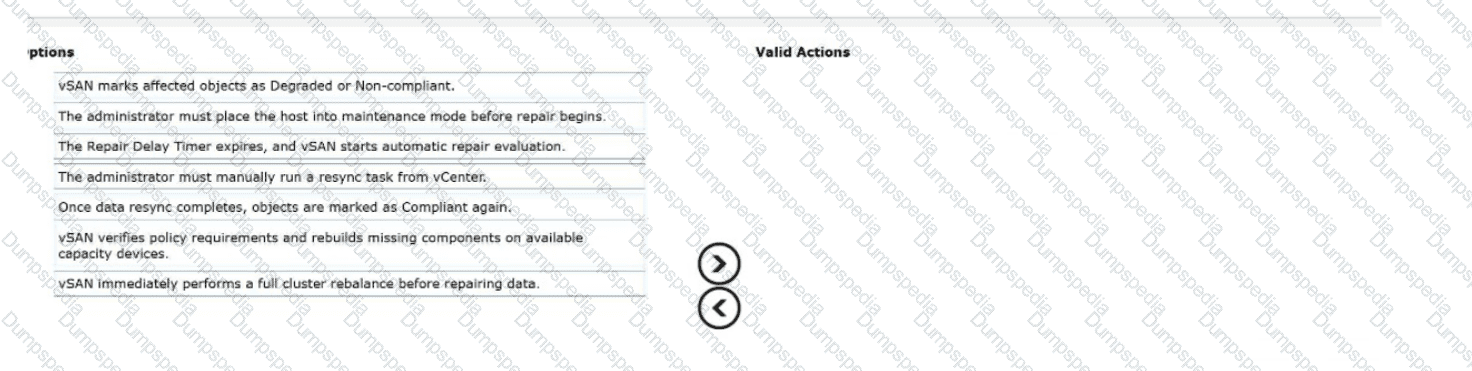

The Repair Delay Timer expires, and vSAN starts automatic repair evaluation.

Once data resync completes, objects are marked as Compliant again.

vSAN verifies policy requirements and rebuilds missing components on available capacity devices.

When a host goes offline unexpectedly, vSAN treats the missing components as absent and waits for the configured repair delay timer before initiating rebuild operations. This prevents unnecessary resynchronization when a host or device returns quickly. In this scenario, the host is offline for more than an hour, so the repair delay timer expires and vSAN begins automatic repair evaluation. vSAN then checks the assigned storage policies, available capacity, and fault-domain placement requirements to determine whether missing components can be rebuilt safely on available capacity devices. If sufficient capacity and fault domains exist, vSAN creates replacement components and starts resynchronization. When the resync process finishes and the affected objects again satisfy their assigned policies, the objects are marked Compliant. The administrator does not need to manually run a resync task from vCenter, and the host does not need to be placed into maintenance mode for automatic repair. A full cluster rebalance is a separate capacity-balancing operation and is not required before object repair. Reference topics: vSAN Repair Delay Timer, Object Compliance, Resynchronization, ESA Object Repair.

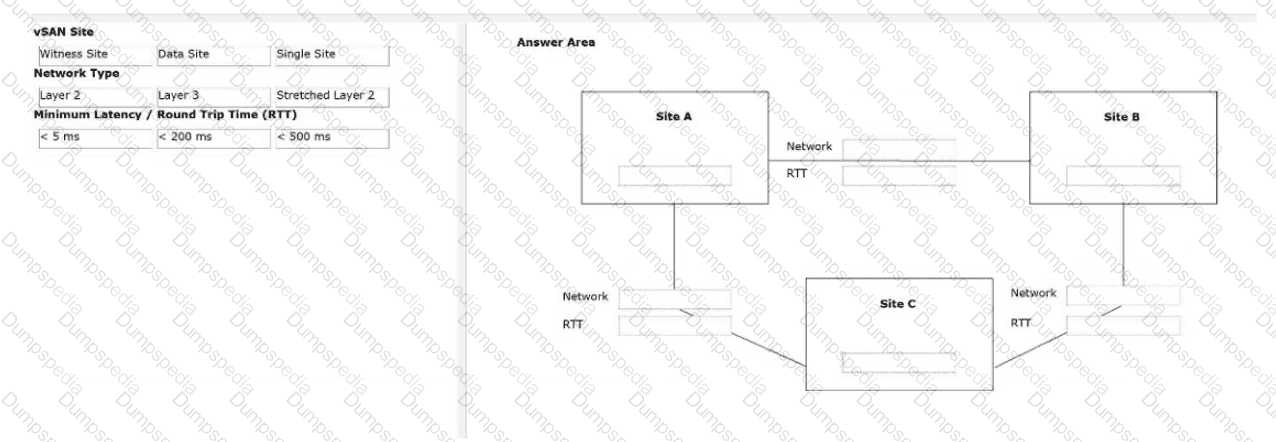

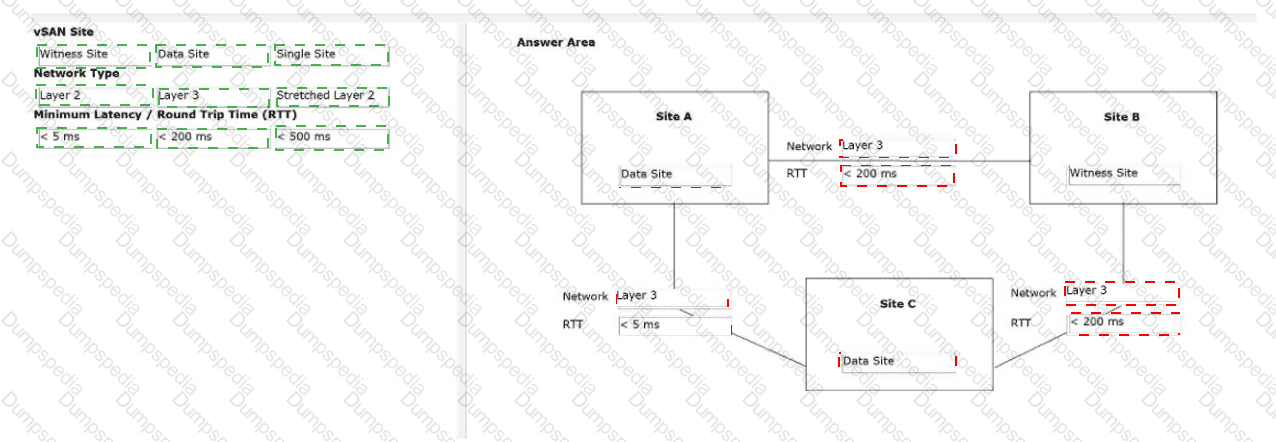

Site A = Data Site; Site B = Witness Site; Site C = Data Site; Site A ↔ Site C = Layer 3, RTT < 5 ms; Site A ↔ Site B = Layer 3, RTT < 200 ms; Site B ↔ Site C = Layer 3, RTT < 200 ms

Site A and Site C should be the data sites because Site A hosts production services and Site C has been commissioned to replace the capacity-constrained Site B. Site B should be used as the witness site because it has no space for additional physical hosts, and a vSAN witness appliance does not run workload VMs. A vSAN Stretched Cluster requires two availability zones for data nodes and a third site for the witness appliance. The data-site-to-data-site connection carries synchronous vSAN data traffic and must meet less than 5 ms RTT. The witness site carries metadata traffic only, so the data-site-to-witness links support higher latency, with less than 200 ms RTT for up to 10 hosts per site. Because the requirement specifically calls out minimizing disruption from STP, Layer 3 is the preferred network type between sites. VMware states that Layer 3 helps avoid STP redirecting traffic across undesirable links, such as constrained witness links. Reference topics: vSAN Stretched Cluster Network Design, Data Site and Witness Site Placement, Layer 3 Recommendation, RTT Requirements.

Assigning different vSAN Storage Policies to each file share during creation satisfies the requirement because vSAN File Service allows each file share to be created with its own storage policy. The Create File Share workflow includes a Storage Policy selection, which controls how the file share’s underlying vSAN objects are protected and placed. This is the correct mechanism when each department requires distinct protection levels or placement rules. IP pools and file server bindings provide network endpoint capacity and service placement, but they do not define the protection level of file share data. Creating separate File Service clusters per department is unnecessary and operationally inefficient because file shares can be differentiated by policy within the same File Service deployment. vSphere Compute Policies influence compute placement, not vSAN object protection or file-share resilience. Therefore, the department-specific requirement is fulfilled directly by assigning the appropriate vSAN Storage Policy to each file share at creation time. Reference topics: vSAN File Service, Create File Share, Storage Policy, Placement and Protection Rules.

Linked clone is the correct feature because the administrator needs to test a potentially destructive change without directly modifying the production VM. vSAN Data Protection uses native vSAN ESA snapshot technology to protect virtual machines through protection groups and scheduled snapshots. Beyond simple restore operations, vSAN Data Protection supports clone workflows that allow a VM to be created from a protected snapshot for development, validation, testing, or recovery use cases. A linked clone is especially appropriate because it can be created quickly from an existing snapshot while maintaining dependency on the base snapshot, avoiding the time and capacity impact of a full independent copy. Immutable snapshots protect recovery points from deletion or modification, but they do not themselves provide an isolated test VM. Multiple schedules only control snapshot timing. A protection group defines which VMs are protected. Replication is used for site-level protection and disaster recovery, not for rapidly testing a destructive change against a local production snapshot. Reference topics: vSAN Data Protection, Snapshot Service, Protection Groups, Linked Clone from Snapshot, VM Test and Recovery Workflows.

The correct configuration is to create distinct SPBM storage policies mapped to supported shared NFS datastore resources and assign them to the matching Supervisor storage functions. Supervisor uses storage policies to represent datastores and to manage placement of components and workload storage. The documentation states that storage policies support shared datastores such as VMFS, NFS, vSAN, and vSAN ESA. At the Supervisor level, administrators configure storage policies for control plane VMs and, when vSphere Pods are used, assign policies for ephemeral disks and container image disks. Persistent storage for workloads is also made available through storage policies assigned at namespace level. Option A is too narrow because it forces all policies to reference one datastore merely for logical isolation, while the supported model allows distinct policies mapped to one or more shared NFS datastores. Option B is incorrect because DRS is compute placement, and datastore clusters are not the Supervisor mechanism for persistent volume policy assignment. Option D is incorrect because the Supervisor does not automatically create these storage policies. Reference topics: Supervisor Storage Policies, SPBM, NFS Shared Datastores, Ephemeral Disks, Container Images, Persistent Volumes.

Deploy ESX 9.x

Configure to use NVMe storage

Deploy vCenter 9.x

Deploy the VCF Installer Appliance

Download binaries for the installation

Deploy VCF 9.x using existing components as building blocks

Add additional components

The sequence begins with deploying ESX 9.x on the blade hosts because the hosts are the physical foundation for the future management domain. Since there is no local storage beyond the operating system and the external array supports NVMe/TCP only, the hosts must then be configured to use NVMe storage before vCenter is deployed. This provides the required shared datastore for the vCenter deployment and for later VCF management component placement. After the NVMe storage is accessible, vCenter 9.x is deployed to manage the ESX hosts and form the existing vSphere building block. The convergence process then moves into the VCF workflow: deploy the VCF Installer Appliance, download the required binaries to the installer appliance, and deploy VCF 9.x by using the existing vCenter and ESX hosts as starting building blocks. Because Aria Operations is not currently deployed, VCF Installer deploys the required missing components during the converge process, and remaining additional components are added after the core platform deployment is complete. Reference topics: Converging Existing Virtual Infrastructure, VCF Installer, Existing Components as Building Blocks, NVMe Storage Preparation.

The available custom recovery steps are top-level commands, message prompts, and per-machine commands. VMware Live Site Recovery recovery plans operate like automated runbooks, and administrators can insert custom steps to match business continuity requirements. Broadcom TechDocs states that custom recovery steps can run commands or present messages to the user during a recovery. Command recovery steps are divided into two categories: top-level commands and per-virtual-machine commands. Top-level commands are inserted directly into the recovery plan and run on the VMware Live Site Recovery server. Per-machine commands are associated with individual recovered VMs and run before or after that VM is powered on, depending on placement in the workflow. Message prompts are interactive steps that pause the plan until an operator acknowledges the message, making them useful for manual validation, external approvals, or runbook checkpoints. IP reconfiguration is handled through recovery plan networking and guest customization, not as a custom step type. Writable storage snapshots are part of test recovery/storage behavior, not a custom recovery step. Reference topics: VMware Live Site Recovery Recovery Plans, Creating Custom Recovery Steps, Top-Level Commands, Message Prompts, Per-VM Commands.
