3V0-24.25 Sample Questions Answers

Comprehensive and Detailed 150 to 250 words of Explanation From Exact Extract of VMware Cloud Foundation (VCF) 9.0 + vSphere Supervisor + vSphere Kubernetes Service documents :

In VMware Cloud Foundation 9.0, the documented “group” construct for collecting and managing Kubernetes objects is implemented as generic groups with Kubernetes member types that can be used for policy-driven operations (for example, securing traffic between infrastructure workloads and Kubernetes workloads). The documentation explicitly states that you can “create generic groups with Kubernetes member types in dynamic membership criteria” and then use these groups in firewall rules to secure traffic involving Kubernetes clusters.

The same section provides a table of Kubernetes member types available for group membership criteria, and it explicitly lists Kubernetes Node (cluster scope) and Kubernetes Service (namespace scope) as supported member types. This maps directly to the answer choices Node and Service as the two valid “types” that can be used to build logical collections of Kubernetes objects for consistent management and policy enforcement.

The other answer options do not match the documented Kubernetes member types. “Security” and “API” are not Kubernetes member types in the group criteria model, and while “Kubernetes Cluster” is also a listed member type, the question asks for two, and Node and Service are the most direct object types for grouping runtime endpoints and service front-ends.

VCF 9.0 describes Supervisor networking with NSX as a model whereNSX provides network connectivity to Supervisor control plane VMs, services, and workloads, and where the Supervisor can use either the NSX Load Balancer or the Avi Load Balancer. In the NSX + Avi design, the documentation identifies theAvi Load Balancer Controlleras a core infrastructure element: the Controller “interacts with vCenter to automate the load balancing for the VKS clusters,” and is responsible for provisioning and coordinating Service Engines and exposing operational interfaces.

Also, the Supervisor itself is anchored by theSupervisor control plane virtual machines. VCF 9.0 explains you deploy the Supervisor with one or three control plane VMs, and in a three-zone Supervisor the control plane VMs are distributed across zones for high availability.

Finally, because the requirement explicitly calls for a unified networking/security model throughNSX, theNSX Manager virtual machineis foundational to the NSX-based Supervisor design, as shown in the documented architecture and component descriptions for NSX-backed Supervisor deployments.

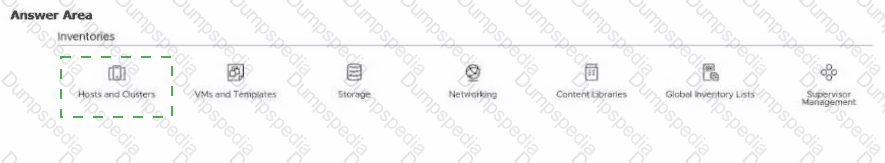

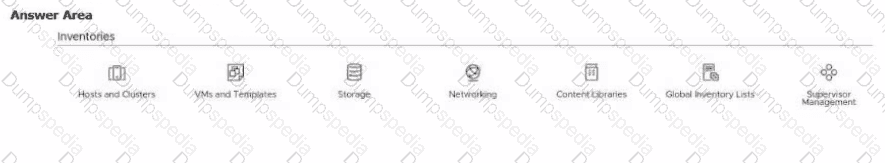

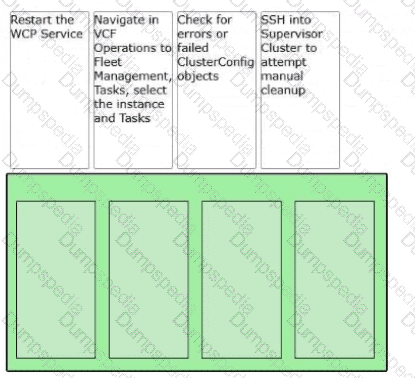

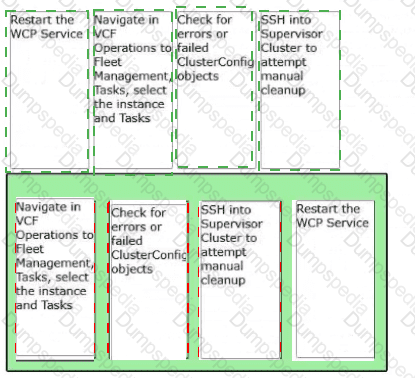

Answer (Correct Order):

Navigate in VCF Operations to Fleet Management → Tasks, select the instance and review Tasks

Check for errors or failed ClusterConfig objects

SSH into the Supervisor Cluster to review logs / attempt manual cleanup if required

Restart the WCP Service

To determinewhya Supervisor upgrade failed, you start where the platform records the most actionable failure context: themanagement-plane task history. The Fleet/Task view surfaces the upgrade workflow steps, timestamps, and the specific operation that failed, which gives you the fastest pointer to the failing phase (precheck, image staging, reconciliation, add-on updates, etc.). Next, you validate the Kubernetes-side reconciliation state by checking forfailed ClusterConfigobjects, because Supervisor enablement/upgrade actions commonly drive configuration via controller reconciliation; a failed ClusterConfig often contains the clearest “reason” and “message” fields that explain what blocked progress (validation errors, dependency issues, unreachable endpoints, incompatible components).

If the management-plane/task view and ClusterConfig status still don’t isolate the root cause, the next escalation is toSSH into the Supervisorto inspect component logs/events and identify low-level failures that may not bubble up cleanly (for example, admission failures, controller crashes, or connectivity/auth issues). Finally,restarting WCPis a remediation step that can clear stuck states, but it’s placed last because it can alter evidence and should not be your first action when you’re still trying to identify the original failure cause.

A Global Namespace in a service-mesh-driven, multi-cluster design is fundamentally anorganizational and policy boundarythat lets platform teams treat multiple Kubernetes namespaces—across multiple clusters/regions—as one logical application domain. That is whyBis correct: it defines an application boundary spanning clusters, which is exactly what “GovApp” needs when its tiers are distributed across regions but must still behave as one application. It also explains whyAis correct: the value of a Global Namespace is that you can applyconsistent identity, security, and traffic policiesacross all member namespaces and clusters, rather than configuring them separately per cluster. This supports uniform mTLS/authorization posture, consistent service-to-service access rules, and standardized routing behaviors regardless of where a service instance runs.

The other options describe outcomes that may be enabled by additional service-mesh features, but they are not the corerequirementsthat define a Global Namespace: distributed ingress/egress is not guaranteed simply by the namespace construct, automatic workload placement is typically handled by schedulers/placement engines rather than the namespace boundary, and centralized logging is an observability capability outside the namespace requirement itself.

The VCF 9.0 documentation explicitly states that“the VKS exposes three layers of controllers to manage the lifecycle of a VKS cluster.”Those three controller layers map directly to the answer choices:

Cloud Provider Plug-in: VKS-provisioned clusters include components needed to integrate with vSphere Namespace resources, including aCloud Provider Plug-inthat integrates with the Supervisor and supports infrastructure-integrated functions (for example, passing persistent volume requests to the Supervisor which integrates with Cloud Native Storage).

Cluster API: The documentation describesCluster APIas providing declarative APIs for “cluster creation, configuration, and management,” including resources for the VMs and cluster add-ons.

Virtual Machine Service: TheVirtual Machine Serviceprovides declarative APIs to manage VMs and associated vSphere resources, and is used to manage the lifecycle of the control plane and worker node VMs that host a VKS cluster.

CNI and CSI are important cluster components, but the document distinguishes these from thethree controller layersresponsible for lifecycle management.

In a vSphere Kubernetes Service (VKS) environment, resource management follows aDeclarative Model. When an administrator uses kubectl edit deployment to manually scale a running workload from 5 to 10 replicas, they are modifying thelive stateof the deployment. However, thesource of truthfor a Tanzu Kubernetes cluster in VCF 9.0 is theCluster YAML specificationmaintained by the Cluster API (CAPI) provider within the Supervisor.

If the administrator redeploys the cluster or if the Supervisor’s controller performs a reconciliation loop, it refers back to the original configuration file. If that cluster YAML file still defines the replica count as 5, the Supervisor will terminate the 5 " extra " pods to match the desired state defined in the configuration. This is a common administrative pitfall; for changes to be persistent across redeployments or updates in VCF 9.0, the underlying manifest (the " Desired State " ) must be updated. Manually editing the live object only provides a temporary change that will be overwritten during the next synchronization or lifecycle event because the cluster YAML file was not updated to reflect the requested increase.

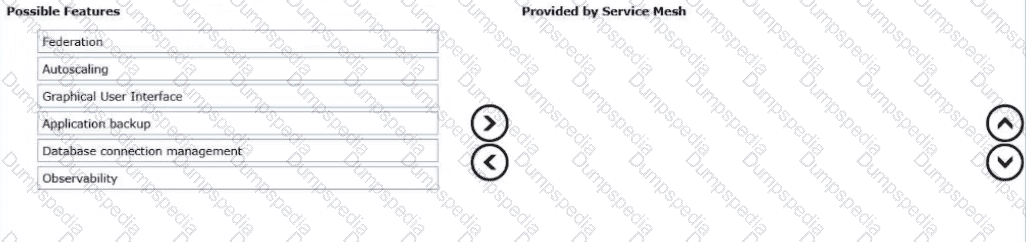

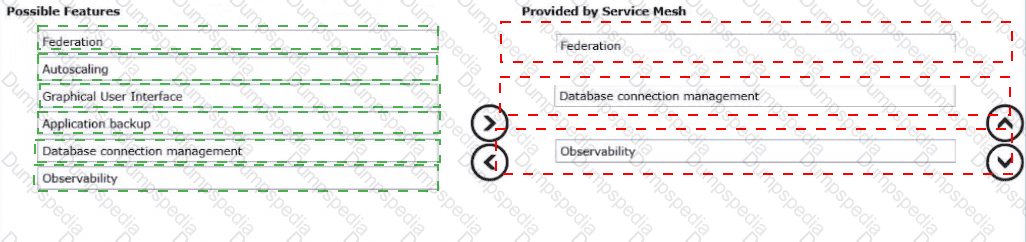

Provided by Service Mesh (choose three, in order):

Federation

Graphical User Interface

Observability

A service mesh is an application networking layer that managesservice-to-service communicationacross Kubernetes clusters, providing consistent connectivity, policy enforcement, and visibility without requiring application code changes.Federationis a service-mesh capability because modern meshes (especially multi-cluster/enterprise implementations) can connect services across multiple clusters and environments, enabling shared identity, cross-cluster service discovery, and uniform policy application (often described as multi-cluster or federated service connectivity). AGraphical User Interfaceis commonly provided alongside the service mesh platform to centrally configure policies (traffic routing, access controls, security settings) and to visualize service topology and health.Observabilityis a core service-mesh outcome: by inserting sidecar proxies (or equivalent dataplane components) into the data path, the mesh can generate consistentmetrics, logs, and distributed tracesfor service traffic, enabling latency/error monitoring and dependency mapping.

The other options are not service-mesh features:Autoscalingis handled by Kubernetes/HPA and metrics pipelines,application backupis typically provided by backup tools (e.g., Velero-like solutions), anddatabase connection managementis handled by application frameworks or database proxies rather than the service mesh itself.

VKS cluster lifecycle is managed using adeclarative API: you usekubectl with a YAML fileto specify the desired state of the cluster (for example: “how many nodes,” Kubernetes version, sizing, and storage). After the cluster is created, youupdate the YAMLto update the cluster. This is why the correct operational approach is to modify the cluster manifest (cluster.yaml) rather than deleting and redeploying.

Additionally, VKS uses multiple controller layers, whereCluster APIand theVirtual Machine Serviceare responsible for provisioning and managing the lifecycle of the control plane and worker node VMs that make up the VKS cluster. In other words, when you change the declared state for control plane sizing/replica count in the cluster YAML, the platform reconciles to that new state by adjusting the underlying control plane VMs through the supported controllers, instead of requiring disruptive “tear down and rebuild” operations.

So, editing the cluster.yaml to adjust the control plane replica count is the method that matches the documented VKS declarative operations model and controller-driven reconciliation.

In Kubernetes, the component that actuallycreates and runs workloads on a nodeis thekubelet. The kubelet is the node agent that ensures the containers described by PodSpecs are running on that node. VCF 9.0 maps this concept directly into vSphere Supervisor by describingSphereletas “a kubelet that is ported natively to ESXi and allows the ESXi host to become part of the Kubernetes cluster,” showing that kubelet functionality is responsible for running workloads on worker nodes (ESXi hosts in the Supervisor case).

The other options have different roles:etcdis the control plane data store,API Serveris the front-end for Kubernetes API operations, and theSchedulerdecides placement (which node should run a pod). VCF 9.0 even calls out that “the Kubernetes scheduler… cannot place pods intelligently” without visibility into vCenter inventory—reinforcing that scheduling is about placement decisions, not the act of creating/running the workload on the node.

So, while the scheduler selects where a pod should run, thekubeletis the component responsible for actually instantiating and maintaining the workload on the target node.

In VCF 9.0, ingress is described as part ofVKS cluster networking. The documentation’s VKS Cluster Networking table lists“Cluster ingress”and identifies its role asrouting inbound pod traffic. It further clarifies that this function is delivered by athird-party ingress controller, and explicitly namesContouras an example (“you can use any third-party ingress controller, such as Contour”).

That mapping is exactly what optionAdescribes: Contour is deployed to provideingresscapabilities so that inbound requests from outside the cluster can be routed to Kubernetes services and pods according to ingress rules. In other words, Contour is not a storage component (that would align to CSI/CNS/pvCSI), not a node lifecycle manager (that is handled by VKS/Cluster API/VM Service), and not an infrastructure health monitoring tool (that would be metrics/observability tooling). VCF 9.0 positions Contour specifically within theingresspart of the networking feature set, makingAthe correct answer.

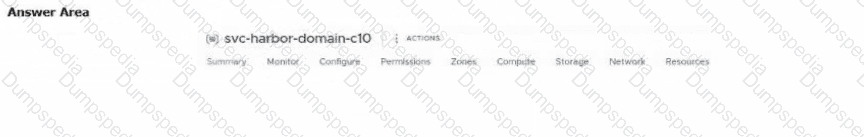

Kubernetes Service

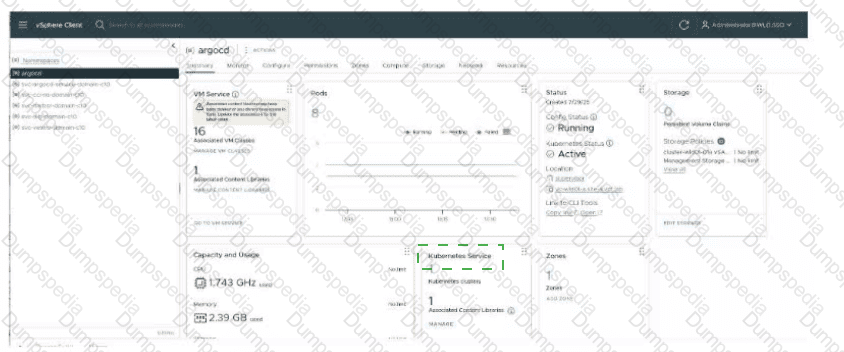

When adding a Kubernetes cluster to anexisting vSphere Namespace, the workflow is initiated from within that namespace’s context in the vSphere Client. The administrator first opens the target namespace (as shown in the left navigation where the namespace is selected), then uses theKubernetes Servicearea to create and manage Kubernetes clusters associated with that namespace. In the namespaceSummaryview, theKubernetes Servicetile/card provides the entry point for cluster lifecycle actions, typically via an action link such asManage(and from thereCreate Cluster). This is because the Kubernetes cluster is anamespace-scoped resourcein the Supervisor environment: it inherits namespace-level policies and configuration such as permissions/RBAC, resource limits, storage policies, and networking selections that have already been defined for that namespace. Navigating to other areas likeStorageorNetworkis used to validate or adjust prerequisites (for example, storage policy availability or network settings), but the actual “create cluster” operation is launched fromKubernetes Servicewithin the namespace to ensure the cluster is created under the correct tenant boundary and governance model.

VCF 9.0 explains that VKS releases are distributed throughcontent libraries, and that when you configure asubscribed content libraryyou can choose how content is downloaded and synchronized. Critically for constrained storage sites, the documentation states you can selecton-demand (“when needed”)download so thatonly the metadatais synchronized, and theactual image content is not downloadeduntil you explicitly need it—“as a result storage space is saved.”

This directly addresses the problem of a remote site with minimal datastore capacity: choosingWhen neededprevents the subscribed library from immediately caching all published VKS images locally. The vSphere content library guidance reinforces this behavior: with “download contents only when needed,” the system synchronizesmetadata only, which “saves storage space,” and you download a specific item’s content only when you synchronize that item for use.

Therefore, selectingDownload content → When neededis the correct action to avoid consuming all available datastore space.

Answer (Correct Order):

Run the install command:velero install … --provider aws --bucket < bucket > … --plugins … --backup-location-config …

Apply BackupStorageLocation YAML.

Apply VolumeSnapshotLocation YAML.

Run test backup:velero backup create test-backup --include-namespaces " myapp1 "

The correct sequence follows Velero’s operational model: install the Velero components first, then define where backups and snapshots are stored, and finally validate with a real backup. In VCF 9.0, the Velero Plugin for vSphere installation command includes parameters for the object-store provider, bucket, and plugin images, which establishes the Velero control plane in the target namespace and prepares it to communicate with an S3-compatible store.

After the installation is in place, you apply theBackupStorageLocationconfiguration so Velero has a durable destination for Kubernetes backup metadata in the object store. This aligns with the VCF 9.0 guidance that backups upload Kubernetes metadata to the object store and require S3-compatible storage for backup/restore workflows.

Next, apply theVolumeSnapshotLocationso Velero knows how and where to create/track volume snapshots for stateful workloads. The VCF 9.0 install example explicitly includes snapshot/backup location configuration parameters, reflecting that both must be set for complete protection.

Finally, run a test backup scoped to the namespace (--include-namespaces=my-namespace) to confirm end-to-end functionality.

The problem describes demand spikes where capacity exists, but the application cannot meet demand—this typically indicates the cluster needs toscale out(more nodes/pods) automatically when load increases. In VCF 9.0, VKS supportsCluster Autoscaleras an optional package and specifically calls out improvements: “Cluster Autoscaler supports scaling from zero or to zero… You must have the autoscaler standard package installed.” This directly supports optionA(install cluster autoscaling) as the mechanism to dynamically add capacity during peak events and reduce it afterward, optimizing cost and operations while meeting bursts. A load balancer (including Foundation Load Balancer) helps distribute traffic acrossexistingendpoints, but it does not create new compute capacity when pods are pending due to insufficient nodes. Similarly, installing Contour relates to ingress (routing inbound traffic) and is not, by itself, a capacity scaling solution. Oversubscription is a risky workaround that can degrade performance and does not provide targeted, policy-driven elasticity. Therefore, enablingcluster autoscalingis the correct way to address burst demand when underlying resources are available.

VCF 9.0 defines VKS as an upstream Kubernetes offering that isbuilt for vSphereand delivered with “well-thought-out defaults” to reduce operational burden. It states VKS provides an“opinionated installation of Kubernetes”with defaults “optimized for vSphere,” which “reduce[s] the amount of time and effort” typically spent deploying and running an enterprise Kubernetes cluster—this directly supportssimplified management and operations (A).

VCF 9.0 also emphasizes VKS is“integrated with the vSphere infrastructure”(storage, networking, authentication) and is built on a Supervisor that maps to vSphere clusters, creating a “unified product experience.” This supportsconsistent Kubernetes deployment on vSphere (B)because clusters are provisioned and operated in a standardized, vSphere-native way.

Finally, VCF 9.0 states VKS clusters “use open source Linux-based” components from VMware by Broadcom and notes key integrations (for example, CNI options) are open source—supportingleveraging open-source technologies (D).

OptionsCandEare not VKS benefits as stated: VKS targets VKS-provisioned upstream Kubernetes clusters (not “any distribution”), and “pods directly on ESXi” is described asvSphere Pods(Workload Management), not a defining benefit of VKS clusters.
