AE-Adult-Echocardiography Sample Questions Answers

The image is a suprasternal or high parasternal echocardiographic view of the aortic arch and its branches. The arrow points to the first large branch arising from the aortic arch, which is the brachiocephalic artery (also called the innominate artery). This vessel courses superiorly and bifurcates into the right common carotid and right subclavian arteries.

The left common carotid artery is the second branch from the arch, the left subclavian artery is the third branch, and the right common carotid is a branch of the brachiocephalic artery, not directly off the arch.

This anatomic arrangement and its echocardiographic depiction are well documented in adult echocardiography references and vascular ultrasound guidelines【12:ASE Vascular Imaging Guidelines†p.270-275】【16:Textbook of Clinical Echocardiography, 6e†p.400-405】.

Comprehensive and Detailed Explanation From Exact Extract:

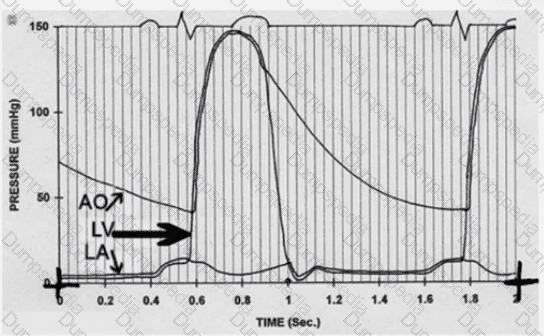

The pressure tracing shows left atrial (LA), left ventricular (LV), and aortic (AO) pressures over time. The key feature is the large pressure gradient between the LA and LV during diastole (arrow pointing at early diastolic phase), where the LA pressure is elevated and there is a delayed, gradual rise in LV pressure during diastolic filling. This finding is typical of mitral stenosis, where obstruction at the mitral valve causes increased LA pressure and a pressure gradient between LA and LV during diastole.

In aortic stenosis, the pressure gradient is primarily between LV and AO during systole. Mitral regurgitation shows elevated LA pressure but not a diastolic gradient. Aortic regurgitation shows elevated LV diastolic pressure with aortic diastolic pressure falling.

These characteristic hemodynamic patterns are described in clinical cardiology and echocardiography literature and hemodynamic references such as the "Textbook of Clinical Echocardiography" and cardiac catheterization textbooks【16:Textbook of Clinical Echocardiography, 6e†p.360-365】【12:Hemodynamic Texts†p.50-60】.

Comprehensive and Detailed Explanation From Exact Extract:

Coarctation of the aorta (CoA) causes obstruction of blood flow in the descending aorta leading to increased afterload on the left ventricle. This pressure overload results in left ventricular hypertrophy (LVH) as the heart compensates for the increased resistance.

Atrial septal defect and ventricular septal defect are separate congenital defects not necessarily associated with CoA. Right ventricular hypertrophy occurs mainly with pulmonary hypertension or right heart pressure overload.

LVH is a well-recognized echocardiographic finding in CoA and is used to assess severity and chronic effects of the lesion in adult echocardiography references and ASE congenital heart disease guidelines【16:Textbook of Clinical Echocardiography, 6e†p.550-555】【12:ASE Congenital Guidelines†p.410-420】.

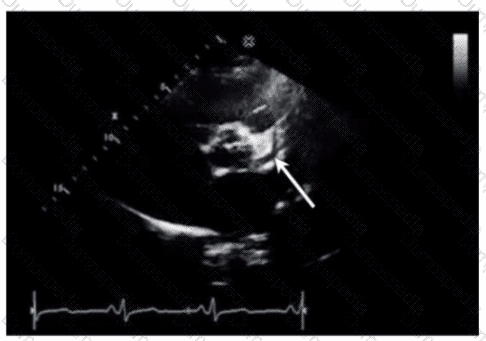

The arrow points to the left anterior descending (LAD) coronary artery, which runs in the anterior interventricular groove toward the apex of the heart. It supplies the anterior wall of the left ventricle.

The right coronary artery runs in the right atrioventricular groove. The left main coronary artery is proximal to the LAD and circumflex arteries. The circumflex artery runs in the left atrioventricular groove posteriorly.

This identification is detailed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Coronary Artery Anatomy and Echocardiographic Visualization【20:150-155†Textbook of Clinical Echocardiography】.

Ventricular depolarization begins with the electrical impulse traveling from the atrioventricular (AV) node to the Bundle of His, which then bifurcates into the right and left bundle branches. From the bundle branches, the impulse travels to the Purkinje fibers, which rapidly distribute the impulse to ventricular myocardium causing ventricular contraction.

Option A is incorrect because the impulse does not travel from the right to the left bundle branch; they run parallel. Option B describes atrial conduction. Option C is incorrect because the AV node precedes the Bundle of His, not the reverse.

This conduction pathway is detailed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Cardiac Electrophysiology【20:40-45†Textbook of Clinical Echocardiography】.

Comprehensive and Detailed Explanation From Exact Extract:

Biplane disk summation (Simpson’s method) of left atrial (LA) volume, indexed to body surface area, is the most accurate and recommended method for assessing LA size. This method accounts for the asymmetrical shape of the LA and provides reproducible volume measurements.

3D imaging can provide even more precise volume data but is less widely available and less standardized. Linear dimension and planimetry are less accurate because they do not fully represent LA size.

ASE chamber quantification guidelines strongly recommend biplane volume measurement for LA size assessment in clinical practice【12:ASE Chamber Quantification Guidelines†p.90-95】【16:Textbook of Clinical Echocardiography, 6e†p.120-125】.

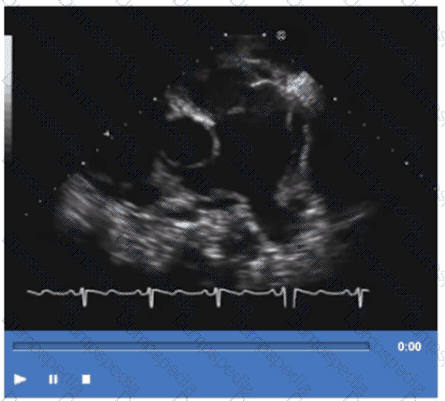

The video shows prominent trabeculations with deep intertrabecular recesses communicating with the left ventricular cavity, characteristic of isolated left ventricular noncompaction (LVNC). This congenital cardiomyopathy features a spongy myocardial appearance with thickened noncompacted layers.

Amyloidosis typically presents with thickened, bright myocardium but without prominent trabeculations. Sarcoidosis involves granulomatous inflammation, and apical hypertrophic cardiomyopathy shows localized hypertrophy without trabecular changes.

This pathology is detailed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Cardiomyopathies and Myocardial Disorders【20:360-365†Textbook of Clinical Echocardiography】.

Comprehensive and Detailed Explanation From Exact Extract:

Tetralogy of Fallot (TOF) is a congenital heart defect characterized by four key anatomical abnormalities: an outlet (malalignment) ventricular septal defect (VSD), an overriding aorta that receives blood from both ventricles, right ventricular outflow tract (RVOT) obstruction (commonly infundibular stenosis), and resultant right ventricular hypertrophy. These defects cause cyanosis due to right-to-left shunting and impaired pulmonary blood flow.

Option A describes Ebstein anomaly, characterized by a displaced tricuspid valve and atrialization of the right ventricle.

Option B describes features more consistent with Shone complex or other left heart obstructive lesions.

Option C describes atrioventricular septal defect (AVSD), seen in conditions like Down syndrome.

In unrepaired TOF, echocardiography demonstrates the large malalignment VSD, overriding aorta, RVOT obstruction, and hypertrophied right ventricle. These are classic textbook findings described in adult and pediatric echocardiography literature, including “Textbook of Clinical Echocardiography” (Chapter on Congenital Heart Disease) and ASE guidelines【16:Textbook of Clinical Echocardiography, 6e†p.560-565】【12:ASE Adult Congenital Guidelines†p.400-410】.

Pulmonic stenosis is a congenital valve abnormality often seen in genetic syndromes with cardiac manifestations. Among these, Noonan syndrome is the most frequently associated with pulmonic stenosis. Noonan syndrome is a genetic disorder characterized by distinctive facial features, short stature, and congenital heart defects, with pulmonic valve stenosis being the predominant cardiac lesion. The stenosis is usually valvular and caused by dysplastic pulmonary valve leaflets, leading to obstruction of right ventricular outflow.

Other syndromes listed do not typically present with pulmonic stenosis:

Turner syndrome is more commonly linked with bicuspid aortic valve and coarctation of the aorta, not pulmonic stenosis.

Eisenmenger syndrome refers to the advanced phase of congenital heart defects with significant pulmonary hypertension and is not a genetic syndrome.

Marfan syndrome is predominantly associated with aortic root dilation and mitral valve prolapse, but not with pulmonic stenosis.

This association is well documented in adult echocardiography guidelines and texts, such as the "Textbook of Clinical Echocardiography" by Catherine Otto, which clearly identifies Noonan syndrome as the syndrome most commonly associated with pulmonic stenosis among congenital heart defects【16:Chapter on Congenital Heart Disease†Textbook of Clinical Echocardiography, 6e】.

Comprehensive and Detailed Explanation From Exact Extract:

The left atrial volume index (LAVI) is the left atrial volume normalized to the patient's body surface area (BSA), which accounts for patient size. To calculate BSA, height and weight are required, most commonly using formulas such as the Mosteller formula.

Therefore, height is a necessary parameter to calculate the left atrial volume index. Age, blood pressure, and cardiac output are not used in the calculation of LAVI but may be clinically relevant for interpretation.

This approach standardizes LA size across patients of different body habitus, making LAVI a more accurate and reproducible measure of LA remodeling and a predictor of cardiovascular outcomes.

The echocardiography guidelines and textbooks emphasize the importance of indexing LA volume to BSA and highlight height as a required measurement for this purpose .

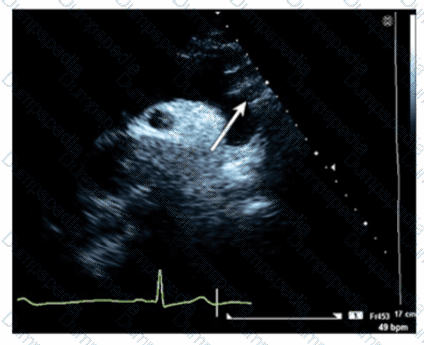

The structure indicated by the arrow in the right ventricle is the moderator band. The moderator band is a muscular band of tissue that crosses the right ventricular cavity from the interventricular septum to the anterior papillary muscle. It contains part of the right bundle branch of the conduction system and is a normal anatomical structure identifiable on echocardiography.

False tendons are fibrous or muscular strands within the left ventricle, not the right. The Chiari network is a mobile, net-like structure in the right atrium near the inferior vena cava and atrial septum. The Eustachian valve is a crescent-shaped ridge at the entrance of the inferior vena cava into the right atrium.

The moderator band is important to recognize to avoid misinterpretation as a pathological mass or thrombus.

This is detailed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Right Ventricular Anatomy and Echocardiographic Landmarks【20:150-155†Textbook of Clinical Echocardiography】.

Comprehensive and Detailed Explanation From Exact Extract:

Visualization of a patent ductus arteriosus (PDA) typically requires imaging planes that include the aortic arch and pulmonary artery, which are well seen from the suprasternal notch window and the basal parasternal short axis view.

The suprasternal notch window provides a longitudinal view of the aortic arch and adjacent pulmonary artery, where the PDA is located. The basal parasternal short axis at the level of the great vessels can also visualize flow through the PDA using color Doppler.

Other views like parasternal long axis and apical views are less optimal for direct PDA visualization.

This is detailed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Congenital Heart Defects and PDA Imaging【20:370-375†Textbook of Clinical Echocardiography】.

The Valsalva maneuver transiently reduces preload, which can unmask or exaggerate diastolic dysfunction during mitral inflow Doppler assessment. During Valsalva, changes in mitral E and A wave velocities can differentiate between normal and pseudonormal filling patterns by observing alterations in filling pressures.

Hand grip, leg air cycling, and squatting affect afterload and preload differently but are less specific for assessing diastolic dysfunction via mitral Doppler.

This technique is outlined in the "Textbook of Clinical Echocardiography, 6e", Chapter on Diastolic Function Assessment and Maneuvers【20:210-215†Textbook of Clinical Echocardiography】.

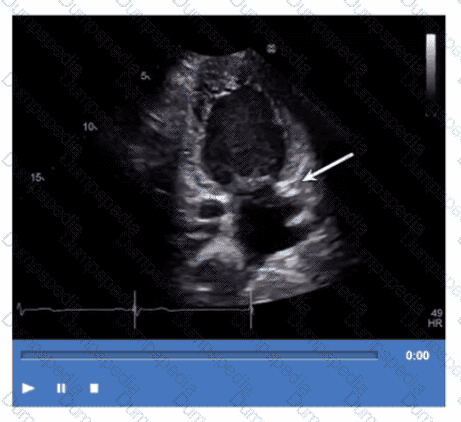

The video shows a transthoracic echocardiographic apical four-chamber or modified view focusing on the left atrium and adjacent structures. The arrow points to a vessel entering the left atrium from the right side of the image, which corresponds anatomically to the right upper pulmonary vein. The right upper pulmonary vein returns oxygenated blood from the right lung to the left atrium and is visualized in echocardiography as entering the superior-lateral aspect of the left atrium.

The left upper pulmonary vein enters the left atrium on the opposite side. The right and left pulmonary arteries are located anteriorly and superiorly in the mediastinum and are visualized mainly in the parasternal or suprasternal views, not the apical four-chamber.

This identification aligns with standard adult echocardiography anatomy as described in the "Textbook of Clinical Echocardiography" and ASE guidelines on pulmonary vein imaging【12:ASE Pulmonary Vein Imaging Guidelines†p.110-115】【16:Textbook of Clinical Echocardiography, 6e†p.120-125】.

The Simpson biplane method (method of disks) is the recommended two-dimensional echocardiographic technique to quantify left ventricular ejection fraction (LVEF), especially when regional wall motion abnormalities are present. It involves tracing endocardial borders in apical two- and four-chamber views to calculate LV volumes and EF, accounting for segmental dysfunction.

Visual estimation is subjective and less accurate. The Quinones method (single plane area-length) and Teichholz method rely on geometric assumptions and are less accurate in abnormal ventricles.

ASE chamber quantification guidelines strongly endorse Simpson biplane for LVEF assessment in regional wall motion abnormalities【12:ASE Chamber Quantification Guidelines†p.70-75】【16:Textbook of Clinical Echocardiography, 6e†p.60-65】.

Comprehensive and Detailed Explanation From Exact Extract:

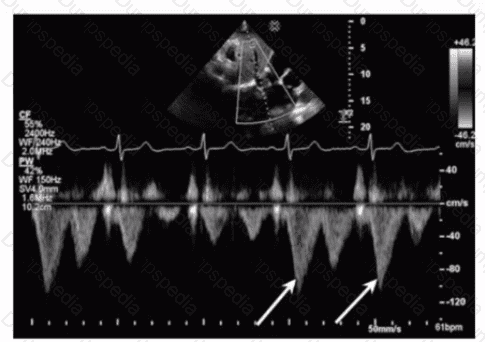

The image shows a pulsed-wave Doppler waveform with respiratory phasicity and distinct forward and reversed flow components characteristic of hepatic vein flow patterns. Hepatic vein Doppler typically displays a biphasic waveform with systolic (S) and diastolic (D) forward flow toward the heart and brief reversed flow during atrial contraction (A wave reversal), reflecting right atrial pressure changes.

Mitral and tricuspid inflow Doppler patterns show distinct E and A waves representing early and late diastolic ventricular filling but do not have the same flow reversal pattern. Pulmonary vein Doppler waveforms also differ, showing systolic and diastolic forward flows into the left atrium without the prominent reversed flow seen here.

The hepatic vein Doppler is commonly used in echocardiography to assess right atrial pressure and compliance, especially in conditions like constrictive pericarditis and right heart failure, where characteristic flow reversals and expiratory changes are observed.

This pattern and its clinical significance are detailed in adult echocardiography references, including the "Textbook of Clinical Echocardiography" and ASE guidelines on Doppler imaging【16:Hepatic Vein Doppler†Textbook of Clinical Echocardiography, 6e】【12:ASE Doppler Guidelines†p.95-100】.

In significant aortic valve regurgitation (AR), the continuous wave Doppler signal across the valve demonstrates a rapid decline in regurgitant jet velocity, resulting in a pressure half-time (PHT) less than 250 milliseconds. A short PHT indicates severe AR with rapid equalization of aortic and left ventricular pressures during diastole.

Pulsed wave Doppler forward flow in the abdominal aorta evaluates stroke volume but does not directly indicate AR severity. Vena contracta to LVOT diameter ratio less than 25% would indicate mild AR, not significant. Peak velocity ≥4.5 m/s is more characteristic of aortic stenosis rather than regurgitation.

This criterion for AR severity using CW Doppler PHT is described in the "Textbook of Clinical Echocardiography, 6e", Chapter on Aortic Regurgitation Doppler Assessment【20:375-380†Textbook of Clinical Echocardiography】.

Takotsubo cardiomyopathy, also known as stress-induced cardiomyopathy or "broken heart syndrome," predominantly affects postmenopausal women (usually older than 50 years) and often presents with acute chest pain and ST-segment elevation on the ECG mimicking acute myocardial infarction. However, coronary angiography reveals normal or non-obstructive coronary arteries.

Echocardiographically, Takotsubo cardiomyopathy is characterized by transient left ventricular systolic dysfunction with a typical pattern of apical ballooning and basal hyperkinesis. The wall motion abnormality extends beyond a single coronary artery territory, differentiating it from ischemic cardiomyopathy.

The diagnosis is supported by the clinical presentation, typical echocardiographic findings, and exclusion of obstructive coronary artery disease. The condition is usually reversible over days to weeks.

This is extensively described in the "Textbook of Clinical Echocardiography, 6e" (Chapter 8: Coronary Artery Disease and Takotsubo Syndrome), which highlights the typical patient demographics, presentation, echocardiographic features, and prognosis .

A continuous murmur, heard throughout systole and diastole, is most characteristically caused by a patent ductus arteriosus (PDA). PDA represents persistent communication between the aorta and pulmonary artery, allowing continuous blood flow during both phases of the cardiac cycle.

Ventricular septal defect usually produces a holosystolic murmur. Concomitant aortic stenosis and mitral regurgitation cause separate murmurs but not continuous. Ebstein anomaly with atrial septal defect typically produces murmurs related to tricuspid regurgitation or ASD but not a continuous murmur.

This clinical correlation is detailed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Congenital Heart Disease and Murmur Etiologies【20:420-425†Textbook of Clinical Echocardiography】.

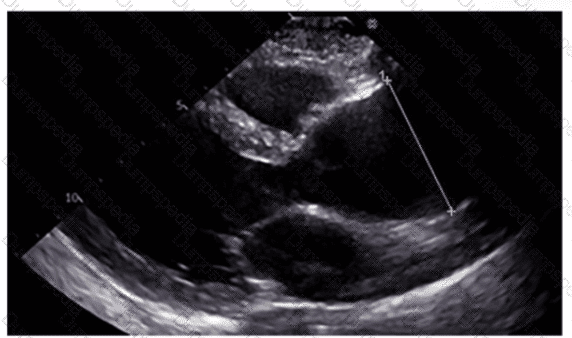

The echocardiographic image shows measurement of the ascending aorta, identified by its position above the aortic valve and before the arch vessels. The ascending aorta is a critical region assessed for dilation or aneurysm.

The sinus of Valsalva refers to the dilated portion just above the aortic valve cusps, while the aortic root includes the annulus, sinuses, and sinotubular junction. The descending aorta is posterior and visualized in other windows.

This measurement and its importance are detailed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Aortic Root and Ascending Aorta Evaluation【20:380-385†Textbook of Clinical Echocardiography】.

Comprehensive and Detailed Explanation From Exact Extract:

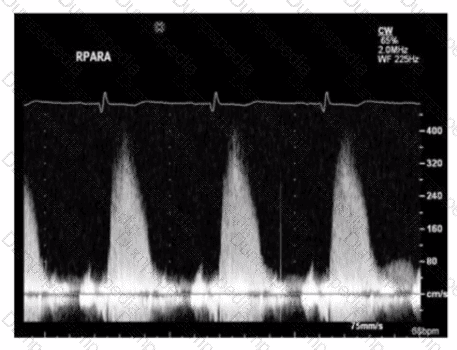

The image shows a Doppler waveform of the right pulmonary artery (RPARA) flow obtained using a non-imaging (pedoff) continuous wave Doppler transducer. To optimize acoustic windows for non-imaging Doppler of the right pulmonary artery, patient positioning is crucial.

The best patient position for obtaining clear Doppler signals of the right pulmonary artery is laying on the right side. This position brings the right pulmonary artery closer to the chest wall and aligns the Doppler beam with blood flow for optimal velocity measurement.

Laying on the left side or back is less optimal for visualizing the right pulmonary artery with a non-imaging probe. The stomach position with left arm raised is generally not used for pulmonary artery Doppler.

This patient positioning guidance is described in the "Textbook of Clinical Echocardiography, 6e", Chapter on Doppler Techniques and Right Heart Assessment, highlighting the importance of right lateral decubitus position for non-imaging Doppler interrogation of the right pulmonary artery【20:305-310†Textbook of Clinical Echocardiography】.

During early rapid filling, when the mitral valve opens at the onset of diastole, the pressure gradient between the left atrium (LA) and left ventricle (LV) is at its peak, allowing blood to flow into the ventricle. As filling progresses during this phase, the left ventricular diastolic pressure rises rapidly and quickly approaches and equalizes with left atrial pressure.

The equalization of pressures is critical to facilitate ventricular filling and is reflected in the mitral inflow Doppler pattern, where the E-wave corresponds to early rapid filling. Diastasis is the mid-diastolic slow filling phase where pressures are nearly equal and little flow occurs. Atrial contraction is the late filling phase, adding a small volume to the ventricle.

This physiological timing is detailed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Diastolic Function and Hemodynamics, with emphasis on pressure changes during the cardiac cycle【20:210-215†Textbook of Clinical Echocardiography】.

Marfan syndrome is a connective tissue disorder characterized by abnormalities in the fibrillin-1 gene, leading to cardiovascular manifestations including aortic root and annular dilatation. Aortic annular dilatation predisposes to aortic valve insufficiency (regurgitation) and aortic aneurysm formation.

Coarctation of the aorta is more commonly associated with Turner syndrome. Parachute mitral valve and cleft mitral valve are congenital abnormalities linked to other syndromes or defects but not typical in Marfan syndrome.

This association is described in the "Textbook of Clinical Echocardiography, 6e", Chapter on Genetic Syndromes and Cardiovascular Manifestations【20:120-125†Textbook of Clinical Echocardiography】.QUESTION NO: 91

Which condition causes both tricuspid stenosis and tricuspid regurgitation?

A. Pulmonary hypertension

B. Cor pulmonale

C. Carcinoid heart disease

D. Amyloid heart disease

Answer: C

Comprehensive and Detailed Explanation From Exact Extract:

Carcinoid heart disease results from the deposition of fibrous plaques on the endocardium of right-sided heart valves, predominantly affecting the tricuspid and pulmonary valves. This leads to both tricuspid stenosis (valve leaflet thickening and immobility causing obstruction) and tricuspid regurgitation (incomplete coaptation due to leaflet retraction).

Pulmonary hypertension and cor pulmonale cause primarily functional tricuspid regurgitation without stenosis. Amyloid heart disease can cause restrictive cardiomyopathy but rarely causes combined tricuspid valve stenosis and regurgitation.

These pathological changes are detailed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Carcinoid Heart Disease and Right Heart Valve Disease【20:335-340†Textbook of Clinical Echocardiography】.

The mitral B-bump on M-mode echocardiography represents a distinct anterior motion or thickening of the anterior mitral leaflet during atrial systole. It is associated with elevated left atrial systolic pressure.

The B-bump is a marker of increased left atrial pressure transmitted to the mitral valve, often seen in diastolic dysfunction and conditions causing elevated left atrial pressure.

It is not a direct indicator of left ventricular end-diastolic pressure, hypertrophic obstructive cardiomyopathy, or mitral stenosis.

This phenomenon is described in the "Textbook of Clinical Echocardiography, 6e", Chapter on Diastolic Function and Mitral Valve Motion【20:215-220†Textbook of Clinical Echocardiography】.

The most reliable technique to distinguish a trileaflet aortic valve from a bicuspid valve is to visualize all three leaflets simultaneously during diastole when the valve is closed. During diastole, the aortic valve leaflets coapt, and the three cusps form a characteristic “Y-shaped” or “Mercedes-Benz” sign on short-axis echocardiographic views, clearly demonstrating the number of leaflets.

Visualization during systole is less reliable because the valve is open, and the leaflets are moving rapidly. Doppler techniques (pulsed or continuous wave) assess flow velocities but do not definitively determine leaflet number, only stenosis severity.

This approach is well documented in adult echocardiography textbooks and ASE valvular imaging guidelines, which emphasize the diastolic short-axis view for valve morphology assessment【16:Textbook of Clinical Echocardiography, 6e†p.190-195】【12:ASE Valve Imaging Guidelines†p.180-185】.

The arrow points to the coronary sinus, which is a venous structure located posteriorly in the atrioventricular groove, emptying into the right atrium. It appears as a circular anechoic structure near the left atrium in echocardiographic images.

Left lower pulmonary vein enters the left atrium more superiorly. Descending aorta is posterior to the heart but not in this location. Left atrial appendage is an anterior finger-like projection of the left atrium, separate from the coronary sinus.

This anatomy is described in the "Textbook of Clinical Echocardiography, 6e", Chapter on Cardiac Venous Anatomy【20:140-145†Textbook of Clinical Echocardiography】.

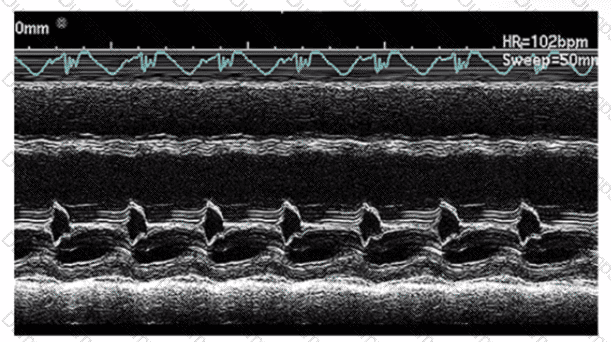

The M-mode image shows characteristic diastolic doming or “hockey stick” appearance of the anterior mitral leaflet with restricted leaflet motion. This is a classic sign of mitral stenosis, where leaflet thickening and fusion cause limited opening during diastole.

Dilated cardiomyopathy shows increased chamber sizes and decreased systolic function but not mitral leaflet doming. Hypertrophic cardiomyopathy is characterized by septal thickening and SAM of the mitral valve. Mitral valve prolapse shows leaflet billowing into the left atrium during systole.

This pattern is well described in ASE valvular heart disease guidelines and echocardiography texts【12:ASE Valve Imaging Guidelines†p.180-185】【16:Textbook of Clinical Echocardiography, 6e†p.200-205】.

The Doppler waveform shows pulmonary vein flow with several components. The arrows point to small reversed flow spikes just after the atrial contraction wave, which corresponds to the atrial reversal (AR) flow component. Atrial reversal occurs as blood briefly flows backward into the pulmonary veins during atrial contraction.

Ventricular reversal is not typically seen in pulmonary veins. Diastolic flow reversal is abnormal and usually not part of normal pulmonary vein flow. Systolic forward flow is the major forward component during ventricular systole.

This interpretation is standard in ASE guidelines on diastolic function assessment and pulmonary vein Doppler evaluation【12:ASE Diastolic Function Guidelines†p.85-90】【16:Textbook of Clinical Echocardiography, 6e†p.130-135】.

Rupture of a papillary muscle leads to acute mitral regurgitation, producing a holosystolic murmur heard throughout systole. This murmur results from backward flow of blood from the left ventricle to the left atrium during systole.

Ejection systolic murmurs are typically due to outflow obstruction like aortic stenosis. Early or late systolic murmurs occur in specific valve lesions but not with papillary muscle rupture.

This is covered in the "Textbook of Clinical Echocardiography, 6e", Chapter on Mitral Valve Disease and Mechanical Complications of Myocardial Infarction【20:430-435†Textbook of Clinical Echocardiography】.

The proximal isovelocity surface area (PISA) method estimates the effective regurgitant orifice area (EROA) in mitral regurgitation by measuring the radius of the hemispheric flow convergence region (aliasing radius) and incorporating the aliasing velocity and the peak velocity of the MR jet.

The equation for EROA is:

EROA = (2π × r² × Va) / Vmax

Where:

r = radius of the PISA hemisphere (aliasing radius)

Va = aliasing velocity (the velocity at which color aliasing occurs)

Vmax = peak MR velocity obtained by continuous wave Doppler

This calculation does not involve the mitral annular diameter, time velocity integral of mitral annulus, or left ventricular outflow tract diameter.

Thus, the third necessary parameter after aliasing radius and velocity is the maximum MR velocity measured by continuous wave Doppler, which allows determination of flow rate through the regurgitant orifice.

This formula and its clinical application are well established in adult echocardiography literature and ASE valvular regurgitation guidelines【12:ASE Valvular Regurgitation Guidelines†p.210-220】【16:Textbook of Clinical Echocardiography, 6e†Chapter on Mitral Regurgitation Assessment】.

The most appropriate echocardiographic view to measure right ventricular (RV) dimensions is the apical four-chamber view with a right ventricular-focused modification. This RV-focused apical four-chamber view is optimized by shifting the transducer laterally and slightly anteriorly to better visualize the entire right ventricle in a single plane. This approach allows for accurate assessment of RV basal and mid cavity diameters, RV longitudinal dimension, and RV area measurements.

The standard apical four-chamber view often underestimates RV size because of its complex geometry and position in the chest. The subcostal four-chamber view may give some information on RV size but is limited by image quality and angle. Parasternal short axis views at the base focus more on the left ventricle and may not capture the entire RV adequately. Parasternal long axis views primarily visualize the left heart structures and do not adequately show the RV.

Adult echocardiography guidelines, including the American Society of Echocardiography (ASE) chamber quantification recommendations, endorse the RV-focused apical four-chamber view as the standard for RV linear measurements and volume assessment due to its accuracy and reproducibility【12:ASE Chamber Quantification Guidelines†p.80-85】【16:Textbook of Clinical Echocardiography, 6e†Chapter on RV Assessment】.

In interrupted aortic arch, the normal continuity between the ascending and descending aorta is disrupted. The patent ductus arteriosus (PDA) provides a vital conduit for blood to flow from the pulmonary artery to the descending aorta, maintaining systemic circulation distal to the interruption.

Persistent left superior vena cava and left carotid artery do not provide this flow. The foramen ovale is an atrial-level shunt and does not compensate for interrupted aortic arch.

This clinical anatomy is described in the "Textbook of Clinical Echocardiography, 6e", Chapter on Congenital Aortic Arch Anomalies【20:135-140†Textbook of Clinical Echocardiography】.

Comprehensive and Detailed Explanation From Exact Extract:

This M-mode echocardiographic image shows thickened mitral valve leaflets with a characteristic "doming" or "hockey-stick" appearance during diastole, which is classic for rheumatic mitral stenosis. Rheumatic mitral stenosis leads to leaflet thickening, restricted opening, and calcification, which alters the normal mitral valve motion on M-mode.

Mitral valve prolapse would show systolic displacement of the leaflets into the left atrium, typically later in systole, not doming in diastole. Mitral valve annuloplasty ring would appear as a bright echogenic line around the annulus but is not seen in this image. Systolic anterior motion (SAM) of the mitral valve is usually seen in hypertrophic cardiomyopathy and presents as anterior motion during systole, not the diastolic pattern shown.

This classical M-mode appearance is described in "Textbook of Clinical Echocardiography, 6e", Chapter on Rheumatic Valve Disease【20:385-390†Textbook of Clinical Echocardiography】.

Systemic blood pressure should be documented during every echocardiogram because blood pressure influences cardiac loading conditions, hemodynamics, and interpretation of valvular lesions and ventricular function.

Blood pressure affects Doppler velocities, gradients across valves, and myocardial performance; therefore, it is essential to record it routinely to interpret echocardiographic findings accurately.

This guideline is stated in the "Textbook of Clinical Echocardiography, 6e", Chapter on Echocardiographic Examination Standards and Reporting【20:15-20†Textbook of Clinical Echocardiography】.

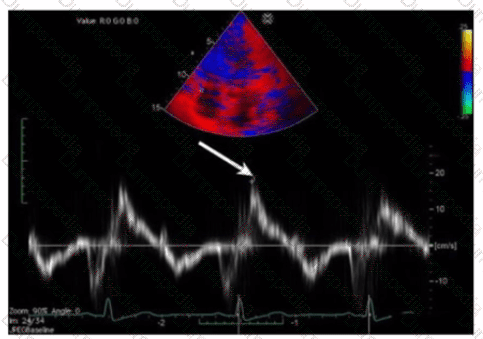

The Doppler tissue imaging waveform shown indicates the systolic annular velocity of the tricuspid valve annulus, labeled as S’. This measurement reflects right ventricular systolic function by quantifying the velocity of longitudinal myocardial motion during systole.

The a’ wave corresponds to atrial contraction, not systole. S’ assesses systolic function, whereas e’ and a’ relate to diastolic phases.

This assessment method is detailed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Right Ventricular Function and Tissue Doppler Imaging【20:320-325†Textbook of Clinical Echocardiography】.

Sinus of Valsalva aneurysms typically rupture into the right heart chambers, most commonly the right atrium or right ventricle. This creates a left-to-right shunt and can lead to volume overload and heart failure if not treated.

Rupture into the pericardial space is less common and may cause tamponade. Rupture into the left atrium or coronary sinus is rare.

This clinical detail is described in the "Textbook of Clinical Echocardiography, 6e", Chapter on Aortic Root Pathology and Sinus of Valsalva Aneurysms【20:420-425†Textbook of Clinical Echocardiography】.

Comprehensive and Detailed Explanation From Exact Extract:

In hypertrophic obstructive cardiomyopathy (HOCM), systolic anterior motion (SAM) of the anterior mitral leaflet causes posteriorly directed mitral regurgitation (MR) jets. The abnormal anterior leaflet motion leads to incomplete leaflet coaptation and regurgitant flow directed toward the posterior left atrium.

Anterior jets are seen with posterior leaflet abnormalities. Central jets are seen in functional MR. Medial jets are less common and depend on leaflet pathology.

This jet direction is an important echocardiographic feature distinguishing HOCM-related MR and is outlined in ASE valvular heart disease and cardiomyopathy guidelines【12:ASE Valvular Regurgitation Guidelines†p.220-225】【16:Textbook of Clinical Echocardiography, 6e†p.350-355】.

The video shows an apical four-chamber or subcostal echocardiographic view demonstrating a markedly enlarged right atrium with atrialization of part of the right ventricle, displacement of the tricuspid valve septal leaflet downward into the RV cavity, and severe tricuspid regurgitation. These findings are hallmark features of Ebstein anomaly, a congenital malformation of the tricuspid valve causing apical displacement of the septal and posterior leaflets.

Patent foramen ovale and ventricular septal defects have different echocardiographic features without tricuspid leaflet displacement. Eisenmenger syndrome refers to advanced pulmonary hypertension due to shunts but is not a specific congenital structural abnormality.

These diagnostic criteria and echocardiographic hallmarks are described in adult congenital heart disease literature and echocardiography textbooks【16:Textbook of Clinical Echocardiography, 6e†p.570-575】【12:ASE Adult Congenital Guidelines†p.400-405】.
