AZ-800 Sample Questions Answers

In the Administering Windows Server Hybrid Core Infrastructure objectives for managing Hyper-V, enabling nested virtualization is the required step when you must “run virtual machines inside a virtual machine.” The referenced guidance states that Hyper-V on a VM is supported only when the host exposes hardware virtualization features to the guest. The prescriptive step is: “Turn off the VM and run Set-VMProcessor -VMName < V MName > -ExposeVirtualizationExtensions $true to enable nested virtualization.” The module further notes that this action “passes through Intel VT-x/AMD-V to the guest so the guest OS can install the Hyper-V role and create VMs.” It also clarifies that “the setting is applied on the parent host for the target VM and requires the VM to be powered off before the change is committed.”

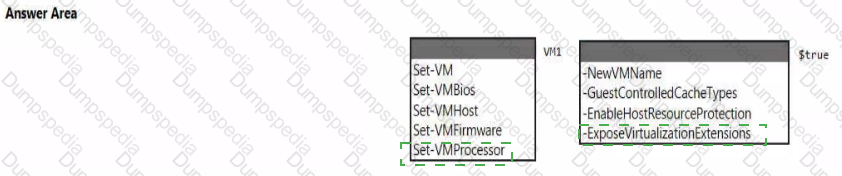

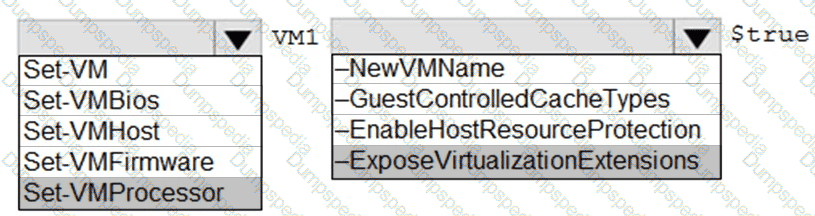

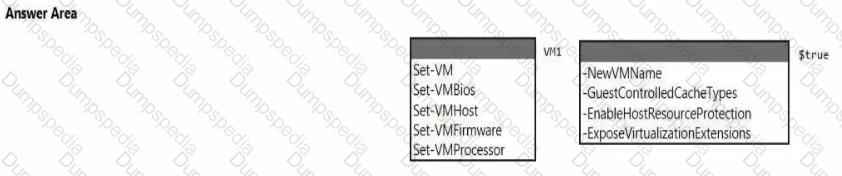

Because the technical requirement says “Ensure that you can run virtual machines on VM1”, VM1 must be able to host Hyper-V while itself running as a VM on Server2. The first and essential cmdlet is therefore Set-VMProcessor with the -ExposeVirtualizationExtensions switch set to $true against VM1. Other optional settings (for example, MAC spoofing on the vNIC or static memory) may be configured later if needed, but exposing virtualization extensions is the enabling prerequisite that satisfies the requirement.

To manage SRV1 remotely using PowerShell, you’ll need to set up PowerShell Remoting. Here’s a step-by-step guide:

Step 1: Enable PowerShell Remoting on SRV1 On SRV1, run the following command to enable PowerShell Re moting:

Enable-PSRemoting -Force

This command configures the computer to receive PowerShell remote commands that are sent by using the WS-Management technology.

Step 2: Configure the TrustedHosts List (If Needed) If you’re managing SRV1 from a computer tha t is not part of the same domain, you’ll need to add the managing computer’s name to the TrustedHosts list on SRV1:

Set-Item wsman:\localhost\Client\TrustedHosts -Value " ManagingComputerName " -Concatenate -Force

Replace “ManagingComputerName” with the name of your managing computer.

Step 3: Start a Remote Session From your managing computer, start a remote session with SRV1 using the Enter-PSSession cmdlet:

Enter-PSSession -ComputerName SRV1 -Credential (Get-Credential)

This command prompts you for credenti als and then starts a remote session with SRV1.

Step 4: Run Remote Commands Once the remote session is established, you can run any PowerShell command as if you were directly on SRV1. For example:

Get-Service

This command gets the status of services on SRV1.

Step 5: Exit the Remote Session When you’re finished, exit the remote session:

Exit-PSSession

Note: Ensure that both the managing computer and SRV1 are properly configured to communicate over the network, and that any firewalls allow for the necessar y ports (default is 5985 for HTTP and 5986 for HTTPS) to be open for WS-Management traffic12.

By following these steps, you should be able to manage SRV1 remotely using PowerShell. Make sure you have the appropriate administrative privileges to perform the se actions.

Within the Manage AD DS operations master roles (FSMO) section of the AZ-800 materials, Microsoft documents multiple supported me thods to identify role holders. The guidance states that the command-line utility NETDOM can enumerate all FSMO roles with: netdom query fsmo . The output lists the Schema Master , Domain Naming Master , RID Master , PDC Emulator , and Infrastructure Master , ea ch with the current role holder’s FQDN. The course notes emphasize that this method is fast, non-interactive, and does not require specific MMC snap-ins, making it suitable for both Server Core and remote administration scenarios. Because the command retur ns the PDC Emulator holder explicitly in its results, running netdom.exe query fsmo does meet the goal of identifying which server is the PDC Emulator for the domain. This aligns with best practices for quick verification of FSMO placement during operations such as time service verification, password update convergence checks, or when planning FSMO transfers and seizures.

The AZ-800 content covering Active Directory Sites and Services clarifies that site, subnet, and site-link objects live in the Configuration partition. The guides emphasize that administration of the Configuration naming context is restricted to Enterprise Admins and to Domain Admins of the forest-root domain. In the context of changing replication topology parameters—such as editing the replication schedule on site links—the documentation notes: “Only Enterprise Admins or administrators in the forest-root Domain Admins group have default permissions to modify site and site-link objects,” because these objects affect replication forest-wide.

Applying this to the scenario:

Contoso\Admin1 (Enterprise Admins) has forest-wide rights to modify site links.

Contoso\Admin2 (Domain Admins in contoso.com, the forest-root domain) also has the required rights to change site-link schedules.

Canada\Admin3 (Domain Admins in canada.contoso.com) does not have default permissions in the Configuration partition for forest-wide site-link administration.

Thus, to meet the technical requirement to change all site links to a 30-minute schedule, the users who can perform the task are Admin1 and Admin2.

In the Administering Windows Server Hybrid Core Infrastructure materials under Hyper-V management, Microsoft specifies that Enhanced Sess ion Mode changes VMConnect from a raw console attach to a connection that uses Remote Desktop Protocol (RDP) to the guest. The guide states that Enhanced Session Mode “ uses RDP to establish the VMConnect session so the user must supply credentials for a lo gon to the guest operating system ,” and further that it “ prevents a second administrator from inheriting an already signed-in console session ” because the connection is treated as a new interactive sign-in. In contrast, the default basic console session “ attaches directly to the active console without prompting for credentials ,” which is exactly the current problem described for VM2.

The same objective area clarifies that other options do not meet the requirement: Guest Services integration only enables fi le copy and certain host-guest interactions; Credential Guard protects secrets inside Windows by isolating LSASS but does not affect Hyper-V console connection behavior ; Shielded VMs provide fabric-level protections and encryption but are not required mere ly to force credential prompts for VMConnect.

Therefore, to force users to provide credentials when they connect to VM2 and to eliminate inherited console sessions, you should enable Enhanced Session Mode on the Hyper-V host (and ensure the guest supports RDP).

In the Windows Server exam materials for Administering Windows Server Hybrid Core Infrastructure (AZ-800) , Microsoft documents that Data Deduplication is supported only on data volumes and specifically on NTFS-formatted volumes , and it cannot be enabled on the system or boot volume . The study text states: “Data Deduplication is applied at the volume level and supports NTFS data volumes. You cannot enable deduplication on the system or boot volume.” It further clarifies unsupported targets: “ReFS volumes and FAT/exFAT volumes are not supported for Data Deduplication in general-purpose server scenarios,” and emphasizes that deduplication is “not available for the operating s ystem volume.”

Applying these rules to VM3:

C: NTFS but it is the OS/system volume → not eligible .

D: NTFS data volume → eligible .

E: ReFS → not supported for general-purpose dedup in this context.

F: exFAT → not supported .

Therefore, the only volume on which you can enable Data Deduplication to meet the requirement is volume D .

n the Administering Windows Server Hybrid Core Infrastructure guidance for managing AD DS, Microsoft emphasizes using OU-level delegation to satisfy administrative needs while adhering to the principle of least privilege. The documentation explains that the Delegate Control wizard on an OU lets you grant a user or group only the specific permissions required for common tasks, including “Modify the membership of a group”. This grants the write permission to the member attribute on group objects contained in that OU, without giving broader account-management rights across the domain.

By contrast, placing a user in Account Operators or Server Operators provides elevated, domain-wide capabilities far beyond what is required. Account Operators can create, delete, and modify many account types across the domain (except for protected admin accounts), which violates least-privilege for a task that only needs to change group membership in one OU. Server Operators is unrelated to group membership and is intended for server administration tasks. Creating a delegation at the domain root would similarly be excessive because it applies broadly to all containers and OUs.

Therefore, to meet the requirement “Ensure that User1 can manage the membership of all the groups in Contoso\OU3,” you should delegate control on OU3 and assign the built-in task “Modify the membership of a group” to User1, achieving the minimal permissions necessary.

Explanat ion:

In Azure, a single network interface (NIC) can have multiple IP configurations , but all IP configurations on a NIC must belong to the same subnet . The Administering Windows Server Hybrid Core Infrastructure guidance on Azure IaaS networking states th at to place a VM on more than one subnet at the same time , you must attach additional NICs , with each NIC connected to the target subnet. Relevant guidance includes: “Each IP configuration assigned to a network interface is allocated from the subnet to whi ch that NIC is attached; a NIC cannot span subnets.” and “To connect a VM to multiple subnets, add one or more additional network interfaces and attach each to the required subnet, subject to the VM size and OS limits for NIC count.”

Applying this to Server1: Nic1 is already attached to Vnet1/Subnet1 with IP 10.1.1.1/24 . You cannot connect Nic1 simultaneously to Vnet1/Subnet2 by adding or modifying IP configurations because that would violate the same-subnet-per-NIC rule. Moving Nic1 to Subnet2 would d isconnect it from Subnet1, which does not meet the requirement of connecting to an additional subnet. Therefore, the correct action is to add a second NIC to Server1 and attach it to Vnet1/Subnet2 , ensuring the VM size supports multiple NICs.

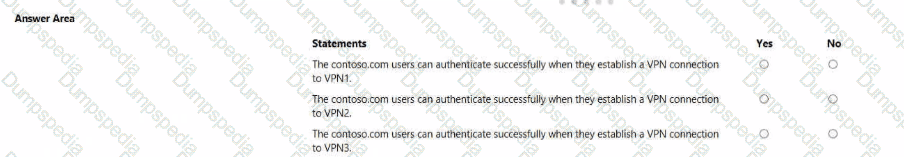

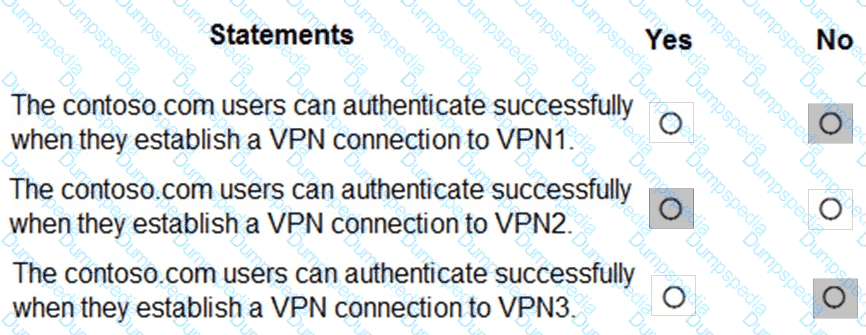

The Administering Windows Server Hybrid Core Infrastructure guidance for Network Policy Server (NPS) states that NPS processes requests only from configured and enabled RADIUS clients . The documentation explains that a RADIUS client entry must “ identify the device by its IP address or DNS name ,” and that “ requests from devices not defined as RADIUS clients (or c lients that are disabled) are discarded .” It also notes that the “ shared secret must match on the access server and on the RADIUS client definition ,” and that enabling the client is required for NPS to accept authentication from that device.

Applying these rules:

VPN1 (172.16.0.254) matches NPSClient1 by IP, but Enabled: False . Because disabled clients are rejected, users cannot authenticate to VPN1 through NPS1.

VPN2 (131.10.15.254) matches NPSClient2 and is Enabled: True with the correct shared secret. Th erefore, users can authenticate successfully to VPN2.

VPN3 (10.10.0.254) does not match any enabled RADIUS client entry. The only similar entry, NPSClient3 , is configured for 172.16.1.254 (wrong IP). Since NPS identifies clients by IP/FQDN and rejects unkn own devices, users cannot authenticate to VPN3.

Because “all users are allowed to establish VPN connections,” user policy is not the blocker—the RADIUS client configuration (enabled state and correct IP mapping) determines success here.

In the AZ-800 “Administering Windows Server Hybrid Core Infrastructure” objectives for Active Directory, server promotion is governed by forest/domain administrative roles. The materials state that promoting a member server to a domain controller in a given domain requires membership in either the Enterprise Admins group or the Domain Admins group of the target domain. The Configuration and Domain naming contexts that DCPromo touches (NTDS settings, SYSVOL/DFS-R readiness, DC computer account, and associated service SPNs) are protected so that “Enterprise Admins have full rights forest-wide, and Domain Admins have full rights within their respective domain.”

In this case, the requirement is to promote Server1 to a domain controller in canada.contoso.com. From the identities table:

Contoso\Admin1 is a member of Enterprise Admins (forest-wide authority).

Canada\Admin3 is a member of Canada\Domain Admins (authority within canada.contoso.com).

Contoso\Admin2 is Domain Admins (contoso.com) only, which does not grant administrative authority in the canada.contoso.com child domain.

Therefore, the users who can currently perform the required task for Server1 are Admin1 and Admin3.

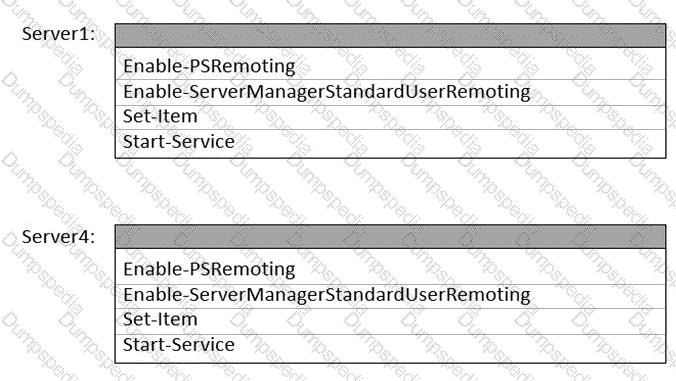

Server1 - Set-Item

Server4 - Enable-PSRemoting

Explore

To create a container image named app1 for your application using the Dockerfile in the C:\app directory on SRV1, follow these steps:

Step 1: Open PowerShell or Command Prompt First, open PowerShell or Command Prompt on SRV1.

Step 2: Navigate to the Application Directory Change to the directory where your application and Dockerfile are located:

cd C:\app

Step 3: Build the Container Image Use the docker build command to create the container image. The -t flag tags the image with the name app1:

docker build -t app1 .

The period . at the end of the command tells Docker to use the Dockerfile in the current directo ry.

Step 4: Verify the Image Creation After the build process completes, verify that the image app1 has been created successfully by listing all images:

docker images

You should see app1 in the list of images.

Step 5: Use the Image Now, you can use the ima ge app1 to run containers or push it to a container registry if needed.

By following these steps, you’ll have created a Docker container image named app1 using the Dockerfile located in C:\app on SRV11. Ensure that Docker is installed on SRV1 and that you have the necessary permissions to execute these commands.

One possible solution to ensure that a DHCP scope named scope1 on SRV1 can service client requests is to activate the scope on the DHCP server. A scope must be activated before it can assign IP addresses to DHCP clients. To activate a DHCP scope on SRV1, perform the following step s:

On SRV1, open DNS Manager from the Administrative Tools menu or by typing dnsmgmt.msc in the Run box.

In the left pane, expand your DHCP server and click on IPv4.

In the right pane, right-click on the scope that you want to activate, such as scope1, and select Activate.

Wait for the scope to be activated. You can verify the activation status by checking the icon next to the scope name. A green arrow indicates that the scope is active, while a red arrow indicates that the scope is inactive.

Now, the DHCP scope named scope1 on SRV1 can service client requests and lease IP addresses to DHCP clients. You can test the DHCP service by using the ipconfig /renew command on a DHCP client computer that is connected to the same subnet as the scope.

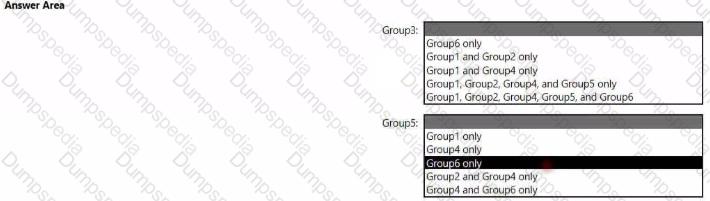

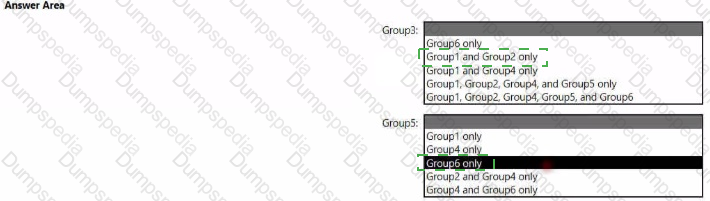

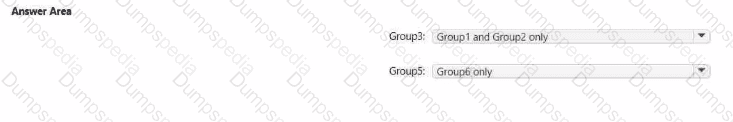

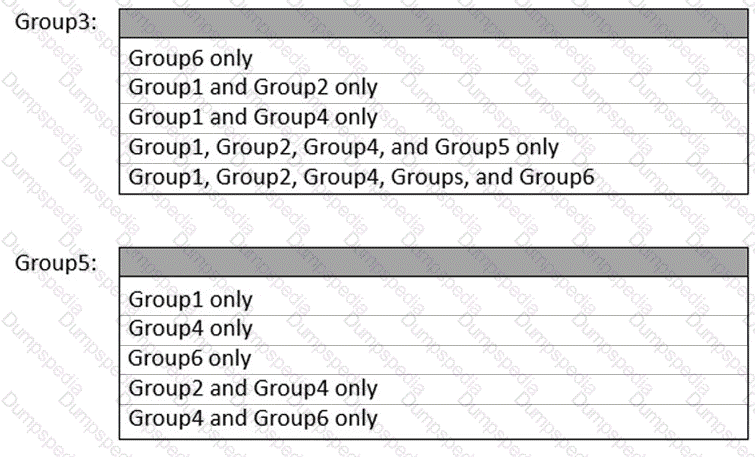

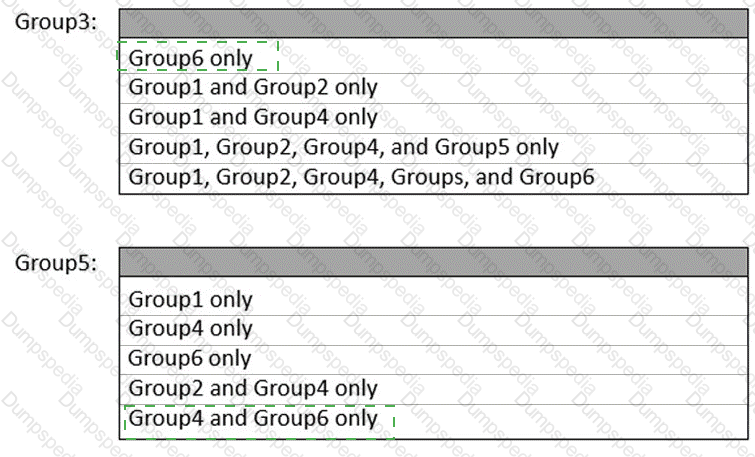

In the Windows Server Hybrid Core Infrastructure objectives for Active Directory group design, group scope and type determine valid membership and usage. The study guidance for group scopes states that a Domain Local group is used to assign permissions in its own domain and “can contain accounts, computer objects, global groups from any domain, and universal groups; it can also contain other domain local groups from the same domain only.” Security-type restrictions also apply: “Security groups can contain only security principals; distribution groups cannot be nested into security groups for access control.”

Applying these rules to Group3 (contoso.com Domain Local Security): it can accept security groups of compatible scopes. From the lists, Group1 (contoso.com Universal Security) and Group2 (contoso.com Global Security) are valid. Distribution groups (Group4, Group5, Group6) are not valid members of a security group used for authorization. Therefore, Group3 ⇒ Group1 and Group2 only.

For Group5 (canada.contoso.com Global Distribution), the scope rule for Global groups is: “Global groups can include user accounts and other global groups from the same domain only; they cannot include universal or domain local groups.” Hence, the only eligible group from the same domain and scope is Group4 (canada.contoso.com Global Distribution). Group6 is domain local (invalid), and cross-domain globals (Group2) are not permitted. Therefore, Group5 ⇒ Group4 only.

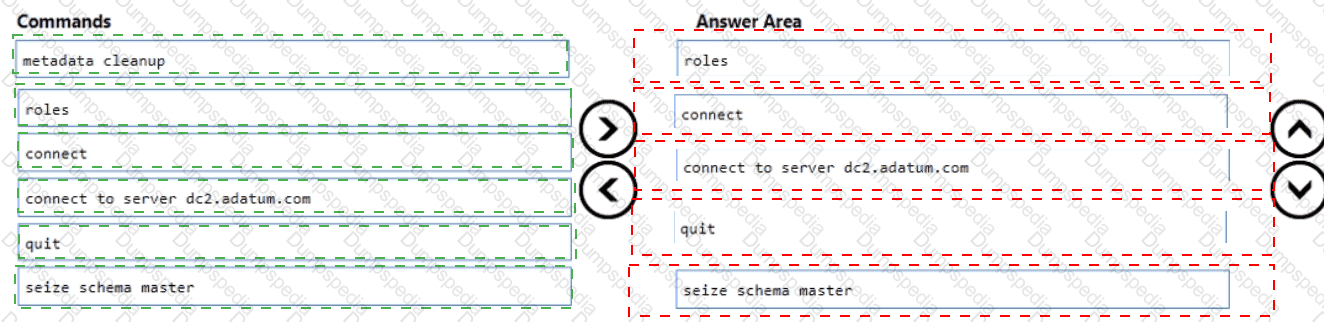

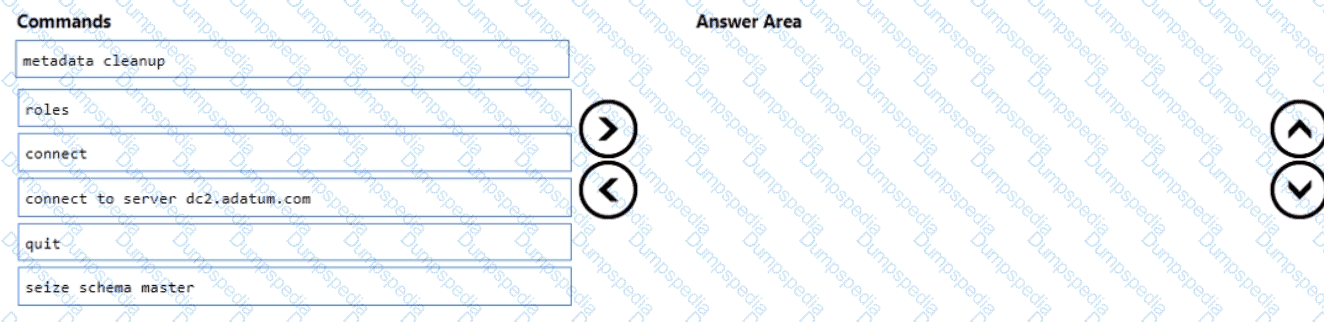

Step-by-Step Guide: Seizing/Transferring the Schema Master Role to DC2

✅ Step 1: Log in to DC2

Use an account that is a member of the Schema Admins, Enterprise Admins, and Domain Admins groups.

✅ Step 2: Register the Schema Snap-in

The Schema snap-in is not loaded by default.

Open Command Prompt as Administrator.

Type the following command to regist er the schema management DLL:

powershell

Copy

regsvr32 schmmgmt.dll

✅ Step 3: Open MMC (Microsoft Management Console)

Press Windows + R, type mmc, and hit Enter.

In MMC, go to File > Add/Remove Snap-in.

Select Active Directory Schema, then click Add > OK.

✅ Step 4: Connect to DC2

In the Active Directory Schema console, right-click Active Directory Schema and select Change Active Directory Domain Controller.

In the dialog box, select DC2 and click OK.

This will connect the console to DC2.

✅ Step 5: Transfer the Schema Master Role

Right-click Active Directory Schema again and select Operations Master.

In the Change Schema Master dialog box, confirm that DC2 is shown as the target.

Click the Change button to transfer the Schema Master role to DC2.

Click Yes whe n prompted to confirm the transfer.

✅ Step 6: Verify the Transfer

In the same dialog box, ensure that DC2 is now listed as the Schema Master.

Optionally, run the following command in PowerShell to verify:

netdom query fsmo

The Schema Master should now be DC2.

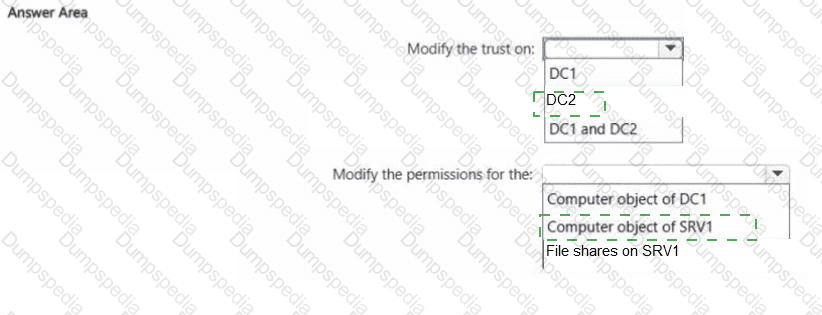

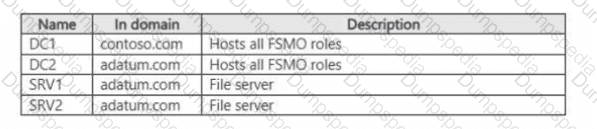

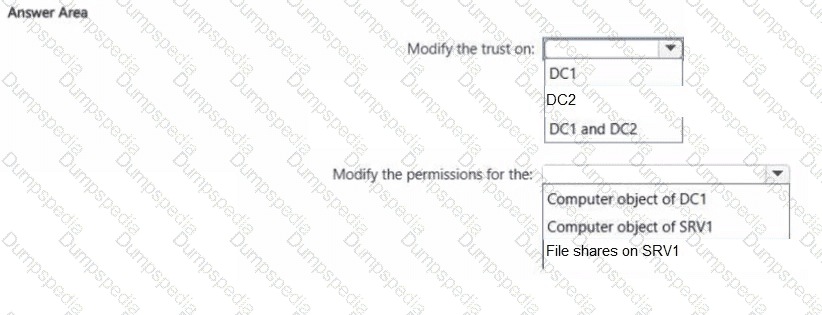

Modify the trust on : DC2

Modify the permissions for the : Computer object of SRV1

In an Active Directory Domain Services (AD DS) environment involving multiple forests and external trusts, managing granular access across domain boundaries is achieved through Selective Authentication . According to official documents for Administering Windows Server Hybrid Core Infrastructure, there are two primary authentication settings for a trust: Domain-wide authentication and Se lective authentication .

When you need to restrict users from a trusted forest (contoso.com) so they can only access specific resources in the trusting forest (adatum.com), you must configure the trust to use Selective Authentication . This configuration must be performed in the resource domain (the trusting domain). Based on the provided table, DC2 is the domain controller for adatum.com , which is where the shared resources (SRV1) reside. Therefore, you must modify the trust properties on DC2 to enable Selective Authentication for the incoming trust from contoso.com.

Once Selective Authentication is enabled, Windows does not automatically grant the " Authenticated Users " SID to the user ' s access token for resources in the local domain. Instead, administrators must explicitly grant the Allowed to Authenticate permission on the specific resource ' s computer object. In this scenario, since the requirement is to restrict access specifically to resources on SRV1 , you must modify the security permissions on the Comput er object of SRV1 in Active Directory Users and Computers. By granting the contoso.com users (or a group containing them) this permission, they can successfully authenticate against SRV1 while being blocked from all other servers in the adatum.com forest. This satisfies the requirement to prevent access to any other resources while maintaining the ability of adatum.com users to access contoso.com (as the 2-way trust remains intact).

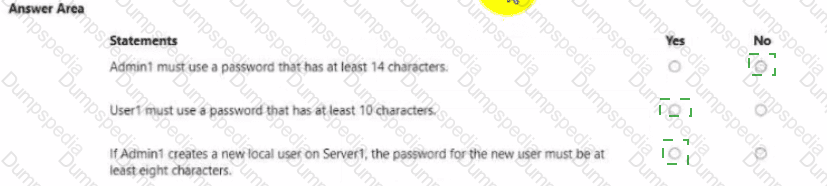

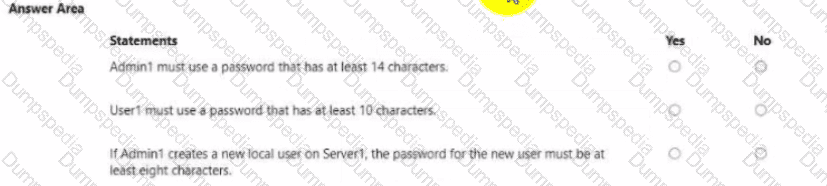

No

Yes

Yes

In Administering Windows Server Hybrid Core Infrastructure , Microsoft states that the domain password policy for domain user accounts is determined by the GPO that wins at the domain root (commonly the Default Domain Policy ). GPOs linked to OUs do not change the domain password policy for user accounts in those OUs; they only affect local accounts on computers within those OUs unless Fine-Grained Password Policies (PSOs) are used and scoped to users/groups. The case shows Default Domain Policy in contoso.com sets Minimum password length = 10 . Therefore, both Admin1 (a domain user in Contoso\OU1) and User1 (in Contoso\OU3) fall under the 10-character minimum; the OU-linked GPO1 (14) does not override the domain password policy for their domain accounts → Admin1: No , User1: Yes .

For member servers and local accounts , the documentation explains that password policy settings in a GP O linked to the OU containing the computer apply to that computer’s local Security Accounts Manager (SAM) . In the scenario, Server1 resides in Member Servers and GPO2 linked to Member Servers specifies Minimum password length = 8 . Thus, when Admin1 creates a local account on Server1 , the enforced minimum is 8 characters → Yes . This approach follows least privilege and standard precedence: domain-level for domain accounts, OU-linked GPOs for local accounts, unless PSOs are explicitly defined.

To ensure that all computers in the domain use DNSSEC to resolve names in the adatum.com zone, you’ll need to configure both the DNS servers a nd the client computers. Here’s how you can do it:

Step 1: Sign the adatum.com Zone First, you need to sign the adatum.com DNS zone. This can be done using the DNS Manager or PowerShell. Here’s a PowerShell example:

Add-DnsServerSigningKey -ZoneName " adatu m.com " -CryptoAlgorithm RsaSha256

Set-DnsServerDnsSecZoneSetting -ZoneName " adatum.com " -DenialOfExistence NSEC3 -NSEC3Parameters 1,0,10, " "

This will add a signing key and configure DNSSEC for the zone with NSEC3 parameters.

Step 2: Configure DNS Servers E nsure that your DNS servers are configured to support DNSSEC. This includes setting up trust anchors for the zones that you want to validate and configuring the DNS servers to provide DNSSEC validation for DNS queries.

Step 3: Configure DNS Clients For DNS SEC validation to occur on the client side, the client computers must be configured to trust the DNS server’s validation process. This typically involves configuring the client’s DNS settings to point to a DNS server that supports DNSSEC.

Step 4: Validate Configuration You can validate that DNSSEC is working correctly by using tools like nslookup or dig to query DNS records and check for the presence of DNSSEC signatures in the responses.

Note: The exact steps may vary depending on your environment and the version of Windows Server you are using. Ensure that you have the appropriate administrative rights to make these changes and that you test the configuration in a controlled environment before deploying it domain-wide12.

By following these steps, you shoul d be able to ensure that all computers in your domain use DNSSEC to resolve names in the adatum.com zone.

One possible solution to configure Hyper-V to ensure that running virtual machines can be moved between SRV1 and SRV2 without downtime is to use Live Migration. Live Migration is a feature of Hyper-V that allows you to move a running virtual machine from one host to another without any noticeable interruption of service. To set up Live Migration between SRV1 and SRV2, you need to perform the following steps:

On both SRV1 and SRV2, open Hyper-V Manager from the Administrative Tools menu or by typing virtmgmt.msc in the Run box.

In the left pane, right-click on the name of the server and select Hyper-V Settings .

In the Hyper-V Settings dialog box, select Live Migrations in the navigation pane.

Check the box Enable incoming and outgoing live migrations.

Under Authentication protocol, select the method that you want to use to authenticate the live migration traffi c between the servers. You can choose either Kerberos or CredSSP. Kerberos does not require you to sign in to the source server before starting a live migration, but it requires you to configure constrained delegation on the domain controller. CredSSP does not require you to configure constrained delegation, but it requires you to sign in to the source server through a local console session, a Remote Desktop session, or a remote Windows PowerShell session. For more information on how to configure constraine d delegation, see Configure constrained delegation.

Under Performance options, select the option that best suits your network configuration and performance requirements. You can choose either TCP/IP or Compression or SMB. TCP/IP uses a single TCP connectio n for the live migration traffic. Compression uses multiple TCP connections and compresses the live migration traffic to reduce the migration time and network bandwidth usage. SMB uses the Server Message Block (SMB) 3.0 protocol and can leverage SMB featur es such as SMB Multichannel and SMB Direct. For more information on how to choose the best performance option, see Choose a live migration performance option.

Under Advanced Features, you can optionally enable the Use any available network for live migrati on option, which allows Hyper-V to use any available network adapter on the source and destination servers for live migration. If you do not enable this option, you need to specify one or more network adapters to be used for live migration by clicking on t he Add button and selecting the network adapter from the list. You can also change the order of preference by using the Move Up and Move Down buttons.

Click OK to apply the settings.

Now, you have configured Hyper-V to enable live migration between SRV1 an d SRV2. You can use Hyper-V Manager or Windows PowerShell to initiate a live migration of a running virtual machine from one server to another.

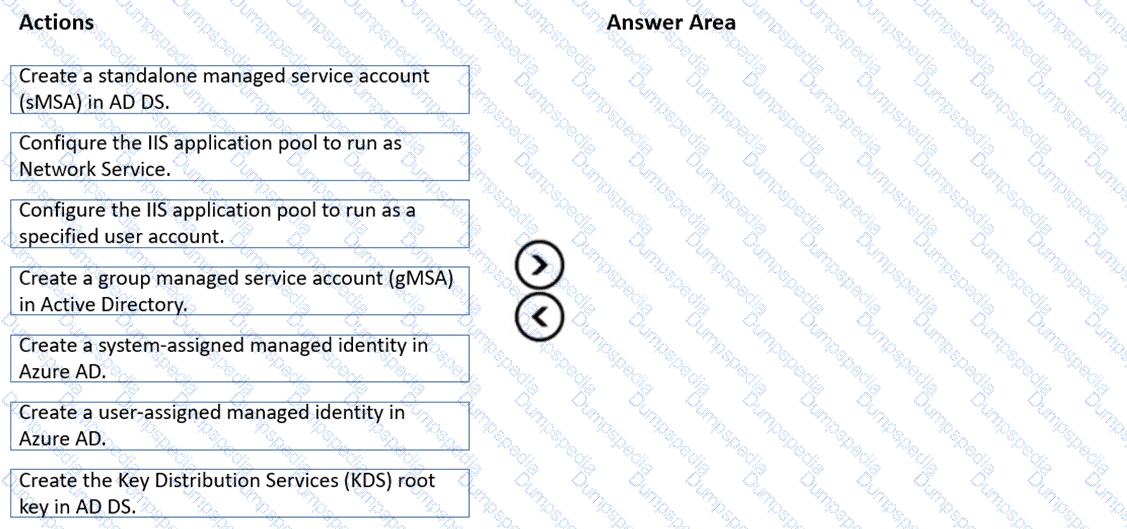

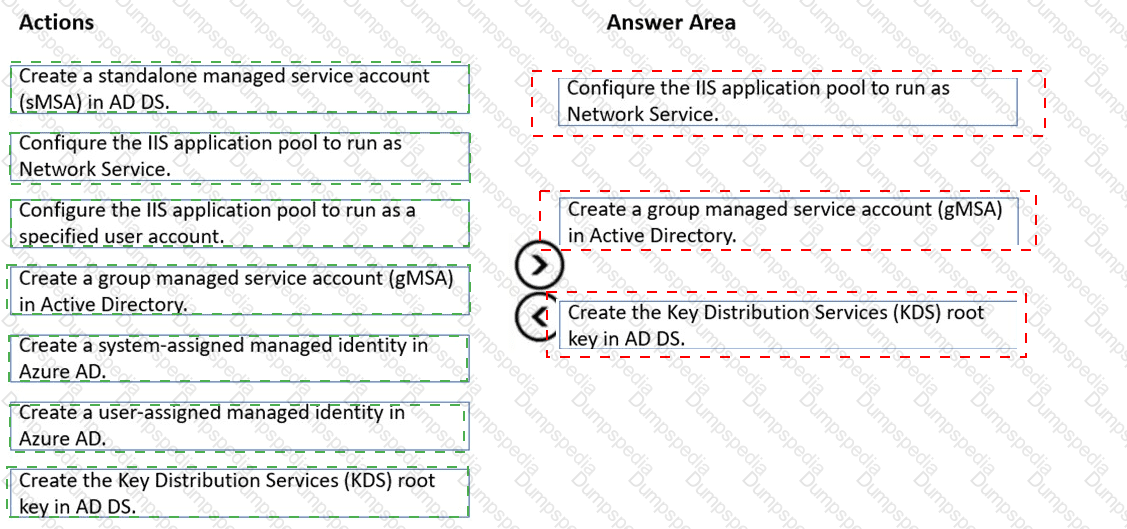

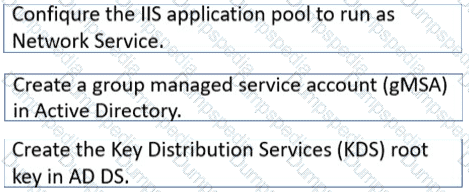

To create a group-managed service account (gMSA) named gMSA1 and make it available on SRV1, you can follo w these steps:

Step 1: Create the Key Distribution Services Root Key First, you need to create the KDS Root Key, which is required for the gMSA to function. You can do this with the following PowerShell command:

Add-KdsRootKey –EffectiveTime ((get-date).ad dhours(-10))

Note: The -EffectiveTime parameter is set to 10 hours in the past to ensure immediate effect.

Step 2: Create the gMSA Next, use the New-ADServiceAccount cmdlet to create the gMSA:

New-ADServiceAccount -Name gMSA1 -DNSHostName gmsa1.domain.com -PrincipalsAllowedToRetrieveManagedPassword SRV1$

Replace domain.com with your actual domain name.

Step 3: Install the gMSA on SRV1 Now, you need to install the gMSA on the server SRV1. Run the following command on SRV1:

Install-ADServiceAccount -Identity gMSA1

Step 4: Test the gMSA To ensure that the gMSA is installed correctly and ready for use, perform a test using:

Test-ADServiceAccount -Identity gMSA1

If the test returns True, the gMSA is correctly installed and ready for use on SRV1.

Step 5: Configure the Service to Use the gMSA Finally, configure the service that requires the gMSA to use gMSA1 by setting the service’s logon account to domain\gMSA1$ and leave the password field blank.

This will create and make the gMSA gMSA1 available on SRV1. Ensure t hat you have the necessary permissions and that SRV1 is properly joined to the domain before proceeding with these steps123.

TASK 2

???? Objective: Configure DC3 to replicate with DC1 and DC2 only between 8:00 PM and 6:00 AM.

Step-by-Step Guide: Replication Scheduling for DC3

✅ Step 1: Promote DC3 to a Domain Controller (if not already done)

Use Server Manager or P owerShell to install the Active Directory Domain Services role and promote the server as a domain controller.

Example PowerShell command to install the AD DS role:

powershell

Copy

Install-WindowsFeature AD-Domain-Services

To promote:

powershell

Copy

Install-ADDSDomainController -DomainName " contoso.com "

✅ Step 2: Open Active Directory Sites and Services

Log in to DC3 or another DC with administrative tools.

Open Active Directory Sites and Services (dssite.msc).

✅ Step 3: Locate the Site

In the lef t pane, expand the Sites container and find the site that contains DC3.

Expand the site to find Servers.

Under Servers, select DC3.

✅ Step 4: Configure Replication Connection Objects

Expand DC3 and click on NTDS Settings.

In the right pane, you’ll see co nnection objects to other domain controllers (these represent replication partners).

✅ Step 5: Adjust the Replication Schedule for Each Connection

For each connection object to DC1 and DC2:

Right-click the connection object and select Properties.

Click t he Change Schedule button.

✅ Step 6: Set the Replication Schedule

In the schedule window, you’ll see a grid of hours.

Clear all hours except the time window of 8 PM to 6 AM (in 1-hour blocks).

Select 8 PM to 6 AM (10 hours total) for all days.

Click OK to save.

✅ Step 7: Verify and Document

Ensure that both connection objects (to DC1 and DC2) have the updated schedule.

Document your configuration as part of your environment’s change control.

Objective:

Grant permissions to the BranchAdmins group to manage the fabikam.com DNS zone on DC1.

Step-by-Step Guide

✅ Step 1: Log in to the DNS Server

Log in to DC1 (which hosts the DNS zone fabikam.com) using an account with Domain Admin or Enterprise Admin rights.

✅ Step 2: Open the DNS Manager

Open DNS Manager:

Press Windows + R, type dnsmgmt.msc, and hit Ent er.

✅ Step 3: Locate the Zone

In the DNS Manager, expand the Forward Lookup Zones.

Locate and right-click on the zone fabikam.com.

✅ Step 4: Open Zone Properties

Right-click on fabikam.com and select Properties.

In the Properties window, go to the Secu rity tab.

✅ Step 5: Grant Permissions

In the Security tab, click Add.

Enter the name of the group:

nginx

Copy

BranchAdmins

Click Check Names to resolve the group.

Click OK.

✅ Step 6: Assign the Appropriate Permissions

In the Permissions window, select the BranchAdmins group.

Assign the following permissions:

Read

Write

Create All Child Objects

Delete All Child Objects

Optionally, click Advanced for more granular control if needed.

✅ Step 7: Apply and Close

Click Apply and OK to save the changes.

One possible solution to register SRV1 to sync Azure file shares using the 34646045 Storage Sync Service is to use the Register-AzStorageSyncServer cmdlet from the Az.StorageSync module. This cmdlet establishes a trust relationship between the server and the Storage Sync Service, which is required for creating server endpoints and syncing files. Here are the steps to register SRV1 using the cmdlet:

On SRV1, open PowerShell as an administrator and run the following command to install the Az.StorageSync module if it is not already installed:

Install-Module -Name Az.StorageSync

Run the following com mand to import the Az.StorageSync module:

Import-Module -Name Az.StorageSync

Run the following command to sign in to your Azure account and select the subscription that contains the 34646045 Storage Sync Service:

Connect-AzAccount

Select-AzSubscription -Su bscriptionId < your-subscription-id >

Run the following command to register SRV1 with the 34646045 Storage Sync Service. You need to specify the resource group name and the Storage Sync Service name as parameters:

Register-AzStorageSyncServer -ResourceGroupN ame < your-resource-group-name > -StorageSyncServiceName 34646045

Wait for the registration to complete. You can verify the registration status by checking the Registered servers tab on the Azure portal or by running the following command:

Get-AzStorageSyncS erver -ResourceGroupName < your-resource-group-name > -StorageSyncServiceName 34646045

Now, SRV1 is registered with the 34646045 Storage Sync Service and ready to sync Azure file shares. You can create server endpoints on SRV1 and cloud endpoints on the Azur e file shares to define the sync topology.

One possible solution to prevent domain users from saving executable files in a share named \SRVl\Data is to use file screening on the file server. File screening allows you to block certain files from being saved based on their file name extension. Here are the steps to configure file screening:

On the file server, open File Server Resource Manager from the Administrative Tools menu.

In the left pane, expand File Screening Management and click on File Groups.

Righ t-click on File Groups and select Create File Group.

In the File Group Properties dialog box, enter a name for the file group, such as Executable Files.

In the Files to include box, enter the file name extensions that you want to block, such as .exe, .bat, .cmd, .com, .msi, .scr. You can use wildcards to specify multiple extensions, such as *.exe.

Click OK to create the file group.

In the left pane, click on File Screen Templates.

Right-click on File Screen Templates and select Create File Screen Template.

In the File Screen Template Properties dialog box, enter a name for the template, such as Block Executable Files.

On the Settings tab, select the option Active screening: Do not allow users to save unauthorized files.

On the File Groups tab, check the box next to the file group that you created, such as Executable Files.

On the Notification tab, you can configure how to notify users and administrators when a file screening event occurs, such as sending an email, logging an event, or running a command or scr ipt. You can also customize the message that users see when they try to save a blocked file.

Click OK to create the file screen template.

In the left pane, click on File Screens.

Right-click on File Screens and select Create File Screen.

In the Create File Screen dialog box, enter the path of the folder that you want to apply the file screening to, such as \SRVl\Data.

Select the option Derive properties from this file screen template (recommended) and choose the template that you created, such as Block Exec utable Files.

Click Create to create the file screen.

Now, domain users will not be able to save executable files in the share named \SRVl\Data. They will be able to save other files to the share.

The Administering Windows Server Hybrid Core Infrastructure content notes that Microsoft Entra Connect cloud sync uses lightweight agents and supports synchronizing specific OUs from multiple forests into a single tenant. The guide highlights that cloud sync “is designed for multi-forest or cross-organization scenarios and allows scoping to selected OUs and groups,” enabling granular onboarding of just the identities you need. The requirement says “the users in the Marketing OU (in Fabrikam’s forest) must have access to storage1.” Granting access to Azure Files using Entra-based authorization requires that those users exist in the same Entra tenant. Cloud sync enables importing only the Fabrikam Marketing OU into A. Datum’s tenant without establishing full trust for all users. Azure AD Connect in active or staging mode would target the A. Datum forest and isn’t intended for selectively bringing in a separate partner forest OU; AD FS is a federation solution and does not create tenant objects for ACLs on Azure resources like Azure Files. Therefore, implement Microsoft Entra Connect cloud sync and scope it to the Marketing OU to meet the requirement.

To create an AD DS site named Site2 that is associated to an IP address range of 192.168.2.0 to 192.168.2.255, you can follow these steps:

On a domain controller or a computer that has the Remote Server Administration Tools (RSAT) installed, open Active Directory Sites and Services from the Administrative Tools menu or by typing dssite.msc in the Run box.

In the left pane, right-click on Sites and select New Site.

In the New Object - Site di alog box, enter Site2 as the Name of the new site. Select a site link to associate the new site with, such as DEFAULTIPSITELINK, and click OK. You can also create a new site link if you want to customize the replication frequency and schedule between the s ites. For more information on how to create a site link, see Create a Site Link.

In the left pane, right-click on Subnets and select New Subnet.

In the New Object - Subnet dialog box, enter 192.168.2.0/24 as the Prefix of the subnet. This notation represen ts the IP address range of 192.168.2.0 to 192.168.2.255 with a subnet mask of 255.255.255.0. Select Site2 as the Site object to associate the subnet with, and click OK.

Wait for the changes to replicate to other domain controllers. You can verify the site and subnet creation by checking the Sites and Subnets containers in Active Directory Sites and Services.

Now, you have created an AD DS site named Site2 that is associated to an IP address range of 192.168.2.0 to 192.168.2.255. You can add domain controlle rs to the new site and configure the site links and site link bridges to optimize the replication topology.

To meet the requirement that VM3 be configured for per-folder quotas, the Windows Server file services module directs you to install File Server Resource Manager (FSRM). The course content explains: “FSRM provides quota management, file screening, and storage reporting. Quotas can be applied to volumes and to specific folders, enabling administrators to control the space consumed.” None of the other features listed deliver folder-level quota capability: Enhanced Storage and Windows Standards-Based Storage Management relate to storage management/SMI-S, and iSNS Server concerns iSCSI discovery services. Therefore, the first step is to install FSRM on VM3; after installation, you can create per-folder quota templates and assignments to enforce the desired limits.

The exam materials state that Azure Automation runbooks can be authored in PowerShell and Python (along with Graphical and PowerShell Workflow where noted). The module on “Automate management in hybrid environments” specifies: “Runbooks support PowerShell for Windows-based automation and Python for cross-platform scenarios.” It further explains that these languages integrate with Automation Accounts, modules/packages, credentials, and managed identities to run tasks on Azure or hybrid resources through the Hybrid Runbook Worker. Languages such as Java, JavaScript, or Bicep are not runbook languages (Bicep is used for ARM template deployments, not runbook execution). Accordingly, Task1 can be implemented in PowerShell and Python.

Comprehensive and Detailed Explanation with all Administering Windows Server Hybrid Core Infrastructure documents: =

In the Administering Windows Server Hybrid Core Infrastructure study materials, Automanage for Azure VMs is described as a service that “onboards supported Azure virtual machines into a curated set of best-practice services automatically.” The guide notes that Automanage supports Azure IaaS VMs running Windows Server (2012 R2 and later) and common Linux distributions (for example Ubuntu/RHEL), while unsupported operating systems such as Windows client SKUs or older Windows Server releases are excluded. The same content emphasizes that Automanage targets “only supported Azure VMs” and does not extend to machines that don’t meet OS prerequisites.

Given the scenario, Server1 (supported Linux server) and Server2 (supported Windows Server) meet Automanage prerequisites, whereas the remaining Azure VMs are not in the supported matrix (client OS or an older/unsupported server release). Therefore, enabling Automanage on Server1 and Server2 only satisfies the technical requirement to “use Azure Automanage on all supported Azure virtual machines.”

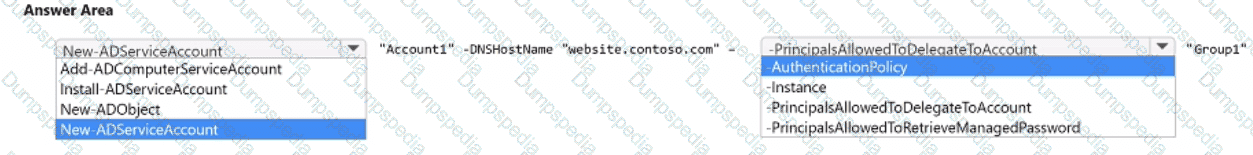

In the Administering Windows Server Hybrid Core Infrastructure materials (AZ-800), Microsoft explains that Group Managed Service Accounts (gMSAs) are designed for services running on multi ple servers and “provide automatic password management, simplified SPN management, and the ability to delegate the management to other administrators.” The guidance further states that before you can create any gMSA, “the domain must have a KDS root key so that the Key Distribution Service can generate and rotate strong, unique passwords for gMSAs on a schedule.” After the KDS root key is created, “use New-ADServiceAccount to create the gMSA and grant the computers (e.g., web servers) permission to retrieve the account password.” For IIS, the course notes specify that a gMSA can be used for app pools: “Configure the IIS application pool identity to a custom account and specify the gMSA name (ending with ‘$’) without a password; the password is managed automa tically by AD and rotates by policy (for example, every 30 days).”

Mapping these requirements to the scenario: Webapp1 runs on WEB1 and WEB2 and must use the same service account with an automatic 30-day password change . Therefore, the correct sequence is: create the KDS root key , create the gMSA , and then set the IIS application pool to run under that account. This fulfills the security requirement while allowing both web servers to share the same, automatically-rotated credentials.

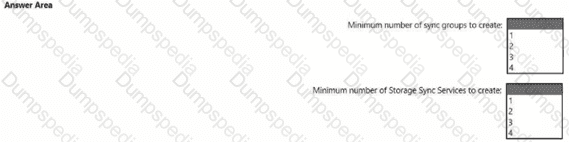

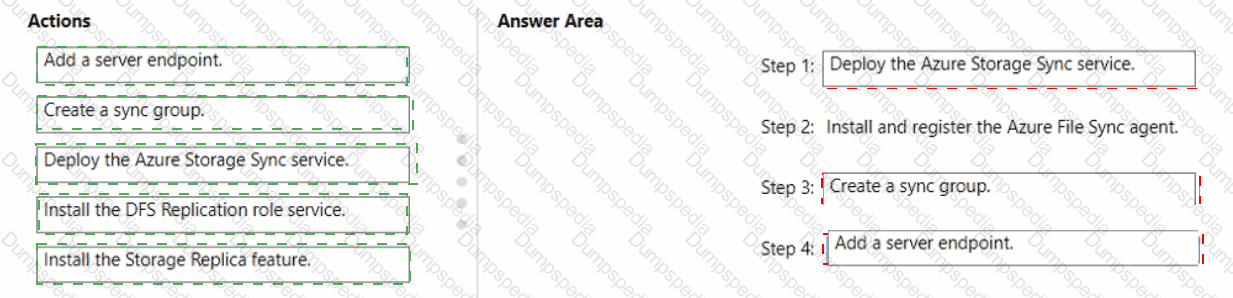

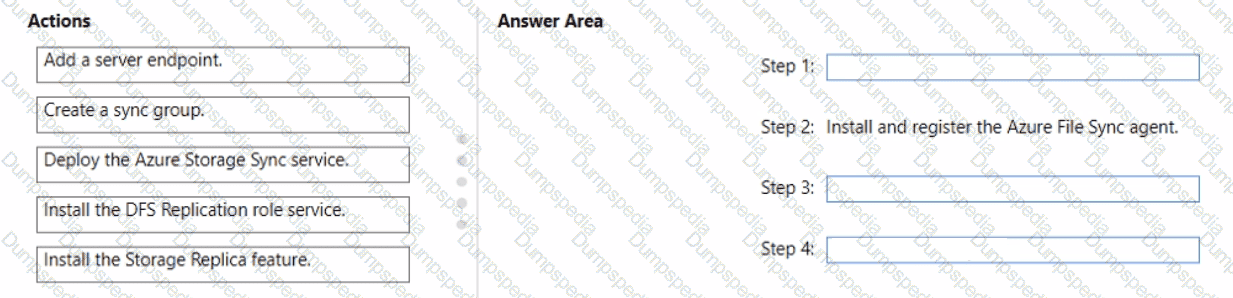

In Azure File Sync architecture (covered in Admin istering Windows Server Hybrid Core Infrastructure under “Implement and manage storage solutions”), the fundamental design points are:

Sync group – “A sync group defines a sync topology. Each sync group contains exactly one cloud endpoint (an Azure file sh are) and one or more server endpoints.” A server endpoint is a folder on a registered Windows Server. A server can participate in multiple sync groups so long as the server endpoints are different paths.

Storage Sync Service – “The Storage Sync Service is the top-level resource that maintains server registrations and houses your sync groups.” A Windows Server registers to one Storage Sync Service at a time, and that service can contain many sync groups and many servers.

Applying these rules to the requirement:

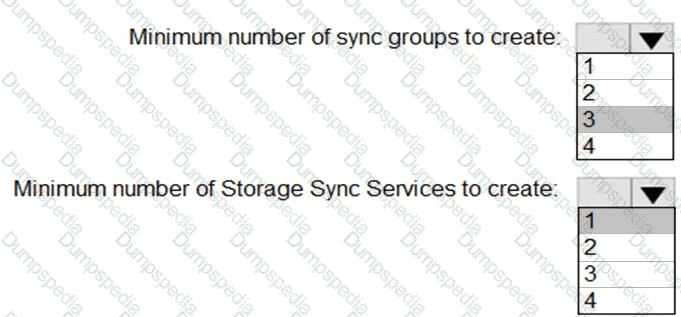

You have three Azure file shares: newyorkfiles, seattlefiles, and companyfiles. Because each sync group maps to one cloud endpoint, you need one sync group per share ⇒ 3 sync groups.

FS1 must sync with newyorkfiles and companyfiles; FS2 must sync with seattlefiles and companyfiles. Since one Storage Sync Service can host multiple sync groups and multiple servers, and a server must be registered to a single service, the most efficient design is a single Storage Sync Service containing all three sync groups and both servers.

In Administering Windows Server Hybrid Core Infrastructure , Microsoft states that high availability for DHCP on Windows Server is achieved by using DHCP failover rather than the legacy split-scope (80/20) model. The guidan ce explains that DHCP failover “ synchronizes lease data between two DHCP servers and can be configured in Load Balance or Hot Standby mode on a per-scope basis,” and that you enable it on each DHCP scope to create a partner relationship that automatically replicates scope configuration and active leases. This meets the requirement to keep address assignment available if one DHCP server is down.

The same materials further note that DHCP broadcasts do not traverse routers; therefore, when the partner server i s reachable across a routed boundary (another site/subnet) , you must configure the router as a DHCP relay (IP helper) to forward DHCPDISCOVER messages to the remote DHCP server(s). The text emphasizes: “When clients and DHCP servers are on different subnet s, configure a relay agent on the router to forward requests to the DHCP server IP addresses.”

Applying this to Fabrikam: create DHCP failover between DHCP1 (Scope1) and DHCP2 (Scope2) ( E ) and configure the routers in New York and Seattle as DHCP relays th at forward to both DHCP servers ( B ). You do not use Failover Clustering for DHCP here, and you do not create extra 25% scopes; those are split-scope practices superseded by DHCP failover.

The exam materials explain that to add a new domain controller to an existing AD DS forest in Azure, you deploy a Windows Server IaaS VM and then promote it: “To extend on-premises AD DS into Azure, provision a Windows Server VM in Azure and run AD DS to create an additional domain controll er for the existing domain.” Conversely, Azure Active Directory Domain Services (Azure AD DS) provides a managed domain that is separate from and not writable by your on-premises administrators —you “do not get domain admin rights or access to DCs” —so it cannot be used to add a DC (dc3.corp.fabrikam.com) to the existing corp.fabrikam.com forest. Azure AD Application Proxy and Azure AD administrative units are unrelated to deploying DCs. Therefore, the correct implementation is to deploy an Azure virtual machine in Vnet1, install AD DS/DNS, and promote it to become DC3 in the existing domain.

In the Administering Windows Server Hybrid Core Infrastructure guidance for extending AD DS into Azure, Microsoft states that when you place a domain controller in an Azure virtual network you must run DNS on that domain controller and point the VNet to that DNS server: “Domain controllers in Azure IaaS should host the AD-integrated DNS zone, and the virtual network’s DNS server setting must reference those DC/DNS IPs so Azure VMs use AD DNS rat her than the Azure-provided resolver.” The materials also emphasize that Azure’s default DNS cannot host or manage AD DS zones, so custom DNS is required for domain-joined workloads. Therefore, to meet the requirement you (1) install the DNS Server role on DC3 so it can host the corp.fabrikam.com AD-integrated zone (F), and (2) configure the DNS Servers setting on Vnet1 to the IP of DC3 (and any additional DCs), ensuring all Azure VMs in Vnet1 resolve the domain via AD DNS (D). Creating a public Azure DNS zone or a Private DNS zone with the same AD name is not appropriate for AD-integrated name resolution. This design also supports the security requirement of preventing domain controllers from relying on Internet-facing resolvers.

In the Administering Windows Server Hybrid Core Infrastructure materials (hybrid security and IaaS management), Just-In-Time (JIT) VM access from Microsoft Defender for Cloud is the prescribed way to require approval-based, time-bound Remote Desktop access to Azure VMs. The guide explains that JIT “locks down inbound traffic to management ports (for example, TCP/3389) and opens them only on request, for a limited time and only from approved source IPs.” Administrators request access; upon approval, Defender for Cloud creates a temporary NSG rule that expires automatically—you specify the maximum allowed window (e.g., 2 hours) and the ports. This matches the requirement: “Ensure that server administ rators request approval before they can establish a Remote Desktop connection to an Azure virtual machine. If the request is approved, the connection must be established within two hours.” Alternatives don’t meet this: PIM governs Azure roles, not VM RDP port exposure; Azure Bastion provides secure RDP/SSH over TLS without public IPs but doesn’t provide approval/time-boxed gating; the Remote Desktop extension is for classic Cloud Services and not for policy-driven approval windows. JIT is the least-privilege, policy-enforced solution aligned with the exam’s hybrid security objectives.

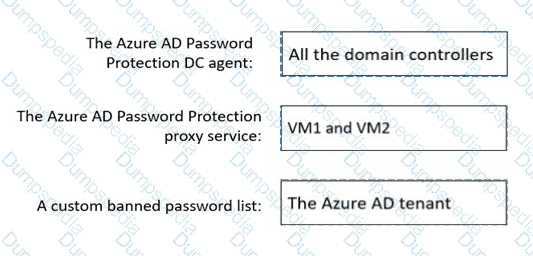

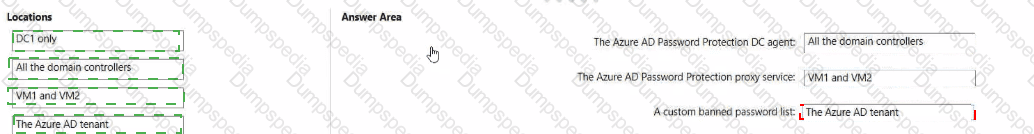

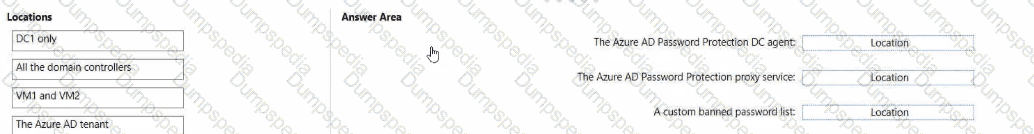

The Administering Windows Server Hybrid Core Infrastructure materials explain that Azure AD Password Protection for on-premises AD uses two components : the DC agent and the proxy service . The DC agent is installed on every domain controller because it “ intercepts password set/change operations locally on the DC and evaluates them against the forbidden-password policy .” The guidance further states that to ensure consistent enforcement “ the DC agent should be deployed to all DCs in the forest, since password changes may occur on any DC .” The proxy service is installed on member servers (not necessarily DCs) and “ relays policy downloads and telemetry to Azure AD on behalf of DCs ,” which satisfies envi ronments where “ domain controllers must not directly contact Internet endpoints .” Finally, configuration of the global and custom banned password lists is performed in Azure AD , where administrators “ define tenant-wide custom banned terms; DCs obtain the p olicy via the proxy and cache it for local enforcement .”

Given Fabrikam’s requirement to prevent DCs from accessing the Internet, the proxy must run on non-DC servers ( VM1 and VM2 ). To guarantee enforcement wherever a password is changed, the DC agent must be on all domain controllers . The custom banned password list is configured in the Azure AD tenant and then distributed to on-premises DCs via the proxy.

Within the hybrid governance section of Administering Windows Server Hybrid Core Infrastructure, Microsoft specifies that Azure Arc–enabled servers are the mechanism to bring on-premises and multi-cloud servers under Azure control to apply Azure Policy (Guest Configuration) and Defender for Servers. The prerequisite is installing the Azure Connected Machine agent (Azure Arc agent) on each server: “To manage servers with Azure Policy and configuration management, install the Connected Machine agent to onboard them to Azure Arc; once connected, you can assign Azure Policy guest configuration and monitor compliance just like Azure VMs.” Hybrid Azure AD Join is unrelated to Azure Policy assignment; the Azure Monitor agent provides telemetry but does not onboard to Arc for policy governance; a hybrid runbook worker is for Automation runbooks, not for enforcing Azure Policy. Therefore, to “use Azure Policy to enforce configuration management policies on the servers in Azure and on-premises,” deploy the Azure Connected Machine agent to all servers to Arc-enable them and then assign the desired policies.

The exam content for Group Policy processing stresses User Group Policy loopback processing for session hosts (RDS/AVD): “In environments like Remote Desktop Session Host (or Azure Virtual Desktop), enable loopback processing on the OU that contains the session host computers so that user settings from that GPO apply when users log on to those computers, regardless of the user’s own OU.” The requirement states: “Apply GPO4 to the Azure Virtual Desktop session hosts. Ensure that Azure Virtual D esktop user sessions lock after being idle for 10 minutes. Users must be able to control the lockout time manually from their client computer.” The idle-lock is a user configuration setting that must apply when users sign in to the session hosts, not to their personal devices. Therefore, enable loopback processing (Merge/Replace) in GPO4, which is linked to the VirtualDesktops OU containing the session hosts. Using security filtering or Enforced cannot make user settings in GPO4 override the user’s own OU without loopback. Loopback ensures the AVD hosts impose the 10-minute lock for sessions, while leaving users free to set their own client device policies independently—fulfilling least-impact design.

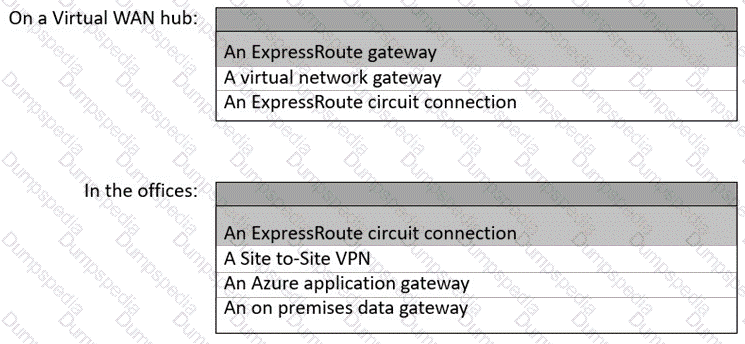

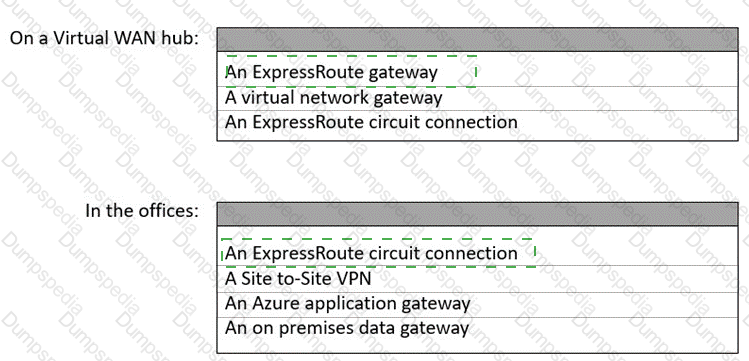

The exam materials for Administering Windows Server Hybrid Core Infrastructure explain that when replacing private WAN links with Azure, Azure Virtual WAN (vWAN) can be used to centralize connectivity. For private connectivity, ExpressRoute integrates directly with a vWAN hub by deploying an ExpressRoute gateway in the hub. The gateway is the Azure resource that terminates ExpressRoute and enables hub-and-spoke routing to connected VNets (such as Vnet1 ). The guides emphasize: “ In a Virtual WAN hub, use the ExpressRoute gateway to connect ExpressRoute circuits and propagate routes acro ss the hub to your virtual networks .”

On-premises, each site (New York and Seattle) requires an ExpressRoute circuit connection provisioned via a connectivity provider. The circuit is the dedicated private connection from the customer edge to Microsoft’s edge and is what the office sites actually use; it’s then linked to the vWAN hub’s ExpressRoute gateway. The same materials note that Site-to-Site VPN is an alternative transport but is not required when ExpressRoute is mandated. Likewise, Application Gateway is a Layer-7 load balancer for HTTP/S traffic, and on-premises data gateway relates to Power BI/Power Platform hybrid connectivity, neither of which establishes network transport between offices and Azure.

Therefore, to meet the requirement “connect both on-premises offices to Vnet1 by using ExpressRoute,” configure an ExpressRoute gateway on the vWAN hub and ExpressRoute circuit connections in the offices.
