BIM_MGT_101 Sample Questions Answers

The BIM manager should restore the linked instance to its previously defined shared-site position. Selecting the appropriate Shared Site and choosing to move the instance to that defined site reapplies the established coordinate transformation, including the intended horizontal position, elevation, and orientation. This is substantially more reliable than attempting to reconstruct the placement manually.

Using the Move command would rely on visual alignment or manually entered offsets and might not reproduce the original coordinate relationship precisely. Even a small positional or rotational error could affect consultant overlays, federated coordination, survey references, and downstream exports.

Publishing coordinates is not the appropriate recovery action after the link instance has been accidentally dragged. Publishing from the incorrectly positioned instance could redefine or overwrite the coordinate relationship based on the displaced location rather than restore the approved position. The source CAD file itself has not changed, so requesting that the consultant revise and resubmit it would not address the actual cause.

After restoring the defined site position, the BIM manager should verify the alignment against known control points and repin the link to prevent further unintended movement.

Reference topics: Shared coordinates; named Shared Sites; linked CAD positioning; coordinate recovery; link pinning; site-control verification.

The timing of the performance degradation strongly indicates that one or more recently distributed links, or their access paths, should be isolated before undertaking invasive model changes. Opening the project through Specify Worksets allows the BIM manager to control which worksets are loaded. Where Revit links are assigned to dedicated worksets, the manager can initially close those worksets, assess baseline performance, and then load them selectively. If the model performs normally with linked-model worksets closed, the investigation has established a defensible connection between the slowdown and the updated external references.

The Manage Links dialog should then be reviewed for link status, saved paths, path type, file availability, and unexpected network or cloud locations. A valid link may still degrade access when it resolves through an inaccessible, high-latency, or inconsistent location.

Flattening linked geometry is not a standard Revit troubleshooting operation. Removing and recreating every link is unnecessarily destructive and can compromise positioning, visibility overrides, and coordination settings. Consultant warnings may warrant separate health reviews, but indiscriminately fixing every warning is neither an efficient first diagnostic step nor normally within the host team’s model authority.

Reference topics: Linked-model troubleshooting; workset loading; Manage Links; model-performance isolation; distributed-file validation; Revit model health.

===============

A project-specific BIM kickoff is required to convert the BEP and client information requirements into operating procedures understood by every contributor. The session should align teams on weekly publication deadlines, approved file formats, model naming, coordinate standards, coordination responsibilities, issue workflows, COBie parameter requirements, validation gates, and final handover expectations.

This is particularly important where consultants use different platforms. The team must agree on interoperability methods, exchange formats, responsibility for data loss during conversion, and the authoritative location for approved information. The kickoff also provides an opportunity to identify training, software, access, and resource gaps before they affect production.

Accepting each firm’s standard workflow would preserve incompatible practices rather than establish a unified project process. Configuring permissions is necessary, but a Common Data Environment cannot compensate for undefined workflows or inconsistent deliverables. Waiting to modify a baseline BEP only after coordination problems occur is reactive and allows preventable errors to enter the project.

The kickoff should conclude with confirmed responsibilities, documented decisions, action owners, and controlled updates to the BEP and delivery plans.

Reference topics: BIM kickoff; multidisciplinary alignment; COBie; interoperability planning; coordination uploads; project-specific workflows; BIM Execution Plan implementation.

Software version and build information is essential because Revit models are not backward-compatible. Opening and saving a model in a newer release upgrades it, potentially preventing teams using an earlier version from accessing the file. Build differences can also matter where hotfixes or updates affect cloud worksharing, interoperability, stability, or specific model functions.

Required add-ins are equally important. A model or workflow may depend on third-party tools for data validation, content placement, exports, parameter management, automation, or specialized object handling. If contributors lack the approved add-in or use incompatible versions, they may be unable to reproduce required processes or may generate inconsistent deliverables.

Project units and shared coordinates are critical for modelling and spatial coordination, but they are project-configuration issues rather than the most direct determinants of digital-tool compatibility. Graphic standards govern presentation and documentation consistency but do not determine whether the model and workflow can be operated within the organization’s technology environment.

The kickoff should therefore confirm the approved software release, build, update policy, required add-ins, licensing, installation procedures, and testing responsibilities before production begins.

Reference topics: Software compatibility; Revit version management; approved builds; add-in governance; technology assessment; project kickoff; fast-track mobilization.

===============

The BIM manager must first establish the project’s actual information requirements before prescribing models, templates, LOD criteria, or delivery procedures. A structured stakeholder session should identify the owner’s sustainability objectives, operational data needs, required BIM uses, asset-management interfaces, exchange milestones, and responsibility boundaries. This provides the basis for determining what information must be authored, by whom, at what stage, and for which downstream purpose.

Consolidating standard BEPs from different firms would reproduce organization-specific practices rather than create a coherent project strategy. Similarly, adopting an LOD matrix from previous projects risks imposing assumptions that do not match the civic center’s lifecycle and sustainability requirements. Developing templates before requirements are confirmed can embed incorrect parameters, classifications, units, or workflows into the project environment.

The stakeholder session should result in documented BIM objectives, approved use cases, information requirements, mobilization actions, and preliminary modelling responsibilities. Those decisions can then inform the project BEP, Model Element Table, LOD or information-need matrix, delivery plans, training requirements, and Common Data Environment configuration.

Reference topics: Project needs assessment; stakeholder engagement; BIM-use definition; lifecycle information requirements; sustainability goals; BIM mobilization; level of information need.

===============

The project should retain a common View Template for consistent graphics, visibility, filters, discipline settings, detail level, and other documentation standards, while excluding View Range from the parameters controlled by that template. Deselecting the corresponding Include checkbox allows each floor-plan view to maintain a level-specific View Range without losing the other standardized template settings.

Plan Regions are intended for localized conditions within a plan, such as a raised platform, clerestory, split level, or isolated area requiring a different cut plane. They are not an efficient substitute when the entire floor requires a different View Range because its floor-to-floor height differs from other levels.

Removing the View Template would weaken graphical and documentation consistency. Visibility/Graphics also does not control the View Range; it controls the visibility and appearance of categories and elements. Creating a separate template for every floor would produce unnecessary template proliferation and increase maintenance risk because future standard changes would need to be repeated across numerous nearly identical templates.

Excluding only the variable parameter provides the correct balance between corporate standardization and project-specific view configuration.

Reference topics: View Templates; View Range; template-controlled parameters; Plan Regions; floor-plan standards; graphical consistency.

===============

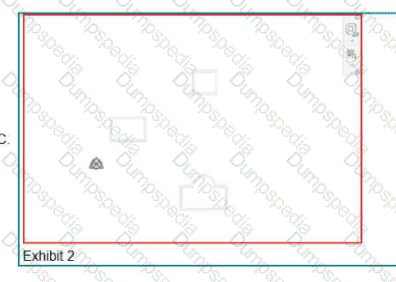

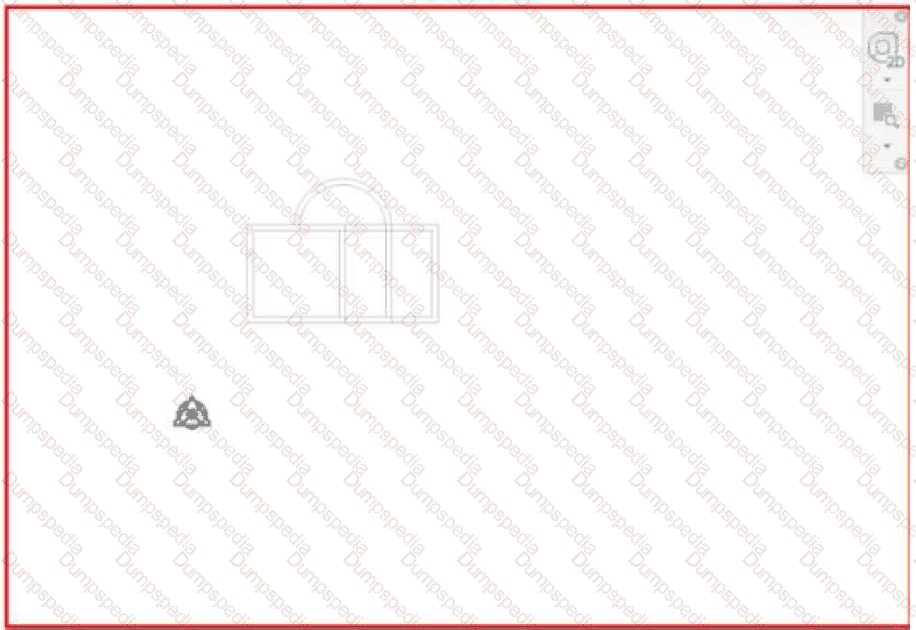

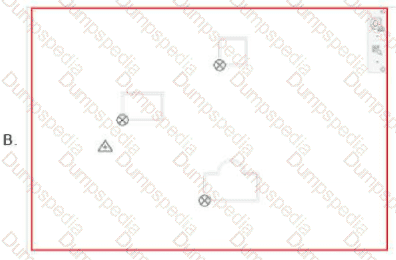

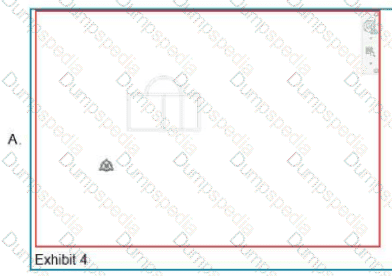

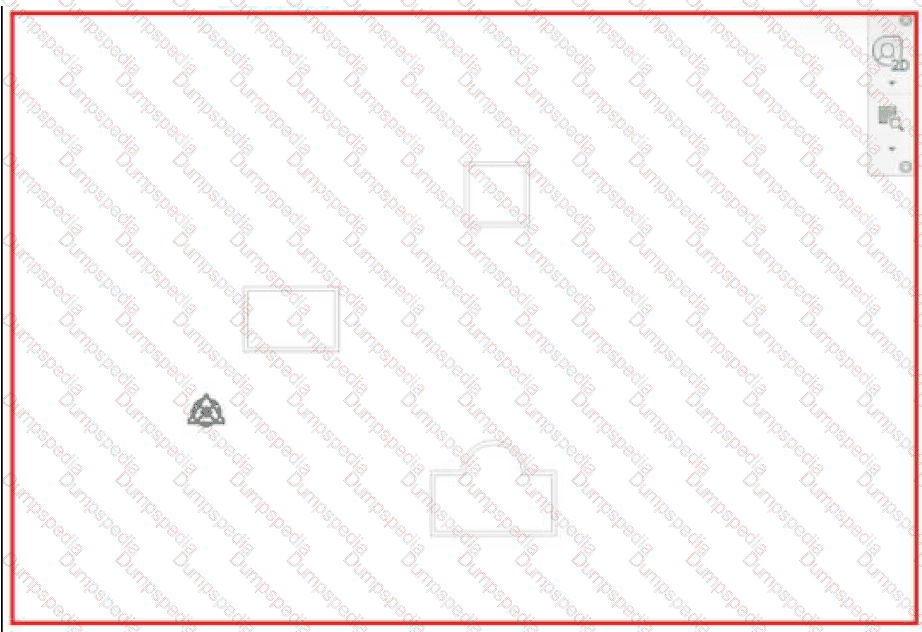

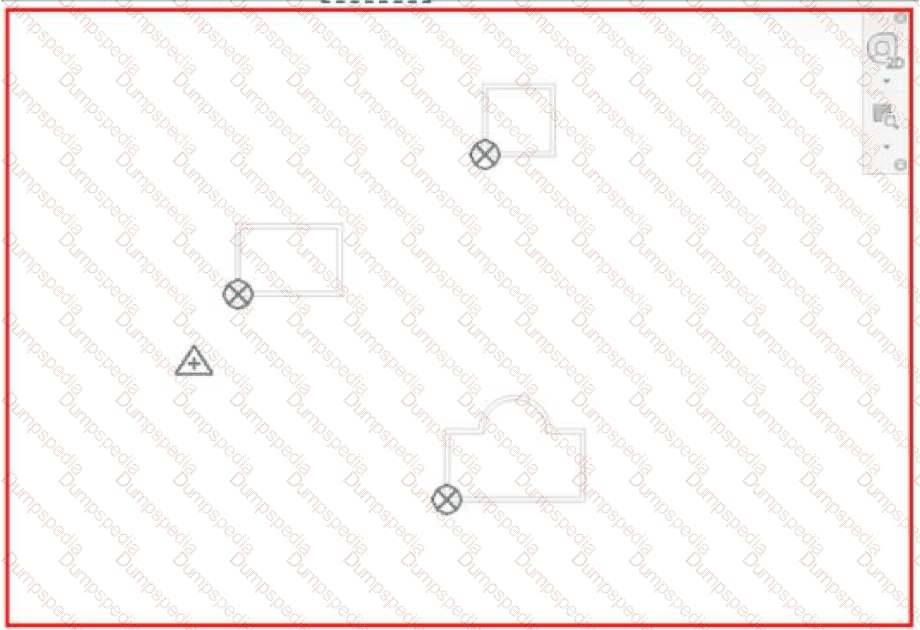

Exhibit 3 represents the correct multi-building coordination condition. It shows the three building models occupying their intended and separate locations while referencing a common site-coordinate framework. Each building retains the model reference required for its individual internal setup, but all models are related to one consolidated site reference, thereby preserving their geographic placement and orientation when linked into the site model.

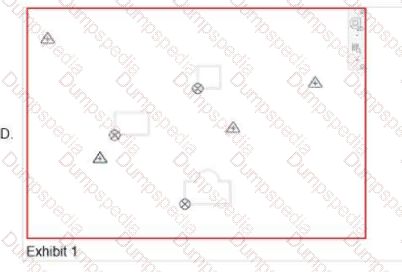

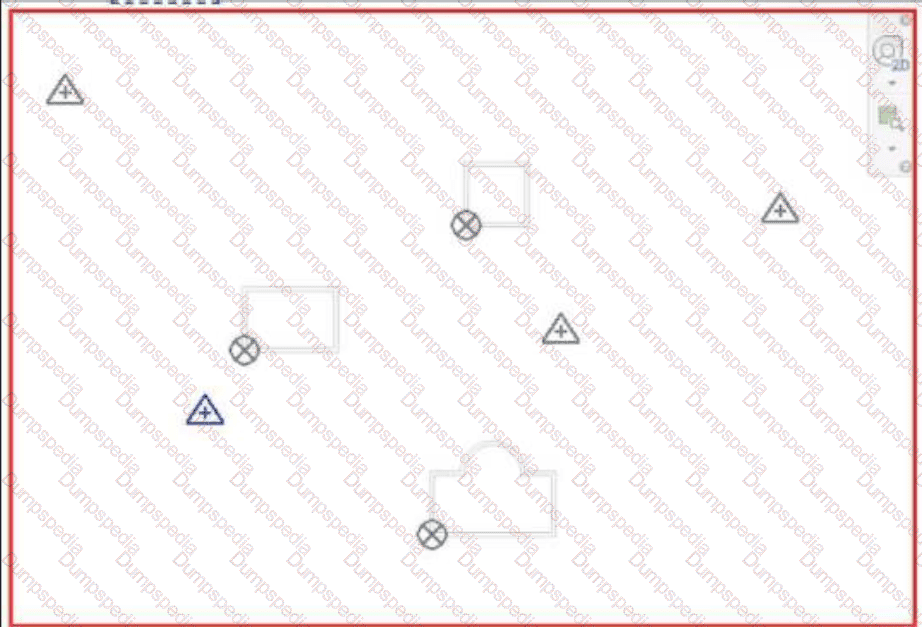

Exhibit 1 displays multiple displaced site-reference indicators, suggesting that the building models have not been reconciled to one authoritative shared-coordinate system. This condition creates a risk that models will appear correctly only when manually positioned and will subsequently shift when reloaded or exchanged. Exhibit 2 does not demonstrate the required relationship between the individual building origins and the shared site reference. Exhibit 4 places the building geometries on top of one another, which is characteristic of models linked using a common internal origin without applying their correct site positions.

For a campus or multi-building project, the site model should function as the authoritative spatial reference. Each building model is positioned against that site definition, and the coordinated relationship is retained through shared positioning rather than repeated manual movement. This allows consistent federation, consultant exchange, reload behavior, and downstream coordination.

Reference topics: Shared coordinates; multi-building projects; site-model authority; linked-model positioning; survey and internal reference management; model federation.

===============

Copy/Monitor is designed to support both the initial creation and continuing coordination of critical datum elements between linked Revit models. Participating disciplines can copy the approved Levels and Grids from the authoritative architectural or structural model into their own models and establish monitored relationships to the source elements.

If the structural framing decision later changes floor-to-floor elevations or grid positions, Revit generates coordination-review notifications when the linked source model is reloaded. The receiving teams can then assess each change, postpone it where necessary, reject it, or update their corresponding datum elements through a controlled coordination process.

Shared Coordinates ensure that models occupy the correct common spatial position, but they do not monitor changes to individual Levels or Grids. Establishing a primary model in a collaboration platform supports information exchange but does not create element-level coordination relationships. Exporting reports and property information provides only a static record and would require manual comparison after every design revision.

The project must also establish which discipline owns the master datum elements and define how proposed changes are reviewed and approved before dependent teams modify their models.

Reference topics: Copy/Monitor; coordination review; Levels and Grids; datum ownership; linked-model change management; multidisciplinary Revit coordination.

The BIM manager should generate an access or permissions report directly from the Autodesk cloud platform. The platform is the authoritative source for project members, folder access levels, assigned roles, and permission configurations. Exporting the report preserves the relationship between the reported information and the actual project configuration while providing the project manager with a format that can be reviewed without navigating the cloud administration interface.

A manually created Word document or spreadsheet would only be a secondary transcription of the permissions. Such records can become inaccurate when users are added, removed, or reassigned, and they provide weaker traceability than a system-generated report. A Revit Show History report records model synchronization activity and user interactions with a workshared model; it does not report cloud-folder permissions.

The exported report should be reviewed for unnecessary access, inconsistent folder inheritance, external-user permissions, and whether each team member has only the level of access required by their role. The BIM manager should also retain the report as part of the project’s information-governance and audit records.

Reference topics: Common Data Environment permissions; cloud-user administration; access reporting; information security; role-based access; project audits.

===============

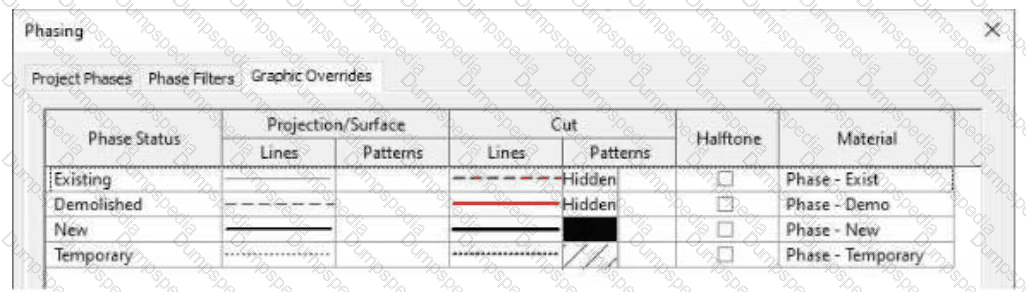

Exhibit 1 correctly assigns a red dashed line pattern to the Demolished phase status for both Projection/Surface Lines and Cut Lines. This is required because demolished elements may appear either in projection or in section, depending on the view orientation and whether the element is intersected by the view’s cut plane.

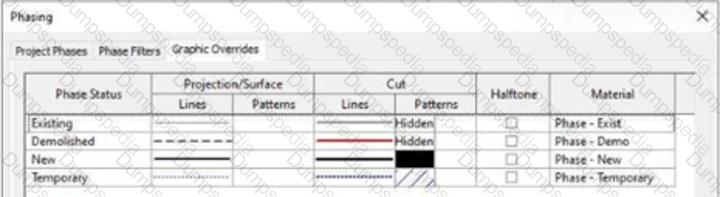

Configuring only Projection/Surface Lines would leave demolished elements displayed differently when cut. Conversely, changing only Cut Lines would not produce the required standard in elevations, plans, or other views where the elements are viewed in projection. The phase graphic override must therefore consistently define the colour and line pattern in both graphical conditions.

This setting belongs in the firm’s Revit project template so that future projects inherit the standard. The corresponding phase filters must also be configured to apply the Demolished override in relevant demolition and construction views. A graphic override does not operate independently; the active phase and phase filter determine whether an element is classified and displayed as existing, demolished, new, or temporary.

Reference topics: Revit phasing; Phase Graphic Overrides; demolished-element standards; phase filters; projection and cut graphics; corporate project templates.

===============

The BIM manager should perform a formal compliance review against the BIM Execution Plan, model-content standard, information requirements, and applicable element or classification matrix. Each nonconforming condition should be documented clearly, including incorrect category assignments, inconsistent object styles, excessive geometric detail, missing parameters, invalid naming, and unsuitable data structures.

The subcontractor should then receive a controlled revision request identifying the required corrections and resubmission criteria. Geometry should be simplified to the level needed for coordination and downstream use, but required metadata, classifications, connection points, clearances, and asset information must be retained. Optimization and information compliance are parallel requirements, not competing alternatives.

Approving the model unchanged would introduce performance and data-quality defects into the federation and could cause unreliable clash results, scheduling errors, or handover deficiencies. Hiding excessive detail with view filters changes only its visibility; the underlying geometry and data remain noncompliant and continue to affect model processing. Instructing the subcontractor to reduce file size regardless of information loss also fails the project’s deliverable requirements.

Acceptance should occur only after the revised model passes the defined quality-control checks.

Reference topics: Content standards; subcontractor deliverables; model acceptance criteria; geometry optimization; classification and metadata; BEP compliance; quality-control reporting.

A country-specific Mechanical Equipment family template should use the measurement system and unit formatting expected in the target market. This includes the appropriate conventions for dimensions, flow, pressure, power, temperature, electrical values, and other discipline-specific quantities. Establishing units in the template ensures that family authors enter, interpret, test, and document parameter values consistently from the beginning of content development.

Object Styles govern the graphical representation of family categories and subcategories; they do not translate the family into a country’s official language. Parameter classification as Type or Instance must be determined according to the intended behavior of each value. For example, manufacturer and nominal-capacity information may be type-based, while asset identifiers or installation-specific values may be instance-based. Setting every parameter to Instance would therefore produce poorly structured content.

Project Location concerns geographical and environmental project settings and is not the principal country-standard setting for a reusable equipment family. A family template is intended to be loaded into many projects, so its numerical conventions must align with the regional standards under which the content will be authored and used.

Reference topics: Revit family-template standards; regional content development; project and family units; mechanical equipment parameters; corporate content libraries.

===============

The BIM manager should first test whether the client’s data definitions and templates can support consistent production across all participating regions and disciplines. Shared-parameter files and naming conventions must be reviewed because inconsistent parameter definitions, duplicate identifiers, regional naming variations, or conflicting classifications can compromise schedules, model checking, data exports, and asset-information delivery.

The project templates must also be evaluated for units, naming structures, view organization, browser conventions, coordinates, and other coordination-critical settings. On a fast-track project, deficiencies in these baseline resources will be replicated rapidly across many models and become expensive to correct after production begins.

Training and software access are valid mobilization concerns, particularly with a new collaboration platform, but they do not establish whether the client’s actual BIM standards and templates are technically coherent. Sample sheets and title blocks primarily reveal graphical preferences rather than digital-delivery capability. Allowing unrestricted discipline customization would weaken standardization and increase coordination risk.

Options A and B directly assess whether the client’s existing resources provide a consistent data and model-authoring foundation for distributed, high-velocity delivery.

Reference topics: Client-standard assessment; template validation; shared-parameter governance; naming conventions; regional consistency; project mobilization.

===============

A BIM mobilization plan must define both the operational information environment and the people responsible for establishing and managing it. The Common Data Environment is therefore a core component. The plan should identify the selected platform, folder structure, naming system, permission model, approval states, model-sharing process, and procedures for publishing, reviewing, and archiving project information.

The plan must also define roles and responsibilities . This includes responsibility for model setup, coordination, content management, data validation, model-health reviews, issue administration, information authorization, and delivery approval. Without explicit accountability, essential mobilization tasks may be duplicated, delayed, or left incomplete.

A contract template and project specifications are broader organizational or contractual resources rather than primary BIM mobilization components. Project milestone dates influence the subsequent delivery programme, but mobilization focuses on establishing the environment, resources, access, governance, and responsibilities necessary to begin BIM production. Detailed milestone commitments are normally developed through the project programme and information-delivery plans.

A reusable firm-wide template should allow project-specific entries while enforcing a consistent minimum mobilization standard across projects.

Reference topics: BIM mobilization planning; Common Data Environment setup; roles and responsibilities; project initiation; access governance; model-startup procedures; resource planning.

===============
