220-1201 Sample Questions Answers

Tethering refers to sharing a mobile phone’s internet connection with another device, such as a laptop, either through USB, Bluetooth, or Wi-Fi. Tethering effectively turns the mobile phone into a personal hotspot for internet access.

Option A (IR): Incorrect. Infrared (IR) is used for short-range communication, such as remote controls, but it does not support internet sharing.

Option B (NFC): Incorrect. Near-field communication (NFC) is used for close-proximity data transfer, not for internet sharing.

Option C (Wi-Fi Direct): Incorrect. Wi-Fi Direct enables device-to-device communication but does not inherently provide internet sharing.

Printers in SOHO environments must maintain a consistent IP address so devices can regularly locate them for scanning and printing tasks. CompTIA A+ emphasizes assigning static IPs to network printers to prevent address changes that occur with DHCP.

Laptops can remain DHCP clients because their address consistency is less critical. APIPA cannot communicate across networks and therefore should not be used. Assigning public IPs is incorrect and unsafe.

By giving the printer a static IP within the same subnet, all laptops can reliably access it, and the network remains organized and functional exactly as the A+ objectives recommend.

A Virtual Private Network (VPN) creates an encrypted, secure tunnel across a public or untrusted network. It uses authentication credentials to ensure that only authorized users can connect, keeping data safe from interception.

Since the issue only occurs during scanning and copying (not printing or faxing), the problem is isolated to the document feeder. A vertical line is typically caused by debris or damage on theglass under the ADF (Automatic Document Feeder), not on components related to printing.

The most likely cause is a swollen battery, which occurs when the battery's internal components break down, causing a buildup of gas. This results in:

Physical Symptoms: The battery bulges, pushing the screen away.

Operational Symptoms: The device may still power on when connected to a charger but fails to hold a charge due to battery degradation.

Option A (Malfunctioning power supply): Incorrect. Power supply issues affect charging but do not cause physical bulging.

Option B (Damaged charge port): Incorrect. A damaged port can prevent charging but does not explain the bulge.

Option D (Broken screen): Incorrect. A damaged screen does not cause the device to bulge; it is likely a secondary effect of the swollen battery.

Safety Note: A swollen battery poses a risk of fire or explosion and should be replaced immediately following proper disposal procedures.

A VLAN (Virtual Local Area Network) is a network technology used to logically segment a physical network into multiple distinct broadcast domains, even if they share the same hardware.

From the CompTIA A+ 220-1101 Official Study Guide, Objective 2.2 – Compare and contrast common networking hardware:

“VLANs allow network administrators to segment a network logically, isolating broadcast traffic and improving security and management, regardless of the physical network layout.”

Other options explained:

MAC (Media Access Control) is a hardware address, not a segmentation method.

NIC (Network Interface Card) is network hardware, not for logical segmentation.

DSL (Digital Subscriber Line) is an internet connection type.

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Networking Concepts

CompTIA Exam Objectives 220-1101, Domain 2.2

A Layer 3 switch is the optimal solution when multiple VLANs must intercommunicate while maintaining high performance and minimal hardware complexity. CompTIA A+ explains that Layer 3 switches combine the capabilities of switching (Layer 2) and routing (Layer 3), allowing VLAN traffic to be routed internally at wire speed, without the latency typically associated with traditional routers.

Layer 3 switches use hardware-based routing, meaning they forward inter-VLAN traffic using ASICs (Application-Specific Integrated Circuits). This allows them to achieve extremely fast throughput, ideal for environments like computer training institutes where multiple VLANs may be used for student labs, instructor networks, and administrative traffic.

A router (D) can route between VLANs but introduces more latency due to software-based routing and typically requires additional equipment. A Web application firewall (A) and DDoS appliance (B) are security devices unrelated to internal VLAN communication.

Because the institute requires minimal hardware and high-speed inter-VLAN communication, the Layer 3 switch is the only CompTIA-supported device that meets both requirements simultaneously.

High resource usage along with frequentpop-upsare strong signs of amalware infection. The next logical step is toupdate anti-malware definitionsandrun a full scanto detect and remove threats.

Option A:Network performance is likely not the root cause local system behavior points to malware.

Option B:Drivers affect hardware functionality; they don’t resolve malware-related slowness.

Option D:DHCP issues usually cause IP conflicts or no network access, not CPU spikes or pop-ups.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 4.2: Given a scenario, detect, remove, and prevent malware using appropriate tools and methods.

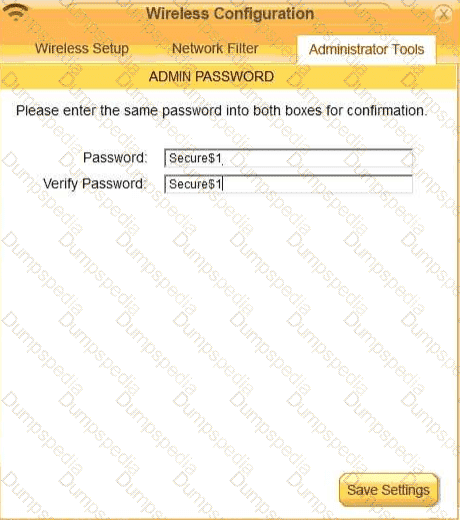

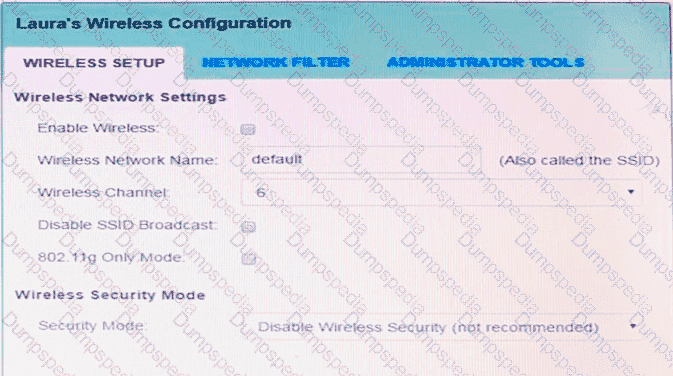

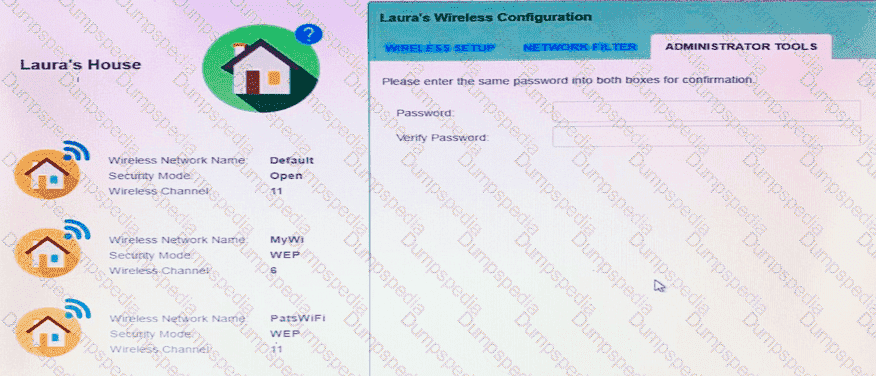

The first security step after deploying a new router is to change the default administrative password. Default credentials are well known and pose a security risk if left unchanged.

From CompTIA A+ 220-1101 Official Study Guide, Objective 2.3 – Secure a wireless network:

“Always change default administrative credentials before further configuration to prevent unauthorized access.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Wireless Security

CompTIA Exam Objectives 220-1101, Domain 2.3

============

A. Check the product manual for the procedure:

When hardware is not easily accessible, always consult the product manual for proper disassembly procedures. Forcing the cover can damage the laptop or void the warranty.

Product manuals often provide step-by-step instructions for safely accessing internal components.

Incorrect Options:

B. Use a pry tool to force the cover open: Forcing the cover can cause physical damage to the device.

C. Insert the wireless card into the M.2 slot: This step cannot be performed until the cover is properly removed.

D. Try to move the cover by sliding it in all directions: Randomly sliding the cover can cause damage if the correct removal method is not followed.

Key Takeaway: Always refer to the product manual to ensure safe and proper disassembly of laptop components.

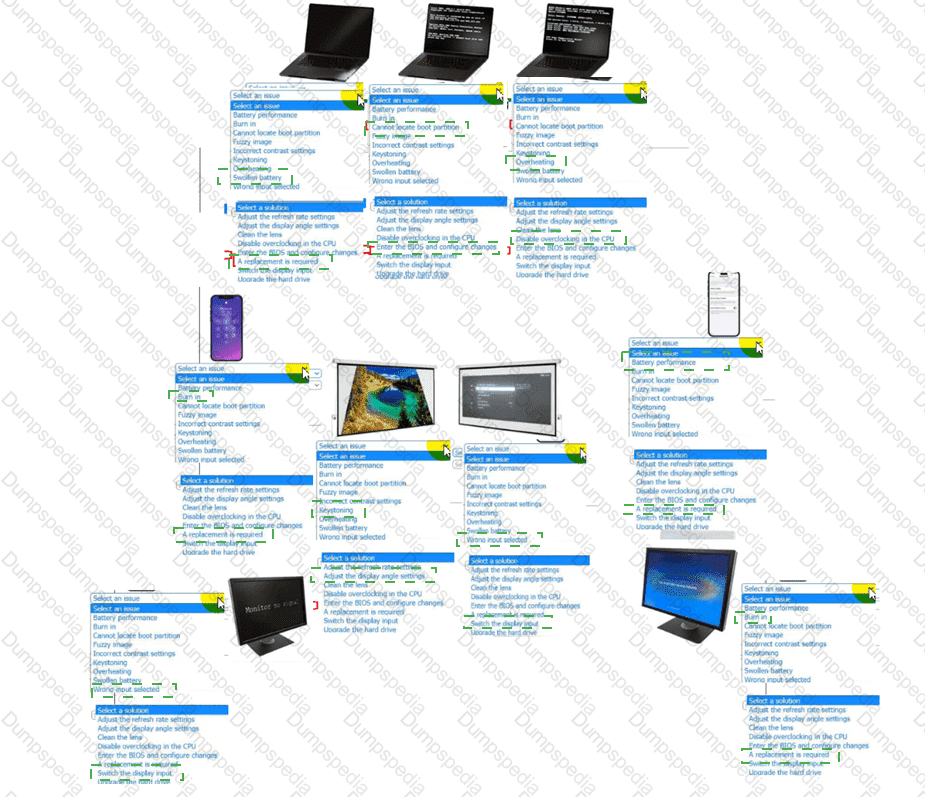

Display flickering is most commonly caused by an incorrect or unstable refresh rate setting. The refresh rate is the number of times per second (measured in Hz) that a monitor redraws the image. CompTIA A+ teaches that LCD, LED, and especially older CRT displays can exhibit flickering if the refresh rate is set too low or to a value unsupported by the monitor.

For modern displays, typical refresh rates are 60 Hz, 75 Hz, 120 Hz, 144 Hz, and higher. If the refresh rate is mismatched—such as manually set above the monitor’s rated capability—the screen may flicker, blank intermittently, or show instability. Similarly, if the refresh rate is set too low, the user may perceive visible flicker, eye strain, or shimmering on the display.

Checking and adjusting the refresh rate through the operating system’s display settings (or GPU control panel) is the first and most direct troubleshooting step for flickering issues.

The LCD type (A) has no bearing on flickering once installed. Screen resolution (C) affects clarity and scaling but does not cause flicker by itself. Pixel density (D) is a hardware characteristic and cannot cause flickering.

Thus, the correct component to check when diagnosing display flicker is the refresh rate.

ECC (Error-Correcting Code) RAM is commonly used in servers to provide error detection and correction, improving reliability in critical systems. It is designed to detect and correct single-bit errors, ensuring data integrity in environments where stability is paramount.

Option A (SODIMM): Incorrect. SODIMM is typically used in laptops, not servers.

Option B (Rambus): Incorrect. Rambus is an outdated RAM type and not commonly used today.

Option C (DDR3): Incorrect. While DDR3 is a type of RAM, it is not specific to servers and does not provide error correction.

Mobile Device Management (MDM) enrollment ensures that mobile devices meet security and access policies required by the corporate network. By enrolling the device in MDM, the technician can apply necessary configurations and enable corporate app access.

Reasoning: A cable tester capable of testing Power over Ethernet (PoE) functionality can verify whether the switchport is providing the required power to the phone. This tool measures both the presence of data and the voltage or wattage being provided through the Ethernet cable.

This is the most effective way to confirm that PoE is available on the port.

Why the Other Options Are Incorrect:

A. Network tap:

A network tap is primarily used to monitor network traffic, not to test for PoE availability. It cannot verify if power is being supplied through the Ethernet cable.

C. Loopback plug:

A loopback plug is used to test the functionality of a network port by creating a loop for transmitted and received signals. It does not measure or verify PoE availability.

D. Toner probe:

A toner probe is used for tracing and identifying network cables. It cannot test for PoE functionality.

Practical Example:

A PoE phone might not turn on due to a misconfigured or faulty switchport. Using a cable tester capable of measuring PoE would help the technician determine if the switchport is supplying sufficient power to the phone.

CompTIA A+ Exam Objective Alignment:

Objective 2.1: Identify common networking hardware and tools, including PoE-enabled devices and cable testers.

Firmware is the embedded software on a device such as a printer. Manufacturers often release firmware updates to resolve hardware-specific functionality issues, such as scan-to-email or security vulnerabilities.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.4 – Printer installation and maintenance:

“Firmware updates provide bug fixes and add new features for multifunction printers. Apply firmware updates to resolve device-specific issues.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Printer Maintenance

CompTIA Exam Objectives 220-1101, Domain 3.4

============

The scan-to-SMB feature allows the printer to send scanned documents to a shared folder (SMB share) on the network. Setting up a network share enables the device to securely and conveniently save files for user access.

If a desktopfails to power on entirely, the most probable cause is afaulty Power Supply Unit (PSU). If there are no lights, fans, or POST beeps, the PSU may have failed, cutting off all power to the motherboard and components.

Option B (GPU):Could prevent video output, but the system would still power on and beep.

Option C (RAM):Missing or faulty RAM would cause POST errors but not prevent startup entirely.

Option D (CPU):A bad CPU may cause POST failure, but the system would usually at least power on.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to motherboards, RAM, CPU, and power.

===========

Dedicated resources (sometimes called single-tenant or bare metal) guarantee that physical hardware is allocated exclusively to one customer and not shared.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.7 – Cloud deployment models:

“Dedicated resources ensure data isolation at the hardware level for compliance and security.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Cloud Deployment

CompTIA Exam Objectives 220-1101, Domain 3.7

============

Identifying changes made to the system is the next step to troubleshoot why an application no longer launches, as recent changes often cause such issues.

Why Not A (Research the symptoms): Research is broader and should come after identifying changes.

Why Not C (Determine which steps need to be performed): This comes after identifying the issue.

Why Not D (Check the vendor's website): This is a later step if further guidance is needed.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 3.1, troubleshooting methodology​.

Laptop display assemblies typically include not only the LCD panel but also the webcam, microphone, display cable, and critically, the Wi-Fi antennas. In most laptops, Wi-Fi antennas are built into the display bezel, because the elevated position allows for stronger wireless signal reception. When replacing the entire display assembly, the antennas must be carefully disconnected and reconnected during reinstallation.

CompTIA A+ emphasizes proper cable routing and antenna reattachment as essential steps in laptop hardware disassembly and reassembly. Failing to reconnect these antennas results in weak or nonfunctional wireless connectivity, even though the display replacement itself may be successful.

Heat sinks and CPU fans are located on the motherboard and are unrelated to display assembly replacement. Resetting BIOS settings is unnecessary unless troubleshooting firmware-related issues, not replacing hardware components like a display. Therefore, the only action that aligns with standard laptop design and CompTIA A+ procedures is ensuring that the wireless antennas are reconnected.

Thus, the correct answer is B.

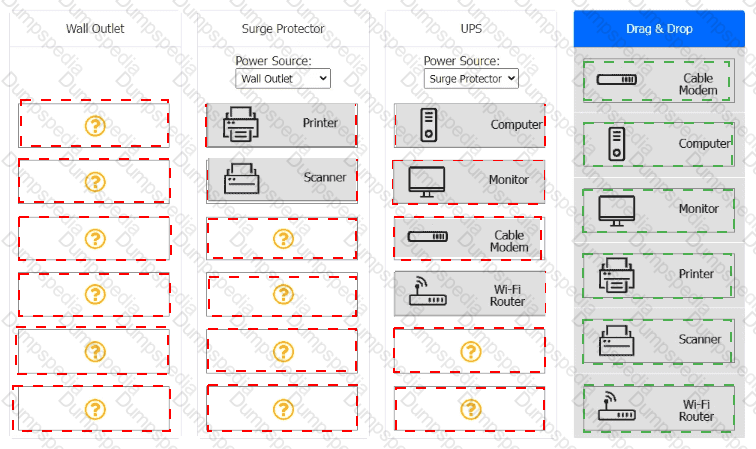

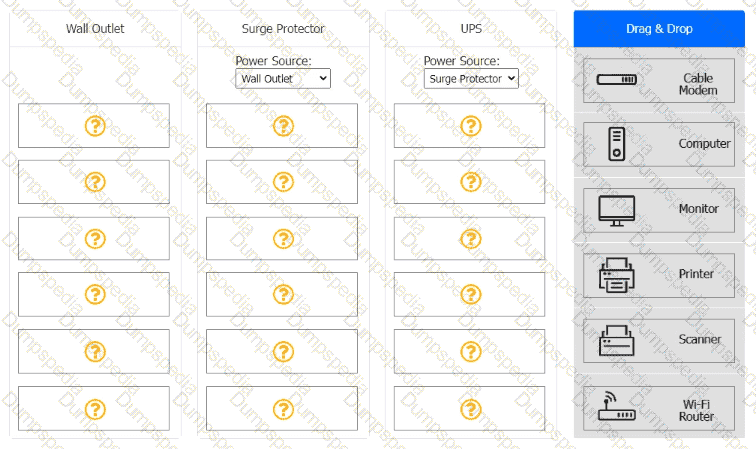

An uninterruptible power supply (UPS) protects systems against power outages by providing temporary backup power, giving users time to save data and safely shut down.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.3 – Power protection:

“A UPS supplies backup power to prevent data loss and hardware damage during outages or surges, ensuring system integrity.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Power Protection

CompTIA Exam Objectives 220-1101, Domain 3.3

Infrastructure as a Service (IaaS)providesvirtualized computing resources over the internetsuch as servers, storage, and networking. It allows a business to quickly spin up virtual machines and is ideal fordisaster recoveryand scalable IT infrastructure needs.

Option B:SecaaS focuses on cloud-delivered security, not infrastructure.

Option C:PaaS offers development environments, not full virtual infrastructure.

Option D:SaaS delivers applications over the internet (e.g., email, CRM) not for disaster recovery.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 4.1: Compare and contrast cloud computing concepts.

===========

To add additional wired network devices in a simple and cost-effective manner, the best solution is an unmanaged switch. CompTIA A+ explains that unmanaged switches require no configuration, provide instant port expansion, and operate using plug-and-play functionality. This makes them ideal for home offices where the user wants more Ethernet ports without dealing with administrative overhead or complex setup.

An unmanaged switch automatically forwards traffic using MAC addresses, expanding the network without altering IP configuration or security settings. It is inexpensive compared to other networking equipment and requires no firmware updates, VLAN management, or routing knowledge.

A DSL modem or cable modem provides internet service but does not increase the number of available network ports beyond the single LAN port commonly offered. A firewall controls traffic but does not expand physical connectivity. Therefore, neither modem nor firewall options meet the requirement of adding more wired devices.

Thus, the unmanaged switch is the simplest, cheapest, and most practical choice for expanding connectivity in a home office environment.

NVMe (Non-Volatile Memory Express) drives commonly use the M.2 interface and provide the highest performance for SSDs.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.2 – Storage devices:

“NVMe drives connect via the M.2 slot and provide the fastest data transfer rates available for storage devices.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Storage Technologies

CompTIA Exam Objectives 220-1101, Domain 3.2

The default gateway is the network device responsible for routing traffic from a local computer to destinations outside its subnet. When a new firewall is deployed and intended to manage outbound traffic, client devices must be configured to send packets to this firewall. CompTIA A+ identifies the gateway setting as the key parameter that determines where a workstation sends its external-bound traffic.

By updating the gateway address to point to the new firewall’s internal interface, all internet-bound and off-subnet traffic will now pass through the firewall for filtering, inspection, and routing. This ensures correct traffic flow and enforces security policies.

Changing the VPN settings (A) does not affect local traffic routing unless a VPN tunnel is active. Subnet mask adjustments (C) determine the network size but do not control routing. VLAN settings (D) require switch configuration, not workstation changes, and do not dictate default routing behavior.

Thus, modifying the gateway is the correct and necessary step to route all traffic through the newly implemented firewall.

When installing copper network cable in spaces that serve as air-handling plenums, safety regulations require the use of plenum-rated cable. Suspended ceilings used for ventilation fall into this category. CompTIA A+ emphasizes that plenum spaces require cable with low-smoke, fire-resistant insulation made from specialized materials that limit toxic emissions during combustion.

Plenum-rated cabling (CMP) is designed to meet strict fire codes such as NFPA 70 (National Electrical Code). It prevents smoke-filled ventilation pathways, which could rapidly spread fire or toxic fumes throughout a building. Standard PVC-jacketed twisted pair cables are not permitted in plenum spaces because they produce thick, toxic smoke when burned.

Multimode cable refers to fiber optics, not copper cabling. Coaxial cable is used for broadband and certain RF applications but does not inherently meet plenum safety requirements unless specifically plenum-rated. Twisted pair describes the cable’s internal structure (Cat5e, Cat6, etc.), but it does not indicate the type of jacket. Only plenum-rated twisted pair is acceptable.

Therefore, the correct answer is Plenum, as it ensures compliance with safety standards and building codes, prevents hazardous conditions, and aligns with CompTIA best practices for structured cabling installations.

RG11 coaxial cable with quad shielding is designed to handle large volumes of internet traffic, providing excellent resistance to interference and high bandwidth capacity.

Why Not A (USB 3.1): USB 3.1 is used for connecting peripherals, not for high-volume internet traffic.

Why Not C (SATA3.0): SATA is used for internal data storage connections, not for network traffic.

Why Not D (Unshielded plenum RJ45): While RJ45 cables are commonly used, unshielded cables are prone to interference and are not ideal for high-volume traffic.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 3.1, cable types and their characteristics​.

A sandbox in virtualization allows testing an application in an isolated environment to observe its behavior without affecting the host system.

Why Not A (Run an application on multiple workstations): This describes application virtualization, not sandboxing.

Why Not C (Migrate a legacy application): This is about virtualization for legacy support, not testing.

Why Not D (Create a firewall): A firewall does not act as a sandbox for application testing.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 4.2, virtualization and sandboxing​.

Syslog is used to log system events and tasks performed by applications, providing a centralized record of activity.

Why Not A (Fileshare): Fileshares store files but are not designed for event logging.

Why Not C (Database): Databases can store logs but are not a logging mechanism themselves.

Why Not D (SAN): A SAN is a storage solution, not a logging tool.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 2.6, system monitoring and logging​.

If a hard drive is heavily fragmented, file read/write operations can take significantly longer, causing slow backup speeds. Defragmenting the drive organizes the data for more efficient access.

Why Not A (Replace the hard drive's USB cable): A faulty cable would typically cause disconnections or errors, not just slower speeds.

Why Not C (Update the storage drivers): This might help if the issue is with system drivers, but the described symptoms point to a fragmentation issue.

Why Not D (Compress the files): Compression reduces file size but does not address the root cause of the slow backups.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 3.1, storage troubleshooting​.

Mobile Device Management (MDM) enables administrators to enforce controls on enterprise devices, such as restricting apps, ensuring compliance, and remotely managing security policies.

Why Not B (MFA): Multi-Factor Authentication secures user access but does not control device configurations.

Why Not C (VPN): VPN secures communication but does not enforce device controls.

Why Not D (SSL): SSL secures data in transit but does not provide device management.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 2.7, device management concepts​.

If the user is on a guest network and cannot access internal resources like printers, connecting to the corporate Wi-Fi will place the device on the correct subnet to access the printer.

From CompTIA A+ 220-1101 Official Study Guide, Objective 2.2 – Network segmentation:

“Guest networks are isolated from internal resources for security. Connect to the main corporate Wi-Fi to access shared devices.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Wireless Networking

CompTIA Exam Objectives 220-1101, Domain 2.2

============

Comprehensive and Detailed Explanation (100–150+ words):

Secure printing ensures that print jobs are not immediately output to the tray but instead held in a secure queue. The user must enter a PIN, password, or badge authentication directly at the printer to release the job. CompTIA A+ emphasizes secure printing as the correct method for environments where sensitive information such as HR files, performance reviews, or confidential reports must not be viewed by unauthorized individuals.

Audit logging tracks usage but does not protect documents from being seen on the printer tray. Wired connectivity has no relation to security or confidentiality. Duplex is simply a printing mode.

Secure printing is widely used in corporate environments so shared devices can remain shared without compromising sensitive data. The A+ curriculum describes this as a security control that ensures confidentiality in shared-print environments, making Secure Printing the proper solution.

Port 23 is used by Telnet, an unencrypted remote connection protocol that poses significant security risks. Disabling Telnet and using secure alternatives like SSH (port 22) is best practice.

From CompTIA A+ 220-1101 Official Study Guide, Objective 2.1 – Common ports and protocols:

"Port 23 (Telnet) provides unencrypted remote access and should be disabled to increase security. Use SSH (port 22) for secure remote connections."

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Ports and Protocols

CompTIA Exam Objectives 220-1101, Domain 2.1

============

If a laptop shuts down when undocked and remains powered off even with a new charging cable, the internal battery is likely faulty and cannot hold a charge. Replacing the battery is the next troubleshooting step.

From the CompTIA A+ 220-1101 Official Study Guide, Objective 4.1 – Troubleshoot common hardware problems:

"If a laptop only works when docked or connected to AC power, and a replacement cable does not resolve the issue, the internal battery may need to be replaced."

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 4: Troubleshooting Mobile Devices

CompTIA Exam Objectives 220-1101, Domain 4.1

============

If flipping the cable helps but the problem is isolated to this device (not others of the same type), the most likely cause is a dirty or damaged charging port on the device itself. Dirt or debris inside the port can prevent a good electrical connection, causing the cable to work intermittently.

An older HDMI cable version may not support 4K resolution. For 4K output, both the device and the cable must support HDMI 2.0 or higher.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.1 – Display troubleshooting:

“Ensure the correct version of HDMI cable is used for high-resolution outputs like 4K. Older cables may be limited to 1080p.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Display and Video

CompTIA Exam Objectives 220-1101, Domain 3.1

============

Comprehensive and Detailed Explanation From Exact Extract (Aligned With CompTIA A+ 220-1201 Study Guide)

CompTIA networking fundamentals describe VLANs (Virtual Local Area Networks) as a method to segment network traffic logically, even while using the same physical switch hardware.

A VLAN allows a company to:

Separate traffic by department

Improve security

Reduce broadcast domains

Control inter-department access

To separate accounting and customer service networks, VLANs are the industry-standard and the CompTIA-approved method.

Why the other options are incorrect

A. VPN – Used for secure remote connections, not internal LAN segmentation.

B. DNS – Resolves hostnames to IPs, not used for network separation.

D. DHCP – Assigns IP addresses; does not isolate network groups.

Final Answer: C

An IP address starting with169.254.x.xis aself-assigned address(also calledAPIPA– Automatic Private IP Addressing). It’s used when a client device cannot contact a DHCP server. This address allows limited communication on the local network segment butno internet access.

Option A:DHCP reservations assign specific IPs from the DHCP server they don’t result in APIPA.

Option B:Dynamic assignment from DHCP assigns valid IPs in the proper subnet, not 169.254.x.x.

Option D:Static IPs are manually set and would not fall in the 169.254.x.x range unless set incorrectly.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 2.6: Given a scenario, configure and troubleshoot network connectivity.

SMB (Server Message Block)is a protocol used to access files and printers over a network, including across shared network folders. It enables the user to access and print files stored remotely on a shared directory.

Option A (ADF):Automatic Document Feeder hardware, not a network protocol.

Option B (USB):Used for direct physical connections, not for printing over networks.

Option C (PCL):Printer Command Language relates to printer drivers, not file sharing or access.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.4: Given a scenario, install and configure printers.

A distorted image where the screen is not symmetrical (wider at the top or bottom) is typically due to keystone distortion. Adjusting the projector's keystone settings corrects this trapezoidal effect caused by an angled projection.

Application virtualization allows legacy software to run in a virtualized environment while the operating system remains current. It isolates the application from the OS, ensuring compatibility without downgrading the OS.

Why Not A (Shared resources): This relates to resource sharing, not application compatibility.

Why Not B (System sandbox): Sandboxes isolate applications for security testing, not compatibility.

Why Not C (Test development): Test environments are used for development, not running legacy applications.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 4.2, virtualization concepts​.

A smart card provides an additional factor of authentication by storing secure credentials, such as certificates, that cannot be guessed or replicated. It complements user accounts and is "something you have".

Why Not A (Fingerprint reader): This is "something you are", but the scenario specifically requires a physical token.

Why Not C (Secure token): Secure tokens are also valid but may not integrate as seamlessly into multi-factor authentication for physical and system access.

Why Not D (NFC scanner): An NFC scanner is a device and not a token itself; it reads cards or other credentials.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 2.5, access controls​.

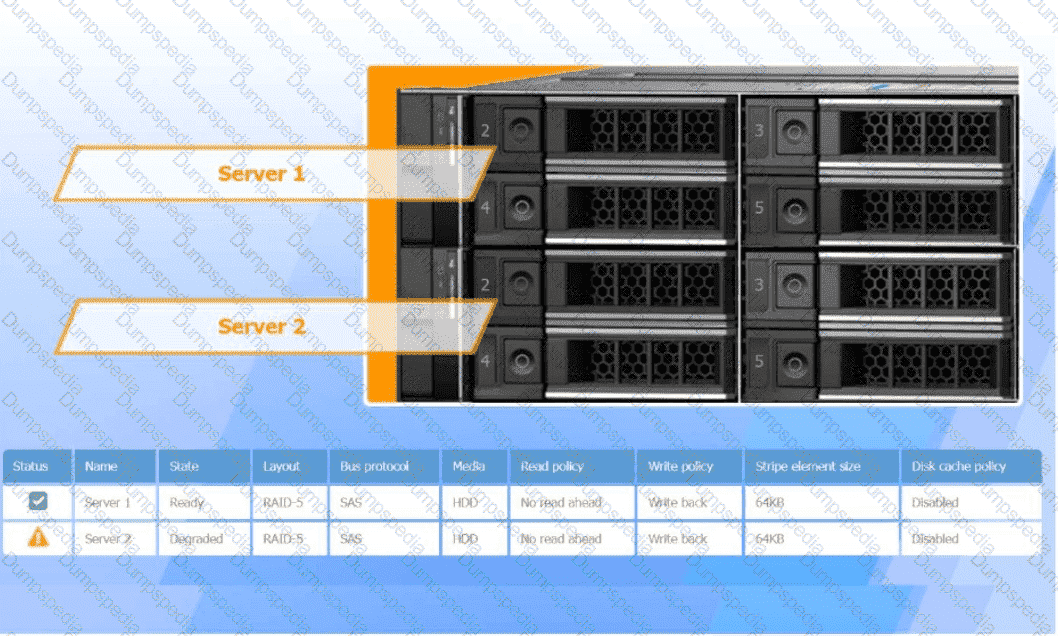

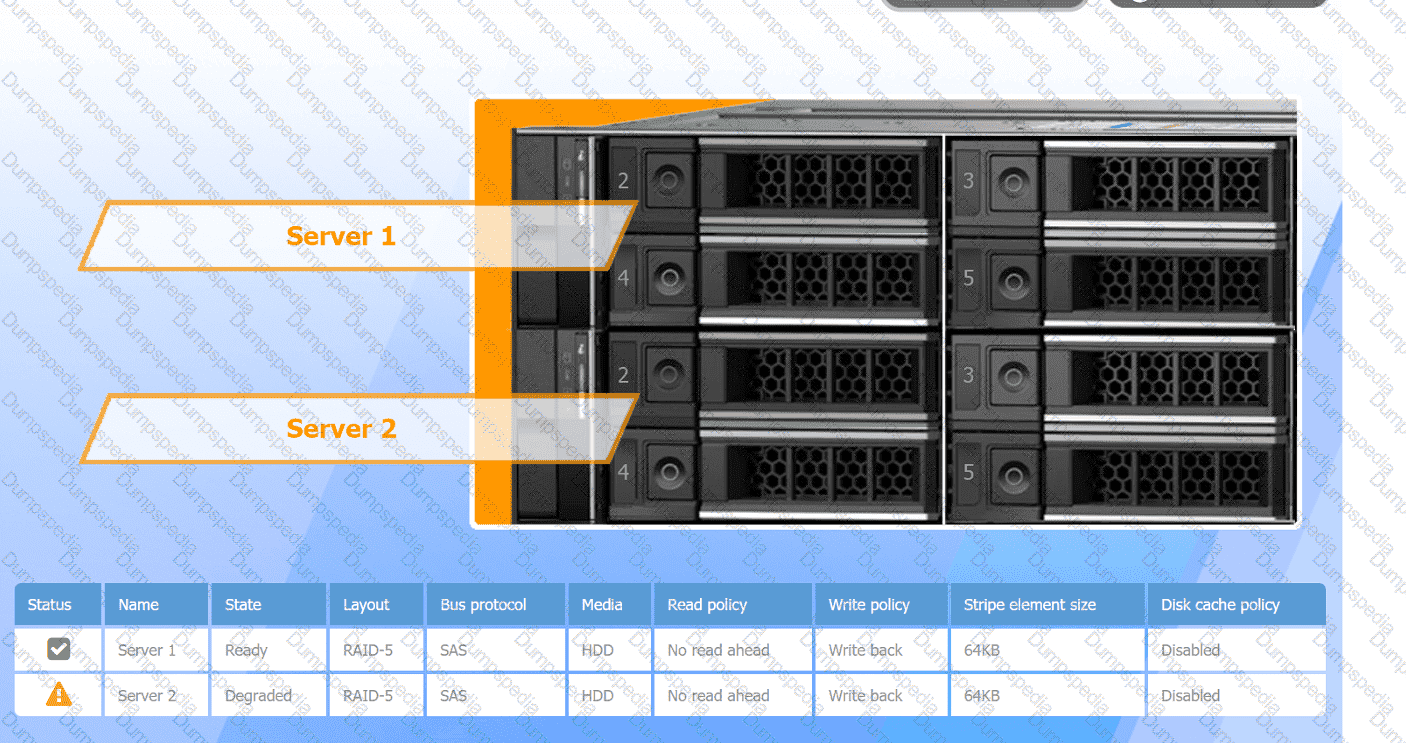

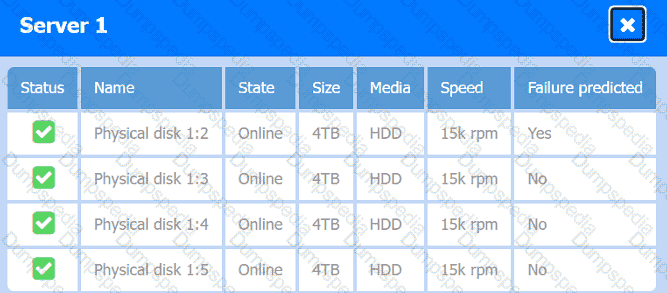

A fileshare becoming slow over time and then failing completely strongly suggests storage subsystem degradation, often due to a failing RAID array. CompTIA A+ explains that slow file access is an early sign of a degraded array, and eventual unavailability indicates the array may have failed or entered a critical state.

Since the technician can still RDP into the server, the OS is functioning, meaning memory is likely not the issue. Network connectivity is sufficient for remote login. Backup integrity does not affect real-time file availability.

Thus, the next step is to check the RAID array status, which directly controls the server’s storage performance and availability precisely what CompTIA identifies as the primary point of failure in such scenarios.

PCIe (Peripheral Component Interconnect Express) is required for high-end video cards.

NVMe (Non-Volatile Memory Express) utilizes the M.2 or PCIe interface for the fastest SSD performance.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.2 – Motherboard expansion slots and storage interfaces:

“High-end video cards require a PCIe slot, while NVMe drives use M.2 (PCIe) slots for the highest data transfer rates.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Motherboard and Storage

CompTIA Exam Objectives 220-1101, Domain 3.2

============

Badging refers to the use of NFC-enabled ID badges or cards that authenticate users when tapped against a reader for secure print or access control.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.4 – Secure printing and authentication:

“NFC authentication is commonly implemented using employee badges, allowing secure and convenient access to devices and functions.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Secure Print Solutions

CompTIA Exam Objectives 220-1101, Domain 3.4

============

CompTIA A+ emphasizes that satellite internet connections inherently suffer from extremely high latency because the data must travel from the user's antenna to satellites orbiting tens of thousands of miles above Earth and back. Although satellite systems offer broad geographic coverage, this long travel distance introduces noticeable delays often 500ms or more.

Fiber, cable, and DSL operate through terrestrial wiring and have far lower latency due to short signal paths. Fiber, in particular, is the fastest and lowest-latency connection type.

Satellite delay significantly impacts VoIP calls, video conferencing, online gaming, and real-time applications. The A+ exam specifically notes latency as a major performance characteristic of satellite service, distinguishing it from other broadband technologies.

A port replicator is designed to allow a user to quickly connect a laptop to multiple peripherals (display, keyboard, mouse, network, etc.) using a single interface, reducing setup time.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.1 – Laptop hardware and connections:

“Port replicators offer quick connections for multiple peripherals, streamlining the process of docking and undocking a laptop.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Laptop Hardware

CompTIA Exam Objectives 220-1101, Domain 3.1

A PoE injector is used to add power to an Ethernet cable, enabling the cable to deliver both power and data. This is crucial when connecting to PoE-enabled devices like IP cameras or wireless access points that are far from power outlets.

User authentication allows access to device functions (like printing and copying) to be restricted to authorized personnel. This is typically implemented on networked multifunction devices for security and auditing.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.4 – Printer and device security:

“Enable user authentication on shared multifunction devices to restrict access to specific features for authorized users only.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Printer Security

CompTIA Exam Objectives 220-1101, Domain 3.4

Modern motherboards require both the 24-pin ATX connector and a 4-pin or 8-pin CPU power connector. If the CPU power connector is not attached, the motherboard will receive power but the system will not boot. CompTIA A+ specifically lists this as a common mistake after replacing a power supply.

Insufficient wattage may cause instability, but usually the system still attempts to start. RAM does not prevent power-on if missing; instead, the system produces beep codes. Redundant PSUs are used in servers, not standard desktops.

Therefore, the missing CPU power connector is the most likely cause, and this scenario reflects typical troubleshooting steps outlined in A+ hardware diagnostics.

Unmanaged switches require no configuration they simply need to be plugged in and start working immediately, making them ideal for simple network setups.

Managed switches provide advanced features such as VLANs, SNMP monitoring, port security, and traffic management, but require configuration.

From CompTIA A+ 220-1101 Official Study Guide, Objective 2.2 – Compare and contrast common networking hardware:

“Unmanaged switches operate out of the box with no configuration and are designed for simple connectivity. Managed switches allow for configuration, monitoring, and management of network traffic and security.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Networking Hardware

CompTIA Exam Objectives 220-1101, Domain 2.2

============

CompTIA A+ repeatedly highlights that modern motherboards require two power connectors:

The 24-pin ATX main power connector

The 4-pin or 8-pin CPU power connector (EPS connector)

If the CPU power connector is missing, the system will not POST, even though other components appear to have power. This is a very common mistake after replacing PSUs and is specifically noted in CompTIA materials as a frequent cause of “no boot” scenarios.

Insufficient wattage usually causes instability, not a total failure to start. RAM is unrelated to powering on. Redundant PSUs are used in servers, not gaming PCs.

Thus, the missing CPU power connector is the correct diagnosis and matches A+ hardware troubleshooting guidelines.

C. Initiate the system restore:

If the technician is confident that rolling back the system to a previous restore point will resolve the issue, the next logical step is to initiate the System Restore process.

System Restore allows the system to revert to a state before the OS update, which can eliminate the performance issues caused by the update.

Incorrect Options:

A. Document the findings: Documentation is important but should occur after resolving the issue.

B. Investigate any recent infrastructure changes: This is unnecessary if the issue is already attributed to the OS update.

D. Verify full system functionality: This step should be performed after the System Restore is completed.

Key Takeaway: When confident that rolling back will resolve the issue, the technician should proceed with initiating a System Restore to revert the OS.

Comprehensive and Detailed Explanation:

Laptop Wi-Fi antennas run through the display bezel and connect via small coaxial clips. After motherboard replacement, these are often not fully seated, causing weak or unstable Wi-Fi.

CompTIA Concepts:

Laptop hardware troubleshooting

Antenna connector checks after repair

WLAN performance issues caused by antenna misalignment

Mobile Device Management (MDM)software often controls access to corporate resources based onlocation, network, or VPN status. If the MDM is not configured to allow access from outside the office or via home networks, the apps may be blocked. This is the most probable cause if apps work only on-premises.

Option A:GPS is used for location services, not access control.

Option C:WPA is a Wi-Fi security protocol, not related to access restrictions.

Option D:NFC enables close-range communication irrelevant to app access.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 1.6: Given a scenario, configure basic mobile device network connectivity and application support.

SAS (Serial Attached SCSI) is a high-performance drive interface commonly found in enterprise environments and servers due to its reliability and speed. While SATA is more common in consumer systems, SAS is specifically designed for mission-critical applications, offering features like full-duplex operation and compatibility with SATA drives.

A hard disk drive (HDD), especially if it's older or nearly full, is the most common cause of slow startup times in laptops. HDDs are much slower than SSDs and can significantly bottleneck the boot process.

From CompTIA A+ 220-1101 Official Study Guide, Objective 4.1 – Troubleshoot common hardware problems:

“A slow startup or sluggish system performance is commonly due to a failing or fragmented hard disk drive (HDD). Replacing with an SSD can greatly improve boot times and overall system responsiveness.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 4: Troubleshooting PC Hardware

CompTIA Exam Objectives 220-1101, Domain 4.1

============

CompTIA A+ emphasizes virtualization as an ideal solution during system phase-out or transition periods. The correct approach here is a P2V (physical-to-virtual) conversion and hosting the server in an Infrastructure as a Service (IaaS) environment. This removes the need for physical hardware while still keeping the application operational for its final year. IaaS provides full control over OS and applications, making it suitable for legacy systems that cannot be rewritten.

Colocation (Option A) still requires physical hardware. PaaS (Option C) is inappropriate because PaaS requires rewriting or replatforming the application. Shutting down the server after a backup (Option D) makes the application immediately unusable.

Thus, the best method is to convert to a virtual machine and host it on IaaS.

DNS contains different record types that serve specific purposes. To determine where incoming email should be delivered for a particular domain, DNS uses an MX (Mail Exchange) record. CompTIA A+ identifies MX records as essential for routing mail from external senders to the appropriate mail server assigned to a domain.

The MX record specifies:

The mail server hostname responsible for receiving messages

Priority values, which determine which server to try first

The server destination for SMTP traffic

When someone sends an email, the sending mail server queries DNS to find the MX record for the recipient’s domain. The SMTP server then relays the email to the server listed in that record.

CNAME is used for aliasing hostnames, TXT is used for verification/security (SPF, DKIM), and AAAA maps a hostname to an IPv6 address. None of these direct email delivery. Only MX records are designed to instruct mail servers where to deliver incoming email.

Thus, the correct answer is MX.

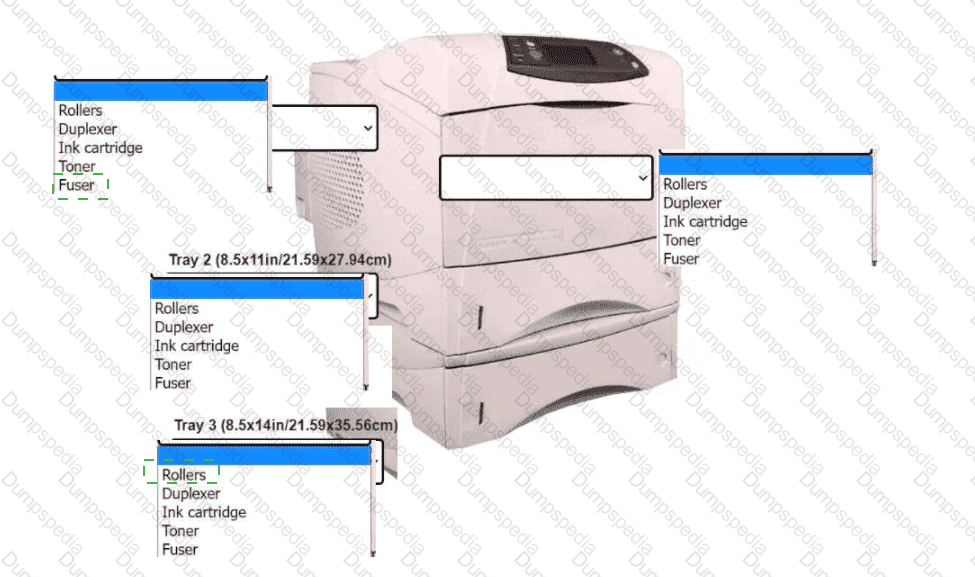

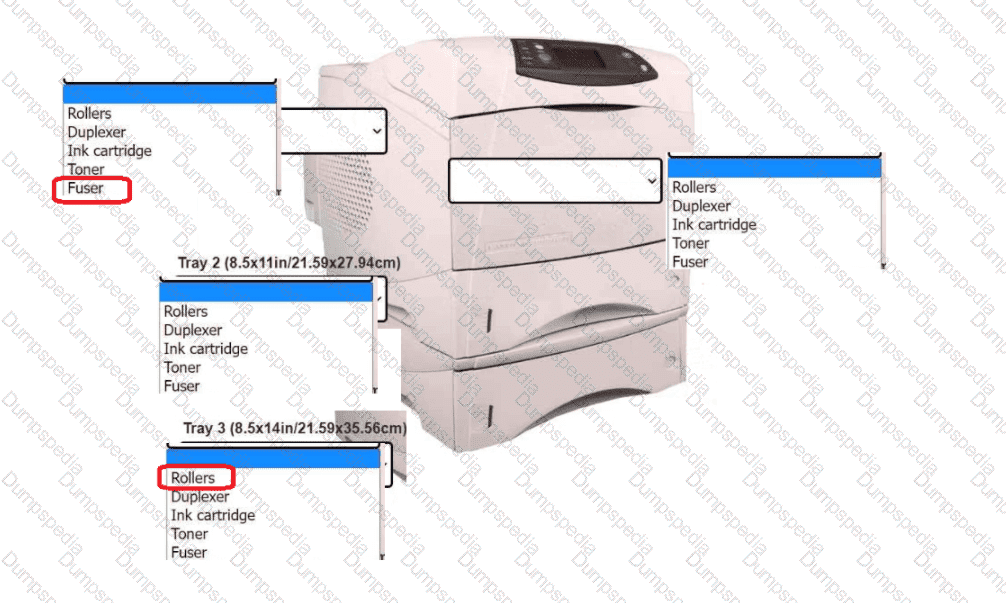

When a laser printer intermittently fails to feed paper, the most common hardware cause is worn or dirty pickup rollers. These rollers grab the paper from the tray and move it into the printer. Over time, dust, paper debris, or worn rubber reduces their effectiveness, causing feeding issues.

From the CompTIA A+ 220-1101 Official Study Guide, Objective 4.3 – Troubleshoot printing problems:

“If the printer is not picking up paper correctly or is experiencing paper jams, check and clean or replace the pickup rollers and separation pads as these are responsible for feeding paper into the print path.”

Other options like updating drivers, selecting paper size, or replacing toner will not resolve a mechanical paper feed problem.

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 4: Troubleshooting Printing Problems

CompTIA Exam Objectives 220-1101, Domain 4.3

============

Comprehensive and Detailed Explanation (100–150+ words):

Secure printing ensures that print jobs are not immediately output to the tray but instead held in a secure queue. The user must enter a PIN, password, or badge authentication directly at the printer to release the job. CompTIA A+ emphasizes secure printing as the correct method for environments where sensitive information such as HR files, performance reviews, or confidential reports must not be viewed by unauthorized individuals.

Audit logging tracks usage but does not protect documents from being seen on the printer tray. Wired connectivity has no relation to security or confidentiality. Duplex is simply a printing mode.

Secure printing is widely used in corporate environments so shared devices can remain shared without compromising sensitive data. The A+ curriculum describes this as a security control that ensures confidentiality in shared-print environments, making Secure Printing the proper solution.

NFC (Near-Field Communication) is a subset of RFID technology designed for very short-range wireless communication, typically within a few centimeters. It is primarily used for contactless transactions, like mobile payments, and can also support peer-to-peer data exchanges. NFC operates at 13.56 MHz and enables devices to communicate when placed near each other.

If newly installed RAM is not fully recognized, the most likely cause is incorrect installation or incompatible slots. Reseating or reinstalling the RAM modules in the correct slots can quickly resolve the issue without extra cost.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.2 – Install and configure PC components:

"If memory is not detected, check installation and reseat modules. Ensure they are placed in the correct, matched slots for dual-channel operation."

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Memory Installation

CompTIA Exam Objectives 220-1101, Domain 3.2

============

The requirements describe an environment transitioning gradually from on-site hardware to scalable cloud services. The business wishes to continue using its existing local equipment until end of life, while also expanding computing resources beyond what the on-premises infrastructure can handle. Additionally, the cloud environment must be able to share data with the internal data center.

This aligns perfectly with a hybrid cloud model, which CompTIA A+ defines as a combination of private (on-premises) and public cloud resources operating together. Hybrid cloud enables secure data sharing, workload distribution, and scaling without eliminating existing hardware investments. It allows organizations to offload high-demand processes to the cloud while maintaining sensitive data or critical services on-site.

A private cloud (D) would not allow scaling into a public provider efficiently. A public cloud (A) replaces internal resources instead of complementing them. A community cloud (B) is shared among organizations with similar compliance requirements—not applicable here. SaaS (E) refers to hosted applications, not infrastructure scalability.

Thus, a Hybrid cloud model fulfills all stated requirements: seamless data sharing, scalable computing, and continued use of on-site equipment.

Bluetooth is a wireless technology designed for short-range communication between devices. It is a classic example of a Personal Area Network (PAN), which supports communication between devices like smartphones, headsets, keyboards, and mice within a few meters. PANs are smaller in scope compared to LANs or WANs.

Cellular networks offer broad coverage in rural or less populated areas where laying fiber, cable, or DSL lines may not be feasible or cost-effective. Cellular broadband (4G LTE/5G) provides fast speeds using existing mobile network infrastructure.

From CompTIA A+ 220-1101 Official Study Guide, Objective 2.7 – Compare and contrast Internet connection types:

"Cellular connections offer high speed and extensive coverage, especially in areas where other wired infrastructure may not exist or be practical."

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Internet Connections

CompTIA Exam Objectives 220-1101, Domain 2.7

============

CompTIA A+ details that an Automatic Document Feeder (ADF) allows multi-page documents to be scanned automatically without manually placing each sheet on the flatbed. This drastically increases scanning efficiency for large documents.

Flatbed scanners require manual placement for every page. Duplexing scans both sides of a page but does not feed multiple sheets by itself. Orientation configuration only affects image alignment.

The ADF is explicitly highlighted in the A+ study guide as the primary feature used in business environments when scanning high-volume documents efficiently.

Thus, the ADF is the correct solution because it automates page feeding and dramatically reduces scanning time, especially for hundreds of pages.

Comprehensive and Detailed Explanation From Exact Extract (Aligned With CompTIA A+ 220-1201 Study Guide)

The CompTIA A+ wireless networking section describes key differences between 2.4 GHz and 5 GHz Wi-Fi frequencies.

2.4 GHz provides:

Better range

Better wall penetration

Better performance through structures and obstacles

This means less interference from physical structures, which is the primary advantage of 2.4 GHz over 5 GHz.

This maps directly to:

✔ C. Minimized structural interference

Why the other options are incorrect

A. Communication without external power

Not related to Wi-Fi frequencies.

B. Security for close-proximity connections

No Wi-Fi frequency provides inherent security advantages.

D. Increased channel options

5 GHz has more channels, not 2.4 GHz.

APrivate Cloudis operated solely for a single organization. It ishosted on-premises or in a dedicated off-site data center, giving the company full control over data, security, and compliance often hosted in theorganization’s own local data center.

Option B (Public):Hosted by third-party providers and shared by multiple clients.

Option C (Hybrid):Combines private and public cloud resources.

Option D (Community):Shared by several organizations with similar goals.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 4.1: Compare and contrast cloud computing concepts.

===========

Virtual Desktop Infrastructure (VDI) hosts user desktops on centralized servers rather than physical PCs. Users access a virtual desktop session remotely through thin clients, laptops, or web browsers. The CompTIA A+ cloud-computing domain explains that VDI improves manageability, security, and resource efficiency by allowing IT to centralize OS images, apps, and updates.

SaaS provides applications not desktops. RMM is for monitoring and managing devices. Containers virtualize applications, not full desktops.

VDI enables organizations to avoid purchasing physical desktops while still delivering full computing environments to users, which aligns with the A+ virtualization objectives and remote-access concepts.

Changing the page orientation(e.g., fromportrait to landscape) allows wider columns to fit on one side of the page. This maintains readability while continuing to use duplex printing.

Option A:Disabling duplex defeats the goal of printing on both sides.

Option B:May help, but could make the document harder to read if the font is too small.

Option D:Unlikely to resolve formatting issues related to layout and dimensions.

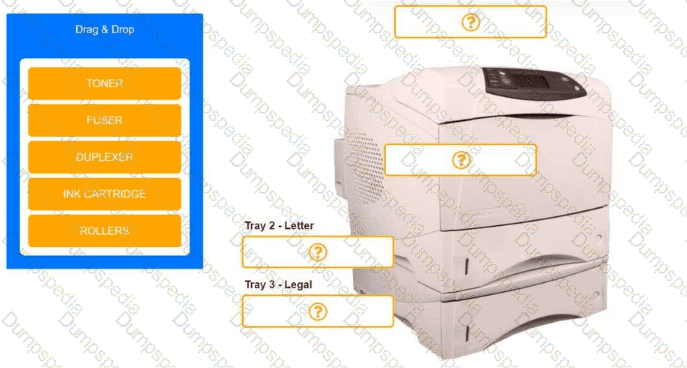

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.7: Given a scenario, troubleshoot common printer problems.

Security groups are used to manage access permissions to network resources, ensuring only authorized HR department members can access the shared materials.

Why Not B (Audit logs): Audit logs monitor activity but do not restrict access.

Why Not C (Time-of-day access): Time-of-day access limits when users can access resources but doesn’t specify user permissions.

Why Not D (Print server): A print server manages print jobs but does not control file access.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 2.5, access control and permissions​.

Upgrading to asolid-state drive (SSD)providesmore storage spaceandfaster read/write speeds, which resolves both the “insufficient storage” error and slow application loads.

Option B (USB):Not intended for permanent application storage or performance improvements.

Option C (HDD):Could solve storage capacity but would not improve speed.

Option D (RAM):Affects multitasking and memory-intensive tasks, not storage capacity directly.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to storage devices.

Comprehensive and Detailed Step-by-Step Explanation:

Random BSODs (Blue Screen of Death), intermittent freezing, and degraded performance under load are common symptoms of failing or faulty RAM (Random Access Memory). Here's the reasoning:

RAM Module (Correct Answer):

Faulty or failing RAM can cause random BSODs due to memory errors when the system attempts to read or write to corrupted memory locations.

Intermittent freezing, especially under performance-intensive operations, can occur because the CPU relies heavily on RAM for active processing tasks.

Over time, heat generated during usage can exacerbate RAM instability, leading to progressively worse performance throughout the day.

Solution: The technician should run a memory diagnostic tool, such as Windows Memory Diagnostic or MemTest86, to confirm if the RAM is at fault.

Incorrect Options:

A. Video Card: A faulty video card can cause graphical glitches, screen artifacts, or crashes, but it is unlikely to cause system-wide performance degradation and random freezing under normal operations unless the issue is specific to GPU-intensive tasks (e.g., gaming or video rendering).

B. HDD: A failing hard drive can cause system slowdowns and freezing, but it typically produces other symptoms such as read/write errors, boot failures, or clicking sounds. HDD issues do not usually cause BSODs unless critical system files are corrupted.

D. TPM (Trusted Platform Module): A TPM is a hardware-based security module used for encryption and secure authentication. It does not affect performance or cause BSODs or freezing under normal operation.

Key Takeaway:

The symptoms described (random BSODs, intermittent freezing, and degraded performance under load) are most likely caused by faulty or failing RAM. Memory diagnostic tools should be used to confirm the issue.

Channel configuration(e.g.,dual-channel,quad-channel) determines how memory modules communicate with the memory controller. Usingmatched pairs in dual- or quad-channel setupscan significantlyincrease memory bandwidth, improving performance especially for gaming and video-intensive tasks.

Option A (Error correction):ECC RAM is used in servers for reliability, not performance or gaming.

Option B (RAM voltage):Affects compatibility and overclocking but not bandwidth.

Option D (Physical size):Refers to module form factor (e.g., DIMM, SO-DIMM) and does not impact bandwidth.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.2: Given a scenario, install RAM types.

Cloud storage platforms—such as OneDrive, Google Drive, and Dropbox—use synchronization to ensure that files updated on one device automatically update on all connected devices. CompTIA A+ defines synchronization as a key cloud characteristic that keeps local folders and cloud-stored versions consistent, enabling seamless multi-device collaboration.

Synchronization allows users to:

Modify files offline and have them sync once online

Access identical data on laptops, desktops, and mobile devices

Ensure real-time updates across multiple users or clients

Maintain version consistency and conflict resolution

A network share (A) is local to an organization and does not automatically sync across devices. Availability (C) relates to uptime and reliability, not file updates. Metered utilization (D) refers to cloud billing models where usage is tracked, not data syncing.

Thus, synchronization is the capability that ensures local folders update dynamically whenever changes occur.

A common reason for aPOST failureafter a motherboard installation isimproperly seated RAM. The system requires working memory to successfully complete POST. Reseating (removing and reinserting) the RAM ensures it's making proper contact with the motherboard.

Option A:Flashing the BIOS is not possible if the system won’t POST.

Option B:A dead CMOS battery can cause BIOS settings to reset, but it usually won’t prevent POST entirely.

Option D:Reinstalling the old motherboard is premature basic troubleshooting steps should be completed first.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to motherboards, RAM, CPU, and power.

Data centers and high-performance servers prioritize stability and fault tolerance. CompTIA A+ identifies ECC (Error-Correcting Code) RAM as the standard memory used in such environments. ECC RAM automatically detects and corrects single-bit memory errors, preventing system crashes, data corruption, and downtime—critical requirements for servers running mission-critical workloads.

ECC memory is commonly paired with registered/buffered modules (RDIMM) for additional stability, but ECC itself is the defining feature required in data center environments. Non-ECC, unbuffered memory is used in consumer desktops where minor memory errors pose minimal risk.

Single-channel memory (B) is simply a configuration and does not imply reliability. Unbuffered RAM (C) is not used in enterprise-grade systems because it lacks error correction and electrical stabilization. RDIMM (D) includes buffering but may come with or without ECC; however, ECC is the key requirement highlighted by the question.

Therefore, the correct answer is ECC RAM.

Virtual Desktop Infrastructure (VDI) hosts user desktops on centralized servers rather than physical PCs. Users access a virtual desktop session remotely through thin clients, laptops, or web browsers. The CompTIA A+ cloud-computing domain explains that VDI improves manageability, security, and resource efficiency by allowing IT to centralize OS images, apps, and updates.

SaaS provides applications not desktops. RMM is for monitoring and managing devices. Containers virtualize applications, not full desktops.

VDI enables organizations to avoid purchasing physical desktops while still delivering full computing environments to users, which aligns with the A+ virtualization objectives and remote-access concepts.

Near-field communication (NFC) is a short-distance wireless communication method widely used in mobile payment systems like Apple Pay and Google Pay. Simply placing the device near a compatible terminal initiates the payment process.

When port issues persist after moving to a different switch port, the next logical troubleshooting step is to test the patch cable. Faulty or damaged cables are a common cause of network connectivity problems. Using a cable tester between the computer and the network closet verifies the integrity of the cable and rules out a physical layer issue.

From CompTIA A+ 220-1101 Official Study Guide, Objective 4.2 – Troubleshoot wired and wireless networks:

“If a device continues to experience connectivity issues after switching ports, test the cabling with a cable tester to check for continuity, shorts, or pinout issues before replacing hardware.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 4: Troubleshooting Network Connectivity

CompTIA Exam Objectives 220-1101, Domain 4.2

============

Comprehensive and Detailed Step-by-Step Explanation:

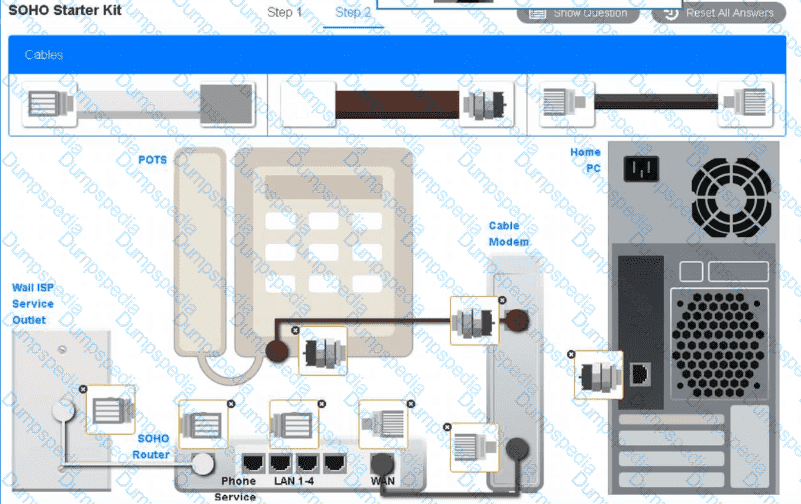

To determine the correct device, we need to understand how a DOCSIS (Data Over Cable Service Interface Specification) network functions in a Small Office/Home Office (SOHO) environment:

C. Cable Modem:

A cable modem is required to convert the signal provided by the ISP (Internet Service Provider) over a DOCSIS network into a format that is usable by the local area network (LAN).

DOCSIS is a standard for high-speed internet over cable television infrastructure, and the cable modem acts as the gateway between the ISP's coaxial network and the LAN.

Without the cable modem, devices in the LAN would not be able to access the internet.

A hybrid environment combines both on-premises infrastructure and cloud-based resources, allowing virtual machines to operate seamlessly between the two. CompTIA A+ describes hybrid cloud as a deployment model where organizations maintain their own private servers or virtualization hosts while also leveraging public cloud platforms such as AWS, Azure, or Google Cloud. This model supports flexibility, scalability, and gradual migration, making it ideal for businesses not ready to fully abandon local infrastructure.

In this model, workloads can move between the local environment and the cloud depending on performance requirements, cost considerations, or redundancy needs. Additionally, hybrid clouds allow resource sharing, data synchronization, and load balancing across both environments.

A public cloud hosts resources entirely in the provider’s data center, offering no on-premises integration. A private cloud exists solely within the organization’s infrastructure with no external shared resources. SaaS delivers applications, not infrastructure, meaning it cannot host or manage virtual machines.

Therefore, an environment where VMs exist both on-site and in the cloud is best described as a Hybrid cloud.

The 12VHPWR connector can supply up to 600 watts of power, designed for high-end graphics cards.

Why Not A (400W): This is less than the connector’s maximum capability.

Why Not B (MOW): This is an invalid option.

Why Not D (700W): The maximum supported power is 600W.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 3.4, power supply and connectors​.

Comprehensive and Detailed Explanation

CompTIA troubleshooting procedures emphasize confirming input source settings on the external display device.

Even if the HDMI cable is connected properly:

The projector must be set to the correct input source (HDMI 1, HDMI 2, etc.).

If the source is incorrect, the laptop will not display, even though the laptop output is functioning normally.

Since the projector is powered on, and the laptop is already set to “Duplicate,” and cables are good, the most likely cause is:

✔ The projector is set to the wrong input source.

This is a common real-world issue covered under "video and projector troubleshooting."

Why the other answers are incorrect

A. Projector may support HDMI; this is not the “most likely.”

B. “Extend” is not required — “Duplicate” works for projectors.

C. A failed HDMI port is possible but not the most likely scenario.

Final Answer: D

Since only one user experiences the issue in a shared environment where everyone else has stable connectivity, CompTIA A+ suggests that the problem is most likely with the client device, not the network. The wireless card may be failing, overheating, or experiencing intermittent hardware faults.

If other Wi-Fi signals or EMI (electromagnetic interference) were the cause, multiple users would be affected. Frequency congestion (Option B) also impacts groups, not a single device.

CompTIA stresses that isolating whether the issue affects one user or many helps determine whether the fault lies with the network or device. Because the problem is isolated, the most probable cause is a malfunctioning wireless NIC in the user’s laptop.

When printing on preprinted forms, precise alignment is critical. If print output shifts downward on the page, the first step is to ensure that the correct paper type and form stock are loaded properly. CompTIA A+ emphasizes verifying media type and tray configuration when dealing with alignment issues, especially in environments using specialized or preformatted paper.

Preprinted forms often require thicker media, specialty settings, or exact tray loading orientation to ensure feeding accuracy. If the wrong paper type is selected on the printer or print driver, the printer may adjust feed rate, roller pressure, or margin expectations incorrectly, causing vertical misalignment. Thus, confirming the correct paper type is loaded—and that the printer is configured for that type—is the most fundamental starting point.

Orientation settings (C) could affect sideways alignment but not vertical shifting. Pickup rollers (D) can cause skewing or paper jams, but they generally do not cause consistent downward shifts. PostScript drivers (B) relate to graphic rendering but do not affect form alignment unless dealing with complex images, which is not indicated here.

Therefore, confirming correct paper type and loading aligns with CompTIA’s troubleshooting methodology: always check the simplest, most likely physical cause first—especially with form printing.

Comprehensive and Detailed Step-by-Step Explanation:

To determine the correct device, we need to understand how a DOCSIS (Data Over Cable Service Interface Specification) network functions in a Small Office/Home Office (SOHO) environment:

C. Cable Modem:

A cable modem is required to convert the signal provided by the ISP (Internet Service Provider) over a DOCSIS network into a format that is usable by the local area network (LAN).

DOCSIS is a standard for high-speed internet over cable television infrastructure, and the cable modem acts as the gateway between the ISP's coaxial network and the LAN.

Without the cable modem, devices in the LAN would not be able to access the internet.

Mesh networks rely on multiple access points (or mesh nodes) to create a seamless, self-healing network. Each access point communicates with others to extend coverage and improve reliability without requiring a wired backbone for each AP.

An IDE hard drive uses a Molex connector for power. This 4-pin connector is a standard for older drives.

Why Not A (F type): F type connectors are used for coaxial cables in video and internet applications.

Why Not B (SC): SC connectors are for fiber optic cables.

Why Not D (Lightning): Lightning connectors are for Apple devices.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 3.1, cable types and connectors​.

RAID 1, also known as disk mirroring, duplicates data identically to two drives, ensuring full redundancy if one drive fails. Because the workstation only has two drives, RAID 1 is the only RAID level that provides fault tolerance under this constraint, exactly as described in the CompTIA A+ study guide.

RAID 0 offers no redundancy, RAID 5 requires at least three drives, and RAID 10 requires at least four drives.

RAID 1 is the recommended configuration for small environments or workstations that rely on data integrity and quick recovery, matching CompTIA’s guidance for redundancy in systems with limited drive availability.

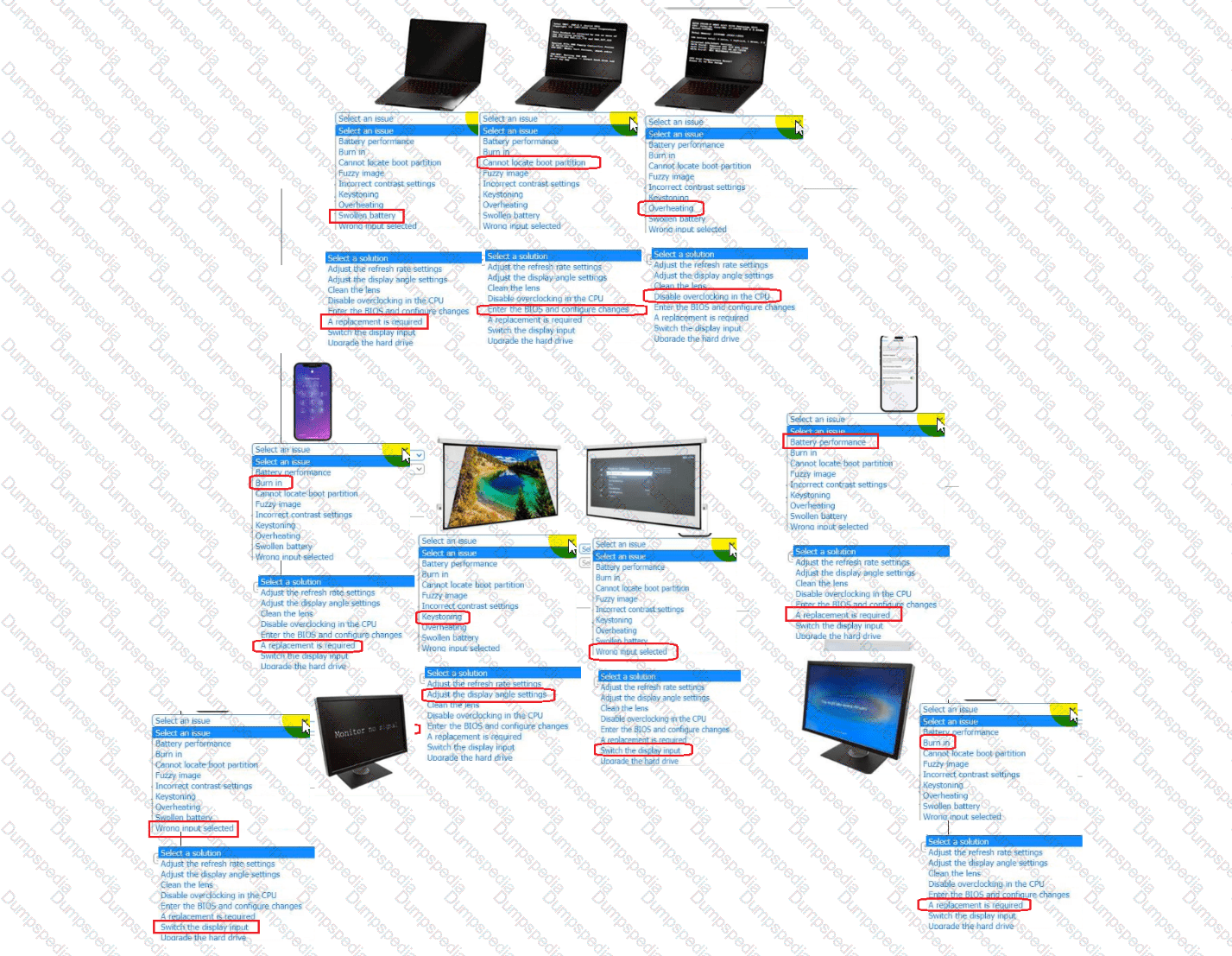

When a laptop powers on but the screen is blank, the quickest way to isolate the problem is to connect to an external monitor. This helps determine if the issue is with the laptop display or with the graphics subsystem.

From CompTIA A+ 220-1101 Official Study Guide, Objective 4.1 – Troubleshoot common hardware problems:

“A blank screen on a laptop with power indicators lit should be tested with an external display first to rule out a faulty screen or ribbon cable.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 4: Laptop Display Troubleshooting

CompTIA Exam Objectives 220-1101, Domain 4.1

============

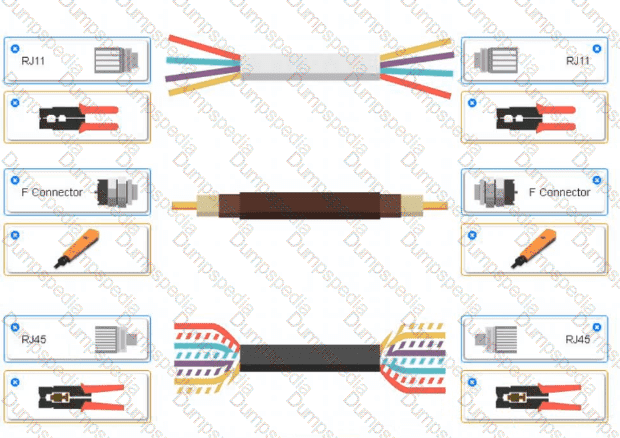

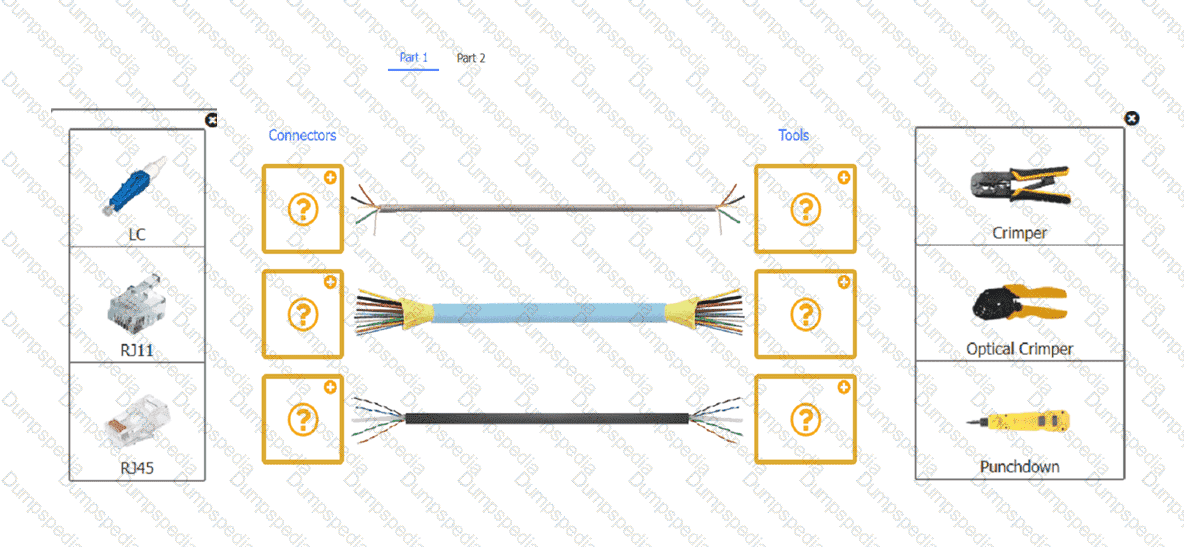

Atoner probe(also known as a tone generator and probe) is the best tool fortracing and identifying cablesin a patch panel or wall jack. The tone generator sends a signal through the wire, and the probe helps locate the cable by detecting the tone.

Option A (Crimper):Used to attach connectors (e.g., RJ-45), not for tracing cables.

Option B (Punchdown tool):Used to terminate cables into patch panels or keystone jacks.

Option C (Cable stripper):Used to remove insulation, not to trace cables.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 5.1: Identify basic cable types, their connectors, and their features.
