F5CAB3 Sample Questions Answers

The configuration provided utilizes Priority Group Activation in conjunction with the min_active_members setting. Priority groups allow an administrator to define primary servers and " backup " servers within the same pool. The BIG-IP prioritizes traffic based on the assigned priority number, with the highest number receiving traffic first.

In this specific configuration, the priority 3 group is the primary group. Therefore, connections are first distributed to all pool members with priority 3 as long as they are available. The system will continue to use only the priority 3 group unless the number of available members in that group falls below the min_active_members value, which is set to 2.

If the priority 3 group has fewer than two active members, the BIG-IP " activates " the next available priority group (priority 2) and distributes traffic among the remaining members of priority 3 and all members of priority 2. This cascading logic continues down the list. Consequently, if both the priority 3 group and the priority 2 group have fewer than two members available, traffic is directed to the priority 1 group. This ensures that even in a multi-server failure scenario, the system has a last-resort group of servers to handle the traffic.

Option D is incorrect because if only one member of priority 3 goes down, there are still two members active (10.12.10.8 and 10.12.10.9). Since 2 is not less than the min_active_members threshold of 2, the priority 2 group will not yet be activated. Option B is incorrect because traffic flows from high priority to low priority, not the other way around.

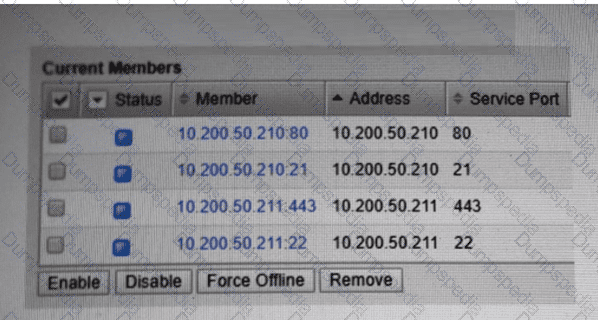

From the exhibit, the pool contains different applications on different service ports (for example, HTTP/80, FTP/21, HTTPS/443, SSH/22). To mark pool members correctly, BIG-IP must be able to verify the actual service running on each member’s port.

In BIG-IP Administration: Data Plane Configuration, monitor behavior is described as follows:

When multiple monitors are assigned to a pool, the Availability Requirement controls how monitor results are evaluated:

At least one = the pool member is marked up if any one of the assigned monitors succeeds.

All = the pool member is marked up only if every assigned monitor succeeds.

For pools containing members with different services/ports, using All can incorrectly mark members down because monitors intended for other services will fail on the wrong port.

Why C is correct:

Assigning HTTPS, HTTP, FTP, and SSH covers the actual services shown in the pool.

Setting the Availability Requirement to at least one ensures that each pool member is considered available when its appropriate service monitor succeeds, without being forced to pass unrelated service monitors.

Why the other options are incorrect:

A / D (Availability Requirement = all): would cause members to be marked down when unrelated monitors fail (e.g., SSH monitor against an HTTP member).

B (includes ICMP): ICMP can indicate the host is reachable even if the application service is down, which does not “accurately” reflect service availability.

Therefore, the best choice is HTTPS, HTTP, FTP, and SSH with Availability Requirement of at least one health monitor.

URI-based traffic steering requires inspection of the HTTP request. BIG-IP processes HTTP headers and URIs in the HTTP_REQUEST event. Pool member selection based on URI must occur before the request is sent to the server, making HTTP_REQUEST the correct event.

When many users share one source IP, source-address persistence fails. Cookie persistence uniquely identifies clients at Layer 7.

When the connection limit is reached, BIG-IP resets new connections, even if pool members are healthy.

In a BIG-IP High Availability (HA) environment, most configuration objects (Virtual Servers, Pools, iRules) are considered " shared " and are synchronized automatically between devices. However, network-level objects—specifically VLANs and Self IPs—are unique to the hardware and are generally not synchronized by the ConfigSync process.

This is intentional because two devices in a cluster may have different physical cabling or interface assignments. For example, Cluster Member A might use interface 1.1 for a specific VLAN, while Cluster Member B might use interface 1.2. Because the BIG-IP system cannot assume that the physical network topology is identical for both appliances, the administrator must Configure the new VLAN manually on Cluster Member B.

Once the VLAN is created manually on both devices with the exact same name, it can then be used to host " shared " floating Self IP addresses or traffic groups that will synchronize. Failing to create the VLAN on the peer device will prevent the traffic group from failing over correctly, as the peer will not have the necessary Layer 2 broadcast domain defined to take over the traffic. Resetting Device Trust (Option D) is a drastic step for fix sync communication issues but will not change the fact that VLANs are non-syncable objects. Enabling the interface (Option B) only affects the link status of Member A and has no impact on the configuration of Member B.

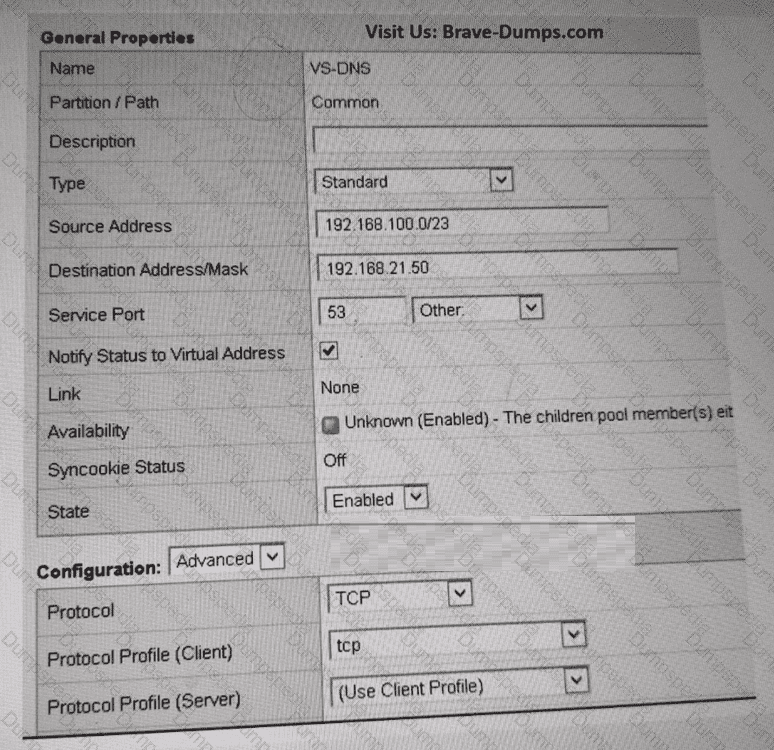

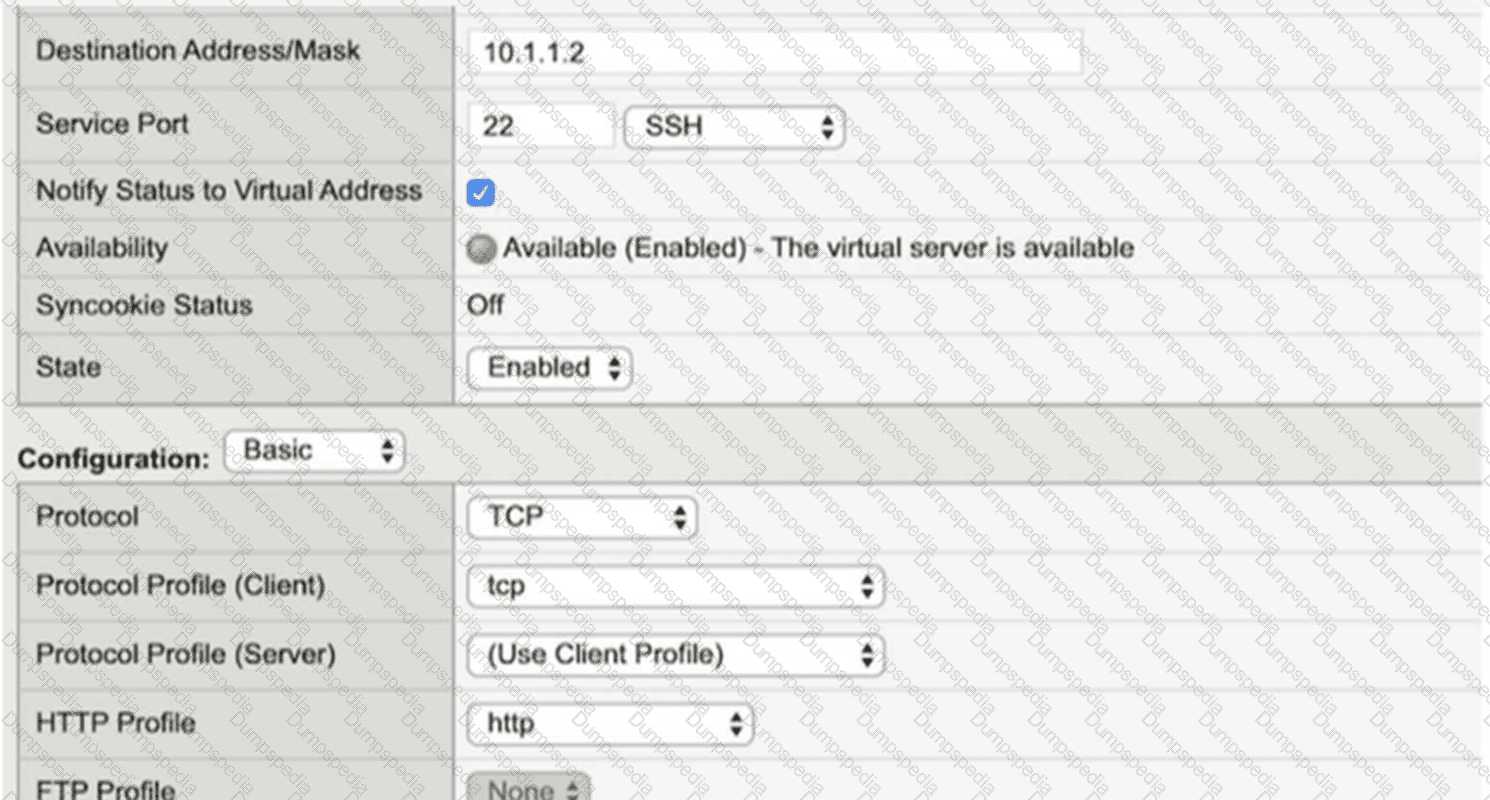

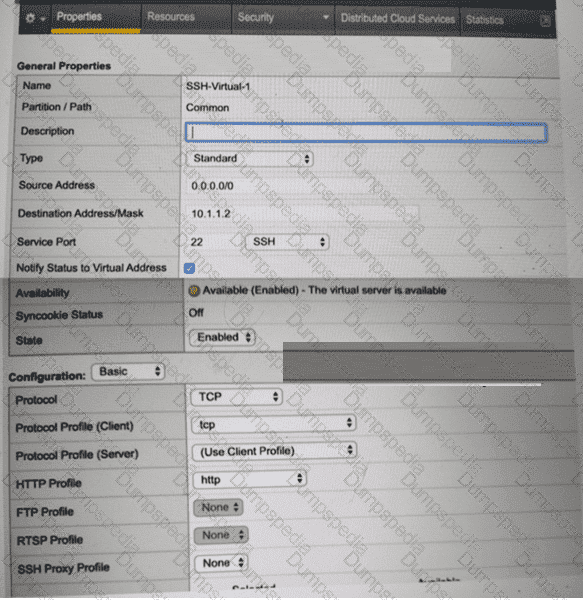

A red diamond indicates the Virtual Server is enabled but unavailable due to all pool members being down.

Connection rate limiting controls how many new connections per second are accepted, protecting backend resources.

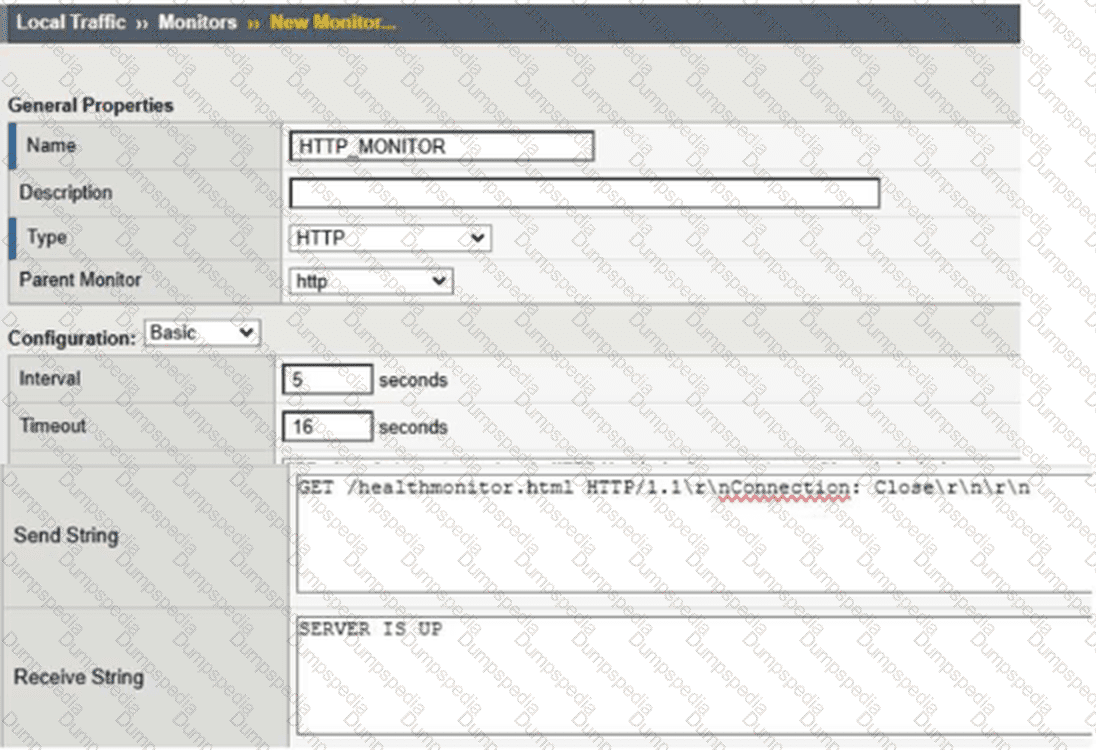

Application-specific health checks must validate application responses, which requires HTTP monitors with custom send/receive strings.

F5 provides several pre-configured (built-in) TCP profiles designed to optimize traffic for different network conditions. When an administrator is looking to improve general performance but does not have a specific, narrow use case (like strictly mobile or strictly long-haul WAN), the f5-tcp-progressive profile is the recommended starting point.

The f5-tcp-progressive profile is designed as a modern, high-performance replacement for the older default TCP settings. It incorporates several advanced congestion control algorithms and buffer management techniques that allow it to adapt dynamically to varying network latencies and packet loss scenarios. Unlike f5-tcp-legacy (Option A), which uses older, less efficient stacks, the progressive profile leverages modern TMM (Traffic Management Microkernel) optimizations.

While f5-tcp-mobile (Option B) is highly effective for high-loss cellular networks and f5-tcp-wan (Option D) is optimized for high-latency long-distance links, they can sometimes be too aggressive or poorly suited for standard campus or data center environments. The f5-tcp-progressive profile acts as a " best-of-all-worlds " template that typically provides an immediate performance boost for most web applications by improving window scaling and fast-retransmit behavior. Therefore, it is the procedural " first step " in TCP performance tuning before moving to more specialized, niche profiles.

The pool member list in the exhibit shows servers listening on four distinct service ports: 80 (HTTP), 21 (FTP), 443 (HTTPS), and 22 (SSH). To accurately monitor a pool where members provide different services, the administrator must apply monitors that correspond to each of those specific services.

The key to this configuration is the Availability Requirement (also known as " Monitor Rule " ). If the administrator sets the requirement to " All health monitors, " every single monitor (HTTP, HTTPS, FTP, and SSH) must pass for a member to be marked " Up. " This would cause an immediate failure: for example, a server listening only on port 80 would fail the HTTPS, FTP, and SSH checks, resulting in the member being marked " Down " even if the HTTP service is healthy.

To ensure accuracy, the administrator should apply all four relevant monitors and set the Availability Requirement to at least one monitor. With this setting, the BIG-IP marks a member as " Up " if any of the assigned monitors return a successful response. Therefore, the member at 10.200.50.210:80 will stay " Up " as long as the HTTP monitor passes, even though it fails the FTP, HTTPS, and SSH monitors. This configuration allows a single pool to contain diverse service types while ensuring that the specific port defined for each member is verified correctly. Option C is incorrect because ICMP only checks if the IP is alive, not if the specific service port is functioning.

The BIG-IP system uses a centralized management framework to ensure that all devices within a Sync-Failover group share a consistent configuration. When an administrator makes a change on any member of the group—whether it is the active or the standby device—the system detects a " ConfigSync " mismatch. The " Device Management > > Overview " screen tracks these changes by comparing the commit ID and timestamps of the configurations across all peers.

If a change is made on the standby member, that device now possesses a more recent configuration than the other members of the group. Consequently, the BIG-IP GUI will display a status of " Changes Pending " and suggest a Recommended Action to resolve the discrepancy. In this scenario, the correct action is to Synchronize the standby member configuration to the group. This push operation will copy the updated configuration from the standby device to the active device (and any other peers), bringing the entire cluster back into a " In Sync " status. It is important to note that BIG-IP allows bi-directional synchronization; you do not have to be on the active device to push a configuration. However, administrators must be cautious: choosing Option C (Synchronizing the active member to the group) would overwrite the changes just made on the standby device with the older configuration from the active device, effectively reverting the changes. The Recommended Action always points toward the direction that propagates the most recent change to the rest of the group.

When multiple users share one source IP, source-address persistence fails. Cookie persistence uniquely identifies users at Layer 7 and ensures correct session handling.

An F5 iApp is a template-driven system used to deploy complex applications by grouping all necessary BIG-IP objects (Virtual Servers, Pools, Profiles) into a single management entity. Objects created by an iApp are distinguished by their naming convention and metadata. In the provided exhibit, the Virtual Server configuration in Option A is clearly identified as an iApp-managed object through two primary indicators. First, the object resides within a sub-directory or partition ending in .app (/Common/vmware_test.app/). Second, the configuration explicitly includes the attribute app-service /Common/vmware_test.app/vmware_test, which serves as the system ' s internal pointer linking the LTM object back to the parent iApp Application Service. Furthermore, several profiles associated with this virtual server also reside within the same .app container, such as /Common/vmware_test.app/vmware_test_http.

In contrast, Options B, C, and D represent standard, manually created Virtual Servers. While they may have complex configurations (such as the APM profiles in app2_vs and app1_vs), they lack the folder-based naming hierarchy and the app-service metadata attribute that denotes iApp ownership. Standard objects like app1_vs are managed individually, whereas the objects within vmware_test.app are typically protected by " Strict Updates. " This means their configuration is controlled by the iApp ' s template logic; any manual attempt to modify these specific parameters directly via the Virtual Server menu would result in an error message stating the service must be updated via the application management interface. Identifying these objects is a critical procedural step for administrators to determine whether a configuration should be edited through the standard LTM menus or through the iApp ' s " Reconfigure " tab to ensure consistency and prevent manual changes from being overwritten by the template.

By default, BIG-IP load balancing algorithms (such as Round Robin) distribute connections evenly across all available pool members. However, persistence profiles override normal load balancing decisions by forcing subsequent connections from a client to be sent to the same pool member.

According to the BIG-IP Administration: Data Plane Configuration documentation:

Persistence creates a client-to-server mapping that is honored before load balancing algorithms are applied.

When persistence is enabled, BIG-IP may repeatedly select the same pool member even if others are available.

This directly alters load balancing behavior.

Why the other options are incorrect:

A. Adding a OneConnect profileOneConnect optimizes server-side TCP connections but does not change which pool member is selected.

B. Enabling SNAT automapSNAT affects source address translation, not pool member selection.

C. Enabling a fallback host in the HTTP profileA fallback host is only used when no pool members are available.

Correct Resolution:

Adding a persistence profile alters load balancing behavior by maintaining client affinity to a specific pool member.

The two load balancing methods that consider all connections between the BIG-IP and each backend node — not just connections to a specific pool member — are Least Connections (node) and Weighted Least Connections (node) .

The critical distinction here lies in the node-level scope of evaluation. A node represents the backend server ' s IP address, regardless of how many services or ports it may be serving. Therefore:

Least Connections (node) directs new connections to the node with the fewest total active connections across all services on that server, providing a holistic connection-count perspective.

Weighted Least Connections (node) operates identically but factors in an administrator-defined ratio weight, allowing servers with greater capacity to proportionally absorb more connections while still evaluating total node-level connection counts.

By contrast:

Ratio (member) distributes traffic based on a static weight ratio and does not dynamically evaluate current connection counts.

Round Robin distributes traffic sequentially in rotation, completely ignoring current connection states on any node or member.

The node-based methods are particularly valuable in environments where a single backend server hosts multiple pool members across different ports, ensuring the server ' s overall load — not just per-service load — governs balancing decisions.

Fallback persistence is used when the primary persistence method fails. Source Address Affinity is a Layer 4 persistence method and is fully supported as a fallback option for most virtual server types.

In this scenario, each backend node (server) hosts multiple services and is referenced by multiple pools and virtual servers. The goal is to ensure an equal number of total connections per backend server, regardless of how many pool members (services/ports) exist on that server.

According to the BIG-IP Administration: Data Plane Configuration documentation:

Least Connections (node) tracks the total number of active connections to a node across all pool members and services.

This algorithm ensures load distribution is balanced at the server level, not just at the individual service (member) level.

It is specifically recommended when:

Multiple pool members exist on the same backend server

Multiple virtual servers reference the same backend servers

Why the other options are incorrect:

B. Predictive (member)Predictive algorithms are advanced and traffic-pattern based, but they operate at the member level and do not guarantee equal connections per server.

C. Least Connections (member)This balances connections per pool member, which can overload a server hosting multiple members while still appearing “balanced” per member.

D. Predictive (node)Although node-aware, predictive algorithms are less deterministic and not the best choice when strict equality of connections is required.

Correct Resolution:

Using Least Connections (node) ensures that each backend server carries an equal connection load across all services and pools.

The X-Forwarded-For header preserves the original client IP when SNAT is enabled.

This scenario describes a classic routing issue often encountered during SSL offload deployments. The fact that an SSL connection is established indicates the Client SSL profile is working correctly. The packet trace showing the server " receives and responds " to the request is the most critical diagnostic clue.

When a BIG-IP receives traffic, it typically passes the client ' s original source IP address to the backend server. If the backend server ' s default gateway is not the BIG-IP (a common " one-arm " network topology), the server will attempt to send its response directly back to the client ' s IP via its own default router. The client ' s browser will reject this response because it expects traffic to come from the Virtual Server ' s IP, not the backend server ' s IP.

To resolve this, the administrator must enable SNAT (Source Address Translation), typically using SNAT Automap. When SNAT is enabled, the BIG-IP replaces the client ' s original source IP with one of its own Self IPs before forwarding the request to the server. Because the source of the packet is now the BIG-IP, the backend server is forced to send its response back to the BIG-IP. The BIG-IP then receives the response, translates it back, and delivers the content to the user. Option A is unnecessary if the servers are expecting plain-text traffic after the BIG-IP performs offload. Option D would only worsen the existing routing discrepancy.

HTTP Compression on a BIG-IP system is an optimization feature that reduces the size of HTTP responses sent to clients, thereby saving bandwidth and improving page load times for end-users. To implement this functionality on a Virtual Server, the system requires two specific profiles to work in tandem: an HTTP profile and a Compression profile.

The HTTP profile (Option E) is a prerequisite because compression is an application-layer (Layer 7) operation. The BIG-IP must be " HTTP-aware " to parse the incoming requests and outgoing responses. The HTTP profile allows the BIG-IP to inspect the Accept-Encoding header from the client (to see if the client supports gzip or deflate) and to modify the Content-Encoding and Vary headers in the server ' s response. Without the HTTP profile, the Virtual Server operates at Layer 4 (TCP) and sees the traffic only as an opaque stream of bytes, making compression impossible.

The Compression profile (Option B) contains the actual settings and engine for the task. It defines which content types should be compressed (e.g., text/html, application/javascript), the compression level, and the minimum content length required before compression is applied. While a Stream profile (Option D) is used for data replacement (search and replace) and SSL profiles (Option C) are used for encryption, they do not provide compression logic. By applying both the HTTP and Compression profiles, the BIG-IP can successfully intercept server responses, compress the payload according to the configured policy, and deliver the optimized data to the user, effectively offloading the CPU-intensive compression work from the backend web servers.
