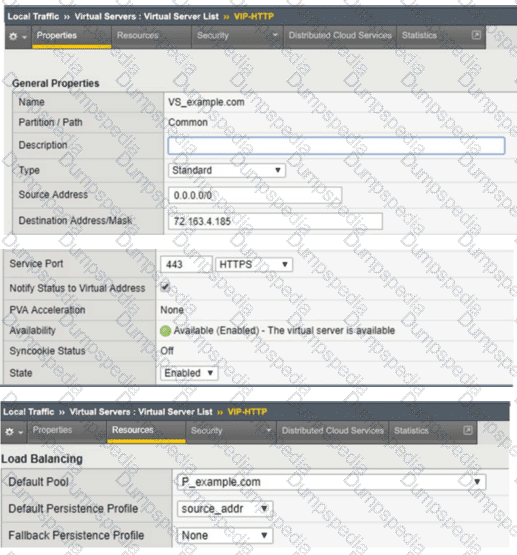

This scenario describes a classic network performance issue known as the "Mega-Proxy" problem. When an organization routes all employee traffic through a single proxy server, the BIG-IP sees thousands of unique users as having the exact same source IP address. If the administrator has configured "Source Address Affinity" persistence, the BIG-IP will correctly follow the rule but incorrectly route all users to the same single backend pool member. This creates a severe load imbalance where one server is overwhelmed while others remain idle, leading to poor application response times. To resolve this, the administrator must change the persistence profile to "HTTP Cookie". Cookie-based persistence allows the BIG-IP to place a unique identifier in each user's browser, allowing the system to distinguish between individual sessions even if they share the same source IP. This fix ensures that traffic is distributed evenly across the pool members, restoring4 the expect5ed load balancing functionality and resolving the slow performance reported by users behind the corporate proxy.

To successfully performSSL offload and re-encryptionon a BIG-IP system, the virtual server must be configured withboth a Client SSL profile and a Server SSL profile. The Client SSL profile enables BIG-IP to decrypt inbound HTTPS traffic from clients, while the Server SSL profile is required tore-encrypt traffic before forwarding it to the pool members.

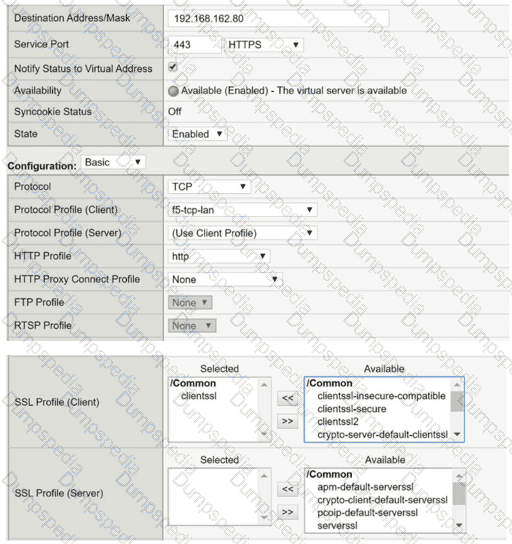

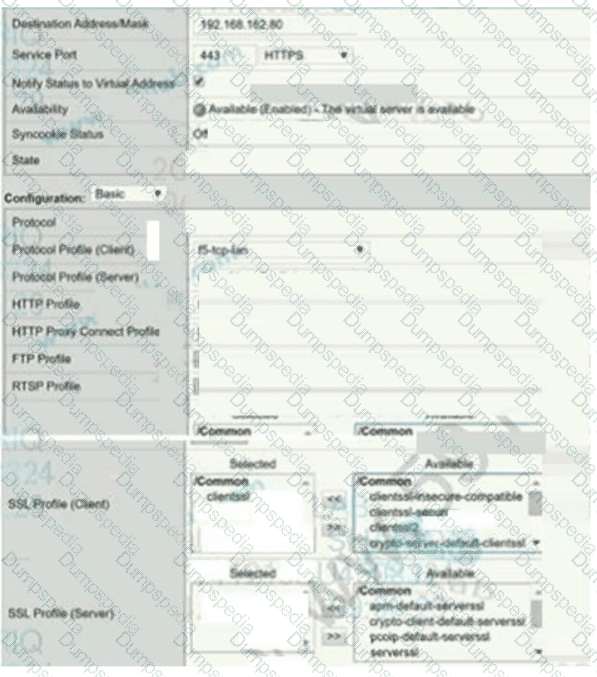

From the exhibit, the virtual server has aClient SSL profile configured, which allows BIG-IP to accept HTTPS connections from clients. However, there isno Server SSL profile attached, meaning BIG-IP attempts to sendunencrypted HTTP trafficto pool members listening on HTTPS (port 443). This protocol mismatch causes the server-side SSL handshake to fail, resulting in users being unable to connect to the application.

This behavior is well documented in BIG-IP SSL troubleshooting guides: when backend servers expect HTTPS, a Server SSL profile is mandatory to establish a secure connection from BIG-IP to the pool members.

The other options are incorrect:

Removing the Client SSL profile (Option A) would break client-side HTTPS.

The server-side TCP profile (Option B) is unrelated to SSL encryption.

Forward Proxy (Option C) is only used for outbound SSL inspection scenarios.

Therefore, configuring anSSL Profile (Server)is the correct and required solution.

Monitoring resource utilization is essential for maintaining system stability. If the root (/) file system reaches 100% capacity, the BIG-IP may become unresponsive, fail to save configuration changes, or experience daemon crashes83. When the / partition is full, the immediate troubleshooting step is to identify large or unnecessary files—such as old log files, core dumps, or temporary installer files—located specifically within that file system84. In the provided exhibit, /dev/md4 is explicitly listed at 100% usage for the / mount point85. Checking other partitions like /usr (which is at 82% in the exhibit) would not resolve the immediate "Full" status of the root directory86. Administrators often use the du (disk usage) command via the CLI to find the problematic files. Managing disk space is a proactive task; however, when utilization hits 100%, it becomes a reactive troubleshooting emergency that must be resolved to restore the management plane's functionality.

In complex network environments, "SNAT Automap" is frequently used to ensure that backend servers send return traffic through the BIG-IP. However, SNAT hides the original client's IP address, replacing it with the BIG-IP's self-IP. When interpreting traffic flow for security or logging purposes, backend servers often need that original IP. To resolve this without breaking the network-layer routing provided by SNAT, the administrator should apply an HTTP profile to the virtual server and enable the "Insert X-Forwarded-For" option. When this is enabled, the BIG-IP inserts a standard HTTP header containing the client's original IP address before forwarding the request to the pool member. This troubleshooting method allows the backend application to log the actual user's identity while maintaining a functional L3/L4 traffic flow where the server responds to the BIG-IP's local address. This is a standard troubleshooting solution for "web server not working as expected" scenarios where applica8tion logic depends on knowing the geography or specific identity of the connecting user.

Comprehensive and Detailed Explanation From BIG-IP Administration Supp13ort and Troubleshooting documents: When troubleshooting a Virtual Server that is not working as expected, it is critical to ensure that the applied profiles match the type of traffic being processed. SSH (Secure Shell) is a non-HTTP protocol that operates over TCP. The exhibit indicates that an HTTP profile is applied to the Virtual Server14. An HTTP profile instructs the BIG-IP system to parse traffic as HTTP; however, since SSH traffic does not follow HTTP specifications, the BIG-IP's parser will fail to understand the data stream, typically resulting in dropped packets or reset connections15. To fix this, the administrator must set the HTTP profile to "None"16. This allows the Virtual Server to act as a "Standard" or "FastL4" listener that passes the encrypted SSH data transparently to the backend pool members without attempting application-layer inspection. This highlights a common troubleshooting step: verifying that L7 profiles are not inadvertently applied to L4 traffic, which disrupts the expected traffic flow between the client and the server.

Identifying network-level performance issues often starts with investigating hardware-level alerts78. In F5 terminology, a "Link" like "1.0" or "1.1" refers to a physical interface on the appliance79. When an SNMP trap reports that a link is "DOWN," it indicates a loss of signal or an administrative shutdown of the physical port80. To verify this, the administrator must navigate to Network > Interfaces > Interface List81. This screen provides real-time status, showing whether the interface is "up," "down," or "uninitialized," as well as any media speed or duplex mismatches that could be causing performance degradation82. Troubleshooting this is the first step in resolving "pool member down" or "VLAN failsafe" issues, as a down interface will take down any VLANs associated with it, immediately halting all traffic flow for the services relying on that physical path.

On a BIG-IP system, hardware-related alerts, including those for power supply units (PSUs), fans, and chassis components, are primarily logged in the Local Traffic Manager (LTM) log file.

Log Location: The file path is /var/log/ltm.

PSU Alert Messages: When a power supply fails, experiences an outage, or is unplugged, the chmand (Chassis Manager) or system_check processes log specific error codes to this file. For example, you may see messages like 010d0006:0: Chassis power supply has experienced an issue or VINPUT=bad.

Troubleshooting: Administrators can use the command grep -i "power supply" /var/log/ltm to quickly filter for PSU-related events.

Other Logs: * /var/log/kern.log typically contains low-level kernel and driver messages.

/var/log/audit tracks administrative changes and commands executed by users.

/var/log/daemon.log contains messages from various system background services but is not the primary location for hardware sensor alerts.

The failure to connect is caused by a restrictive Source Address filter configured on the Virtual Server.

Source Address Filtering: In the BIG-IP system, the Source Address field on a Virtual Server acts as an implicit Access Control List (ACL). Only traffic originating from a client IP address that matches the specified network range will be accepted and processed by the Virtual Server.

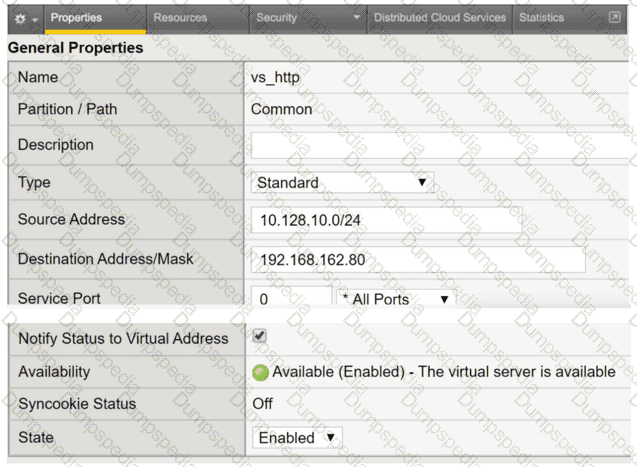

Analyzing the Exhibit: The provided configuration for vs_http shows the Source Address is set to 10.128.10.0/24. This means the Virtual Server will only accept connections from the subnet ranging from 10.128.10.1 to 10.128.10.254.

Identifying the Conflict: The user trying to connect has the IP address 192.168.162.70. Since 192.168.162.70 does not fall within the allowed 10.128.10.0/24 range, the BIG-IP system will not match this traffic to the Virtual Server, effectively blocking the connection attempt.

Evaluation of Other Options:

All Ports (Option A): Configuring a Virtual Server for "All Ports" (port 0) allows it to handle traffic for any destination port, which would not block a standard HTTP application.

Destination Address (Option B): The destination address 192.168.162.80 is the Virtual IP (VIP) users should be connecting to; this is a standard configuration and not the cause of the failure for a user reaching out to it.

Standard Type (Option C): A "Standard" Virtual Server is the most common type used for HTTP applications as it allows for Layer 7 profiles and full proxy capabilities.

To manually verify a health monitor's "Send String" from the BIG-IP command line, the curl utility is the preferred tool because it allows for custom header insertion.

Matching the Monitor String: The monitor string requires an HTTP/1.1 request which must include a "Host" header. Option A correctly uses the --header (or -H) flag to pass Host: www.example.com to the specific IP and port of the pool member.

Troubleshooting Logic: If curl --header 'Host: www.example.com ' 'http://10.10.3.75:8080/ ' returns a "200 OK" but the BIG-IP monitor still shows "Down," the administrator should check if the Receive String in the monitor configuration matches the output provided by curl.

Invalid Syntax: Option D is incorrect because it tries to append the hostname to the URI path, which the web server will likely reject with a "404 Not Found". tracepath (Options B and C) is a path discovery tool similar to traceroute and cannot validate HTTP response content.

A gateway_icmp monitor checks basic network reachability by sending ICMP echo requests (pings) to the pool member or its gateway. If the pool is markedDOWNwhile the server is confirmed to be online, the most likely cause is thatICMP traffic is being blocked.

Ahost-based firewall active on the server (Option C)can block ICMP echo requests or replies, preventing BIG-IP from receiving a successful response to the health check. This results in the monitor failing and the pool member being marked down, even though the server and application are otherwise functioning normally. This explanation is consistent with the scenario where other servers in the same subnet work correctly, indicating that routing and BIG-IP configuration are not the issue.

The other options are unrelated to ICMP monitoring. Logged-in users (Option A), missing patches (Option B), and stopped HTTP services (Option D) do not affect a gateway_icmp monitor. BIG-IP troubleshooting best practices recommend verifying ICMP reachability and firewall policies when diagnosing ICMP-based monitor failures.

F5 BIG-IP provides two distinct ways to throttle traffic on a Virtual Server: total capacity and velocity.

Connection Rate Limit: This setting specifically controls the number of new connection attempts per second. It is the correct tool for managing traffic spikes and protecting backend resources from being overwhelmed by a high frequency of new requests.

Comparison (Connection Limit): A standard Connection Limit (Option C) restricts the total concurrent connections allowed at any one time, regardless of how fast they arrive.

Other Profiles: OneConnect (Option A) is used for connection pooling and reuse to reduce server-side load, and HTTP Compression (Option B) reduces bandwidth usage but does not limit connection counts or rates.

In BIG-IP TMOS administration, the "Forwarding (IP)" virtual server type is unique because it is designed to act as a high-performance router rather than a typical load balancer. Unlike a "Standard" virtual server, which terminates a connection and directs it to a specific pool of members, a Forwarding (IP) virtual server is intended to forward packets based on the system’s routing table. Consequently, the configuration for this type of virtual server explicitly removes the option to associate a default pool. If an administrator is troubleshooting a scenario where they cannot assign a pool to a virtual server, they must verify if the type was accidentally set to Forwarding (IP). This type is most commonly used for outbound internet traffic (outbound SNAT) or to allow the BIG-IP to serve as a gateway between internal subnets. Identifying this constraint is vital for troubleshooting configuration errors where an administrator expects the system to load balance traffic but finds the pool association settings are grayed out or unavailable in the Configuration Utility.

BIG-IP status icons provide immediate visual feedback regarding the state of an object based on its availability and enabled/disabled status.

Color (Black): The color black indicates that an object has been manually Disabled by an administrator.

Shape (Circle): The circular shape indicates that the object is Available (i.e., its health monitors are passing).

Scenario Result: Since the virtual server is manually disabled (Black) but its associated pool has a working health monitor that is currently passing (Circle), the resulting icon is a Black Circle.

Comprehensive and Detailed Explanation From BIG-IP Administration S73upport and Troubleshooting documents: Persistence is critical for ensuring that a client's session remains with the same pool member throughout its duration. If primary persistence (like Cookie Persistence) fails—for instance, because the client has disabled cookies—load balancing will not work as expected, and the session may be broken. A "Fallback Persistence Profile" provides a backup method75. The most common and reliable fallback method is "Source Address Affinity"76. This method tracks the client's IP address in the BIG-IP's persistence table and ensures that any subsequent requests from that IP are routed to the same pool member, even if the primary persistence token is missing. Troubleshooting session drops often involves checking if a fallback method is configured to handle scenarios where the primary method is unsupported by the client's browser or environment. Without a fallback, the BIG-IP would revert to standard load balancing, potentially sending the client to a different server that lacks their session data.

Before upgrading a BIG-IP system to a newer TMOS version, it is critical to review known issues to avoid introducing instability or regressions.F5 Bug Tracker (Option B)is a primary resource for this purpose. It allows administrators to search for documented software defects by TMOS version, module, symptom, or bug ID. Using Bug Tracker, an administrator can identify unresolvedissues, fixed bugs, and behavioral changes that may affect their specific deployment, such as traffic handling, high availability, or module-specific functionality. This directly supports proactive troubleshooting and informed upgrade planning.

F5 iHealth (Option D)is another essential tool used during upgrade preparation. iHealth analyzes uploaded UCS or QKView files and correlates the device configuration and software version with F5’s known issues database. It provides actionable reports highlighting critical defects, upgrade risks, interoperability concerns, and recommended target versions. iHealth is especially valuable because it contextualizes known issues based on the actual configuration running on the device.

The other options are not appropriate for verifying known software issues.F5 End User Diagnostics (Option A)is a client-side troubleshooting tool,F5 University (Option C)is a training platform, andF5 Downloads (Option E)is primarily used to obtain software images and release notes, not to analyze known defects in depth.

In F5 TMOS administration, the traffic flow is processed through specific event huddles w3ithin iRules. To troubleshoot or m4odify traffic based on a URI (Uniform Resource Identifier), the BIG-IP system must first parse the application-layer data. The HTTP_REQUEST event is triggered when the system has fully received and parsed the HTTP request headers from the client5. This is the correct point to implement logic that selects a pool or pool member based on the path or file requested (e.g., /images or /api). Using CLIENT_ACCEPTED would be too early in the troubleshooting process because that event triggers at the L4 (TCP) connection establishment phase, before any URI information is available6. Conversely, HTTP_RESPONSE occurs during the return traffic from the server, which is too late to make a load balancing decision7. For troubleshooting virtual server behavior where URIs are involved, ensuring the iRule is attached to a Virtual Server with an HTTP profile and using the HTTP_REQUEST event is essential for proper traffic steering and inspection.
