FCP_FMG_AD-7.6 Sample Questions Answers

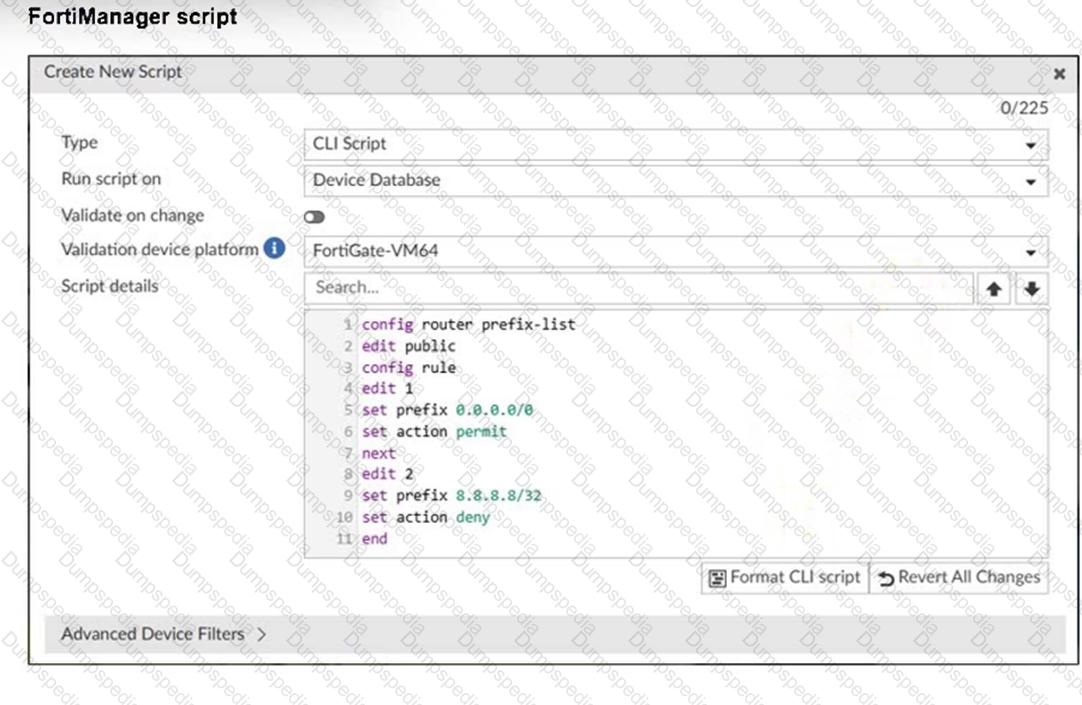

Running a script on the Device Database marks the configuration as modified but does not immediately apply changes to the device.

The administrator must use the Install Wizard to push and install these changes from the Device Database onto the managed device.

The most strongly supported answer is A . The study guide explicitly states: “In the case of having multiple FortiOS firmware versions on the same ADOM, it is recommended to use separate ADOMs instead.” It also says: “When you organize managed FortiGate devices, it is highly recommended that you group them based on their FortiOS firmware version. This is because valid command syntax varies by firmware version, which affects script compatibility.”

D is the other practical fix supported by FortiManager workflow. The study guide states that FortiManager can run scripts on multiple managed devices at once , and device groups let you run scripts on multiple devices instead of a single device . Combined with the firmware-version compatibility rule above, the correct operational approach is to keep version-specific scripts and apply them only to the matching device sets. B and C are not supported by the uploaded study guide as the recommended fix.

=========

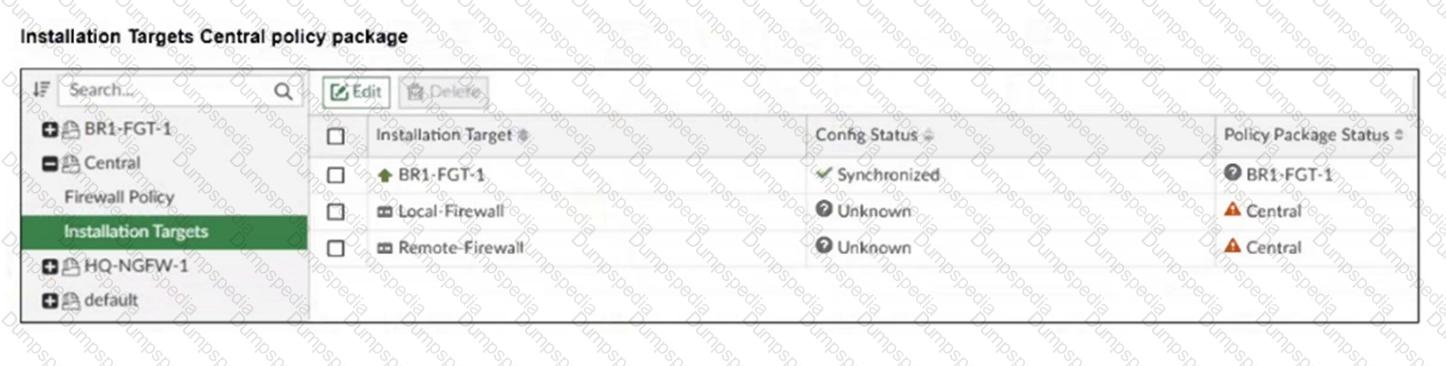

Using the Install Wizard is the recommended method to reinstall the central policy package on the BR1-FGT-1 firewall, ensuring all settings, installation targets, and dependencies are correctly processed during installation.

The global policy package is managed only from the global ADOM by the service provider administrator. Customer administrators with access solely to their ADOM (My_ADOM) cannot edit the global header policy; such changes must be made by the service provider administrator in the global ADOM.

The correct answers are A and E . The study guide explicitly states under Database Integrity that scheduled backups “Automatically executes database integrity commands” and “Does not automatically make corrections” . That exactly verifies A .

It also states in Best Practices—Database Integrity: “Always follow the proper upgrade path” and “If you don’t, it may cause inconsistencies in the database.” That exactly verifies E .

B is incorrect because diagnose dvm check-integrity verifies and corrects device manager database issues such as device states, memberships, lock statuses, and duplicate VDOM entries, not a corrupted file system. C is incorrect because locked device status issues are listed under diagnose dvm check-integrity, not diagnose cdb check adom-integrity. D is not a stated FortiManager best practice in the uploaded guide.

The correct answer is C . The FortiManager 7.6 Administrator Study Guide gives the exact extract: “If you need to move a device from one ADOM to another, run the Import Configuration wizard to import the policy package into the new ADOM.” It also states: “When you move devices from one ADOM to another ADOM, shared policy packages and objects do not move to the new ADOM. You will need to import policy packages from managed devices.”

That is exactly why the administrator cannot see the policy and object configuration after the move: the device itself moved, but its shared policy package and objects did not automatically move with it. The required corrective action is to manually import the policy package into the new ADOM using Import Configuration . Options A , B , and D are not the documented remedy in the uploaded FortiManager sources.

=========

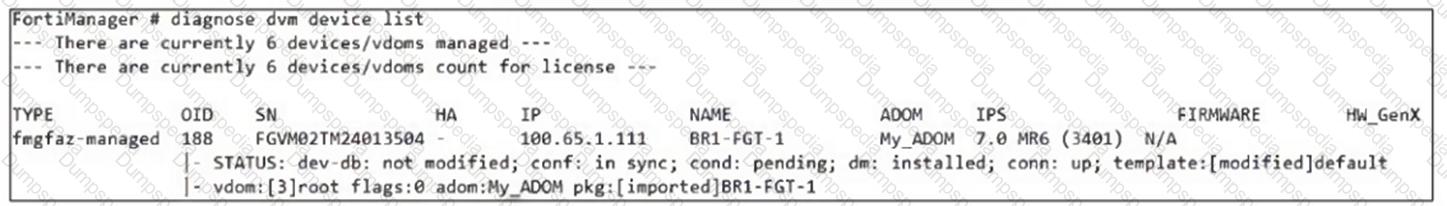

The output shows dev-db: not modified; conf: in sync, which means the device-level database is aligned with the latest revision history , so A is false . The study guide explains that “Synchronized / Auto-update: The latest revision history configuration entry … is aligned with the configuration on FortiGate,” and dev-db: not modified indicates the device-level settings are not changed on FortiManager.

For the policy layer, the output shows pkg:[imported]BR1-FGT-1. The study guide states “Imported: indicates that a policy package was successfully imported for a managed device,” so the policy package in FortiManager matches what was imported from the managed device context, making C correct.

D is also correct because the lab guide explicitly says “All Provisioning Templates applied on FortiGate devices have precedence over any configuration you apply on the device layer of the FortiManager.”

The FortiManager 7.6 Administrator Study Guide is explicit for the scenario where both FortiManager and FortiGate are behind NAT . It states that FortiManager can discover FortiGate through the FortiGate NATed IP address , which makes A correct. It also explains that in this scenario, the FortiManager NATed IP address is not configured on FortiGate by default under central management , which makes B correct.

C is incorrect because FortiGate must use the FortiManager NATed IP address , not the non-NATed IP, if it needs to announce itself or reestablish the FGFM tunnel. D is also incorrect because in this NAT scenario, if the tunnel is torn down, only FortiGate attempts to reestablish the connection ; FortiManager does not automatically do so.

=========

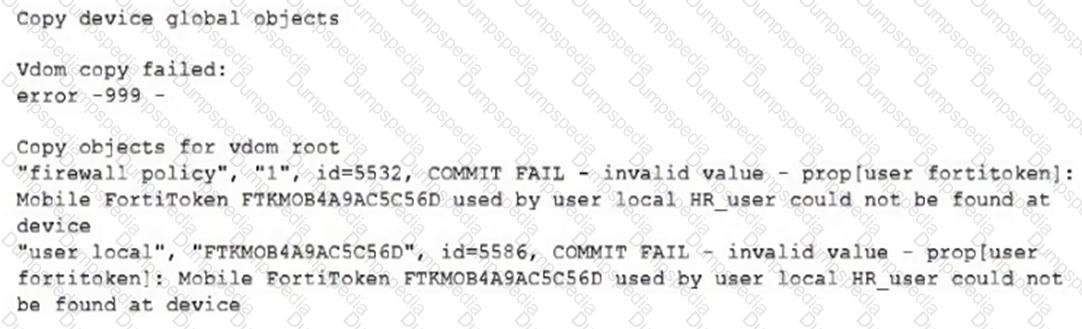

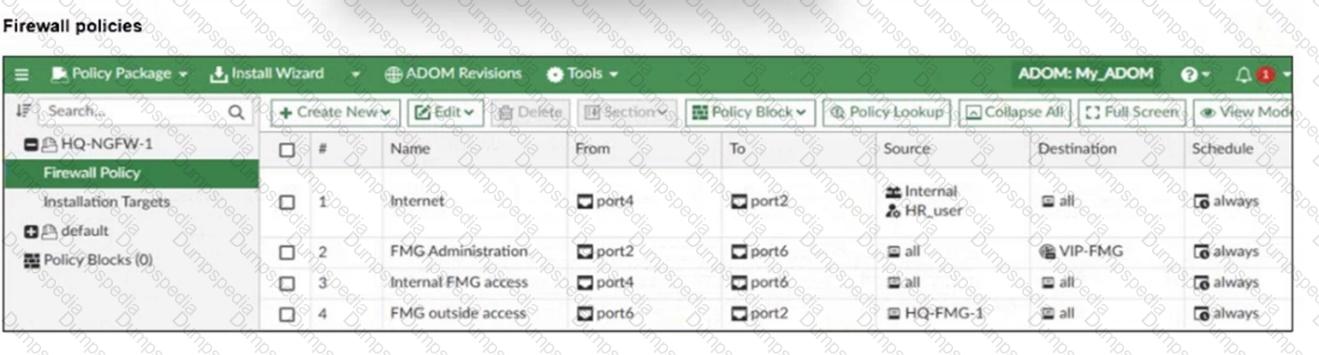

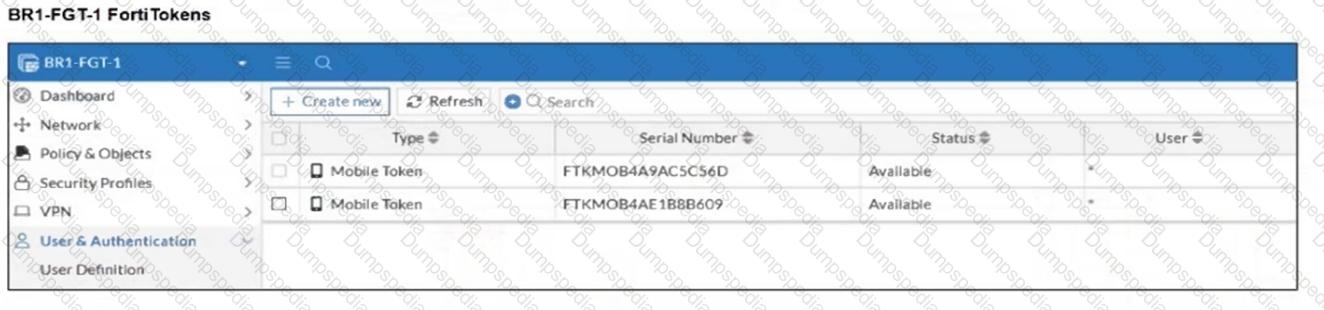

The error occurs because the FortiToken used (FTKM0B4A9AC5C56D) must already exist and be registered on the FortiGate device HQ-NGFW-1. FortiManager cannot push or create new FortiTokens on the device; the token must be valid and present on the FortiGate before it can be assigned to a user.

Running the script through the policy package or ADOM database method allows FortiManager to properly interpret object relationships and dependencies in the IPsec configuration, preventing object mismatch errors when pushing complex VPN settings directly via CLI.

When a script is run using Remote FortiGate Directly via CLI , FortiManager sends the commands straight to the FortiGate and does not preview or validate dependent objects first . The study guide also explains that scripts containing ADOM-level objects or dynamic mappings must be executed on the Policy Package or ADOM Database , then installed through the installation workflow. That matches this IPsec error scenario, where phase2-interface is referencing an object relationship that FortiManager cannot properly validate in direct CLI mode. Therefore, the administrator should run the script on the policy package or ADOM database method , then install it.

Option A addresses only one possible syntax issue. B is a valid deployment approach in general, but it is not what the question asks as the direct fix for this script execution error. C is incorrect and would not resolve the object dependency mismatch.

The correct answer is D . In FortiManager HA manual mode, the study guide explains what happens when members change: if the primary fails, you must manually promote a secondary and repoint the others, but that is not this scenario. For a failed secondary , the relevant exact extract is: “if you remove a secondary member from the HA configuration, the primary FortiManager removes the secondary serial number from the central management configuration of FortiGate, and updates the managed FortiGate devices immediately.”

Operationally, in the HA configuration, removing that failed secondary means deleting its HA peer entry from the primary, which corresponds to removing the failed device’s peer IP . A is false because manual HA is not transparent in this case. B is only a diagnostic detail. C applies when the primary fails, not a secondary.

=========

In backup mode, FortiManager does not directly manage policy installation via the usual ADOM policy packages; instead, administrators use FortiManager scripts to push configuration changes, including policies, to FortiGate devices.

The correct answer is C . The FortiManager 7.6 Administrator Study Guide states that after adding the root FortiGate of a Security Fabric, all downstream devices in the fabric are automatically added as Unauthorized in the root ADOM . That directly matches option C.

This is important because the administrator created a FortiGate-only ADOM named Training, not a Fabric ADOM. The lab guide explains that a FortiGate ADOM is intended for FortiGate devices, while the Fabric type is the special ADOM type that allows FortiGate and other device types together.

So the downstream members are not automatically authorized, and they do not immediately appear as managed devices inside the Training ADOM. They first appear as unauthorized devices in the root ADOM , where the administrator can review and authorize them.

=========

The correct answer is B . The FortiManager 7.6 Administrator Study Guide explicitly states: “CLI scripts use the FGFM tunnel and the FGFM tunnel is authenticated using the FortiManager and FortiGate serial numbers.” It also states: “Tcl scripts do not run through the FGFM tunnel like CLI scripts do. Tcl scripts use SSH to tunnel through FGFM and they require SSH authentication to do so.”

This is the exact reason CLI scripts can run without prompting for SSH authentication every time: they use the existing secure FGFM management tunnel , not a separate interactive SSH login. The FGFM section of the study guide also confirms that this is a secure communication tunnel established between FortiManager and managed FortiGate devices.

So the enabler is not legacy login, script location, or the “Remote FortiGate Directly” option by itself. It is the FGFM secure management tunnel .

The correct answer is B because FortiManager supports ADOM-level metadata variables in scripts and templates . The study guide explicitly states that meta fields cannot be used as variables in scripts or provisioning templates ; instead, you must use ADOM-level metadata variables . It further says these variables can be used in templates , and their values can be mapped depending on the device where the template is applied.

That makes metadata variables the proper method for handling per-device differences such as whether a FortiGate should use a LAN or WAN source interface for FortiAnalyzer communication. A is wrong because per-device dynamic objects apply to objects like addresses and VIPs, not template interface selection. D is wrong because meta fields are comments/attributes, not template variables. C could work operationally, but it is not the FortiManager feature intended for this use case.

=========
