FCSS_EFW_AD-7.6 Sample Questions Answers

The Multi-Exit Discriminator (MED) is a BGP attribute used to influence the preferred path for incoming traffic from an external autonomous system (AS). The diagram shows that FortiGate_1 advertises MED 200, while FortiGate_2 advertises MED 300, meaning the ISP will prefer the route through FortiGate_1 because a lower MED is preferred in BGP.

To modify the MED value on FortiGate_1 for routes advertised to AS 30, the administrator must configure a route-map-out. A route map can match specific routes and set the MED value before sending them to the BGP neighbor.

In a Fortinet Security Fabric where SAML SSO is enabled, the root FortiGate acts as the Identity Provider (IdP) for the fabric members. When an administrator logs into a downstream device (such as an ISFW or DCFW) using their Security Fabric credentials, their level of access is determined by the administration profile assigned during the setup. By default, for security reasons and to maintain the root ' s role as the primary management point, downstream fabric members often restrict these users to a readonly admin profile (specifically super_admin_readonly), which prevents them from having Login Read-Write options on those devices.

==============

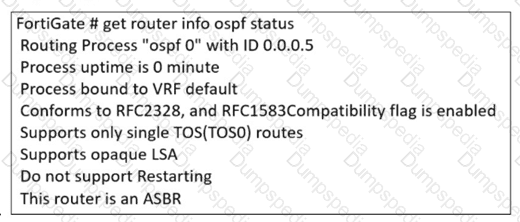

From the OSPF status output, the key information is:

● " This router is an ASBR " → This means the FortiGate is acting as an Autonomous System Boundary Router (ASBR).

● An ASBR is responsible for injecting external routing information into OSPF from another routing protocol (such as BGP, static routes, or connected networks).

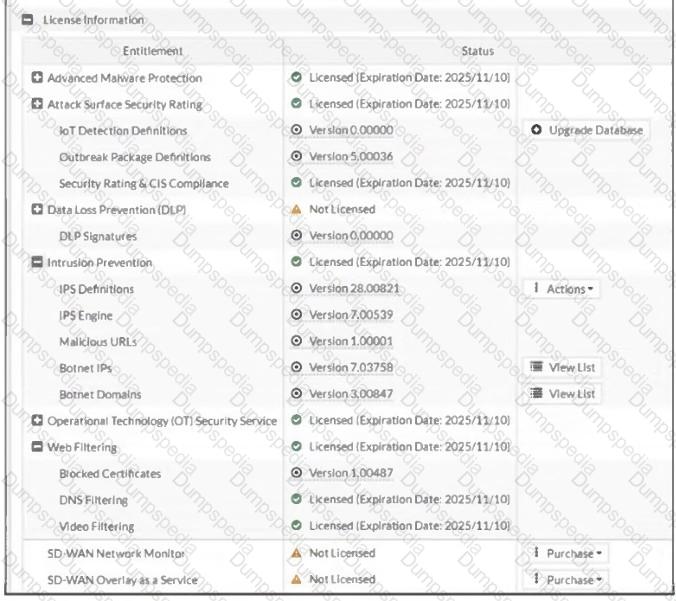

Unlike IPS or antivirus databases, FortiGate does not store a full web filter database locally. Instead, FortiGate queries FortiGuard (or FortiManager, if configured) dynamically to classify and filter web content in real time.

Key points:

● Web filtering works on a cloud-based model:

● When a user requests a website, FortiGate queries FortiGuard servers to check its category and reputation.

● The response is then cached locally for faster lookups on repeated requests.

● No local web filter database version:

● Unlike IPS and antivirus, which download and store signature updates locally, web filtering relies on cloud-based queries.

● This is why no database version appears in the GUI.

● Flow mode vs Proxy mode:

● In proxy mode, FortiGate can cache some web filter data, improving performance.

● In flow mode, all queries happen dynamically, with no locally stored database.

When FortiGate processes the first packets of a session, it follows a sequence of steps to determine how the traffic should be handled before establishing a session. The initial step involves:

● Access Control List (ACL) checks: Determines if the traffic should be allowed or blocked based on predefined security rules.

● Hardware Packet Engine (HPE) inspections: Ensures that packet headers are valid and comply with protocol standards.

● IP Integrity Header Checking: Verifies if the IP headers are intact and not malformed or spoofed.

Once these security inspections are completed and the session is validated, FortiGate then installs the session in hardware (if offloading is enabled) or processes it in software.

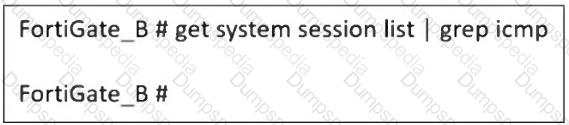

In an FGSP (FortiGate Session Life Support Protocol) cluster, sessions are synchronized between members to provide seamless failover or handle asymmetric traffic. By default, FortiGate only synchronizes connection-oriented sessions (TCP). For connectionless sessions such as ICMP or UDP , synchronization must be explicitly enabled using the session-pickup-connectionless setting under the HA configuration. Without this setting, connectionless traffic remains local to the device that processed it and is not reflected in the session table of peer members.

==============

Network segmentation is a critical security practice used to divide a larger network into smaller, isolated sub-networks to improve security and performance.

VDOM (Virtual Domain): A FortiGate unit can be partitioned into multiple virtual domains (VDOMs) that act as independent units. This provides complete virtualization of the security configuration and network segmentation within a single physical device.

VLAN (Virtual Local Area Network): A VLAN is a logical subdivision of a network at Layer 2 that segregates devices into separate broadcast domains. The study guide explicitly lists " VLANs, VDOMs, zone-based interfaces, and micro-segmentation " as key features for internal segmentation firewalls (ISFW).

==============

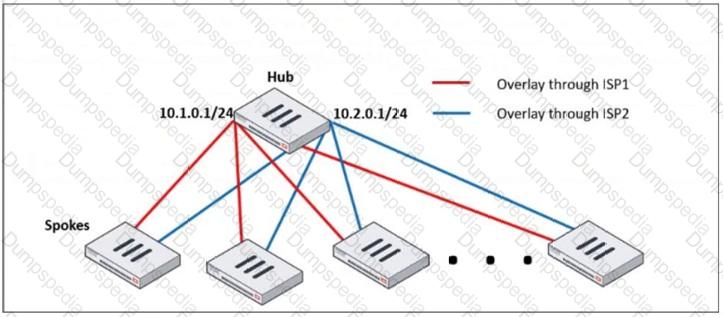

When configuring ADVPN (Auto-Discovery VPN) to connect overlay networks across different hubs using IBGP and EBGP, special configurations are required to allow spokes from different overlay networks to dynamically establish tunnels.

● set auto-discovery-crossover enable

● This allows cross-hub tunnel discovery in an ADVPN deployment where multiple hubs are used.

● Since Hub A and Hub B belong to different overlays, enabling crossover discovery ensures that spokes from one overlay can dynamically create direct tunnels to spokes in the other overlay when needed.

● set enforce-multihop enable

● This setting ensures that BGP peers using loopback interfaces can establish connectivity even if they are not directly connected.

● Multihop BGP sessions are required when using loopback addresses as BGP peer sources because the connection might need to traverse multiple routers before reaching the BGP neighbor.

● This is especially useful in ADVPN deployments with multiple hubs, where routes might need to cross from one hub to another.

Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:

To deploy ADVPN (Auto-Discovery VPN) efficiently across an enterprise, Fortinet recommends centralized orchestration and standardized provisioning:

VPN Manager (A): Within FortiManager, the VPN Manager is the primary tool for orchestrating complex VPN topologies. It allows administrators to define a Hub-and-Spoke community and enable ADVPN features (like shortcuts) globally across all participating devices from a single interface.

IPsec templates (D): These templates (found under Provisioning Templates in FortiManager) allow administrators to define standard Phase 1 and Phase 2 settings once and apply them to multiple model devices or device groups. This ensures consistency across the enterprise and significantly reduces the manual configuration required for each spoke.

==============

neighbor-group:

● This command is used to group multiple BGP neighbors with the same configuration, reducing redundant configuration.

● Instead of defining individual BGP settings for each spoke, the administrator can create a neighbor-group and apply the same policies, reducing manual work.

neighbor-range:

● This command allows the configuration of a range of neighbor IPs dynamically, reducing the need to manually define each spoke neighbor.

● It automatically adds BGP neighbors that match a given prefix, simplifying deployment.

Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:

In an OSPF status output (typically retrieved via get router info ospf status), the unit identifies its role within the OSPF autonomous system. If the output indicates that the device is an ASBR (Autonomous System Boundary Router) , it means the FortiGate is redistributing routes from another protocol (like BGP, RIP, or static routes) into OSPF. The status will explicitly state " This router is an ASBR " if redistribution is active. This role is critical for providing connectivity between OSPF and external networks.

==============

Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:

In BGP (Border Gateway Protocol), there are two primary ways to inject routes into the BGP table: using the network command or through redistribution. The network command is the standard and most precise method for advertising a specific prefix that already exists in the local routing table.

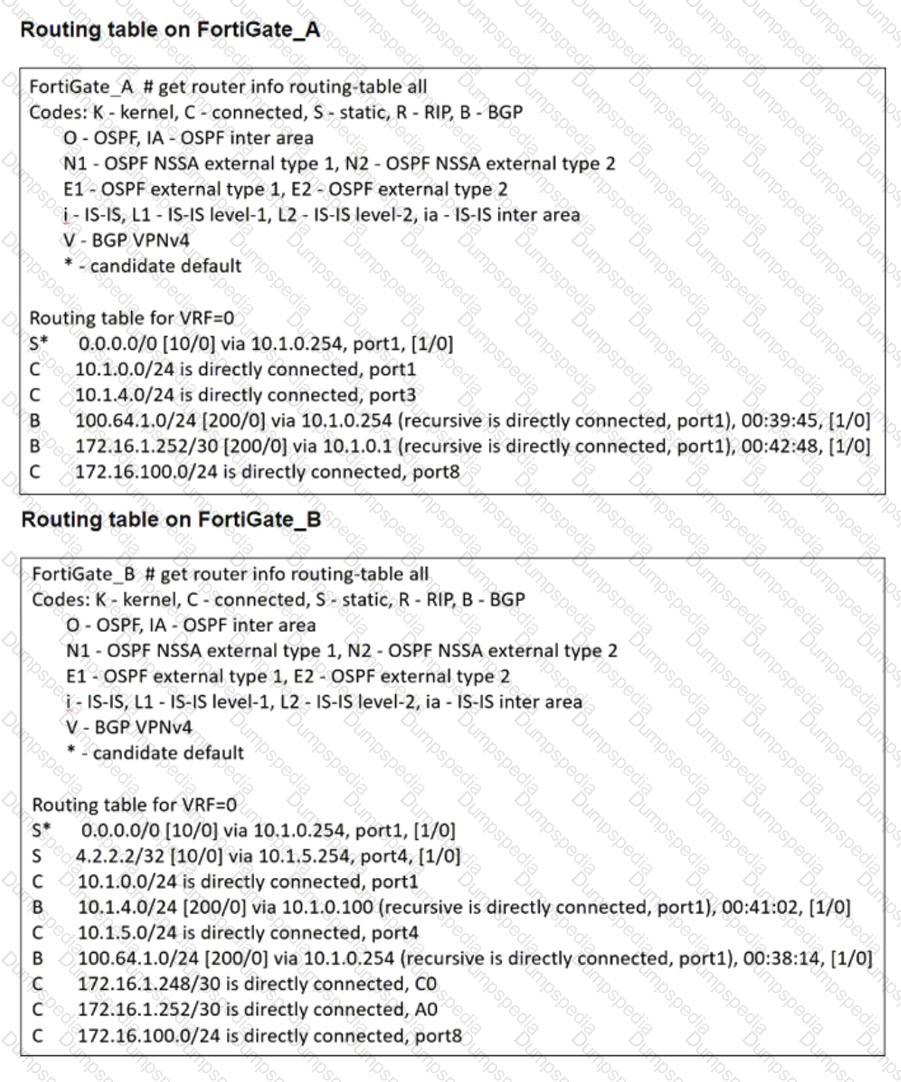

In the lab environment, " Link C " is identified as the subnet 172.16.1.248/30 , which is directly connected to the FortiGate. By using the Network command (e.g., set network 172.16.1.248 255.255.255.252), the administrator ensures that only this specific prefix is advertised to BGP neighbors. In contrast, " Redistribute connected " (Option A) would advertise every directly connected network on the device, which would require an additional " Route map out " (Option B) to filter, making the " Network " command the most direct and correct configuration for the requirement.

==============

The best way to automate a firewall policy using a daily updated list of IP addresses is by using an external connector from Threat Feeds. This allows FortiGate to dynamically retrieve real-time threat intelligence from external sources and apply it directly to security policies.

By configuring Threat Feeds, the administrator can:

● Automatically update firewall policies with the latest malicious IPs daily.

● Block traffic from those IPs in real-time without manual intervention.

● Integrate with FortiGuard, third-party threat intelligence sources, or custom feeds (CSV, STIX/TAXII, etc.).

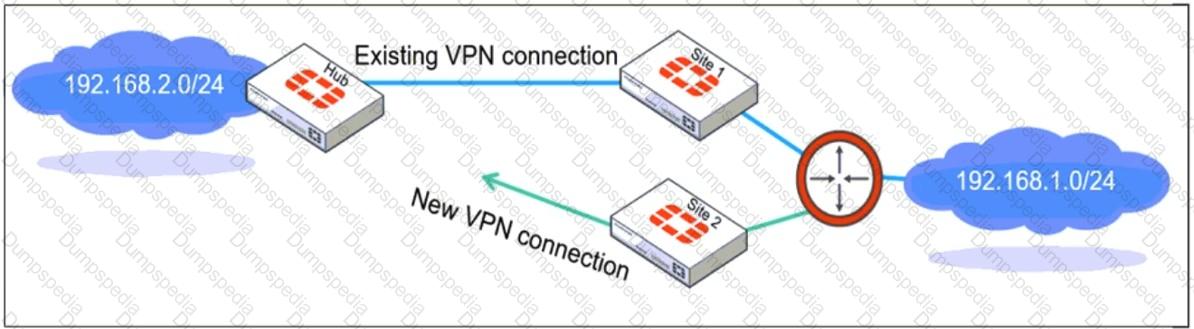

When multiple remote sites connect to the same hub using overlapping subnets, FortiGate needs to determine which route should be used for traffic forwarding. The route-overlap setting in IPsec Phase 2 allows FortiGate to handle this scenario by deciding whether to keep the existing route (use-old) or replace it with a new route (use-new).

In an ECMP (Equal-Cost Multi-Path) routing setup, both routes should be retained and balanced, but FortiGate does not support ECMP directly over overlapping routes in IPsec Phase 2. Instead, an administrator must decide which connection takes precedence using route-overlap settings.

Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:

VXLAN (Virtual Extensible LAN) is a Layer 2 overlay scheme on a Layer 3 network. It uses MAC-in-UDP encapsulation, which adds 50 bytes of overhead to each packet. Processing this encapsulation and decapsulation in software (CPU) is resource-intensive and can lead to performance bottlenecks.

The NPU7 (Network Processor 7) is specifically designed to provide hardware acceleration for various tunnel protocols, including VXLAN. It allows the FortiGate to offload the encapsulation/decapsulation process to the hardware, enabling wire-speed performance and reducing the load on the main CPU. While older NPUs had limited support, the NPU7 architecture includes dedicated engines for VXLAN offloading, making it the required hardware for high-performance VXLAN environments.

==============

In BGP (Border Gateway Protocol), a neighbor (peer) configuration is required to establish a connection between two BGP routers. Since FortiGate A is connecting to the ISP (Autonomous System 10) from AS 30, the administrator must define the ISP ' s BGP router as a neighbor.

The config neighbor command is used to:

● Define the ISP ' s IP address as a BGP peer

● Specify the remote AS (AS 10 in this case)

● Allow BGP route exchanges between FortiGate A and the ISP

According to the FortiOS 7.6 Infrastructure study guide and High Availability (HA) documentation, FortiGate units in an HA cluster use a virtual MAC address to ensure seamless failover. The structure of this virtual MAC address is strictly defined by the Fortinet HA protocol.

For a standard HA cluster, the virtual MAC address format is 00:09:0f:09: < group-id_hex > : < vcluster_port_hex > . However, when VDOMs are enabled, the virtual MAC address prefix changes to e0:23:ff to accommodate the additional complexity of multiple virtual domains. Therefore, the prefix e0:23:ff in the suspicious MAC address e0:23:ff:fc:00:86 confirms that the packet originated from a cluster with VDOMs enabled (Option A).

Regarding the interface identification, the last byte (86) is calculated as follows:

The 0x80 bit indicates virtual-cluster 2 (vcluster 2). Since $0x86 = 0x80 + 0x06$, we know the packet is from vcluster 2.

The remaining value 0x06 represents the interface index. In FortiOS, the index starts at 0 (port1 = 0, port2 = 1, port3 = 2, port4 = 3, port5 = 4, port6 = 5, port7 = 6). Therefore, the index 6 corresponds exactly to port 7 (Option D).

The fourth byte (fc) represents the HA Group ID (252 in decimal). While this is indeed lower than 255, the specific logic of the virtual MAC composition in a VDOM-enabled environment points specifically to the port identification and vcluster status as the primary diagnostic conclusions.

Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:

By default, FortiGate ' s SSL/SSH Inspection profile is configured to recognize and inspect HTTPS traffic on the standard port 443. To inspect HTTPS traffic on a non-standard port , such as 8443 , the administrator must modify the protocol-to-port mapping within the security profile.

In the SSL/SSH Inspection configuration (accessible via Policy & Objects > Security Profiles), there is a section for " HTTPS " where additional ports can be specified. By adding 8443 to this list alongside 443, the FortiGate ' s inspection engine (IPS and UTM) is instructed to apply SSL decryption and analysis to any traffic using port 8443 as if it were standard HTTPS traffic. Without this mapping, the firewall would treat the traffic as an unknown encrypted protocol and would not be able to perform deep content analysis.

==============

When standardizing the deployment of FortiGate devices across branches using FortiManager, the best practice is to use metadata variables. This allows for dynamic interface configuration while maintaining a single, consistent policy package for all branches.

● Metadata variables in FortiManager enable interface roles and configurations to be dynamically assigned based on the specific FortiGate device.

● This ensures scalability and consistent security policy enforcement across all branches without manually adjusting interface settings for each device.

● When a new branch FortiGate is deployed, metadata variables automatically map to the correct physical interfaces, reducing manual configuration errors.

Comprehensive and Detailed Explanation From Exact Extract of Enterprise Firewall 7.6 Administrator documents:

Based on the FortiOS 7.6 Administration Guide and the HA Virtual Clustering documentation, the exhibit demonstrates a Virtual Clustering environment where multiple VDOMs are distributed across an HA cluster.

In a virtual cluster setup, VDOMs are assigned to either virtual cluster 1 (vcluster 1) or virtual cluster 2 (vcluster 2). Each virtual cluster has its own independent primary unit selection process. The primary unit for a virtual cluster is determined based on the standard HA selection criteria: Monitored Interfaces > HA Uptime > Priority > Serial Number.

According to the exhibit:

Virtual Cluster 1 (edit 1) contains VDOMs " Core1 " and " root " .

Virtual Cluster 2 (edit 2) contains VDOM " Core2 " .

The HA uptime is stated to be the same for both devices.

For edit 2 (Core2), HQ-NGFW-1 has a priority of 150, while HQ-NGFW-2 has a priority of 120.

In both units, override is disabled (default).

Since the uptime is equal and no monitored interfaces are down, the cluster uses the Priority value to select the primary unit for each vcluster. Currently, HQ-NGFW-1 is the primary for Core2 because its priority (150) is higher than HQ-NGFW-2 ' s (120). To ensure HQ-NGFW-2 handles the Core2 traffic, its priority for virtual cluster 2 must be increased to a value higher than 150. Option C (changing the priority from 120 to 200) achieves this.

Comprehensive and Detailed 150 to 200 words of Explanation From Exact Extract of Enterprise Firewall 7.6 Administrator documents:

According to the FortiOS 7.6 Administration Guide and the FortiGate Infrastructure study materials, inter-VDOM communication can be achieved using either software-based VDOM links or hardware-accelerated NPU VDOM links (vlinks).

While standard VDOM links (Option B) allow traffic to pass between VDOMs, they are processed by the system CPU, which can become a bottleneck in high-throughput environments. To ensure accelerated internet access as specified in the requirements, NPU vlinks (Option C) must be used. NPU vlinks are virtual interfaces created in pairs that allow traffic to be offloaded to the FortiGate’s Network Processor (NP6, NP7, etc.), significantly reducing latency and CPU overhead.

In the provided exhibit, the root VDOM has direct internet access, while VDOM1 and VDOMn do not. By configuring NPU vlinks between the non-root VDOMs and the root VDOM, you create a hardware-accelerated path. Traffic from the internal VDOMs is sent through the vlink to the root VDOM, which then forwards it to the Internet. This " hub-and-spoke " VDOM architecture, powered by NPU acceleration, ensures that all VDOMs share the internet connection without sacrificing performance.

Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:

VXLAN (Virtual Extensible LAN) is an encapsulation protocol that adds significant overhead due to the addition of outer Ethernet, IP, and UDP headers. Handling this encapsulation and decapsulation in software can lead to high CPU utilization and performance bottlenecks.

The latest generations of Fortinet ' s network processors, specifically the NPU7 , include dedicated hardware support for VXLAN offloading . Hardware acceleration via NPU7 allows the FortiGate to perform VXLAN encapsulation and decapsulation at wire speed within the network processor hardware. This drastically improves performance compared to processing the packets in the CPU (Option A). CP10 (Option C) is a content processor designed for offloading UTM and SSL tasks, while NTurbo (Option B) is a software optimization for offloading flow-based IPS, neither of which are designed for VXLAN header processing.

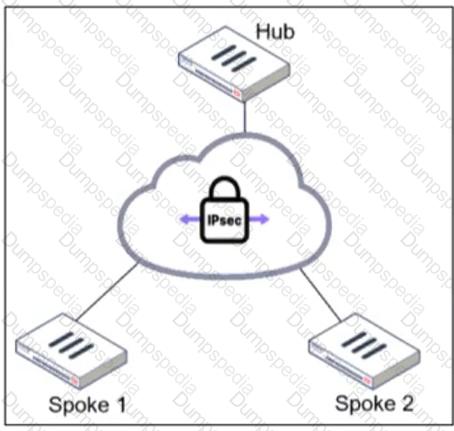

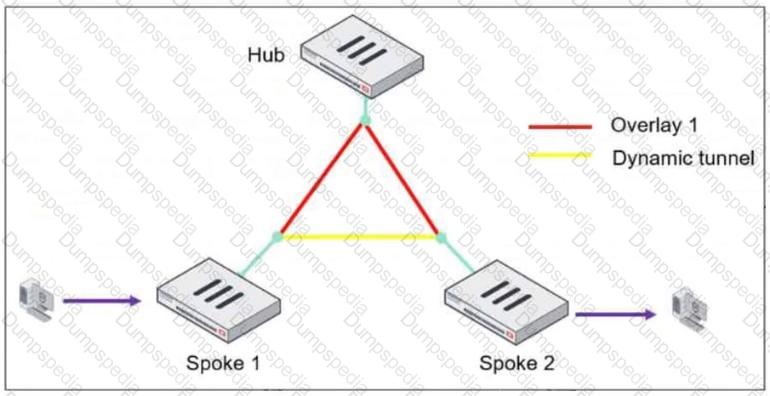

In an ADVPN (Auto-Discovery VPN) network, a dynamic VPN tunnel is established on-demand between spokes to optimize traffic flow and reduce latency.

Process:

1. Traffic Initiation:

A client behind Spoke-1 sends traffic to a device behind Spoke-2.

The traffic initially flows through the hub, following the pre-established overlay tunnel.

2. Hub Detection:

The hub detects that Spoke-1 is communicating with Spoke-2 and determines that a direct shortcut tunnel between the spokes can optimize the connection.

3. Shortcut Offer:

The hub sends a " Shortcut Offer " message to Spoke-1, informing it that a direct dynamic tunnel to Spoke-2 is possible.

4. Tunnel Establishment:

Spoke-1 and Spoke-2 then negotiate and establish a direct IPsec tunnel for communication.

Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:

OSPF external routes (Type 5 LSAs) can be learned from multiple paths. For a FortiGate to install multiple equal-cost paths into the routing table—a feature known as ECMP (Equal-Cost Multi-Path) —the OSPF process must have ECMP enabled and the maximum path count must be set to a value greater than one. If ECMP is disabled or the limit is set to 1, the FortiGate will select only the single best path (based on cost and RFC 1583/2328 selection rules) to install in the routing table, even if multiple valid advertisements exist.

To minimize CPU and RAM usage while still enforcing security features like web filtering and application control, SSL certificate inspection mode is the best choice.

● SSL certificate inspection allows FortiGate to inspect only the SSL/TLS handshake, including the Server Name Indication (SNI) and certificate details, without decrypting the full encrypted payload.

● This enables features like web filtering and application control because FortiGate can determine the destination website or application based on SNI and certificate information.

● It significantly reduces system load compared to full SSL inspection, which requires full decryption and re-encryption of traffic.

Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:

By default, FortiGate ' s security engines are configured to recognize specific protocols on their standard ports (e.g., HTTPS on 443). When traffic uses a non-standard port like 8443, the firewall may not automatically recognize it as HTTPS and thus will not apply the appropriate SSL inspection or category-based filtering. To resolve this, administrators must update the protocol port mapping within the SSL/SSH inspection profile. By adding port 8443 to the mapping for the HTTPS protocol, the FortiGate is instructed to treat traffic on that port as encrypted web traffic, allowing the full SSL inspection engine to decrypt it and enforce the FortiGuard category blocks as defined in the policy.

==============

Encapsulation (such as IPsec, VXLAN, or FGSP synchronization) adds overhead to standard packets, often causing them to exceed the standard MTU of 1500 bytes and leading to fragmentation or dropped packets. The Enterprise Firewall curriculum notes that while " jumbo packets " can be detected as possible attacks by IPS, adjusting MTU and MSS values to account for encapsulation should ideally be performed in a controlled environment . This allows administrators to accurately measure the required overhead and verify that the adjustments do not cause unintended network instability or performance degradation across the entire infrastructure.

==============

Comprehensive and Detailed 150 to 200 words of Explanation From Exact Extract of Enterprise Firewall 7.6 Administrator documents:

Based on the FortiOS 7.6 Infrastructure study guide and official documentation regarding OSPF monitoring, the command output get router info ospf status provides critical details about the OSPF process.

Injecting External Information (Option D): The last line of the exhibit explicitly states, " This router is an ASBR " (Autonomous System Boundary Router). By definition in the OSPF protocol, an ASBR is a router that connects the OSPF network to another routing domain (such as BGP, Static, or Connected routes) and is responsible for injecting external routing information into the OSPF domain.

OSPF ECMP Support (Option B): The output indicates that the OSPF process " Conforms to RFC2328 " . RFC 2328 is the standard for OSPFv2, which includes the capability for Equal-Cost Multi-Path (ECMP). In FortiOS, the OSPF engine supports multi-path routing by default, allowing the device to utilize multiple paths to the same destination if they share the same cost.

Option A is incorrect because the output does not indicate the router ' s DR/BDR election status on a specific segment. Option C is incorrect because " ID 0.0.0.5 " refers to the Router ID, not the OSPF Area ID.

When using IPsec VPNs and VXLAN, additional headers are added to packets, which can exceed the default 1500-byte MTU. This can lead to fragmentation issues, dropped packets, or degraded performance.

To resolve this, the MTU (Maximum Transmission Unit) should be adjusted only if all devices in the network path support it. Otherwise, some devices may still drop or fragment packets, leading to continued issues.

Why adjusting MTU helps:

● VXLAN adds a 50-byte overhead to packets.

● IPsec adds additional encapsulation (ESP, GRE, etc.), increasing the packet size.

● If packets exceed the MTU, they may be fragmented or dropped, causing intermittent connectivity issues.

● Lowering the MTU on interfaces ensures packets stay within the supported size limit across all network devices.

In an ADVPN deployment using iBGP, the Hub uses dynamic BGP peering to manage a large number of spokes. The neighbor-range configuration is used to define the range of IP addresses from which the Hub will accept dynamic BGP connections.

neighbor-group: Within the neighbor-range, you must specify a neighbor-group. This group acts as a template that defines the shared settings for all spokes in that range.

remote-as: The remote-as is a mandatory parameter defined within the associated neighbor-group to identify the autonomous system of the spokes (which, in iBGP, matches the Hub ' s AS). While route-reflector-client is also a required setting for the Hub in this topology, it is a property configured under the neighbor-group, whereas neighbor-group and the group ' s remote-as are the foundational requirements for the range to function.

==============
