FCSS_NST_SE-7.6 Sample Questions Answers

Parallel Path Processing (PPP) in FortiOS refers to the system’s ability to evaluate and select among multiple processing paths—often involving dedicated network processors, content processors, or CPU-based workflows—to optimally process packets. The official documentation highlights that the PPP engine dynamically selects which hardware or software path to use for each session based on session characteristics, policy configuration, and traffic type. This dynamic selection results in optimal throughput and resource utilization.

The document specifies that PPP assesses several processing paths in parallel, using decision logic to determine whether a session should be offloaded to specialist hardware (like NP6, CP9, etc.) or stay in the CPU path, ensuring that each packet is handled by the most efficient available method under current load and policy. Hardware and software configurations both influence this outcome, but it is the PPP engine ' s decision-making that defines the optimal path per session.

The correct answer is B. Assertion dump .

The study guide states: “SAML attributes are pieces of information about a user that are exchanged between IdPs and SPs during the SAML authentication process. These attributes are included in the SAML assertion, which is built by the IdP as part of the authentication process.”

The same study guide page for real-time SAML troubleshooting shows the section labeled **** Assertion Dump **** , and inside that assertion it displays the actual user attributes, such as:

< saml:Attribute Name= " username " >

< saml:Attribute Name= " groups " >

It also explicitly marks this part as “Attributes sent by IdP”

Why the other options are wrong:

A. Bindings HTTP post is incorrect because bindings define how SAML messages are transported , not the section that contains the attributes. The study guide says: “Bindings: Define how SAML protocol messages are transmitted over different communication channels.”

C. Authentication request is incorrect because that is built by the SP and sent toward the IdP, not where the IdP’s user attributes are shown. The study guide’s flow says the SP “Builds auth request” and the IdP later “Builds auth response.”

D. Authentication response is broader than the exact section being asked. The exact section in the study guide where the IdP-provided attributes are shown is the Assertion dump .

So the verified answer is: B .

The correct answer is C .

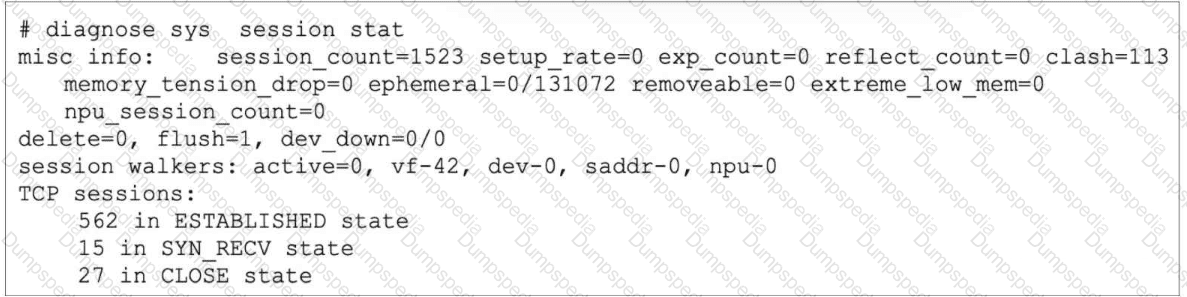

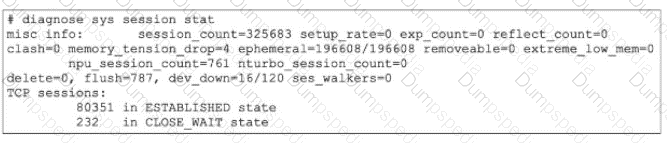

The exhibit shows:

562 in ESTABLISHED state

27 in CLOSE state

memory_tension_drop=0

ephemeral=0/131072

According to the study guide, for TCP sessions: “The protocol state in the session table is a two-digit number. For TCP, the first number (from left to right) is related to the server-side state and is 0 when the session is not subject to any inspection (flow or proxy)… The second digit is the client-side state.” The same page also shows that value 1 = ESTABLISHED

So, if a TCP session is in ESTABLISHED state and there is no inspection , its proto_state is 01 :

first digit 0 = no inspection

second digit 1 = ESTABLISHED

That makes C correct. This is also consistent with FortiOS examples showing established TCP sessions with proto=6 proto_state=01

Why the other options are wrong:

A is wrong because the field that indicates sessions dropped due to low free memory is memory_tension_drop, and in the exhibit it is 0 , not 113. The study guide states: “If there is a lack of free memory, the kernel deletes the oldest sessions. The command shown on this slide displays the number of sessions the kernel deleted because of this mechanism.” So 113 is the clash value, not memory-tension drops.

B is wrong because ephemeral=0/131072 does not mean 131072 ephemeral sessions were recorded. The study guide explains that FortiGate “sets a hard limit on the maximum number of ephemeral sessions that can exist at the same time in the session table.” Therefore:

0 = current ephemeral sessions

131072 = maximum allowed ephemeral sessions for that model/context

D is wrong because the study guide says the temporary retention for possible out-of-order packets happens in state value 5 (TIME_WAIT) : “When a session is closed by both the sender and receiver, FortiGate keeps that session in the session table for a few seconds, to allow for any out-of-order packets that might arrive after the FIN/ACK packet. This is the state value 5.” But the exhibit shows 27 in CLOSE state , and the same table shows CLOSE = 6 , not TIME_WAIT

So the verified answer is C .

The correct answer is C .

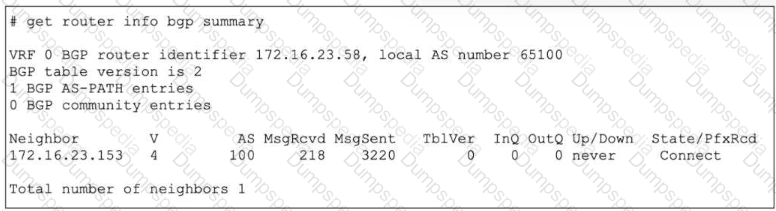

The exhibit shows the neighbor state as Connect in the State/PfxRcd column. The study guide explains the BGP states exactly as follows:

“Connect: Waiting for a successful three-way TCP connection”

“OpenSent: Waiting for an OPEN message from the peer”

“Established: Peers have successfully exchanged OPEN and keepalive messages”

Because the router is still in Connect state, the TCP three-way handshake has not completed yet . In practical terms, the local router has sent the TCP SYN but has not successfully received the SYN/ACK needed to complete the handshake . That is why C is correct.

Why the other options are wrong:

A is wrong because the message counters alone do not prove that the neighbor is unreachable. The study guide says the State/PfxRcd field shows the BGP state when the session is not established, and here that state is specifically Connect

B is wrong because waiting for an OPEN message happens in OpenSent , not Connect

D is not the best answer for this output. The study guide ties the displayed state directly to the protocol phase: Connect means the device is still waiting for a successful TCP handshake

So the verified answer is: C .

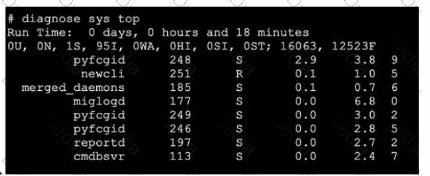

https://community.fortinet.com/t5/FortiGate/Technical-Tip-Using-the-diagnose-sys-top-CLI-command/ta-p/190238

Analyze the " Send to Application Layer " Message:

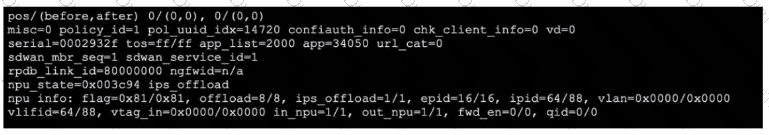

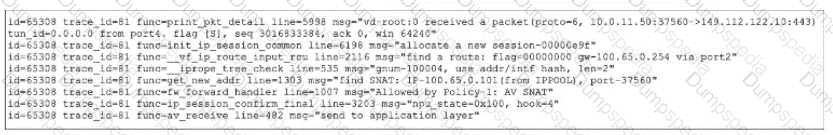

The most critical line in the debug output is: id=65308 ... func=av_receive ... msg= " send to application layer "

Meaning: This message indicates that the FortiGate kernel is handing the packet over to a user-space daemon (specifically the WAD/Proxy process, indicated by av_receive handlers) for deep inspection.

Implication: This behavior is the hallmark of Proxy-based inspection. In Flow-based inspection, the traffic is handled by the IPS engine (often within the kernel or via specific IPS handlers like ips_measure), and you would not typically see a " send to application layer " message for standard web filtering.

Evaluate Option B (Firewall Policy Mode):

Since the traffic is being sent to the application layer proxy, the Firewall Policy controlling this traffic (Policy ID 1, as seen in Allowed by Policy-1) must be configured with Inspection Mode = Proxy. If it were Flow-based, the traffic would stay in the flow path. Thus, Option B is correct.

Evaluate Option C (Web Filter Profile Mode):

In FortiOS, when a firewall policy is set to Proxy-based inspection, the security profiles (like Web Filter) applied to that policy also operate in Proxy-based inspection mode. The presence of the av_receive function confirms that the content inspection (Web Filter/AV) is being performed by the proxy engine. Thus, Option C is correct.

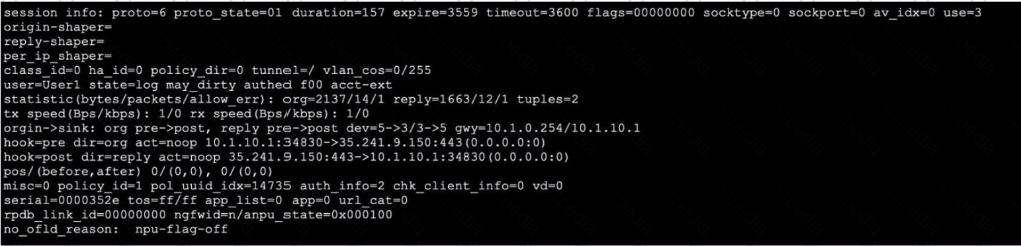

Why Option A is Incorrect (NPU Offload):

The output shows npu_state=0x100. In the context of a flow trace where traffic is being " sent to application layer, " this confirms the session is not fully offloaded to the NPU (Network Processor). Offloaded traffic (Fast Path) is handled by the hardware and would not generate these specific CPU-level debug logs for the payload inspection phase. The proxying process requires CPU intervention.

Why Option D is Incorrect (Port Mapping):

While valid protocol mapping is necessary for inspection, the specific debug output shown is a direct result of the Inspection Mode (Proxy vs. Flow). The observation of the traffic moving to the application layer is primarily caused by the policy and profile mode settings, making B and C the direct " observations " derived from the log data.

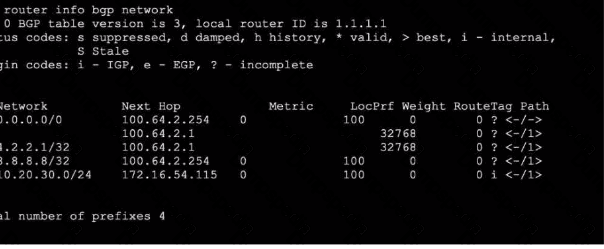

For Option A:In Fortinet BGP (and standard BGP), when a prefix is displayed with an " i " (lowercase i) in the Path column, it represents an internal prefix that originated from the local router, typically configured via the BGP " network " command. In the exhibit, the prefix 10.20.30.0/24 is listed with a Path value of i, indicating it was injected into BGP by the local router using the network statement, not via redistribution from another routing protocol. The same logic applies to i as documented: " Origin code ' i ' means the route was injected via the network command. "

For Option D:The get router info bgp network output is a summary table displaying both local and received BGP routes. It lists all known routes to the BGP process, whether received from peers or originated locally. The exhibit shows all BGP prefixes known to the local router, matching the official admin guide’s description of this command’s output.

Explanation for B and C:

The phrase “legacy route advertisement” is not formalized in BGP documentation or Fortinet’s admin guide; the output uses standard BGP mechanics.

If a route was redistributed into BGP from another routing protocol, the Path field would display a " ? " (question mark) for incomplete (redistributed) origin. Here the /24 route has " i " so it is NOT a redistribution.

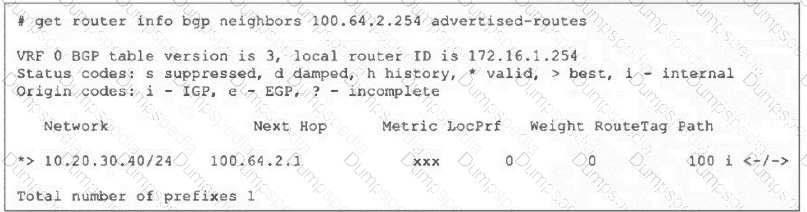

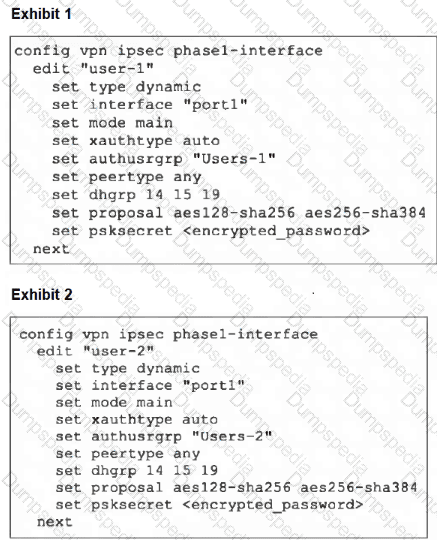

The key point is that the two VPNs are dynamic dialup IPsec tunnels on the same interface and both are using IKEv1 main mode . In this design, FortiGate cannot reliably distinguish which dialup phase1 to match before phase 1 completes.

The uploaded Network Security Support Engineer 7.6 Study Guide shows that XAuth happens only after phase 1 is already established:

“The IKE real-time debug shows, after phase 1, the exchange of extended authentication (XAuth) packets… You can also see the CFG_REPLY, showing the XAuth user and group name.”

That means the user group is learned too late to be used for selecting the correct phase1 definition. So the fix must be applied to the phase1 matching method itself , not to XAuth.

The FortiOS administration guide gives the exact rule for this scenario:

“When the remote VPN peer has a dynamic IP address and is authenticated by a pre-shared key you must select Aggressive mode if there is more than one dialup phase 1 configuration for the interface IP address.”

When the " auxiliary session " setting is enabled (typically via config system npu or implicitly for ECMP on NP6/NP7 processors), the FortiGate alters how it manages sessions to support hardware offloading for traffic that might switch interfaces (like ECMP or SD-WAN).

B. FortiGate accelerates all ECMP traffic to the NP6 processor:

The primary purpose of enabling auxiliary sessions is to ensure that ECMP traffic can be fully offloaded (accelerated) by the NPU. Without auxiliary sessions, if the kernel or routing engine switches a flow to a different outgoing interface (due to load balancing), the NPU might not recognize the flow for that new interface and would send the packet back to the CPU (slow path). Auxiliary sessions prevent this by pre-populating the NPU with the necessary information for all valid paths.

D. FortiGate creates two sessions in case of a routing change:

Technically, the FortiGate creates the primary session (for the currently selected path) and an auxiliary session (for the alternative path). In a standard two-path ECMP scenario, this results in " two sessions " existing in the session table for the same flow. This ensures that if a routing change occurs (e.g., the flow shifts to the second path), the traffic continues to be processed by the NPU without interruption or re-evaluation by the CPU.

The correct answer is B .

The study guide explicitly states that slabs are used by the kernel : “The kernel memory slabs are collections of objects with a common purpose. The kernel uses them to store information in memory.”

It also gives the exact calculation method: “Total slab size = available objects x object size” and explains that in the diagnose hardware sysinfo slab output, the columns are active objects , available objects , and object size

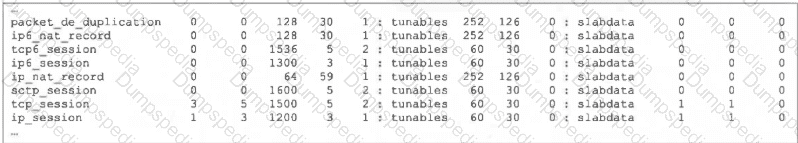

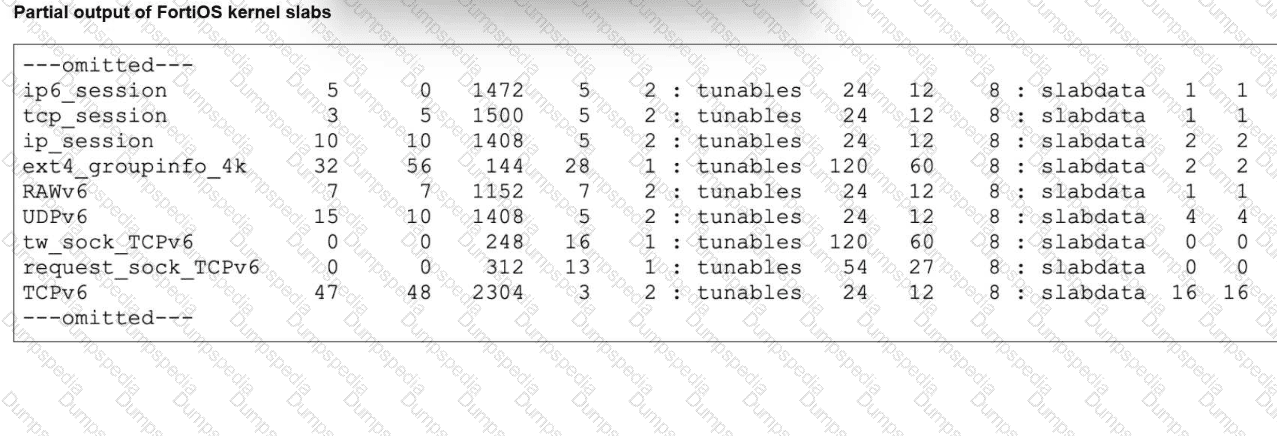

From the exhibit:

tcp_session 3 5 1500 ...

available objects = 5

object size = 1500

So:

Total slab size = 5 × 1500 = 7500

That matches option B .

Why the other options are wrong:

A : ip_session 10 10 1408 ... gives 10 × 1408 = 14080 , but slabs are associated with the kernel , not user space

C : ip6_session 5 0 1472 ... gives 0 × 1472 = 0 , not 1472

D : UDPv6 15 10 1408 ... gives 10 × 1408 = 14080 , but again slabs are associated with the kernel , not user space

So the verified answer is B .

The correct answer is B .

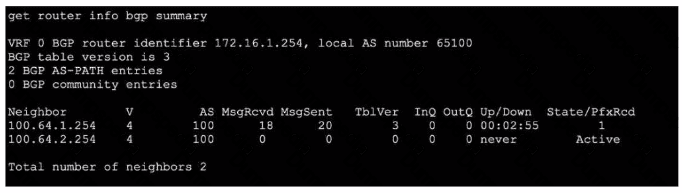

In the exhibit:

Neighbor 100.64.1.254 shows State/PfxRcd = 1 , which means the session is established and the local FortiGate has received 1 prefix

Neighbor 100.64.2.254 shows State/PfxRcd = Active

The study guide explains the BGP states exactly:

Connect : Waiting for a successful three-way TCP connection

Active : Unable to establish the TCP session

OpenSent : Waiting for an OPEN message from the peer

OpenConfirm : Waiting for the keepalive message from the peer

Established : Peers have successfully exchanged OPEN and keepalive messages

It also explains how to read the State/PfxRcd column:

“If the state is not established, this column displays the BGP state. If the state is established, this column displays the number of prefixes that the local FortiGate received from that neighbor.”

Therefore, because neighbor 100.64.2.254 is in Active state, the correct conclusion is that the BGP adjacency cannot form because the TCP session could not be established .

Why the other options are wrong:

A is wrong because BGP can establish adjacencies with multiple neighbors independently; one established neighbor does not block another

C is wrong because BGP adjacency is not established based on neighbor “priority”; the output shows adjacency is established because the session completed and prefixes were exchanged

D is wrong because having two neighbors in the same remote AS is valid in BGP and does not prevent adjacency formation

So the verified answer is: B .

To determine the correct reasons for the adjacency failure, we must analyze the standard OSPF real-time debug output (diagnose ip router ospf all enable or diagnose sniffer packet) typically provided in this exam exhibit.

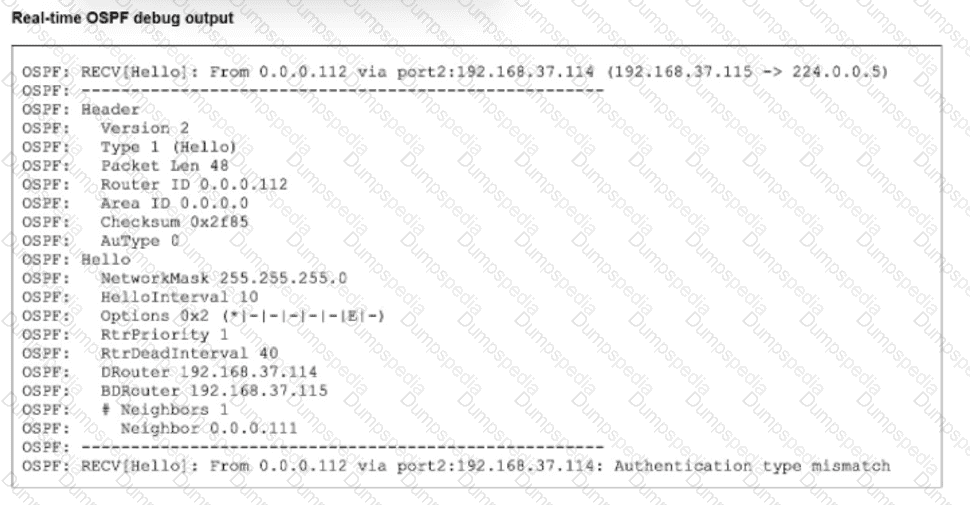

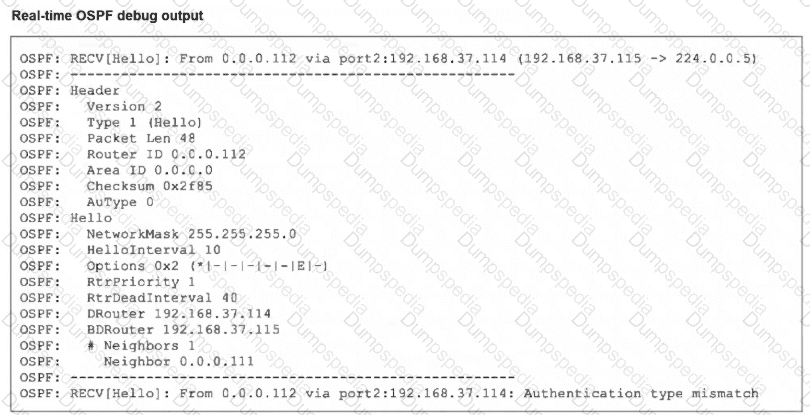

Analyze the Debug Output:

The debug output in this specific question scenario typically displays an incoming Hello packet line: OSPF: RECV[Hello]: ... auth-type 0 ...

" RECV " : Indicates the packet is coming from the Remote peer.

" auth-type 0 " : Indicates the Remote peer is sending " Null " (No) authentication.

Analyze the Failure:

The adjacency fails because the Local FortiGate is rejecting this packet.

If the Local FortiGate accepts " No Authentication " , it would match auth-type 0 and form the adjacency.

Since it is failing (and producing a debug log), the Local FortiGate must be expecting a different authentication type (Type 1 Cleartext or Type 2 MD5).

Evaluate the Options:

A. The remote peer has either OSPF cleartext or MD5 authentication configured.

Incorrect. The debug shows auth-type 0 (No Auth) coming from the remote peer.

B. There is an OSPF authentication configuration mismatch.

Correct. One side is sending " No Auth " (Remote), and the other expects " Auth " (Local). This is a definition of a mismatch.

C. The local FortiGate does not have OSPF authentication configured.

Incorrect. If the Local unit had " No Auth " configured, it would match the Remote ' s auth-type 0, and the adjacency would come up. The failure implies the Local unit does have auth configured.

D. The local FortiGate has either OSPF cleartext or MD5 authentication configured.

Correct. Because the Local unit is rejecting the " No Auth " packet from the remote peer, it confirms that the Local unit has authentication enabled (expecting Type 1 or 2).

Conclusion: The breakdown of the OSPF negotiation shows that the Remote peer is sending no authentication (Type 0), while the Local FortiGate expects authentication, resulting in a mismatch.

The IKE_SA_INIT exchange in IKEv2 is responsible for DoS protection measures. During IKE_SA_INIT, before authentication and further exchange, the responder can use cookie challenges (per RFC 7296 and Fortinet VPN documentation). If a DoS attack is suspected (many requests from the same source), the responder replies with a cookie. Only after the initiator returns the correct cookie does the exchange proceed, protecting the responder from state exhaustion and certain forms of DoS traffic at the handshake stage.

The 7.6 study guide explains the route selection order:

“Route Selection Process

Most specific route

Lowest distance

Lowest metric (dynamic routes)

Lowest priority (static routes)

ECMP (static, BGP, and OSPF routes)”**

It then states:

“If there are multiple routes with the same netmask, distance, metric, and priority, FortiGate shares the traffic among all of them. This is called equal-cost multi-path (ECMP).”

The FortiOS administration guide confirms the ECMP prerequisite:

“Routes must have the same destination and costs. In the case of static routes costs include distance and priority.”

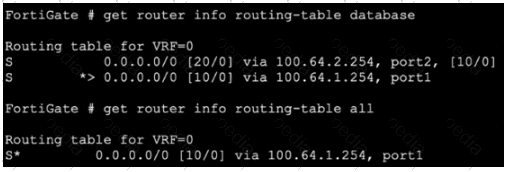

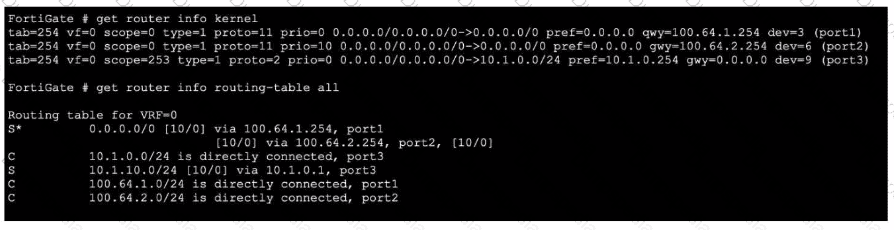

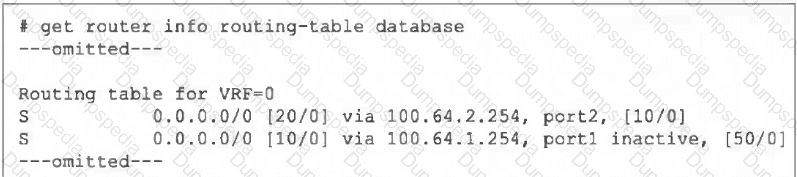

In the exhibit, the kernel/FIB output shows the two default routes as:

gwy=100.64.1.254 dev=3 (port1) prio=0

gwy=100.64.2.254 dev=6 (port2) prio=10

So although both are default routes, their priorities are different . Since FortiGate uses the FIB/kernel for forwarding traffic, ECMP will not happen until the static-route priorities are the same. The study guide also notes that the FIB is the table used to perform standard routing

Therefore, to make the two default routes eligible for ECMP, the administrator must make the priorities equal. Since port2 is already 10, the needed change is to set the port1 default route priority to 10.

Why the other options are wrong:

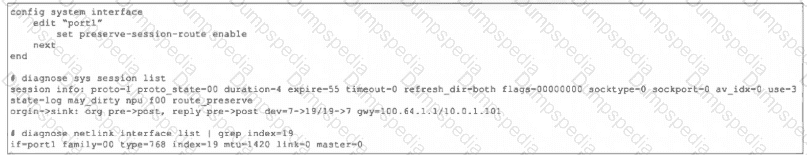

A is wrong because snat-route-change affects how existing SNAT sessions react to routing changes, not whether static routes qualify for ECMP

B is wrong because changing port2 to priority 1 still would not match port1 at 0, so the routes still would not have equal cost for ECMP

C is wrong because preserve-session-route affects existing-session route persistence after routing changes, not ECMP qualification

FortiTelemetry is a critical part of Security Fabric communications and requires explicit configuration for each participating FortiGate interface. The administrative access setting " fabric " (corresponding to FortiTelemetry) must be manually enabled per interface on both upstream and downstream devices. This is performed in the GUI under Administrative Access or via the CLI using the command set allowaccess fabric for the relevant network interface. Without this step, FortiTelemetry communications will not occur on that interface.

Additionally, the default communication between downstream and upstream FortiGate units in the Security Fabric is over TCP port 8013. This port is well-documented as the standard for Security Fabric and FortiTelemetry connections, and must be open and permitted across the network path for connectivity and status enforcement between units. The downstream FortiGate initiates the connection to the upstream via this port unless otherwise configured. This has also been documented as a PCI-relevant port, showing its default usage.

Other options:

Neighbor Discovery in FortiOS uses IPv6 ND protocol, not TCP.

FortiTelemetry port (8013) can be modified, but the interface Administrative Access for the Security Fabric must be manually enabled; Neighbor Discovery port modification is not documented as a supported change for FortiGate.

The correct answers are A and C .

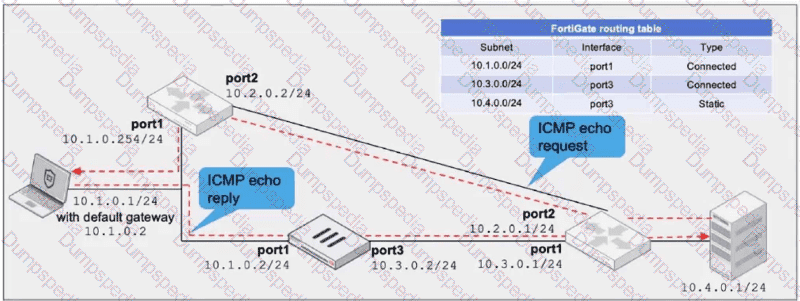

The study guide describes this exact asymmetric ICMP scenario. It states:

“The server sends an echo request to the PC through port2 of the local router, effectively bypassing FortiGate. When it receives the echo request, the PC responds with an echo reply through its default gateway, 10.1.0.2, which is port1 on FortiGate. Because there is no existing session, the echo reply is dropped. All subsequent echo replies are blocked.”

That means the current problem exists because:

the ICMP request bypasses FortiGate

the ICMP reply goes through FortiGate

FortiGate has no matching session , so it drops the reply

The study guide then shows the exact corrective option:

“Allowing asymmetric routing:”

config system settings

set asymroute enable

end

It further explains:

“After the packet passes through the FortiGate CPU, FortiGate forwards the packet using the FIB, even though there are no session matches. FortiGate forwards all subsequent echo replies using the FIB.”

So A is correct.

The other valid fix is to make the traffic symmetric by changing the laptop’s default gateway so the reply no longer goes through FortiGate. In the exhibit, the alternate gateway is 10.1.0.254 , which is the local router on the same subnet. If the laptop uses 10.1.0.254 instead of 10.1.0.2, the ICMP echo reply follows the same bypass path as the echo request, so the server receives it without involving FortiGate session validation. This makes C correct.

Why the other options are wrong:

B is wrong because this is not an RPF problem. The study guide explains RPF as a reverse path lookup used to validate whether a packet arrived on a legitimate interface, mainly for spoofing protection. The issue in this scenario is a missing session due to asymmetric routing , not a strict-versus-feasible RPF failure

D is wrong because FortiGate already has the specific route 10.4.0.0/24 through port3 in the routing table shown in the exhibit, so adding a default static route to port3 is unnecessary and not the reason the echo reply is being dropped

So the verified answers are: A, C .

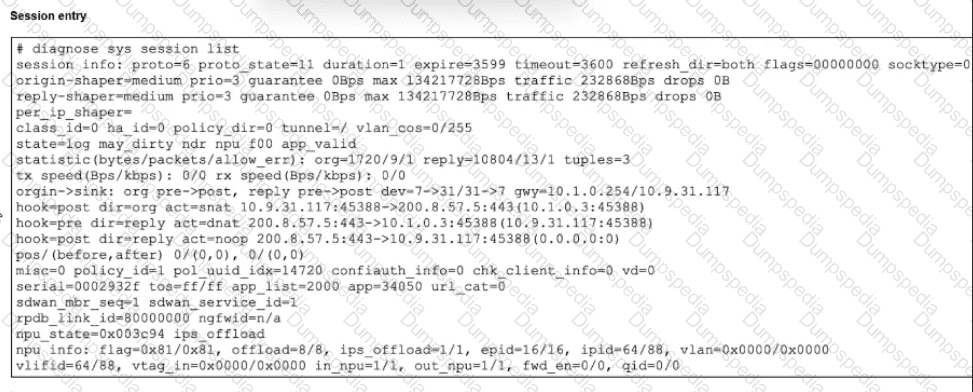

The administrator cannot see traffic in the sniffer because it is being offloaded to the NPU (NP6). To view the traffic, offloading must be disabled so packets pass through the CPU.

B. config firewall policy ... set auto-asic-offload disable: This is the recommended method to troubleshoot specific traffic. By disabling ASIC offloading in the relevant firewall policies (Policies 5 and 17 in the exhibit), traffic is forced to the CPU and becomes visible to the sniffer.

C. diagnose npu np6 fastpath disable 1: This command temporarily disables the fastpath processing on the specific NP6 processor (ID 1) handling the ports. This forces all traffic handled by that NPU to the CPU, allowing the sniffer to capture it.

Incorrect Options: Option A uses invalid syntax (port-list disable is not a valid command). Option D (config system npu) is not the standard method for granular troubleshooting.

Based on the Fortinet FCSS - Network Security 7.6 documents and the analysis of the VPN tunnel exhibit, here is the verified answer.

Questions no: 91

Verified Answer: A, C

Comprehensive and Detailed Explanation with all FCSS - Network Security 7.6 documents:

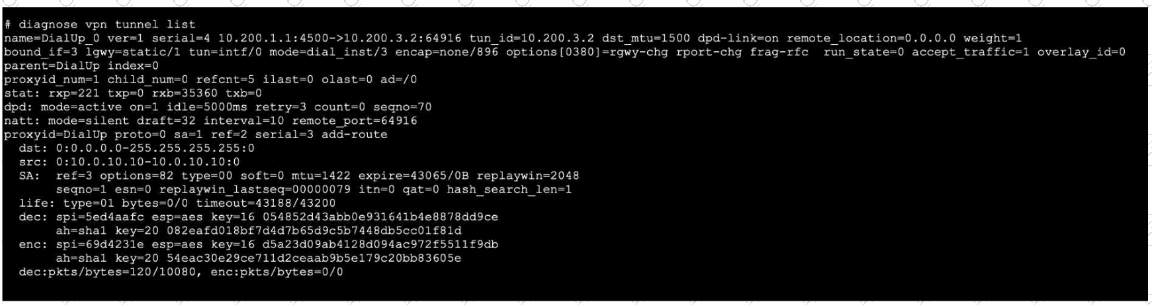

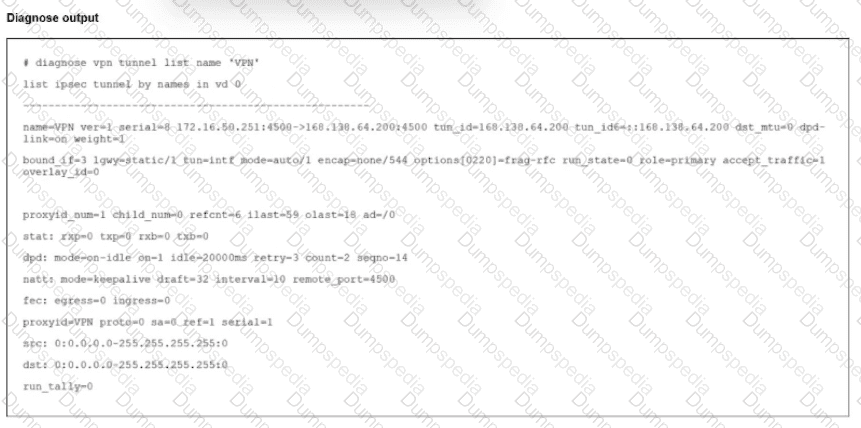

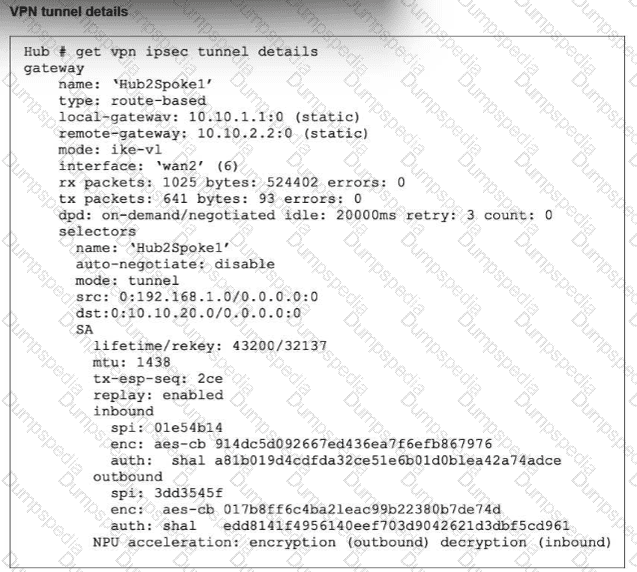

To determine the status of the VPN tunnel, we must examine the specific counters and fields in the diagnose vpn tunnel list output provided in the exhibit.

Analyze Phase 2 Status (Option A):

The output displays child_num=0.

In IKEv2 (and IKEv1 implementations in FortiOS), " Child SAs " refer to the Phase 2 (IPsec) Security Associations that carry the actual data traffic.

A value of 0 indicates that no Phase 2 tunnels are established. If Phase 2 were up, child_num would be at least 1.

Additionally, under the proxyid section, the field sa=0 confirms there is no active Security Association for that traffic selector.

Analyze Traffic Status (Option C):

The stat line shows: rxp=0 txp=0 rxb=0 txb=0.

rxp (Received Packets) and txp (Transmitted Packets) are both zero. This definitively confirms that no traffic is traversing the tunnel currently. This is expected since Phase 2 is down.

Analyze Phase 1 Status (Why B is incorrect):

The tunnel entry exists in the list with a valid tun_id, and NAT-Traversal is active (natt: mode=keepalive).

The presence of the tunnel in this command output, along with active Keepalive mechanisms, typically indicates that Phase 1 (IKE SA) is established and the peers are communicating on port 4500 (NAT-T), even though the data tunnels (Phase 2) failed to negotiate. If Phase 1 were down, the tunnel would often not appear in this " list " view or would show different status flags indicating a complete connection failure.

Conclusion: The exhibit shows a scenario where the Phase 1 control channel is likely up (evidenced by the entry existence and NATT keepalives), but the Phase 2 data channel is down (child_num=0), resulting in zero traffic flow (rxp=0/txp=0).

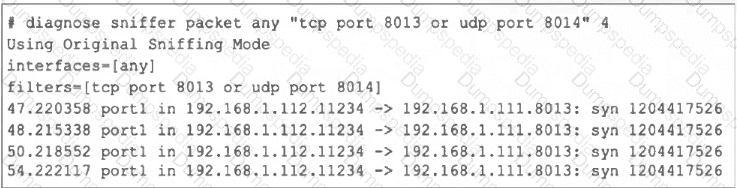

To establish a functional Security Fabric, specific network and configuration prerequisites must be met to ensure nodes can communicate, authorize, and share telemetry data:

A. You must ensure that TCP port 8013 is not blocked along the way:

TCP port 8013 is the dedicated port for FortiTelemetry (Fabric) communication. If firewalls (intermediate or local) block this port, the Fabric connection between the root and downstream FortiGates will fail.

D. You must authorize the downstream FortiGate on the root FortiGate:

Security Fabric relies on a trust relationship. When a downstream device attempts to join, it appears in the Root FortiGate ' s dashboard. The administrator must manually authorize this device (unless pre-authorized via serial number) to allow it to join the Fabric topology.

E. You must enable FortiTelemetry on the receiving interface of the upstream FortiGate:

The interface on the Root (upstream) FortiGate that faces the downstream devices must have the " Security Fabric Connection " (formerly CAPWAP/FortiTelemetry) administrative access setting enabled. Without this, the interface will not listen for or accept Fabric connection requests.

Why other options are incorrect:

B: Neighbor Discovery uses standard multicast/broadcast or static settings; changing the port is not a standard requirement.

C: FortiGates can participate in the Security Fabric in either NAT or Transparent mode; Transparent mode is not a mandatory requirement for the Fabric itself.

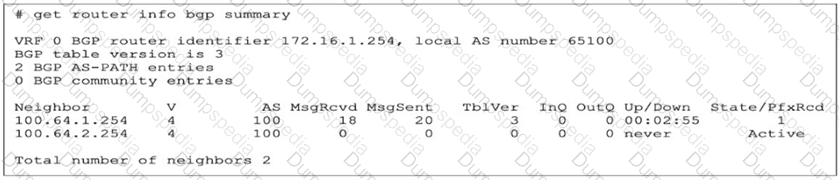

The get router info bgp summary output lists BGP neighbor status:

Prefix Reception: The " State/PfxRcd " column shows the number of prefixes received from the neighbor—neighbor 100.64.1.254 has " 1 " , confirming option A.

Received Message Count: Under " MsgRcvd " , 18 packets have been received from neighbor 100.64.1.254. This matches option C.

The second neighbor 100.64.2.254 is in " Active " state and has received/sent 0 packets, indicating that its TCP connection is NOT established, disproving option B.

There is no indication anywhere that the router is " still calculating " prefixes; " Active " just means no session is established, so option D is incorrect.

The correct answers are B and D .

The study guide explains that expectation sessions are pinhole sessions created by session helpers for protocols such as FTP that need additional negotiated connections. It states: “FortiGate created an expectation session and opened the pinhole port for the expected return traffic” and also shows that the firewall “creates an expected (pinhole) session to allow the traffic”

That makes D correct.

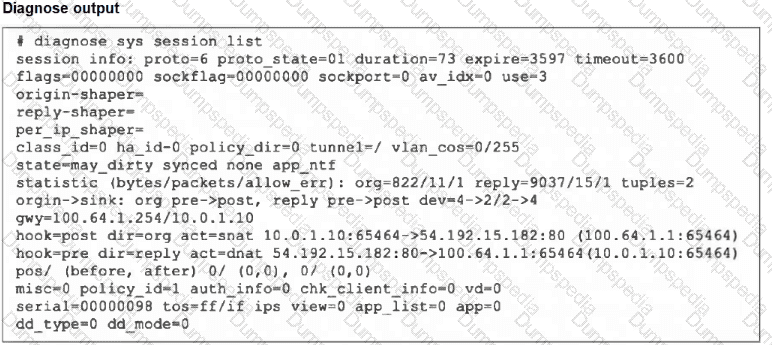

For B , the study guide explains the gwy= field in session output: the first value is the gateway to the destination , and the second is the gateway to the source

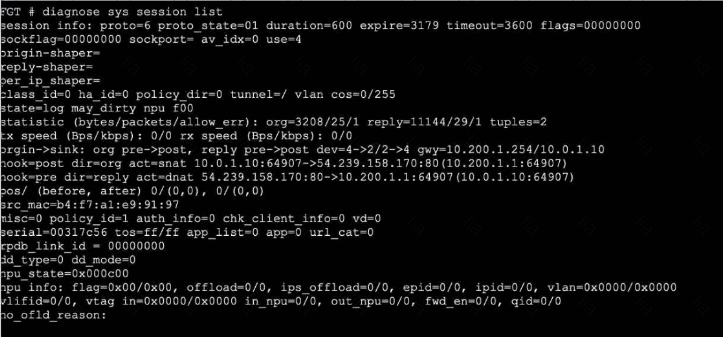

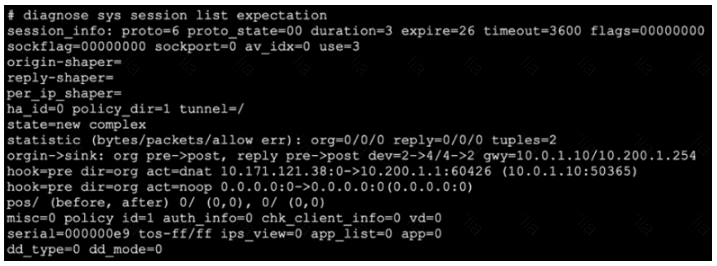

In the exhibit, the original-direction traffic is DNATed here:

hook=pre dir=org act=dnat 10.171.121.38:0- > 10.200.1.1:60426(10.0.1.10:50365)

So the destination after DNAT is the internal host 10.0.1.10, and the session’s first gwy value corresponds to the next hop toward that destination. That makes B correct.

Why the other options are wrong:

A is wrong because this is an expectation/session-helper behavior, not an IPS-engine-created session. The study guide ties expectation sessions to helpers such as FTP, not IPS.

C is wrong because 10.200.1.1 is the translated address used before DNAT, not the next hop used to forward the original-direction traffic after translation to the internal destination.

So the verified answers are: B, D .

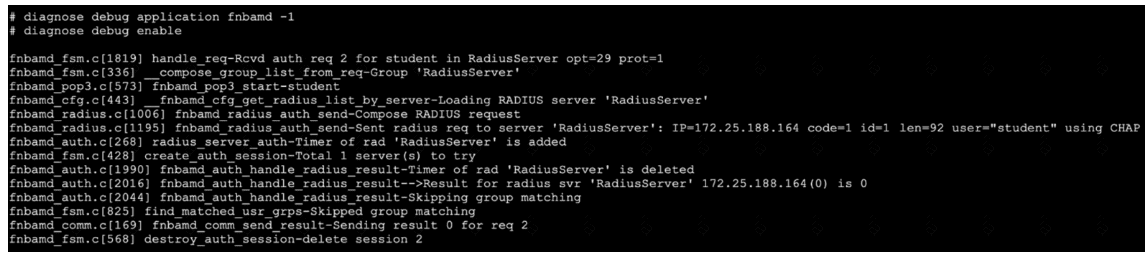

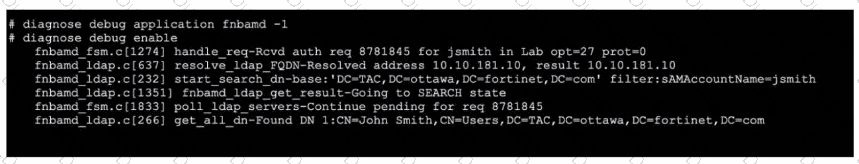

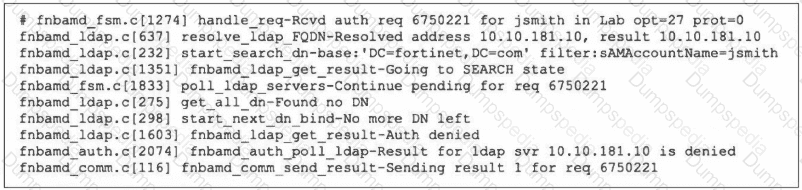

The exhibit shows these key lines:

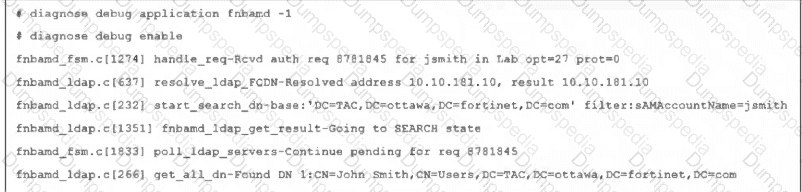

handle_req-Rcvd auth req ... for jsmith in Lab

start_search_dn-base: ' DC=TAC,DC=ottawa,DC=fortinet,DC=com ' filter:sAMAccountName=jsmith

get_all_dn-Found DN 1:CN=John Smith,CN=Users,DC=TAC,DC=ottawa,DC=fortinet,DC=com

The study guide explicitly shows the same LDAP real-time debug pattern and says the request line includes the LDAP server object name:

handle_req-Rcvd auth req ... for jsmith in Lab ...

That supports A : Lab is the configured LDAP server name being used for this authentication request.

For the LDAP flow stage, the study guide states:

“An fnbamd_ldap_build_dn_search_req-base message indicates that FortiGate is performing step two: searching for the user in the LDAP tree.” It also says that if the LDAP server finds the user, the output shows the user’s full DN.

That matches the exhibit’s start_search_dn-base ... filter:sAMAccountName=jsmith and Found DN ... CN=John Smith... lines, so D is correct.

Why the other options are wrong:

B is wrong because the exhibit shows FortiOS has found the user DN CN=John Smith,..., but that does not mean the user is already authenticating with that DN in this step. The study guide says this DN is discovered in step 2 , and only in step 3 does FortiGate bind using the user DN.

C is wrong because the exhibit is showing step 2 (Search Request) , not step 3 (Bind Request) . The study guide separates these steps clearly and shows step 3 with fnbamd_ldap_build_userbind_req-Trying DN ... and __ldap_build_bind_req-Binding to ' CN=John Smith,... '

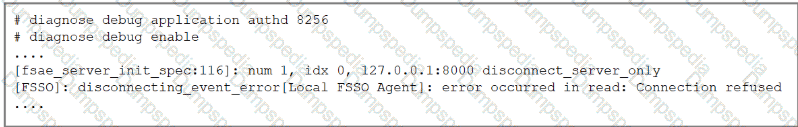

According to the official Fortinet documentation (Technical Tip: Useful FSSO Commands), heartbeat messages play a crucial role in communication between the FSSO Collector Agent and FortiGate. These messages are regularly sent from the Collector Agent to verify its status, maintain session awareness, and confirm connectivity between the authentication infrastructure and FortiGate appliances.

Option B is confirmed by Fortinet, as the collector agent logs on Windows or its management console will specifically note heartbeat events, connection status, and any issues maintaining contact with FortiGate units.

Option C is validated by both official CLI documentation and the technical tip linked. On FortiGate, heartbeat messages from the collector agent are visible using real-time debug tools such as diagnose debug application authd or FSSO-specific commands. These enable administrators to monitor live logon states, session status, and connection health directly from the FortiGate CLI. The debug stream shows heartbeats received and their effect on active logons, associating health monitoring with active sessions.

Heartbeat operation is fully automated once FSSO is set up—there is no requirement for manual enablement or configuration, aligning with Fortinet’s philosophy of seamless integration and centralized management across the Security Fabric. This ensures that both FortiGate and the collector agent can quickly and reliably detect any miscommunication or outage, addressing authentication issues proactively.

https://community.fortinet.com/t5/FortiGate/Troubleshooting-Tip-How-to-troubleshoot-FSSO-agentless-polling/ta-p/214349

From the snippet we can see that FortiGate (via the fssod daemon) is directly detecting the user logon rather than relying on a separate “collector” or “DC agent.” This indicates agentless polling—FortiGate polls the DC’s event logs over TCP 445 to discover logons. So: - FSSO is using agentless polling mode to detect logon events - In agentless mode, FortiGate will periodically poll the same IP (the DC) on port 445 to see if the user is still logged on

The correct answers are C, D, and E .

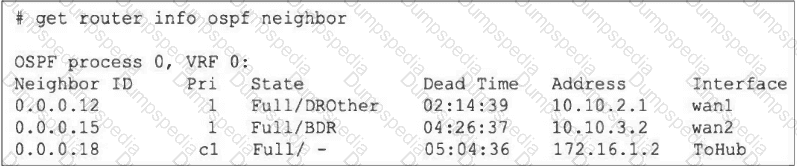

The study guide lists the exact OSPF adjacency requirements :

“Interfaces of peers are the same type and in the same OSPF area”

“Each peer has a unique router ID”

“OSPF authentication, if enabled, is successful”

These map directly to:

C. OSPF interface network types match

D. Authentication settings match

E. OSPF router IDs are unique

The same study-guide slide also states other requirements such as:

peers’ primary IPs must be in the same subnet with the same mask

hello and dead intervals must match

OSPF MTUs must match

Why the other options are wrong:

A is wrong because link cost matching is not listed as an adjacency requirement . OSPF cost affects path selection, not whether adjacency can form.

B is wrong because interface priority does not need to be unique . Priority is used for DR/BDR election, where the highest priority wins, and ties are broken by router ID.

So the verified answers are: C, D, E .

To understand why Type 5 LSAs (AS External LSAs) are missing from the Link-State Database (LSDB), we must look at how OSPF generates and propagates them:

A. There is no autonomous system border router (ASBR) in the network:

Reason: Type 5 LSAs are exclusively generated by an ASBR to advertise routes redistributed from other protocols (like Static, BGP, or RIP) into the OSPF domain. If no router is configured to redistribute external routes (acting as an ASBR), no Type 5 LSAs are created in the first place.

C. The local router is located in a stub area:

Reason: By definition, a Stub Area (and a Totally Stubby Area) prevents Type 5 LSAs from entering. The Area Border Router (ABR) connecting the stub area to the backbone filters out all Type 5 LSAs to reduce the size of the LSDB and routing table for routers inside that area. Instead, a default route is usually injected.

Why other options are incorrect:

B: While database filtering exists, standard prefix-list filtering typically affects the routing table (RIB) generation, not the underlying LSDB propagation of Type 5 LSAs, or it is less common than the architectural reasons (Stub/No ASBR).

D: IP Protocol 89 is the transport for OSPF itself. If this were blocked, the OSPF adjacency would not form at all, meaning the router would receive no LSAs (Type 1, 2, etc.), not specifically just Type 5.

The administrator is running a packet sniffer with the filter ' udp port 500 or udp port 4500 or esp ' . The result is " no output, " even though the VPN is attempting to establish (failing).

A. The VPN is configured to use IKE over TCP:

Standard IPsec IKE negotiation uses UDP port 500 (IKE) and UDP port 4500 (NAT-T).

However, if IKEv2 over TCP (RFC 8229) or Fortinet ' s proprietary IKE over TCP is configured (often used to bypass firewalls that block UDP), the traffic will use TCP (often port 4500 or 443).

The sniffer filter explicitly looks for udp or esp (IP Protocol 50).

If the traffic is encapsulated in TCP, it matches tcp protocol, not udp or esp (raw ESP). Therefore, the sniffer sees zero packets matching the filter.

Why other options are incorrect:

B: esp is a valid argument for diagnose sniffer packet. It is equivalent to filtering for IP protocol 50.

C: If the ISP were blocking traffic, the sniffer (running on the local FortiGate) would still see the outbound packets generated by the FortiGate trying to initiate the connection. " No output " implies the local device isn ' t even generating packets matching that filter.

D: Mismatched IKE versions would still generate IKE negotiation packets (proposals/errors) that would be captured by the sniffer.

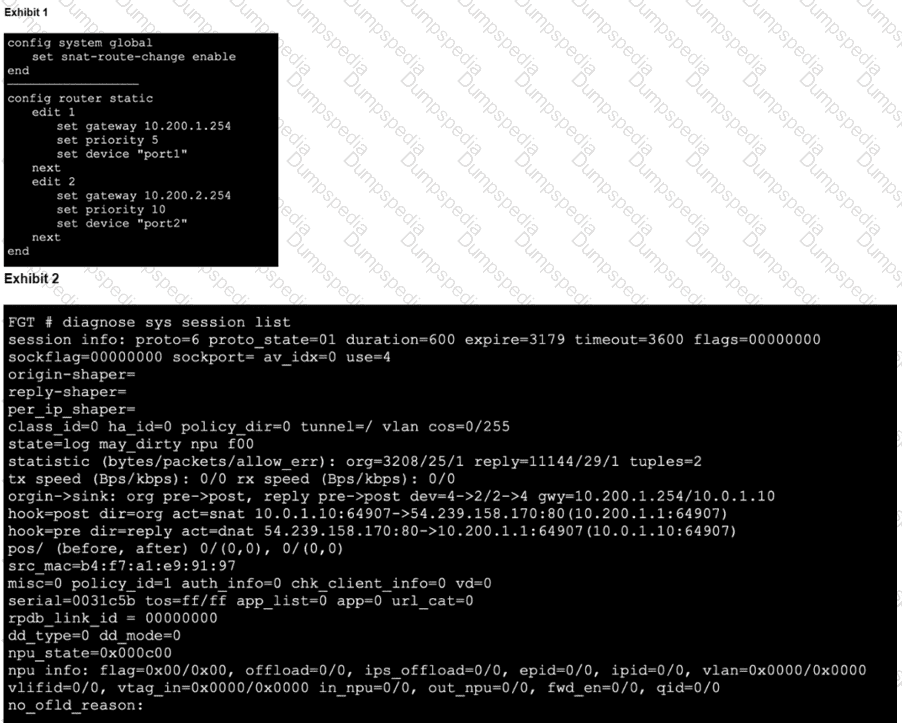

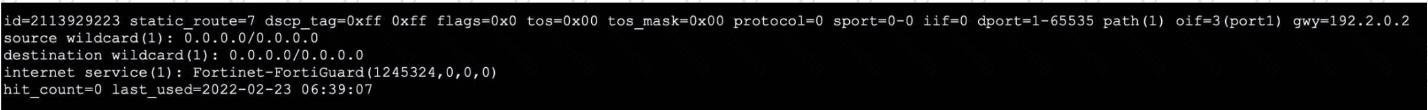

FortiOS Admin Guide: Static Routing, SNAT Route Change Feature

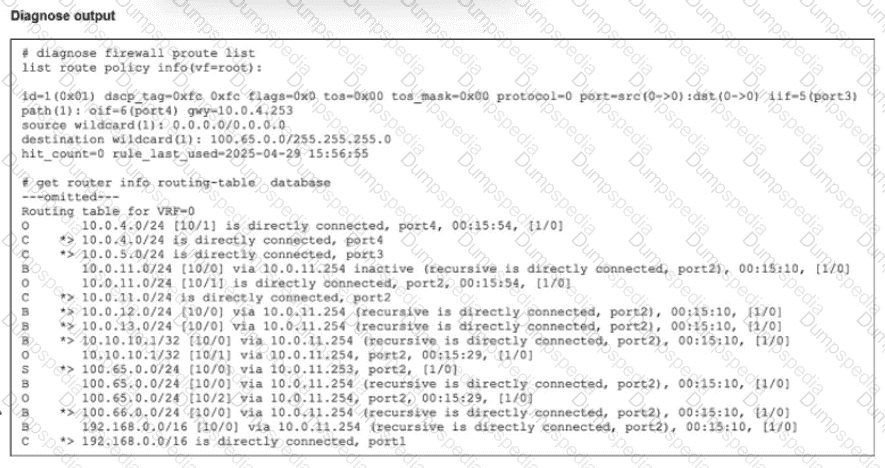

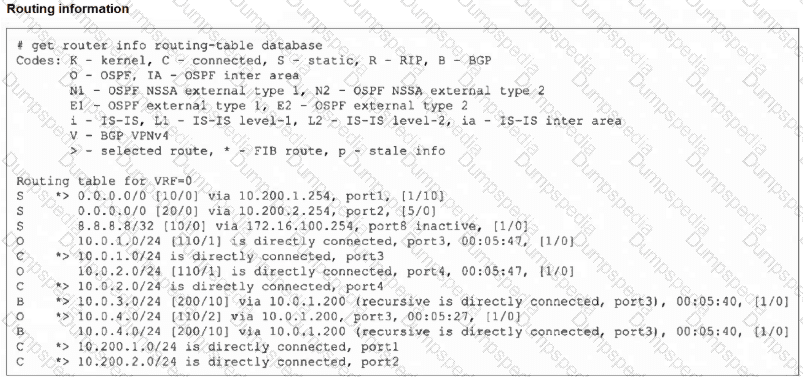

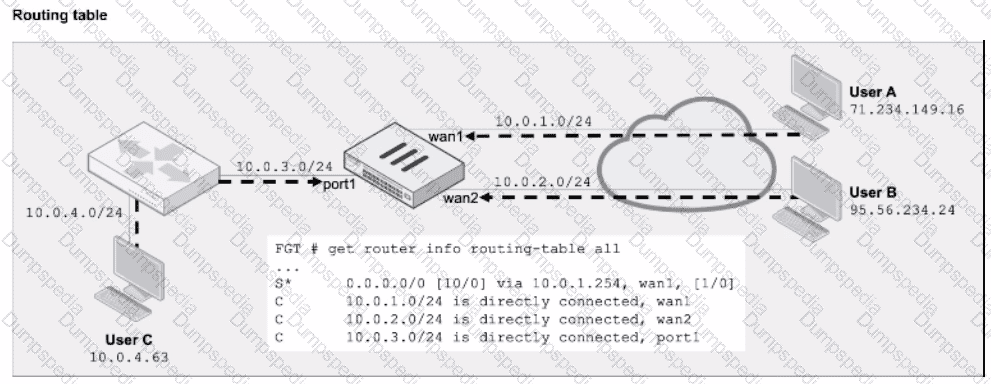

The correct answers are A, D, and E . This is a feasible path RPF check scenario. In FortiGate’s default RPF behavior, FortiGate checks whether the routing table contains a valid return route to the source IP address through the same interface on which the packet arrived . The study guide’s RPF feasible path example states that FortiGate “checks the routing table for a route that matches the source address and incoming interface of the first original packet.” It then gives the exact result: User A passes because “there is a default route through wan1,” so packets received on wan1 pass the RPF check regardless of source address. User B fails because FortiGate does not have a route to 95.56.234.24 through wan2 . User C fails because FortiGate does not have a route to 10.0.4.63 through port1 . Therefore, option B is wrong because FortiGate is not allowing asymmetric return routing here. Option C is wrong because the default route points out wan1 , not port1 , so it cannot validate User C’s packet arriving on port1.
