H12-811_V1.0 Sample Questions Answers

To form an EUI-64 address, the MAC address is split and FFFE is inserted in the middle, making the EUI-64 format 00E0-FCEF-FFFE-0FEC. Additionally, the 7th bit of the first byte is flipped to form the Modified EUI-64 address used in IPv6 for Stateless Address Autoconfiguration (SLAAC)​.

Comprehensive Explanation: OSPF (Open Shortest Path First) is a link-state routing protocol. It builds a complete map of the network ' s topology using Link-State Advertisements (LSAs) and makes routing decisions based on this map. Protocols like Static and Direct are not dynamic routing protocols, while FTP is a file transfer protocol

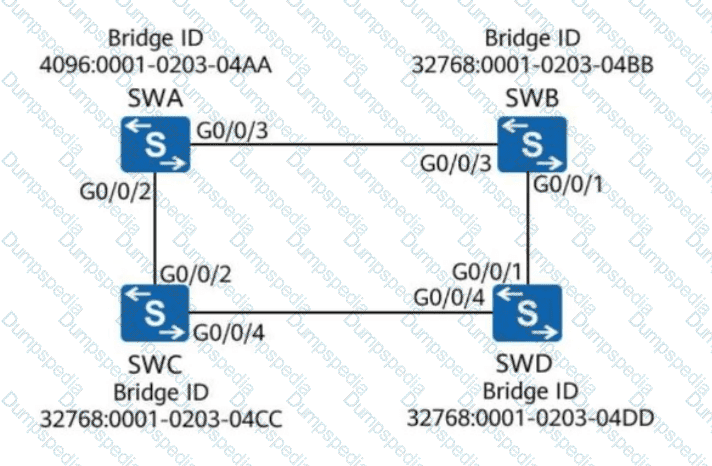

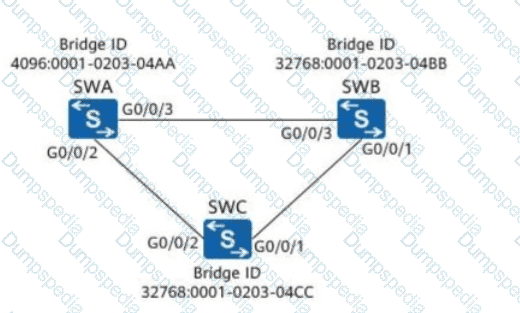

Comprehensive Explanation: In STP, the switch with the lowest Bridge ID is selected as the root bridge. The Bridge ID consists of the bridge priority and the MAC address. In this case, the switch with the bridge priority of 4096 has the lowest Bridge ID, making it the root bridge. If two switches have the same bridge priority, the MAC address is used to break the tie, with the lower MAC address winning.

Detailed Explanation:In RSTP, there are three port states: Discarding, Learning, and Forwarding. These states replace the five traditional STP states by combining them to optimize network convergence​​.

In Huawei devices, advanced ACLs use a number range from 3000 to 3999. These ACLs allow more granular control over traffic by permitting conditions based on source and destination IP addresses, protocol types, and ports, making them suitable for complex filtering requirements​.

Direct Route (C): This has the highest priority because it represents networks directly connected to a router’s interfaces.

Static Route (B): These are manually configured but have lower priority than direct routes.

OSPF Route (D): OSPF dynamically learns routes and assigns them based on cost, but it has lower priority than direct and static routes.

RIP Route (A): RIP has the lowest priority due to its high administrative distance (120).

Priority order (from highest to lowest):Direct Route > Static Route > OSPF Route > RIP Route.

Thus, the correct answer is C (Direct Route).

Comprehensive and Detailed In-Depth Explanation:

In a Layer 2 (switching) network, loops occur when there are multiple paths between switches without a loop prevention mechanism (e.g., STP - Spanning Tree Protocol). This causes:

Broadcast Storms (infinite loops of broadcast frames)

MAC Table Instability (conflicting learning of MAC addresses)

High CPU Usage (due to excessive traffic processing)

Spanning Tree Protocol (STP) prevents these loops by blocking redundant links while keeping one active path.

Detailed Explanation:

Option B: OSPF supports triggered updates, allowing routing tables to be updated only when changes occur, conserving bandwidth.

Option D: OSPF supports area division, which is essential for optimizing large networks and limiting the scope of link-state advertisements.

Option A is incorrect because OSPF calculates the shortest path based on cost, not hop count.

Option C is incorrect; OSPF prevents routing loops by maintaining a loop-free topology through its link-state database.

(Reference: HCIA-Datacom Training Material, OSPF Features)

Comprehensive Explanation: The output shows that the current and next startup configurations are different. Specifically, the startup saved-configuration file is flash:/vrpcfg.zip, and the next startup saved-configuration file is flash:/backup.zip, indicating that changes have been made and the system will use a different configuration file at the next reboot​

Detailed Explanation:To manage a router in a remote branch office, Telnet is a suitable option as it allows remote access over a network. Unlike a console connection, which requires physical access, Telnet enables remote management as long as the administrator has network connectivity to the router. FTP is used for file transfer, and DHCP is used for dynamic IP address allocation, not for management​​.

Comprehensive and Detailed Explanation:

On Huawei VRP-based devices, the configuration file (vrpcfg.zip) is not immediately deleted when using the delete command.

Instead, it is moved to the recycle bin, ensuring accidental deletions can be recovered.

To permanently delete the file, the user must clear the recycle bin using the reset recycle-bin command.

✅ Reference: HCIA-Datacom Configuration Guide – File Management on VRP

Comprehensive and Detailed In-Depth Explanation:

SNMP relies on UDP (User Datagram Protocol) because it is lightweight and efficient for network management traffic.

Incorrect Options:

SNMP does not use ICMP.

SNMP works over any network layer, not just Ethernet.

SNMP uses unicast, not multicast.

Detailed Explanation:The priority (preference) of static routes can indeed be manually specified in Huawei devices. By default, static routes have a preference of 60, but this can be changed to create backup routes or prioritize certain routes over others.

Routing Table and Equal-Cost Routes:When multiple routes to the same destination network have the same cost (e.g., metric or administrative distance), they are referred to as " equal-cost routes. " Routers use load balancing to distribute traffic across these routes​​.

Analysis of Options:

Option A: " Sub-optimal routes " are routes that are not preferred due to higher cost or less desirable metrics.

Option B: " Multipath routes " is a general term but does not specify equal cost, making it less precise.

Option C: " Equal-cost routes " is correct as the scenario specifies the same destination network with the same cost.

Option D: " Default routes " are used when no specific route matches the destination, which is unrelated to the given scenario​.

Correct Answer:The routes are C (Equal-cost routes).

In STP, a port moves from Learning to Forwarding state after the Forward Delay timer has expired. This delay ensures stability by allowing time for the topology to converge before the port begins forwarding user traffic, thereby preventing loops in the network during the transition​.

Comprehensive Explanation: An ACL (Access Control List) is used to define rules for permitting or denying packets based on criteria such as IP addresses, protocols, or ports. However, the ACL only takes effect when it is applied to a service module, such as an interface or a firewall rule. This ensures that traffic is filtered according to the ACL rules as it passes through the device. Without being applied, the ACL rules are inactive and do not influence traffic.

In trunk mode, the interface can forward frames tagged with VLANs specified in the allow-pass list (here, VLAN 100) without removing tags. However, if an untagged frame is received, it is assigned to the PVID (here, VLAN 200). This configuration allows both tagged and untagged traffic, with the PVID determining the VLAN for untagged frames​.

Switches generally operate at the data link layer (Layer 2) and are used to manage communication within a local area network (LAN) by directing traffic among devices. They are not usually deployed as egress devices, which are typically routers. Switches facilitate internal LAN communication, while egress devices handle traffic leaving the network​.

Advanced ACLs (3000-3999) allow filtering based on:

Source and Destination IPs

Protocol Number (C - Correct)

Destination Port Number (B - Correct)

Time-range (D - Correct)

A (Incorrect): ACLs do not filter based on the source interface, but rather on IPs, ports, and protocols.

Thus, the correct answer is A (Source Interface).

Detailed Explanation:OSPF (Open Shortest Path First) uses protocol number 89 at the network layer. This distinguishes OSPF packets from other protocols such as TCP (protocol number 6) and ICMP (protocol number 1) .

VLAN Assignment Overview:VLAN (Virtual Local Area Network) assignment is a critical step in campus network planning. It involves logically segmenting a network to improve manageability, security, and performance. Huawei recommends various approaches based on specific needs.

Analysis of Options:

Option A: " VLAN assignment by service type " This method groups devices based on the type of service they require (e.g., voice, video, data). It helps in isolating traffic for different service types, improving QoS and security. This is a common practice in network planning​​.

Option B: " VLAN assignment by logical area " Logical area-based assignment groups devices based on their logical function in the network (e.g., core, access, distribution). It ensures proper segmentation and alignment with network topology​.

Option C: " VLAN assignment by geographic area " Assigning VLANs based on geographic areas (e.g., floors in a building, departments) helps localize traffic within a region, reducing unnecessary cross-network traffic​​.

Option D: " VLAN assignment by personnel structure " While this option suggests assigning VLANs based on organizational structure (e.g., employees, managers), it is not a typical practice in VLAN assignment. It lacks scalability and alignment with network topology, making it an inefficient approach​.

Correct Answers:The valid VLAN assignment methods in campus network planning are:

A. By service type

B. By logical area

C. By geographic area

Python is known for clear syntax and ease of learning, but it is not highly efficient at runtime due to being an interpreted language.

Option A (Correct): Python has a vast ecosystem of third-party libraries.

Option B (Incorrect - Answer): Python is easy to learn but is not as fast as compiled languages like C or Java.

Option C (Correct): Python is widely used in O and M, AI, and data science.

Option D (Correct): Python is fully open-source.

Thus, the correct answer is B.

Routing preference (administrative distance) is the first criterion used when multiple paths exist.

If multiple routes have the same preference, the router then compares the cost (metric) to choose the best path.

Lower cost values indicate better paths and are preferred by the router.

If multiple paths have the same cost, the router may perform load balancing (depending on the routing protocol).

Thus, the correct answer is A (TRUE).

Detailed Explanation:In Huawei ' s VRP (Versatile Routing Platform) command-line interface, when files are deleted using the delete or delete /unreserved command, they are moved to the recycle bin rather than being permanently deleted. To permanently delete these files, they need to be removed from the recycle bin using the reset recycle-bin command​​.

ICMP and NAPT:ICMP packets do not have port numbers, but NAPT (Network Address and Port Translation) can still manage ICMP traffic by matching identifiers in the ICMP header. This allows NAPT to handle ICMP messages properly​​.

Correct Answer:FALSE. ICMP packets can be handled by NAPT.

In the IP header at the network layer, the Protocol field specifies the transport layer protocol in use. The protocol number for UDP is 17, not 6. Protocol number 6 is reserved for TCP. This field allows IP packets to be correctly processed by the appropriate transport-layer protocol at the receiving device​.

Detailed Explanation:In a Layer 2 WLAN, an Access Controller (AC) typically handles authentication and management but does not act as a gateway. Instead, a Layer 3 device, such as a router, serves as the gateway. (Reference: HCIA-WLAN Training Material, WLAN Layer 2 and Layer 3 Concepts)

In Huawei ' s Versatile Routing Platform (VRP), pressing Ctrl+Z is a shortcut that takes the user from any configuration view directly back to the user view. This command is useful for quickly navigating out of multiple levels of configuration back to the main user prompt. This feature is part of the VRP interface management commands for efficient system navigation​.

Detailed Explanation:The address 145.4.2.55/26 is a valid unicast address and falls within the range of usable IP addresses for a /26 subnet. The address 237.6.1.2/24 is from a reserved range, 127.3.1.4/28 is part of the loopback range (127.0.0.0/8), and 192.168.10.112/30 only provides two usable addresses, which would not allow the router to be properly configured .

The VRP platform does not support configuration through FTP. Configuration methods typically include using a console port, Telnet, or SSH, allowing for direct access to the device configuration. FTP is generally used for file transfer, not direct configuration, and therefore is not a supported method for configuring a router​.

Comprehensive and Detailed In-Depth Explanation:

The correct command to change the name of a Huawei network device is:

sysname Huawei

This command is used in the system view mode to configure the system name.

Incorrect Options:

hostname huawei (Option A) is incorrect because Huawei uses sysname, not hostname (which is used in Cisco devices).

rename huawei (Option B) is invalid because the rename command is not used for system name modification.

do name huawei (Option D) is incorrect as there is no such command in Huawei CLI.

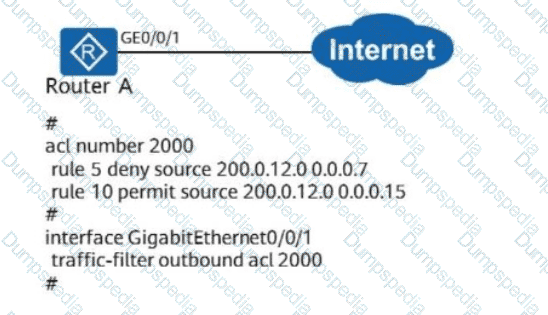

To determine which statement is incorrect, we need to analyze the ACL configuration on Router A and understand how it filters outbound traffic to the Internet. Let ' s break down the configuration step by step, referencing HCIA Datacom principles for ACL processing and traffic filtering.

1. Understanding the ACL Configuration

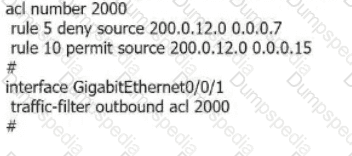

The configuration on Router A is as follows:

text

WrapCopy

acl number 2000

rule 5 deny source 200.0.12.0 0.0.0.7

rule 10 permit source 200.0.12.0 0.0.0.15

#

interface GigabitEthernet0/0/1

traffic-filter outbound acl 2000

#

ACL Number 2000: This is a basic ACL used to filter traffic based on source IP addresses.

Rule 5: deny source 200.0.12.0 0.0.0.7

The wildcard mask 0.0.0.7 translates to a subnet mask of /29 (255.255.255.248).

The IP range for 200.0.12.0 0.0.0.7 is calculated as:

Network address: 200.0.12.0

Broadcast address: 200.0.12.7

Usable host addresses: 200.0.12.1 to 200.0.12.6 (6 usable addresses in a /29 subnet).

Therefore, this rule denies traffic from any source IP in the range 200.0.12.1–200.0.12.6.

Rule 10: permit source 200.0.12.0 0.0.0.15

The wildcard mask 0.0.0.15 translates to a subnet mask of /28 (255.255.255.240).

The IP range for 200.0.12.0 0.0.0.15 is:

Network address: 200.0.12.0

Broadcast address: 200.0.12.15

Usable host addresses: 200.0.12.1 to 200.0.12.14 (14 usable addresses in a /28 subnet).

Therefore, this rule permits traffic from any source IP in the range 200.0.12.1–200.0.12.14.

Interface Configuration: The ACL 2000 is applied outbound on interface GigabitEthernet0/0/1, meaning it filters traffic leaving Router A toward the Internet.

2. ACL Processing Logic (HCIA Datacom Reference)

According to HCIA Datacom documentation (e.g., Huawei ACL fundamentals), ACLs are processed in sequential order, and the first matching rule determines the action (permit or deny). If no rule matches, the implicit deny rule at the end of the ACL blocks the traffic. In this case:

Rule 5 denies traffic from 200.0.12.1–200.0.12.6.

Rule 10 permits traffic from 200.0.12.1–200.0.12.14.

Since Rule 5 is processed before Rule 10, any IP in the overlap (i.e., 200.0.12.1–200.0.12.6) will be denied by Rule 5, even though Rule 10 would permit it.

IPs outside 200.0.12.1–200.0.12.6 but within 200.0.12.1–200.0.12.14 are permitted by Rule 10.

Any IP not matching Rule 5 or Rule 10 is implicitly denied (but no such IPs are listed in the options).

3. Evaluating Each Option

Now, let’s check each host IP address against the ACL rules to determine if they can access the Internet:

A. The host with the source IP address 200.0.12.6 cannot access the Internet.

200.0.12.6 falls within the range 200.0.12.1–200.0.12.6, which is denied by Rule 5.

Therefore, this statement is correct (the host cannot access the Internet).

B. The host with the source IP address 200.0.12.8 cannot access the Internet.

200.0.12.8 does not fall within the range 200.0.12.1–200.0.12.6 (denied by Rule 5).

It does fall within the range 200.0.12.1–200.0.12.14 (permitted by Rule 10).

Therefore, 200.0.12.8 is permitted to access the Internet, making this statement incorrect.

C. The host with the source IP address 200.0.12.2 cannot access the Internet.

200.0.12.2 falls within the range 200.0.12.1–200.0.12.6, which is denied by Rule 5.

Therefore, this statement is correct (the host cannot access the Internet).

D. The host with the source IP address 200.0.12.4 cannot access the Internet.

200.0.12.4 falls within the range 200.0.12.1–200.0.12.6, which is denied by Rule 5.

Therefore, this statement is correct (the host cannot access the Internet).

4. Conclusion

The only incorrect statement is B, as the host with the source IP address 200.0.12.8 can access the Internet because it is permitted by Rule 10 and not denied by Rule 5.

5. HCIA Datacom References

This analysis aligns with the HCIA Datacom curriculum, specifically:

ACL Fundamentals: Huawei’s documentation on basic ACLs (e.g., ACL 2000–2999 for IPv4) and their rule processing order (first match wins).

Traffic Filtering: Outbound ACL application on interfaces, as described in Huawei router configuration guides.

Wildcard Mask Calculation: Standard IP addressing and subnetting principles for determining IP ranges (e.g., /29 and /28 subnets).

These principles are detailed in the HCIA Datacom V1.0 training materials, particularly in the sections on ACL configuration, IP addressing, and interface-based traffic control.

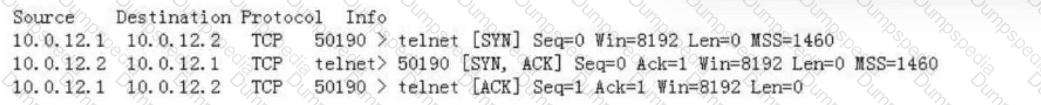

A (Correct): The client initiates the connection using a random source port (50190).

B (Correct): The packets show the TCP three-way handshake (SYN, SYN-ACK, ACK).

C (Incorrect): The client initiates the connection (10.0.12.1), and the server responds (10.0.12.2), so the roles are reversed in this statement.

D (Correct): The handshake packets contain no application-layer data, only TCP control flags.

Thus, the correct answer is C (False Statement).

Understanding the Network Diagram

Host A is in VLAN 10 with a gateway of 10.0.1.254.

Host B is in VLAN 20 with a gateway of 10.0.2.254.

The router (RTA) has two sub-interfaces:

G0/0/1.1 (10.0.1.254/24) for VLAN 10

G0/0/1.2 (10.0.2.254/24) for VLAN 20

The switch (SWA) is using VLAN trunking to forward packets to the router, requiring 802.1Q encapsulation.

One-Armed Routing (Router-on-a-Stick) is being used, meaning a single physical interface (G0/0/1) handles multiple VLANs using sub-interfaces.

Analyzing the Answer Choices

Option A (dot1q termination vid 20) → Incorrect

This command would be configured on G0/0/1.2, not G0/0/1.1.

Option B (dot1q termination vid 30) → Incorrect

VLAN 30 is not part of this topology.

Option C (dot1q termination vid 10) → Correct

Since G0/0/1.1 corresponds to VLAN 10, the correct command is dot1q termination vid 10.

Option D (dot1q termination vid 1) → Incorrect

VLAN 1 is usually the default VLAN, which is not relevant here.

Thus, the correct answer is C (dot1q termination vid 10).

Comprehensive and Detailed Explanation:

OSPF DR/BDR election criteria:

Highest Priority (default is 1, 0 means ineligible).

Highest Router ID (if priorities are equal).

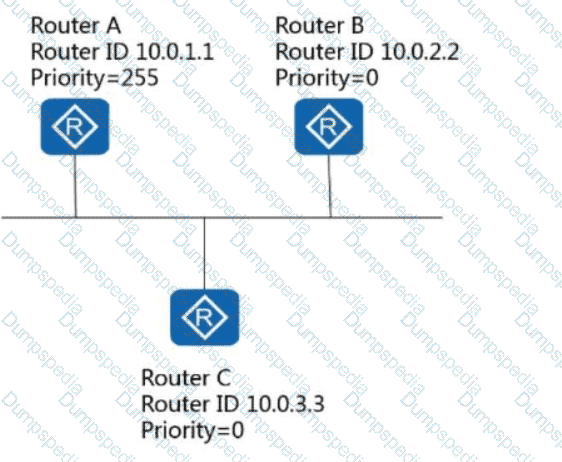

Given the routers in the figure:

Router A (RID 10.0.1.1, Priority 255) → Elected DR.

Router B (RID 10.0.2.2, Priority 0) → Not eligible for DR/BDR.

Router C (RID 10.0.3.3, Priority 0) → Not eligible for DR/BDR.

Since no other router has a nonzero priority, no BDR is elected.

✅ Reference: HCIA-Datacom Routing Guide – OSPF DR/BDR Election Process

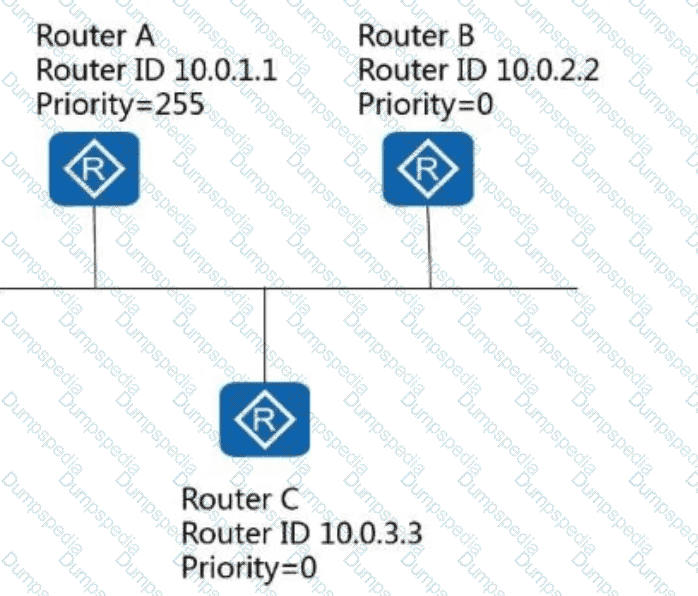

In the given network diagram, we have three routers (Router A, Router B, and Router C) connected in a multi-access network (likely an Ethernet segment, as indicated by the shared line connecting all three routers). The election of the Backup Designated Router (BDR) in an OSPF (Open Shortest Path First) network follows strict rules defined in RFC 2328 and reinforced in the HCIA Datacom documentation. Let’s break it down step by step:

OSPF Roles in a Multi-Access Network:In OSPF, a multi-access network (e.g., Ethernet) elects a Designated Router (DR) and a Backup Designated Router (BDR) to reduce the number of adjacencies and optimize network traffic. The DR and BDR are responsible for maintaining the link-state database and flooding LSAs (Link State Advertisements) on behalf of other routers in the segment.

Election Process for DR and BDR (Strict OSPF Rules – RFC 2328):The election process is based on the following criteria (in order of precedence):

Router Priority: A higher priority value (configurable, default is 1, range 0–255) wins. A router with a priority of 0 is ineligible to become a DR or BDR.

Router ID (RID): If priorities are equal (and non-zero), the router with the highest RID wins. The RID is a unique 32-bit identifier, typically the highest IP address on the router’s loopback interface or the highest active physical interface IP address.

The router with the highest priority (or highest RID if priorities are tied) becomes the DR, and the router with the second-highest priority (or RID) becomes the BDR. A router with a priority of 0 is explicitly excluded from the DR/BDR election and cannot participate, even if it has the highest RID.

Analyzing the Given Data:

Router A: Router ID = 10.0.1.1, Priority = 255

Router B: Router ID = 10.0.2.2, Priority = 0

Router C: Router ID = 10.0.3.3, Priority = 0

The diagram shows a multi-access network with all three routers connected, suggesting an OSPF environment where DR/BDR election occurs.

Applying Strict OSPF Election Rules:

First, we evaluate the priorities:

Router A has a priority of 255, which is the highest possible value, ensuring it is elected as the DR.

Router B and Router C both have a priority of 0, making them ineligible to become either DR or BDR, regardless of their Router IDs.

Since Router A is the DR (due to its priority of 255), we need to elect a BDR from the remaining routers (Router B and Router C). However, both Router B and Router C have priorities of 0, which, per RFC 2328 and HCIA Datacom, explicitly prevents them from being elected as DR or BDR.

Therefore, no router is eligible to become the BDR in this scenario, resulting in " No BDR " for the network.

Resolving Potential Misinterpretations:

In my previous explanation, I suggested Router C could be elected as BDR based on its higher RID (10.0.3.3) compared to Router B (10.0.2.2), even though both had priority 0. This was incorrect and inconsistent with strict OSPF rules. RFC 2328 (Section 9.4) and HCIA Datacom V3.0 (Chapter 5: OSPF Protocol) clearly state that a router with a priority of 0 cannot participate in the DR/BDR election, and its RID is irrelevant for this purpose.

The HCIA Datacom documentation emphasizes adherence to OSPF standards, and in practice, if all routers except the DR have a priority of 0, the network operates with only a DR and no BDR. This is a valid OSPF configuration, though not ideal for redundancy, as the BDR role remains unassigned until a router with a non-zero priority joins the network.

Conclusion:

Router A is elected as the DR due to its priority of 255.

Router B and Router C have priorities of 0, making them ineligible to become BDR.

Therefore, there is no BDR elected in this network, and the correct answer is " No BDR " (option A).

References from HCIA Datacom Documents and RFC:

HCIA Datacom V3.0, Chapter 5: OSPF Protocol – DR/BDR Election Process

RFC 2328 (OSPF Version 2) – Section 9.4: DR and BDR Election (specifically, the rule that a router with priority 0 is ineligible for DR/BDR roles)

Huawei OSPF Configuration Guide (HCIA Datacom Certification Material) – Priority and Router ID in Multi-Access Networks

Detailed Explanation:In NAPT, port numbers are dynamically assigned as traffic flows through the router. The port number range is automatically selected, and manual configuration of each mapping is not required. NAPT dynamically uses different ports for mapping private IP addresses to a single public IP address​​.

Comprehensive Explanation: WEP (Wired Equivalent Privacy) is the only security policy in this list that supports open link authentication, which means no actual user credentials are required to associate with the network. WEP uses a shared key for encryption but offers minimal protection and is considered insecure. Other security methods like WPA, WPA2-PSK, and WPA2-802.1X use more secure forms of authentication, requiring credentials such as a password or centralized authentication server.

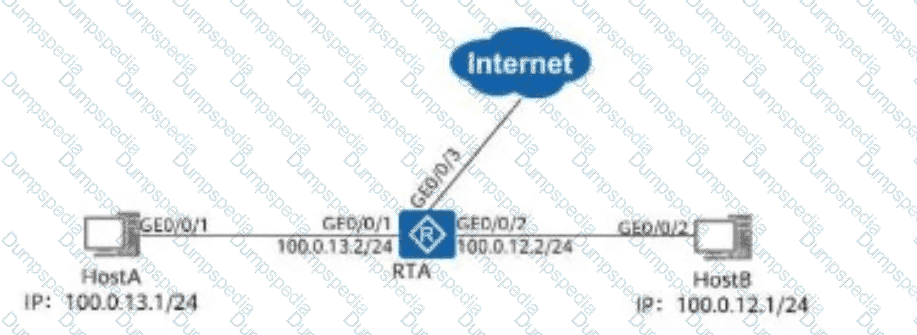

1. Understanding the ACL Rule

The rule:

rule 5 deny source 100.0.12.0 0.0.0.255

Blocks traffic originating from 100.0.12.0/24 (Host B’s network).

This means any packet sent from Host B to Host A will be blocked.

2. Applying the ACL to the Correct Interfaces

Option A: Applied inbound on GE0/0/1 → Blocks packets from Host B before reaching Host A. ✅

Option B: Applied inbound on GE0/0/2 → Blocks packets from Host A before reaching Host B. ✅

3. Why Other Options Are Incorrect

Option C (GigabitEthernet0/0/3):

Interface GE0/0/3 is not connected to Host A or Host B, so applying ACL here is meaningless.

Option D (Outbound on GE0/0/1):

Outbound filtering is less efficient than inbound filtering because it blocks traffic after routing.

4. Correct Approach to Prevent Communication

To completely block communication between Host A and Host B, we must:✅ Block inbound traffic on GE0/0/1 (Host A’s interface)✅ Block inbound traffic on GE0/0/2 (Host B’s interface)

Conclusion:

The correct choices are A and B because they block inbound traffic at the correct interfaces.

Options C and D are incorrect because they apply ACL rules to the wrong interfaces or use inefficient filtering.

To determine which types of traffic can be filtered by an advanced Access Control List (ACL) on a Huawei device, we need to understand the capabilities of advanced ACLs as defined in HCIA Datacom documentation and Huawei networking standards. Let’s analyze each option step by step:

Understanding Huawei ACL Types:

Huawei devices support different types of ACLs, including Basic ACLs, Advanced ACLs, and Layer 2 ACLs (MAC-based). Each type has specific filtering capabilities:

Basic ACLs (2000–2999): Filter traffic based on source IP addresses only.

Advanced ACLs (3000–3999): Provide more granular filtering, including source IP addresses, destination IP addresses, protocols, port numbers, and other Layer 3 and Layer 4 parameters. They are more flexible than Basic ACLs but do not filter based on Layer 2 information like MAC addresses.

Layer 2 ACLs (4000–4999): Filter traffic based on source and destination MAC addresses, VLAN IDs, and other Layer 2 parameters.

The question specifically asks about advanced ACLs, so we focus on their capabilities, which are limited to Layer 3 and Layer 4 traffic (IP-based and protocol-specific filtering).

Evaluating Each Option:

A. Network traffic based on a specific source IP address

Advanced ACLs on Huawei devices can filter traffic based on source IP addresses. This is a standard feature of advanced ACLs, which support matching rules for source IP addresses using wildcard masks or specific IP ranges.

This statement is true.

B. Network traffic based on a specific source MAC address

Advanced ACLs operate at Layer 3 and Layer 4 (IP and TCP/UDP) and do not have the capability to filter traffic based on Layer 2 information, such as MAC addresses. Filtering based on MAC addresses requires Layer 2 ACLs (e.g., ACLs in the 4000–4999 range), not advanced ACLs.

This statement is false.

C. Network traffic based on a specific user name

Advanced ACLs do not have the capability to filter traffic based on user names. User-based filtering typically requires authentication mechanisms (e.g., 802.1X, AAA, or RADIUS) combined with dynamic ACLs or policies, not standard advanced ACLs. Advanced ACLs are limited to IP addresses, protocols, and port numbers, not user-specific attributes.

This statement is false.

D. Network traffic based on a specific port number

Advanced ACLs can filter traffic based on transport layer port numbers (e.g., TCP/UDP ports), such as HTTP (port 80), FTP (port 21), etc. This is a key feature of advanced ACLs, allowing granular control over application-layer traffic.

This statement is true.

E. Network traffic based on a specific destination IP address

Advanced ACLs can filter traffic based on destination IP addresses, similar to source IP addresses. This is another standard capability, allowing matching rules for destination IP addresses using wildcard masks or specific IP ranges.

This statement is true.

Conclusion:

Advanced ACLs on Huawei devices can filter traffic based on:

Source IP addresses (Option A).

Destination IP addresses (Option E).

Port numbers (Option D).

They cannot filter traffic based on source MAC addresses (Option B) or user names (Option C), as these require Layer 2 ACLs or authentication-based policies, respectively.

Therefore, the correct answers are A, D, and E.

Comprehensive Explanation: In Telnet sessions, different privilege levels determine what actions a user is allowed to perform. If users are not able to configure the IP address, it is likely that their privilege level is set incorrectly. The administrator must ensure that the Telnet users are assigned the correct privilege level (typically level 15 for full administrative rights) to allow configuration changes, including IP address modifications.

TPID Definition:

TPID (Tag Protocol Identifier) is a field in the Ethernet frame header that indicates the presence of an 802.1Q VLAN tag.

IEEE 802.1Q defines the TPID value as 0x8100.

Why Other Options Are Incorrect:

0x9100: Used in some proprietary protocols but not IEEE standard.

0x8200 and 0x7200: Not valid TPID values.

The Forward Delay timer in STP helps prevent temporary loops by setting a delay for ports transitioning through Listening and Learning states before reaching the Forwarding state. This wait period ensures that all switches have updated topology information, reducing the risk of broadcast storms or loops​.

IPv6 Address Types:

Unicast: Identifies a single interface.

Anycast: Identifies a set of interfaces, delivering to the nearest one.

Multicast: Delivers to multiple interfaces.

Broadcast: Does not exist in IPv6; replaced by multicast addressing​​.

Encapsulation is the process of adding headers and trailers to data at each layer of the OSI model as the data moves from the application layer to the physical layer. Decapsulation is the reverse process when data is received. These processes are critical in implementing network communication, ensuring the proper function of protocols, and assisting in locating faults during data transmission. They do not, however, shorten packet length​

Comprehensive and Detailed In-Depth Explanation:

802.11n (Wi-Fi 4) supports both 2.4 GHz & 5 GHz.

802.11ax (Wi-Fi 6) also supports both 2.4 GHz & 5 GHz.

Incorrect Options:

802.11ac → Only supports 5 GHz.

802.11g → Only supports 2.4 GHz.

Network Layers in Campus Design:

The three common layers in a campus network are:

Core Layer: Provides high-speed backbone connectivity.

Aggregation Layer: Consolidates traffic and applies policies.

Access Layer: Connects end devices like PCs and phones.

Why " Network Layer " Is Incorrect:

" Network layer " is not a term used to describe physical or logical architecture in campus networks. It refers to Layer 3 in the OSI model, which is about IP routing.

Why Other Options Are Correct:

Core, access, and aggregation layers are widely used in hierarchical network design.

In OSPF, the " Full " state signifies that the neighbor relationship has been fully established, with both routers synchronized and their LSDBs updated. This state is achieved after exchanging and acknowledging Link State Advertisements (LSAs) between the neighbors, marking the completion of OSPF adjacency​.

An Ethernet II frame has a standard length range of 64 to 1518 bytes, including the Ethernet header. This range accounts for both the minimum frame size (to prevent collisions) and the maximum frame size (to avoid excessive delay). This specification is in line with IEEE 802.3 standards for Ethernet frames​.

Analysis of Possible Causes:

Option A: " The administrator account has been disabled " is a possible cause as a disabled account cannot access the system even if Telnet is enabled.

Option B: Incorrect because the Telnet service being disabled would affect all users, not just one administrator.

Option C: " The administrator account has been deleted " is a valid reason as a deleted account cannot log in.

Option D: " The user level of the administrator account has been changed to 0 " is correct. User level 0 typically has insufficient privileges for Telnet access​​.

IPv6 Anycast Address Characteristics:

Option A: True. Packets are delivered to the nearest interface based on routing distance.

Option B: False. Anycast addresses are not designed for load balancing.

Option C: True. Anycast addresses share the same address space as unicast.

Option D: True. Anycast provides redundancy by allowing multiple endpoints to share the same address​​.

Comprehensive and Detailed Explanation:

802.11n operates on both 2.4 GHz and 5 GHz bands (Dual-band support). ✅

802.11ax (Wi-Fi 6) supports 6 GHz (but 802.11n does not). ❌

✅ Reference: HCIA-Datacom Wireless Guide – 802.11 Standards

A Layer 2 ACL primarily matches Layer 2 information, such as source and destination MAC addresses. However, it does not match Layer 3 information like IP addresses, as Layer 2 ACLs are designed to control traffic based on MAC addresses rather than IP-based criteria. Layer 3 ACLs would be used to match IP addresses​.

Comprehensive Explanation: The PVID (Port VLAN ID) is the VLAN to which untagged data frames are assigned on a hybrid port. In this configuration, the port hybrid untagged vlan 4 6 command indicates that VLANs 4 and 6 are untagged, and the PVID will be the lowest untagged VLAN, which is VLAN 4. Tagged frames for VLANs 2, 3, and 100 will be forwarded as tagged, but untagged traffic will belong to VLAN 4 by default.

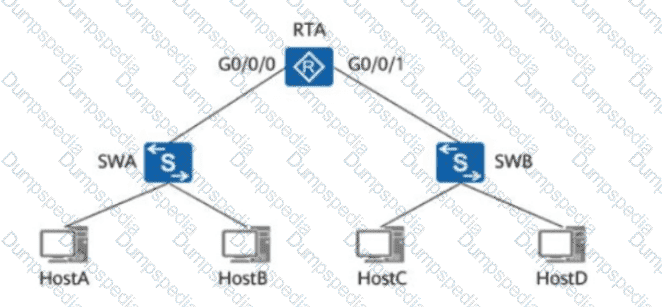

When HostA wants to send data to HostC, the following steps occur:

HostA checks if HostC is in the same subnet:

HostA and HostC are in different network segments, meaning HostA must send the packet to its default gateway (RTA, G0/0/0) to reach HostC.

HostA needs the MAC address of its gateway (RTA G0/0/0):

Since ARP (Address Resolution Protocol) is used to resolve IP to MAC addresses, HostA will send an ARP Request to obtain the MAC address of G0/0/0 of RTA.

RTA forwards the packet to HostC:

Once HostA sends the packet to RTA (using G0/0/0 ' s MAC), RTA will route it to the correct network segment and send it to HostC through G0/0/1.

Why the Other Options Are Incorrect:

Option A (HostC) - Incorrect:

HostA does not send an ARP request for HostC because HostC is in a different subnet.

Option B (G0/0/1 of RTA) - Incorrect:

HostA only communicates with its directly connected gateway (G0/0/0), not G0/0/1.

Option C (SWA) - Incorrect:

Switches (SWA, SWB) operate at Layer 2 and do not require ARP.

Final Answer: D (G0/0/0 of RTA)

Detailed Explanation:MAC addresses that start with the first octet having the least significant bit (LSB) of the first byte set to 1 (such as 01-02-03-04-05-06) are multicast MAC addresses, and these cannot be assigned to a host ' s network interface card (NIC). Only unicast MAC addresses can be assigned to hosts​.

Detailed Explanation:To accommodate 26 hosts, the subnet needs at least 30 addresses (including network and broadcast addresses). A subnet mask of 255.255.255.192 provides 64 addresses (2^6 - 2 = 62 usable addresses), which is more than enough to support 26 hosts while also leaving space for additional hosts if needed.

On Huawei VRP (Versatile Routing Platform), the command history feature allows administrators to recall previously executed commands. The Upper cursor key (↑ arrow key) can be used to navigate through the command history and re-execute previously entered commands.

Ctrl+P is not a valid shortcut for recalling command history.

Ctrl+U is typically used to delete an entire line of input in command-line interfaces, not to recall history.

Left cursor key (←) is used for moving the cursor within a command line but does not invoke command history.

Thus, the correct answer is B. Upper cursor key (↑ arrow key).

The root path cost is calculated by summing the costs of each port on the path from the root bridge to the receiving port. In this case, assuming each link has a cost of 200, the total cost to reach the root from the indicated port would be 600, reflecting three hops from the root bridge​.

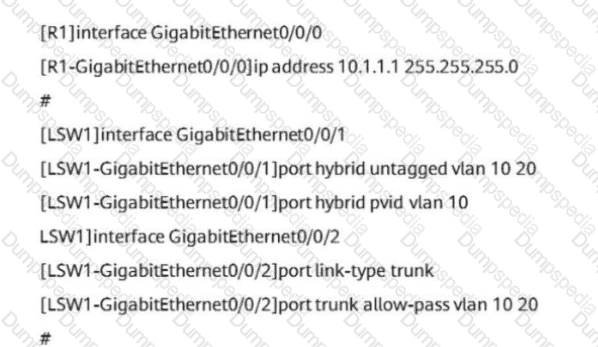

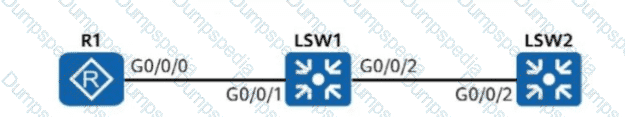

Comprehensive Explanation: In this configuration, LSW1 and LSW2 have trunk links that allow VLAN 10 to pass between them. When a ping is sent from R1, the frame is tagged with VLAN 10 on LSW2, and this tagged frame is forwarded to LSW1. Since the trunk allows VLAN 10, the tagged data frame is successfully received and processed by LSW1.

Comprehensive and Detailed In-Depth Explanation:

Static routes are manually configured routes that do not change unless manually updated.

Correct Statements:

(A) Static routes are manually configured by network administrators.

(B) They do not automatically adapt to network topology changes.

(D) They have low system performance requirements because no additional processing (like dynamic routing protocols) is needed.

Incorrect Statement:

(C) " Routers need to exchange routing information through the static routes " is false because static routes do not involve any exchange of routing information. Unlike dynamic routing protocols (such as OSPF or BGP), static routing does not require routers to share route information.

Comprehensive and Detailed In-Depth Explanation:

IPv6 abbreviation rules allow replacing consecutive zeros with ::.

Correct answer: C (2FFF:0DAC:ABEF:0000:0000:CDAA:0732)

Static vs. Dynamic Routing:

Static routing: Routes manually configured by the network engineer. These do not adapt dynamically to network changes​​.

Direct routing: Routes automatically learned when a router is directly connected to a network. This is not a dynamic routing protocol​.

Dynamic Routing Protocols:

OSPF (Open Shortest Path First): A dynamic Interior Gateway Protocol (IGP) that calculates the best route based on link state information​.

BGP (Border Gateway Protocol): A dynamic Exterior Gateway Protocol (EGP) used for routing between autonomous systems​​.

Correct Answers:The dynamic routing protocols are C (OSPF) and D (BGP).

Command Output Overview:

The command display startup is used to check the configuration of the startup system software, configuration files, license files, and other related settings on Huawei routers. The output in this case provides details about:

The current system software (ar2220-v200r003c00spc200.cc).

The next startup system software (ar222b-v200r003c00spc200.cc).

Backup and saved configuration files, which are not defined (null).

Analysis of Options:

Option A: " The system file for next startup cannot be modified. " This statement is false because the system file for the next startup can be modified using the startup system-software command. The file path for the next startup system software (ar222b- v200r003c00spc200.cc) indicates that it has been configured and can be changed by the administrator. The command syntax is supported as per Huawei ' s documentation​​.

Option B: " The startup system software < startup-software-name > command can be used to modify the system software for next startup. " This is true and matches the functionality provided by Huawei ' s routers. The command allows administrators to specify the software package to be used at the next system reboot​​.

Option C: " The running configuration file is not saved. " This is true as the Startup saved-configuration file is listed as null, meaning that no configuration file has been saved for startup. Saving the running configuration is necessary to ensure settings persist after a reboot​​.

Option D: " The system file used for the current startup is ar2220-v200r003c00spc200.cc. " This is true as per the output under Startup system software, which confirms the system file used in the current boot process​​.

Correct Statement Selection:Based on the analysis, the statement " The system file for next startup cannot be modified " is false. This matches the system ' s behavior, where administrators are allowed to modify the next startup file using relevant commands.

Comprehensive and Detailed In-Depth Explanation:

LACP selects active ports based on priority (lower is better).

Switch A (SWA) has the following priorities:

G0/0/0 → Priority 100

G0/0/1 → Priority 200

G0/0/2 → Priority 300

G0/0/3 → Priority 400

Since only 3 ports can be active, the port with the highest priority number (400) is NOT active.

Thus, G0/0/3 is NOT selected as an active port.

Device Interconnection Requirements:

Device interconnection (such as point-to-point links) requires only two IP addresses: one for each device.

A subnet mask of /30 (255.255.255.252) provides four total addresses (2 usable, 1 network, 1 broadcast).

Efficiency:

Using a /30 subnet avoids wasting IP addresses, making it ideal for point-to-point links.

Why Other Options Are Incorrect:

B (32): /32 is used for single-host IP addresses, not links.

C (24): /24 is excessive for point-to-point links, providing 254 usable addresses.

D (16): /16 provides 65,534 addresses, which is highly inefficient.

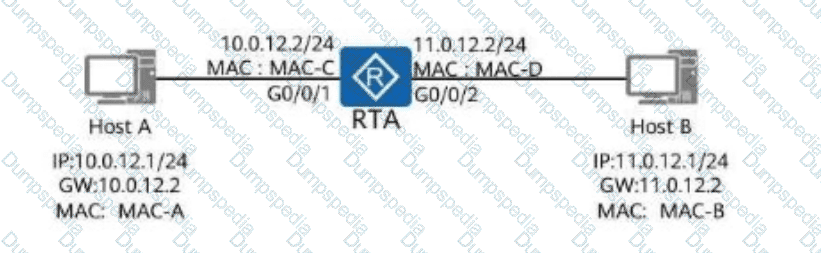

If host A already has host B’s MAC address in its ARP cache, it can send packets directly to host B without needing to perform an ARP request. This cached information allows immediate packet delivery, assuming no network changes have occurred that would invalidate the ARP entry​.

A (Correct): Stacking allows inter-chassis Ethernet Trunks to be created, improving redundancy and bandwidth.

B (Correct): Multiple switches act as a single logical device, simplifying network management.

C (Correct): Stacking increases available ports, allowing expansion without adding separate devices.

D (Correct): By enabling redundancy, stacking and CSS help prevent single points of failure in the network.

Thus, the correct answers are A, B, C, and D.

The Full state in OSPF means that all routers have completed LSDB synchronization and formed an adjacency.

If LSDB synchronization is incomplete, the router remains in Loading or Exchange state.

Only after the Database Description (DD) packets, Link-State Requests (LSR), and Link-State Updates (LSU) are exchanged, the router enters the Full state.

Thus, the correct answer is A (TRUE).

Trunk Interface Basics:

Trunk interfaces are used to carry traffic for multiple VLANs between switches.

Tagged frames include VLAN identifiers, while untagged frames belong to the native VLAN.

Untagged Frames:

Frames from the native VLAN are sent untagged on the trunk interface.

Conclusion:

Trunk interfaces support both tagged and untagged frames, so the statement is TRUE.

Detailed Explanation:In LACP (Link Aggregation Control Protocol), the Actor is elected based on device priority, interface priority, and MAC address. These parameters ensure consistency and determine the active links within the aggregated trunk. The interface number alone is not a determining factor. (Reference: HCIA-Datacom Training Material, Link Aggregation Control Protocol (LACP))

Tracert (Traceroute) works by sending packets with progressively higher TTL (Time-to-Live) values, causing them to expire at each router along the path. When TTL expires, the router sends back an ICMP " Time Exceeded " message, which includes the source IP address of that router. This allows Tracert to record the IP addresses of each router on the path to the destination​.

Comprehensive Explanation: The country code setting on wireless devices like access points determines the allowable transmission frequencies and maximum transmission power based on the regulatory requirements of the specific region. For example, certain frequency channels or power levels may be restricted in different countries to avoid interference with other services, and the country code configuration ensures that the device operates within those legal limits.

Detailed Explanation:Wi-Fi 6 refers to the IEEE 802.11ax standard, which improves the efficiency, capacity, and performance of wireless networks, especially in dense environments​.

Comprehensive and Detailed Explanation:

The first command:

ip route-static 10.1.1.0 24 12.1.1.1 permanent

Sets a static route to 10.1.1.0/24 via next-hop 12.1.1.1 and marks it permanent (remains in the table even if unreachable).

The second command:

ip route-static 10.1.1.0 24 13.1.1.1

Configures a backup route to 10.1.1.0/24 via next-hop 13.1.1.1.

This route only becomes active if the primary route (12.1.1.1) fails.

✅ Reference: HCIA-Datacom Routing Guide – Static Route Configuration

Detailed Explanation:RSTP (Rapid Spanning Tree Protocol) combines the Blocking, Listening, and Disabled states into Discarding, reducing the number of states to Discarding, Learning, and Forwarding. RSTP does not use a separate Listening state, as in standard STP. (Reference: HCIA-Datacom Training Material, RSTP Port States)

Detailed Explanation:

Option A is valid; the destination is defined in CIDR format (129.1.0.0/16) with a specified outgoing interface.

Option B is valid; it uses a subnet mask format and specifies a next-hop IP.

Option D is also valid with the destination and mask defined and a next-hop IP.

Option C is incorrect; the syntax reverses the destination and next-hop values.

(Reference: HCIA-Datacom Training Material, Static Routing Configuration)

Comprehensive Explanation: SWA has the lowest Bridge ID and is the root bridge. In this topology, G0/0/2 of SWA and G0/0/1 of SWC are forwarding ports. Since G0/0/3 of SWB provides an alternate path to the root bridge, it will be placed in a blocking state to prevent network loops. The Spanning Tree Protocol ensures that only the most efficient path to the root bridge is active, and alternate paths are blocked until needed.

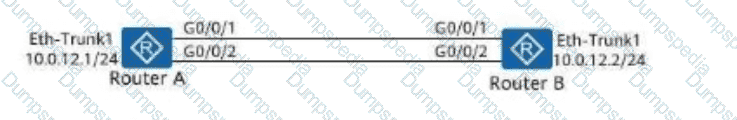

Comprehensive Explanation: It is possible for the load balancing modes at both ends of an Eth-Trunk (Ethernet Trunk) to be different, as long as the devices at both ends support the different modes. Load balancing modes control how traffic is distributed across multiple links in the trunk. Although the modes may differ, they must be compatible in terms of ensuring that traffic is appropriately handled across the multiple physical interfaces bundled in the trunk.

Detailed Explanation:In manual load balancing mode, all active interfaces forward traffic, distributing it evenly across links without LACP. This allows for static load balancing. Option B is incorrect because LACP (Link Aggregation Control Protocol) is not involved in manual mode. (Reference: HCIA-Datacom Training Material, Link Aggregation and Manual Load Balancing)

Detailed Explanation:APs can be added to an AC using multiple methods. You can add them when they are online, offline, or allow the AC to automatically discover them. Additionally, unauthorized APs can be manually confirmed for security​.

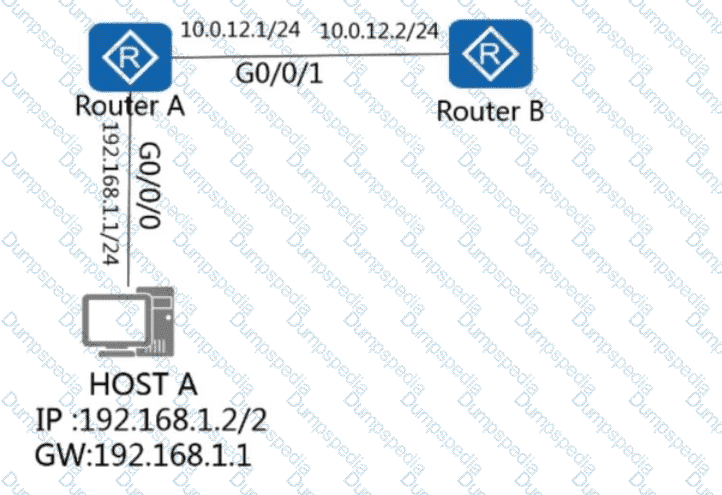

Router A would have three TCP connections in this scenario:

One for the Telnet session from host A to router A.

One for the FTP control connection to router B.

One for the FTP data connection to transfer the configuration file. These TCP connections facilitate the remote login and file transfer across the network​.

Comprehensive and Detailed In-Depth Explanation:

In Huawei switches:

" port hybrid tagged vlan X " → VLAN X traffic remains tagged when forwarded.

" port hybrid untagged vlan Y " → VLAN Y traffic is sent without a tag (untagged).

Correct Answer:

VLAN 4 and 6 will be untagged before leaving the port.

Incorrect Options:

VLANs 1, 5 are not mentioned in the configuration, so they are not untagged.

The default Link Aggregation Control Protocol (LACP) system priority on Huawei switches is 32768. This priority helps determine which device takes the active role in link aggregation when multiple switches are involved. A lower value indicates a higher priority for managing the aggregated link​.

Detailed Explanation:The command forward-mode direct-forward is used to configure the AC to enable direct forwarding, meaning that the AP will forward user data packets directly to the network without tunneling them through the AC, improving efficiency by reducing the load on the AC​.

Comprehensive Explanation: The " -i " parameter in the Ping command on Huawei VRP (Versatile Routing Platform) is used to specify the source IP address for sending an Echo Request (ping) packet. This is useful in cases where the router has multiple interfaces and you want to control which interface is used to initiate the ping. By defining the source IP address, the ping request can be sent from a specific interface on the router, enabling network administrators to test connectivity from that interface.
