H12-521_V1.0 Sample Questions Answers

Video structuring is the essential process of converting unstructured video content into searchable, organized data. This capability is integrated across the Huawei Intelligent Vision architecture, existing at both the front-end (cameras) and the back-end (platforms). Huawei's Software-Defined Cameras (SDC) are equipped with professional AI chips, such as the Ascend 310 or Hi3559A, which provide the high-performance processing required to perform this task locally. These AI chips can even replace backend servers to structure full video features, maximizing network-wide intelligent analysis efficiency. By performing structuring at the edge, the system reduces the bandwidth required to transmit full video streams to the central cloud while maintaining real-time awareness.

Simultaneously, Huawei’s intelligent video cloud and big data platforms provide robust back-end structuring capabilities for historical or live video analysis. These platforms utilize advanced algorithms to automatically generate structured data from massive video feeds. As noted in the documentation, video search intelligently analyzes unstructured original video data and automatically generates structured data based on the proper algorithms. This dual-layer approach allows for flexible deployment depending on whether real-time edge processing or high-volume centralized analysis is required for a specific security scenario.

The correct answer is B . T-Shot is an imaging and exposure technology rather than a protocol, compression method, or storage function. The material explicitly states that “M-Q and X-H series omni-data structuring cameras support T-Shot snapshot engine” and further explains that “T-Shot, Huawei's patented exposure technology, enables optimal imaging of targets and vehicles at the same time”

This directly identifies both the nature and purpose of the technology.

From a technical perspective, T-Shot addresses a common problem in complex surveillance scenes where pedestrians, non-motor vehicles, and motor vehicles may appear simultaneously in a single frame but require different exposure treatment. Traditional exposure methods often fail to preserve all such objects properly in one image. T-Shot improves simultaneous target and vehicle imaging quality, which is especially important in mixed urban environments, campuses, and residential areas. Option A is incorrect because T-Shot is not related to video compression. Option C confuses it with an interconnection protocol such as ONVIF. Option D incorrectly describes a storage or indexing function. Therefore, the only correct choice is B .

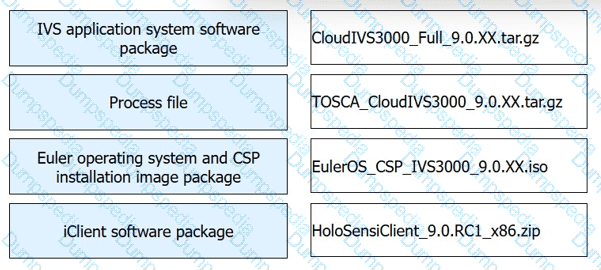

IVS application system software package → CloudIVS3000_Full_9.0.XX.tar.gz

Process file → TOSCA_CloudIVS3000_9.0.XX.tar.gz

Euler operating system and CSP installation image package → EulerOS_CSP_IVS3000_9.0.XX.iso

iClient software package → HoloSensiClient_9.0.RC1_x86.zip

The matching is determined by standard Huawei software package naming conventions used for IVS3800 and CloudIVS3000 deployment. The package named CloudIVS3000_Full_9.0.XX.tar.gz is the full IVS application system software package , because the keyword Full indicates the complete application deployment content. The TOSCA_CloudIVS3000_9.0.XX.tar.gz file corresponds to the process file , since TOSCA is used for orchestration and deployment workflow definition in Huawei platform installation. The EulerOS_CSP_IVS3000_9.0.XX.iso package is clearly the Euler operating system and CSP installation image package , as both EulerOS and CSP are explicitly named in the file. Finally, HoloSensiClient_9.0.RC1_x86.zip is the iClient software package , because HoloSens iClient is Huawei’s client-side operation and management application for the platform.

This mapping also follows the practical installation sequence. Engineers first prepare the operating system and CSP base image, then use the process file for orchestration, deploy the IVS application package, and finally install the iClient for platform access and configuration.

The correct answer is D because the statement itself is inconsistent with the standard IVS3800 plane naming logic. In IVS deployment, network design is performed per network plane , and the material distinguishes service and management connectivity, for example by referencing service TOR and management TOR , and by using terms such as external service IP address and external management floating IP address for upper-layer connection planning . This clearly supports standard plane naming such as Outer_Service , Inner_Service , and Outer_OM .

The option D uses “InnerJDM” , which does not match the naming pattern established by the rest of the network design terminology. In professional IVS planning, this is most likely a typographical corruption of Inner_OM . Since the question asks which statement is false, the incorrect plane name makes D the false statement as written. The other options are structurally consistent with IVS network-plane design principles, where core predefined service and OM address ranges are typically kept unchanged to avoid deployment and expansion issues. Therefore, D is the false statement.

The correct answer is B. FALSE . The material clearly presents the PowerCube 500 as an integrated power and site support solution , not as a video transmission platform. It states that “Huawei PowerCube 500 is widely used in Safe City and Smart City solutions to house and supply power to data transmission devices, network devices, and cameras” and that “The system adopts modular design based on the integrated platform, and supports high-performance lithium batteries and intelligent NMS”

This shows that the intelligent NMS is used for site equipment and power management , such as monitoring operating state, alarms, and module conditions. The same section lists indicators for board and service status, including hardware fault, service alarm, and power-supply conditions, which supports the fault-management role of the NMS . However, the statement becomes false because it adds “real-time video data” reporting to the upper-layer NMS. PowerCube does not function as a video analytics or live video reporting platform. It supports and powers video devices, but the video streams themselves belong to camera and network service domains, not PowerCube’s NMS reporting scope. Therefore, the statement is false.

The correct answer is A. TRUE . The idea of an observation circle in video site planning is to form a perimeter-style observation system around a protected area so that targets can be detected, tracked, and controlled at key boundary points. This matches the planning logic used in intelligent vision deployments, where site selection focuses on strategically important locations. The material identifies priority planning positions such as “Road intersections and entrances and exits” and “Key areas in cities” . These are exactly the kinds of points used to form an observation circle.

From a professional planning perspective, the observation circle concept is not just about placing cameras randomly; it is about creating an enclosed prevention-and-control framework by covering the external boundary and critical transition points of an area. Inter-city boundaries and city entrances or exits are typical examples because they are natural choke points for observation, vehicle monitoring, and event response. By surrounding the target area through layered site deployment, the system improves awareness, traceability, and early warning capability. Therefore, the statement correctly describes the purpose and example of an observation circle.

The correct answers are A, B, C, and D because a proper solar PV module check must cover both the module condition and the mechanical support condition . A damaged panel can reduce charging efficiency or create safety risks. Dirt, oil stains, dust, or snow on the panel surface can block sunlight and reduce power-generation performance. At the same time, the support structure must be checked for corrosion, rust, and stability , because outdoor PV assemblies are continuously exposed to weather, vibration, and environmental aging.

This conclusion is also consistent with the overall site-power design described in the training material, where Huawei’s integrated site solution includes “PV modules: two PV modules” and uses “SolarMax, and GridMax technologies to maximize energy efficiency of solar energy and mains and provide secure and reliable power supply” . Since PV modules are part of the site power system, both energy-conversion efficiency and structural reliability must be maintained. In actual maintenance practice, a clean, intact, and firmly supported PV module is necessary for stable long-term operation. Therefore, all four listed checks are valid and should be included.

The correct answer is A because WDR is the standard method for handling scenes with strong contrast between bright background light and a darker foreground target. In a backlit scenario, the camera must balance very bright and very dark regions at the same time. If this is not handled correctly, the foreground subject appears too dark. WDR addresses exactly this problem by improving detail retention in both bright and dark parts of the scene.

This is consistent with the exposure principle emphasized in the material, which states that “T-Shot, Huawei’s patented exposure technology, enables optimal imaging of targets and vehicles at the same time” and explains that “Traditional exposure technology cannot correctly expose targets, motor vehicles, and non-motorized vehicles in one image” . That same engineering logic is what makes WDR the right correction for backlit darkness. By contrast, HLC is mainly used to suppress overly bright highlights such as headlights, not to brighten a dark foreground in a backlit scene. FoV and focal length affect framing and magnification, not dynamic-range correction. Therefore, A is the correct answer.

The correct answer is A. TRUE . In IVS deployment practice, background maintenance tasks such as automatic backup can interfere with application installation, service initialization, database operations, and resource locking. For that reason, engineers typically disable automatic backup before beginning installation or deployment on the CSP OM portal. This is consistent with Huawei’s broader operation and maintenance logic, where management-plane activities on the CSP OM portal directly affect application deployment behavior. The material repeatedly uses the CSP OM portal as the control point for cluster and application configuration, for example when engineers need to view BMU-related service addresses through “Application Configuration > Configuration Management > Configuration > Application Name > Two-Node Cluster”

From an implementation perspective, installation requires a stable and uncontested environment. If an automatic backup starts during deployment, file operations, configuration updates, or service restarts may be interrupted, which can lead to incomplete installation or task failure. Therefore, disabling the automatic backup function before IVS installation is a valid preventive measure and should be regarded as a correct statement.

Camera cycling, also known as round-robin viewing, is a feature in the intelligent vision system that allows a set of video panes to automatically rotate through different camera feeds at a specified interval. This is a common practice in security monitoring rooms to allow a limited number of monitors to cover a much larger number of cameras.

According to the system logic for the iClient and IVS platform, the cycling function is designed to refresh the content of the active panes. If the number of cameras selected is equal to or less than the number of available video panes, the display remains static because every camera can be shown simultaneously without the need for rotation. To trigger the "cycling" mechanism, the number of cameras in the resource group must exceed the number of panes currently displayed on the screen. Therefore, if you have configured six video panes for camera cycling, you need to select at least 7 cameras so that the system has a "surplus" camera to rotate into one of the panes when the interval timer expires. This ensures that the surveillance personnel see every camera in the group over a period of time, fulfilling the purpose of the round-robin service.

The Huawei Intelligent Video Surveillance (IVS) platform is designed with a high degree of openness and compatibility, allowing it to manage a vast array of front-end devices from various third-party vendors. To facilitate this interoperability, the platform utilizes a specialized driver or plug-in architecture. While standard protocols like ONVIF, GB/T 28181, and SDKs provide a baseline for communication, many proprietary features and vendor-specific protocols require a dedicated access plug-in to be installed on the platform side.

These plug-ins act as a translation layer that maps the third-party camera's private commands and data structures to the IVS platform's unified internal management language. This is particularly important for synchronization functions and interconnection collection, which are often handled by the VDS (Video Data Service) component. By installing the correct vendor-specific plug-in, the platform can access advanced camera features such as PTZ control, alarm reporting, and parameter configuration that might not be fully supported by generic standards. This modular approach allows Huawei's intelligent vision system to remain flexible and future-proof, enabling rapid integration of new camera models and vendors without requiring a full system-wide firmware upgrade.

The correct answer is A because video site planning follows a logical engineering sequence: first determine where the site should be deployed, then perform a detailed site survey , and finally complete device selection planning based on the confirmed environmental and construction conditions. The material first lists typical site selection targets such as “Road intersections and entrances and exits” and “Key areas in cities” , which clearly corresponds to site selection planning. It then moves into survey items such as “Environment survey” , “Power supply” , and “Construction conditions” , showing that the survey is performed after the preliminary site location is determined and before final device planning is completed

This sequence is consistent with actual project practice. A project team cannot choose appropriate poles, anti-corrosion levels, cameras, power schemes, or transmission methods until the physical environment has been checked. For example, the survey determines whether the site is near the sea, whether mains power is stable, and whether enough construction space is available. Those findings directly affect the final device model and solution design. Therefore, the correct process is video site selection planning → video site survey → video site device selection planning .

The correct answer is A. TRUE . In intelligent vision and site planning, a protection line is a boundary-type monitoring rule used to determine whether a target enters or exits a defined space. This is consistent with the motion-analysis logic in the material, where behavior judgment is based on trajectories rather than isolated frames. The document explains that “A movement trajectory consists of positions of the centroid of a moving object in individual frames” and further states that “Tripwire crossing detection mainly involves the extraction of dynamic features of an object” such as trajectory, speed, and direction .

From an engineering viewpoint, a protection line is essentially a virtual line used to determine crossing behavior at the edge of a monitored zone. Once the moving object’s trajectory intersects that defined line, the system can judge whether the target is entering or leaving the designated area. This makes the protection line useful for event rules such as entry detection, exit detection, and boundary protection. Because the statement accurately reflects how a protection line records in-and-out movement locations using monitoring analysis, it is true.

The IVS3800 is a versatile intelligent video surveillance platform that can be configured for various roles, including storage, management, and intelligent analysis. To perform high-performance intelligent target or vehicle analysis—such as extracting features from video or images—the system requires dedicated computing resources beyond standard CPU capabilities. According to the technical specifications of the IVS3800 (specifically models like the IVS3800C), the hardware must be configured with an AI accelerator card , specifically the Ascend accelerator card.

For instance, a standard IVS3800C configuration for vehicle analysis in the Chinese mainland supports 360 channels in video mode when installed with six Ascend accelerator cards. These cards provide the "ultimate computing power" necessary for neural network-based processing, such as object classification and attribute recognition. While NVMe cards and SAS/SATA disks are used for high-speed cache and mass storage respectively, they do not provide the specialized AI inference logic required for data structuring. Therefore, the AI accelerator card is the mandatory component for enabling intelligent analysis functions on the IVS3800 platform.

The correct answer is A because cutting off unnecessary pigtail cables is not a valid waterproofing method and can actually compromise device integrity and long-term reliability. In installation practice, pigtails are retained as part of the camera’s original interface design, and the emphasis is placed on proper handling and protection , not removal. The material specifically warns that “When moving the devices, use hands and do not lift the pigtails” , which reflects that pigtails are treated as protected connection elements rather than disposable parts. It also stresses correct cable outlet orientation, for example, “The strobe light and flash light cannot be installed upside down. The cable outlet must be vertically at the bottom” , showing that water protection relies on installation method and cable routing.

From a field engineering perspective, waterproofing is achieved by sealing exposed connectors with waterproof tape, protecting cable joints thoroughly, and forming a drip loop so water flows away from the connector rather than into it. These are standard outdoor installation controls. Therefore, B, C, and D are all valid anti-water measures, while A is not.
