JN0-232 Sample Questions Answers

Source NAT (Network Address Translation) is used on SRX devices to allow hosts with private IP addresses to access external networks, such as the Internet. The SRX translates the private IP address of the source host into a public IP address before forwarding traffic toward the destination.

It does not translate MAC addresses (Option A).

NAT is unidirectional in this case: it specifically translates private-to-public in the outbound direction, while the reverse (return traffic) is handled automatically through the session table. It is not a bidirectional translation (Option C).

NAT processing occurs as part of the flow module, not limited only to ingress traffic (Option D).

Therefore, the correct statement is that source NAT translates private IP addresses to public IP addresses .

Traceoptions in the security flow hierarchy provide debugging for how packets are processed in the flow module.

The correct flag to capture detailed packet-level debugging is packet-dump (Option A) . This outputs packet-level trace messages showing flow decisions, NAT processing, and policy matches.

general (Option B): Provides basic flow trace information but not full packet inspection.

state (Option C): Tracks flow state transitions, less detailed than packet-dump.

basic-datapath (Option D): Provides high-level datapath debugging, not detailed flow troubleshooting.

Correct Flag: packet-dump

Option B: Correct. Interfaces in the same security zone must belong to the same routing instance; zones cannot span multiple routing instances.

Option D: Correct. A security zone can contain multiple interfaces, allowing grouping of similar trust levels (e.g., multiple LAN subnets in a trust zone).

Option A: Incorrect. An interface can belong to only one zone at a time.

Option C: Incorrect. Interfaces within the same zone cannot be split across routing instances.

Correct Statements: Interfaces in the same zone must share the same routing instance, and a zone can contain multiple interfaces.

In Junos OS, security zones are the foundation of SRX firewall policy enforcement. Logical interfaces must be assigned to zones. This enables:

Separation of traffic by zone boundaries.

Enforcement of security policies for traffic traversing between zones.

Control of traffic across VLANs, subnets, or functional areas (e.g., trust, untrust, DMZ).

Other options:

Zone assignment is not used to simplify interface configuration (A).

Routing protocols and updates (B) are handled by routing instances, not zones.

SNMP monitoring (D) is enabled under system or services configuration, not zones.

Security policies on SRX support several actions:

Permit: Allows traffic to pass according to the rule.

Deny: Silently drops the traffic without notifying the source.

Reject: Drops the traffic and sends a TCP RST (for TCP) or ICMP unreachable (for UDP/other protocols) back to the source. This provides feedback to the sending host.

Next-policy: Allows policy chaining to evaluate the next policy set.

Therefore, the action that causes traffic to drop and a message to be sent to the source is reject .

The Packet Forwarding Engine is the forwarding-plane component responsible for high-speed packet handling. Juniper documentation states that the PFE performs Layer 2 and Layer 3 packet switching, route lookups, and packet forwarding. This makes option A correct because transit traffic is forwarded by the PFE rather than by the control plane. The Routing Engine manages and programs the PFE by building routing information and copying the forwarding table to the PFE, making option B correct. Option C reverses the relationship and is therefore incorrect. Option D is also incorrect because routing tables are created and maintained by the Routing Engine and routing protocol processes; the resulting forwarding information is then installed into the PFE for packet forwarding.

When both source NAT and destination NAT are involved, the security policy must match addresses according to Junos NAT processing order. Juniper documents that static NAT and destination NAT are processed before route lookup and security policy lookup, while source NAT is processed after route and security policy lookup. This means that by the time policy evaluation occurs, the destination address has already been translated by destination NAT. However, the source address has not yet been translated by source NAT. Therefore, the correct policy match conditions are the post-NAT destination address and the pre-NAT source address. Matching on the pre-NAT destination or post-NAT source would not align with Junos SRX processing order.

Default assignment: All logical interfaces are placed in the null zone by default until explicitly assigned to a user-defined security zone (Option A is correct).

Removal from null zone: Once an interface is assigned to a security zone, it is removed from the null zone (Option D is correct).

No traffic acceptance: The null zone is a discard zone; it cannot be configured to accept any traffic (Option C is incorrect).

Policy behavior: Traffic rejected by a security policy is dropped according to the policy action. It is not forwarded to the null zone for logging (Option B is incorrect).

Correct Statements: A and D

Security Director is Juniper’s centralized platform for managing security policies across SRX Series physical and virtual firewalls. Juniper documentation states that Security Director provides centralized security policy lifecycle management, including firewall, Content Security, IPS, VPN, and NAT policy workflows. JIMS, the Juniper Identity Management Service, supports user identity and IP address mapping for SRX Series devices, enabling user firewall and identity-aware policy decisions. In this exam context, Security Director provides the policy management platform, while JIMS supplies identity information used by user-based security policies. Juniper Secure Analytics is primarily analytics and log correlation, not SRX policy management. Juniper Mist can support some cloud-managed networking functions, but it is not the JN0-232 security policy management product paired with SRX policy administration.

The host-inbound-traffic parameter controls traffic destined to the SRX device itself, not transit traffic passing through the firewall. This traffic is commonly called self traffic or exception traffic because it terminates on the firewall’s Routing Engine for services such as SSH, ping, BGP, OSPF, or management access. Juniper describes host-inbound-traffic as controlling the type of traffic that can reach the device from interfaces bound to a security zone. Junos security zone configuration is applied to logical interfaces, such as ge-0/0/1.0, not merely physical ports. Therefore, exception traffic and protocols on logical interfaces are the correct choices. Transit traffic is controlled by security policies, not host-inbound-traffic.

Static NAT creates a fixed one-to-one mapping between real and mapped addresses. Juniper documentation describes static NAT as mapping one IP subnet to another IP subnet and states that translation is limited to one-to-one mappings or address blocks of the same size. This makes option A correct. Juniper also states that no address pools are necessary for static NAT, which makes option C correct. Address pools are commonly associated with source NAT or destination NAT pool configurations, not the basic static NAT mapping model. Static NAT can support static port mapping in specific configurations, but the general static NAT behavior tested here is one-to-one address translation, not dynamic PAT. Therefore, the correct answers are A and C.

When traffic enters an SRX Series Firewall, the ingress interface determines the source security zone because that interface is already bound to a zone. The route lookup is then used to determine where the packet should leave the device. Juniper documentation explains that the packet’s outgoing zone is determined by the forwarding lookup, and together the incoming zone and outgoing zone determine which security policy context is used. Therefore, the route lookup determines the egress interface and, indirectly through the egress interface’s zone membership, the egress security zone. It does not determine the ingress interface because the packet has already arrived on that interface. It also does not determine a DNS name; DNS resolution is unrelated to SRX route lookup and security zone selection.

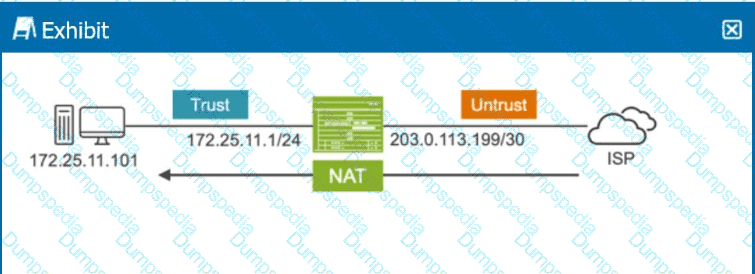

From the exhibit:

The internal host (172.25.11.101) is located in the Trust zone .

The external address (203.0.113.199/30) is used for communication with the ISP.

The requirement is that sessions can only be initiated from the external device (the ISP or untrust side) toward the internal host.

This requirement matches the behavior of Destination NAT :

Destination NAT only (Option A): Maps the external/public IP (203.0.113.199) to the internal/private IP (172.25.11.101). This allows inbound connections to be translated and sent to the internal host. The internal host cannot initiate outbound sessions, since the translation only applies to inbound traffic.

Source NAT only (Option B): Used for outbound sessions from internal private IPs to the Internet. This does not meet the requirement.

Static PAT (Option C): Maps a single port of a public IP to a private IP/port. The exhibit does not indicate a port-based translation.

Static NAT and source NAT (Option D): Would provide bidirectional communication, allowing sessions to be initiated in both directions. This contradicts the requirement.

Correct NAT Type: Destination NAT only

Juniper NextGen Web Filtering provides URL category and reputation-based control for HTTP and HTTPS traffic. Juniper documentation states that URL categories are available in the Juniper NGWF cloud and that NGWF supports categorization and recategorization functions. The recategorization process is performed using operational mode commands such as request security utm web-filtering recategorize url and related status commands, not by editing normal Junos configuration statements. Therefore, option B is correct. Option C is also correct because NGWF uses predefined Juniper NextGen URL categories. Option A is incorrect because recategorization is not performed as a standard configuration object change. Option D is incorrect because Juniper also supports custom URL category mechanisms for local web filtering use cases.

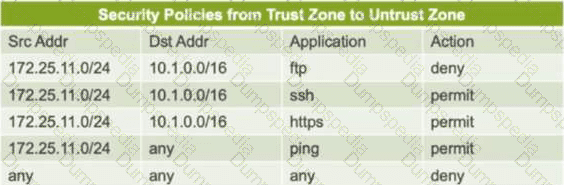

The policy table applies to traffic from the Trust zone to the Untrust zone. The source prefix 172.25.11.0/24 and destination prefix 10.1.0.0/16 are matched for FTP, SSH, HTTPS, and ping actions. FTP traffic from 172.25.11.11 to 10.1.0.10 matches the FTP deny policy, so option A is correct. SSH traffic from 172.25.11.10 to 10.1.0.10 matches the SSH permit policy, so option C is correct. Ping from 172.25.11.100 to 10.1.0.10 is permitted, not denied, because the ping policy permits it. Option D reverses the source and destination direction and does not match the displayed Trust-to-Untrust policy table. Security policies are matched using zone context, source address, destination address, and application.

Transit traffic is defined as traffic that passes through the SRX (not destined to the Routing Engine). To capture transit traffic:

Sampling and port mirroring (Option D) are the correct supported methods for capturing or exporting transit traffic. Sampling allows captured packets to be sent to a file or collector, while port mirroring sends a copy to a monitoring interface.

Option A: Firewall filters on an egress interface cannot directly capture packets; they can only count, accept, discard, or sample. Sampling itself is separate.

Option B: Loopback interface (lo0) is for control-plane traffic, not transit traffic.

Option C: tcpdump is not supported on SRX as a tool for capturing transit packets; the operational command monitor traffic interface is used, but sampling/port mirroring is the recommended scalable approach.

Correct Method: Sampling and port mirroring

The exhibit shows the output of show security nat source rule source-NAT-rule-1. The rule belongs to the source NAT rule set and has rule position 1, so it is the first NAT rule in that rule set. The match section shows the source address range as 0.0.0.0 - 255.255.255.255, meaning any IPv4 source address matches. The rule also specifies traffic from the Trust zone to the Untrust zone. Therefore, all traffic entering through the Trust zone and leaving through the Untrust zone matches this source NAT rule. The output also shows translation hits and successful sessions, confirming that traffic has matched the rule. It is not limited to only traffic matching the default route. Juniper documents that NAT rule sets use source/destination zone or interface matching and can be verified with show security nat source rule.

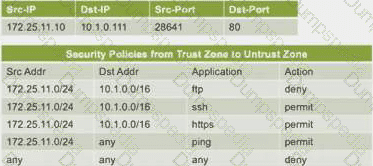

The incoming packet shown in the exhibit uses destination port 80, which represents HTTP traffic. The policy table contains entries for FTP, SSH, HTTPS, and ping before the final policy. Because the packet does not match FTP, SSH, HTTPS, or ping, it continues down the ordered policy list until it reaches the final any-any-any deny rule. Junos security policies are evaluated in order, and the first matching policy determines the action for the traffic. This makes option D correct. Since the final matching rule denies the packet, option C is also correct. The packet is not permitted by HTTPS because HTTPS uses TCP destination port 443, not port 80.

The antivirus feature on SRX relies on signature definition files that must be regularly updated. To check the status of these updates, the correct operational command is:

show security utm anti-virus status (Option D). This displays details such as:

Antivirus engine status

Last update time of virus definitions

Version of the signature database

Other options:

Content-filtering statistics (Option A) shows counters for file-type filtering, not antivirus updates.

Anti-spam status (Option B) shows spam filtering engine connectivity.

Web filtering status (Option C) shows SBL/web filter server connection details.

Correct Command: show security utm anti-virus status

Security policies can reference additional services and authentication behavior after traffic matches the policy criteria. SSL proxy is applied through a security policy by matching the traffic that should be decrypted and inspected, then referencing the SSL proxy profile as an application service. Firewall authentication is also policy-based; Juniper describes it as requiring users to authenticate to the SRX Series Firewall before access between zones and devices is permitted. Captive portal authentication is a web redirection mechanism and is not the direct security policy feature identified in this question. MAC bypass is not a standard SRX security policy service. Therefore, SSL proxy and firewall authentication are the two features applied through security policy processing.

Routing instances: Security zones are local to their routing instance. They cannot be shared between routing instances (Option B is correct). Each routing instance must define its own zones.

Intrazone and interzone traffic: Both types of traffic require policies in Junos OS. Intrazone traffic must have an explicit intra-zone policy to be controlled (Option C is correct).

Sharing zones: Option A is incorrect, as zones cannot span routing instances.

Multiple zones: SRX devices fully support multiple security zones (trust, untrust, DMZ, etc.). Option D is incorrect.

Correct Statements: B and C

Content Security is the Juniper solution that adds antivirus capabilities to SRX Series Firewalls. Juniper Content Security includes several UTM-style services, such as antivirus, antispam, content filtering, and web filtering. The antivirus feature scans supported traffic to detect and block malicious files or virus-related content according to configured profiles and policies. IDP provides intrusion detection and prevention signatures, but it is not the specific solution that adds antivirus scanning. NAT translates IP addresses and ports and has no antivirus function. Firewall filters provide stateless packet filtering and traffic classification, not file-based malware inspection. Therefore, Content Security is the correct answer for adding antivirus features to an SRX Series device.

The SRX Series devices support third-party antivirus scanning engines such as Avira . To use the Avira antivirus engine, administrators must explicitly enable the engine and ensure that the required components are properly loaded.

Enable in configuration mode:

The Avira antivirus engine must be enabled under UTM configuration mode. This step ensures the SRX device uses the Avira scanning engine for antivirus inspection.

Example:

set security utm feature-profile anti-virus avira-engine enable

Reboot the SRX device:

A system reboot is required after enabling the Avira engine to load the Avira antivirus components into memory.

Without a reboot, the Avira engine will not become active.

Why not the others?

Restarting the mgd process (Option A) only reloads the management daemon and does not load antivirus engines.

Enabling in operational mode (Option B) is not supported; the configuration must be applied in configuration mode.

Therefore, the correct actions to use Avira Antivirus are: Enable the Avira engine in configuration mode (Option D) and reboot the SRX device (Option C).

For an SRX firewall interface to respond to management traffic such as ICMP pings:

The interface must be assigned to a security zone (Option A). If an interface is not part of any zone, it is placed into the null zone, which drops all traffic.

Additionally, the zone must be configured to allow management traffic types as host-inbound-traffic (Option D). For ICMP, the protocol must be explicitly allowed under host-inbound-traffic for that zone.

Other options:

Security policies (Option B) control traffic traversing the firewall, not traffic destined to the SRX device itself.

Assigning the interface to the null zone (Option C) prevents any communication, including management.

Correct Actions: Assign the interface to a zone and configure ICMP under host-inbound-traffic.

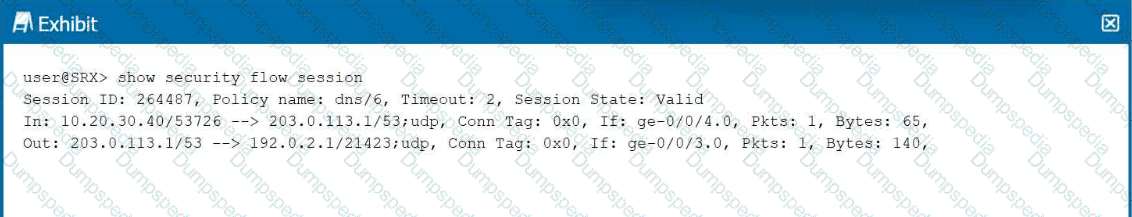

Inbound Flow (before NAT): Source = 10.20.30.40 (internal private IP) Destination = 203.0.113.1 (public DNS server)

Outbound Flow (after NAT): Source = 192.0.2.1 (translated IP) Destination = 203.0.113.1 (unchanged)

Analysis:

The source IP (10.20.30.40) was translated to 192.0.2.1 . This indicates Source NAT was applied → Option B is correct .

The destination IP changed between the inbound and outbound view. Inbound it was 203.0.113.1 , and outbound it is still 203.0.113.1 in appearance, but notice the reversal: the session entry shows it as the outbound " source " side. This confirms Destination NAT translation has occurred for return flow consistency → Option D is correct .

Option A: Incorrect. The original source IP was indeed translated.

Option C: Incorrect. The destination IP did change in the flow processing.

Correct Statements:

The original source IP address was translated to a new source IP address.

The original destination IP address was translated to a new destination IP address.

Global security policies extend the flexibility of policy enforcement across the SRX. They are not tied to specific source and destination zones:

From-zone and to-zone contexts are not required (Option A). Global policies apply across all zones unless restricted by match conditions.

Global security policies do not require specific zone contexts (Option B is incorrect).

Global policies are processed after zone-based policies , not before. This means that zone-based security policies take precedence (Option C is incorrect).

Administrators can configure both zone-based security policies and global security policies at the same time on the same device (Option D is correct).

This allows flexible designs where specific policies can be enforced by zone, while general policies can be applied globally without duplicating rules across multiple zones.

When two networks use the same private IP address ranges, conflicts occur. The solution is to use address translation techniques on the SRX:

NAT (Network Address Translation): Translates private IP addresses to another IP range, enabling connectivity between overlapping private networks.

PAT (Port Address Translation): Extends NAT by allowing multiple private IPs to share one or a few public IPs using different port numbers. This is especially useful when there is a limited pool of public IP addresses.

Other options:

IDP (Option A): Intrusion Detection and Prevention, unrelated to address overlap.

BGP (Option C): A routing protocol, but it does not solve overlapping IP addressing problems.

Correct Features: NAT and PAT

Transit traffic is defined as traffic passing through the SRX firewall (from one interface/zone to another). To allow transit traffic:

Interfaces must be placed into a user-defined security zone (Option C).

Policies between zones are then applied to control traffic.

The null zone (Option A) discards all traffic.

The Junos-host zone (Option B) is used for traffic destined to the SRX itself, not transit.

Functional zones (Option D) are predefined and used for special purposes (like management), not for transit traffic.

Correct Configuration: User-defined security zone

Unified security policies integrate traditional zone-based policies with application-based policies . Their characteristics include:

Zone-based or global (Option B): Unified policies can be applied as either zone-specific or global policies.

AppID engine (Option C): They leverage the AppID engine for application identification, enabling fine-grained control at the application layer.

Policy matching (Option A): Policies are evaluated sequentially like standard security policies; applications are not matched before policy processing.

Multiple matches (Option D): If multiple policies could match, the first match applies (sequential order), not the “most restrictive.”

Correct Statements: B and C

Application sets are used to group multiple predefined or custom applications under one named object. Juniper documentation states that an application or application set can be referenced by security policies as match criteria for session-initiating packets. This allows administrators to simplify policy configuration by matching one application-set object instead of listing many individual applications. It also improves operational flexibility: if several policies reference the same application set, you can change the applications in that set without directly editing every policy rule. Application sets do not organize addresses; address sets perform that role. They also do not directly open dynamic ports during a session; that behavior is associated with application-level gateways and protocol handling, not the purpose of an application set.
