JN0-452 Sample Questions Answers

 According to the Cisco Catalyst 9800 Series Wireless Controller Software Configuration Guide1, RF templates are assigned to sites, which are logical groupings of devices based on physical location or other criteria. RF templates allow you to configure RF parameters such as channel width, transmit power, and data rates for multiple devices at once.

Channel bonding combines two adjacent channels to create a wider channel, effectively doubling the available bandwidth. However, this also doubles the required device resources such as power and processing.

According to the Lecture 3 - Radio Frequency and Antenna Fundamentals - Part 2 document2, channel bonding is a technique that combines two adjacent channels into one wider channel to increase throughput. This doubles the available bandwidth but also doubles the required device resources such as power and processing.

According to the Juniper Mist Wireless Deployment Service Datasheet1, a configuration template at the organization level can be applied to a site group, not to an individual site. Therefore, there is no option to mention the site in the config template at the organization level.

The Clone Site feature in the Juniper Mist dashboard is a powerful tool designed to streamline the deployment of new physical locations by duplicating the environmental and operational logic of an existing "gold standard" site. However, to avoid configuration conflicts (such as duplicate addresses) and to maintain the integrity of the hierarchy, Mist is selective about which objects are carried over during the cloning process.

According to Juniper Mist documentation, only the settings visible on the Site Configuration page are copied to the new site. This specifically includes:

Auto Firmware Upgrade settings (A): The specific versioning (Production vs. RC) and the weekly or daily maintenance windows defined for the site are preserved. This ensures that the new site follows the same lifecycle management policy as the primary site.

RF Templates (B): The radio resource management (RRM) profile assigned to the site is copied. This includes channel planning, bandwidth settings (20/40/80 MHz), and power level constraints tailored for that environment.

Other Site-Level Settings: This also includes Webhooks, Rogue/Honeypot AP detection rules, and Location Services settings.

Conversely, certain objects are explicitly not copied. The Site Location (C) and Site Name are excluded because each site must be geographically unique for accurate mapping and time zone calculation. WLANs (D) are also not copied through the Clone Site function; SSIDs are typically managed at the Organization level via WLAN Templates, which are then mapped to sites or site groups rather than being "hardcoded" into an individual site's local configuration. By cloning the site-specific parameters like RF templates and upgrade schedules, Mist allows administrators to rapidly scale their infrastructure while ensuring the core network access (WLANs) is maintained through the overarching organizational policy.

As part of the Throughput SLE in the Mist UI, the Coverage classifier indicates the signal strength of the client.

The Wireless Assurance SLE that provides information on whether a user is able to associate to the WLAN is Successful Connect. So the correct answer is A. Successful Connect.

In 802.11 wireless networking and the Juniper Mist ecosystem, Passive Scanning is one of the two primary methods a client station (STA) uses to discover available wireless networks.4 In this mode, the client radio does not transmit any data to find an Access Point. Instead, it "waits and listens" on each supported channel for a specific period of time to hear Beacon Frames.5

Beacons are management frames sent periodically by an AP (typically every 100ms) to announce the presence and capabilities of a Basic Service Set (BSS).6 These frames contain critical information such as the SSID (Network Name), supported data rates, security protocols (RSN), and PHY requirements.7 Because the client only needs to keep its receiver active and does not have to power up its transmitter to send probe requests, passive scanning is significantly more power-efficient than active scanning, making it ideal for battery-constrained IoT devices.

However, the trade-off for this power efficiency is time. Since a client must stay on each channel long enough to guarantee it hears a beacon (at least one full beacon interval), scanning the entire 2.4 GHz, 5 GHz, and 6 GHz spectrum can take several seconds. In contrast, Active Scanning (options B, C, and D) involves the client sending Probe Requests (either wildcard/null or directed to a specific SSID) and waiting for a much shorter period for a Probe Response.8

From a Mist AI perspective, the dedicated scanning radio in Mist APs (like the AP43/AP45) performs its own version of passive and active scanning to build a complete map of the RF environment. This data is used by Marvis to detect "Neighbor" and "Honeypot" APs. While most modern mobile clients prefer active scanning to speed up the discovery and roaming process, passive scanning remains a fundamental requirement—especially on DFS channels where regulatory rules prohibit a client from transmitting until it has first "listened" to confirm no radar is present.

In the architecture of Juniper Mist AI, the RESTful API is the foundational interface for all automation, monitoring, and configuration tasks.1 When building automation for a REST (Representational State Transfer) API, HTTPS (Hypertext Transfer Protocol Secure) is the protocol used as the transport mechanism. REST is an architectural style that leverages the existing standards of the web, and in the case of the Mist Cloud, it specifically mandates the use of HTTPS to ensure that all data transmitted between the automation script (the client) and the Mist Cloud (the server) is encrypted and secure.

HTTPS acts as the "delivery truck" for the API requests.2 It carries the HTTP methods—such as GET (to retrieve data), POST (to create new objects), PUT (to update existing ones), and DELETE (to remove them)—across the network to specific Mist API endpoints (e.g., api.mist.com). While the actual data being transported is typically formatted in JSON (JavaScript Object Notation), the underlying protocol that handles the connection, session negotiation, and data encapsulation is HTTPS.

Mist's "100% API" philosophy means that every feature available in the GUI is accessible via these HTTPS-based calls.3 This allows developers to use various tools and languages to interact with the platform. For example, a developer might write a script in Python (C) or use an orchestration tool like Ansible (A), but both of these will ultimately generate HTTPS requests to communicate with the Mist backend. Similarly, while some older APIs used XML (B) for data structure, modern RESTful services like Mist exclusively use JSON for its lightweight and human-readable properties.4 Therefore, HTTPS remains the essential transport layer that enables the secure, stateless communication required for scalable cloud-native automation.

In Juniper Networks Mist AI Wireless, Radio Resource Management (RRM) uses multiple decision-making systems to adapt the RF environment intelligently. A channel change triggered by the detection of RADAR on a DFS (Dynamic Frequency Selection) channel is a clear example of an event-driven RRM action.

DFS channels are regulated frequencies that must be shared with weather, military, and aviation radar systems. Regulatory bodies require wireless devices to immediately vacate a DFS channel when radar activity is detected. When a Juniper Mist AP operating on a DFS channel detects radar signatures, it generates a real-time RF event. This event forces the AP to immediately stop transmitting on that channel and move to a new, non-DFS or alternate DFS channel.

Mist classifies this behavior as event-driven RRM because:

The channel change is reactive, not predictive

It is triggered by a specific external RF event (radar detection)

It requires immediate action to maintain regulatory compliance and avoid interference

The other options are incorrect for the following reasons:

FCC compliance defines why the change is required, but it is not an RRM system or decision model.

Global optimization refers to long-term RF tuning across the network based on historical performance data, not immediate forced changes.

Reinforcement learning is used by Mist to optimize RF parameters over time through continuous learning, not for mandatory, instantaneous responses to radar events.

Mist RRM combines event-driven actions, AI-based global optimization, and reinforcement learning to deliver both compliance and performance. In the case of radar detection on a DFS channel, the AP’s channel change is driven by a real-time RF event, making event-driven RRM the correct answer.

According to the Cisco Catalyst 9800 Series Wireless Controller Software Configuration Guide2, a device profile is a configuration object that allows you to group similar devices together and apply consistent WxLAN policies across multiple sites. A device profile defines parameters such as device type, OS, and MAC address.

Mist Radio Resource Management (RRM) performs several functions including transmit power control and channel assignment which help optimize wireless network performance by dynamically adjusting radio settings based on changing environmental conditions.So,the correct answers are A.transmit power control and C.channel assignment

According to the Cisco Catalyst 9800 Series Wireless Controller Software Configuration Guide1, two functions of Mist Radio Resource Management (RRM) are:

Transmit power control, which adjusts the transmit power of APs based on their coverage area and interference level.

Channel assignment, which assigns channels to APs based on their location and interference level.

In a Juniper Mist AI deployment, achieving high-fidelity location accuracy is entirely dependent on the digital twin (the floor plan in the Mist UI) accurately reflecting the physical environment. While scaling the map is the foundation, AP orientation is the most critical variable for the vBLE (virtual Bluetooth Low Energy) engine to correctly calculate a client's position.

Mist Access Points, such as the AP43 or AP45, feature a patented 16-element directional vBLE antenna array. This array does not broadcast in a simple omnidirectional circle; instead, it uses eight distinct directional beams to blanket an area. The Mist Cloud uses "probability surfaces" to determine a user's location by examining the RF fingerprints from these specific beams. If an AP is physically mounted with its LED pointing toward a specific hallway, but is oriented in the Mist UI facing a different direction, the location engine will receive signal data that does not match its internal map of the beams. This results in "flipped" locations or "teleporting," where a user appears on the opposite side of the AP from where they actually are.

To ensure accuracy, administrators must use the small green dot on the outer ring of the AP icon in the Mist Live View. This green dot represents the physical LED on the AP hardware. The orientation in the UI must be rotated so that the green dot points in the exact same direction as the physical LED relative to the floor plan's perspective. It is a common misconception that APs must face true north (A) or geographical north (D); the map and APs can be oriented in any way that is convenient for the facility layout, provided the relative alignment between the virtual icon and the physical device is identical.

In a Juniper Mist environment, the Radio Resource Management (RRM) system is responsible for the automated allocation of channels and transmit power across all Access Points (APs) at a site. When you modify an RF Template—for example, by excluding specific UNII-2 Extended channels that certain legacy or region-specific clients cannot "see" or support—you are updating the intended policy for the network. However, because Mist RRM is designed for stability, it does not always force an immediate, disruptive channel change across the entire site the moment a template is saved.

To force the Mist AI engine to immediately recalculate the channel plan based on your new constraints and push those settings to the APs, you use the Optimize Now button. This feature is found within the Radio Management section of the site settings or the RF template application page. When "Optimize Now" is triggered, the Mist Cloud analyzes the current RF environment, takes your new channel exclusions into account, and issues a command to the APs to switch to the most efficient channels available within the newly defined subset.

Choosing Restart the APs (C) or Restart the WLANs (B) is unnecessary and causes more downtime than required. A reboot might eventually result in a new channel selection, but it does not guarantee that the RRM algorithm has fully processed the global optimization for the site. Restarting clients (D) does nothing to change the AP's channel behavior. By using Optimize Now (A), you ensure a coordinated, AI-driven transition that minimizes "co-channel interference" while respecting the updated frequency constraints you defined to accommodate your specific client devices. This ensures that clients previously struggling with unsupported UNII-2 channels are immediately moved to compatible frequencies.

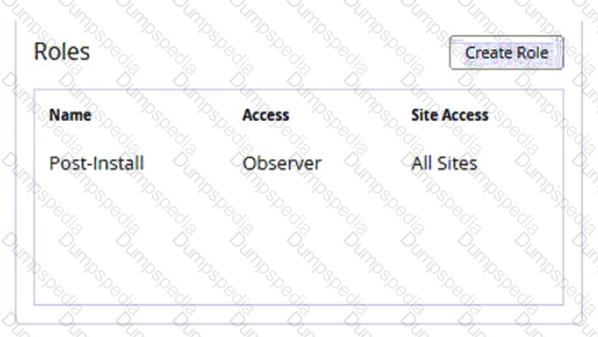

the Post-Install user role is also known as Installer role, which has a minimum level of access to the org, sites, and APs. It can do the initial installation such as claim AP to Org, assign/unassign AP, or place on map, etc., but cannot unclaim or remove the AP from the Org. Site and AP access is allowed based on timed grace period and/or explicit site access.

https://www.mist.com/documentation/mist-ai-mobile-app/

In wireless networking, Adjacent Channel Interference (ACI) occurs when two or more access points transmit on partially overlapping RF channels, causing their signals to interfere with one another. In the context of Juniper Networks Mist AI Wireless, ACI is a critical RF condition that negatively impacts client performance and service-level expectations (SLEs).

ACI is most commonly observed in the 2.4 GHz band, where only three non-overlapping channels (1, 6, and 11) are available. When access points are configured on channels such as 1 and 3, or 6 and 8, their frequency spectra overlap. This overlap results in corrupted frames, increased retransmissions, higher latency, and reduced throughput for connected clients. Unlike co-channel interference, ACI introduces uncoordinated interference, which is more damaging to overall network efficiency.

Mist AI Wireless continuously analyzes RF telemetry collected from access points and clients to identify ACI conditions. Using machine learning and RF intelligence, Mist can detect excessive retries, PHY errors, and degraded airtime efficiency associated with overlapping channels. These findings are surfaced through Marvis AI insights and RF-related SLE degradation indicators, allowing operators to quickly identify misconfigurations.

The incorrect options can be explained as follows:

Option A describes a properly designed RF environment with non-overlapping channels, which does not cause ACI.

Option C refers to co-channel interference (CCI), where access points share the same channel and rely on contention-based access mechanisms.

Option D is too broad; simply operating in the 2.4 GHz band does not inherently cause ACI unless overlapping channels are used.

To mitigate ACI, Mist best practices recommend using non-overlapping channels, minimizing channel width, and favoring the 5 GHz and 6 GHz bands where more clean spectrum is available. Therefore, the correct description of ACI is two or more access points operating on overlapping channels.

In Juniper Networks Mist AI Wireless, accurate location-based services (LBS) depend heavily on proper RF design and access point density. Juniper recommends that devices participating in Mist LBS maintain line-of-sight (LoS) to at least three access points to achieve reliable and consistent location accuracy.

Mist location services use advanced techniques such as RSSI triangulation, virtual BLE (vBLE), and AI-driven probability surface modeling to calculate a device’s position. These algorithms require multiple independent signal measurements to accurately determine a device’s X,Y coordinates. With signals received from three or more APs, Mist can triangulate the device position effectively and minimize errors caused by multipath reflections, attenuation, or transient RF noise.

If a device has line-of-sight to only one or two APs, the system lacks sufficient spatial diversity to calculate a precise location. This can result in ambiguous positioning, reduced accuracy, or excessive location “drift.” While additional APs (four or more) can further improve accuracy and stability—especially in high-value use cases such as asset tracking or wayfinding—three APs is the recommended minimum baseline for dependable LBS performance.

Mist’s AI continuously evaluates signal quality, AP geometry, and environmental factors to refine location estimates, but it cannot compensate for insufficient AP visibility. As a result, Juniper best practices for LBS design emphasize:

Proper AP placement and height

Adequate AP density

Ensuring devices can “see” at least three APs at all times

The other options are incorrect because:

One or two APs do not provide enough data for reliable triangulation.

Four APs may improve accuracy but are not the minimum recommendation.

Therefore, the correct answer is B. 3.

In Juniper Networks Mist AI Wireless, access points must be claimed to an organization in the Mist cloud before they can be configured, monitored, and managed. When deploying APs at scale, Juniper provides an efficient mechanism to onboard multiple access points simultaneously using an activation code.

An activation code is a bulk-claim method generated within the Mist cloud portal. This code is typically associated with a purchase order or shipment and can represent dozens, hundreds, or even thousands of access points. When the activation code is applied to an organization, all APs tied to that code are automatically claimed at once. This approach is especially valuable for enterprise and campus deployments, where manual per-device onboarding would be impractical.

Once claimed using an activation code, APs can be assigned to sites, receive configurations, and leverage Zero-Touch Provisioning (ZTP). As soon as the APs obtain network connectivity and reach the Mist cloud, they automatically download their configuration and become operational without further manual intervention.

The other options are incorrect for the following reasons:

QR codes are used for claiming individual APs, typically during small deployments or troubleshooting scenarios.

Digital certificates are used for secure authentication and communication but are not a method for claiming APs to an organization.

The Juniper Mist Mobile Application can assist with onboarding and visibility but does not provide a bulk-claim mechanism for large numbers of APs.

Therefore, the correct and documented method for claiming multiple Juniper Access Points simultaneously is to use an activation code, making option A the correct answer.

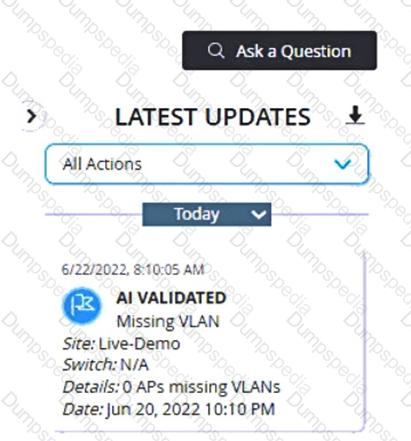

The AI VALIDATED status update means that the issue was opened and Marvis confirms it has been closed.

According to the Marvis Virtual Network Assistant Datasheet1, the AI-VALIDATED status update means that the issue was opened and Marvis confirms it has been closed. This status indicates that Marvis has verified that the issue is no longer present and the root cause has been resolved.

When deploying multiple Mist APs across many sites in your network and grouping similar devices together to easily apply consistent WxLAN policies across multiple sites, you should use device profiles.

In the Juniper Mist architecture, the location system (often referred to as the Mist Location Engine) is the centralized intelligence residing in the cloud that transforms raw RF data into actionable business intelligence. While hardware components like location sensors (Access Points) collect raw signal strength (RSSI) from BLE tags or mobile devices, they do not possess the logic to understand the spatial context or provide data to external applications.

The location system performs the heavy lifting by taking the telemetry gathered from the vBLE antenna arrays on the APs and applying sophisticated machine learning algorithms.1 It calculates the precise X/Y coordinates of a device on a floor plan. However, the true value of the location system—as highlighted in this scenario—is its ability to correlate these coordinates with the venue's metadata, such as defined zones, virtual beacons, and map scales.

Once the location system has determined where a device is relative to the environment, it translates that physical presence into "usable data." This is primarily achieved through the Mist API and Webhooks. For example, when a tracked device enters a specific "Retail Zone," the location system generates an event that an external CRM application can ingest to push a personalized coupon to a customer. Similarly, in healthcare, the location system correlates a nurse's coordinates with a patient room to automatically log a visit in an Electronic Health Record (EHR) system.

By acting as the middleware between the wireless infrastructure and third-party software, the location system ensures that raw coordinates become meaningful data points—such as dwell times, zone entries, or asset movements—that drive automation and enhance user experiences across various industry verticals.

Two events that are displayed under Client Events area found on Insights page are Reassociation and DHCP Denied. So the correct answers are A. Reassociation and D. DHCP Denied.

In Juniper Networks Mist AI Wireless, Marvis Minis are purpose-built synthetic clients designed to proactively validate end-user experience by continuously testing the network in the same way a real user device would. To accurately isolate the root cause of connectivity or performance issues, Marvis Minis follow a strict, layered verification sequence that mirrors the logical dependency of network services.

The verification process begins with DHCP. This is the foundational step because, without a valid IP address, no further network communication can occur. Marvis Minis first confirm that the client can successfully complete the DHCP exchange and obtain proper IP configuration, including subnet, gateway, and lease parameters.

Once DHCP is validated, Marvis Minis move to ARP verification. At this stage, the synthetic client confirms it can resolve the MAC address of the default gateway and communicate at Layer 2. ARP issues can prevent traffic from leaving the local network segment even when an IP address is present.

After Layer 2 and Layer 3 reachability are confirmed, Marvis Minis test DNS functionality. DNS resolution is critical for application access, as most modern applications rely on hostname resolution rather than raw IP addresses. Failed or slow DNS responses are a common cause of perceived “application outages.”

Finally, Marvis Minis validate the application layer. This includes testing reachability, response time, and success of specific application transactions such as HTTPS connections, SaaS access, or internal application availability. By the time application testing occurs, all prerequisite network services have already been verified.

The other options are incorrect because they test higher-layer services before validating lower-layer dependencies, which can lead to misleading conclusions. Mist’s ordered approach—DHCP → ARP → DNS → Application—ensures precise fault isolation and actionable insights, allowing Marvis AI to accurately pinpoint where the user experience is breaking down.

In Juniper Networks Mist AI Wireless, access points discover upstream switch and port information using Link Layer Discovery Protocol (LLDP). LLDP is an IEEE-standard, vendor-neutral Layer 2 discovery protocol designed specifically to allow network devices to advertise and learn information about directly connected neighbors.

When a Juniper Mist AP connects to a wired switch, it uses LLDP to exchange information such as:

Switch hostname and chassis ID

Switch port identifier

VLAN details

Power over Ethernet (PoE) capabilities and power allocation

This information is critical for Mist operations and visibility. It enables the Mist cloud to accurately display AP-to-switch mappings, identify the exact switch port an AP is connected to, validate PoE delivery, and assist with troubleshooting wired-side issues that impact wireless performance. LLDP data is also leveraged by Mist AI and Marvis to correlate wired and wireless events, improving root-cause analysis.

The other options are incorrect for the following reasons:

CDP (Cisco Discovery Protocol) is a Cisco-proprietary protocol and is not used by Juniper Mist APs for switch discovery.

ARP (Address Resolution Protocol) resolves IP addresses to MAC addresses and does not provide device or port identity information.

SNMP is a management and monitoring protocol used by controllers or management systems, not by APs for neighbor discovery.

Because LLDP is standards-based, lightweight, and designed for neighbor discovery, it is the correct and supported protocol used by Juniper Mist APs to learn switch information.

Therefore, the correct answer is D. LLDP.

Transmissions over Wi-Fi are shared medium and half-duplex.

According to the IEEE 802.11 - Wikipedia document2, two terms that correctly describe transmissions over Wi-Fi are:

Shared medium, which means that multiple devices use the same wireless channel and have to compete for access and avoid collisions.

Half-duplex, which means that devices can either transmit or receive data at a time, but not both simultaneously.

When using location-based services (LBS) at a new warehouse and placing APs on the floor plan with correct scale while ensuring correct location accuracy in this scenario where APs are mounted on trusses 14 feet (4.3 meters) from floor, two actions that should be taken are installing Virtual Beacons in each aisle and configuring height of each AP. So the correct answers are A. Install Virtual Beacons in each aisle and B. Configure height of each AP.

When deploying three WLAN 2.4 GHz networks in your US-based site while ensuring that each network frequency is unique and does not overlap with other frequency channels, you should use OFDM channels 1, 6 and 11. So the correct answers are B.1, D.6, and A.11.

 The AP Offline Marvis Action will consider all APs assigned to sites that have connected to the cloud previously for inclusion. So the correct answer is A. all APs assigned to sites that have connected to the cloud previously.

Two authentication methods that would be used with a guest portal are social login and external portal. So the correct answers are A. social login and B. external portal.

According to the Cisco Catalyst 9800 Series Wireless Controller Software Configuration Guide2, two authentication methods that can be used with a guest portal are:

Social login, which allows guests to log in using their social media accounts such as Facebook, Twitter, or Google.

External portal, which allows guests to log in using an external web server that hosts a custom portal page.

In the Juniper Mist dashboard, managing licenses is handled through the Subscriptions page at the Organization level. This page is critical for ensuring that all deployed hardware (Access Points, Switches, and Gateways) has the necessary cloud services—such as Wi-Fi Assurance, Wired Assurance, or Marvis VNA—to function correctly. The subscription page provides a real-time overview of the organization's licensing health using specific status indicators.

The status Active (D) indicates that the subscription is currently within its valid date range and is being utilized by the hardware in the organization. When a subscription is marked as Active, it means the features associated with that license are fully operational, and the Mist Cloud is actively processing telemetry from the associated devices. This is the primary state for all correctly provisioned licenses.

The status Exceed (B) (often displayed as "Exceeded") is a unique and important state in the Mist ecosystem. Unlike many legacy controllers that might shut down services if a license count is surpassed, Mist uses an "honor-based" system combined with clear visual alerting. The Exceed status appears when the number of physical devices claimed and assigned to a site exceeds the total number of available license seats for a specific service. For example, if an organization has 100 "Wi-Fi Assurance" subscription seats but has deployed 110 Access Points, the status will show as Exceeded.

Mist provides a grace period and persistent notifications to administrators to rectify this by either purchasing more subscriptions or removing excess devices. It is important to note that while terms like "Valid" or "Demo" might be used in general conversation, the specific operational statuses tracked in the subscription table to manage license compliance and expiration are Active, Exceeded, and Expired. These statuses allow IT teams to proactively manage their operational expenditures and ensure uninterrupted service for their wireless users.

In Juniper Networks Mist AI Wireless, a rogue access point (AP) is precisely defined to avoid confusion with external or non-threatening wireless devices. Mist qualifies a rogue AP as an unauthorized access point that is physically connected to your wired network infrastructure.

This distinction is critical from a security perspective. A rogue AP represents a direct threat because it bypasses established security controls by providing wireless access into the enterprise wired network without authorization. Such APs are often installed by users without IT approval or, in more serious cases, by malicious actors attempting to gain internal network access.

Mist APs continuously scan the RF environment and correlate wireless observations with wired-side intelligence. If an AP is detected advertising SSIDs and Mist can confirm—through MAC address correlation and wired discovery—that the device is connected to the enterprise’s wired network but is not claimed or authorized in the Mist cloud, it is classified as a rogue AP. This allows administrators to take immediate remediation actions, such as physical removal or switch-port shutdown.

The other options are incorrect for the following reasons:

Neighbor APs are access points belonging to nearby organizations or environments and are not security threats by default. Mist classifies these separately for RF awareness.

APs close to your network as measured by RSSI may simply be physically nearby but not connected to your infrastructure; proximity alone does not make an AP rogue.

Honeypot APs are intentionally deployed decoy access points used in security research or attack detection and are not Mist’s definition of a rogue AP.

Therefore, Mist correctly defines a rogue AP as an unauthorized AP connected to your wired network, making option A the correct answer.

According to the Virtual Network Assistant | Juniper Networks US document, Asymmetry Downlink is a classifier under the Coverage SLE that tracks an AP that transmits at a lower data rate than a connected client. This can indicate poor coverage or interference issues that affect downlink performance.

According to the Wi-Fi configuration with Mist Systems | HCD Consulting GmbH document, three available rate limiting options in the Mist UI are:
