Mule-Dev-301 Sample Questions Answers

PGP uses asymmetric cryptography for establishing confidentiality between a sender and a recipient. When the Mule application sends encrypted information to the backend service, it encrypts the content using the recipient's public key. Only the corresponding private key, retained by the backend recipient, can subsequently be used to decrypt that content.

MuleSoft's Cryptography Module documentation explicitly identifies the two principal PGP scenarios: outgoing encryption uses another party's public key, while incoming decryption uses the receiver's own private key. In a Mule application, the backend's public key is normally imported into a PGP public keyring, and the Cryptography Module's PGP Encrypt operation references the appropriate key or fingerprint.

The sender does not need the backend's private key. In fact, distributing the recipient's private key would defeat the fundamental security model of public-key cryptography. Both keys would be relevant for certain combined operations such as encryption plus signing, but ordinary encryption for confidentiality requires the recipient's public key. HTTPS/TLS may additionally protect transport, but it is separate from PGP payload encryption.

Reference topics: Cryptography Module; PGP Encryption; Public and Private Keyrings; PGP Encrypt Operation.

Official documentation: https://docs.mulesoft.com/cryptography-module/latest/cryptography-module-pgp

===============================================================

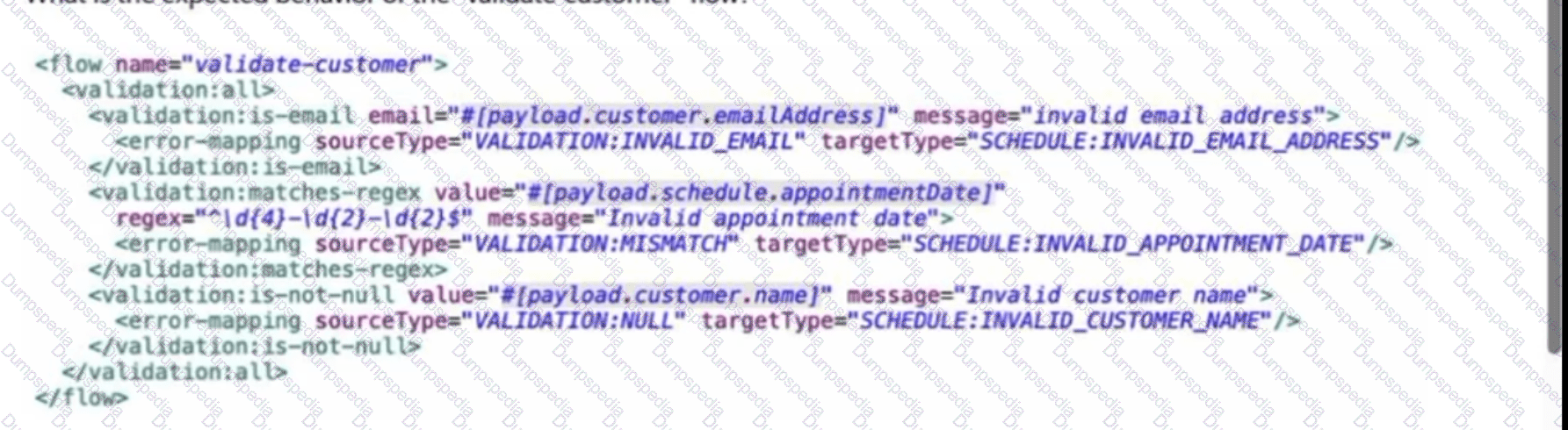

The three validation operations are nested inside a validation:all scope. The defining behavior of this scope is that it executes every nested validation even if one or more earlier validations fail. Consequently, an invalid email does not immediately terminate validation processing. Mule continues to evaluate the appointment-date regular expression and the customer-name null check.

MuleSoft explicitly documents that all validations inside the All scope are executed even if all of them fail. If one or more nested validations fail, the All validator produces a consolidated VALIDATION:MULTIPLE error describing the failures rather than simply throwing the first or final validation error.

The flow does contain error mappings for individual validators—for example mapping VALIDATION:INVALID_EMAIL to SCHEDULE:INVALID_EMAIL_ADDRESS. However, those mappings do not change the central behavioral point being tested: the All scope evaluates the entire set rather than short-circuiting after the first failed validator.

Thus, if the email address is invalid, the remaining appointment-date and customer-name validations are still evaluated. This makes C the only option accurately describing the scope's execution behavior.

Reference topics: Validation Module; validation:all; validation aggregation; VALIDATION:MULTIPLE; error mappings.

Official documentation: https://docs.mulesoft.com/validation-connector/latest/validation-examples

===============================================================

The HTTP Request connector is operating as a TLS client when it connects to the target HTTPS API. During the TLS handshake, the server presents its certificate chain. The client must be able to establish a chain of trust from that certificate to a trusted certificate authority.

When no custom Mule truststore is configured, Mule relies on the default Java/JRE truststore. MuleSoft explicitly states that if a tls:trust-store is not specified, Mule uses Java's default truststore, which normally contains certificates for major public certificate authorities.

Therefore, the target API connection succeeds when the issuing CA can be validated through that JRE truststore, assuming the remainder of the TLS negotiation is valid. A keystore serves a different purpose: it normally contains a private key and certificate used to establish the local party's own identity. It is not the default repository used to establish trust in remote HTTPS servers.

The connection also does not automatically trust every CA. Certificate validation still occurs unless validation is explicitly disabled.

Therefore, B correctly describes Mule's behavior when the HTTP Request configuration has no custom TLS truststore configured.

Reference topics: HTTP Request Connector; TLS client validation; Java default truststore; CA certificate chains; keystore versus truststore.

Official documentation: https://docs.mulesoft.com/mule-runtime/4.4/tls-configuration

===============================================================

The Insecure setting belongs to Mule's TLS truststore configuration. MuleSoft defines the insecure property as a Boolean that determines whether truststore validation is performed. When insecure="true", Mule stops performing certificate validation.

For an HTTP Listener operating as the TLS server, the truststore is used when validating certificates supplied by connecting clients. Therefore, disabling truststore validation means the listener does not enforce normal trust verification against the configured certificate authorities; effectively, certificates presented by HTTP clients are trusted without the standard certificate-chain validation represented by the truststore. This corresponds to option A.

Selecting Insecure does not convert HTTPS into plain HTTP, so option B is incorrect. It also does not itself enable mutual TLS. Full mutual TLS requires appropriate server key material and client-certificate authentication/trust configuration. Likewise, "Insecure" specifically concerns certificate validation; it should not be interpreted as a generic instruction to bypass every possible authentication mechanism applied to the API.

MuleSoft explicitly warns that this option creates a security vulnerability and is appropriate only for development or prototyping, not production.

Reference topics: TLS Context; Truststore; insecure; client-certificate validation; mutual TLS.

Official documentation: https://docs.mulesoft.com/mule-runtime/4.11/tls-configuration

===============================================================

Resource filtering is designed primarily for textual resources in which Maven substitutes property expressions. Binary files such as PKCS#12 keystores and certificate files must not be passed through text filtering because filtering can corrupt their binary representation.

The Maven Resources Plugin provides the dedicated configuration element nonFilteredFileExtensions. Each additional extension is declared using a nested nonFilteredFileExtension. The plugin documentation specifically defines this parameter as the list of additional file extensions to which filtering must not be applied.

Option C correctly uses the documented structure:

< nonFilteredFileExtensions >

< nonFilteredFileExtension > p12 < /nonFilteredFileExtension >

< nonFilteredFileExtension > crt < /nonFilteredFileExtension >

< nonFilteredFileExtension > pem < /nonFilteredFileExtension >

< /nonFilteredFileExtensions >

This is important because the application's normal resource configuration can still use < filtering > true < /filtering > for textual files while Maven leaves the listed certificate/keystore formats untouched.

The alternative constructs visible in the other exhibits, such as excludeFileExtensions or excludeBinaryFiles, are not the Maven Resources Plugin parameter used for this purpose.

Reference topics: Maven Resources Plugin; resource filtering; binary resources; nonFilteredFileExtensions; Mule Maven builds.

Official documentation: https://maven.apache.org/plugins/maven-resources-plugin/resources-mojo.html

===============================================================

MuleSoft provides the JSON Module specifically for operations such as JSON validation. The application should include the JSON Module as a Mule dependency and place its Validate schema operation before the connector or operation that posts the data to the target system.

The Validate schema operation receives the JSON document and evaluates it against the configured JSON Schema. When validation succeeds, processing continues to the next processor. If the payload does not conform, Mule raises JSON:SCHEMA_NOT_HONOURED, allowing the flow's error-handling strategy to reject or transform the invalid request before the target system is modified.

MuleSoft also documents that modules/connectors added manually to an application are declared in pom.xml as dependencies with the mule-plugin classifier; the JSON Module follows this standard pattern.

DataWeave conditional validation would unnecessarily reimplement schema semantics and would not automatically interpret a JSON Schema. API Manager does not provide the application-level JSON Module operation described by this requirement, and import json-module is not a valid mechanism for invoking the Mule JSON Module from DataWeave.

Reference topics: JSON Module; Validate Schema; JSON Schema; JSON:SCHEMA_NOT_HONOURED; Maven module dependency.

Official documentation: https://docs.mulesoft.com/json-module/latest/json-schema-validation

Official documentation: https://docs.mulesoft.com/json-module/latest/json-xml-maven

===============================================================

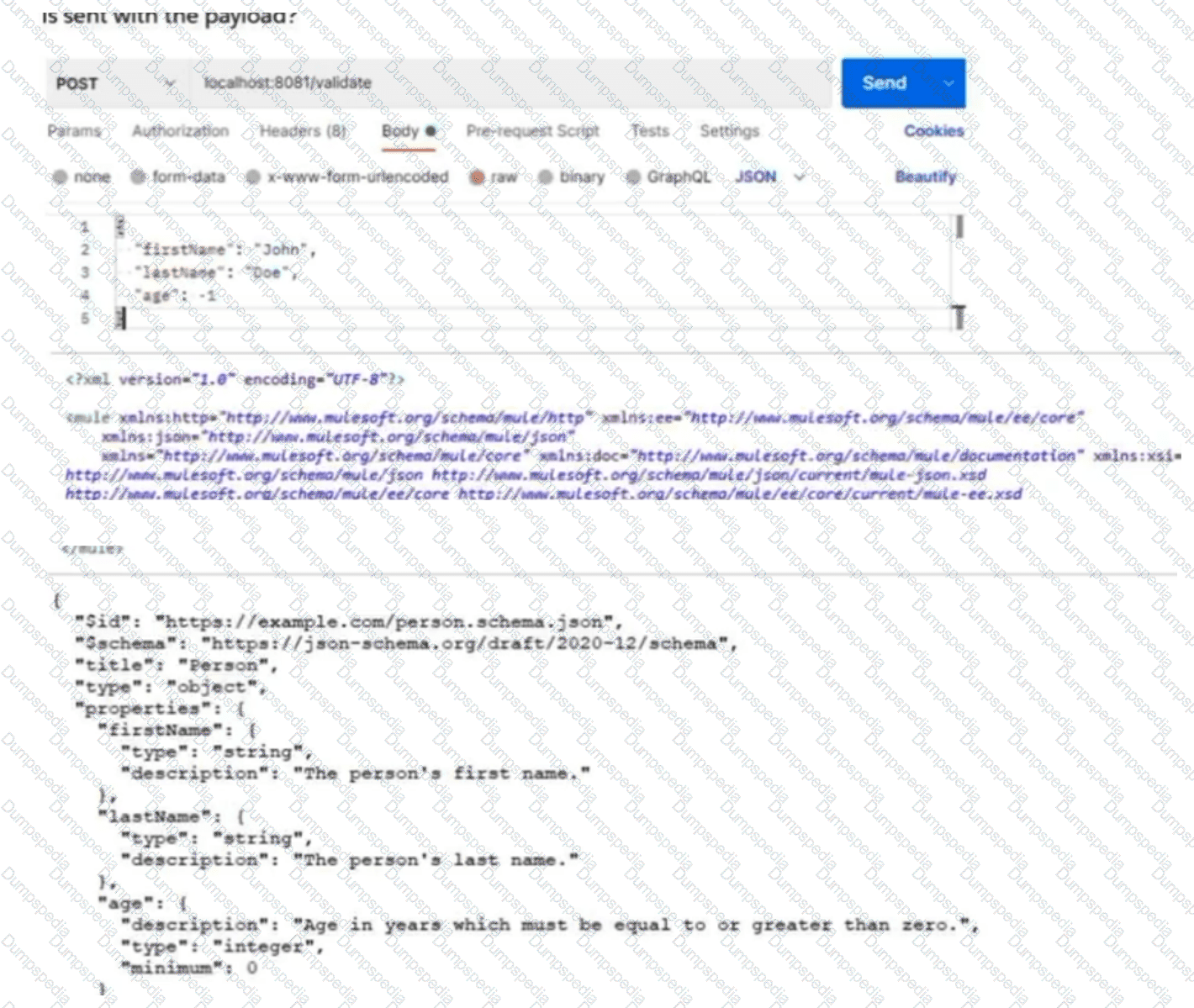

The flow passes the incoming HTTP request payload directly to the JSON Module's Validate schema operation. The referenced schema.json defines the age property as an integer with "minimum": 0. However, the request shown in the exhibit contains:

"age": -1

This violates the schema because -1 is below the permitted minimum. MuleSoft specifies that the JSON Module's Validate schema operation compares the input content with the supplied JSON Schema and, when the document does not conform, raises JSON:SCHEMA_NOT_HONOURED.

Consequently, normal flow execution stops at the validation operation unless an error handler explicitly consumes the exception. The Logger positioned after the validation operation is not executed in this flow because validation fails first.

The schema's description text—"Age in years which must be equal to or greater than zero."—is metadata describing the property; it does not automatically become a successful HTTP response. Similarly, the request payload is not returned through a successful normal path after the schema violation.

Therefore, because the supplied age value violates minimum: 0, Mule raises JSON:SCHEMA_NOT_HONOURED.

Reference topics: JSON Module; Validate Schema operation; JSON Schema constraints; minimum; JSON:SCHEMA_NOT_HONOURED.

Official documentation: https://docs.mulesoft.com/json-module/latest/json-schema-validation

===============================================================

API Autodiscovery pairs a Mule API implementation with an API instance managed in API Manager. The global autodiscovery element requires the API instance identifier and a flowRef that identifies the flow where API Gateway policy enforcement begins.

MuleSoft explicitly states that flowRef must reference a flow containing an HTTP Listener. The referenced flow represents the inbound API entry point receiving the requests against which API Manager policies are enforced. Connectors that merely use HTTP internally are not sufficient for this requirement.

In an APIkit-generated application, the appropriate flow is typically the main API flow that contains the HTTP Listener and APIkit Router. Individual generated resource/operation flows execute later after routing; they are not the primary inbound policy-enforcement point. Similarly, the APIkit Console flow is intended for interactive API documentation/testing and should not be used as the flowRef for production policy enforcement.

The attribute is not simply supplied dynamically at runtime. It is part of the Mule application's Autodiscovery configuration and identifies the exact listener-based flow paired to API Manager.

Therefore, flowRef must identify the flow containing the HTTP Listener that receives the REST API's incoming requests.

Reference topics: API Autodiscovery; api-gateway:autodiscovery; flowRef; HTTP Listener; API Manager policy enforcement.

Official documentation: https://docs.mulesoft.com/mule-gateway/mule-gateway-config-autodiscovery-mule4

===============================================================

Reusable Java libraries should be managed as Maven dependencies, not manually embedded or referenced through arbitrary filesystem locations. Installing the legacy library artifacts into an accessible Maven repository and declaring their Maven coordinates in the application's pom.xml gives the Mule project a deterministic and maintainable dependency model.

Mule applications use Maven as their build/dependency-management mechanism. MuleSoft's external-library guidance supports adding dependencies through Maven coordinates or local library artifacts, with those dependencies represented in the project's POM. This enables consistent resolution during development and CI/CD builds and avoids environment-specific hard-coded JAR paths.

Directly referring to JAR files from application code creates brittle coupling to local filesystem structure. Supplying libraries manually only at deployment time also weakens reproducibility because the application build no longer fully declares its dependencies. Re-creating existing Java integration logic within every Mule application defeats reuse and adds unnecessary maintenance.

Once the Java library is available as a Maven dependency, the Mule Java Module or an appropriate custom module can invoke its functionality while Maven manages versioning and packaging.

Reference topics: Maven dependency management; reusable Java libraries; external libraries; pom.xml; Java Module integration.

Official documentation: https://docs.mulesoft.com/anypoint-code-builder/acb-external-libraries

===============================================================

A production health endpoint should verify the same network path and HTTP infrastructure that clients depend on. Reusing the API's existing HTTP Listener configuration and port ensures that the health check validates whether the application's actual inbound listener is operational. Mule HTTP Listener configurations define the host, port, protocol, TLS configuration, and potentially a common base path; multiple listener sources can use the same configuration while exposing different paths.

A separate listener and port could report healthy even when the primary API listener is unavailable or incorrectly configured, producing a misleading health signal. Sending health information outward to another system is telemetry rather than an endpoint-level availability test. Likewise, exercising a payment API with genuine customer payment data is inappropriate because monitoring should be non-destructive and should not create business transactions.

Therefore, a lightweight endpoint such as /health using the same listener configuration provides a representative indication that the application can receive traffic through its normal production interface without invoking payment-processing behavior.

Reference topics: Mule HTTP Listener configuration; production health checks; API availability monitoring; non-invasive operational endpoints.

Official documentation: https://docs.mulesoft.com/http-connector/latest/http-listener-ref

===============================================================

Mule's Tracing Module provides dedicated operations for adding values to the logging context through Mapped Diagnostic Context (MDC). A logging variable can be established once for the Mule event—for example, orderId—and that contextual information becomes available to logging performed during the event's execution.

MuleSoft specifically describes MDC as a mechanism that enriches logging and improves traceability by providing contextual information. The Tracing Module's Set logging variable operation allows application-specific identifiers to be inserted into that context. The Log4j pattern can then include MDC, avoiding the need to manually add vars.orderId to every Logger component.

Option B incorrectly assumes an ordinary Mule flow variable automatically behaves as MDC simply because Log4j configuration is modified. Option C creates repetitive and error-prone logger expressions throughout the application, directly violating maintainability objectives. Building a custom XML SDK logger wrapper is also unnecessary because Mule already provides the required tracing capability.

Using an MDC logging variable therefore centralizes the order ID as diagnostic context and allows consistent correlation across application-generated logs for the same Mule event.

Reference topics: Tracing Module; Set Logging Variable; Mapped Diagnostic Context; structured and correlated application logging.

Official documentation: https://docs.mulesoft.com/tracing-module/latest/tracing-module-logging

===============================================================

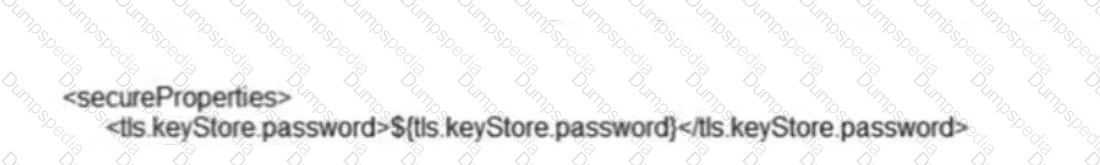

The Mule Maven Plugin's CloudHub 2.0 deployment configuration supports a top-level < secureProperties > element. Properties supplied through this element are treated differently from ordinary deployment properties: CloudHub 2.0 encrypts their values before storing them.

MuleSoft's deployment documentation explicitly states that < secureProperties > is used to set application properties and instruct CloudHub 2.0 to encrypt the values before storing them. This is particularly appropriate for TLS credentials such as keystore passwords because these values should not be persisted as ordinary clear-text application configuration.

The important distinction is between encryption and UI masking. A masked field merely hides its visual representation; it does not by itself establish protected storage. In CloudHub 2.0, protected property values are stored securely and are not retrievable as plain values through Runtime Manager. Anypoint Studio is also not the component responsible for protecting a value supplied through the CloudHub deployment configuration, nor is this deferred to the Mule application's runtime flow.

Therefore, with the property placed under the Mule Maven Plugin's < secureProperties > configuration, CloudHub encrypts the value.

Reference topics: CloudHub 2.0 deployment; Mule Maven Plugin; secure properties; protected application configuration.

Official documentation: https://docs.mulesoft.com/mule-runtime/4.6/deploy-to-cloudhub-2

Official documentation: https://docs.mulesoft.com/cloudhub-2/ch2-protect-app-props

===============================================================

VM Connector supports both intra-application and inter-application asynchronous communication. MuleSoft specifically documents that two different Mule applications can publish to and consume from the same VM queue when both applications are part of the same Mule domain and reference the shared VM configuration.

The fact that the applications are deployed to a two-node Mule cluster does not prevent use of VM Connector. In cluster mode, VM queues are cluster-wide resources. Mule's cluster synchronizes access, and messages placed on a VM queue can be processed by another node in the cluster. MuleSoft identifies this as a supported mechanism for distributing asynchronous work across clustered runtime instances.

Therefore, option B is incorrect: each node does not operate an entirely isolated VM queue namespace for a shared clustered configuration. Option D also contradicts VM Connector's documented inter-application use case.

The required architectural condition is that both applications use the same domain/shared VM configuration so they can reference the same queue. The publisher can then send asynchronously while the second API consumes from the shared VM queue.

Reference topics: VM Connector; Mule domains; inter-application communication; persistent/transient queues; Mule HA clustering.

Official documentation: https://docs.mulesoft.com/vm-connector/latest/vm-publish-across-apps

Official documentation: https://docs.mulesoft.com/vm-connector/latest/vm-reference

===============================================================

A readiness endpoint answers a more specific question than whether the Mule process is merely running: is this application ready to service business traffic successfully? For a System API whose business functionality depends on MySQL, readiness requires both the API itself and its critical downstream dependency to be usable.

A dedicated readiness endpoint is preferable to reusing an existing business resource because monitoring must not generate business-side effects or depend on arbitrary resource semantics. The endpoint should perform lightweight checks that establish application readiness and verify reachability of required underlying systems such as the database.

Returning only the API's local status could produce a false-positive readiness result when the Mule application is running but MySQL is unreachable. Checking the server alone has the same weakness: infrastructure health does not establish business-service readiness. Modern Mule deployment environments likewise distinguish availability/readiness signals from simple process existence; readiness is intended to establish whether the deployed service is available for processing traffic.

Therefore, the most operationally meaningful design is a dedicated endpoint reporting the API's status together with connectivity to its essential underlying systems.

Reference topics: Readiness versus liveness; dependency health; System API monitoring; production operational endpoints.

Official documentation: https://docs.mulesoft.com/runtime-fabric/latest/deploy-mule-app-anypoint-controller

===============================================================

MUnit test cases should be independent and deterministic. A test for Flow-2 should not depend on another test case for Flow-1 executing first and leaving data behind. Such sequencing creates inter-test coupling, making test results dependent on execution order and complicating parallel execution, maintenance, and failure isolation.

The appropriate technique is to use Set Event in the Flow-2 test to construct the Mule Event that Flow-2 requires as input. MuleSoft documents Set Event as the processor normally placed at the start of an MUnit test to define the initial event sent to the flow being tested. It can independently define the payload, message attributes, and event variables.

Consequently, the Flow-2 tests can explicitly reproduce the payload or variables that Flow-1 would normally provide in production without requiring the Flow-1 test suite to execute first.

Before Test Case and After Test Case hooks are useful for setup and cleanup but should not be used to transfer output between otherwise separate unit tests. Chaining test suites similarly creates avoidable dependencies between tests.

Reference topics: MUnit; Set Event; independent unit tests; payload and variable initialization; deterministic testing.

Official documentation: https://docs.mulesoft.com/munit/3.6/set-event-processor

===============================================================
