NS0-194 Sample Questions Answers

A DS4246 shelf has 24 drive bays. The model naming can be misleading if interpreted literally, but in NetApp shelf terminology DS4246 identifies a 4U disk shelf that supports twenty-four 3.5-inch drives and uses 6 Gb SAS connectivity. Twelve bays would describe smaller shelf families, and forty-two or forty-six bays do not match the DS4246 platform. This is a hardware-identification question, so the support engineer should rely on shelf model characteristics rather than infer the capacity from a partial number in the model name. The DS4246 is commonly found in FAS environments that use external SAS shelves for high-capacity HDD deployments. Knowing bay count is important for capacity planning, shelf cabling validation, disk replacement planning, and interpreting AutoSupport shelf/disk inventories. The shelf model also affects IOM selection, stack planning, slot numbering, and replacement logistics during field service. References/topics: NetApp DS4246 disk shelf specifications, SAS shelf hardware, 4U 24-bay shelf design, and drive-shelf identification.

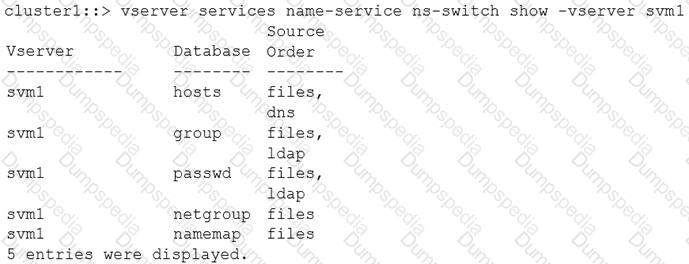

The UNIX user prof1 is looked up in files first because the name-service switch output shows the passwd database source order as files, then ldap. ONTAP follows the configured source order for the relevant database. Since a UNIX user lookup uses the passwd database, ONTAP checks the local files source before contacting LDAP. DNS is associated with host name resolution, not UNIX user identity lookup. NIS is not listed in the passwd source order shown in the exhibit, so it cannot be the first lookup source. LDAP is listed, but it is second after files. This question tests the engineer's ability to read ns-switch output and apply it to the correct identity database. For NAS access issues, source order directly affects user mapping, UID/GID resolution, group membership, and permission decisions. References/topics: ONTAP name service switch, passwd database lookup, UNIX identity resolution, files versus LDAP source order, and NAS authentication troubleshooting.

FPolicy is the correct ONTAP feature because the requirement is to track file access activity for a particular folder from the storage layer. Vscan is an antivirus integration and is not designed to audit user access. A cron job would only collect logs after the fact and would not provide policy-driven, file-operation monitoring. Role-based access control controls administrator privileges, not end-user file access events inside a NAS namespace. FPolicy allows ONTAP to monitor file operations such as opens, creates, reads, writes, renames, and deletes, and it can send those events to an external FPolicy server or enforce a policy response. For a support engineer, the key decision point is whether the task is access control, virus scanning, or file activity notification. This scenario is explicitly about tracking access to files in a folder; therefore, FPolicy aligns directly with ONTAP NAS auditing and file notification architecture. References/topics: ONTAP NAS services, FPolicy policy scope, file-operation event monitoring, and security-side access tracing.

NetApp Volume Encryption uses a KMIP server when encryption keys must be stored separately from encrypted data. KMIP is the Key Management Interoperability Protocol and is the standard method ONTAP uses to communicate with external key managers. RADIUS is an authentication protocol and does not store encryption keys for NVE. TLS secures communications but is not itself a key management server. TKIP is an older wireless encryption mechanism and is unrelated to ONTAP volume encryption. Separating keys from encrypted data is a core security control because compromise of storage media or data blocks should not also expose the keys required to decrypt them. In ONTAP environments, external key management provides centralized lifecycle control, auditing, and recovery considerations for encrypted volumes. Support engineers must also verify key-manager reachability before enabling encryption because inaccessible keys can prevent encrypted volumes from being brought online. References/topics: NetApp Volume Encryption, external key management, KMIP server configuration, encryption key separation, and ONTAP security architecture.

Initializing the SnapMirror relationship is the expected recovery action in this answer set because the original FlexGroup source must be made consistent again before it can resume serving production data. A disaster recovery workflow allows the protected destination to serve data while the failed source is repaired. Once the source is operational, the relationship has to be rebuilt or re-established so that the source has the correct data image before clients are moved back. A simple SnapMirror update is insufficient when the relationship direction and baseline consistency need to be restored. Restoring from a separate backup copy is not appropriate because the SnapMirror destination is already the authoritative protected copy. Deleting the relationship would remove protection metadata and does not return the original source to a usable synchronized state. The key support principle is that FlexGroup data protection recovery requires careful relationship re-establishment before reversing service back to the original location. References/topics: FlexGroup SnapMirror disaster recovery, relationship initialization/resynchronization concepts, destination activation, and source reactivation workflow.

CRC errors on a network port usually indicate a physical-layer problem, so the first components to reseat or replace are the SFP and the cable. CRC errors are frame-check failures caused by corrupted frames reaching the interface. The most common support causes are dirty or failing optics, marginal fiber/copper cabling, bad seating, bend radius problems, or a faulty physical link component. Before replacing the controller port, the engineer should eliminate the replaceable path components that are cheaper, more common, and easier to validate. Cluster interconnect switches or upstream switches may eventually be involved if errors persist on multiple links or follow a switch port, but the question asks what to consider before taking action on the physical port where errors are reported from the node. Therefore, reseating or replacing the SFP and cable is the correct initial response. References/topics: ONTAP network port CRC errors, physical-layer troubleshooting, SFP optics, cabling validation, and network link diagnostics.

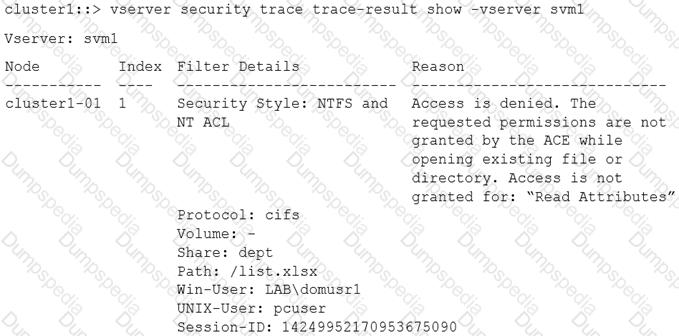

The user must be granted Read Attributes access to the path. The security trace result states that access is denied because the requested permissions are not granted by the ACE while opening the existing file or directory, and it specifically identifies Read Attributes as the missing permission. Adding the user to BUILTIN groups would be a broad and imprecise change that may not match the file's intended NTFS ACL model. Granting Execute access does not solve the reported missing permission unless the access mask also includes the required attribute-read right, and the trace does not identify Execute as the failed permission. ONTAP security trace is designed to point directly to the permission, user mapping, security style, and access decision involved in a failed NAS request. The support engineer should remediate the exact ACL deficiency shown by the trace rather than guess at group membership. References/topics: ONTAP security trace results, NTFS ACE evaluation, Read Attributes permission, CIFS access denial troubleshooting, and NAS ACL remediation.

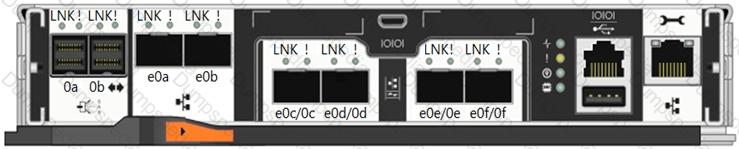

The e0c/0c port is the CNA port in the AFF A200 exhibit. A converged network adapter can operate in Ethernet mode, where it is labeled with an e-prefix, or in Fibre Channel target/initiator mode, where the corresponding identity may appear with a numeric port naming convention. On the AFF A200, the shared port labeling such as e0c/0c indicates a converged adapter identity. The option showing only e0a is a standard Ethernet-style port designation, and 0a is a Fibre Channel-style designation without the combined CNA label shown in the diagram. The visual clue is the dual-purpose label that combines Ethernet and FC naming in one port callout. For NCSE hardware questions, port nomenclature matters because replacement, cabling, protocol personality, and adapter configuration all depend on identifying the port type correctly. References/topics: AFF A200 onboard ports, CNA port labeling, Ethernet/FC personality, platform cabling, and controller port identification.

The volume recovery queue is the correct recovery mechanism when a volume was accidentally deleted recently and no backups exist. ONTAP protects against accidental deletion by retaining deleted volumes in a recovery queue for a configured retention period, allowing administrators to recover them before they are permanently purged. A volume Snapshot cannot be used if the volume itself has been deleted and no accessible backup copy exists. An aggregate Snapshot revert is not a valid or normal ONTAP recovery method for restoring an individual deleted volume and would be far too disruptive. ONTAP System Manager may provide a graphical way to recover deleted volumes in later versions, but the feature being tested is the volume recovery queue itself. The support engineer should immediately check retention time, locate the deleted volume in the recovery queue, recover it, and then restore required junction or mapping details. References/topics: ONTAP volume recovery queue, accidental volume deletion protection, FlexVol recovery, retention period, and data recovery workflow.

ONTAP System Manager and Performance Archive are the appropriate data sources for explaining a wafl.cp.toolong event. A long consistency point indicates that WAFL took longer than expected to complete a CP, so the engineer needs both system event context and historical performance evidence. System Manager provides an operational view of cluster health, aggregate state, and performance indicators. Performance Archive provides the deeper time-series performance data needed to correlate the event with workload, disk, CPU, NVRAM, or aggregate behavior around the timestamp. Active IQ Unified Manager may be useful in broader monitoring, but the question asks for the data sources used to explain this specific EMS message. mgwd.log is a management daemon log and is not the primary source for WAFL CP performance analysis. The support approach is to correlate the EMS event with performance archive counters and visible system health. References/topics: wafl.cp.toolong EMS events, WAFL consistency points, Performance Archive, System Manager performance review, and ONTAP CP troubleshooting.

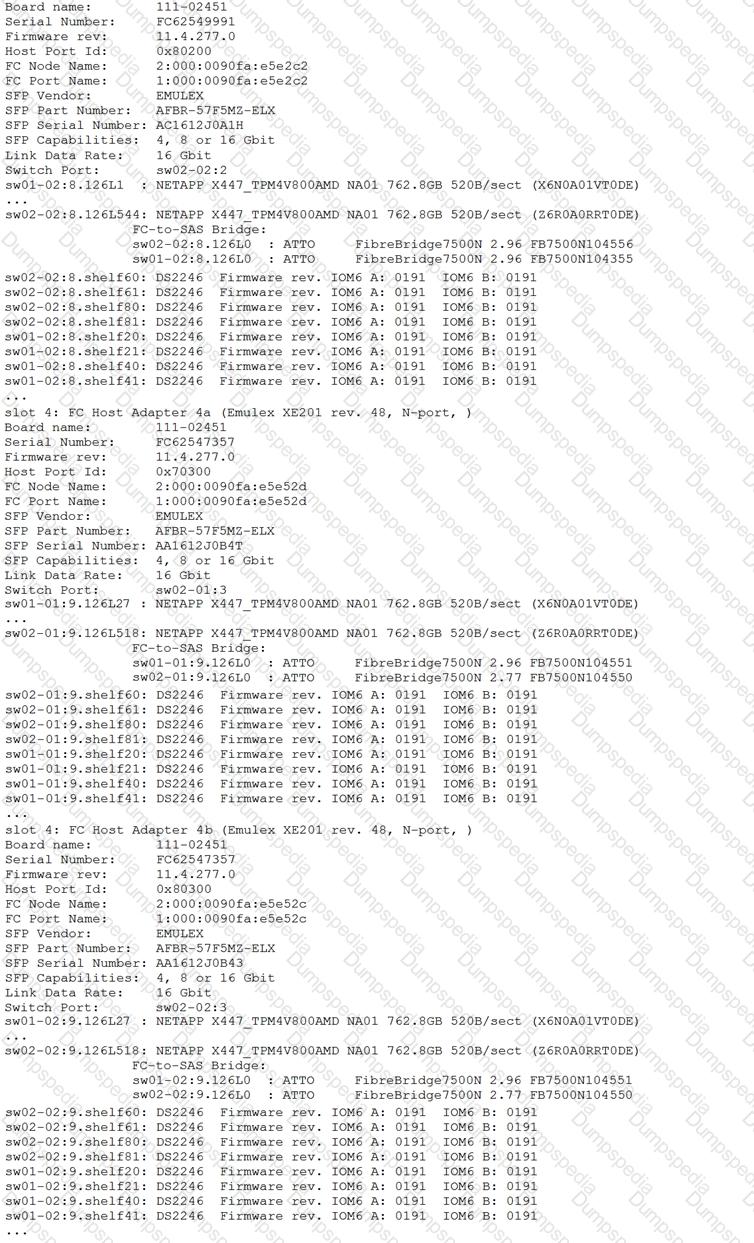

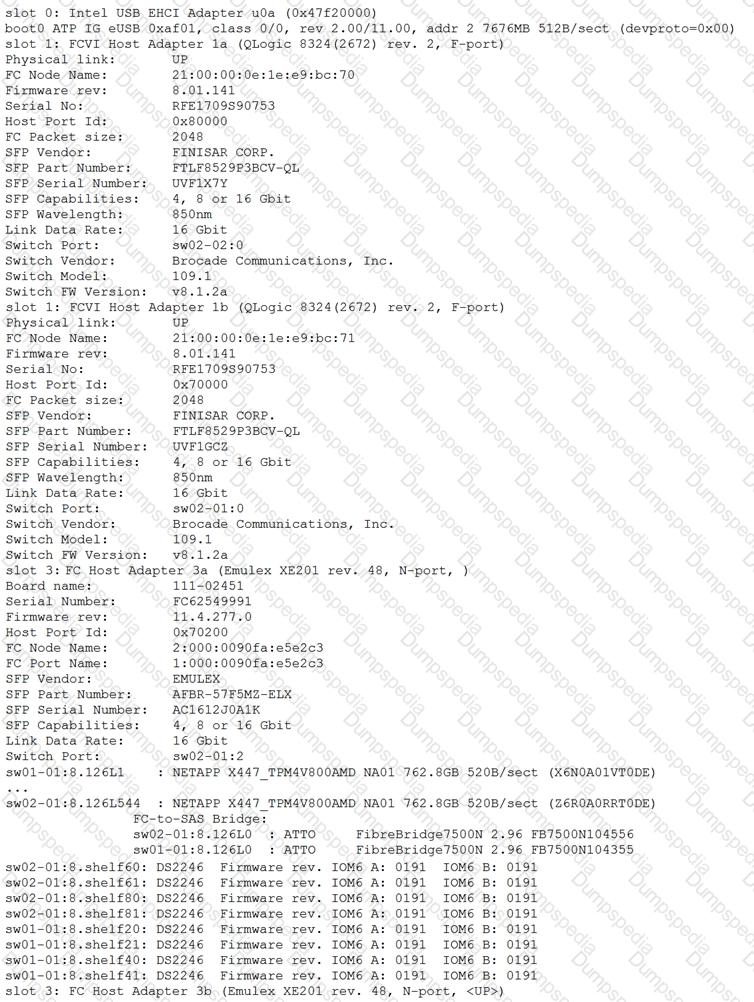

The exhibit shows a fabric-attached MetroCluster design rather than an IP or stretch design. The output includes FC-VI host adapters, Brocade switch information, FibreBridge devices, and disk shelves connected through FC-to-SAS bridges. Those components are characteristic of a fabric MetroCluster where Fibre Channel switches provide the intersite storage fabric and bridges connect SAS shelves into the FC environment. A two-node stretch MetroCluster would not show the same four-node fabric topology, and MetroCluster IP would use Ethernet-based back-end connectivity rather than FC switches and FC-to-SAS bridges. A four-node stretch MetroCluster would also not use the fabric-switch/bridge arrangement shown in the exhibit. The support engineer must identify topology from the hardware path indicators, not from the node count alone. The presence of FC switches, FC-VI, and ATTO FibreBridge devices makes the topology a four-node fabric-attached MetroCluster. References/topics: MetroCluster fabric architecture, FC-VI adapters, FC-to-SAS bridges, Brocade switch paths, and MetroCluster hardware topology identification.

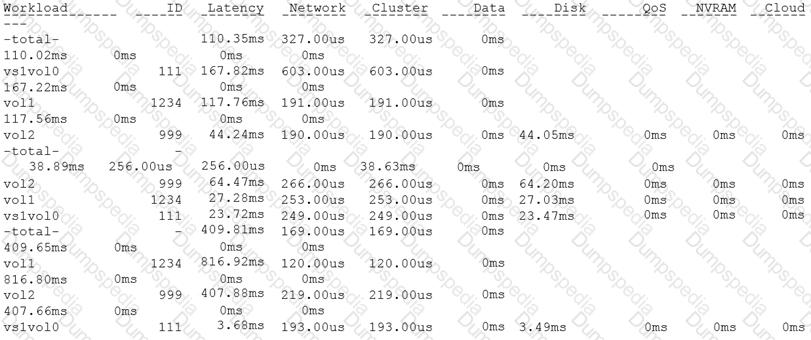

The exhibit is a performance breakdown that separates latency by subsystem, including network, cluster, data, disk, QoS, NVRAM, and cloud columns. When disk latency appears in the path and the workload view indicates delay associated with storage media access, the disk layer must be examined. In systems that use external shelves, SAS connectivity is the transport path between controller and disks, so the SAS adapter is also a logical component to investigate. Cluster switches and network interface cards would be primary suspects if network or cluster latency dominated the output, but the relevant symptom in this type of support workflow points toward back-end storage access rather than client or cluster front-end connectivity. A support engineer should correlate the QoS latency center with physical topology: high disk latency can be caused by a failing disk, shelf pathing, SAS adapter, cable, or shelf module. Therefore, the two strongest components to examine are the SAS adapter and disk. References/topics: ONTAP QoS latency centers, disk latency troubleshooting, SAS path analysis, and storage back-end diagnostics.

On AFF systems, compaction, deduplication, and compression are enabled by default as core storage efficiency features. AFF platforms are designed around flash media and ONTAP inline efficiencies, so ONTAP applies these efficiencies automatically to reduce physical space consumption while preserving performance. Reallocation is not a default data-reduction technology in this context; it is associated with layout optimization and is not part of the standard AFF default efficiency set. Encryption may be enabled in some environments depending on configuration, NVE, NAE, or self-encrypting drives, but it is a security feature rather than a default space efficiency feature. The correct choices are the technologies that reduce physical storage footprint inside ONTAP volumes and aggregates on AFF. A support engineer should distinguish default AFF efficiency behavior from optional security and layout functions. References/topics: AFF storage efficiency defaults, inline deduplication, inline compression, data compaction, and ONTAP capacity efficiency.

Kerberos configuration should be reviewed when CIFS access issues occur only when clients access a data LIF on a specific node. Kerberos authentication relies on proper service principal names, DNS records, time synchronization, and node/LIF identity behavior. If the same share path works through other nodes or LIF locations, the issue is less likely to be the share path itself. Export policies apply primarily to NFS access and are not the correct focus for CIFS share troubleshooting. General cluster health may be checked, but it does not directly explain a node-specific CIFS authentication failure. The support engineer should investigate Kerberos and CIFS server dependencies such as DNS aliases, SPNs, domain controller communication, and the data LIF's node context. The key clue is node specificity with CIFS, which commonly points to Kerberos name or authentication path problems. References/topics: ONTAP SMB Kerberos authentication, CIFS data LIF behavior, SPN/DNS validation, node-specific CIFS access troubleshooting, and Active Directory integration.

VLANs are used in ONTAP environments to create logical network segmentation, normally by function, tenant, or protocol. Isolating management traffic from data traffic is a valid design reason because management interfaces should remain on a protected administrative network, separate from NAS or SAN client paths. Isolating iSCSI traffic from NAS traffic is also valid because iSCSI carries block storage traffic and is commonly placed on dedicated networks or VLANs for predictable latency, security, and failure-domain control. VLANs do not isolate UDP from TCP; those are transport protocols and are handled by IP stack behavior, firewalling, or application design rather than VLAN design. FC is not ordinary IP traffic, so isolating FC from other IP traffic is not a correct VLAN use case for ONTAP Ethernet networking. The support decision is to select segmentation examples that match ONTAP IP networking. References/topics: ONTAP VLANs, broadcast domains, management network isolation, iSCSI network separation, and NAS/SAN traffic design.
