NSE6_FSM_AN-7.4 Sample Questions Answers

The search fails because nested analytics queries require the outer query attribute type to match the inner query display-column data type. The FortiSIEM Study Guide explicitly explains this rule in the Nested Query section: “Another important aspect to understand is that the data value types must match.” It further explains that each inner query display column has a data value type, such as IP, string, or integer, and the outer query attribute must match that type. The FortiSIEM 7.4 User Guide states the same operational requirement: for a nested query to work correctly, “the data type of the filter attribute in the outer query must match up with the data type of one certain display column in the inner query.” Therefore, if the inner query returns a string attribute but the outer query compares it against an IP-type attribute, FortiSIEM cannot produce a valid match. The issue is not the time range, not the use of User and Event Type together, and not the Boolean operator. It is an attribute type mismatch between the query and subquery.

The correct answer is B. Train. In FortiSIEM machine learning, the Train step is where the model is built from the prepared dataset and where model-fitting behavior can be adjusted. The FortiSIEM 7.4 User Guide explains that after preparing data, the analyst goes to Analytics > Machine Learning > Train, selects the machine learning task, chooses the algorithm, selects the prediction/target fields when required, and chooses the Train factor, which determines how much data is used for training versus testing. The guide states that the Train factor should be greater than 70%, meaning 70% of the data is used for training and 30% for testing. It also explains that model quality metrics show how accurately the algorithm predicts the field. For regression, lower MAE means a better fit, and R2 shows how well predictions approximate real data points. Most importantly, the guide states: “If you want to change the algorithm parameters and re-train, then click Tune & Train, change the parameters and click Save & Train.” This confirms that modifying how the model fits the training dataset is done in the Train step, not Prepare Data, Statistics, or Design.

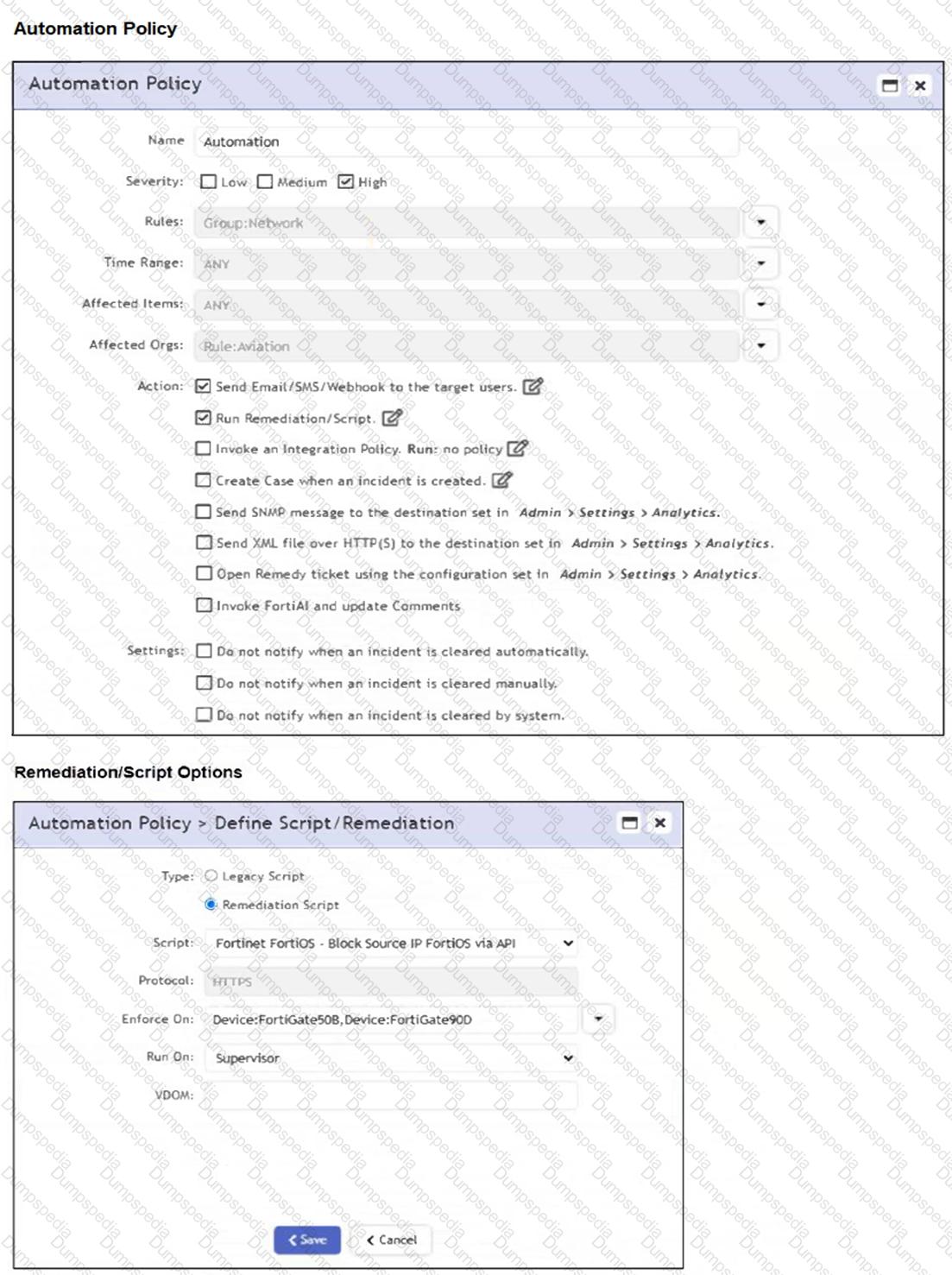

The automation policy is configured to run a remediation script named " Fortinet FortiOS - Block Source IP FortiOS via API " . It specifies enforcement on two FortiGate devices: FortiGate508 and FortiGate90D. Therefore, associated source IP addresses will be blocked on those two FortiGate firewalls only.

The correct answer is D because the remediation configuration defines specific enforcement targets. The FortiSIEM Study Guide explains that automation policies can run remediation scripts automatically when an incident occurs. It also explains the remediation options: Enforce On determines which devices the script runs against, while Run On identifies whether the script is launched from the supervisor or a collector. The Study Guide further states that mitigation scripts can block an IP address in a firewall or disable a user in Active Directory, and recommends specifying the Enforce On value because it controls the target device used by the remediation script. In the exhibit, the selected script is a Fortinet FortiOS block-source-IP remediation script, and the Enforce On field lists two FortiGate devices. That means the block action is targeted only at those two named FortiGate firewalls. The Aviation organization limits the automation policy context, but it does not mean every device in the organization receives the block. It is also not all FortiGate firewalls or the whole Network CMDB group.

The rule is triggering on successful RDP connection events because the Next operator between the two subpatterns is set to OR . The FortiSIEM Study Guide explains that multiple subpattern rules are used when patterns must occur within a specific time period or when one of several patterns proves that an incident condition exists. It lists the OR operator as: “Subpattern X OR Subpattern Y occurred within the Time Window.” The same Study Guide further explains that if multiple patterns are used, FortiSIEM requires a next operator, and in the OR example, “an event that matches either” subpattern will trigger. It also states that because the next operator is OR, the constraint between the two subpatterns is not enforced.

In the exhibit, Subpattern 1 matches RDP traffic on TCP/UDP port 3389 from FortiGate traffic-forward events, while Subpattern 2 matches logon failure events with COUNT(Matched Events) > = 3. Because the rule uses OR, FortiSIEM can trigger when only the RDP connection subpattern matches, even if the failed-logon subpattern does not match. The correct logic should require both subpatterns to match with the intended relationship constraints, not either subpattern independently.

FortiSIEM applies tags to FortiClient EMS-managed hosts through FortiEMS integration. The FortiSIEM 7.4 User Guide states that FortiSIEM supports discovery of FortiEMS servers using the FortiEMS Management Server API with username/password authentication. That supports option A: FortiEMS API credentials must be configured on FortiSIEM. The same guide explains that after FortiEMS discovery, “FortiSIEM can tag or untag a host, using classification tags on FortiEMS server.” It further explains the ZTNA workflow: in ZTNA, these tags are imported by Fortinet devices, especially FortiGate firewalls, and referenced in ZTNA firewall rules. That supports option C: the tag value used for ZTNA classification must be available/defined for the FortiEMS tagging workflow. Option B is not the best required configuration in the question because a remediation script is an execution method, not one of the two foundational settings being asked for. Option D reverses the API relationship; FortiSIEM connects to FortiEMS using FortiEMS credentials, not FortiSIEM API credentials stored on EMS.

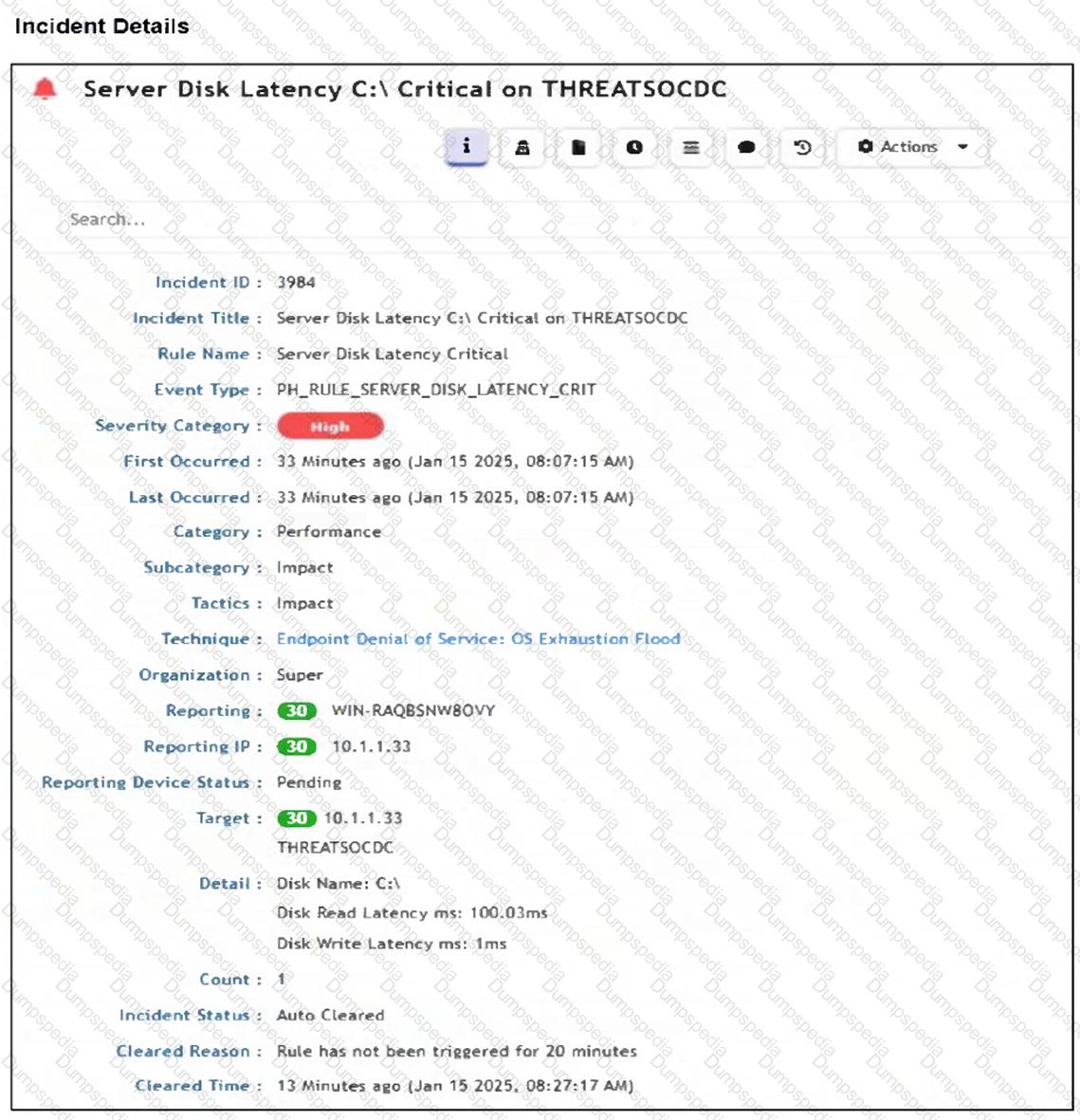

The Incident Status shows " Auto Cleared " , and the Cleared Reason states: " Rule has not been triggered for 20 minutes. " This indicates that the incident was automatically cleared by the rule logic after a defined period of inactivity.

The correct answer is C because the exhibit shows the incident status as Auto Cleared and the cleared reason indicates that the rule condition was no longer being triggered. The Study Guide explains that FortiSIEM supports clear conditions and auto-clearing behavior at the rule level. It states that if a time-based clear condition is configured, FortiSIEM can auto-clear the incident after the last occurrence if the trigger condition no longer exists. It also explains pattern-based clear behavior: FortiSIEM evaluates clear-condition subpatterns and compares attributes from the clear condition with the original incident attributes. If the configured attributes match, the incident status is set to auto cleared. In the exhibit, the cleared reason says the rule has not been triggered for a defined number of minutes. That is not a manual action by the analyst and not an endpoint-generated all-clear signal. It is FortiSIEM’s rule-based clearing logic. Option B is also wrong because the exhibit shows a specific rule inactivity period, not a generic 24-hour timeout.

The correct answer is A. FortiSIEM supports bulk rule operations for selected rules. The FortiSIEM 7.4 User Guide states that if you have permission to activate a rule, you can activate or deactivate multiple rules with a single click. The procedure instructs the user to go to Resources > Rules, click the edit icon, select Multiple Rules, choose the rules, and then use the Select Actions panel. In that panel, the guide states that you can select a Severity from the Severity drop-down list to change the selected rules, and you can also select or deselect active status options for new or existing organizations to make the selected rules active or inactive. This proves that both operations are available: severity changes and activation/deactivation changes. Option B is too restrictive because FortiSIEM allows multiple-rule selection. Option C is incomplete because activation/deactivation is also supported. Option D is incomplete because severity changes are also supported. Therefore, the correct answer is that you can change severity and activate or deactivate multiple selected rules.

The correct answer is Local Auto. The uploaded answer was right, but its explanation was sloppy because it incorrectly described Local mode as the most time-consuming mode. In FortiSIEM machine learning, Local Auto mode selects the best algorithm by evaluating multiple candidate algorithms. The User Guide states that in Local Auto mode, “FortiSIEM picks the best algorithm” and that the Max Run Time parameter limits how long the job can run; longer runtime can produce better results. That is why Local Auto can take the most time. Forecasting and Regression are task types, not run modes.

The correct answer is A because CMDB objects are referenced from the Value field after selecting the appropriate event attribute and operator. The FortiSIEM Study Guide gives a structured search example that references the CMDB. In that example, the attribute is Reporting IP, the operator is IN, and the value is selected from CMDB groups such as Devices: Windows and Networks: Inside Net. The guide explains that to show events reported by Windows servers within a specific network, you set the attribute and operator first, then browse the CMDB and select the relevant CMDB group value. This confirms the workflow: the CMDB reference is chosen as the value of the condition, not as the attribute itself. Option B is incorrect because the CMDB tab is not used to launch the analytics search this way. Option C is not a valid workflow. Option D is wrong because the attribute is selected from event or CMDB attribute lists, while the CMDB object or group is selected in the value field.

The correct answer is C. SSL . FortiSIEM receives raw logs, processes them through parsers, normalizes the extracted fields, classifies the event, and stores the structured data. The Study Guide explains the FortiSIEM process flow: data is collected, processed by the parsing engine, normalized, classified, and then stored. It further states that normalization extracts individual fields from raw events and maps those fields to a common schema. The FortiSIEM 7.4 User Guide describes a parser as a file containing instructions for the parser module to convert a raw log into event attributes. In the exhibit, the raw FortiGate log includes values such as profiletype= " applist " , appcat= " Network.Service " , and app= " SSL " . The field that directly represents the application value is app= " SSL " . Therefore, the parser would use SSL to populate the normalized Application Name field. applist describes the profile type, Network.Service is the application category, and wan1 is the interface, not the application name.

The correct answer is C. CMDB user group . In FortiSIEM, users and user groups are maintained as CMDB objects and can be referenced in analytics filters and rule logic. The FortiSIEM 7.4 User Guide table of contents explicitly includes CMDB management for users, viewing user information, adding users, editing or deleting users, performing operations on users, and working with user groups. This confirms that user groups are part of the FortiSIEM CMDB data model. The query shown in the exhibit uses the Analytics filter with the User attribute and the value Group: FortiSIEM Analysts . That syntax indicates that FortiSIEM is referencing a FortiSIEM-defined user group from CMDB, not an LDAP group directly and not an Active Directory group directly. LDAP and Active Directory can be used to discover or authenticate users, but once referenced as a FortiSIEM analytics group value, the object is a CMDB user group. FortiSIEM organization groups are tenant/organization constructs and are not the same as CMDB user groups.
