NSE6_OTS_AR-7.6 Sample Questions Answers

According to the OT Security 7.6 Architect study guide regarding FortiAnalyzer Event Management :

Notification Options : When configuring a new event handler, FortiAnalyzer provides several built-in notification methods to alert administrators when specific log criteria are met. The most common and direct method is Send alert email (Option A).

Incident Management : To streamline the SOC workflow, an event handler can be configured to Automatically create an incident (Option D) based on the triggered event. This moves the event into the Incident Manager for further analysis.

Security Fabric Integration : In the 7.6 architecture, event handlers can directly trigger an Automation stitch (Option E). This allows the FortiAnalyzer to notify the root FortiGate to take action (like running a CLI script or changing a policy) across the Security Fabric.

Exclusions : Create a report (Option B) is typically a task performed by a Playbook or a scheduled report job, not a direct setting inside the basic event handler configuration. Quarantine an attacker (Option C) is an action that results from an automation stitch or playbook, but it is not a direct configuration toggle within the event handler itself.

The correct answers are A and D . The study guide provides a direct use case called Attack Detection and Automated Alert . It states: “A downstream FortiGate detects an attack and sends logs to FortiAnalyzer. FortiAnalyzer parses the logs and notifies the root FortiGate. The root FortiGate triggers the action, which in this case, is a notification to the administrator.” The same slide also explicitly shows “Stitches configured on root FortiGate.” This confirms that to send the automated alert, you must configure the automation stitch on the root FortiGate .

The second required configuration is an event handler on FortiAnalyzer . The guide explains that “Event handlers generate events” and that “FortiAnalyzer uses event handlers to filter all incoming logs. If logs match the conditions configured in an event handler, FortiAnalyzer generates an event.” Since FortiAnalyzer must detect the attack from the received logs before notifying the root FortiGate, an event handler is required on FortiAnalyzer.

Option B is incorrect because the study guide does not identify a LOCALHOST task as the required configuration for this attack-alert flow. Option C is also incorrect because the question asks what must be configured to enable the automated alert workflow . An IPS profile may detect some attacks, but the required automation path in the study guide is specifically event handler on FortiAnalyzer + stitch on the root FortiGate .

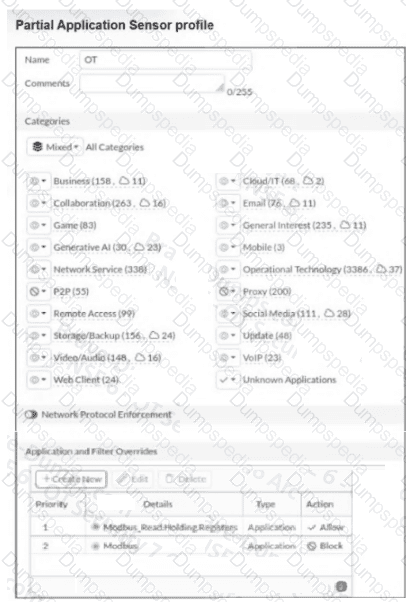

The correct answers are A and C . The study guide explains that “You can use application control signatures to detect OT protocols” and that application control provides “granular message type identification.” In the exhibit, the Operational Technology application category is included in the Application Sensor profile, so OT application signatures are enabled in this profile.

Option C is also correct because the override table shows Modbus_Read.Holding.Registers = Allow and Modbus = Block . The study guide states that you can use specific granular application control signatures to allow a specific Modbus command and block all others , and it also shows that application control can identify read and write commands separately at message level. Therefore, Modbus write commands are blocked by this profile.

Option B is incorrect because the profile is not simply monitoring all OT protocols; it contains a Block action for Modbus. Option D is incorrect because the study guide links OT protocol visibility specifically to the monitor status , while in the exhibit Modbus_Read.Holding.Registers is set to Allow , not Monitor .

Based on the provided exhibit and the OT Security 7.6 Architect curriculum regarding the Fortinet Security Fabric :

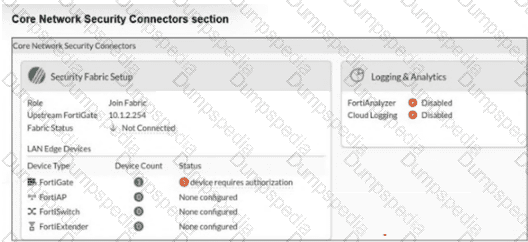

Fabric Role : The exhibit clearly shows that FortiGate-2 has the role set to Join Fabric . This confirms it is a downstream device and not the Fabric Root (eliminating Option A).

Upstream Connection : The device is configured to point to an Upstream FortiGate at IP address 10.1.2.254 .

Fabric Status : The status is currently displayed as Not Connected . In a standard Fortinet Security Fabric deployment, once a downstream device is configured to join the fabric, it sends a request to the upstream root device. The root FortiGate must then explicitly authorize the downstream unit before the connection is established and the status changes to " Connected. "

Authorization Requirement : The " Not Connected " status, while having the upstream IP correctly configured, is the classic indicator that the authorization step is pending on the root FortiGate. Furthermore, under the LAN Edge Devices section, it shows another downstream FortiGate requiring authorization on this specific unit, highlighting that authorization is a manual security requirement for all stages of the Fabric hierarchy.

FortiAnalyzer Status : While the Logging & Analytics section shows FortiAnalyzer is Disabled , this is a configuration choice and does not prevent the Security Fabric from connecting; therefore, configuring it is not the solution to the connectivity status shown (eliminating Option C).

In summary, FortiGate-2 cannot join the fabric until an administrator logs into the Root FortiGate (10.1.2.254) and authorizes the join request from FortiGate-2.

The correct answer is A. Device Detection is enabled on the other identified device .

The study guide explains that device identification is a “useful feature for the Security Fabric topology view” and that “FortiGate detects most third-party devices in your network and adds them to the topology view of the Security Fabric.” It also states that in the interfaces section, you can enable device detection , and this detection is what allows FortiGate to identify devices based on observed traffic.

In the exhibit, the tooltip distinguishes between “1 device requires authorization” and “1 other identified device.” That means the unauthorized device is a separate FortiGate/Fabric member issue, while the other identified device is simply a detected third-party device shown in the topology because device detection is working. Therefore, the correct interpretation is that device detection is enabled for that identified device. Option B is incorrect because the exhibit does not say the other identified device requires authorization. Option C is not supported by the study guide, and option D is too specific because no evidence in the exhibit confirms that the detection was enabled specifically on port3 .

The correct answer is C. Industrial Control System (ICS) . The study guide states that “ICS is a main component of OT” and “consists of systems used for monitoring and controlling industrial processes.” It also explains that ICS includes various devices, systems, controls, and networks that manage industrial processes, and that the most common types are SCADA and distributed control systems (DCS) . This makes ICS the primary OT component for monitoring and controlling industrial processes.

The other options are related OT components, but they are not the best answer to this wording. SCADA collects real-time data and helps visualize and control the OT environment, but it is described as a system within the broader ICS structure. PLC devices collect and transmit real-time data and connect sensors and RTUs to SCADA, while IIoT refers to sensors, actuators, and other connected field devices. Therefore, the overarching main OT component for monitoring and controlling industrial processes is ICS .

The correct answer is D. EtherCAT . The study guide explicitly states under the Ethernet/IP and EtherCAT section that “EtherCAT is a protocol that offers real-time communication in a primary-secondary configuration” and “EtherCAT skips layers 3 to 6 to deliver real-time communication.” It also adds that “the most important feature of this protocol is that secondary devices collect only the information they need from the data packets.” This matches the exhibit exactly, where the diagram shows Real-Time Data above a Proprietary MAC and Proprietary physical layer , reflecting the protocol structure that bypasses the intermediate OSI layers.

The other options do not match this behavior. The guide says POWERLINK uses layer 2 and layer 7 of the OSI model, not that it skips layers 3 to 6. It also explains that Ethernet/IP is the industrial protocol based entirely on Ethernet standards and adapts to the OSI model. Modbus is described as an open client/server protocol and is not suitable for transmitting data in real time . Therefore, the protocol in the exhibit is clearly EtherCAT .

Deploying a FortiGate in offline IDS (also known as one-arm sniffer mode) is a common strategy in OT environments for several reasons found in the study guide:

Priority of Availability : In OT, availability and safety are critically important and prioritized higher than in IT. An offline IDS minimizes impact because it does not sit in the direct path of production traffic.

Network Sensor Role : In this mode, the FortiGate is connected to a mirror/SPAN port on a switch. It acts as a network sensor , receiving a copy of the traffic rather than having the traffic flow through it. This confirms Statement A is correct and Statement D is incorrect.

Passive vs. Active : The guide explicitly states that in OT environments, passive methods are preferred over active methods to avoid negatively impacting performance or causing process interruptions.

Depth of Visibility : Even though the device is offline, you apply security profiles (such as IPS, Application Control, and Antivirus) to the sniffer interface. This allows the FortiGate to analyze the copied traffic and provide deep visibility into the OT assets and their behaviors. This confirms Statement B is correct.

Detection vs. Prevention : An IDS (Intrusion Detection System) is passive ; it can detect threats but cannot reset connections or drop packets to block attacks. Therefore, it cannot block zero-day attacks, making Statement C incorrect.

The correct answer is C. The output of the CLI command get rule otvp status . In the Virtual Patching section, the study guide shows the workflow where FortiGate queries FortiGuard for device-specific vulnerabilities, receives OT virtual patching signatures, maps them to the device MAC address, and then explicitly displays the CLI verification command get rule otvp status together with fields such as Rule-name , Vuln_type , and Cve . This is the direct confirmation mechanism shown in the guide for checking whether OT devices have virtual patching rules associated with them.

The other options are less accurate for confirmation. The OT View page is for Purdue-level visualization, and the Asset Identity List page shows device and asset information, but neither is presented in the guide as the command or control used to verify virtual patching status. The study guide specifically uses get rule otvp status as the status check tied to virtual patching behavior.

The correct answers are B and D .

Option B is correct because the profile has Medium , High , and Critical selected, while Low severity is not selected. That means low-severity virtual patching signatures are not enforced by this profile. So for the device with MAC address 12:12:12:12:12 , low-severity signatures are not blocked. The study guide explains virtual patching as device-specific protection where “FortiGate caches the signatures and mitigation rules that apply to each device” and applies them when the related traffic matches the firewall policy.

Option D is correct because the Virtual Patching Exemptions table shows a row with the MAC address 11:11:11:11:11 and no specific signature listed. The study guide states that in the Virtual Patching profile you can “Exempt a specific device with the MAC address or a specific signature.” A MAC-only exemption means that specific device is excluded from virtual patching enforcement, so in practical terms it is treated as having no applicable vulnerabilities in this profile.

Option C is incorrect because the profile does not block critical signatures for all devices. The exemptions list proves that at least one device can be excluded by MAC address, and a specific signature can also be exempted. Therefore, enforcement is not universal across all devices.

Option A is incorrect because the entry Schneider.Electric.ClearSCADA.HTTP.Interface.XSS appears as a specific signature exemption , not as the only remaining vulnerability. The profile display is showing exemptions, not a statement that only one vulnerability is still present.
