NSE7_CDS_AR-7.6 Sample Questions Answers

According to the FortiOS 7.6 Azure Administration Guide and the Fortinet 7.4 Public Cloud Security documentation regarding monitoring and troubleshooting in Microsoft Azure, administrators must utilize native diagnostic tools to gain visibility into network traffic patterns:

NSG Flow Logs (Option D): Network Security Group (NSG) flow logs are a feature of Azure Network Watcher that allows you to record information about IP traffic flowing through an NSG. These logs capture critical 5-tuple information (source/destination IP, port, and protocol) and whether the traffic was allowed or denied by specific security rules.

Traffic Pattern Analysis with Azure Monitor: To effectively analyze the "pattern" of a traffic spike, these logs are typically sent to a Log Analytics workspace within Azure Monitor. By using Traffic Analytics, the raw flow data is processed into rich visualizations and searchable datasets. This allows administrators to run Kusto Query Language (KQL) queries to identify "top talkers," visualize traffic spikes over time, and correlate the timing of these spikes with application performance degradation.

Identifying Bottlenecks: This method is preferred for identifying bottlenecks because it provides a granular view of every packet entering or leaving the subnets where the FortiGate-VM or application servers are hosted, revealing the exact nature of the inbound volume.

Why other options are incorrect:

Option A: While Azure Firewall provides logging, it is an additional security layer that may not be deployed in all environments. NSG Flow Logs are the primary and more ubiquitous method for monitoring all subnet-level traffic regardless of firewall placement.

Option B: DDoS Protection is a preventative measure; it does not provide the historical "identification and analysis" of traffic patterns required to diagnose a past performance bottleneck.

Option C: Azure Traffic Manager is a DNS-based load balancer. While it provides high-level metrics, it does not have visibility into the actual flow-level traffic data needed for a detailed pattern analysis of application bottlenecks.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

According to the FortiOS 7.6 Azure Administration Guide and the Public Cloud Security documentation regarding Azure Gateway Load Balancer (GWLB) integration:

Encapsulation Overhead: Azure Gateway Load Balancer uses VXLAN (Virtual eXtensible LAN) to encapsulate the traffic before sending it to the FortiGate-VM HA cluster. This encapsulation adds a header that typically consists of 50 bytes for regular IPv4 traffic (Ethernet, IP, UDP, and VXLAN headers).

MTU Mismatch (Option A): The default maximum transmission unit (MTU) in Azure is 1500 bytes. If a protected VM sends a packet at the maximum default size (1500 bytes), and the GWLB then adds the 50-byte VXLAN header, the resulting encapsulated packet becomes 1550 bytes.

Packet Drops: If the FortiGate-VM's network interfaces are left at the default MTU of 1500 bytes, they will not be able to process the 1550-byte encapsulated frames without fragmentation. Because many network paths or configurations (including Azure's fabric for certain flows) may drop packets that require fragmentation or have the Don't Fragment (DF) flag set, this results in the observed intermittent connectivity issues and dropped traffic.

Required Resolution: To resolve this issue, administrators must increase the MTU on the FortiGate-VM interfaces (specifically the one receiving GWLB traffic) to at least 1570 bytes to accommodate both IPv4 and IPv6 VXLAN overhead.

Why other options are incorrect:

Option B: While an incorrect health probe port would cause the GWLB to mark the FortiGate as down, it would typically lead to a complete loss of traffic flow through that instance rather than intermittent packet drops within an active flow.

Option C: The GWLB itself is the component adding the overhead; it is the FortiGate's inability to receive the larger resulting frame (due to its own default MTU setting) that causes the failure.

Option D: Packet fragmentation by the application is a secondary effect. The primary "intermittent" issue described in GWLB deployments is almost always related to the tunneling overhead exceeding the receiving interface's MTU.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

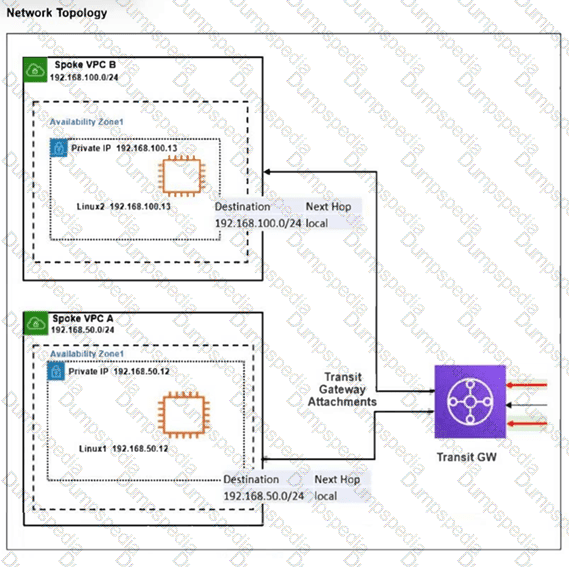

Based on the FortiOS 7.6 Cloud Security Study Guide regarding AWS Transit Gateway (TGW) integration and VPC routing, the following steps are mandatory to establish connectivity between Spoke VPCs via a TGW:

VPC Route Table Configuration (Option A): For traffic to leave a VPC and reach the Transit Gateway, the VPC's subnet route table must have a specific entry. While the exhibit shows local routes for internal VPC traffic (192.168.50.0/24 and 192.168.100.0/24), any traffic destined for "outside" the local VPC (such as the other Spoke VPC) must be directed to the TGW. Adding a default route (0.0.0.0/0) with the TGW ID as the next hop ensures that all non-local traffic is forwarded to the Transit Gateway for processing.

TGW Association (Option B): Within the Transit Gateway itself, connectivity is managed through Associations and Propagations. An "Association" links a specific VPC attachment to a TGW route table. Without associating the two attachments (for Spoke VPC A and Spoke VPC B) to a TGW route table, the TGW will not know which route table to use to make forwarding decisions for packets arriving from those VPCs.

Why Option C is incorrect: Route propagation is used to automatically populate the TGW route table with the CIDR blocks of the attached VPCs. While propagation is a valid step for dynamic routing, Option C specifically mentions propagating a static summary range (192.168.0.0/16) which is not the standard automated mechanism; usually, you propagate the specific VPC CIDRs. Furthermore, without the Association (Option B), propagation alone does not allow the TGW to process incoming traffic from the attachment.

Why Option D is incorrect: Directing traffic to an Internet Gateway (IGW) would send the traffic to the public internet. This would not facilitate internal routing between the two Spoke VPCs via the Transit Gateway.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

According to the FortiWeb 7.4 Administration Guide and the FortiWeb Ingress Controller Installation Guide, the status of backend servers in the FortiView Topology dashboard is a direct reflection of the health check results.

Interpreting the Status Icon (Orange): In the FortiView Topology view, a green circle indicates that the server is up and responding to health checks, while an orange circle indicates that the server is not running or is unreachable.

Connectivity and Routing (Option B): For the FortiWeb ingress controller to accurately monitor and protect a containerized application, it must have a valid network path to the Kubernetes (K8s) worker nodes. If the FortiWeb VM is missing a route to the specific subnet where the K8s nodes reside, the health check packets will fail to reach their destination. As a result, FortiWeb identifies the backend servers (192.168.0.1, 192.168.0.2, and 192.168.0.3) as "Down," leading to the orange status shown in the exhibit.

Health Check Failures: When the status is orange, it implies that the Server Health Check (configured in the server pool) is detecting that the web servers are not responsive to connections. While this could be caused by an application-level failure, in a fresh cloud deployment of an ingress controller, the most common underlying cause is a network routing misconfiguration preventing the FortiWeb appliance from reaching the node IPs.12

Why other options are incorrect:34

Option A: If the SDN connector were not authenticated correctly, FortiWeb would likely fail to discover the containerized resources entirely, rather than discovering them and repor5ting them as "Down".6

Option C: While wron7g IP addresses would cause a failure, the Ingress Controller's job is to dynamically sync these addresses from the K8s API; a manual configuration error in a manifest file regarding IP addresses is less likely in an automated ingress environment.

Option D: The load balancing algorithm (Round Robin, Least Connections, etc.) affects how traffic is distributed, but it does not influence the up/down health status of the individual backend servers.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

Based on the FortiOS 7.6 Automation Guide and the provided documentation for Ansible workflows, the following structure is required for managing multiple FortiGate nodes:

Inventory File (The Target List): The inventory is a single file that defines the list of managed nodes. It specifies critical information such as hostnames, connection details, and specifically the IP addresses of the target devices. According to the study guide, this inventory is a text file that lists all the systems you want to manage.

Playbook File (The Task List): You create and edit a separate file that acts as the playbook. This file is written in YAML format and contains the series of tasks that Ansible performs on the managed nodes to reach a desired state.

Minimum File Count: A basic Ansible workflow consists of exactly two files: one inventory file (text) and one playbook file (YAML). By listing the target IP address (e.g., 10.0.206.131) within the inventory text file, the administrator can manage the FortiGate device without needing individual files for every target.

Why other options are incorrect:

Option A & C: Creating a separate playbook or inventory file for each target is inefficient and contradicts the core Ansible workflow, which uses a single inventory to manage multiple hosts.

Option B: While the playbook is a .yaml file, the study guide specifically defines the inventory (where IP addresses are configured) as a text file in the context of the basic workflow.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

According to the FortiCNP 24.x Administration Guide and the FortiOS 7.6 Security Fabric Integration documentation, integrating a FortiGate-VM with FortiCNP requires specific local configurations on the FortiGate to ensure the cloud security platform can ingest and analyze traffic data.

Configuring Logging (Option C): Before adding the FortiGate VM to FortiCNP, the administrator must Enable Send Logs on the FortiGate. This allows the FortiGate to forward the necessary security telemetry and traffic logs to the FortiCNP cloud endpoint for threat correlation and risk analysis.

Policy and Inspection Setup (Option D): The integration relies on the FortiGate's ability to identify and block threats at the network layer. Specifically, the administrator must Create a FortiGate IPS Sensor and Create a FortiGate Firewall Policy. The IPS sensor detects malicious patterns, while the firewall policy dictates which traffic is subjected to this inspection.

Deep Packet Inspection (Option E): To provide visibility into encrypted traffic—which is critical for identifying threats hidden in HTTPS flows—the administrator must Create an SSL/SSH Inspection Profile on the FortiGate. Without this profile, FortiCNP would lose significant visibility into potential attack vectors utilizing encrypted channels.

Why other options are incorrect:

Option A: While pre-shared keys are used in VPN and some Fabric setups, they are not listed as one of the specific mandatory steps for the initial FortiGate-to-FortiCNP fabric integration workflow.

Option B: While certificate exchange is part of the overall trust relationship, the primary "mandatory configuration steps on FortiGate" defined in the official setup guide focus on the logging and security profile components required to generate the data FortiCNP needs.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

Based on the FortiOS 7.6 Azure Administration Guide and standard Azure Resource Manager (ARM) deployment practices, the what-if operation allows administrators to preview how a deployment will affect the current state of resources.

Interpreting the What-If Output (Option A): The exhibit shows the results of a change preview for a Virtual Network (vnet-002).

The symbol ~ (Modify) next to the VNet indicates that an existing resource is being updated rather than created or deleted.

The symbol - (Delete) next to tags.Owner: "Production" indicates that this specific tag will be removed from the VNet.

Crucially, the symbol + (Create) appearing inside the properties.subnets array next to index 0: indicates the addition of a new element. This confirms that a new subnet named subnet001 with the address prefix 10.0.0.0/25 will be added to the existing Virtual Network vnet-002.

Why other options are incorrect:

Option B: The text shows that the tag "Production" is being deleted (-), not that the VNet is being renamed to "Production."

Option C: The what-if tool only displays the changes. While one subnet is being added (+), the tool does not show the deletion of other existing subnets. Therefore, we cannot conclude the resulting VNet will have only a single subnet; it will have its existing subnets plus the new one.

Option D: There is no mention of addressSpace or addressPrefixes for the VNet itself being modified (~) or added (+) in the exhibit; only a subnet-level address prefix is shown.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

As per the FortiOS 7.6 AWS Administration Guide and FortiWeb 7.4 cloud deployment documentation, understanding the AWS infrastructure layer is critical for integrating Fortinet virtual appliances. The two features that define AWS Network Access Control Lists (NACLs) are:

Stateless Nature (Option A): Unlike Security Groups, which are stateful (automatically allowing return traffic), NACLs are stateless. This means that if you allow inbound traffic on a specific port, you must also explicitly configure an outbound rule to allow the response traffic to leave the subnet. NACLs evaluate inbound and outbound traffic independently.

Default Configuration (Option C): Every VPC comes with a default NACL. By default, this NACL is configured to allow all inbound and outbound traffic. This is designed to ensure connectivity is not blocked until a custom security posture is defined. However, any custom NACL created manually starts by denying all traffic until rules are added.

Why other options are incorrect:

Option B: NACLs are associated at the subnet level, not the instance level. Security Groups are the components tied directly to an instance’s Elastic Network Interface (ENI).

Option D: NACLs and Security Groups provide defense-in-depth and are designed to be used simultaneously. Traffic must pass through the NACL (subnet level) and then the Security Group (instance level) to reach its destination.
