NSE7_PBC-7.2 Sample Questions Answers

When adding the Amazon Web Services (AWS) account to the FortiCNP, you must follow these three mandatory configuration steps:

Add AWS accounts through FortiCNP. This is the first step to enable cloud protection for your AWS account. You can add one or multiple accounts automatically or manually. You need to provide the AWS account ID and a name for the account. You also need to select the optional permissions to be granted to FortiCNP as needed1.

Accept FortiCNP to create CloudTrail for the account. This is required for FortiCNP to collect and analyze the AWS API calls and events. You can choose to let FortiCNP create a CloudTrail for the account or use an existing one. You also need to specify the aggregation region for the CloudTrail1.

Launch the CloudFormation template. This is required for FortiCNP to create a stack and a role in your AWS account. The stack contains the resources that FortiCNP needs to access and monitor your AWS account. The role allows FortiCNP to assume it and perform actions on your behalf. You need to enter a custom or default role name and a unique UUID that is designated for your company on FortiCNP1.

References: Add AWS Account Automatically

https://docs.fortinet.com/document/forticnp/22.4.a/online-help/246021/add-aws-account-automatically

The error message indicates that the Connect attachment is already associated with another transit gateway route table. You cannot associate the same attachment with more than one route table. However, you can propagate the same attachment to multiple route tables. Therefore, to fulfill your requirement of configuring a second route table for east-west traffic inspection between two VPCs, you need to create a propagation with the Connect attachment in the second route table. This will allow the second route table to learn the routes from the Connect attachment and forward the traffic to the security VPC1. You also need to associate the second route table with the Transport attachment, which is the transit gateway attachment for the security VPC1.

References:

Transit gateway route tables - Amazon VPC | AWS Documentation

Getting started with transit gateways - Amazon VPC | AWS Documentation

Configuring TGW route tables | FortiGate Public Cloud 7.4.0 | Fortinet Document Library

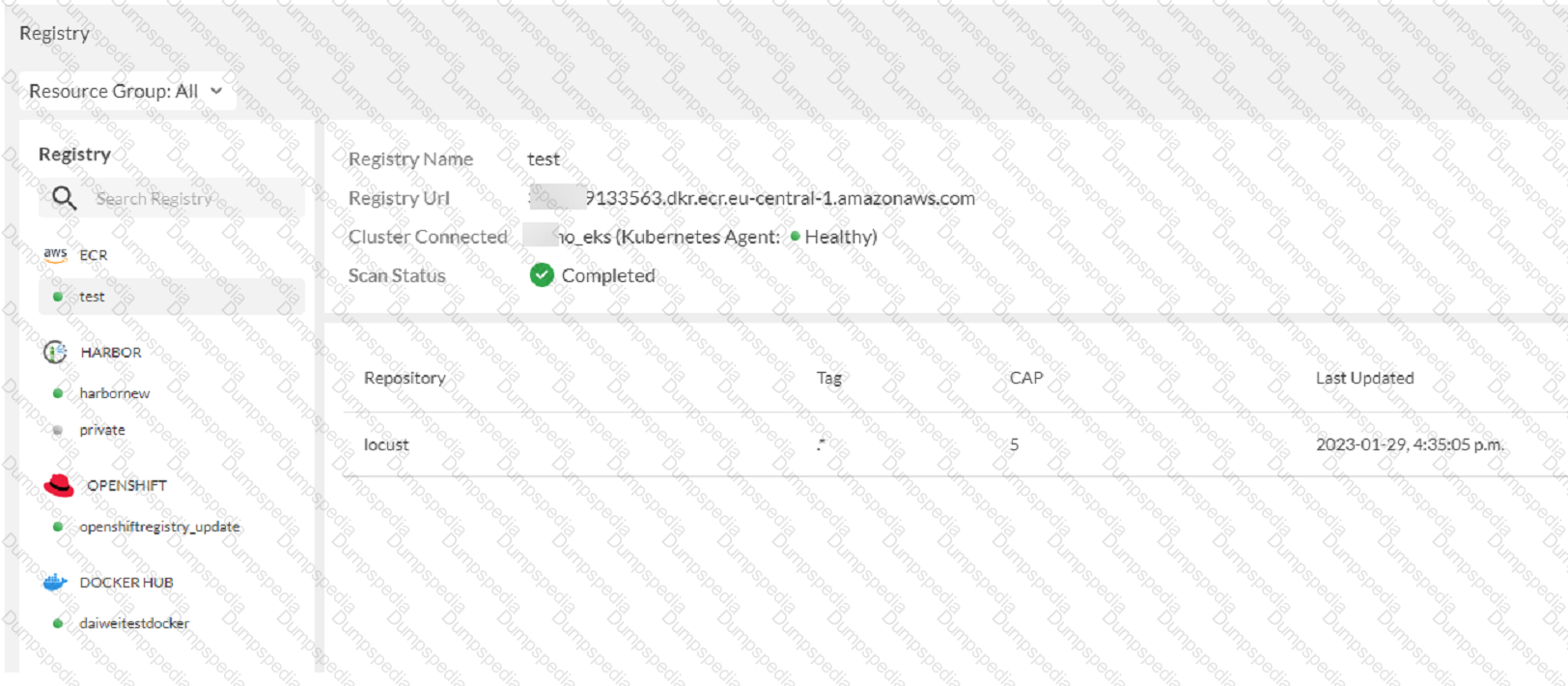

The exhibit shows the results of a FortiCNP registry scan, which is part of the FortiCNP container protection. FortiCNP’s Container Protection provides deep visibility into the security posture of container registries and images1. The registry scan utilizes Common Vulnerabilities and Exposures (CVE) index regularly updated by NVD to detect underlying vulnerabilities, security flaws, and provides security best practices2. The registry scan is performed at the registry level, and it can scan all images in a repository if the Tag section is left blank when adding a repository2. The CAP section stands for Container Assurance Policy, which defines the minimum number of images to be scanned per repository3. Therefore, the correct statements are A and C. References: Container Image Scan | FortiCNP 22.3.a, FortiCNP, Cloud Native Application Protection Platform | FortiCNP

The correct answer is C and D. Use a transit VPC with hub and spoke topology to create multiple VPN connections to the on-premises data center. Use the transit gateway attachment with VPN option to create multiple VPN connections to the on-premises data center.

According to the Fortinet documentation for Public Cloud Security, a transit VPC is a VPC that serves as a global network transit center for connecting multiple VPCs, remote networks, and virtual private networks (VPNs). A transit VPC can use a hub and spoke topology to create multiple VPN connections to the on-premises data center, using the FortiGate VM as a virtual appliance that provides network security and threat prevention. A transit VPC can also leverage Equal-Cost Multi-Path (ECMP) routing to achieve higher bandwidth and load balancing across multiple VPN tunnels1.

A transit gateway is a network transit hub that connects VPCs and on-premises networks. A transit gateway attachment is a resource that connects a VPC or VPN to a transit gateway. You can use the transit gateway attachment with VPN option to create multiple VPN connections to the on-premises data center, using the FortiGate VM as a virtual appliance that provides network security and threat prevention. A transit gateway attachment with VPN option can also leverage ECMP routing to achieve higher bandwidth and load balancing across multiple VPN tunnels2.

The other options are incorrect because:

Using ECMP and VPN to achieve higher bandwidth is not a complete solution, as it does not specify how to replace the existing VPC peering topology or how to connect the AWS VPCs to the on-premises data center.

Using transit VPC to build multiple VPC connections to the on-premises data center is not a correct solution, as it does not specify how to use a hub and spoke topology or how to leverage ECMP routing for higher bandwidth.

1: Fortinet Documentation Library - Transit VPC on AWS 2: Fortinet Documentation Library - Deploying FortiGate VMs on AWS

When deploying resources in multiple places and regions in the public cloud using Terraform, the most efficient way is:

A. Use multiple terraform.tfvars files with a variables.tf file.

Terraform.tfvars File: This file is used to assign values to variables defined in your Terraform configuration. By having multiple .tfvars files, you can define different sets of values for different deployments, such as for different regions or environments, without changing the main configuration.

Variables.tf File: This file contains the definition of variables that will be used within your Terraform configuration. It works in conjunction with terraform.tfvars files, allowing you to parameterize your configuration so that you can deploy the same template in multiple environments with different variables.

References: This method is outlined in Terraform's official documentation and is a best practice for reusing code for different environments in infrastructure as code (IaC) deployments.

Terraform manages and tracks the state of infrastructure resources through a file known as terraform.tfstate. This file is automatically created by Terraform and is updated after the application of a Terraform plan to capture the current state of the resources.

State File Purpose: The terraform.tfstate file contains a JSON object that records the IDs and properties of resources Terraform manages, so that it can map real-world resources to your configuration, keep track of metadata, and improve performance for large infrastructures.

State File Management: This file is crucial for Terraform to perform resource updates, deletions, and for creating dependencies. It's essentially the 'source of truth' for Terraform about your managed infrastructure and services.

References: This behavior is documented in Terraform's official documentation, which explains how the terraform.tfstate file is used to keep track of the infrastructure Terraform is managing.

For Transit Gateway Connect peers in an IPv4 BGP configuration, the correct statements are:

The inside CIDR blocks are used for BGP peering (Option A): In a BGP configuration for Transit Gateway Connect, the inside CIDR blocks, typically within the 169.254.0.0/16 range, are designated for the BGP peering connections. These blocks are reserved for internal network protocols and are commonly used in AWS for automatic IP address assignment within managed networking services.

You must specify a /29 CIDR block from the 169.254.0.0/16 range (Option C): It is a requirement to specify a /29 CIDR block within the 169.254.0.0/16 range for setting up the network interfaces that facilitate BGP peering. This specific range allows for the necessary number of IP addresses to establish BGP sessions effectively between the transit gateway and on-premises or other virtual appliances.

References: These practices are in line with AWS guidelines for Transit Gateway Connect, which stipulate the use of specified CIDR blocks for internal networking and BGP configurations, ensuring seamless connectivity and routing management.

Immutable infrastructure is a DevOps approach that emphasizes the creation of disposable resources instead of modifying existing ones1. This approach helps to achieve stability, consistency, and predictability in IT operations by reducing the risk of configuration drift and eliminating stateful components1.

One way to implement immutable infrastructure is to use a blue-green deployment strategy, which runs two live environments for configuration changes2. The blue environment is the current production environment, while the green environment is the new version of the application or service. When the green environment is ready, the traffic is switched from blue to green, and the blue environment is destroyed or kept as a backup2. This way, there is no need to update or patch the existing infrastructure, but rather replace it with a new one.

References:

1: Immutable Infrastructure, Architecture, and its benefits

2: Introduction to Immutable Infrastructure – BMC Software | Blogs

To keep track of sensitive data files located in AWS S3 buckets and protect them from malware, the administrator should use:

C. FortiCNP DLP policies.

Data Loss Prevention (DLP): DLP policies are designed to detect and prevent unauthorized access or sharing of sensitive data. In the context of AWS S3, DLP policies can be used to scan for sensitive information stored in S3 objects and enforce protective measures to prevent data exfiltration or compromise.

FortiCNP Integration: FortiCNP is Fortinet’s cloud-native protection platform that offers security and compliance solutions across cloud environments. By applying DLP policies within FortiCNP, the administrator can ensure sensitive data within S3 is monitored and protected consistently.

References: Fortinet's FortiCNP documentation provides information on implementing DLP policies within cloud environments, highlighting the capabilities for protecting sensitive data within cloud storage services like AWS S3.

According to the AWS documentation for Transit Gateway, a transit gateway is a network transit hub that connects VPCs and on-premises networks. A transit gateway route table is a set of rules that determines how traffic is routed among the attachments to the transit gateway1.

A transit gateway can have multiple route tables, and you can associate different attachments with different route tables. This allows you to control how traffic is routed between your VPCs and VPNs based on your network design and security requirements1.

The other options are incorrect because:

Both the TGW attachment and propagation must be in the same TGW route table is not true. You can associate an attachment with one route table and enable propagation from another attachment to a different route table. This allows you to separate the routing domains for your attachments1.

A TGW attachment can be associated with multiple TGW route tables is not true. You can only associate an attachment with one route table at a time. However, you can change the association at any time1.

The TGW default route table cannot be disabled is not true. You can disable the default route table by deleting all associations and propagations from it. However, you cannot delete the default route table itself1.

1: Transit Gateways - Amazon Virtual Private Cloud

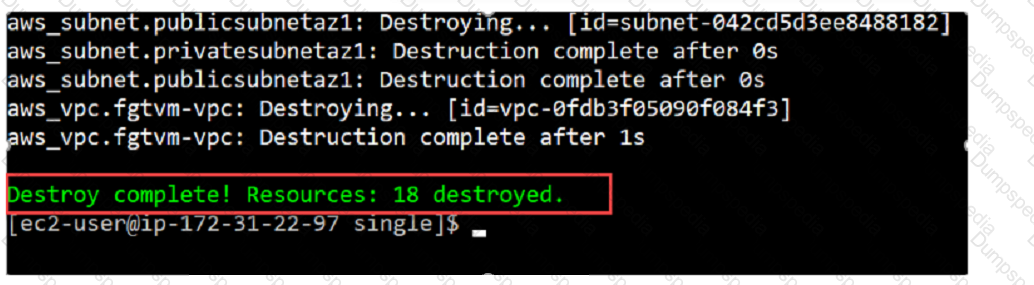

A. Use the terraform destroy command. This command is used to remove all the resources that were created using the Terraform configuration1. It is the opposite of the terraform apply command, which is used to create resources. The terraform destroy command will first show a plan of what resources will be destroyed, and then ask for confirmation before proceeding. The command will also update the state file to reflect the changes. D. The administrator must manually delete the Linux server. This is because the Linux server was not deployed using Terraform, but using AWS Marketplace2. Therefore, Terraform does not have any information about the Linux server in its state file, and cannot manage or destroy it. The administrator will have to use the AWS console or CLI to delete the Linux server manually.

The other options are incorrect because:

There is no terraform validate command. The correct command is terraform plan, which is used to show a plan of what changes will be made by applying the configuration3. However, this command does not delete any resources, it only shows what will happen if terraform apply or terraform destroy is run.

There is no terraform destroy all command. The correct command is terraform destroy, which will destroy all the resources in the current configuration by default1. There is no need to add an all argument to the command.

The reason the administrator cannot access the EC2 instance could be:

D. The directory location of the .pem file is incorrect.

SSH Key Location: When initiating an SSH connection to an AWS EC2 instance, you must specify the private key file (.pem file) location that corresponds to the public key used when the instance was launched. The error "Warning: Identity file Staging-key.pem not accessible: No such file or directory" indicates that the SSH client cannot find the .pem file at the specified location.

Correct File Path: The administrator needs to ensure that the path to the Staging-key.pem file is correctly specified when running the SSH command. If the file is not in the current directory from which the command is executed, the full or relative path to the file must be provided.

References: This behavior is in line with standard SSH connection practices and AWS guidelines for accessing EC2 instances. It is a common issue that occurs when the private key file is not located in the directory from which the SSH command is being executed or the path provided is incorrect.

To configure a FortiGate VM to add to FortiCNP, you need to perform three steps on FortiGate:

Enable send logs in FortiGate to allow FortiCNP to receive the IPS logs from FortiGate.

Create an SSL/SSH inspection profile on FortiGate to inspect the encrypted traffic and apply IPS protection.

Create an IPS sensor and a firewall policy on FortiGate to enable IPS detection and prevention for the traffic.

References:

FortiCNP 22.4.a Administration Guide, page 22-24

FortiGate IPS Administration Guide, page 9-10

The correct answer is C and D. FortiGate NGFW can inspect north-south container traffic with label aware policies and FortiGate NGFW and FortiSandbox can be used to secure container traffic.

According to the Fortinet documentation for container security1, FortiGate NGFW can provide the following benefits for securing container infrastructure:

It can inspect north-south traffic between containers and external networks using label aware policies, which allow for dynamic policy enforcement based on Kubernetes labels and metadata.

It can integrate with FortiSandbox to provide advanced threat protection for container traffic, by sending suspicious files or URLs to a cloud-based sandbox for analysis and detection.

It can leverage FortiGuard Security Services to provide real-time threat intelligence and updates for container traffic, such as antivirus, web filtering, IPS, and application control.

The other options are incorrect because:

FortiGate NGFW cannot be placed between each application container for north-south traffic inspection, as this would create unnecessary complexity and overhead. Instead, FortiGate NGFW can be deployed at the edge of the container network or as a sidecar proxy to inspect traffic at the ingress and egress points.

FortiGate NGFW cannot connect to the worker node and protect the container, as this would not provide sufficient visibility and control over the container traffic. Instead, FortiGate NGFW can leverage the native Kubernetes APIs and services to monitor and secure the container traffic.

1: Fortinet Documentation Library - Container Security
