OMG-OCUP2-FOUND100 Sample Questions Answers

In UML sequence diagrams, a signal is typically represented as an asynchronous message without a return value. Asynchronous messages are often denoted with an open arrowhead, and they can represent the sending of a signal.

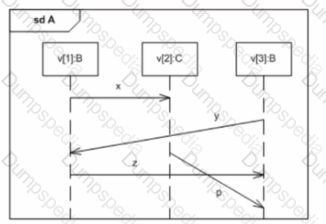

Looking at the diagram provided, 'p' is sent from 'v2[C]' to 'v3[B]' with an open arrowhead, which indicates that it is an asynchronous message. This fits the common representation of a signal, as it does not expect a response.

'A', 'B', and 'C' do not represent signals in the context of a sequence diagram: A) 'v' is not shown in the diagram; it might refer to a lifeline, which is not a signal. B) 'B' refers to a class or object type and not a message or signal. C) 'm' is represented as a synchronous message (as it has a return arrow), which is not typical for signals.

Therefore, the correct answer is:

D. p

In UML, inherited properties are those attributes that are defined in a superclass and inherited by a subclass. According to UML notation, when a subclass inherits from a superclass, it inherits all the attributes and operations of the superclass unless they are redefined.

Let's examine each option:

A. In Option A, the Customer class shows the attributes name and address repeated from the Person class. This is not necessary in UML to show inheritance and could imply these are different attributes that happen to have the same name.

B. In Option B, the attributes of the Person class are not shown in the Customer class. This is correct as UML assumes that all attributes and operations are inherited by the subclass, and there is no need to repeat them unless they are overridden or extended. In this case, the diagram shows inheritance correctly without redundant representation of inherited properties.

C. In Option C, the inherited properties name and address are explicitly marked as inherited. While it's possible to show inherited properties in this way for clarity, it's not necessary and is less common in standard UML class diagrams.

D. Statement D is incorrect because inherited properties can be shown in a specialized class, although it is not a requirement to do so for the properties to be inherited.

Based on the UML 2 Foundation specification, the correct way to depict inheritance without redundantly listing inherited attributes is shown inOption B.

The image depicts a state machine with three states labeled "state1" and "state2". Three events,e1,e2, ande3, are shown triggering transitions.

Analyzing the diagram, we can observe that all three events (e1,e2, ande3) are required for the transition from state1 to state2. The events are arranged sequentially, implying a specific order for the transition to occur.

Here's a breakdown of the reasoning for excluding other options:

• Option A (When all of el. e2. and e3 occur in any order) is incorrect because the order of events matters.
• Option B (When any one of the events e1. e2. or e3 occurs) is incorrect because all three events are necessary for the transition.
• Option D (Never, because a transition cannot have more than one trigger) is incorrect because the state machine can transition with multiple triggers, but in this specific case, the order is crucial.

Therefore, based on the visual representation of the state machine, the correct answer is that the transition to state2 happens only when eventse1,e2, ande3occur in precisely the specified order

Here's a breakdown of why option A is correct and why the other options are not:

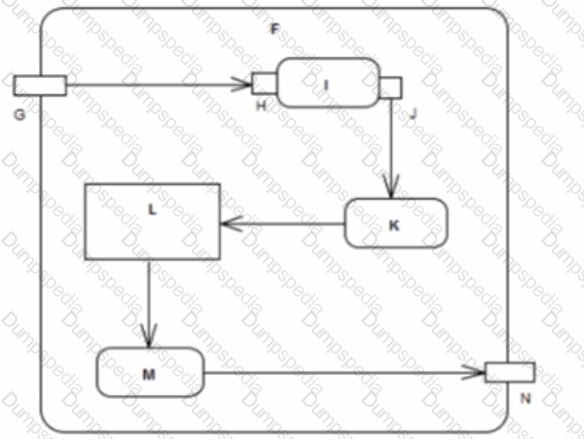

Activity Parameter Nodes:

• Object Nodes: Activity Parameter Nodes are specialized Object Nodes in UML activity diagrams. They provide a mechanism to pass inputs to an activity or receive outputs from an activity.
• Parameters: They represent parameters connected to the activity.

Analysis of Other Options

• B. It is used to model a data store: Data stores are distinct modeling elements, often used in combination with Activity Parameter Nodes. An Activity Parameter Node itself does not represent a persistent data store but rather an entry or exit point for data in the flow of an activity.
• C. It is equivalent to an action input or output pin: While similar in concept, Activity Parameter Nodes are a distinct modeling element with additional properties. Action input/output pins are part of the structured actions within an Activity. Activity Parameter Nodes function on the boundary of the Activity itself.
• D. It can hold only input parameters, not output parameters: Activity Parameter Nodes can represent both input and output parameters. The direction (in, out, inout) is a property of the Parameter associated with the node.

References

• UML 2.5.1 Specification (Superstructure): Sections on Activity Diagrams, Object Nodes, Activity Parameter Nodes and Parameters. https://www.omg.org/spec/UML/2.5.1

DataTypes in UML are a type of classifier that represents a set of values that do not have identity, which means that two instances of a DataType are indistinguishable if all their attributes are equal. This is in contrast to instances of Classes, which are distinguishable by their identity - each instance is considered unique even if their attributes have the same values.

Option A is incorrect because DataTypes can indeed have operations in UML. Option B is also incorrect; DataTypes can have attributes of any complexity. Option D is incorrect because DataTypes can also have features inherited from their super DataTypes; it is not solely about instantiation.

The UML 2.5 specification discusses DataTypes in section 10.5.8, stating that DataTypes do not have an identity and are often used to type attributes and operation parameters. The equality of DataType instances is based on the equality of their attribute values. Classes, however, are described in section 9.2 of the UML 2.5 specification as elements that can have identity, and instances of a Class are distinguished based on that identity.

The dashed arrow with an open arrowhead in the UML diagram represents a dependency relationship. In UML, a dependency is a relationship that signifies that one element, or set of elements, requires another element (or set of elements) for its specification or implementation. This means that changes to the target element(s) (the element(s) that the arrow points to) may cause changes to the source element(s).

The statement "One or more of the elements in Package G depends on one or more of the elements in Package F" correctly describes the nature of a dependency relationship in UML. It indicates that there is at least one element in Package G that requires some element(s) from Package F. This does not necessarily imply that all elements from Package G depend on all elements from Package F.

Therefore, the correct answer is:

C. One or more of the elements in Package G depends on one or more of the elements in Package F.

The correct answer is Option C based on the UML 2 Foundation concepts for activities and pre/postconditions.

Analysis of the Diagram in Option C:

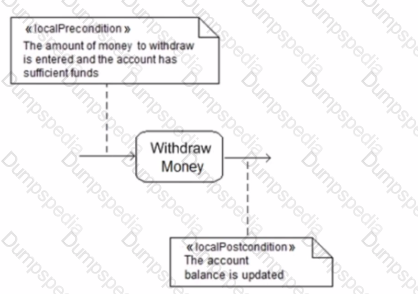

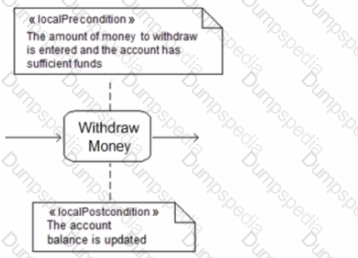

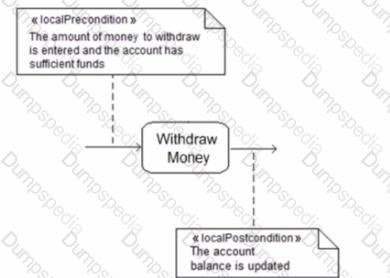

• The diagram depicts an activity named "Withdraw Money".
• There are two diamonds preceding the activity, representing preconditions. Preconditions are conditions that must be true before the activity can be executed.
• The text within the first diamond indicates that "the amount of money to withdraw is entered".
• The text within the second diamond indicates that "the account has sufficient funds".
• This aligns with the scenario where the user must enter a withdrawal amount and the account must have enough money to cover the withdrawal before the "Withdraw Money" activity can proceed.
• Following the activity, there's a diamond labeled "postcondition," indicating a condition that becomes true after the activity is completed.
• The text within the postcondition diamond states that "the account balance is updated." This reflects the scenario where the account balance is updated after a successful withdrawal.

Comparison with Other Options:

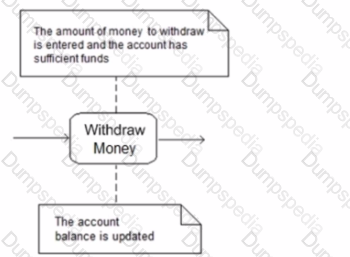

• Option A, B, and D do not explicitly show preconditions and postconditions using the diamond notation, making them less suited to represent the scenario where certain conditions need to be met before and after the action.

References

• UML 2.5.1 Specification (Superstructure): Sections on Activity Diagrams and Pre/Postconditions https://www.omg.org/spec/UML/2.4/Superstructure/PDF

A domain model's defining characteristic is that it captures the main domain concepts and their relationships. This model focuses on representing the key elements within the problem domain, outlining how these elements interact with each other without detailing the specific implementations. The domain model is an essential tool in software development for understanding and communicating the fundamental structure of the system from a problem domain perspective, helping teams to design solutions that are well-aligned with actual domain needs. UML is often used to represent domain models due to its capability to visually and clearly model complex relationships and structures.

UML 2 state machine concepts, here's the analysis of the state machine's behavior after the event and the most likely answer:

State Transition Triggered by Event Ev:

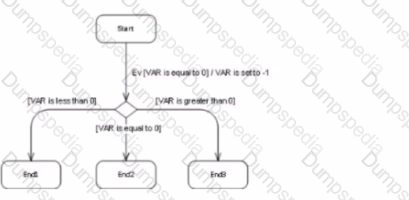

The state machine starts in the "Start" state. When the event "Ev" occurs, there's a transition leaving "Start" with a condition "[VAR is equal to 0]".

Value of Local Variable VAR:

The prompt specifies that the value of local variable VAR is equal to zero at the time of the event.

State Transition Evaluation:

Since the condition "[VAR is equal to 0]" is true (given VAR's value is zero), the transition from "Start" to state "State1" is triggered.

Completion of Run-to-Completion Step:

Upon reaching "State1", there are no further outgoing transitions or events to consider. "State1" itself has no exit actions specified. Therefore, the run-to-completion step reaches its end at "State1".

Most Likely Answer:

Based on the analysis above, the most likely answer is:

C. End3

Explanation for Other Options:

• A. End1: There's no direct path from "Start" to "End1".
• B. End2: Similar to option A, there's no transition leading to "End2" when the event occurs and VAR is zero.
• D. Start: The state machine transitions out of "Start" upon the event "Ev". It won't return to "Start" without another transition.

Possible Ambiguity:

It's important to note that state machines can involve complex logic and actions within states. While "State1" appears to be a terminal state in this case, it's conceivable that there could be hidden actions within "State1" that modify VAR or trigger further transitions. The prompt and the provided image don't provide enough information to definitively rule out such possibilities.

Considering the Absence of Mentioned Ambiguity:

Assuming there are no such hidden actions or unspecified behaviors within "State1", then answer C (End3) is the most reasonable conclusion based on the information available in the prompt and image.

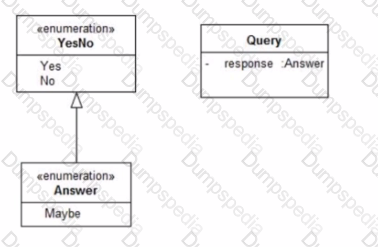

The second diagram fragment you provided includes two enumeration types, YesNo and Answer, where YesNo is a generalization of Answer. The class Query has an attribute 'response' of type Answer. Given that YesNo is a generalization of Answer, the possible values for 'response' include the literals of Answer plus those inherited from YesNo. Since Answer includes 'Maybe', and YesNo includes 'Yes' and 'No', all three are valid values for 'response'.

References:

• UML 2.x Superstructure Specification: Discusses attributes and their types, the concept of generalization, and how attributes of a generalized type can take on values from their own literals as well as those from their parent in the hierarchy.
• UML 2.x Infrastructure Specification: Explains the foundational modeling constructs related to enumeration, classes, and attributes, which provides the basis for determining the legal values of an attribute based on its type's enumeration literals.

In UML use case diagrams, when specifying the number of actors involved in a use case, a multiplicity marker can be used. The multiplicity marker is a number placed near the actor symbol that denotes how many instances of the actor are involved in the use case.

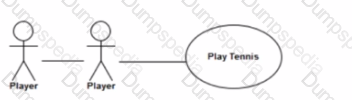

Option C correctly uses a multiplicity marker of '2' next to the actor 'Player', which indicates that exactly two instances of 'Player' are involved in the "Play Tennis" use case.

Here is a brief explanation of why the other options are incorrect:

A) Option A shows two separate 'Player' actors involved in "Play Tennis" without a multiplicity marker, implying possibly different kinds of players, but does not specify that exactly two instances are required. B) Option B shows two 'Player' actors involved in "Play Tennis" without a multiplicity marker, also not specifying the exact number of instances required. D) Option D uses a multiplicity marker, but it is incorrectly placed near the 'Play Tennis' use case instead of the 'Player' actor, which does not follow UML notation for indicating actor multiplicity.

Therefore, the correct answer is:

C. Option C

ML 2 Foundation concepts for activity diagrams, there are eight object nodes in total. Here's a breakdown of the elements:

Object Nodes:

• Order: This rectangle near the start of the diagram represents an object node.
• Cust Name: This rectangle following the "Get Customer Details" action is another object node.
• Order Details: This rectangle after the "Get Order Details" action is an object node as well.
• New Order: The rectangle positioned after the decision diamond (approved) is an object node.
• Repeat (text near the decision diamond): This is not an object node. It likely indicates a loopback or repetition, but it doesn't represent an object itself.
• Cust Order: The rectangle after the "Place Order" action is an object node.
• Invoice: The rectangle following the "Create Invoice" action is an object node.
• OrderAck: The rectangle at the end signifies another object node.

Counting the Nodes:

There are eight rectangles that represent object nodes in the diagram (Order, Cust Name, Order Details, New Order, Cust Order, Invoice, OrderAck).

References

• UML 2.5.1 Specification (Superstructure): Sections on Activity Diagrams and Object Nodes https://www.omg.org/spec/UML/2.5.1/

The diagram you provided shows two classes, G and H, which are within a package named Pckg. Each class has an attribute named 'v' with different visibility and typeindicators. The attribute 'v' in class G has visibility 'private' (denoted by '-'), and in class H, it is 'protected' (denoted by '#'). This suggests that the scope of each 'v' is limited to its respective class. Therefore, when you refer to 'v' within the package, its meaning depends on the context or the namespace from which it's accessed.

References:

• UML 2.x Superstructure Specification: This defines the rules for scopes and namespaces in UML. It clarifies how elements with the same name can coexist in different namespaces and how their references would differ based on the context.
• UML 2.x Infrastructure Specification: Provides the foundational concepts for UML, including the semantics of structured classifiers and namespaces which pertain to the interpretation of the 'v' attribute in different classes.

The most appropriate use of UML during software development is to capture the essential characteristics and design decisions of a planned or existing system. UML (Unified Modeling Language) is primarily utilized to visually represent the architecture, design, and behavior of a system, which includes detailing the components, relationships, and interactions within the system. This makes it a critical tool for understanding complex systems and making informed design decisions that align with project requirements and constraints. UML facilitates clear communication among development team members and stakeholders, ensuring that design decisions are well-understood and accurately implemented.

In UML 2, the dashed arrow with an open arrowhead represents a dependency relationship. In the context of class diagrams, a dependency relationship indicates that changes to one class (the independent class) may cause changes in the other class (the dependent class). The direction of the arrow specifies which class is dependent on which. In the given diagram, the arrow points from class A to class B, which means that class A is dependent on class B. This could manifest as class A using some services or functions of class B, for example.

References:

• UML 2.5 Specification Document: The official document by the Object Management Group (OMG), which defines the syntax and semantics of UML.
• UML Distilled: A Brief Guide to the Standard Object Modeling Language, Third Edition by Martin Fowler: This book provides a clear guide to UML and includes examples of dependency relationships.

The abstract syntax of UML is specified using the Meta-Object Facility (MOF) metamodel. MOF is a modeling language that provides a meta-meta-model at the top layer of the four-layer metadata architecture, which is used to define the metamodels, like the UML. The MOF specification defines the structure and semantics for constructing metamodels, including the UML. By using MOF, UML ensures that its structure is well-defined and can be processed by tools that understand MOF-based metamodels. The use of MOF to specify UML abstract syntax ensures a clear, structured, and standardized method of describing the semantics of UML components, enabling consistent interpretation and implementation across different modeling tools and environments.

For projects involving complex and strategic systems, a key advantage of developing models before starting implementation is that models help to establish a consensus among all the project stakeholders. Creating UML models in the early stages of a project provides a visual and conceptual representation of the system that can be easily understood by various stakeholders, including developers, managers, and clients. This facilitates discussions and negotiations about the system’s design and functionality, helping to ensure that all parties have a shared understanding and agreement on the project’s objectives and solutions before significant resources are invested in implementation.

The UML term pair that captures complementary ways of looking at a relationship is "aggregation / composition". Both terms describe types of associations between classes but differ in the degree of ownership and lifecycle dependency between the involved objects. Aggregation implies a weaker relationship where the parent class contains or is linked to other classes but does not strictly control their lifecycle (e.g., a university and its students). Composition, on the other hand, implies a stronger relationship where the parent class has full responsibility for the lifecycle of the associated classes (e.g., a house and its rooms). Understanding these relationships helps model systems more accurately in terms of object ownership and lifecycle management.

In UML 2, a class diagram is used to depict the structure of a system by showing the system's classes, their attributes, operations (or methods), and the relationships among the classes. The constraint{age >= 18}in thePersonclass diagram indicates a condition that must hold true for the instances of thePersonclass whenever they are used in the context of aBankAccount. This constraint is an invariant of thePersonclass that specifies the rule for the attributeage.

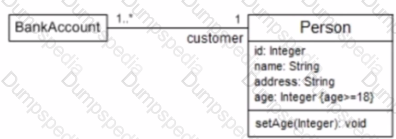

Now, let's consider the provided options and explain why option B is correct:

A. The preferred age to open a bank account is 18 years old or older – This statement is incorrect because the diagram does not indicate a preference; it indicates a constraint or a rule.

B. Only customers who are 18 years old or older can open a bank account – This is the correct statement. The{age >= 18}constraint next to theageattribute of thePersonclass signifies that any instance ofPersonassociated with aBankAccountmust be at least 18 years old. SincePersonis connected toBankAccountwith the role namecustomer, this implies that only persons who are at least 18 can be customers of a bank account.

C. The age condition should only hold when the setAge(Integer) function is called – This statement is incorrect because the constraint{age >= 18}is not a condition that applies only when thesetAgeoperation is invoked. Instead, it is a class invariant that must always hold true for any instance ofPerson.

D. An object of Customer with age set to 18 or greater will raise an exception – This is incorrect because the UML diagram specifies a constraint, not an exception condition. The constraint ensures validity, not the raising of an exception.

The answer is verified according to the UML 2 Foundation documents, such as the UML 2.5 specification, where class diagrams and constraints are defined. The specification states that constraints are semantic conditions or restrictions expressed in natural language text or in a machine-readable language that must hold true for the system being modeled (UML 2.5 specification, section 7.9).

In UML Use Case diagrams, there are specific relationships that are valid between actors and use cases, as well as between the use cases themselves:

• Associationsbetween actors and use cases indicate that an actor participates in the use case. It is depicted as a solid line.
• Includesare dependencies that specify that one use case (the base) includes the behavior of another use case (the included). It is depicted with a dashed arrow with the stereotype «include».
• Extendsare dependencies where one use case (the extension) conditionally adds to the behavior of another use case (the base). It is depicted with a dashed arrow with the stereotype «extend».

Let's analyze the provided options:

A) This diagram shows simple associations between actors and use cases, which is a valid relationship in UML use case diagrams.

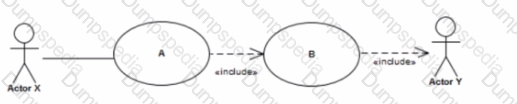

B) This diagram attempts to use include relationships directly between actors and use cases, which is not correct. The «include» relationship is used between use cases, not between an actor and a use case.

C) This diagram shows a solid line arrow from one use case to another, which is not a recognized relationship in UML use case diagrams.

D) This diagram attempts to use extend relationships directly between actors and use cases, which is not correct. The «extend» relationship is used between use cases, not between an actor and a use case.

Therefore, the only diagram that contains only valid relationships according to UML standards is Option A.

In UML, the «extend» relationship indicates that the behavior defined in the extending use case (the extension) can be inserted into the behavior defined in the extended use case (the base). The extension occurs only under certain conditions, which are specified by the extension points. This relationship allows for the addition of optional behavior to a use case, which can be activated under certain conditions.

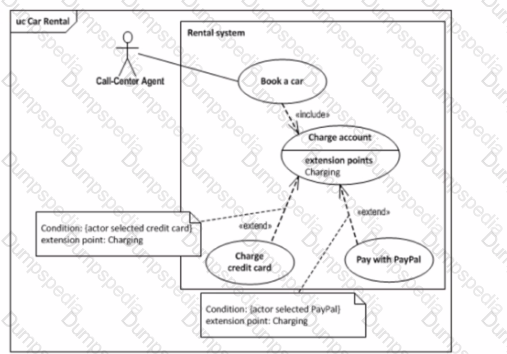

The diagram provided shows an extension relationship where "Charge credit card" and "Pay with PayPal" are extending "Charge account" use case at the "Charging" extension point.

The key benefit of using the «extend» relationship in this context is that it allows for the flexible addition of new behaviors (like new payment methods) without modifying themain use cases. It helps in evolving the system by adding optional behaviors that only occur under certain conditions, which is mentioned as an option:

C. This Use Case model could be updated with further payment methods without changing the main Use Cases "Book a car" and "Charge account".

This means that new payment methods could be incorporated as additional extending use cases in the future, just like "Charge credit card" and "Pay with PayPal".

The other options do not correctly describe the use of the «extend» relationship: A) «extend» relationships do not replace the need for behavior descriptions such as activities. B) It's not about functional decomposition; it's about adding optional or conditional behavior. D) «extend» is not a taxonomic relationship and does not extract general descriptions into a super Use Case; rather, it adds behavior under certain conditions.

Therefore, the correct answer is:

C. This Use Case model could be updated with further payment methods without changing the main Use Cases "Book a car" and "Charge account".

In a UML sequence diagram, a lifeline is identified by a box at the top of a dashed line that represents the presence of an individual participant in an interaction. The box contains the name of the lifeline, and optionally, it can include the object name and its classifier type.

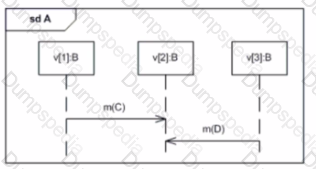

In the diagram provided, the leftmost lifeline is labeledv[1]:B, which denotes an instance namedv[1]of the classifierB. The name of the property that the lifeline represents isv[1], asBis the type of the object that the lifeline represents, andmrepresents a message, not a lifeline.

Therefore, the correct answer is:

A. v[1]

In the development of a domain model, the prime responsibility for decision-making should ideally rest with the users, as they are the ones who will be using the system operationally. Users have the most direct and frequent interactions with the system, making them best positioned to provide relevant insights into what the system should do and how it should behave to meet their needs effectively. While other stakeholders such as customers, project managers, and developers play significant roles, the users’ intimate knowledge of the domain processes and their requirements make them key contributors to ensuring that the domain model aligns closely with real-world application and utility.

In the second diagram provided, we see four messages: 'x', 'y', 'z', and 'p'. The vertical positioning of these messages indicates their order in time.

Option A states that "Sending message x is the first occurrence that happens." This could be true but is not necessarily always true, as there could be other messages or interactions before 'x' that are not shown in this part of the diagram.

Option B states that "Sending message z will happen after receiving message x." This is always true because the lifeline for 'v2[C]' shows the reception of 'x' before sending 'z'. In sequence diagrams, the vertical position indicates the sequence of events, and 'z' is clearly below 'x' on the 'v2[C]' lifeline.

Option C, "Sending message y will happen before sending message z," is not necessarily true because the messages 'y' and 'z' are sent by different lifelines, and there is no explicit ordering between them.

Option D, "Sending message p will happen before receiving message y," is not necessarily true as 'p' and 'y' involve different lifelines, and no ordering is specified between these interactions.

Therefore, the correct answer is:

B. Sending message z will happen after receiving message x.
