OGEA-101 Sample Questions Answers

An Architecture Contract is a deliverable that specifies the responsibilities and obligations of the parties involved in the implementation and governance of an architecture. It ensures a system of continuous monitoring to check integrity changes decision-making and audit of all architecture-related activities. Reference: The TOGAF® Standard | The Open Group Website, Section 3.3.4 Architecture Contracts.

In TOGAF’s ADM, the Request for Architecture Work is the deliverable issued by the sponsoring organization (or stakeholder) to formally request that the architecture team perform a full architecture development cycle. That corresponds to your “deliverable 3.” Then, the architecture team responds by producing a Statement of Architecture Work (in Phase A), which defines the scope, constraints, approach, and highlevel tasks for the architecture development. That is your “deliverable 4” (the scope and approach). Thus deliverable 3 is the Request for Architecture Work, and deliverable 4 is generated in Phase A. The Request triggers the cycle; the Statement of Architecture Work (in Phase A) lays down how the architecture work will proceed, including scoping and approach.

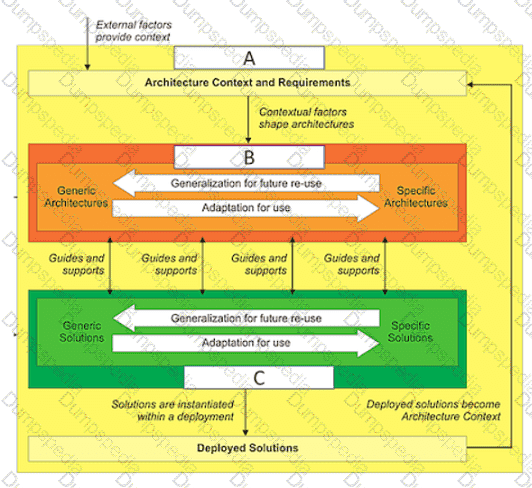

The Enterprise Continuum consists of two complementary concepts: the Architecture Continuum and the Solutions Continuum1. The Architecture Continuum provides a consistent way to describe and understand the generic and reusable architecture building blocks, such as models, patterns, and standards, that can be applied and tailored to specific situations2. The Solutions Continuum provides a consistent way to describe and understand the specific and implemented solution building blocks, such as products, services, and components, that realize the architecture building blocks3. The Enterprise Continuum enables the reuse and integration of architecture and solution assets across different levels of abstraction, scope, and detail, ranging from foundation architectures to organization-specific architectures1.

The Enterprise Continuum is used when developing an enterprise architecture to support the following activities1:

•Selecting relevant architecture and solution assets from the Architecture Repository or other sources, based on the business drivers, goals, and requirements

•Adapting and customizing the architecture and solution assets to suit the specific needs and context of the enterprise

•Defining and developing the target architecture and the architecture roadmap, based on the gaps and opportunities identified between the baseline and the target states

•Defining and developing the implementation and migration plan, based on the architecture roadmap and the solution building blocks

•Governing and managing the architecture and solution assets throughout the architecture lifecycle, ensuring their quality, consistency, and compliance

In TOGAF, when defining an architecture principle, one part of the standard template is the “Statement.” The purpose of the Statement is to convey clearly and unambiguously the principle itself — not its rationale, implications, or how to apply it. The Statement should be phrased such that stakeholders can read it and immediately understand the core rule or guiding intent. It is not intended to describe the implementation or benefits or constraints, nor to be a mnemonic. Thus the Statement must clearly communicate the fundamental rule. The rationale, implications, and further explanation belong in other parts of the principle documentation, not in the Statement. This division helps maintain clarity, separation of concerns, and consistency in how principles are documented and governed.

The Enterprise Continuum provides methods for classifying architecture artifacts as they evolve from generic architectures to Organization-Specific Architectures. Generic architectures are architectures that have been developed for use across a wide range of enterprises with similar characteristics. They provide common models, functions, and services that can be reused and adapted for specific purposes. Organization-Specific Architectures are architectures that have been tailored to meet the needs and requirements of a particular enterprise or a major organizational unit within an enterprise. They reflect the unique vision, goals, culture, structure, processes, systems, and technologies of that enterprise or unit. Reference: The TOGAF® Standard | The Open Group Website, Section 2.3 Enterprise Continuum.

The Implications section describes the impact of adhering to the principle on the organization, the processes, the information systems, and the technology23. It also identifies the changes, costs, and risks that may result from applying the principle23. The Implications section helps to communicate the benefits and consequences of the principle to the stakeholders and to guide the implementation and governance of the architecture23.

The other sections of the TOGAF template for Architecture Principles are1:

•Name: This section provides a short and memorable name for the principle that represents its essence and purpose23. The name should not mention any specific technology or solution23.

•Statement: This section provides a concise and formal definition of the principle that expresses the fundamental rule or constraint that the principle imposes23. The statement should be clear, unambiguous, and testable23.

•Rationale: This section provides the reasoning and justification for the principle, explaining why it is important and how it supports the business goals and drivers23. The rationale should also link the principle to the higher-level enterprise or IT principles that it elaborates on23.

1E: To identify delivery vehicles (projects programs portfolios) that will deliver the Target Architecture 2F: To confirm readiness and ability to undergo change 3E: To determine whether an incremental approach is required and if so identify Transition Architectures that will deliver continuous business value 4G: To perform appropriate governance functions while the solution is being implemented

This statement best supports the need to govern Enterprise Architecture. Best practice governance enables the organization to control value realization by ensuring that architectures are aligned with the enterprise’s strategy and objectives, meet the quality and performance requirements, and deliver the expected benefits and outcomes. The Architecture Project does not mandate the governance of the target architecture, but rather follows the governance framework established by the enterprise. The TOGAF standard can be used without executive governance, but it is recommended that executive sponsorship and support are obtained for successful architecture development and transition. The Stakeholders preferences may go beyond the architecture project scope and need control, but this is not the primary reason for governing Enterprise Architecture. Reference: The TOGAF® Standard | The Open Group Website, Section 3.3.6 Architecture Governance.

In the TOGAF Standard, a well-defined architecture principle must meet several quality criteria, such as understandability, robustness, completeness, and consistency. The criterion most closely associated with a principle being definitive, precise, and reliable under complex decision-making conditions is Robustness. TOGAF describes robustness as the characteristic that ensures the principle provides clear guidance even when applied across a variety of scenarios, stakeholder viewpoints, and architectural complexities. A robust principle remains valid and usable regardless of changes in context or external pressures.

Where other criteria focus on different aspects—such as Stability (long-term applicability), Completeness (covering all necessary aspects of the principle’s intent), and Consistency (avoiding conflict with other principles)—it is Robustness that specifically ensures a principle is sufficiently strong and precise to support consistent decisions in complex environments. This means a robust principle minimizes ambiguity, avoids subjective interpretation, and provides architects with a dependable rule that can be repeatedly applied across multiple architecture domains and transformation projects. By being robust, a principle becomes a dependable instrument for governance and architectural alignment at the enterprise level.

The following activities are part of Risk Management:

Initial risk assessment

Risk mitigation and residual risk assessment

Risk monitoring

Risk Management is the process of identifying, assessing, and responding to risks that may affect the achievement of the enterprise’s objectives. Risk Management involves balancing positive and negative outcomes resulting from the realization of either opportunities or threats. Reference: The TOGAF® Standard | The Open Group Website, Section 3.3.3 Risk Management.

Comprehensive and Detailed Explanation

In the TOGAF ADM, deliverables go through a lifecycle of development, review, approval, and usage. TOGAF distinguishes between draft deliverables (work-in-progress) and final deliverables (those that have been formally reviewed and signed off).

Draft deliverables are produced as working versions of the required outputs in each ADM phase. These may carry version labels such as 0.1, 0.5, 0.9, etc., and are subject to stakeholder review and refinement.

Once the document has been reviewed and approved by the relevant stakeholders (e.g., Architecture Board, governance bodies), it becomes a final deliverable.

Final deliverables are baseline-controlled items and are formally stored in the Architecture Repository as an approved architecture artifact.

Thus, the correct term for a deliverable that has completed review and is approved is “final”.

Why the other options are incorrect

B. Approved: While true in general language, TOGAF uses the formal term “final deliverable”, not “approved deliverable.”

C. Ratified: This term is not used in TOGAF to describe the state of a deliverable.

D. Version 0.9: This is a draft numbering convention, not the status of an approved deliverable.

References

The Open Group, TOGAF® Standard, Version 9.2, Part II: ADM — description of deliverables, artifacts, and building blocks.

The Open Group, TOGAF® 9 Certified Study Guide — explanation of draft vs. final deliverables in the ADM lifecycle.

Statements 1 and 3 highlight the value and necessity for Architecture Governance to be adopted within organizations. Architecture Governance is the practice and orientation by which Enterprise Architectures and other architectures are managed and controlled at an enterprise-wide level12. It ensures that architectural decisions are aligned with the organization’s strategy, objectives, and standards. Architecture Governance also involves establishing and maintaining processes, decision-making, and mechanisms to avoid or minimize potential conflicts of interest, such as between different stakeholders, business units, or projects34. Moreover, Architecture Governance requires transparency and accountability for all actions implemented and their decision support, so that they can be inspected and evaluated by authorized parties, such as auditors, regulators, or customers5 . References:

•The TOGAF Standard, Version 9.2 - Architecture Governance - The Open Group

•Architecture Governance - The Open Group

•Tutorial: Governance in TOGAF’s Architecture Development Method (ADM)

•Architecture Governance in TOGAF: Ensuring Effective Management and Compliance

•The TOGAF Standard, Version 9.2 - Definitions - The Open Group

•[Architecture Governance in TOGAF: Ensuring Alignment and Control]

In TOGAF, an Architecture Principle is defined using a structured template that includes several key elements such as Name, Statement, Rationale, and Implications. Each element serves a distinct purpose to ensure clarity, usability, and governance effectiveness.

The Rationale specifically explains why the principle exists and why it is important to the organization. It provides the business justification for the principle and describes the benefits of applying it. This includes outlining how adopting the principle supports business objectives, improves operations, reduces risk, or enables strategic outcomes. Therefore, the Rationale is closely tied to business impact and value , making option C the correct answer.

Option B is incorrect because communicating the fundamental rule is the role of the Statement , not the Rationale. Option A refers more to implementation guidance, which belongs to the Implications section, where the consequences and actions required to follow the principle are described. Option D is not part of the standard TOGAF template for principles.

By clearly stating the business impact, the Rationale helps stakeholders understand the importance of adhering to the principle and ensures alignment between architecture governance and business strategy. Therefore, the correct answer is C .

===========

According to the TOGAF Standard, 10th Edition, an architecture contract is “a formal agreement between a service provider and a service consumer that defines the mutual commitments and expectations for the delivery of an architecture” 1. An architecture contract is a governed approach of a particular deliverable that will ensure adherence to the principles, standards, and requirements of the existing or developing architectures, as it specifies the roles, responsibilities, deliverables, quality criteria, and acceptance criteria for the architecture work 1. The other options are not correct, as they are not governed approaches of a particular deliverable, but rather different types of deliverables within the architecture development process. An architecture vision is “a high-level, aspirational view of the target architecture” 1. A statement of architecture work is “a document that defines the scope and approach that will be used to complete an architecture project” 1. An architecture definition document is “a document that describes the baseline and target architectures for one or more domains” 1. References: 1: TOGAF Standard, 10th Edition, Part I: Introduction, Chapter 3: Definitions.

Comprehensive and Detailed Explanation

In TOGAF, Architecture Contracts are agreements between development partners and sponsors that define:

The deliverables to be produced.

The quality expectations.

The fitness-for-purpose of the architecture.

The responsibilities of each party and the governance arrangements.

Architecture Contracts are a key part of Phase G: Implementation Governance, where they are used to manage and control architecture implementation. They help ensure that implementation projects remain aligned with the approved Target Architecture and business objectives.

They serve as the formal mechanism for:

Validating that architecture deliverables meet stakeholder expectations.

Providing a measurable basis for conformance assessment.

Supporting architecture governance by linking architectural intent with project execution.

Why the other options are incorrect

B. The Statement of Architecture Work: This defines the scope, approach, resources, and schedule for architecture work, but it is not a joint agreement on deliverables and fitness-for-purpose.

C. Service Level Agreements (SLAs): These are agreements about operational service levels (e.g., availability, performance), not architecture deliverables.

D. Non-disclosure Agreement (NDA): This protects confidentiality of information but does not address deliverables, quality, or fitness-for-purpose of an architecture.

References

The Open Group, TOGAF® Standard, Version 9.2, Part II: ADM — Phase G: Implementation Governance, Architecture Contracts.

The Open Group, TOGAF® 9 Certified Study Guide — explanation of Architecture Contracts as a governance tool.

An Architecture Board is an executive-level group responsible for the review and maintenance of the strategic architecture and all of its sub-architectures1. It is a key element in a successful Architecture Governance strategy2.

An Architecture Board is typically made responsible, and accountable, for achieving some or all of the following goals2:

Providing the basis for all decision-making with regard to the architectures

Consistency between sub-architectures

Establishing targets for re-use of components

Flexibility of the Enterprise Architecture: To meet changing business needs To leverage new technologies

Enforcement of Architecture Compliance

Improving the maturity level of architecture discipline within the organization

Ensuring that the discipline of architecture-based development is adopted

Supporting a visible escalation capability for out-of-bounds decisions

Therefore, the correct answer is option D, which captures one of the goals of an Architecture Board as stated in the TOGAF Standard, Version 9.22.

Option A is incorrect, because conducting assessments of the maturity level of architecture discipline within the organization is not a direct responsibility of an Architecture Board, but rather a part of the Architecture Capability Framework3.

Option B is incorrect, because allocating resources for architecture projects is not a direct responsibility of an Architecture Board, but rather a part of the Architecture Governance Framework4.

Option C is incorrect, because creating the Statement of Architecture Work is not a direct responsibility of an Architecture Board, but rather a part of the Architecture Development Method5. References:

1: Architecture Board - The Open Group3

2: TOGAF Standard, Version 9.2 - Part VI: Architecture Governance Framework - Architecture Board

3: TOGAF Standard, Version 9.2 - Part VI: Architecture Governance Framework - Architecture Capability Framework

4: TOGAF Standard, Version 9.2 - Part VI: Architecture Governance Framework - Architecture Governance Framework

5: TOGAF Standard, Version 9.2 - Part II: Architecture Development Method - Phase A: Architecture Vision

Gap analysis is a technique that is used to validate an architecture by highlighting the shortfall between the Baseline Architecture and the Target Architecture. One of the purposes of gap analysis is to identify missing functions that are either deliberately omitted, accidentally left out, or not yet defined in the Target Architecture. Missing functions are marked as gaps that need to be filled by developing or procuring the building blocks.

In TOGAF, Architecture Principles are created to provide a clear and stable foundation for architecture work across the enterprise. Their purpose is to guide decision-making and establish a shared understanding of the rules and boundaries within which architecture and business change should take place. The best answer is A because Architecture Principles are intended to create a common basis for governance and direction, ensuring that architecture supports the control and evolution of the enterprise in line with its strategic goals.

Option B is incorrect because documenting likely impacts belongs more appropriately to the Implications section of an individual principle, not to the overall purpose of creating a set of principles. Option C is also incorrect because while principles may reflect aspects of enterprise culture and values, that is not their main purpose. Option D refers more closely to an Architecture Contract , which is a formal agreement between sponsors and architects or implementation organizations.

A defined set of principles helps ensure consistency, improves governance, supports compliance, and aligns architecture decisions with business direction. In this way, principles act as a decision framework for the enterprise. Therefore, the correct completion of the sentence is establish a common understanding of how to control the business in pursuit of strategic goals .

“The Content Metamodel defines a formal structure for these terms to ensure consistency within the architecture description…” A metamodel used across the enterprise enables consistency and completeness checking of the architecture description against the defined structure. Open Group Publications

Phase A: Architecture Vision is the first phase of the Architecture Development Method (ADM) cycle, which is the core of the TOGAF standard. The main purpose of this phase is to define the scope and approach of the architecture development, and to create the Architecture Vision, which is a high-level description of the desired outcomes and benefits of the proposed architecture. To achieve this purpose, this phase focuses on defining the problem to be solved, identifying the stakeholders, their concerns, and requirements, and establishing the business goals and drivers that motivate the architecture work. This phase also involves obtaining the approval and commitment of the sponsors and other key stakeholders, and initiating the Architecture Governance process.

The TOGAF Standard, Version 9.2, Part II: Architecture Development Method (ADM), Chapter 5: Introduction to the ADM : The TOGAF Standard, Version 9.2, Part II: Architecture Development Method (ADM), Chapter 18: Phase A: Architecture Vision : The TOGAF Standard, Version 9.2, Part II: Architecture Development Method (ADM), Chapter 18.3: Inputs : The TOGAF Standard, Version 9.2, Part II: Architecture Development Method (ADM), Chapter 18.4: Steps

Architecture partitioning is not the same as architecture levels (so 1 is incorrect).

It allows different teams of architects to work on different parts of the architecture in parallel (2 is correct).

TOGAF does not prescribe a fixed partitioning model; it provides guidance (so 3 is incorrect).

Partitioning is used to simplify management of Enterprise Architecture in large or complex organizations (4 is correct).

Business scenarios are a technique recommended by the TOGAF ADM for use in developing an Architecture Vision document12. Business scenarios are a means of capturing the business requirements and drivers, the processes and actors involved, and the desired outcomes and measures of success34. Business scenarios help to create a common vision and understanding among the stakeholders, and to identify and validate the architecture requirements . Business scenarios also provide a basis for analyzing the impact and value of the proposed architecture. References:

•The TOGAF Standard, Version 9.2 - Phase A: Architecture Vision - The Open Group

•TOGAF® Standard — Introduction - Phase A: Architecture Vision

•The TOGAF Standard, Version 9.2 - Definitions - The Open Group

•Business Scenarios - The Open Group

•[The TOGAF Standard, Version 9.2 - Architecture Requirements Specification - The Open Group]

•[The TOGAF Standard, Version 9.2 - Architecture Vision - The Open Group]

•[The TOGAF Standard, Version 9.2 - Business Transformation Readiness Assessment - The Open Group]

“There are two levels of risk that should be considered namely: Initial Level of Risk [and] Residual Level of Risk.” archive.opengroup.org

Phase A: Architecture Vision identifies stakeholders, their concerns, and defines the scope and objectives of the architecture engagement.

Defining enterprise strategy is outside ADM (it is a business planning activity).

Describing the target architecture happens in Phases B, C, and D.

Developing an EA Capability is done in the Preliminary Phase, not Phase A.

The image shows a diagram that illustrates the basic concepts of architecture description as defined by the ISO/IEC/IEEE 42010:2011 standard1, which is also adopted by the TOGAF standard2.

According to the ISO/IEC/IEEE 42010:2011 standard, an architecture description is a work product used to express an architecture, and it consists of one or more architecture views1.

An architecture view is a representation of a system from the perspective of a related set of concerns, and it conforms to an architecture viewpoint1.

An architecture viewpoint is a specification of the conventions for constructing and using an architecture view to address specific stakeholder concerns1.

Therefore, the correct answer is option A, which identifies the items labeled as “A” and “B” in the image as an architecture viewpoint and an architecture view, respectively. References:

1: ISO/IEC/IEEE 42010:2011 - Systems and software engineering — Architecture description1

2: TOGAF Standard, Version 9.2 - Part IV: Architecture Content Framework - 31. Architectural Artifacts2

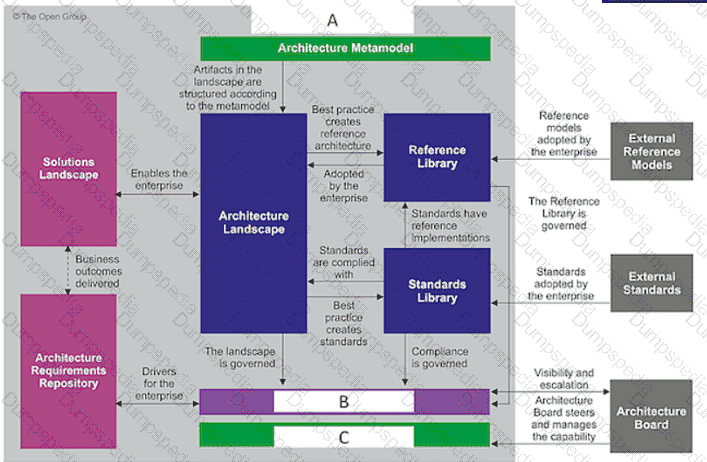

The Architecture Repository is the structural framework defined by TOGAF to store, manage, and leverage architecture artifacts, including reference models, standards, governance logs, and deliverables.

The Architecture Capability refers to governance and processes.

The Architecture Landscape shows Strategic, Segment, and Capability architectures, not storage.

The Enterprise Architecture Capability Model is not a defined TOGAF concept.

One of the key responsibilities of an Architecture Board within the context of TOGAF is to achieve consistency between sub-architectures. This board is typically responsible for overseeing the development and maintenance of the enterprise architecture, ensuring that it aligns with the organization ' s overall strategy and objectives. They play a critical role in ensuring that all sub-architectures (like Business Architecture, Data Architecture, Application Architecture, and Technology Architecture) work together cohesively and support the overall enterprise architecture vision and strategy.

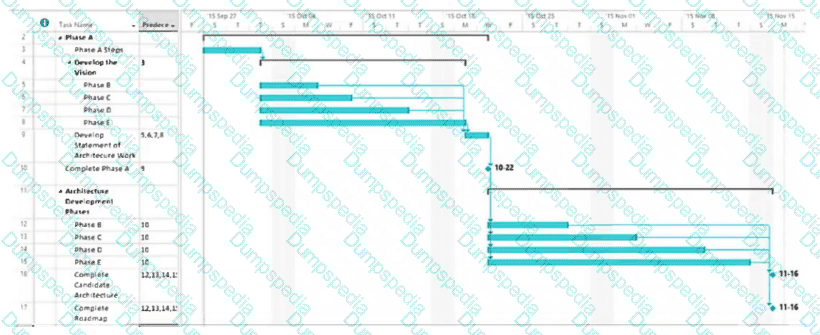

The chart shown is a Gantt chart, which is commonly used for project management to illustrate a project schedule. In the context of TOGAF (The Open Group Architecture Framework), which is a framework for enterprise architecture, this Gantt chart is demonstrating the sequenced approach to the Architecture Development Method (ADM). The ADM is the core process of TOGAF which provides a tested and repeatable process for developing architectures. The ADM is described as being iterative, over the whole process, between phases, and within phases. For each iteration of the ADM, a fresh decision must be taken about each of the parameters (scope, granularity, time period, and architecture assets).

The ADM consists of a number of phases that have to be followed in sequence:

Preliminary Phase: Framework and principles

Phase A: Architecture Vision

Phase B: Business Architecture

Phase C: Information Systems Architectures, including Data and Application Architectures

Phase D: Technology Architecture

Phase E: Opportunities and Solutions

Phase F: Migration Planning

Phase G: Implementation Governance

Phase H: Architecture Change Management

Requirements Management

Each phase is dependent on the outputs of the previous phase and the Requirements Management phase runs throughout. The Gantt chart clearly shows the dependency and sequence in which these phases occur, implying that a structured approach is followed to produce the enterprise architecture.

The TOGAF Standard, Version 9.2, a standard of The Open Group

The TOGAF documentation available at https://publications.opengroup.org/standards/architecture and https://publications.opengroup.org/guides/architecture

The planning horizon, depth, and breadth of an Architecture Project, along with the contents of the EA Repository, are typically framed by Strategy, Portfolio, Segment, and End-to-end Target Architecture. The ' Segment ' refers to a part of the organization, typically addressed in a Segment Architecture, while ' End-to-end Target Architecture ' encompasses the complete view of the planned architecture across the entire organization.

Within the TOGAF framework, assessments are used to ensure that architecture work is conformant with governance parameters. A compliance assessment (sometimes called architecture compliance or compliance review) is the evaluation of a project’s architectural artifacts—its design, architecture decisions, progress status—against the established architecture standards, principles, and constraints. The content of a compliance assessment typically includes reviewing the project status, the architectural design alignment, and identifying noncompliance issues or deviations. Because it focuses on how well the project matches the architecture, rather than on capabilities, organizational structure, or risk per se, the described contents correspond to a compliance assessment. The compliance assessment helps governance bodies enforce architectural consistency and correct deviations during implementation.

These domains provide a consistent way to describe and understand the architecture from different perspectives, such as business, information, and technology12. Each domain has its own set of concepts, models, views, and artifacts that define the structure and behavior of the architecture within that domain12.

The other options are incorrect because:

•Logical and Physical are not architecture domains, but rather levels of abstraction that can be applied to any domain. Logical architecture describes the functionality and behavior of the system, while physical architecture describes the implementation and deployment of the system3.

•Information and Data are not distinct architecture domains, but rather aspects of the same domain. Information architecture describes the meaning and context of the data, while data architecture describes the structure and format of the data4.

•Capability and Segment are not architecture domains, but rather levels of granularity that can be applied to any domain. Capability architecture describes the current and desired states of a specific business capability, while segment architecture describes a subdivision of the enterprise that has a clear business focus5.

Gap Analysis in TOGAF is a technique used to compare the baseline architecture (current state) with the target architecture (future desired state). The output is a set of gaps, representing what is missing or what must change to move from baseline to target. These gaps help validate that the target architecture is adequate: by identifying what is not addressed, architects can ensure that all required functionality, constraints, and transformation paths are captured. In effect, Gap Analysis validates the architecture by exposing omissions, inconsistencies, or unmet requirements between what is and what should be. It is not primarily about defining service levels, nonfunctional requirements, or quality metrics (though it helps inform those). Rather, its main role is in validating and guiding closure of architectural gaps.

 In the ADM documents which are under development and have not undergone any formal review and approval process are called “draft”. This indicates that they are subject to change and refinement as the architecture development progresses. Reference: The TOGAF® Standard | The Open Group Website, Section 4.2.5 Architecture Deliverables.

Architecture Requirements Specification: “provides a set of quantitative statements that outline what an implementation project must do in order to comply with the architecture.” Open Group Publications

Statement of Architecture Work (Phase A output): “The Statement of Architecture Work defines the scope and approach that will be used to complete an architecture project.” (Produced in Phase A per the Phase A outputs list.) Open Group Publications

Enterprises are examples of the scope of an architecture according to the TOGAF Standard. An enterprise is defined as any collection of organizations that has a common set of goals and/or a single bottom line. Enterprises can be whole corporations or divisions of a corporation, government agencies or single government departments, partnerships and alliances of businesses working together, etc. Reference: The TOGAF® Standard | The Open Group Website, Section 2.1 Core Concepts.

According to the TOGAF Standard, 10th Edition, documents which are under development and have not undergone any formal review and approval process are called draft documents, while documents which have been reviewed and approved are called approved documents 1. Draft documents are typically marked with a version number of 0.x, indicating that they are incomplete or provisional. Approved documents are typically marked with a version number of 1.0 or higher, indicating that they have been finalized and authorized. The other options are not correct, as they are not the terms used by the TOGAF Standard to distinguish between documents under development and documents that have been reviewed and approved. The terms “finalized”, “concept”, “deliverable”, and “Version 0.1” and “Version 1.0” are not specific to the TOGAF Standard, and they may have different meanings or interpretations in different contexts. References: 1: TOGAF Standard, 10th Edition, Part II: Architecture Development Method, Chapter 7: Applying Iteration to the ADM, Section 7.2.3 Document Categorization.

The illustration shows an architecture development cycle based on the TOGAF ADM (Architecture Development Method), which is a method for developing and managing an enterprise architecture1.

The ADM consists of nine phases, each with a specific purpose and output. The phases are1:

Preliminary Phase: To prepare and initiate the architecture development cycle, including defining the architecture framework, principles, and governance.

Phase A: Architecture Vision: To define the scope, vision, and stakeholders of the architecture initiative, and to obtain approval to proceed.

Phase B: Business Architecture: To describe the baseline and target business architecture, and to identify the gaps between them.

Phase C: Information Systems Architectures: To describe the baseline and target data and application architectures, and to identify the gaps between them.

Phase D: Technology Architecture: To describe the baseline and target technology architecture, and to identify the gaps between them.

Phase E: Opportunities and Solutions: To identify and evaluate the opportunities and solutions for implementing the target architecture, and to define the work packages and transition architectures.

Phase F: Migration Planning: To finalize the implementation and migration plan, and to ensure alignment with the enterprise portfolio and project management.

Phase G: Implementation Governance: To provide architecture oversight and guidance for the implementation projects, and to manage any architecture change requests.

Phase H: Architecture Change Management: To monitor the changes in the business and technology environment, and to assess the impact and performance of the architecture.

In addition to these phases, there is a central process called Requirements Management, which is labeled as item 1 in the illustration. This process operates throughout the ADM cycle, and its purpose is to manage the architecture requirements throughout the architecture development, ensuring that they are aligned with the business requirements and the stakeholder concerns2.

Therefore, the description that matches the phase of the ADM labeled as item 1 is C. Operates the process of managing architecture requirements.

1: The TOGAF Standard, Version 9.2, Chapter 5: Architecture Development Method (ADM)

2: The TOGAF Standard, Version 9.2, Chapter 17: Requirements Management

(ADM Inputs/Outputs for early phases include Business Scenario/Architecture Vision content, with “Risks and issues” explicitly listed.) — “Business Scenario / Architecture Vision… Risks and issues …” www.opengroup.org

“TOGAF defines **‘enterprise’ as any collection of organizations that has a common set of goals. For example, an enterprise could be a government agency, a whole corporation, a division of a corporation, a single department, or a chain of geographically distant organizations linked together by common ownership.” www.opengroup.org

According to the TOGAF Standard, 10th Edition, a transformation readiness assessment is a technique that evaluates the preparedness of the organization to undergo a change, and identifies the actions needed to increase the likelihood of a successful outcome. A transformation readiness assessment can be conducted in Phase E: Opportunities and Solutions, and the actions resulting from it can be dealt with in Phase F: Migration Planning 1. In Phase E, the transformation readiness assessment can help to identify the major implementation challenges and risks, and to define the critical success factors and key performance indicators for the architecture project. In Phase F, the actions resulting from the transformation readiness assessment can help to develop a detailed and realistic migration plan, and to address the gaps, issues, and dependencies that may affect the transition to the target architecture 1. References: 1: TOGAF Standard, 10th Edition, Part III: ADM Guidelines and Techniques, Chapter 29: Business Transformation Readiness Assessment.

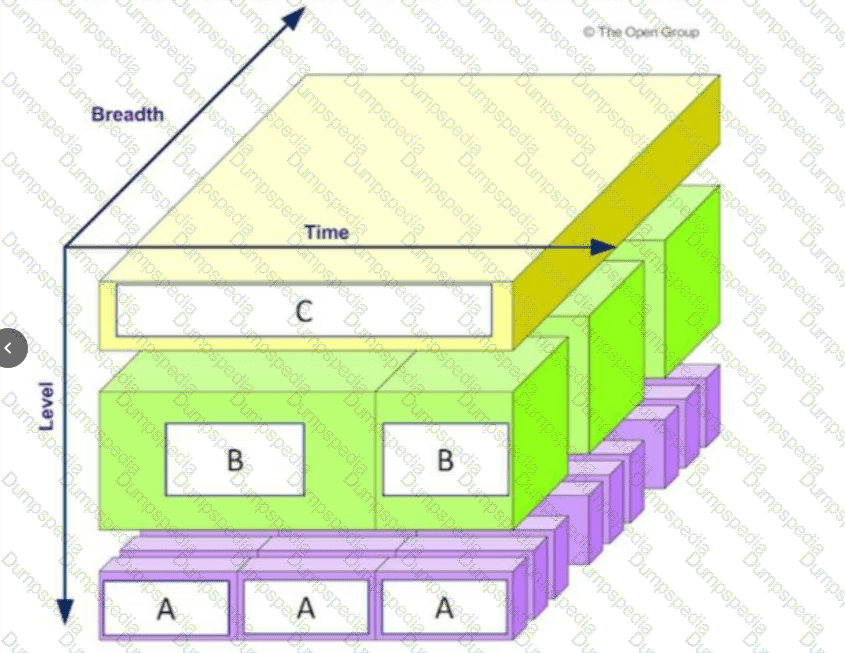

When scoping an architecture in TOGAF, three key axes (dimensions) are used to frame the extent of the architecture work. The first is time period (how far into the future or over what timeframe to plan). The second is depth—how detailed or granular the architecture models will be (e.g., high level, mid level, very detailed). The third is breadth, which refers to which parts (domains, business units, functions) of the enterprise will be included, and which architecture domains (business, data, application, technology) will be in scope. This triple‐dimension model helps architects, stakeholders, and governance bodies understand how wide, deep, and forwardlooking the architecture effort will be. Thus “breadth, architecture domains” is the correct third dimension.

Building blocks are reusable components of business, IT, or architectural capability that can be combined to deliver architectures and solutions. Building blocks can be defined at various levels of detail, depending on the stage of architecture development. In the earlier phases of the ADM cycle (A to D), building blocks are defined in generic terms, such as logical or physical, to provide a high-level view of the architecture. In Phase E: Opportunities and Solutions, building blocks become implementation-specific, meaning that they are linked to specific products, standards, technologies, and vendors that are available in the market. This phase also identifies the delivery vehicles, such as projects, programs, or portfolios, that will realize the building blocks12 References: 1: The TOGAF Standard, Version 9.2, Part II: Architecture Development Method (ADM), Chapter 23: Phase E: Opportunities and Solutions 2: The TOGAF Standard, Version 9.2, Part IV: Architecture Content Framework, Chapter 36: Building Blocks

Based on the illustration, the phase of the ADM labeled as item 2 is the Implementation Governance phase. This phase provides architectural oversight for the implementation. It ensures that the implementation project conforms to the architecture. It also provides a framework for monitoring and managing the implementation.

The Implementation Governance phase involves the following activities:

Finalizing the Architecture Roadmap and the supporting Implementation and Migration Plan

Assigning an Architecture Board to oversee the implementation

Establishing Architecture Contracts with the implementation partners

Reviewing and approving the implementation project plans and deliverables

Performing Architecture Compliance reviews to ensure alignment with the architecture

Performing Architecture Audit reviews to ensure quality and performance of the architecture

Resolving any architecture issues or change requests that arise during the implementation

Maintaining the architecture lifecycle and ensuring its continuity

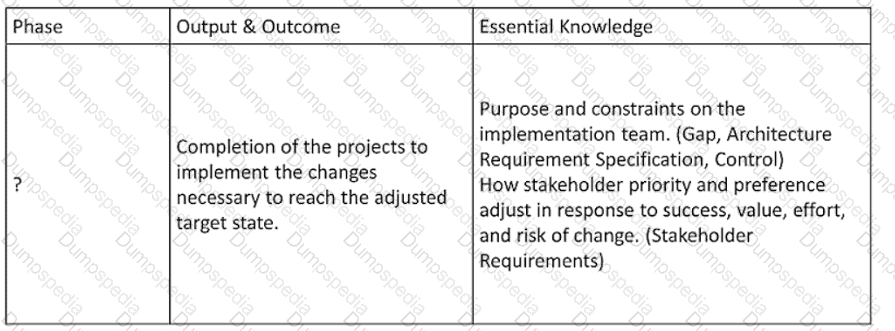

The Implementation Governance phase is essential for ensuring that the architecture is realized as intended and that it delivers the expected business value and outcomes.

Implementation Governance
