The two practical OSPF convergence improvements are enabling Bidirectional Forwarding Detection and tuning OSPF timers and throttling behavior. Cisco describes BFD as a protocol designed to provide fast forwarding-path failure detection across media, encapsulations, topologies, and routing protocols. With OSPF, BFD allows a neighbor failure to be detected rapidly without depending only on the OSPF dead interval. OSPF parameters can also be tuned, including SPF scheduling, LSA generation, and LSA arrival throttling, so the control plane reacts quickly but not recklessly during instability. Merging all areas into one backbone area is not a convergence improvement; it usually increases the size of the link-state database and the impact of topology changes. Making every nonbackbone area stub may reduce external LSA scope, but it is not universally valid and does not directly solve failure detection. Spanning the same IP network across multiple OSPF areas is a poor design and can create operational ambiguity. Therefore, BFD plus careful OSPF parameter tuning are the appropriate convergence-focused design actions.

Dedicated control-plane nodes are advisable when frequent endpoint roaming across fabric edge nodes is expected. In Cisco SD-Access, the control-plane node maintains the host tracking database and resolves endpoint identifiers to routing locators. When endpoints move between fabric edge nodes, the fabric must update endpoint-to-location mappings quickly and consistently. In smaller deployments, the control-plane function can sometimes be colocated with border nodes, but larger or more mobile environments benefit from dedicated control-plane nodes to improve scale, resilience, and operational separation. The decision is not because Cisco DNA Center is absent; DNA Center is the management and automation platform for SD-Access. It is also not because edge nodes are unable to provide control-plane functionality, since that is not their fabric role. Frequent roaming creates more mapping updates and lookup activity, so dedicated control-plane resources help maintain stable endpoint registration and resolution performance. Reference topics: Cisco SD-Access control-plane node, host tracking database, endpoint mobility, LISP map server, fabric scale.

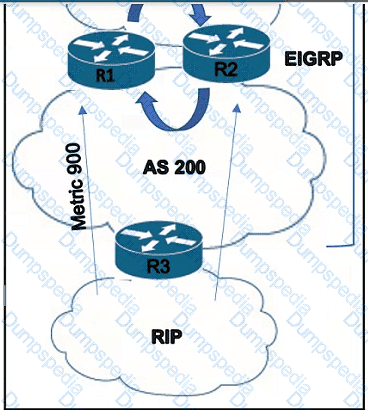

Route tags are the correct loop-prevention mechanism when connecting another routing domain or redistributed network behind R3 into an EIGRP network. Redistribution can create route feedback: a route learned from one domain is redistributed into another, then later redistributed back into the original domain as if it were new information. That can produce routing loops or suboptimal path selection, especially in multipoint redistribution designs. Cisco route-map based redistribution commonly uses route tags to mark the origin of redistributed routes. Other redistribution points can then match those tags and prevent the same routes from being reintroduced into the source domain. Split horizon prevents advertisements back out the interface on which a route was learned, but it is not sufficient for multipoint redistribution loop prevention. Summarization reduces route detail and query scope but does not identify route origin. The OSPF down bit is used in MPLS VPN/OSPF PE-CE scenarios, not general EIGRP redistribution. Therefore, the design should use route tags. Reference topics: EIGRP redistribution, route tagging, routing-loop prevention, route maps, redistribution policy.
